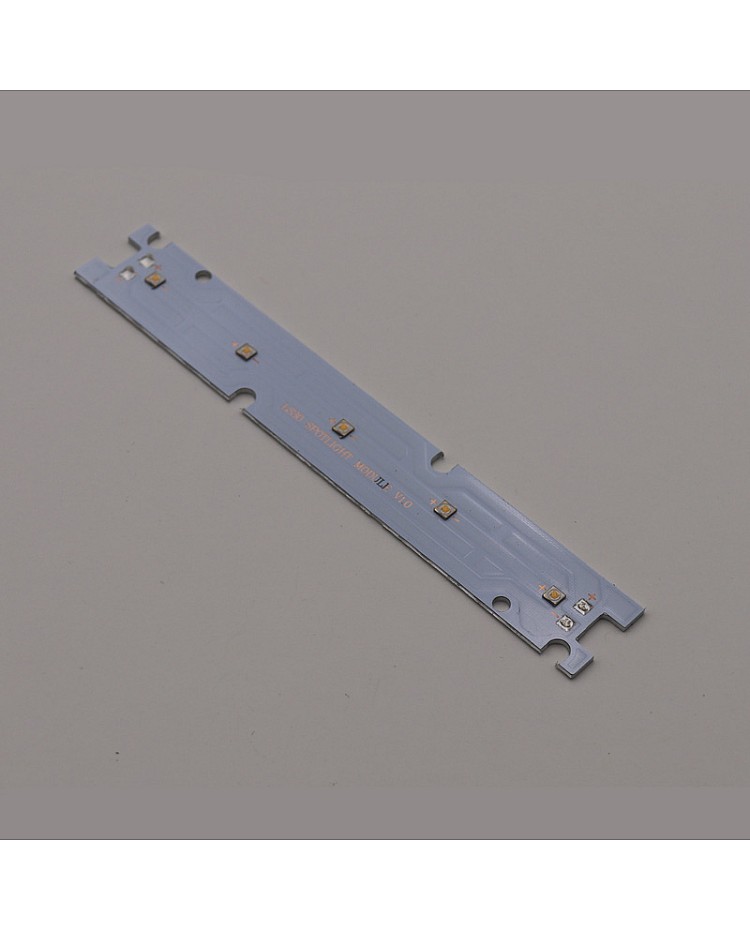

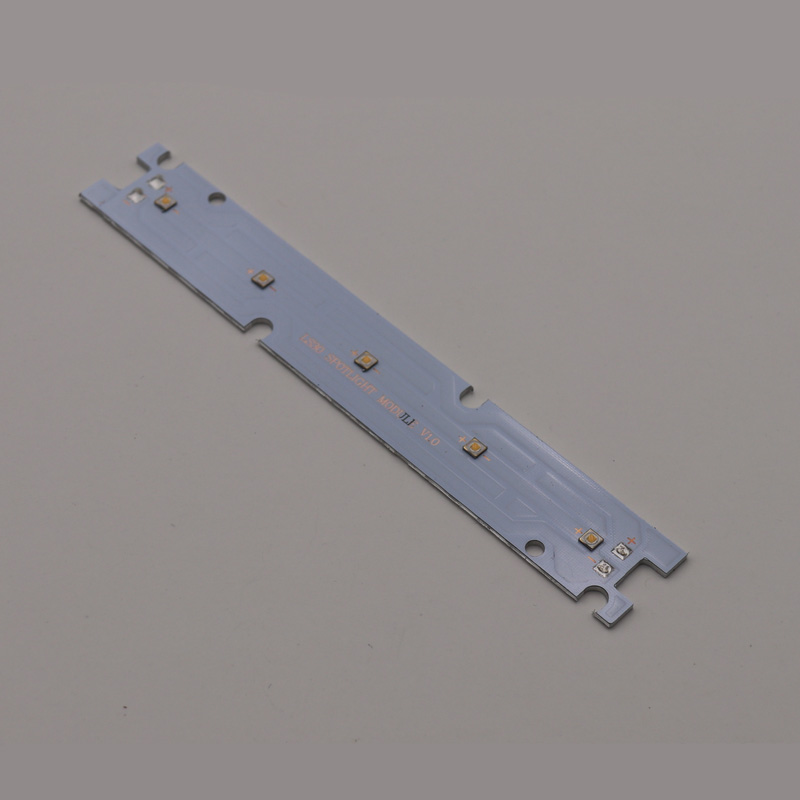

The Rigid LED Lighting Modules are specifically designed for use with LS30 Light Channels, compatible with LS30, LS30-T, and LS30-TS models. The length is 132.5mm per piece. Each uses five pieces of Osram 3030 SMD LEDs as the light source. It works on DC 15V. You can choose the 3000K warm white and 4000K natural white Light Modules for various scenes.
Specifications:
- Model: LM3030LS30P6
- Size: 132.5*20*6mm
- Working Voltage: DC 15V
- Input Current: 0.4A
- Power: 6W
- Color Temperature: 3000K Warm White/4000K Natural White
- CRI: >80Ra
- LED: 3030 SMD LEDs
- LED Brand: Osram
- Suit For LS30 Series Light Channels: LS30, LS30-T, LS30-TS
- 3 Years Warranty
Includes:
1*LED Module For LS30-TS Light Channels

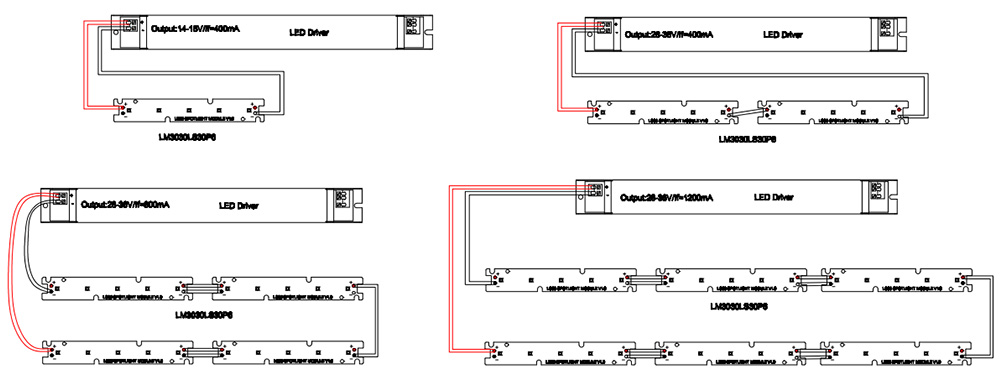

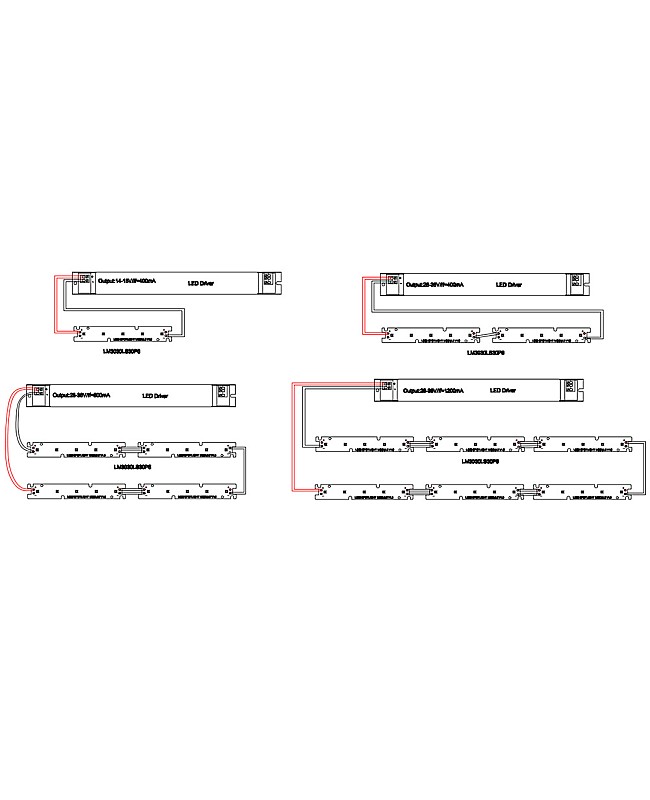

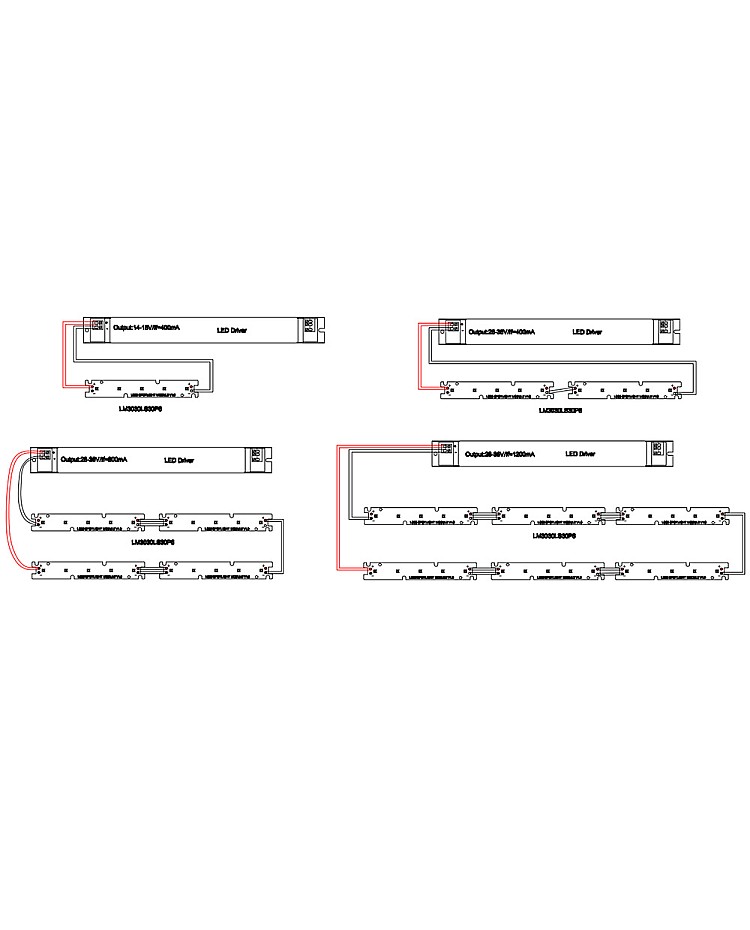

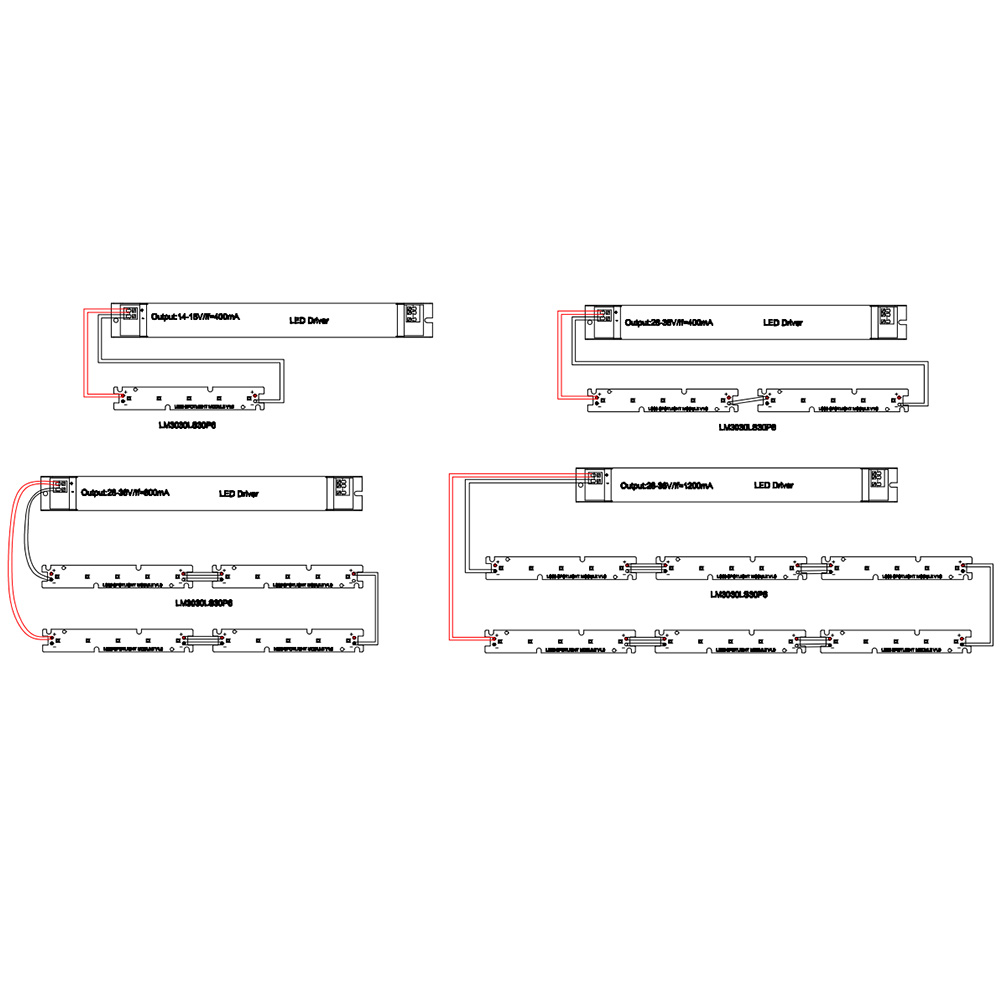

How To Connect The Light Modules To the LED Driver:
