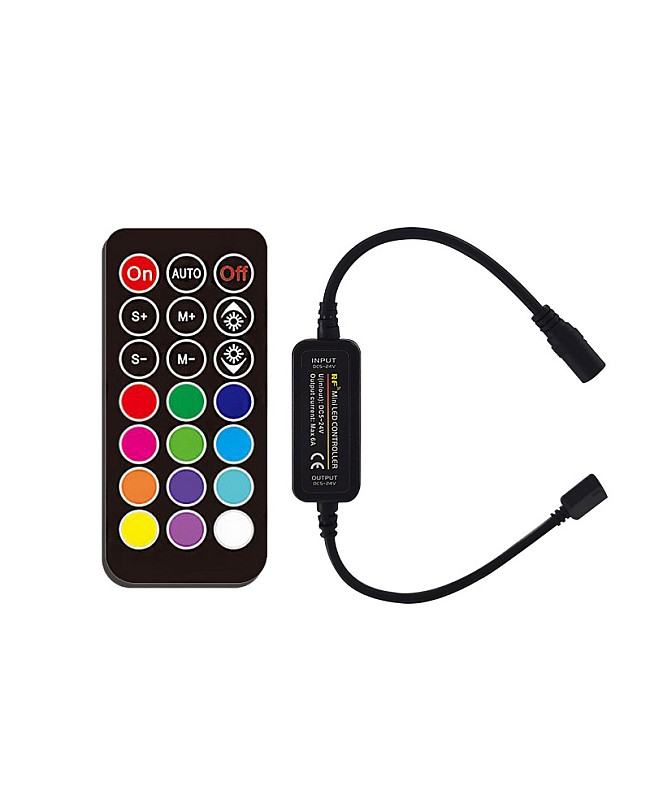

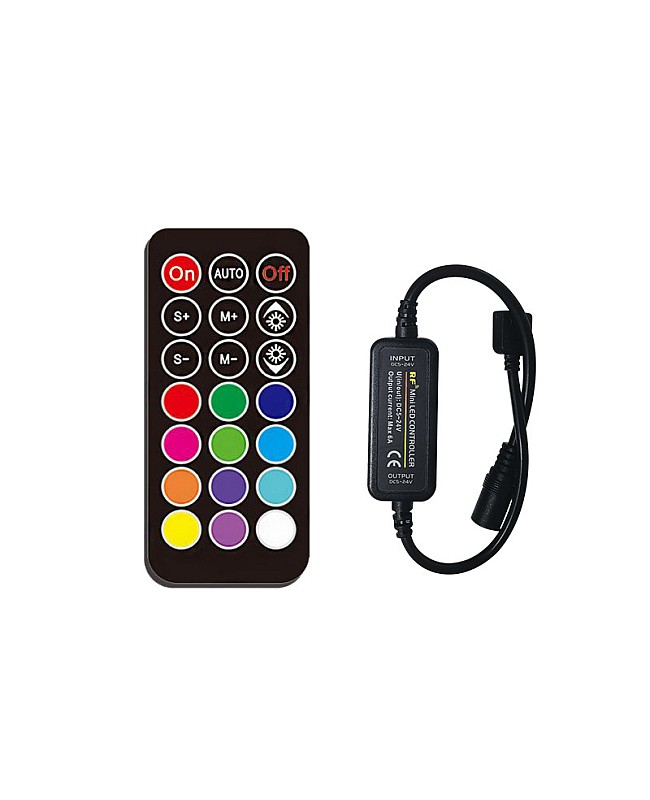

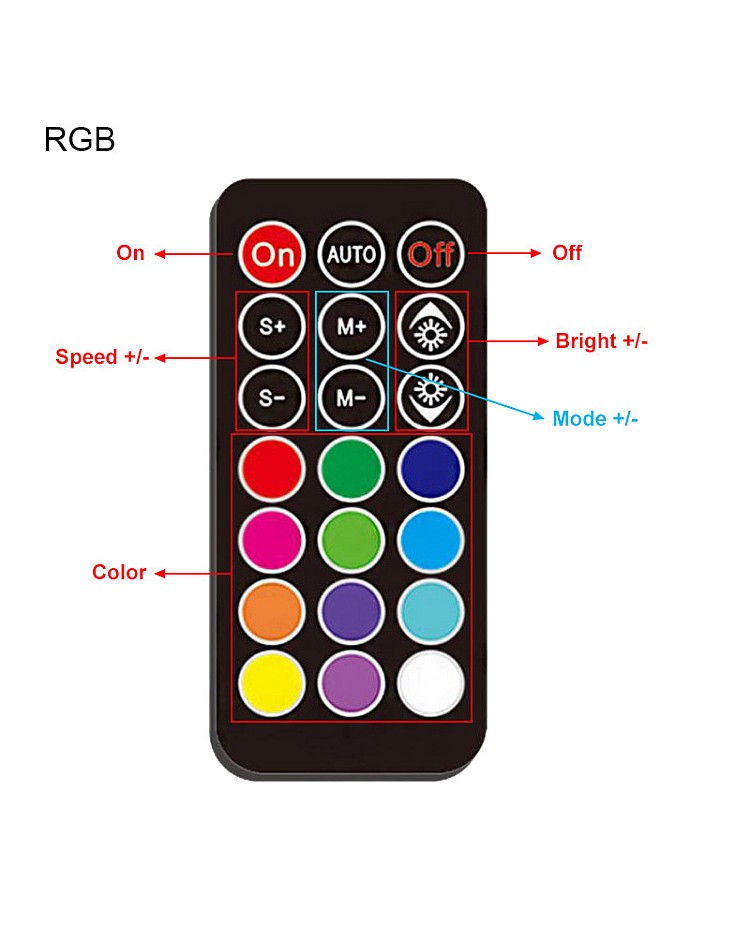

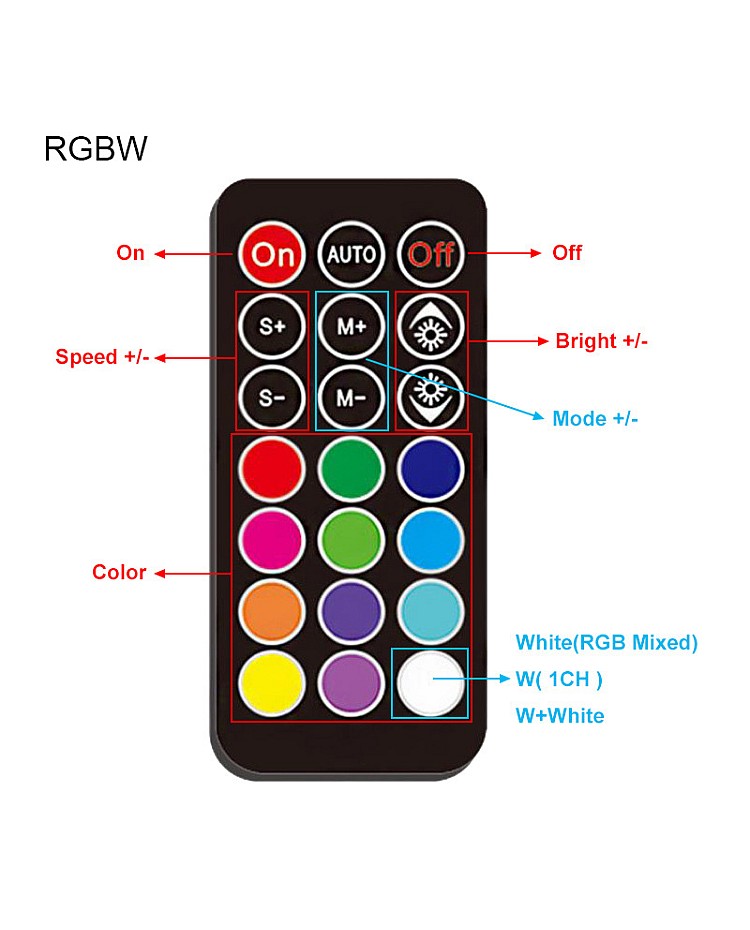

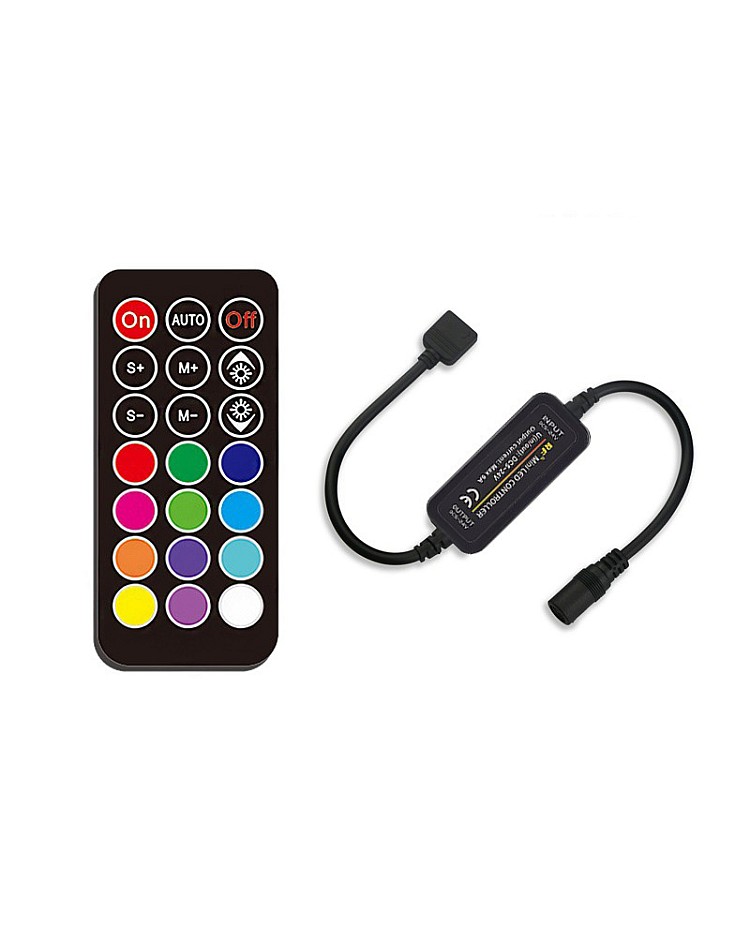

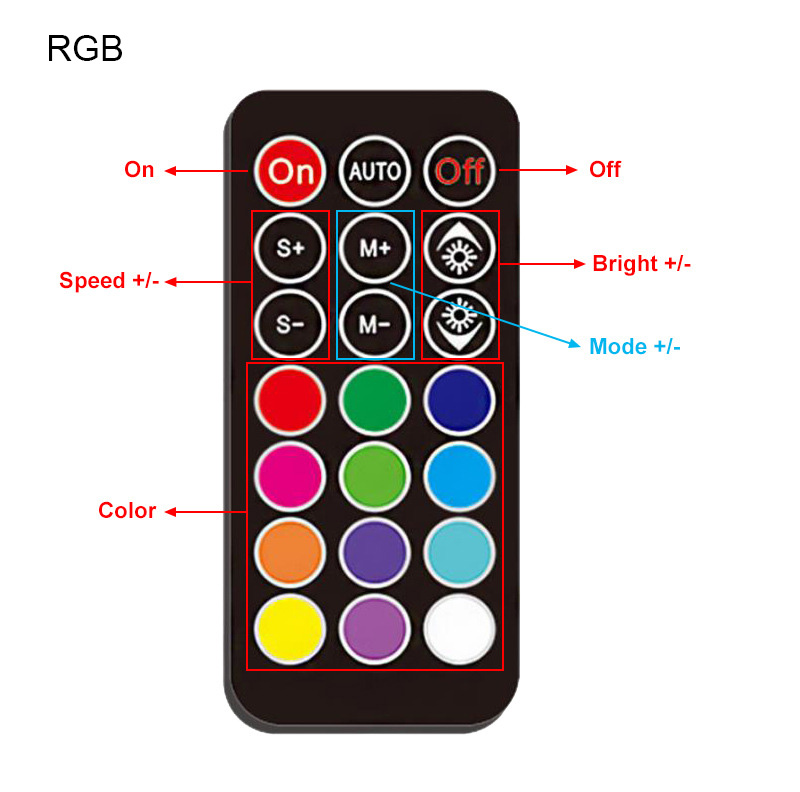

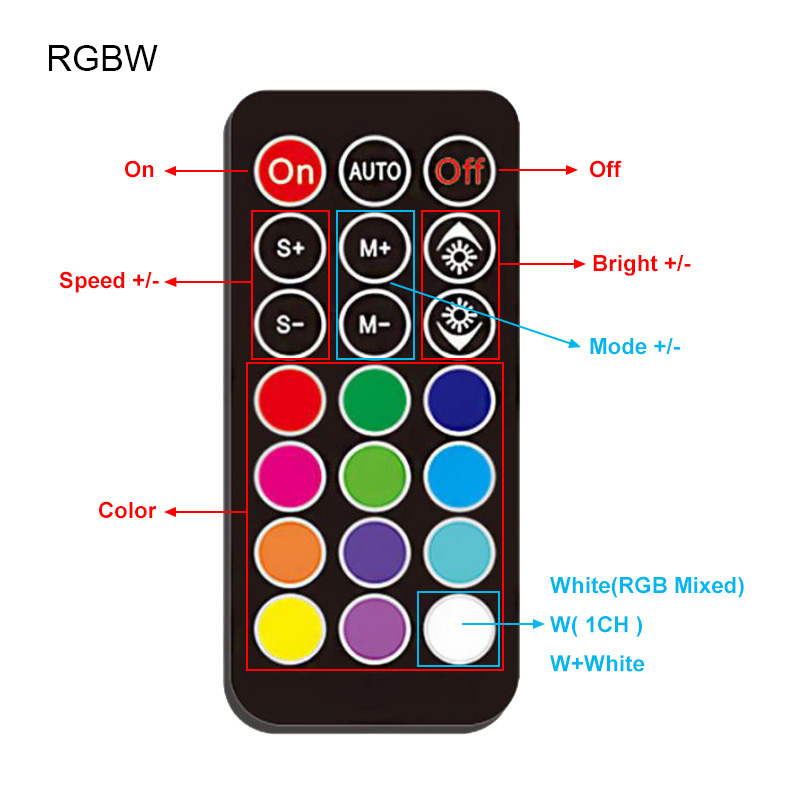

The LED RGB strip RF controller features a mini size and an inline design, allowing for easy installation in narrow or small spaces, such as under a cabinet or within furniture. Working with a voltage range of 5V to 24V, versions with 3 or 4 output channels are available for RGB or RGBW LED strip lights. The mini RGB LED controller boasts a female DC connector and 4-pin or 5-pin female LED connector, making it easy to connect to LED power supplies and LED strips. The 21 Keys RF remote control can set 12 static colors and 19 dynamic modes, with adjustable brightness for static colors and speed for dynamic modes.
Specifications:

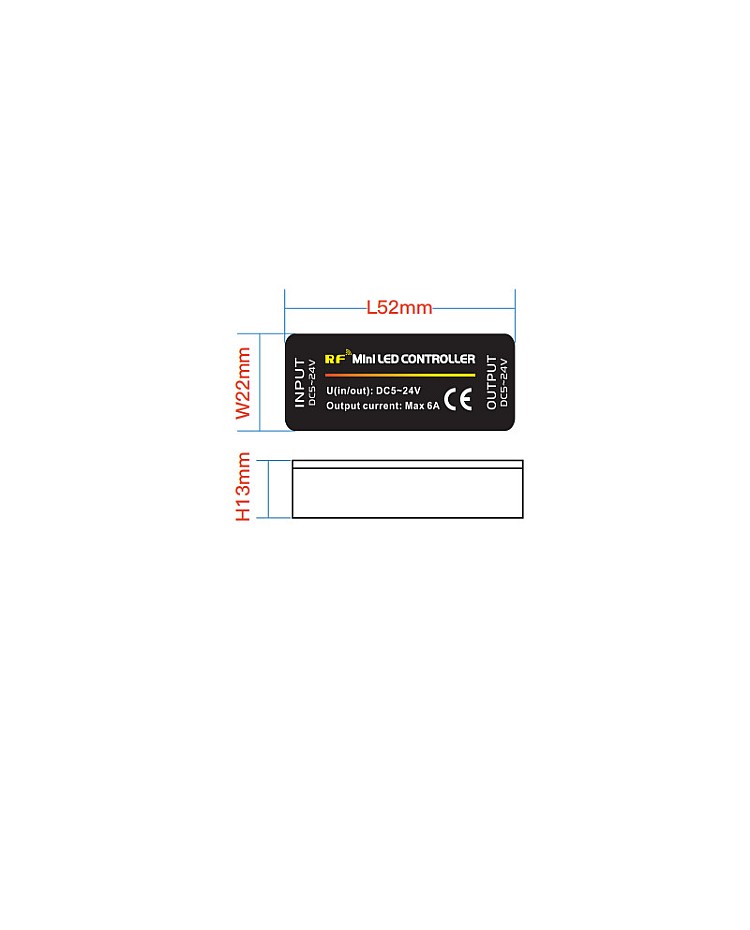

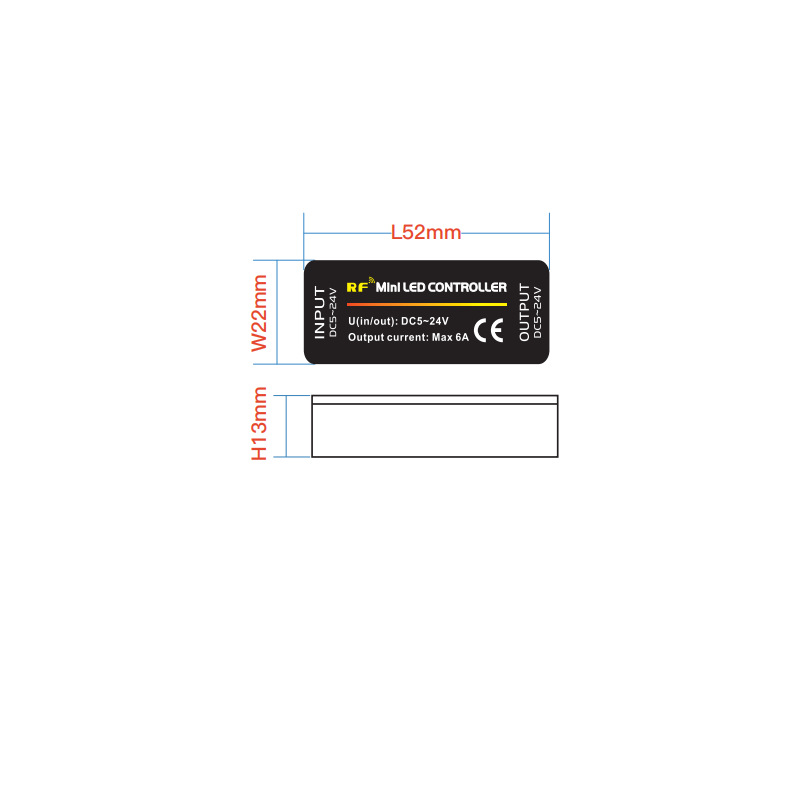

- Size: 55*22*13mm(L*W*H)
- Working Voltage: DC5-24V
- Connecting Method: Common Anode
- Static Power Consumption: <0.5W
- Output Current: Total, 6A: 3*2A(RGB)/4*1.5A(RGBW)
- Output Power: 5V: <30W; 12V: <72W; 24V: <144W
- Working Temperature: -20℃-60℃

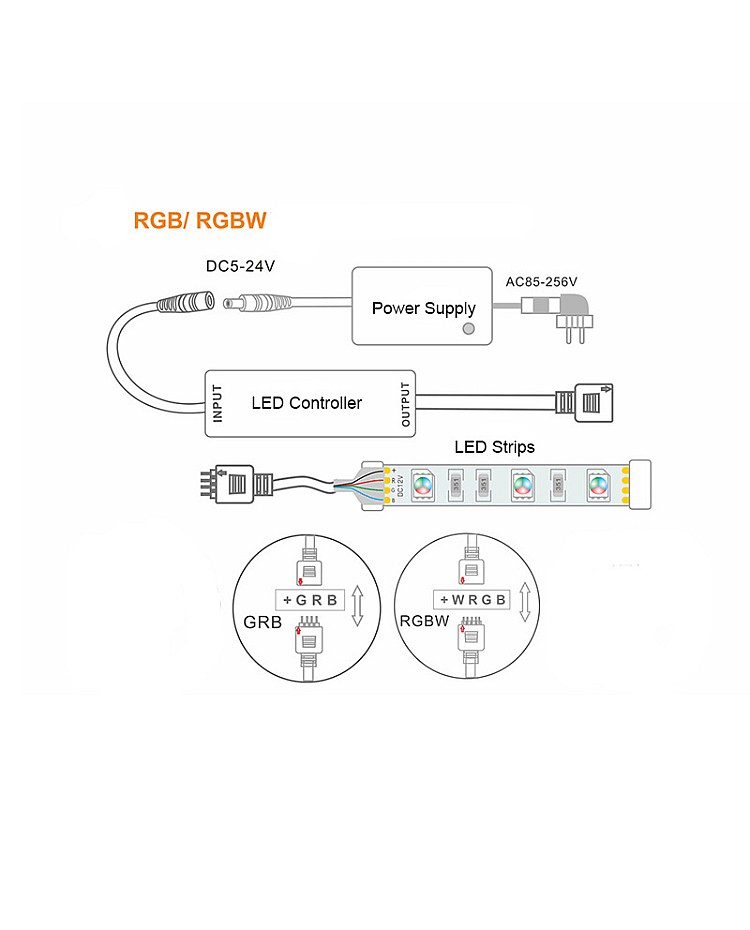

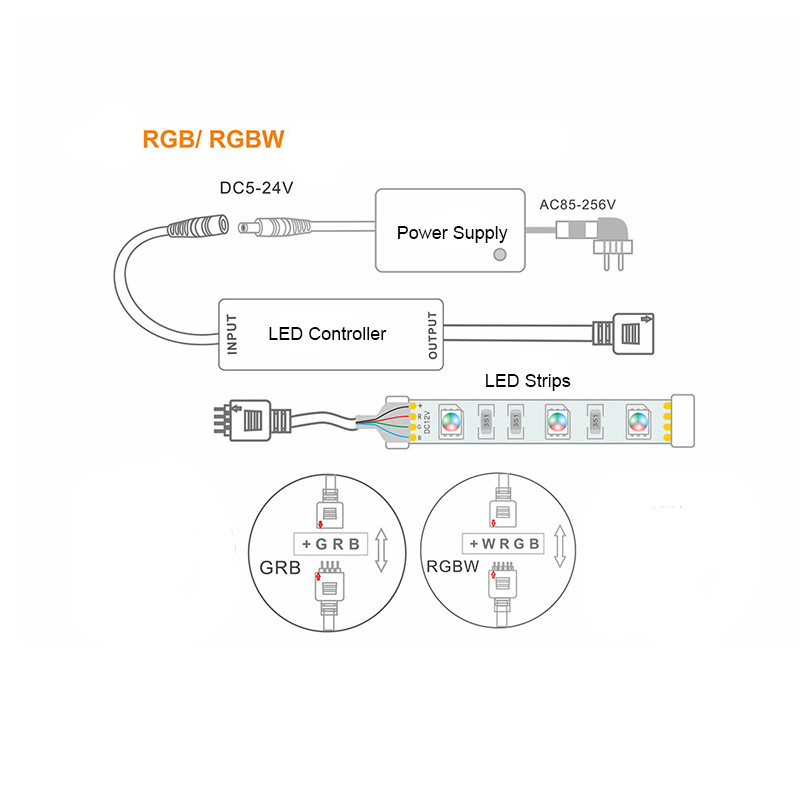

- 5.5*2.1mm DC Female Connector And 4Pin Female Connector(5Pin Female Connector For RGBW) Included
- 12 Static Colors And 19 Dynamic Modes Available
- Color Order: +GRB
- 0-100% Dimmable
- Speed Of Dynamic Modes Adjustable
- 2 Years Warranty
Includes:

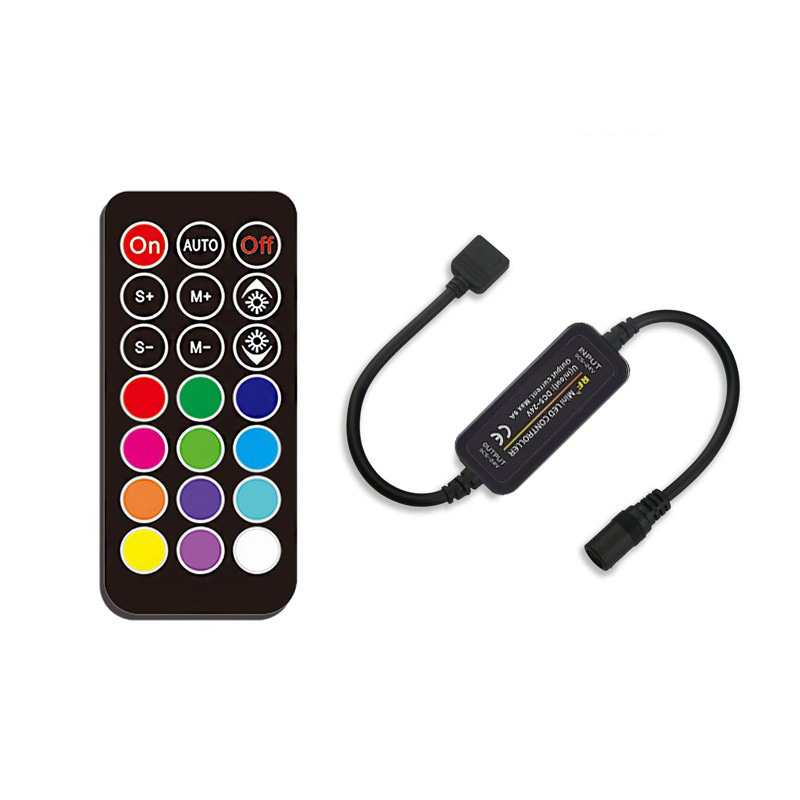

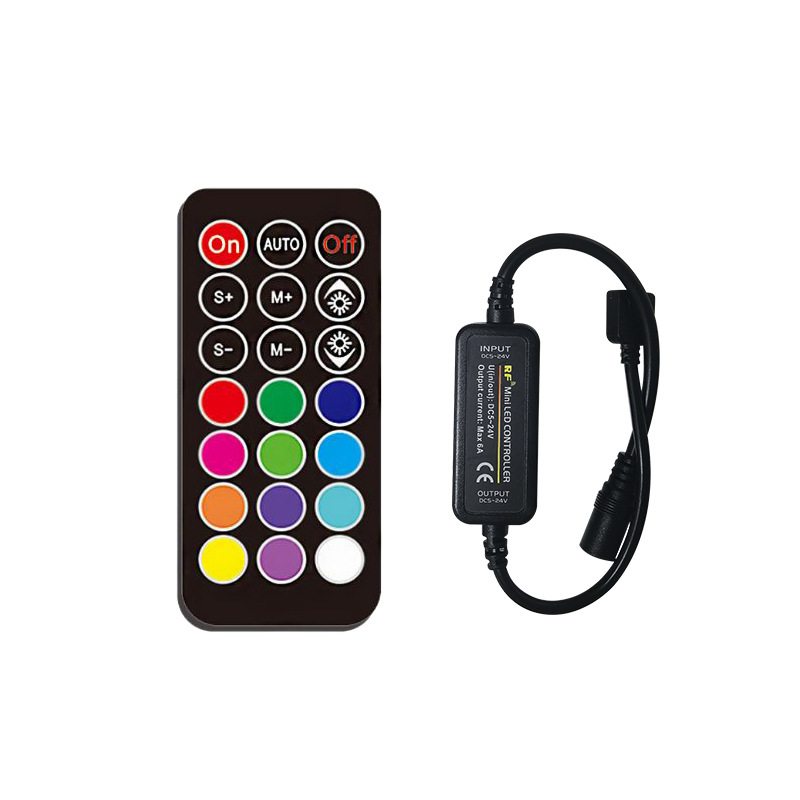

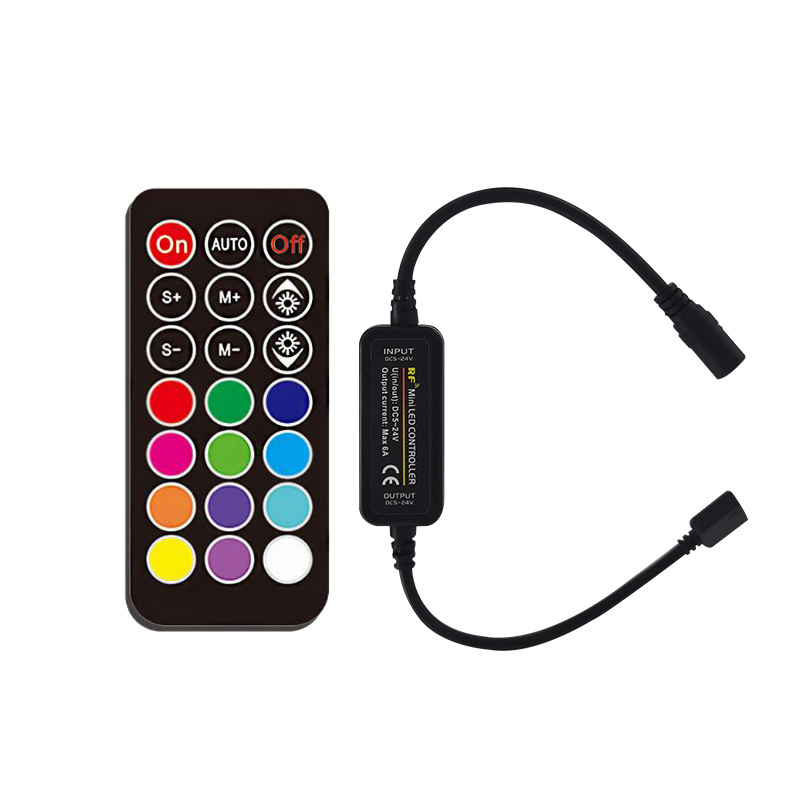

1 * LED RGB Strip RF Controller
1 * 21 Keys Remote Control
