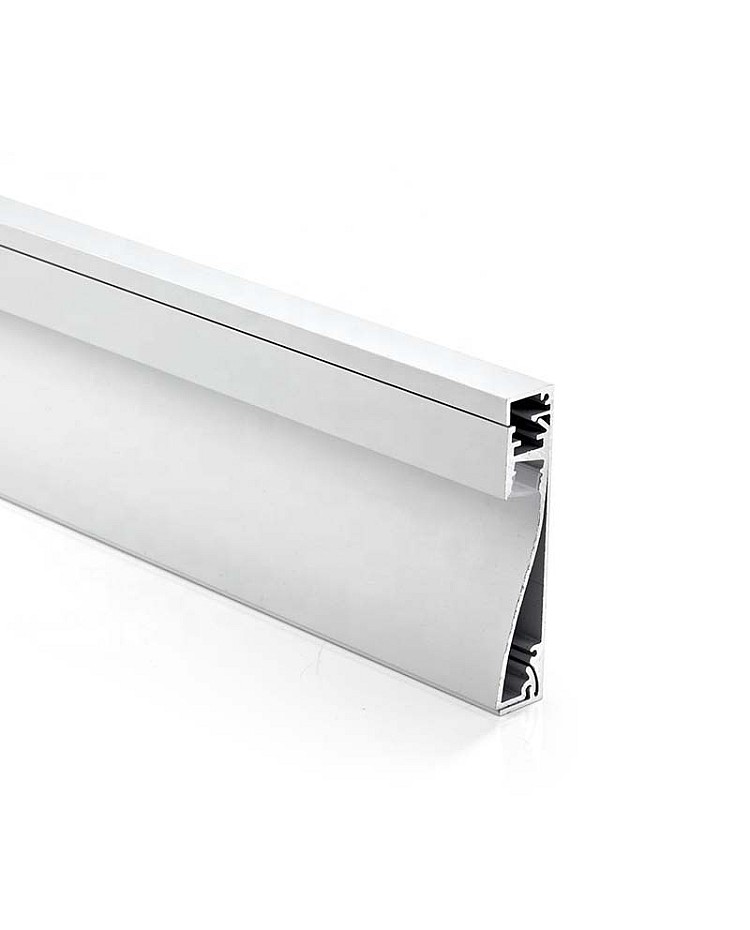

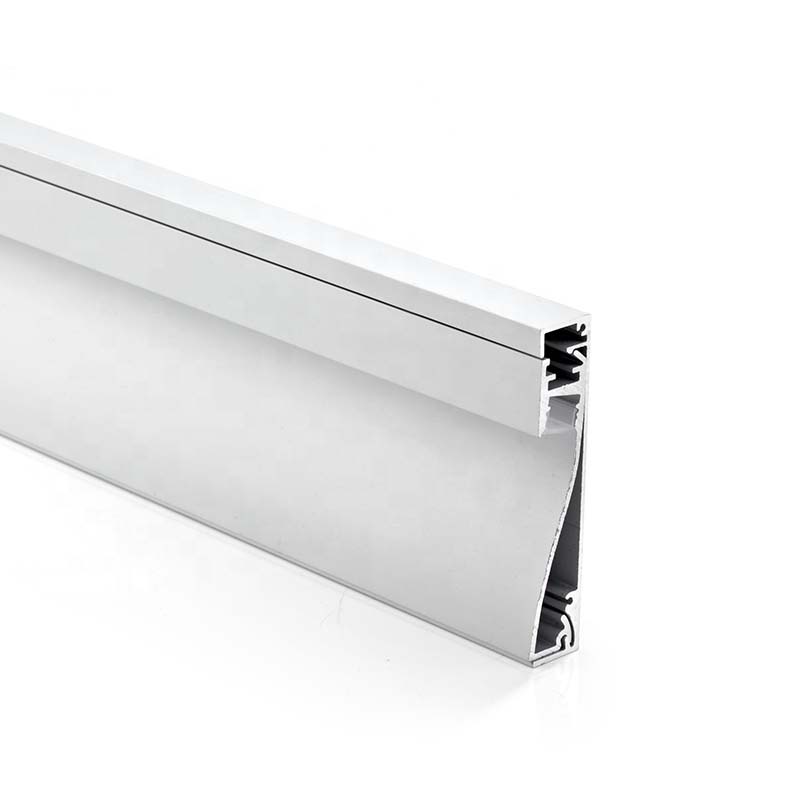

The LED Tape Channel Without Flange is an excellent option for footline light, baseboard accent lighting, and skirting Lighting. The Tape Light Profiles are designed to provide a sleek and seamless look. It's made of high-quality aluminum material with an anodized finish, anti-oxidation resistance, and a longer lifespan. The standard length is 1M and 2M and can be cut to any size that fits your project. The inner width is 10.3mm, which allows the maximum width of strip lights to be 10mm. Recommend adding high-density SMD Strip Lights as the light source, without visible light dots. Only one type of diffuser is available: the PC Opal Diffuser, made of brand material and anti-yellowing to create an even, seamless light. The Aluminum Light Channels allow the LED Strips to be concealed within the Skirting Board, creating a more subtle effect. The Channels are designed to fit snugly and can be easily installed with a few simple tools. It's perfect for creating a soft glow along the footline.

Links: Corner Connectors For ALP076


  • Model: ALP076

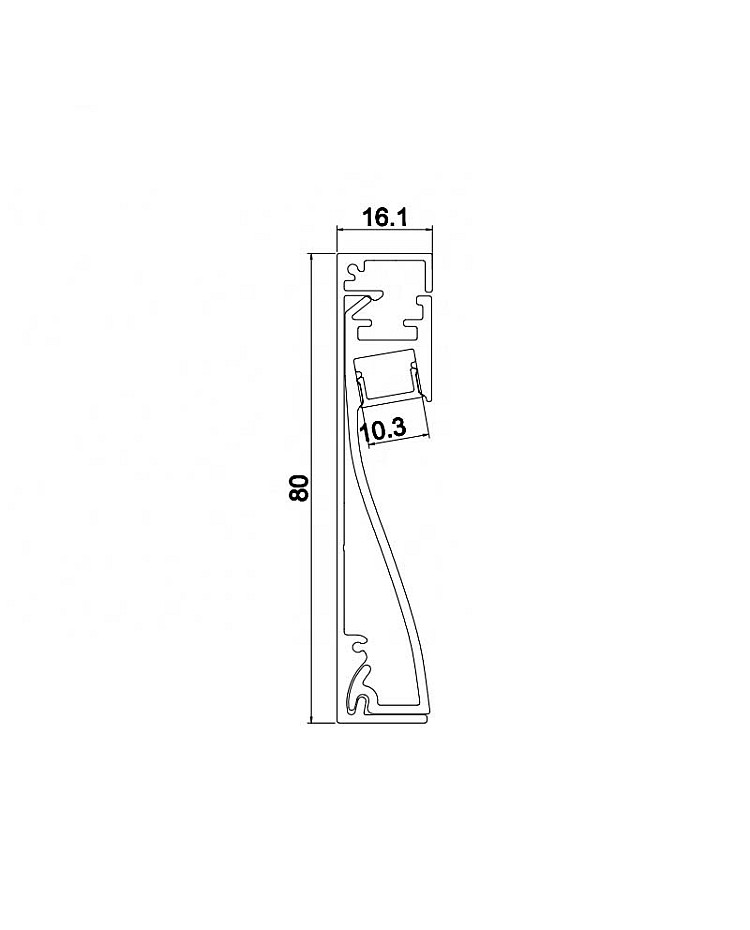

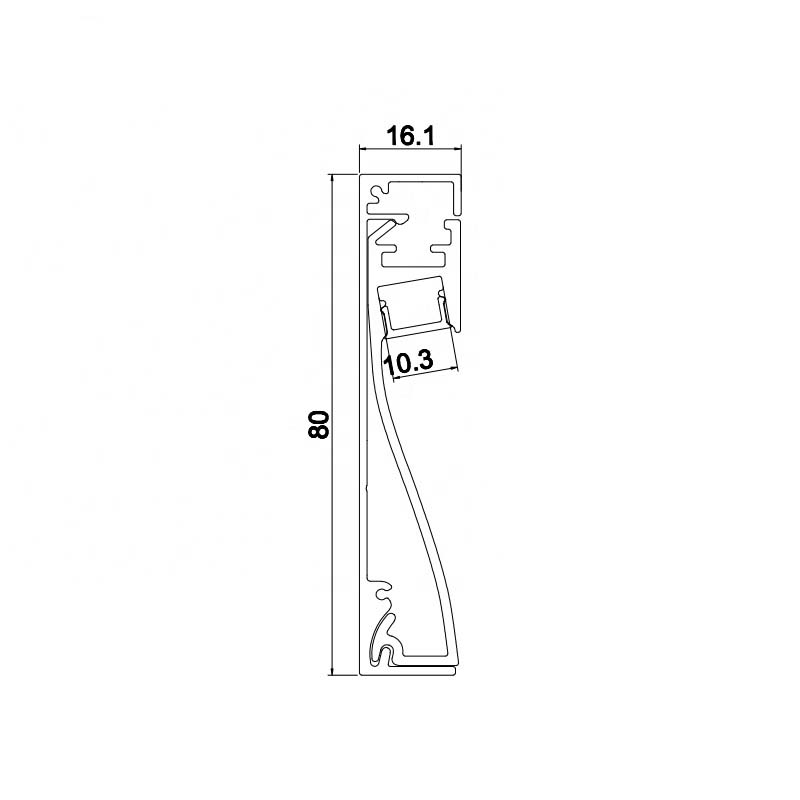

  • Size: 80*16.1mm
  • Material: AL6063-T5 Aluminium
  • Color: Silver, White, Black
  • Diffuser: PC Opal Diffuser
  • Surface Treatment: Anodized
  • Inner Width: 10.3mm
  • Allows The Max Width Of Strip Lights: 10mm
  • Max Power: 20W/Meter
  • Standard Length: 1Meter
  • Other Length Available: 1.5Meter, 2Meter, 2.5Meter, 3Meter, 5Meter

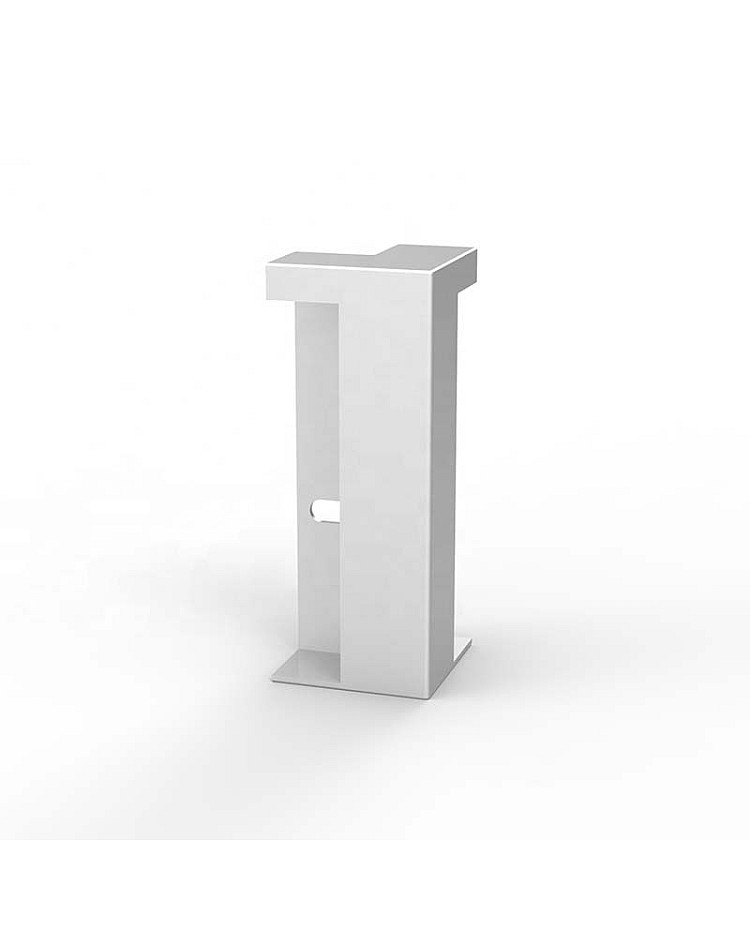

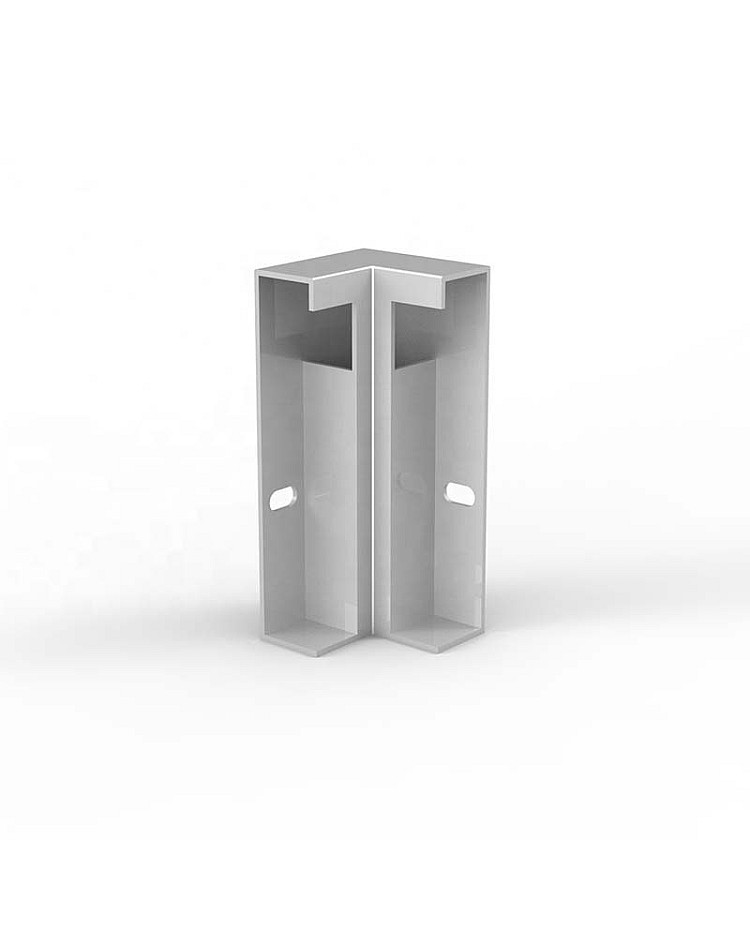

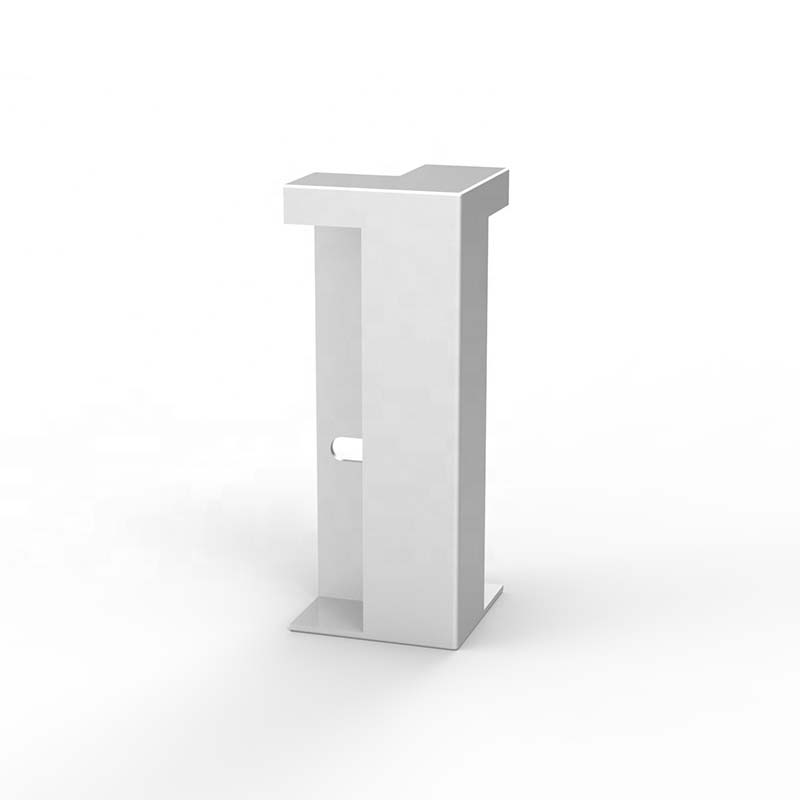

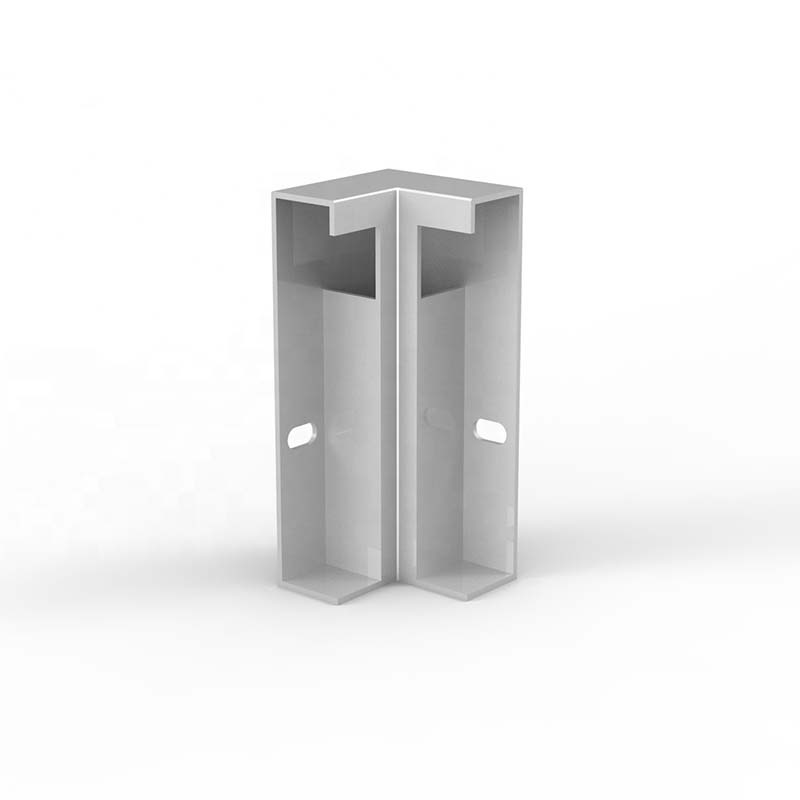

  • Inside Corner And Outside Corner Connectors Sold Separately

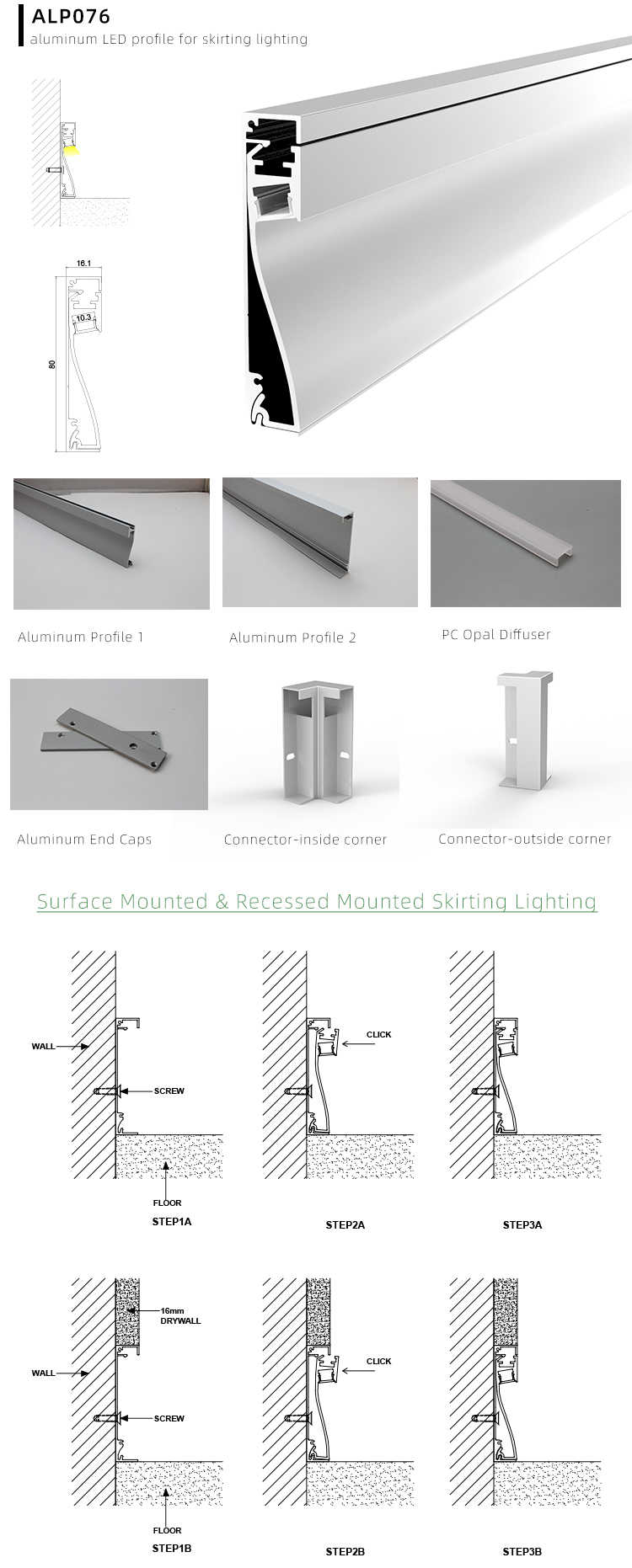

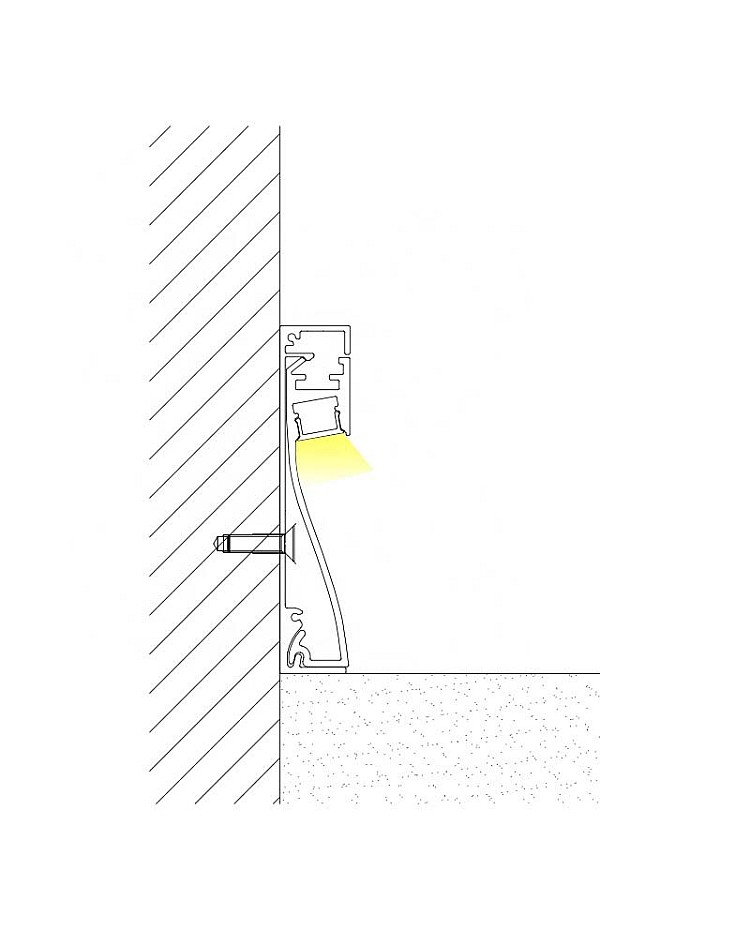

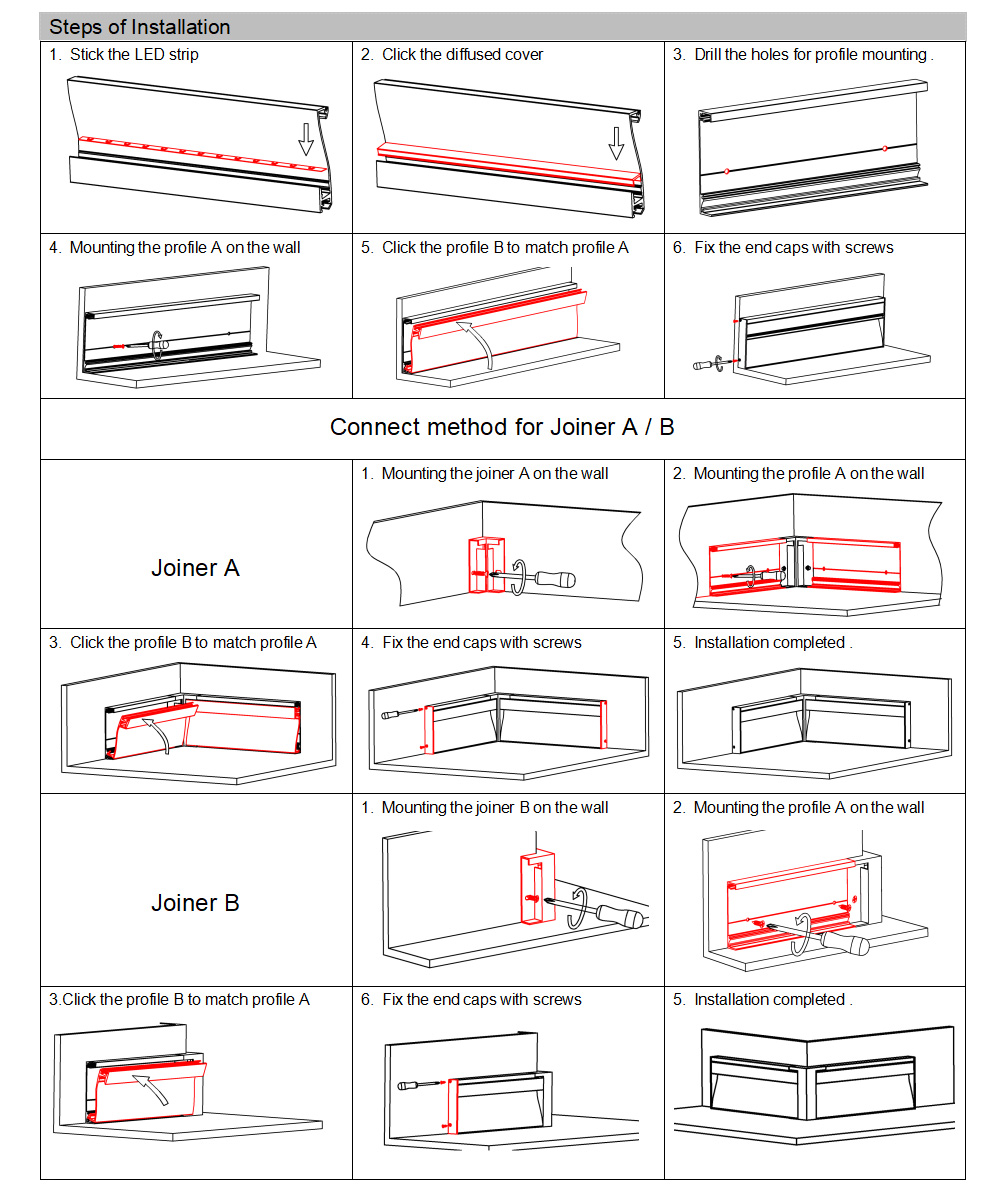

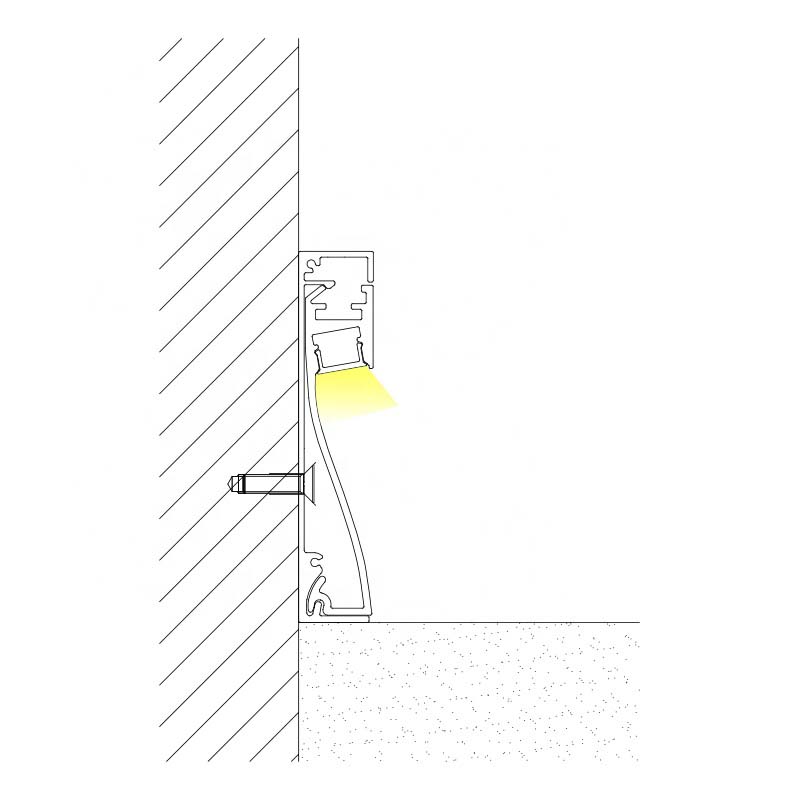

  • Installation: Recessed/Surface Mounted
  • Applications: Skirting Board LED Lights
  • Warranty: 5 Years


1*LED Tape Channel With Diffuser

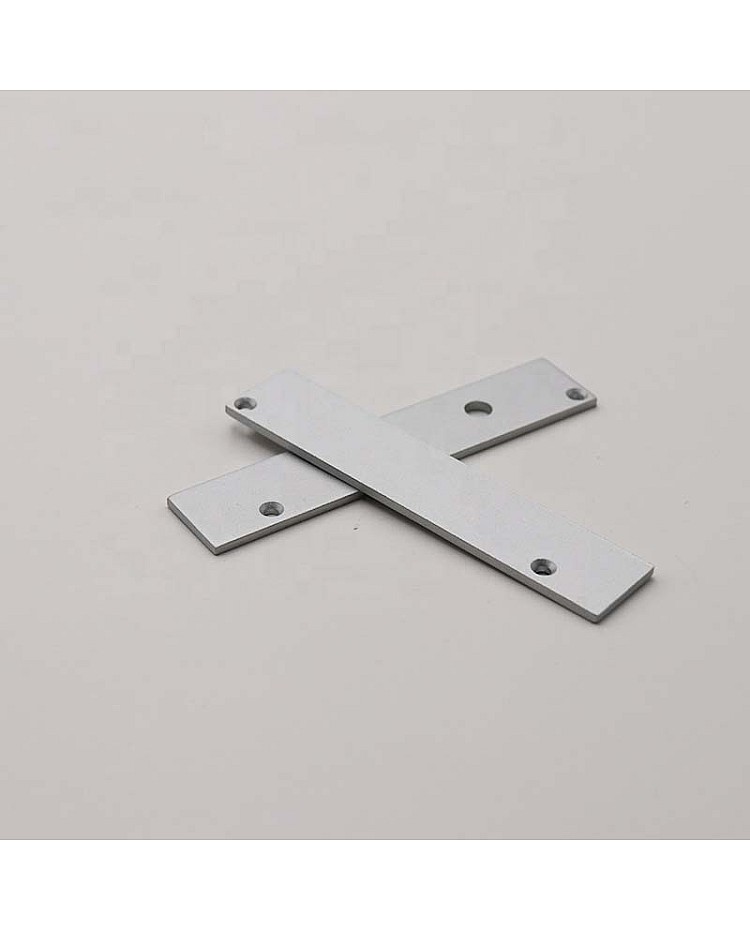

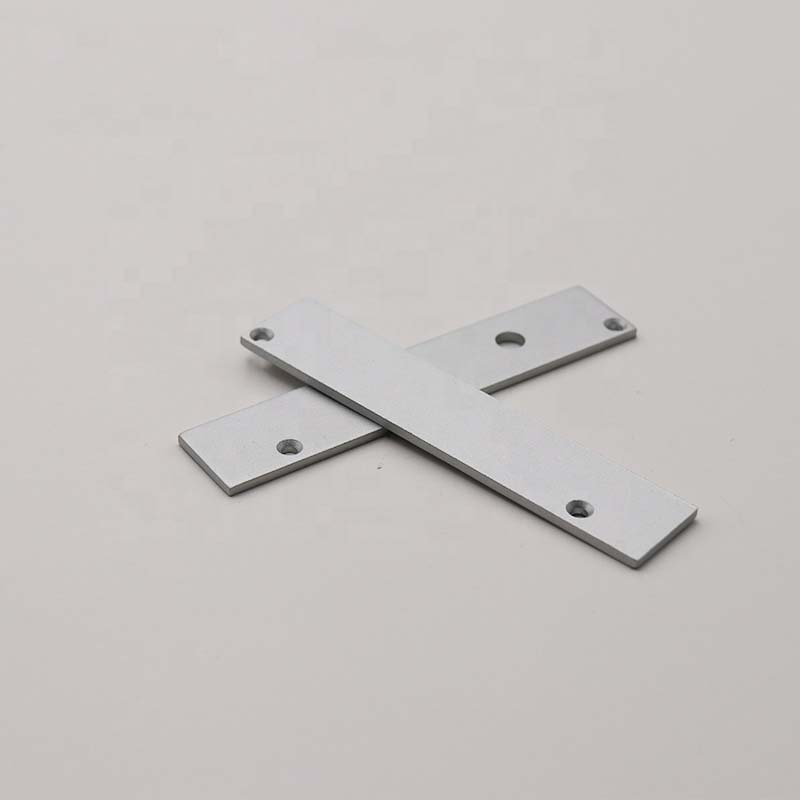

End Caps

LED Tape Channel Without Flange LED Skirting Lighting Channels
