In Stock
$9.17 $6.39 Sale -30% OFF
Reward Points: 6
This product has a minimum quantity of 6
  • Brand: Ledbe
  • Product Code: ALP039

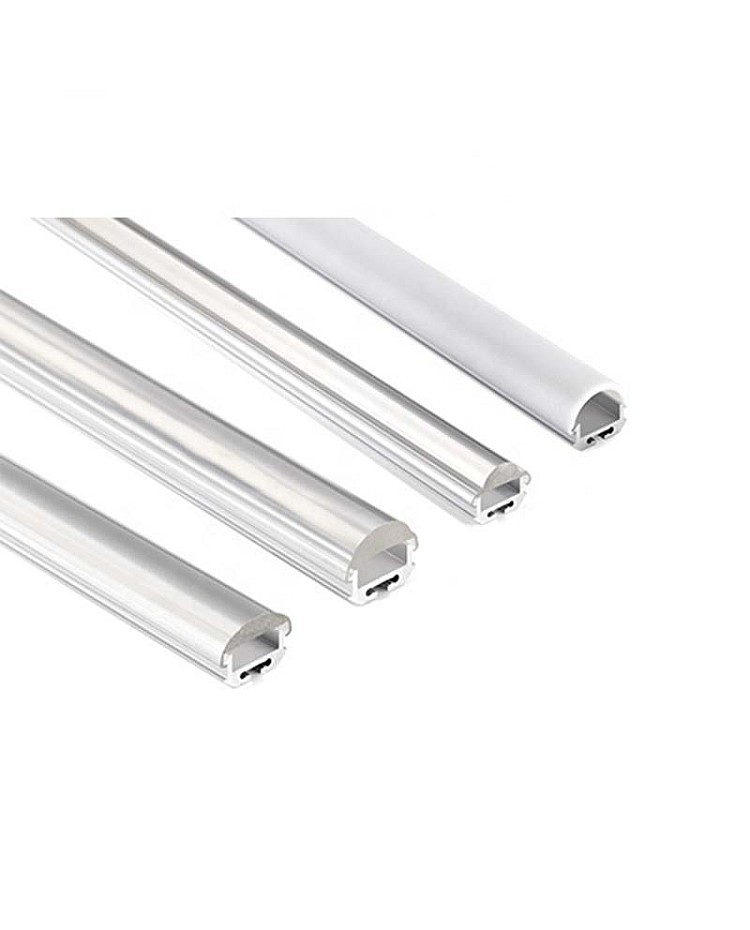

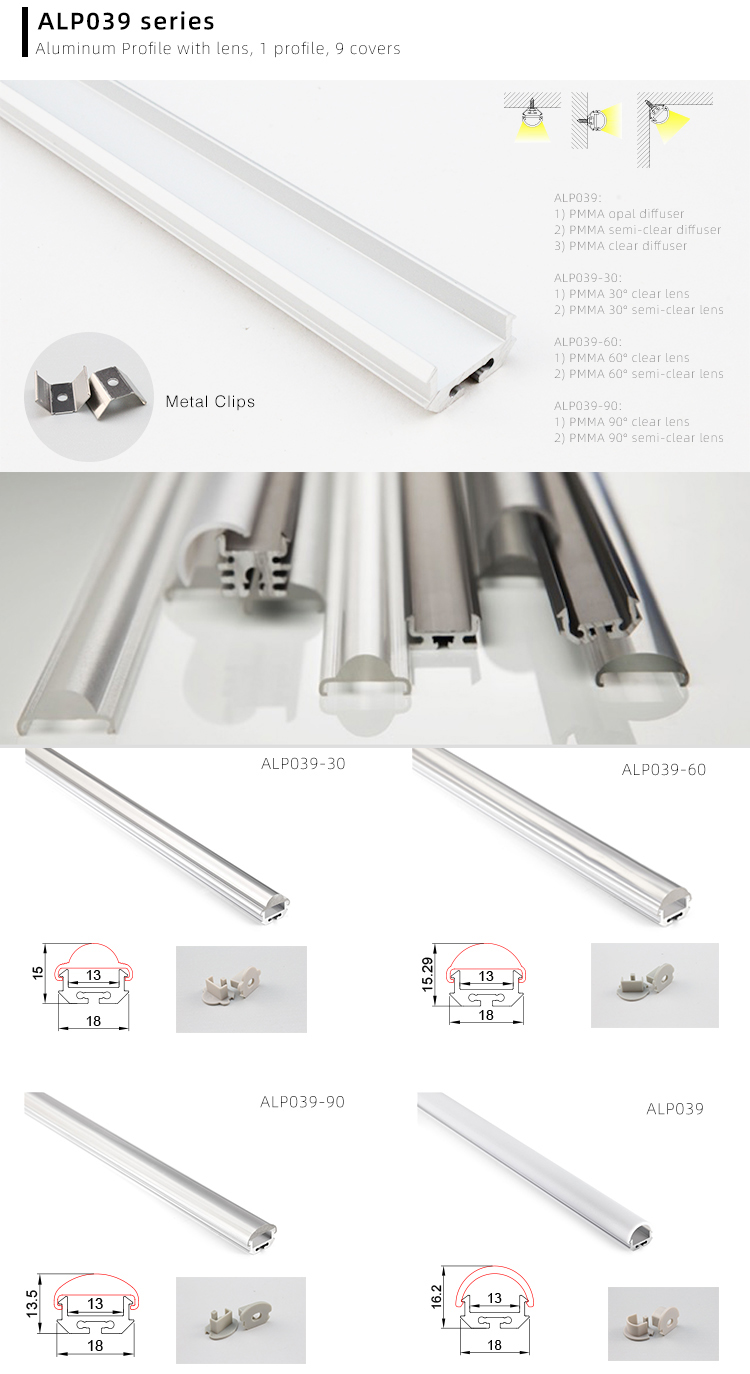

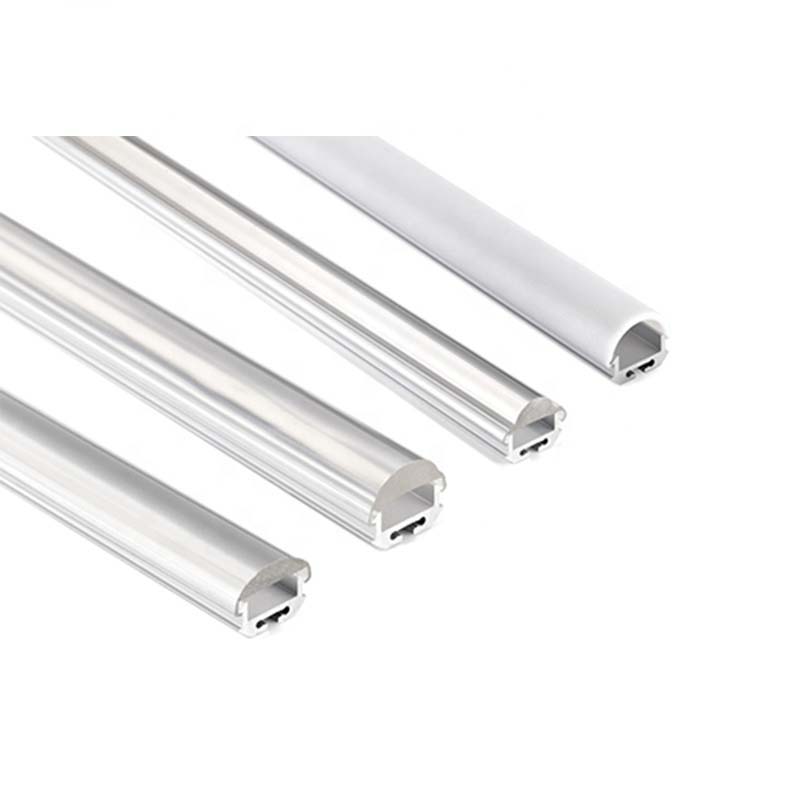

Check the Linear Profile Light with multiple lenses available for the under-cabinet or wardrobe, you can fix them on the surface of your project with the screws, the end caps with wire holes and metal clips included. the Linear Light Profile includes 2 parts, the base is LED Profiles, the top part is the lens. the LED Linear Profile Light is made of 6063-T5 aluminium alloy and with silver surface treatment, anti-oxidation resistance and has a longer lifespan than other similar products. the LED Profiles can be used as a heat sink for better heat dissipation. there are four types of lenses available, 他the lens made of brand stable PMMA material, anti-yellowing, perfect light distribution and high light output, you could choose the 180°,30°,60° and 90° Lens for various lighting effects for your Linear Lighting Projects. the standard length is 1meter, the max length is 3m per piece and can be cut to any size, the end caps with wire holes and metal clips are included, easy to put the Flexible LED Strips into the LED Profiles and connect to the AC DC Converter to light up.


  • Model: ALP039 Series
  • Material: 6063-T5 Aluminium Alloy
  • Surface Treatment: Silver Anodized
  • Colors: Silver(Default), White, Black

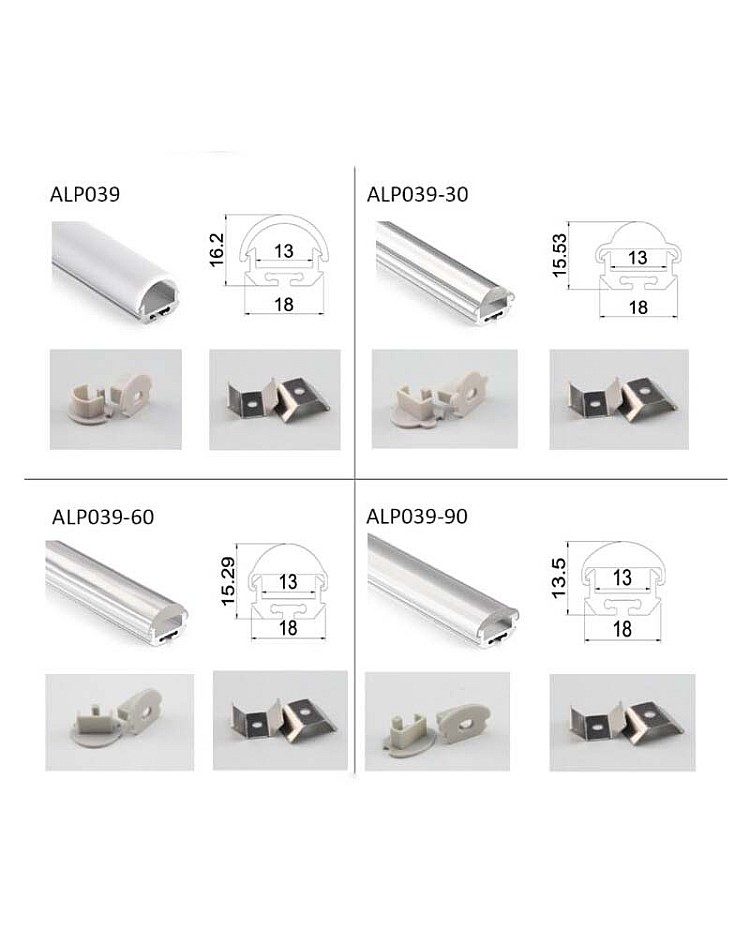

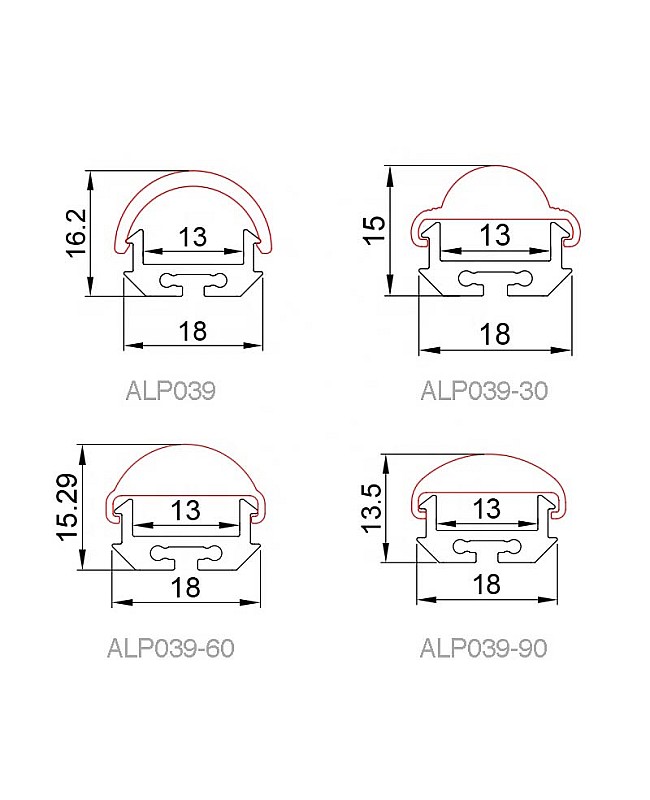

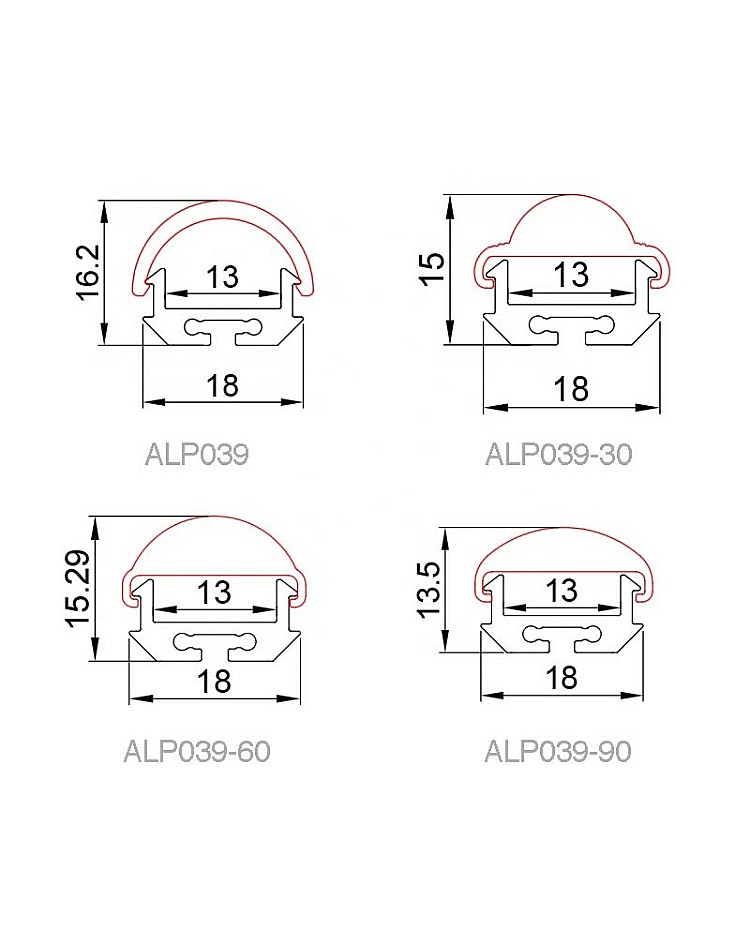

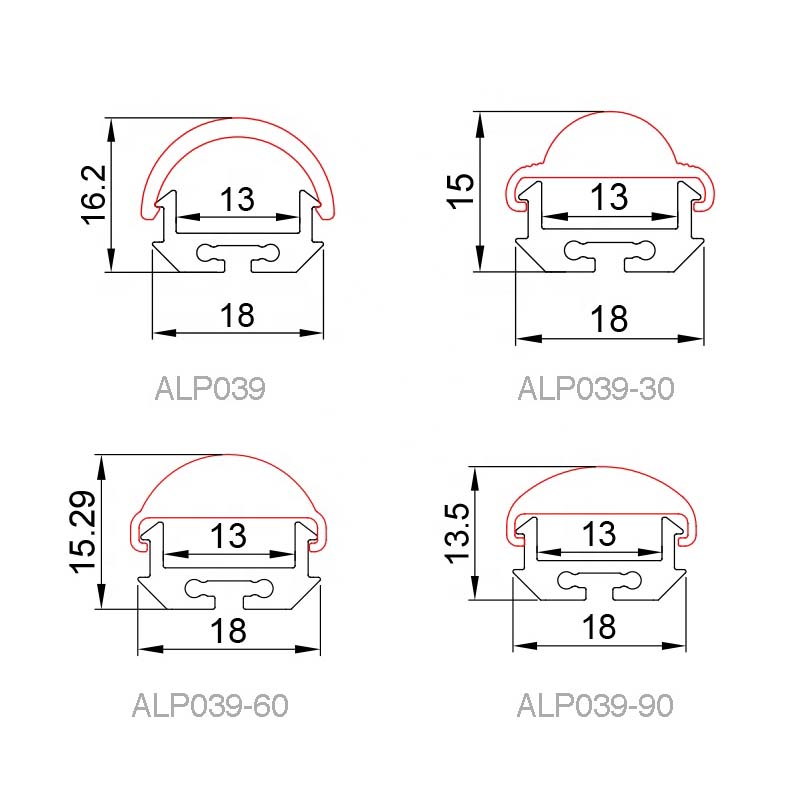

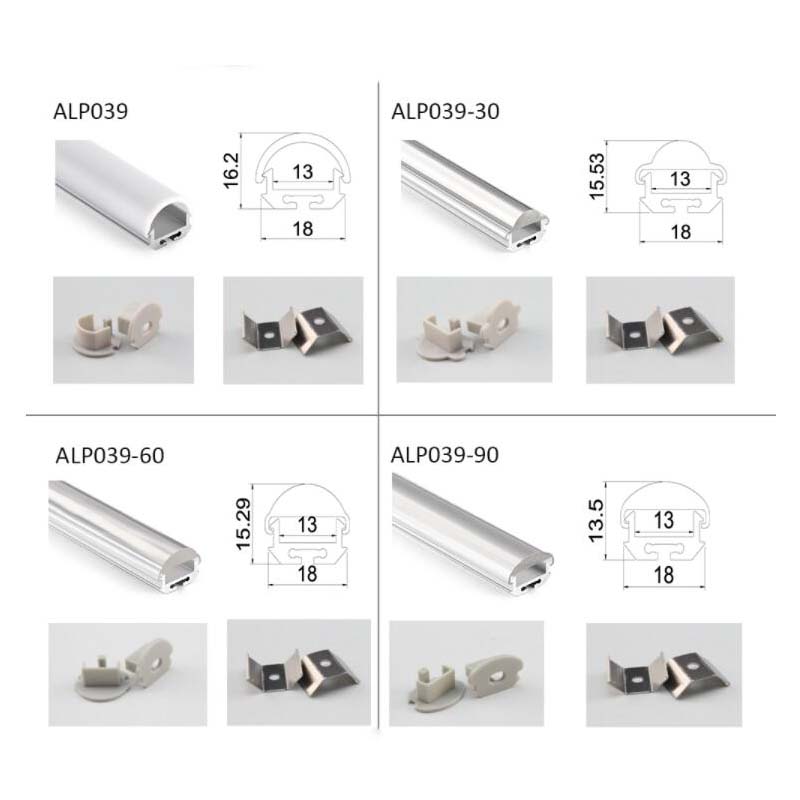

  • Size: ALP-039: 18*16.2mm(W*H); ALP-039-30: 18*15mm(W*H); ALP-039-60: 18*15.29mm(W*H); ALP-039-90: 18*13.5mm(W*H)
  • Standard Length: 1M
  • Other Lengths Available: 0.5M, 1.5M, 2M, 2.5M, 3M
  • Custom Length Available: YES
  • Inner Width: 13mm
  • Compatible With 8mm/10mm/12mm Flexible LED Strips
  • Max Power; <15W/M
  • Beam Angle: 30°,60°,90°, 180°
  • Diffusers: PMMA Opal Matte Diffuser/PMMA Semi-Clear Diffuser/PMMA Clear Diffuser(ALP-039); PMMA 30° Clear Diffuser/PMMA 30° Semi Clear Diffuser(ALP-039-30); PMMA 60° Clear Diffuser/PMMA 60° Semi-Clear Diffuser(ALP-039-60); PMMA 90° Clear Diffuser/PMMA 90° Semi-Clear Diffuser(ALP-039-90)

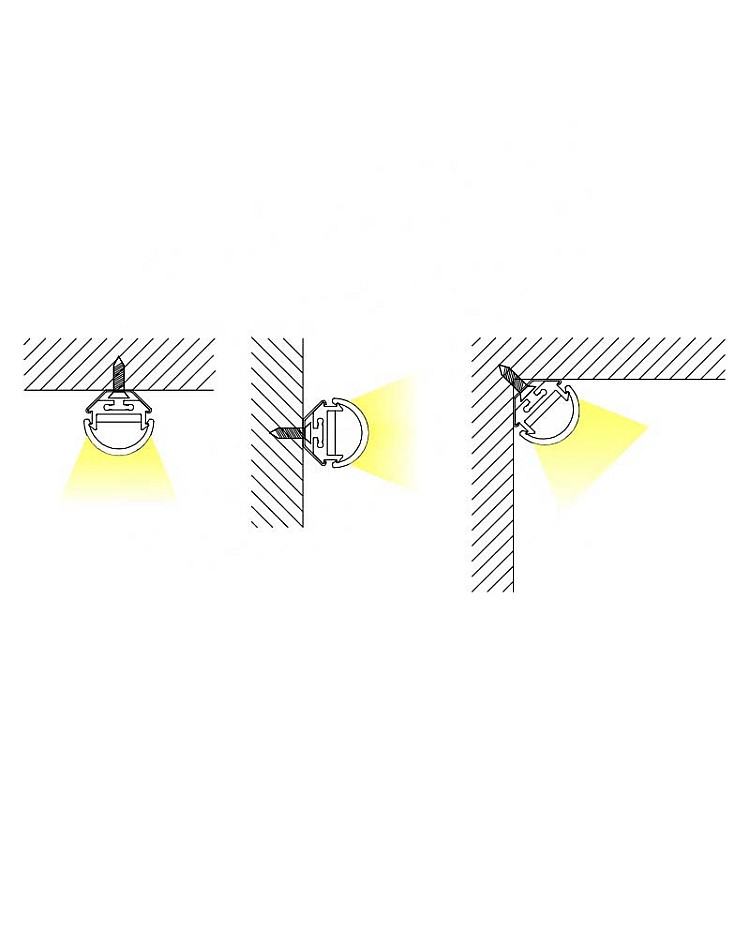

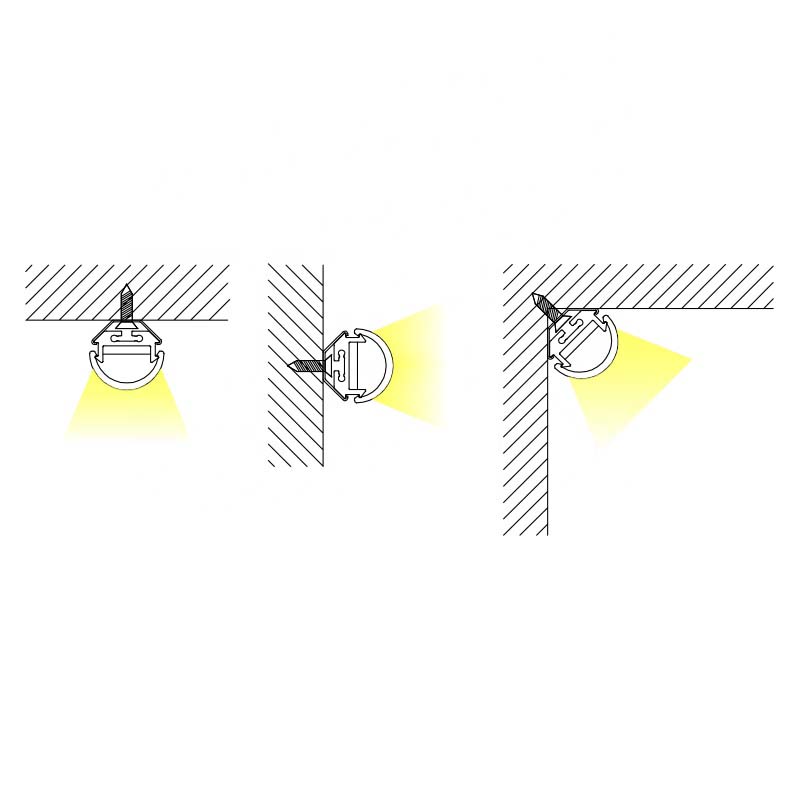

  • Installation: Surface Mounted

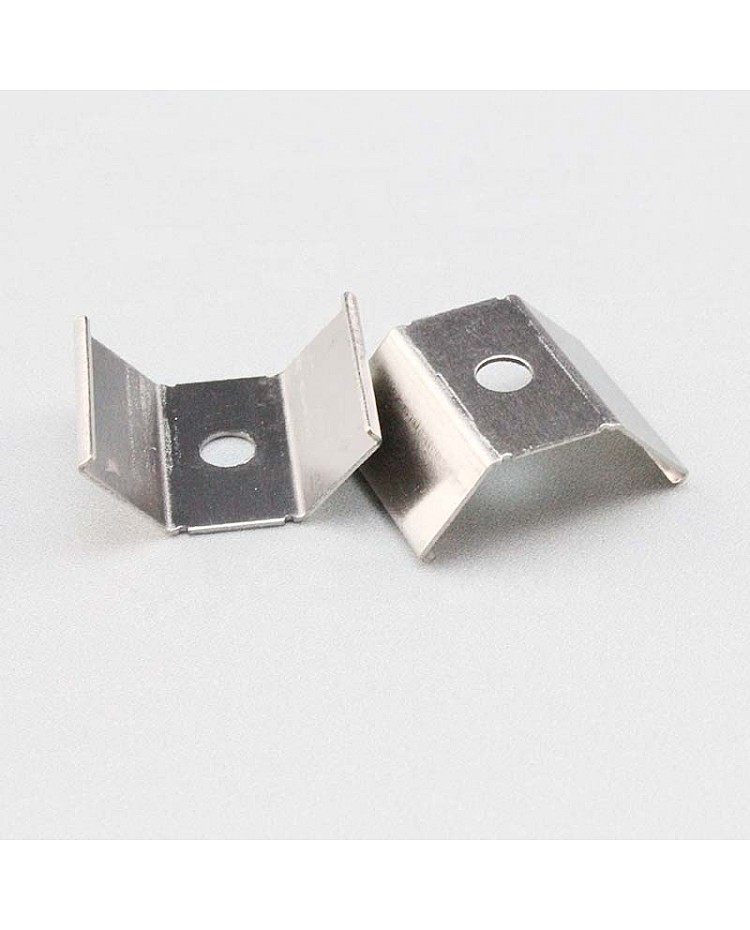

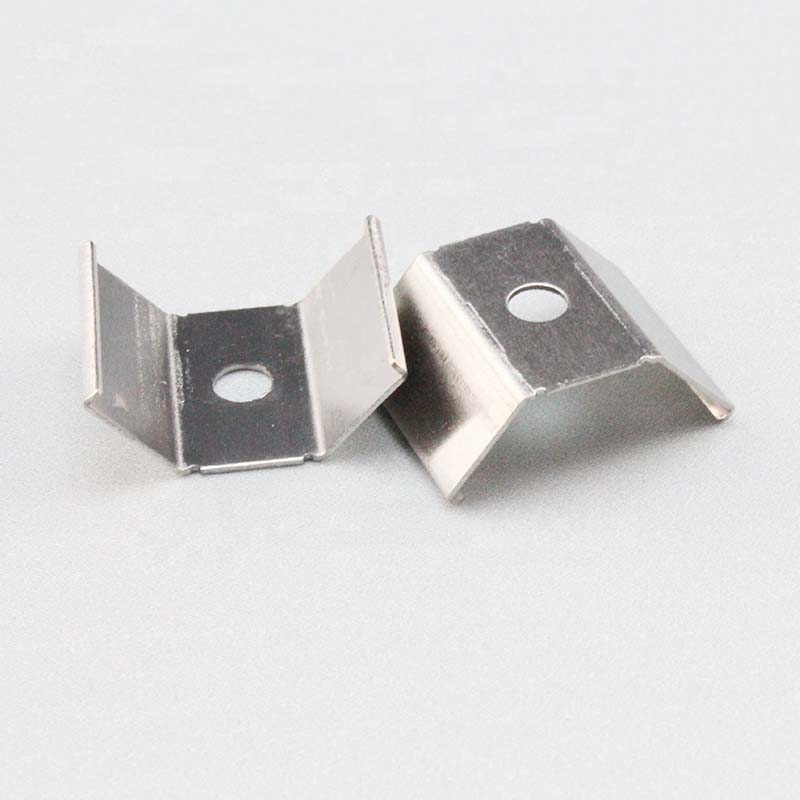

  • End Caps With Wire Holes And Metal Clips Included
  • Applications: Under Cabinet / Wardrobe
  • 3 Years Warranty


1*Linear Profile Light

End Caps

Metal Clips

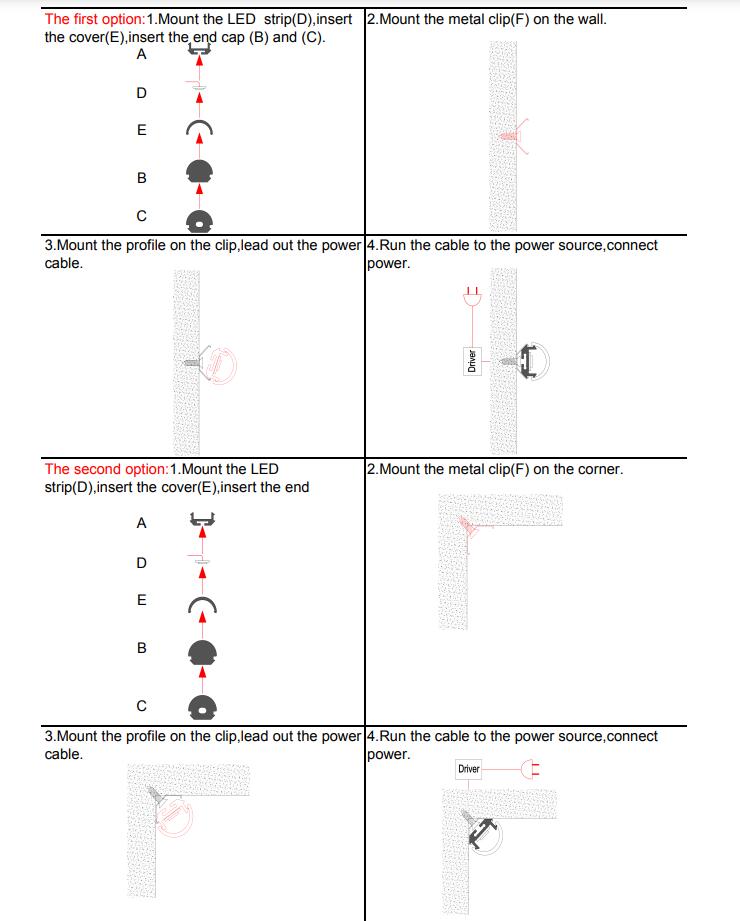

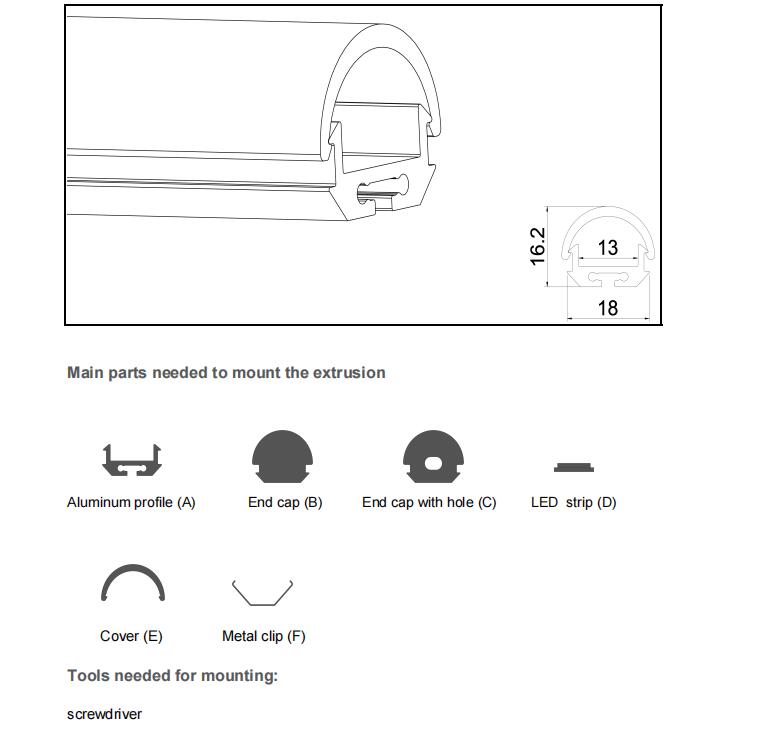

LED Linear Profile Light LED Linear Profile Lighting How To Install Linear Profile Light
