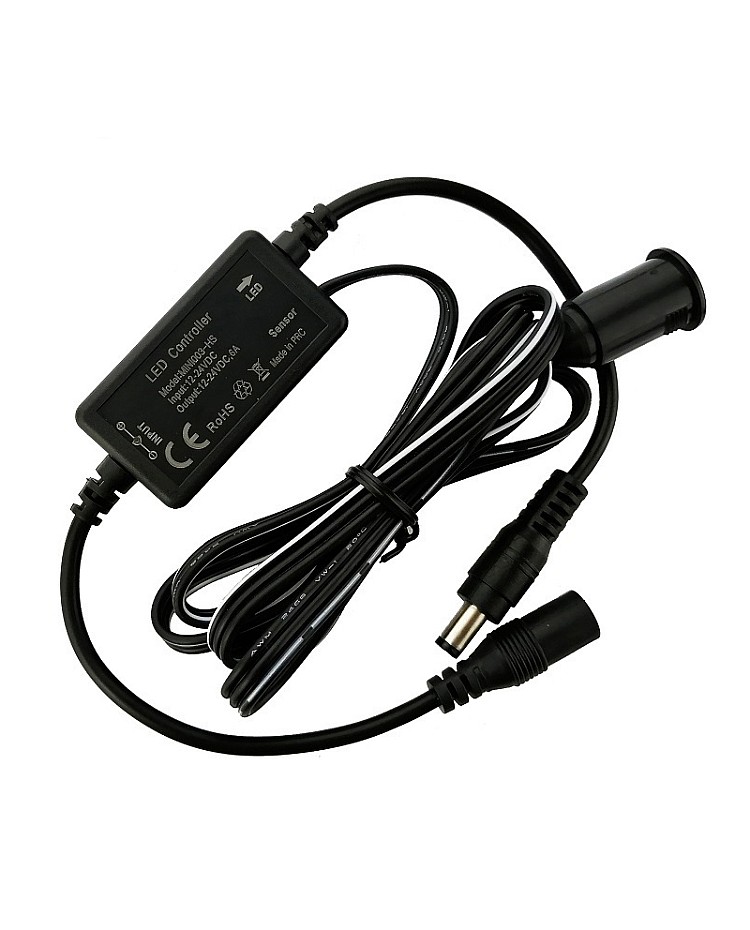

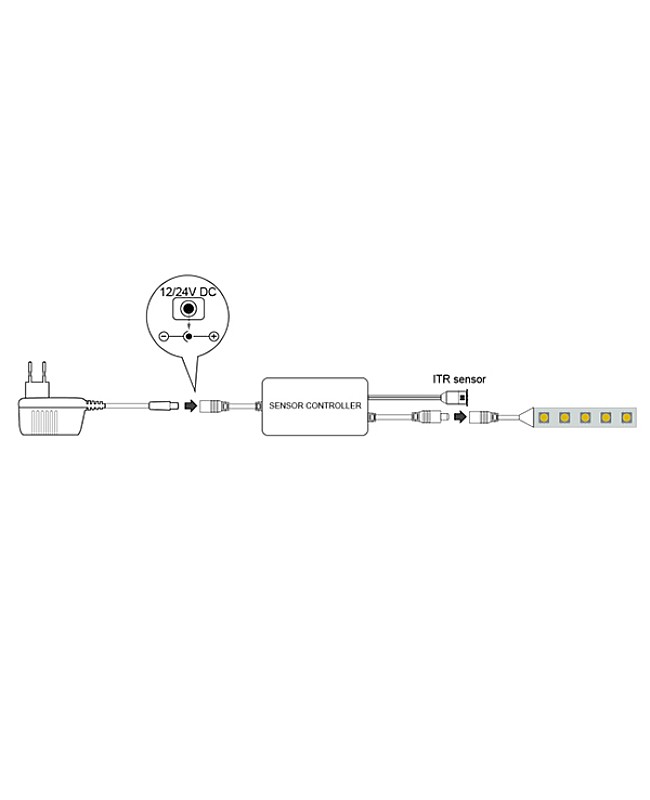

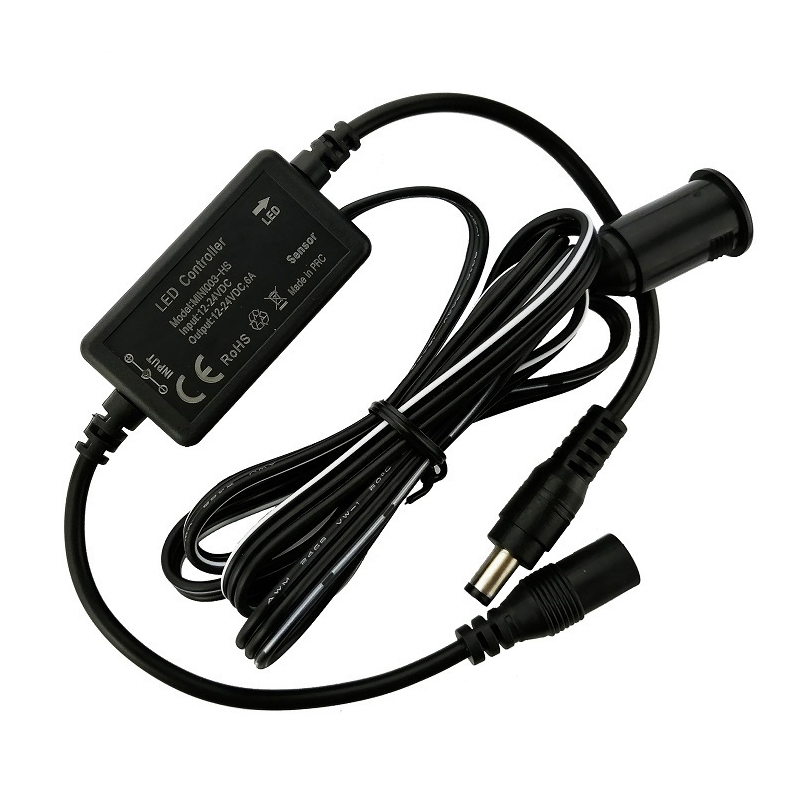

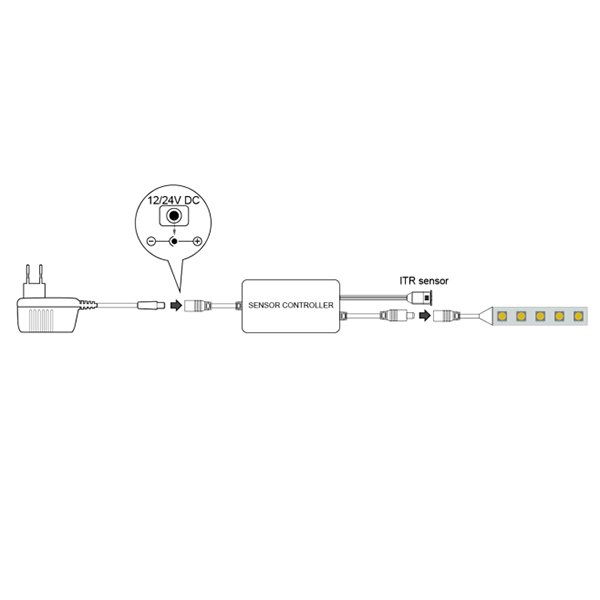

The Mini LED Lamp Dimmer with an ITR sensor is designed for single color constant voltage LED Lights in kitchen worktop lighting or bathroom mirror applications. The Mini LED Dimmer works in DC12V-24V, with one output channel design, the max output current up to 6A, with stable sensitivity with an ITR sensor, and soft light up and down. The ITR sensor will switch on/off and dim the light by operating people's hands going through the ITR sensor without touching them. The dimming range from 0.4% to 100%. With both ends of the Lamp Dimmer with LED DC Connectors, you can easily connect to the LED Transformer and the Single Color LED Lights.


Features:

  • Model: HX-MINI003-HS

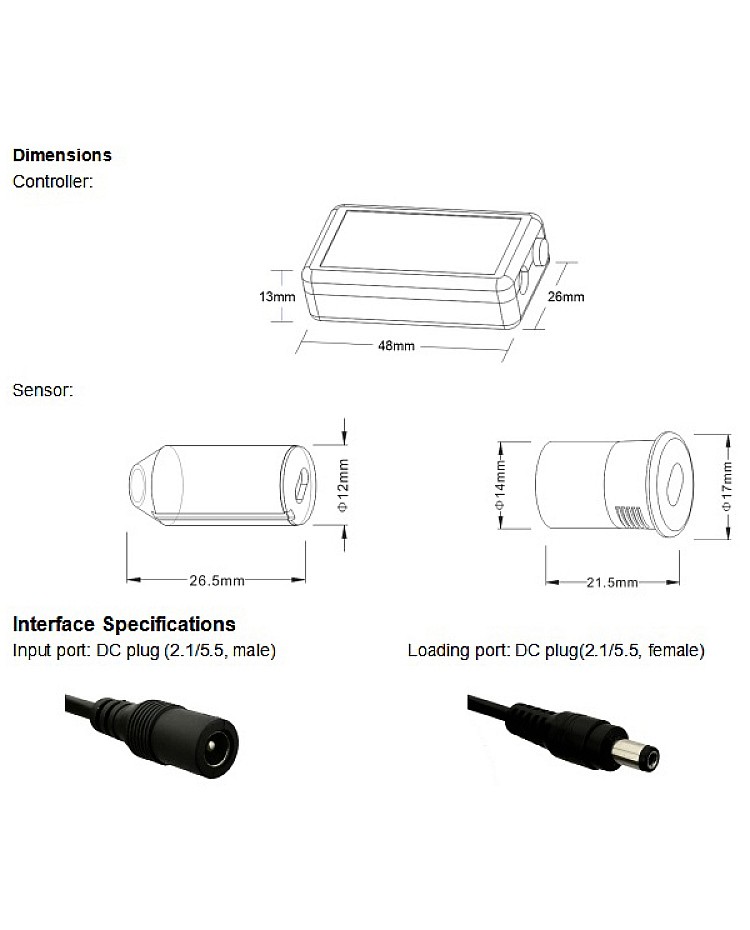

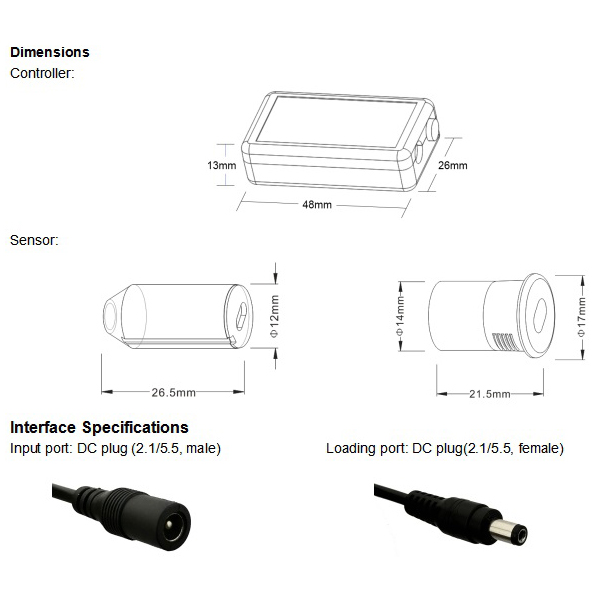

  • Size: 48*26*13mm(L*W*H)
  • Model: HX-Mini003-CB
  • Working Temperature: -20-60℃
  • Working Voltage: DC12-24V
  • Static Power Consumption: <1W

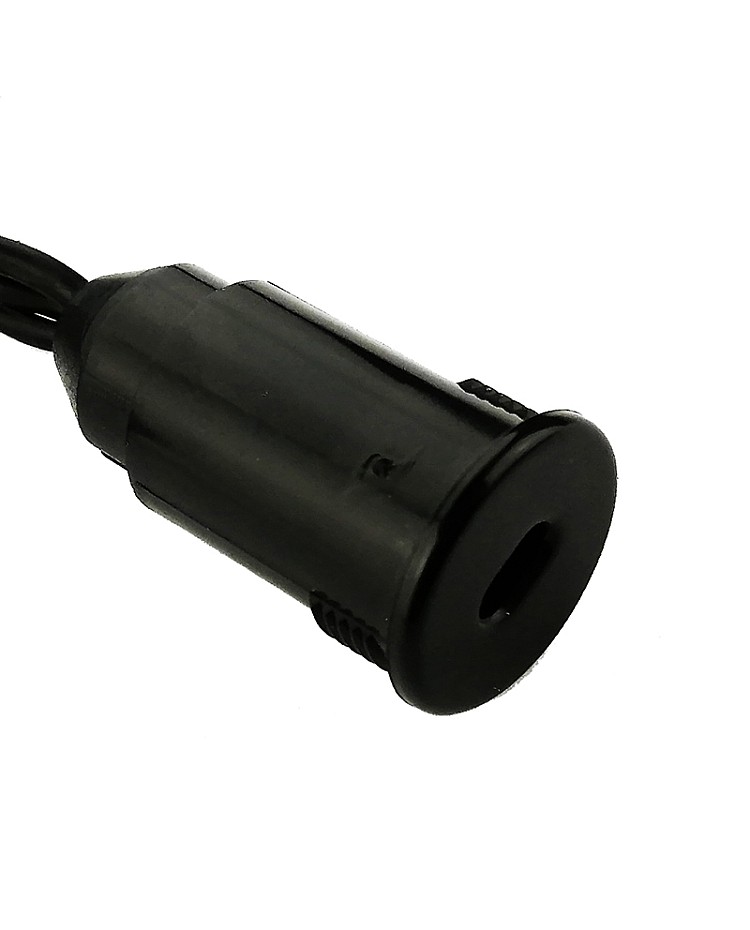

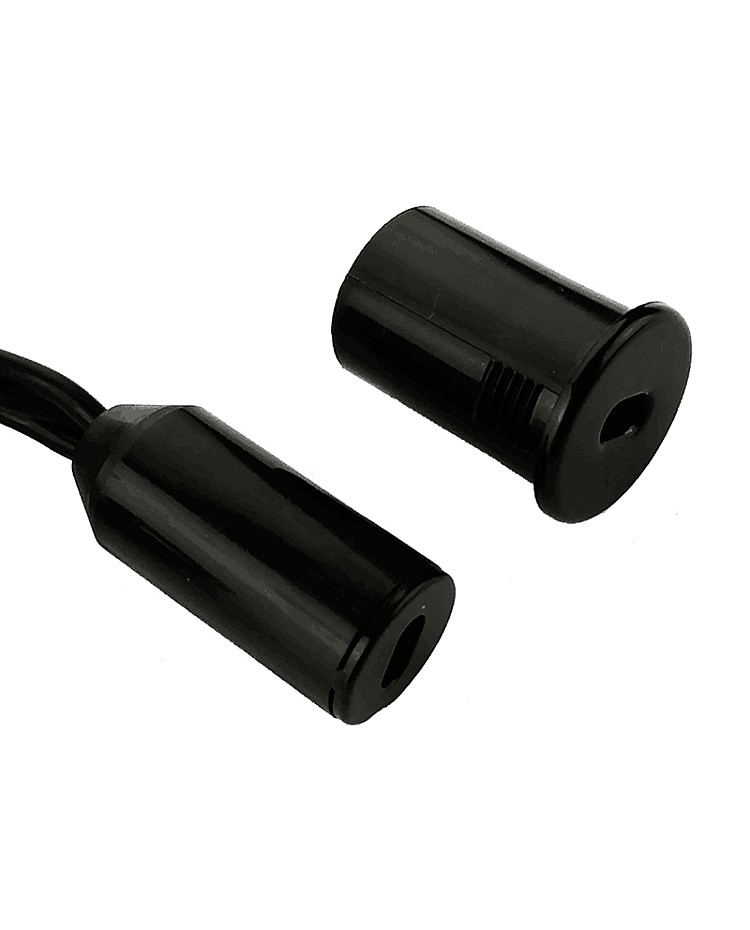

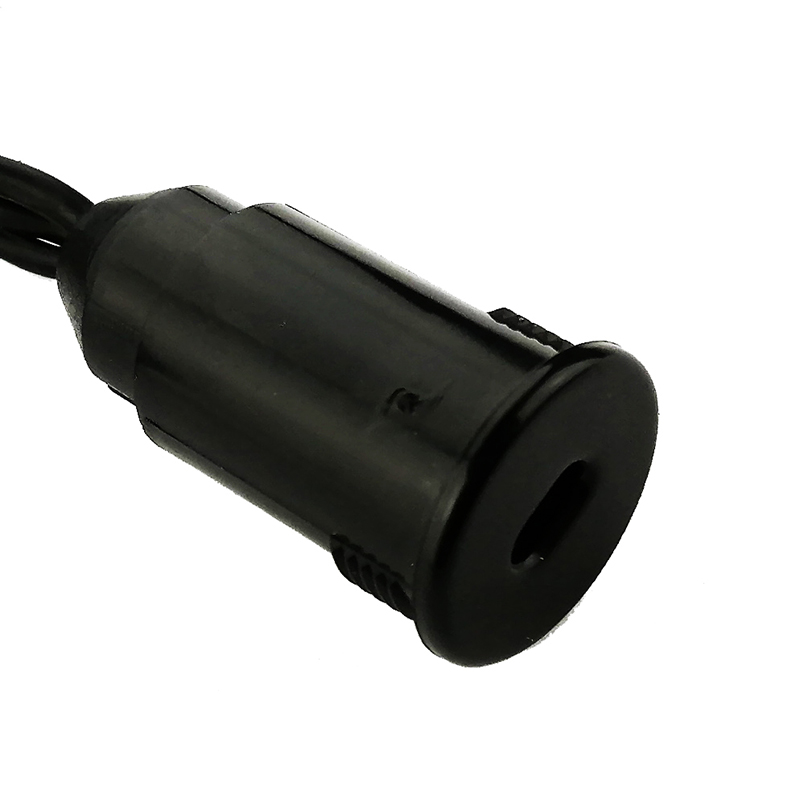

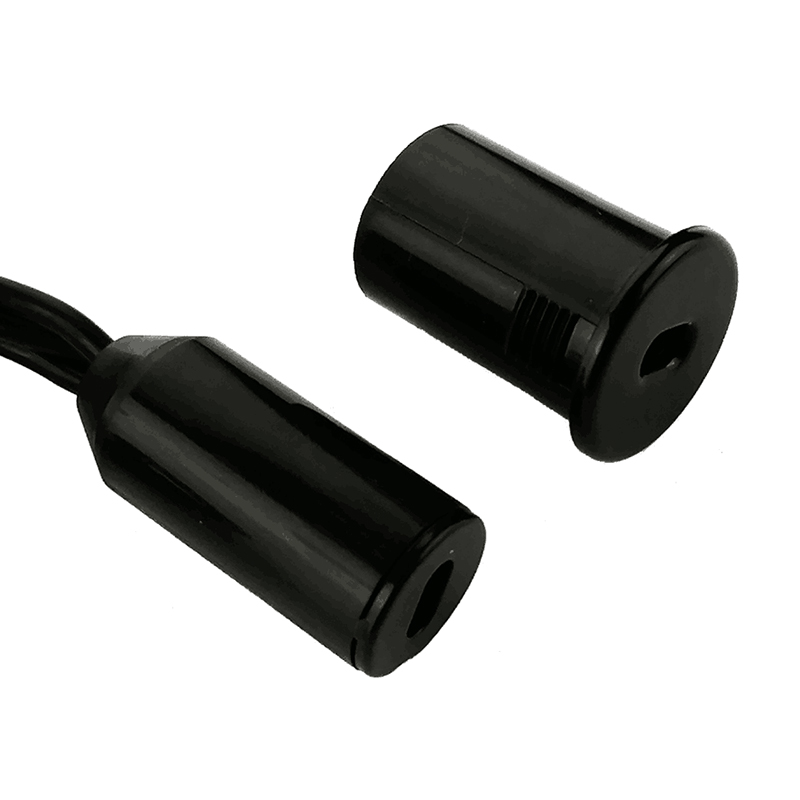

  • Sensor: ITR
  • Sensor Range: 0-8CM
  • Sensor Cable Length: 1Meter
  • Output Channel: 1
  • Output Current: ≤6A
  • Max Loading Power: 72W(12V)/144W(24V)
  • PWM Frequency: 490Hz
  • Dimming Range: 0.4%-100%
  • Stable Sensitivity With ITR Sensor, Soft Light Up And Down
  • Applications: Kitchen Worktop Lighting/Bathroom Mirror Application
  • 3 Years Warranty


Includes:

1*LED Lamp Dimmer

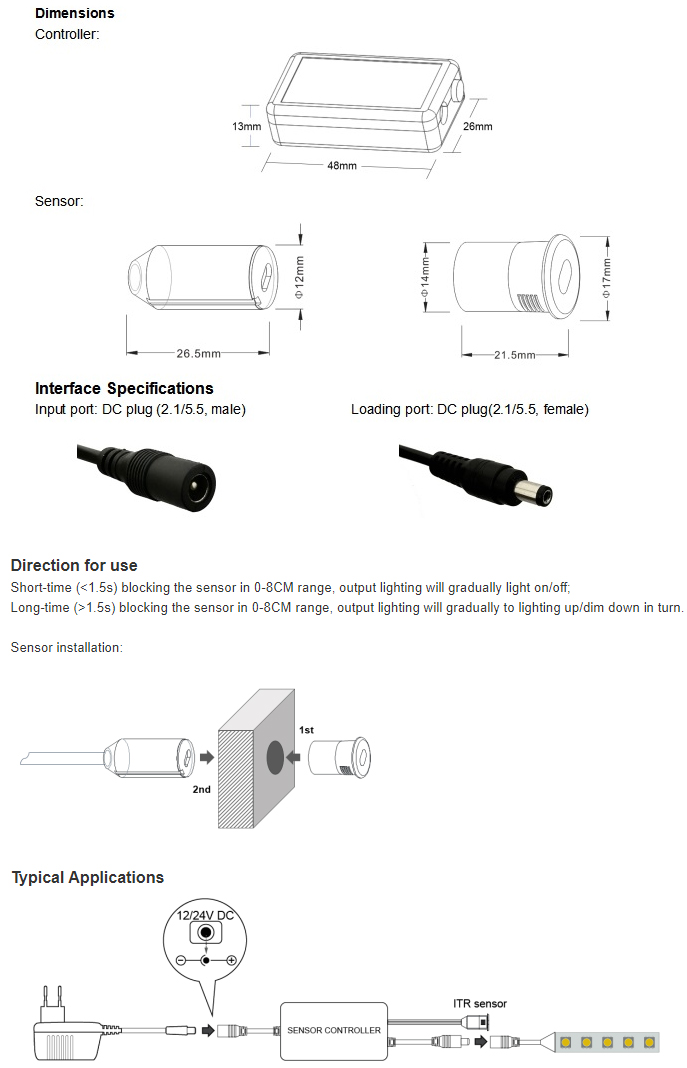

PWM LED Lamp Dimmer
