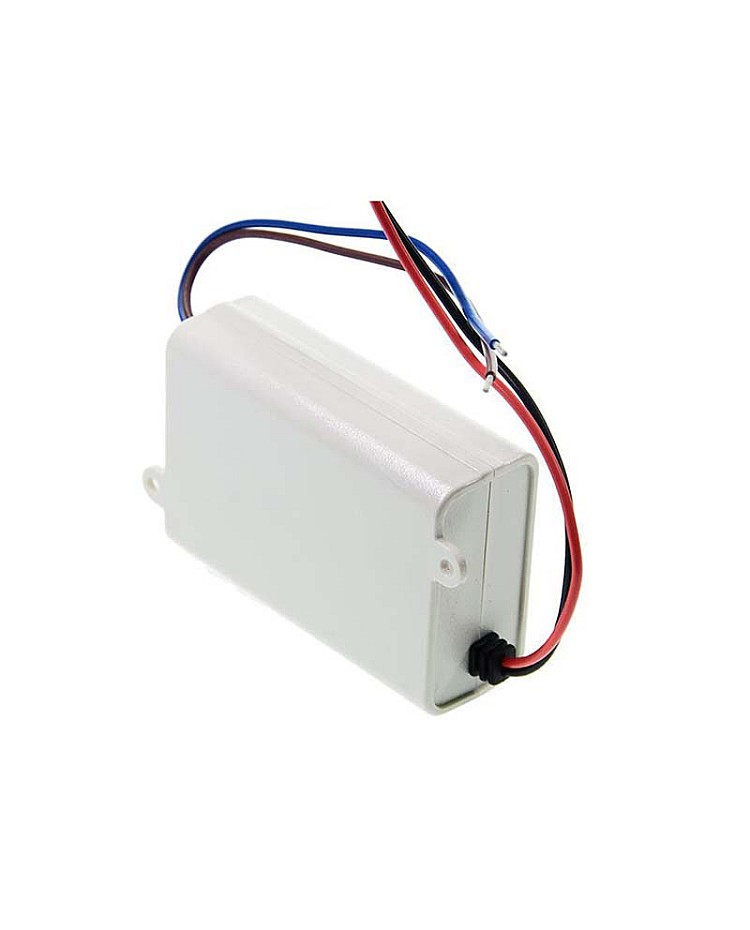

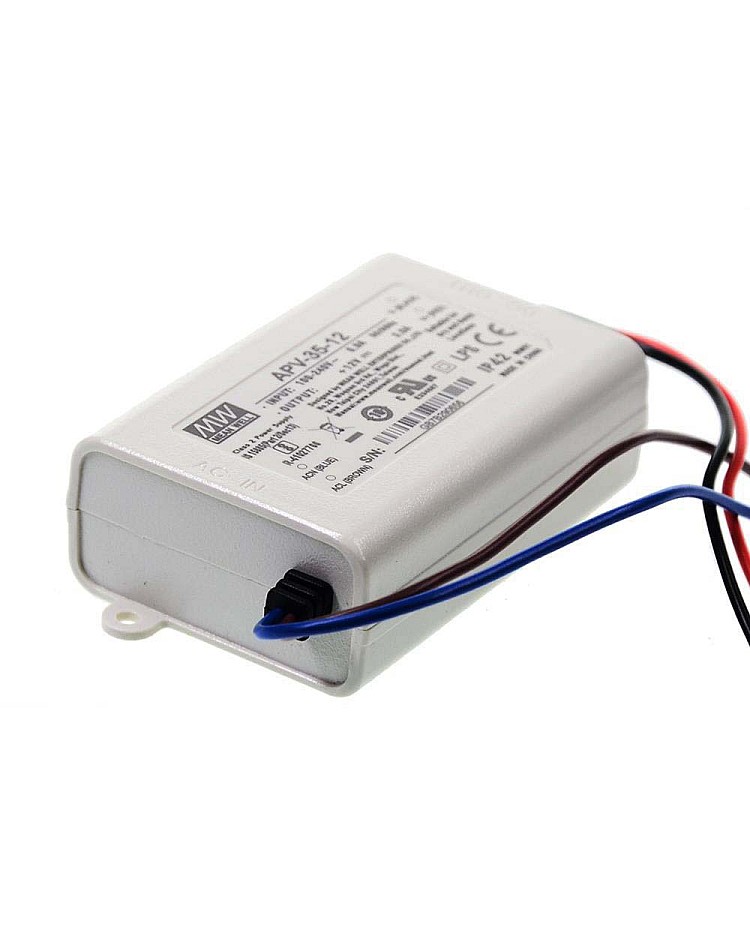

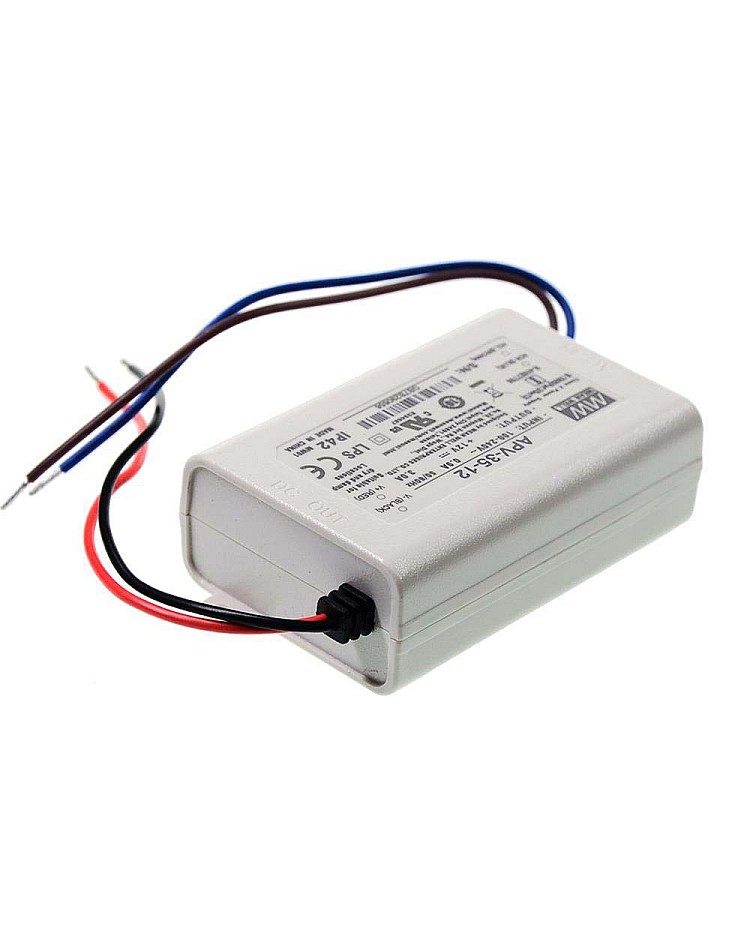

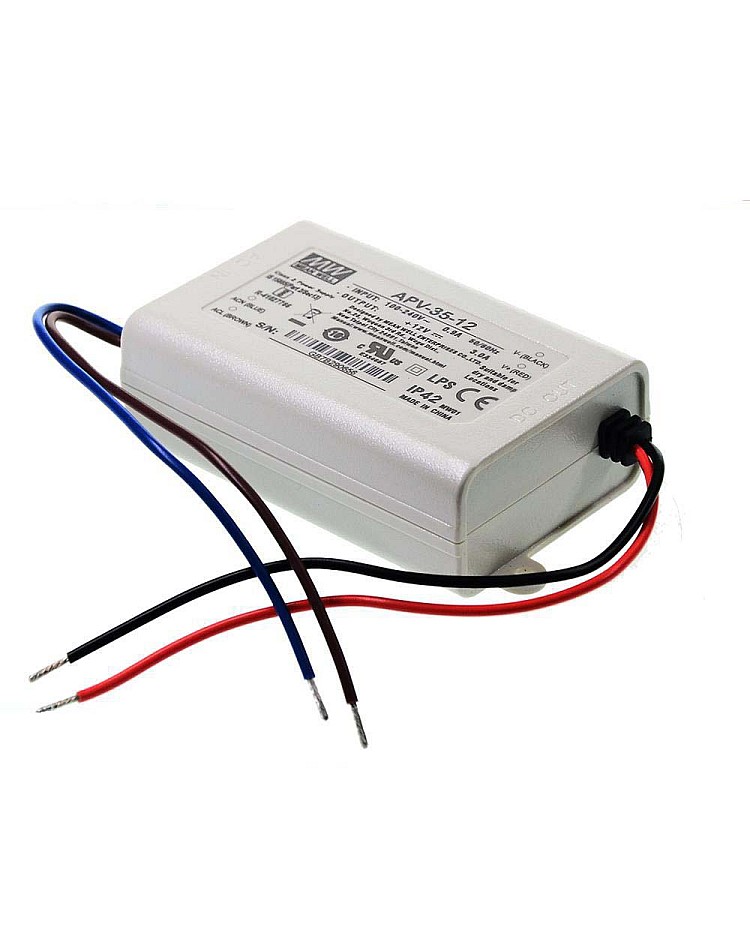

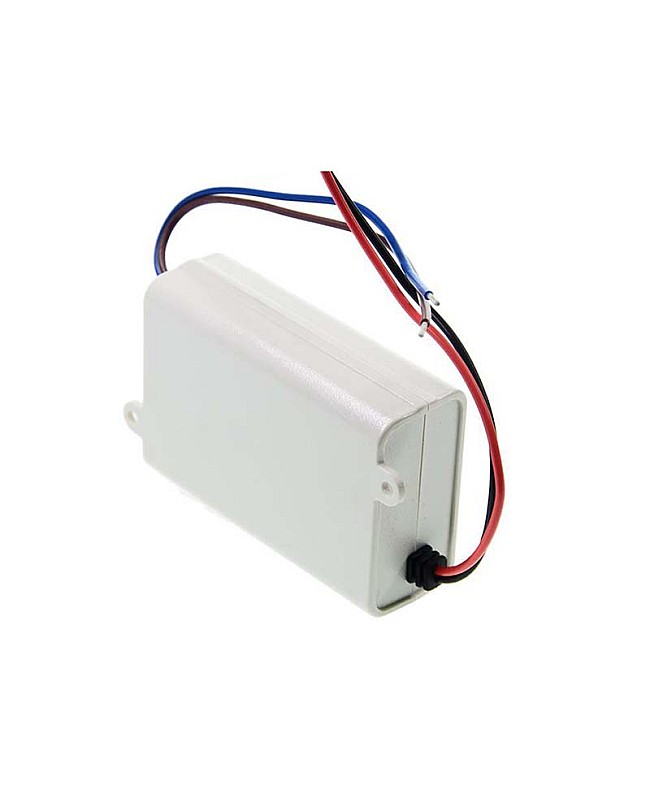

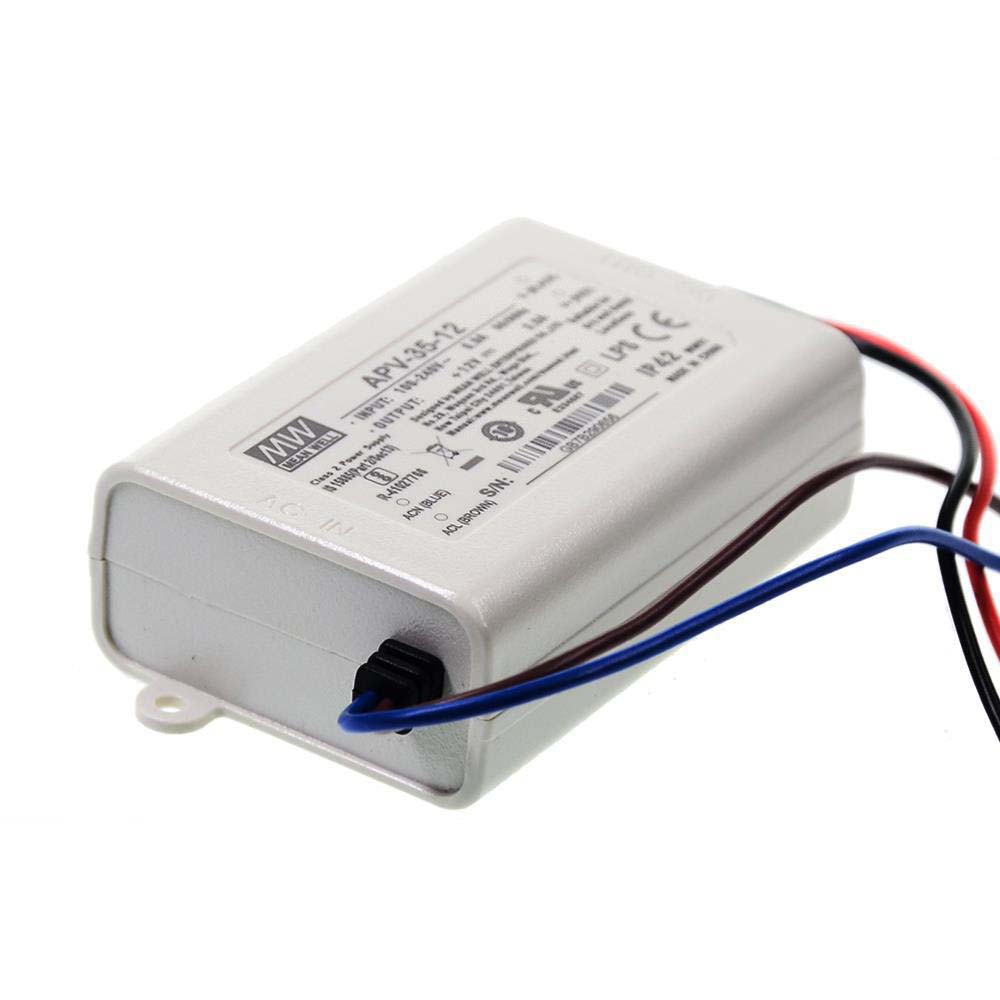

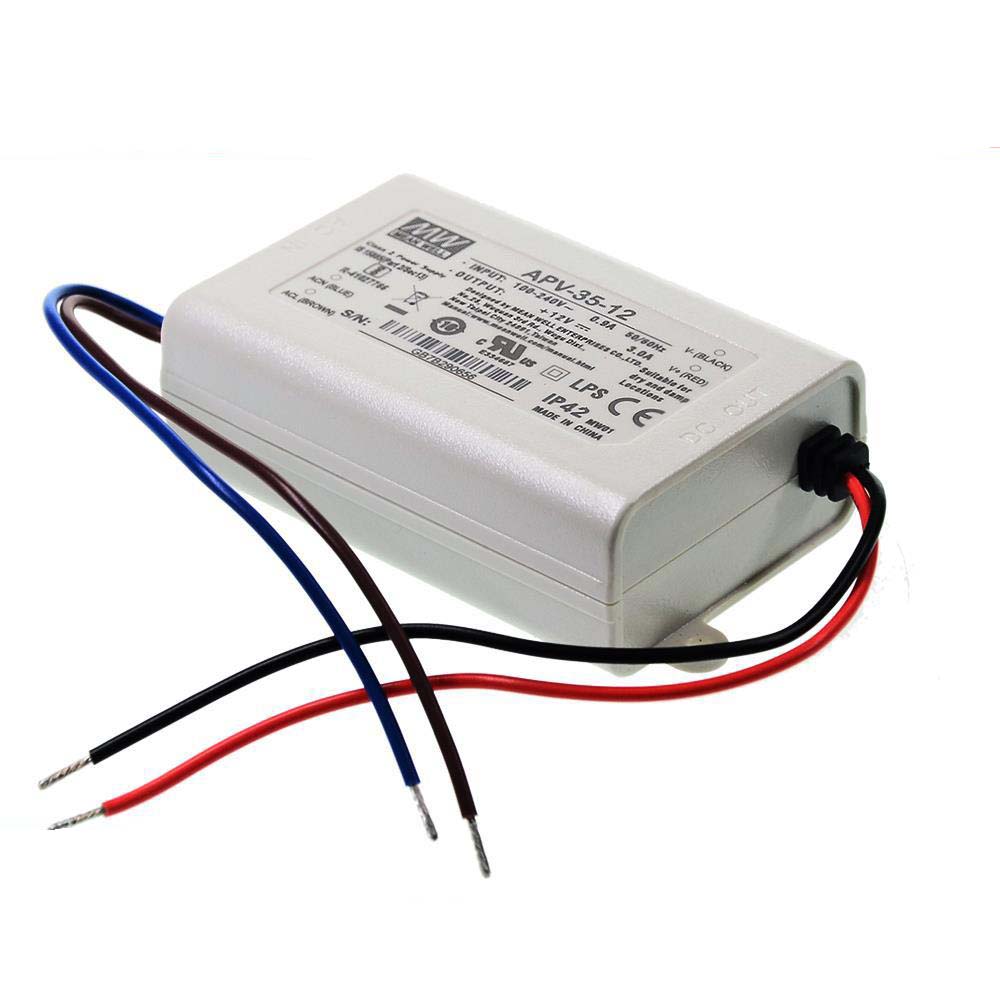

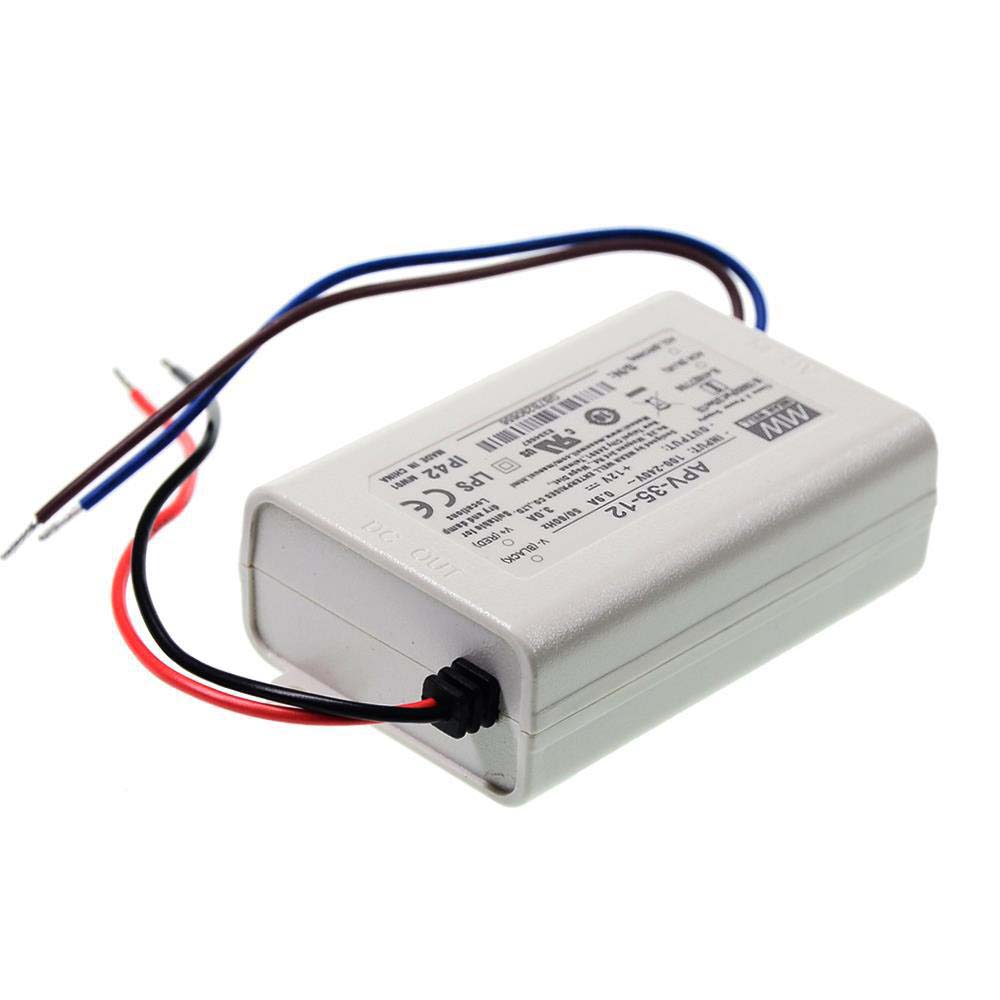

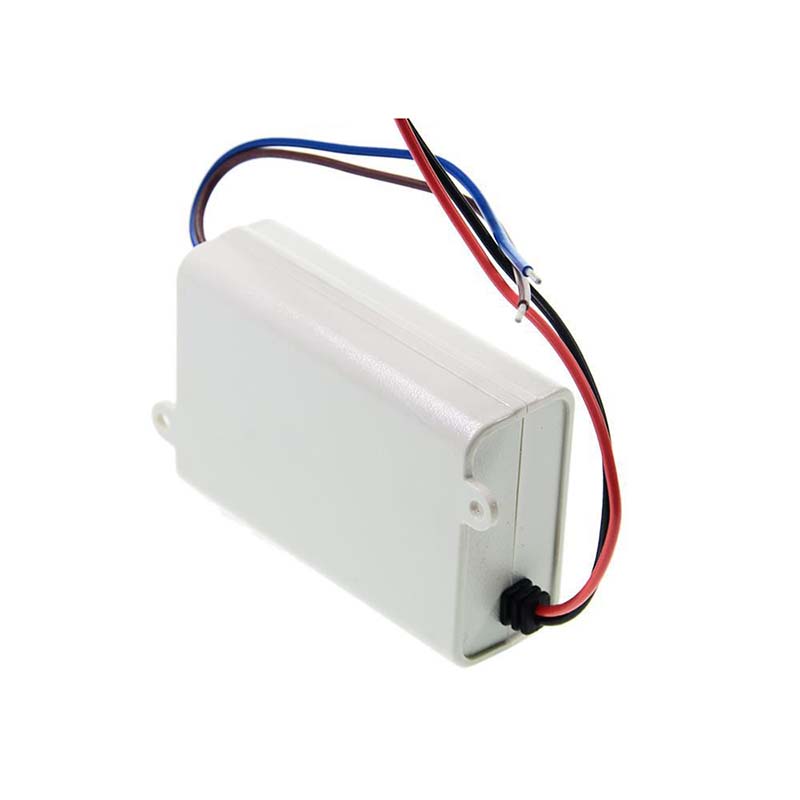

The Mean Well APV-35 DC power supply, the 35W constant voltage single-output switching power supply in a fully isolated plastic case, is suitable for LED-related fixtures, LED decoration, or advertisement devices. With a universal AC input design, the voltage range ranges from AC90V to AC264V. You can choose from various constant voltage products, from DC5V to DC36V, with a max loading power of 36W. This Mean Well will turn AC input voltage into a single-output DC voltage, with a small and compact size, you can use them in a narrow place, and they are suitable for dry and damp locations.

  • Constant Voltage Mode Power Supply
  • Universal AC Input/Full Range
  • Withstand 300VAC Surge Input For 5 Seconds
  • Protections: Short Circuit / Overload / Over Voltage
  • Fully Isolated Plastic Case
  • Cooling By Free Air Convection
  • Small And Compact Size
  • IP42 Design
  • Pass LPS
  • 100% Full Load Burn-In Test
  • Low Cost And High Reliability
  • Suitable for LED-related fixtures, LED decoration, or advertisement devices
  • 2 Years Warranty

Quick Links:

Meanwell APV-35 Specification Document


Specifications:

  • Model: APV-35
  • Size: 84*57*29.5mm(L*W*H)
  • Input Voltage: AC90V-AC264V
  • Frequency Range: 47- 63Hz
  • Efficiency: 76.5%(DC5V), 83%(DC12V), 84%(DC15V), 84%(DC24V), 85%(DC36V)
  • Output Voltage: DC5V, DC12V, DC15V, DC24V, DC36V
  • Rated Current: 5A(DC5V), 3A(DC12V), 2.4A(DC15V), 1.5A(DC24V), 1A(DC36V)
  • Rated Power: 25W(DC5V), 36W(DC12V), 36W(DC15V), 36W(DC24V), 36W(DC36V)
  • Working Temperature: -30℃-+70℃
  • Vibration: 10-500Hz, 2G 10min./1cycle, period for 60min.each along X, Y, Z axes
  • Safety Standards: UL8750, CSA-C22.2 No.250.0-13, BIS IS15885(Except For 15V, 36V), EAC TP TC 004, IP42 Approved, Design Refer To EN 62368-1
  • Overload Protection
  • Over-Voltage Protection
  • Over Temperature Protection


Includes:

1 * Meanwell APV-35 DC Power Supply

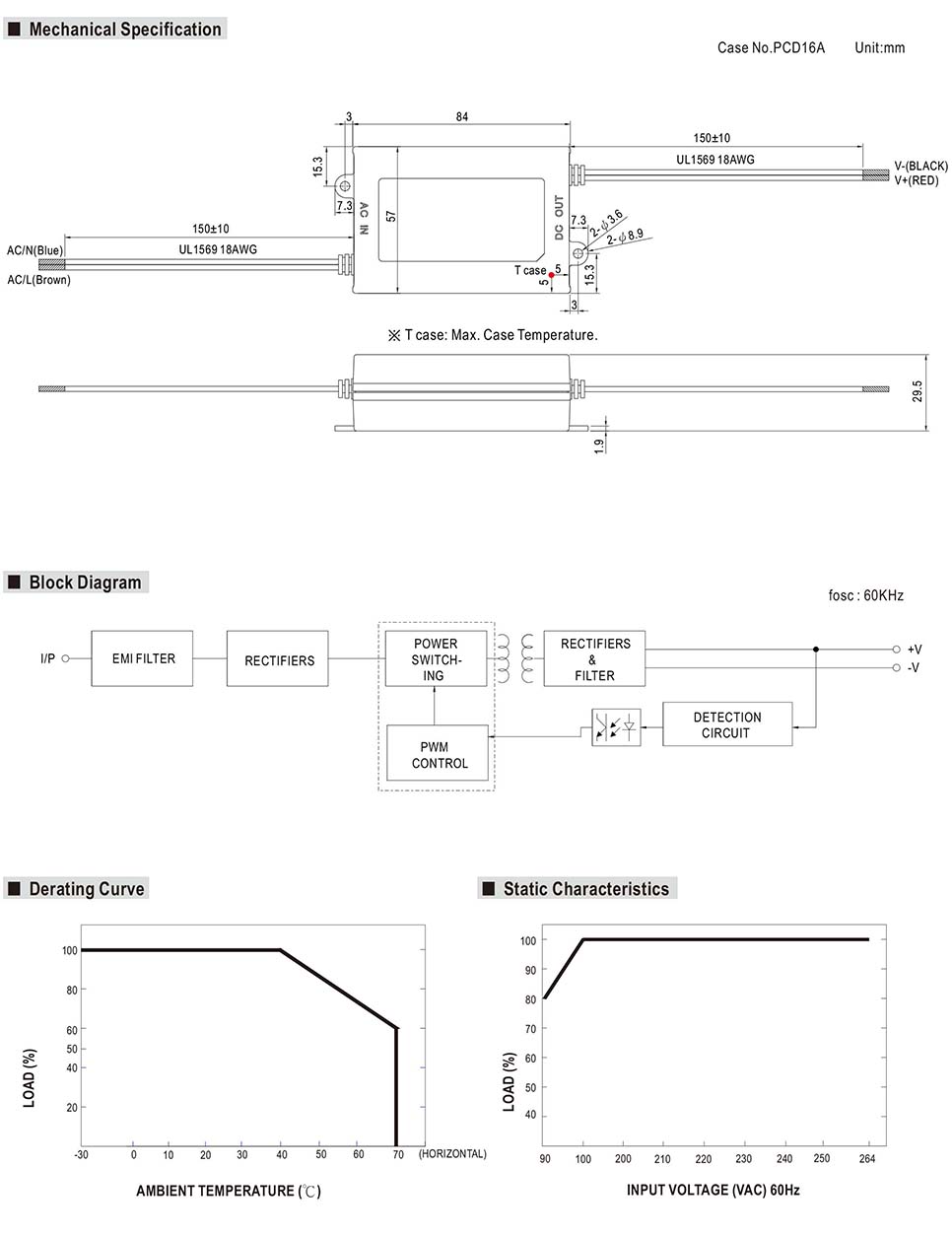

Meanwell Power Supply DC5V
