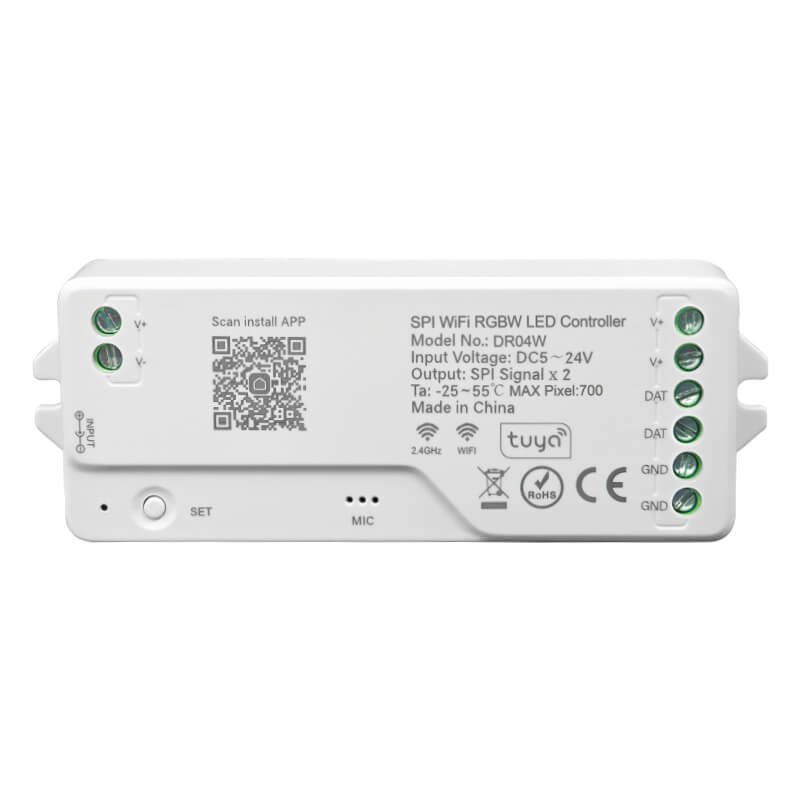

The DR04W Tuya SPI LED controllers are designed for RGBW addressable LED lights, creating stunning, customizable lighting effects. It offers four control methods to let you manage your SK6812 or WS2814 RGBW lights freely. You can control the lighting using the Tuya app via Wi-Fi or Bluetooth, a 2.4G RC03 LED remote, or voice control. There are 40 predefined scenarios and 10+ custom dynamic scenarios selectable to fulfill your various lighting demands.

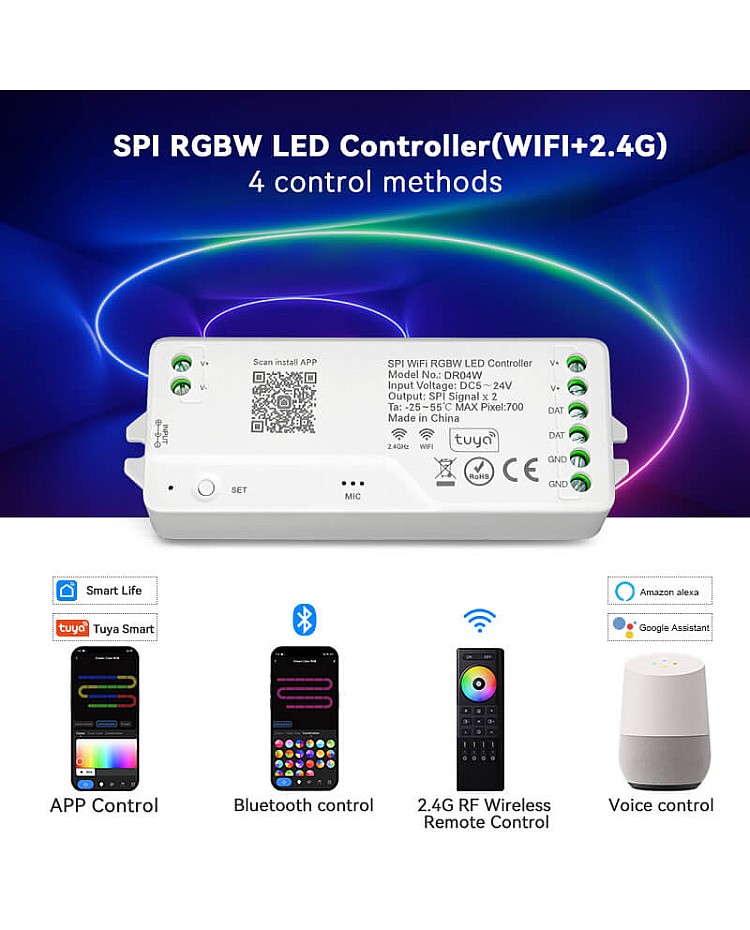

- Four control methods: WiFi, Bluetooth, remote, and voice control.
- WiFi and Bluetooth wireless technology can improve the control distance.
- The Tuya App offers multiple control options, such as dimming, remote control, group control, scene customization, timing, music rhythm, tap-to-run, automation, and do-not-disturb.
- They support voice control by Amazon Alexa, Google Assistant, Yadex Alice, etc.
- Support normal single wire ICs ( WS2814, SK612), support coorcalibration and number of IC settings on the APP.
- Built-in multiple music effects, supports the music collection mode of the mobile phone microphone and the onboard microphone.
- Rich dynamic modes support dynamic modes customization. Variety of ON/OFF animation effects.

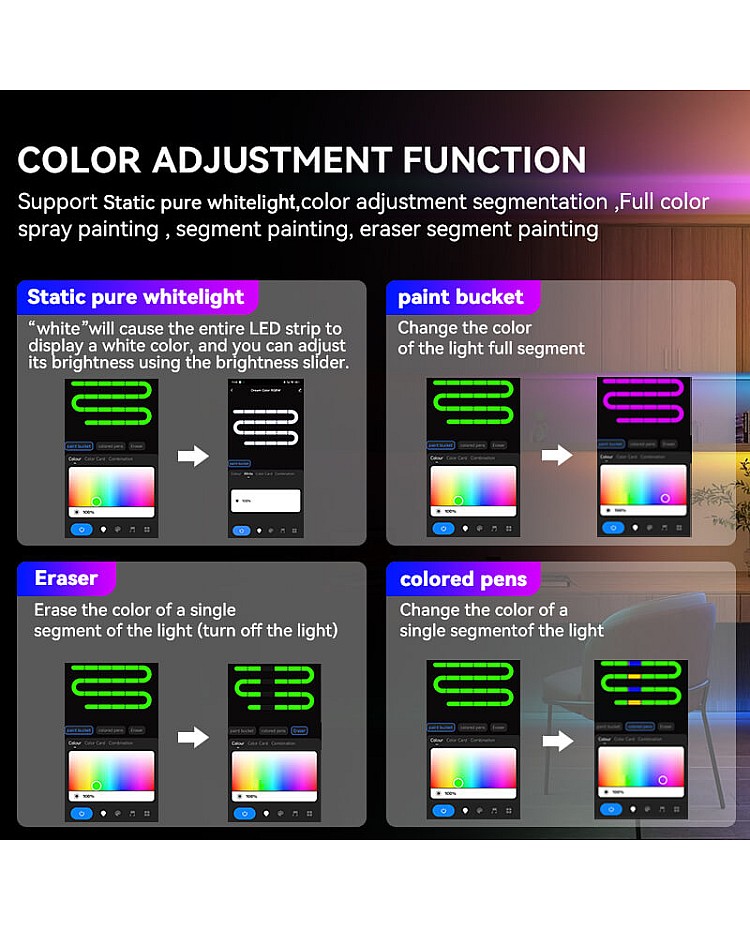

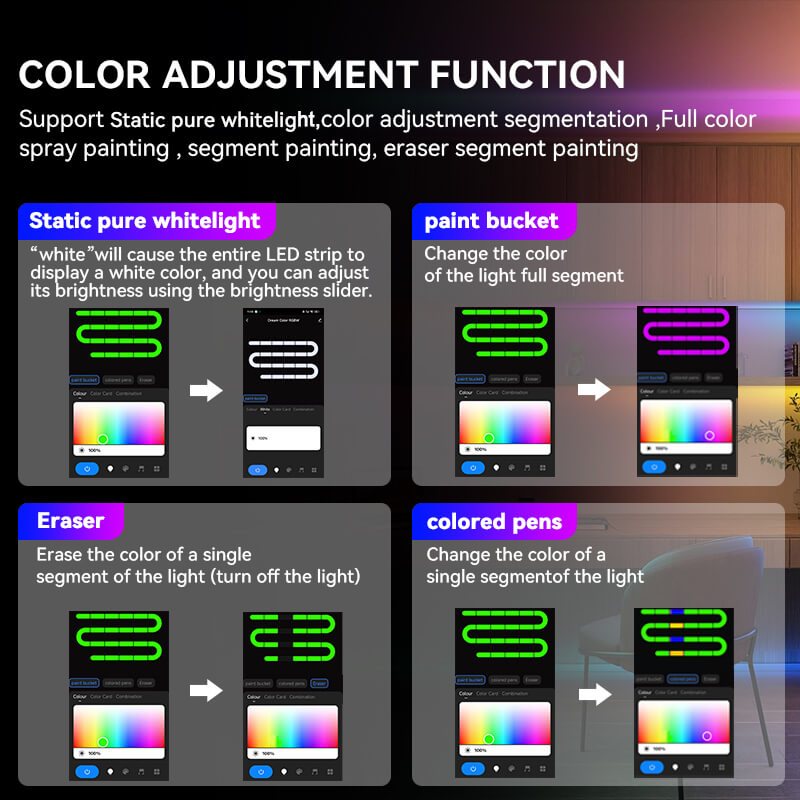

- Support color adjustment segmentation, complete color spray painting, segment painting, and eraser segment painting.
- The included 2.4G remote control features signal auto-transmission technology, allowing limitless control distance.
- Support reverse polarity protection
- RC03 2.4G RF remote control included
- DR03W for RGB addressable lights and DR05W for RGBCCT smart lights are selectable
Specifications:

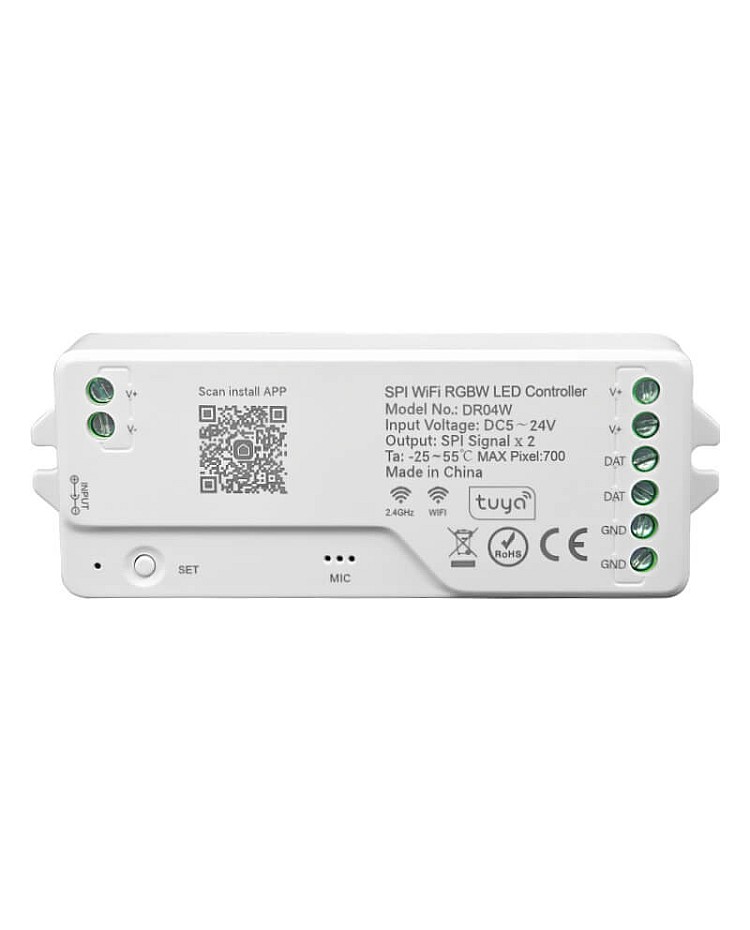

- Type: Tuya WiFi LED controllers for addressable LED lights
- Models: DR03W ( RGB ), DR04W ( RGBW ), DR05W ( RGBCCT )
- Material: V-0 anti-filre PC

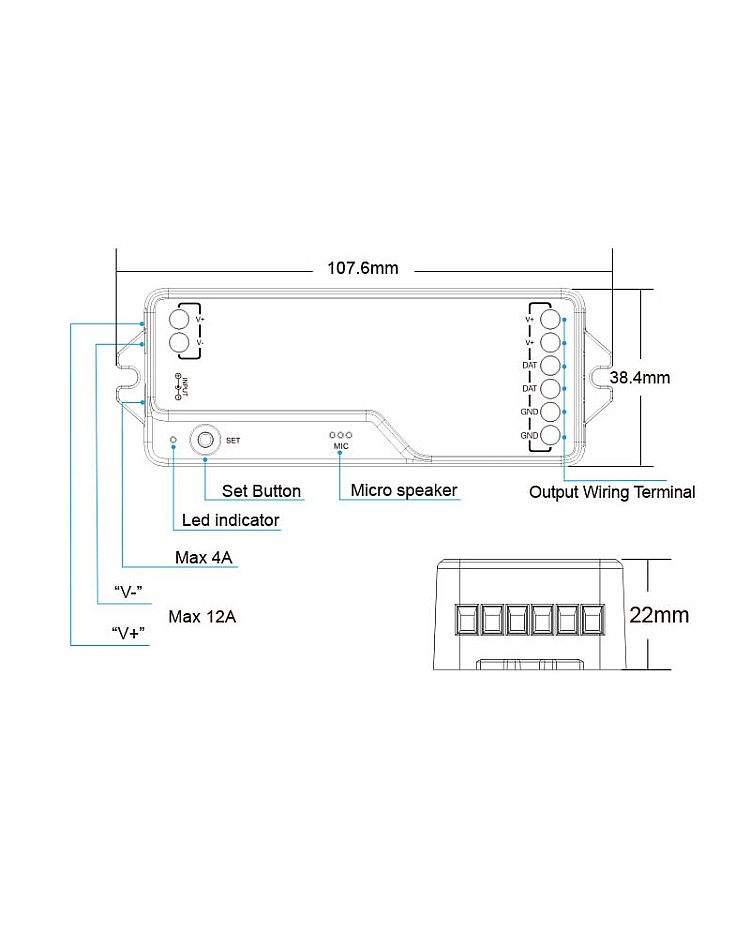

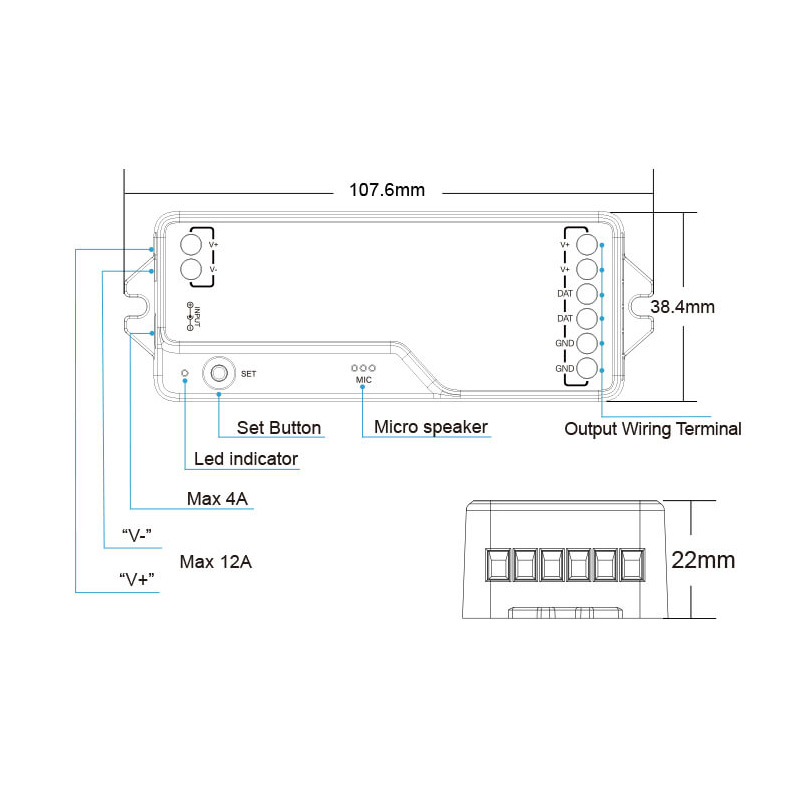

- Size ( L x W x H ): 107.6mm x 38.4mm x 22mm / 4.24" x 1.51" x 0.87"
- Input voltage: DC5V-DC24V
- Output channels: 2
- Support IC quantity: 720PCS ( DR03W ), 700PCS ( DR04W ), 450PCS ( DR05W )
- 40 predefined scenarios and 10+ custom dynamic scenarios are selectable
- Brightness and speed are adjustable
- Control methods: APP control ( WiFi or Bluetooth ), 2.4G remote control, voice control ( Amazon Alexa, Google Assistant )
- App name: Tuya Smart Life
- Supports mobile operating systems: IOS/Android
- Remote control distance: ≤30m
- Timing & Countdown function
- Maximum input current of wiring terminal: 12A
- Maximum input current of DC socket: 4A
- Working temperature: -25℃-+55℃
- Certifications: CE, ROHS
- Warranty: 3 years
Includes:
1 x Tuya WiFi SPI controller
1 x RC03 remote control
