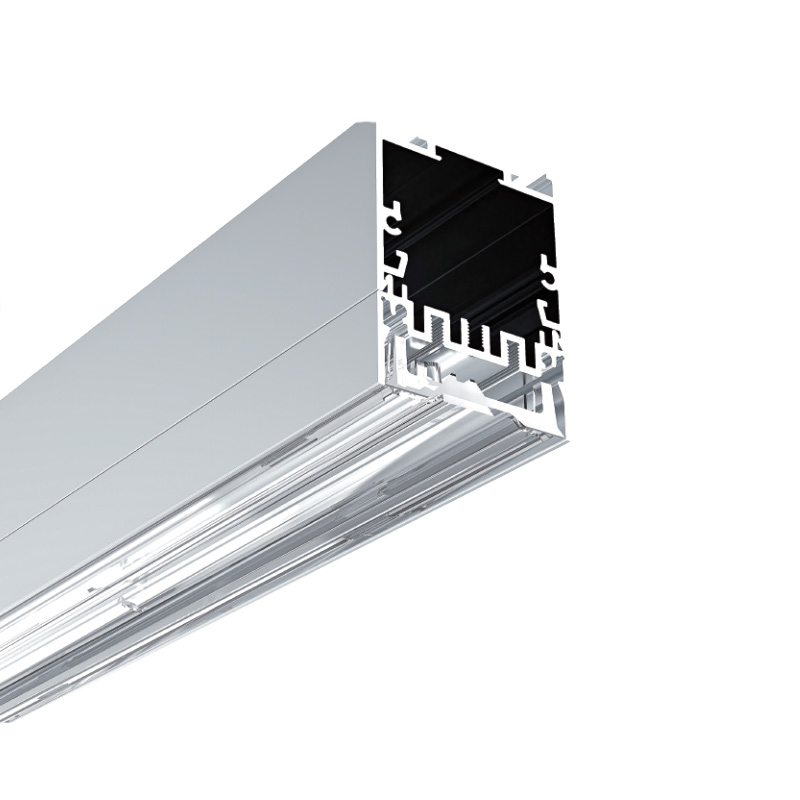

The DIY linear pendant lighting fixtures can be hung on the ceiling for indoor main lighting. The standard lengths are 1M and 2M, can be cut to any size by yourself, and custom lengths are available. There are various lenses with different viewing angles available, all of which are made of brand-imported materials, are anti-yellowing, and have perfect light distribution.

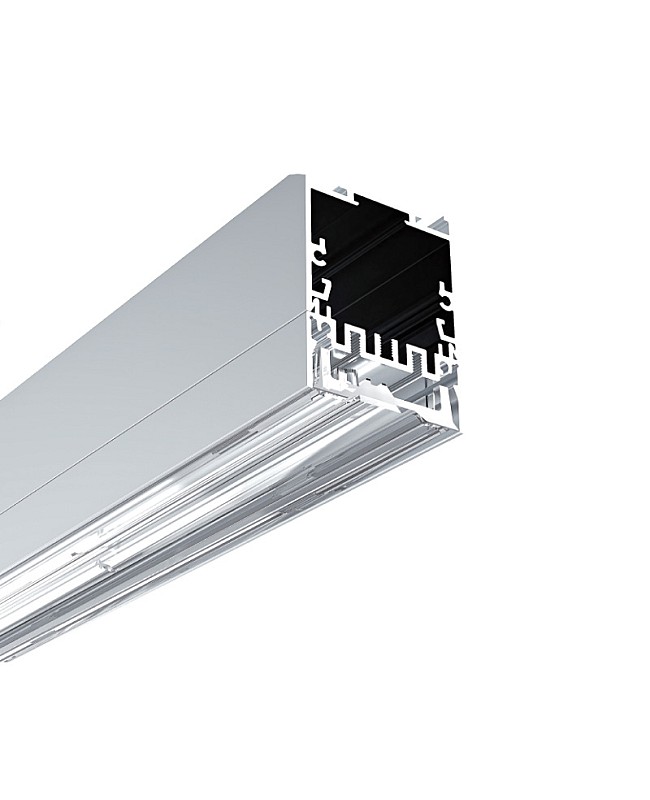

Linear lighting fixtures are made of 6063-T5 extruded aluminum with an anodized surface treatment, offering oxidation resistance and a longer lifespan. There are three colors available: silver, white, and black. The inner width is 32mm, allowing the maximum LED light width to be 24mm. You can install rigid LED modules and multiple rows of SMD or COB LED tapes as the light source, and use aluminum fixtures as heat sinks to improve heat dissipation, extending the lifespan of your LED lights.

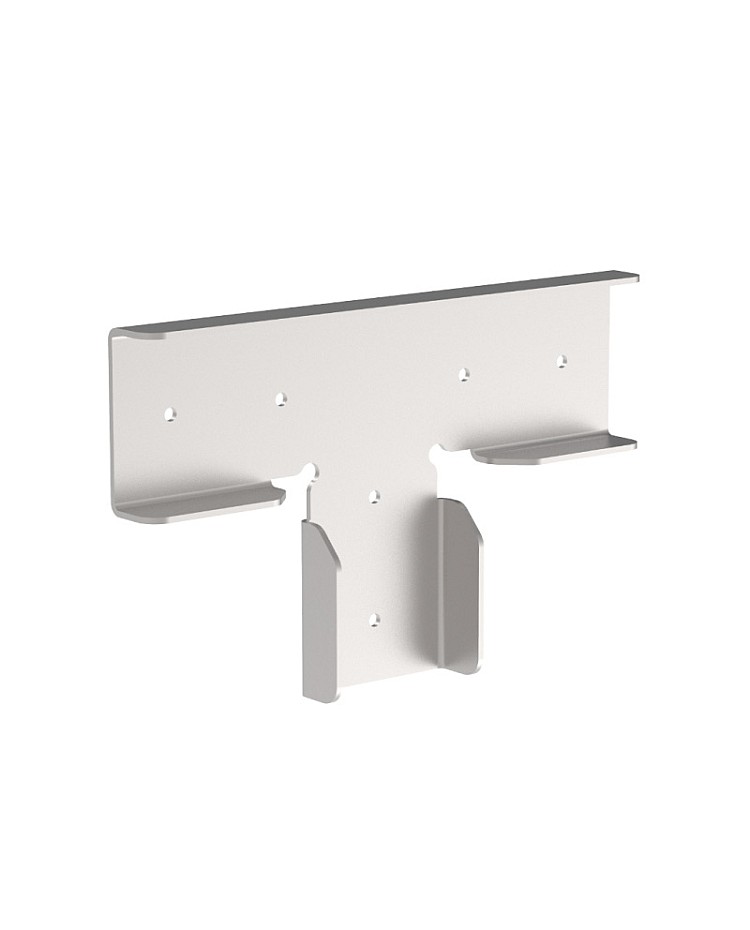

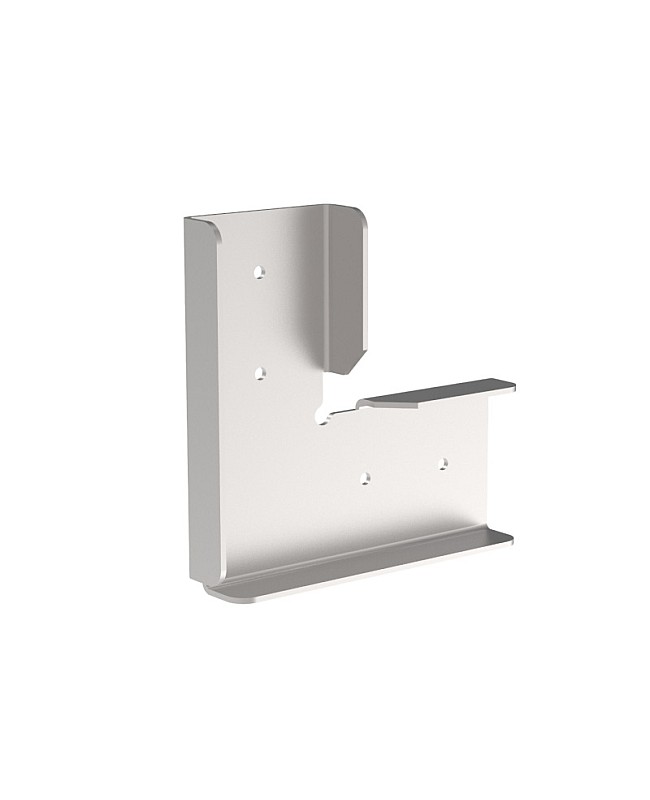

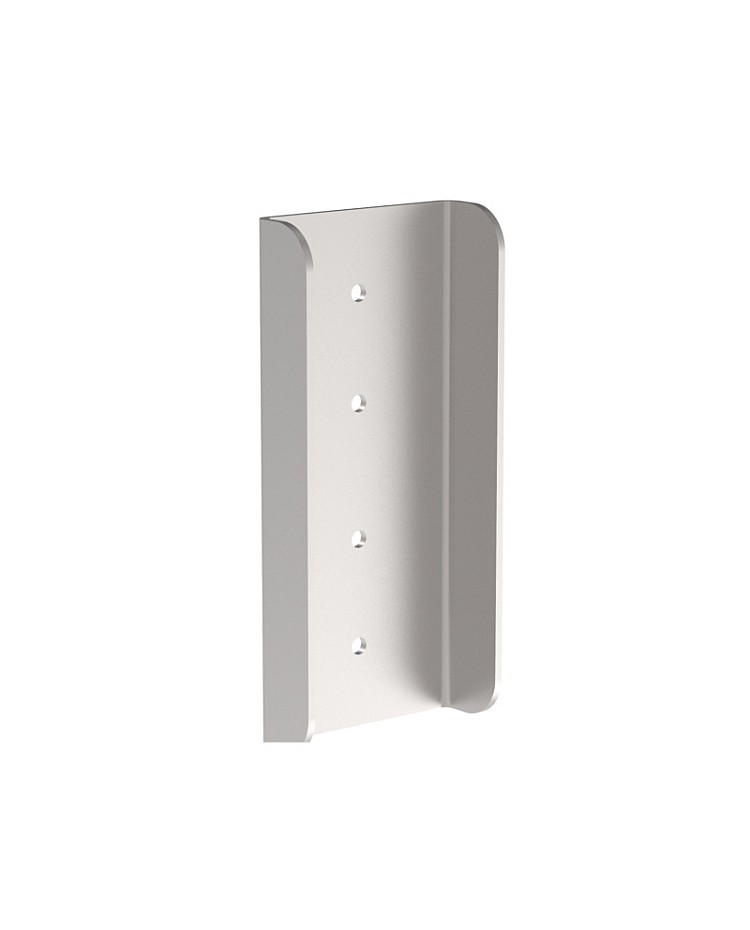

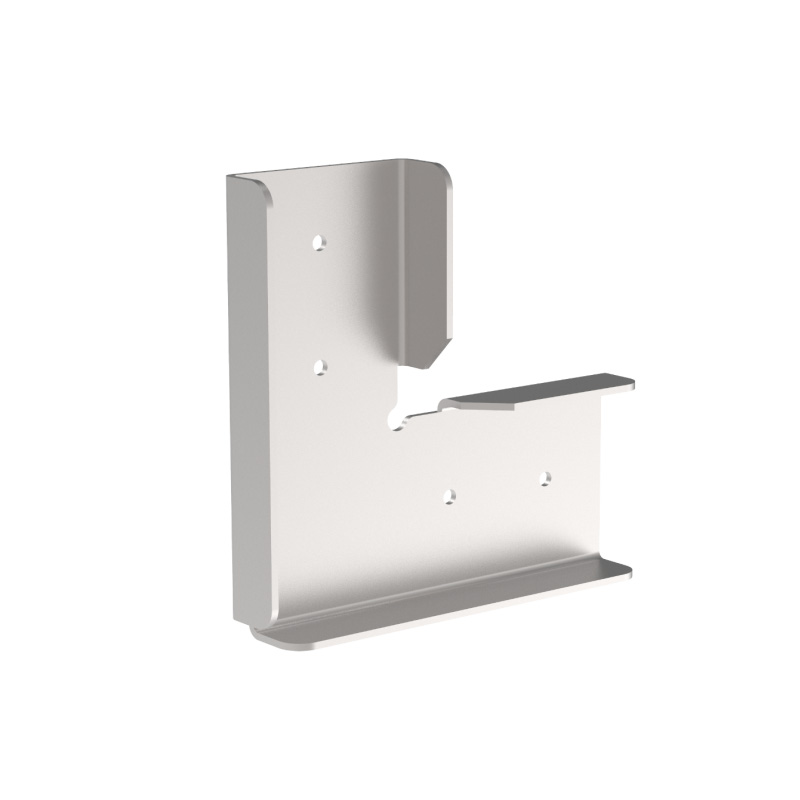

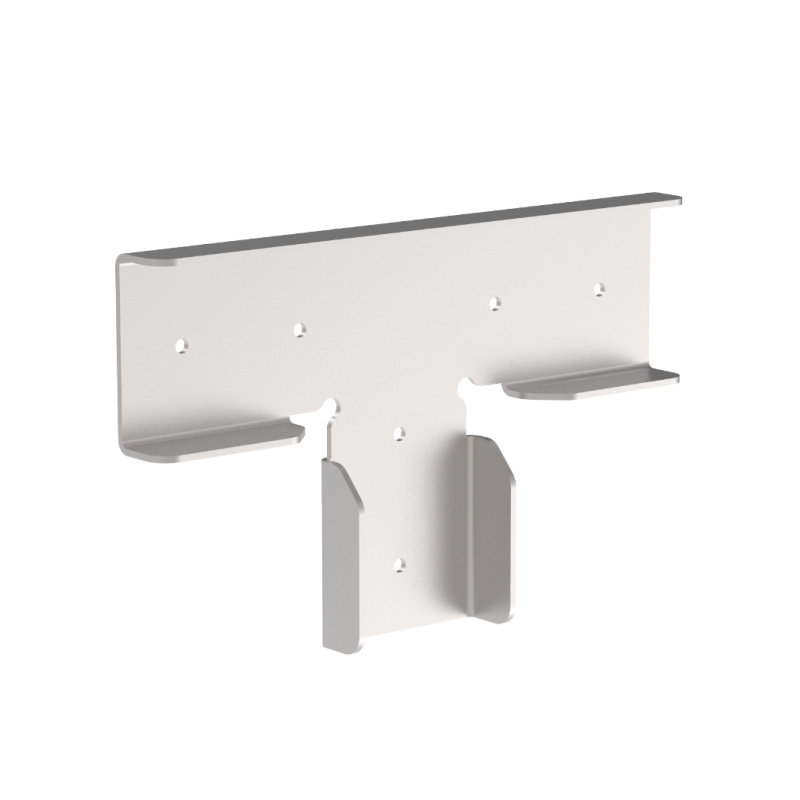

Three types of connectors are available: 90°, 180°, and T-shaped connectors to reconnect the light fixtures for your projects. You can use them as the main lighting in the kitchens, offices, dining rooms, etc.

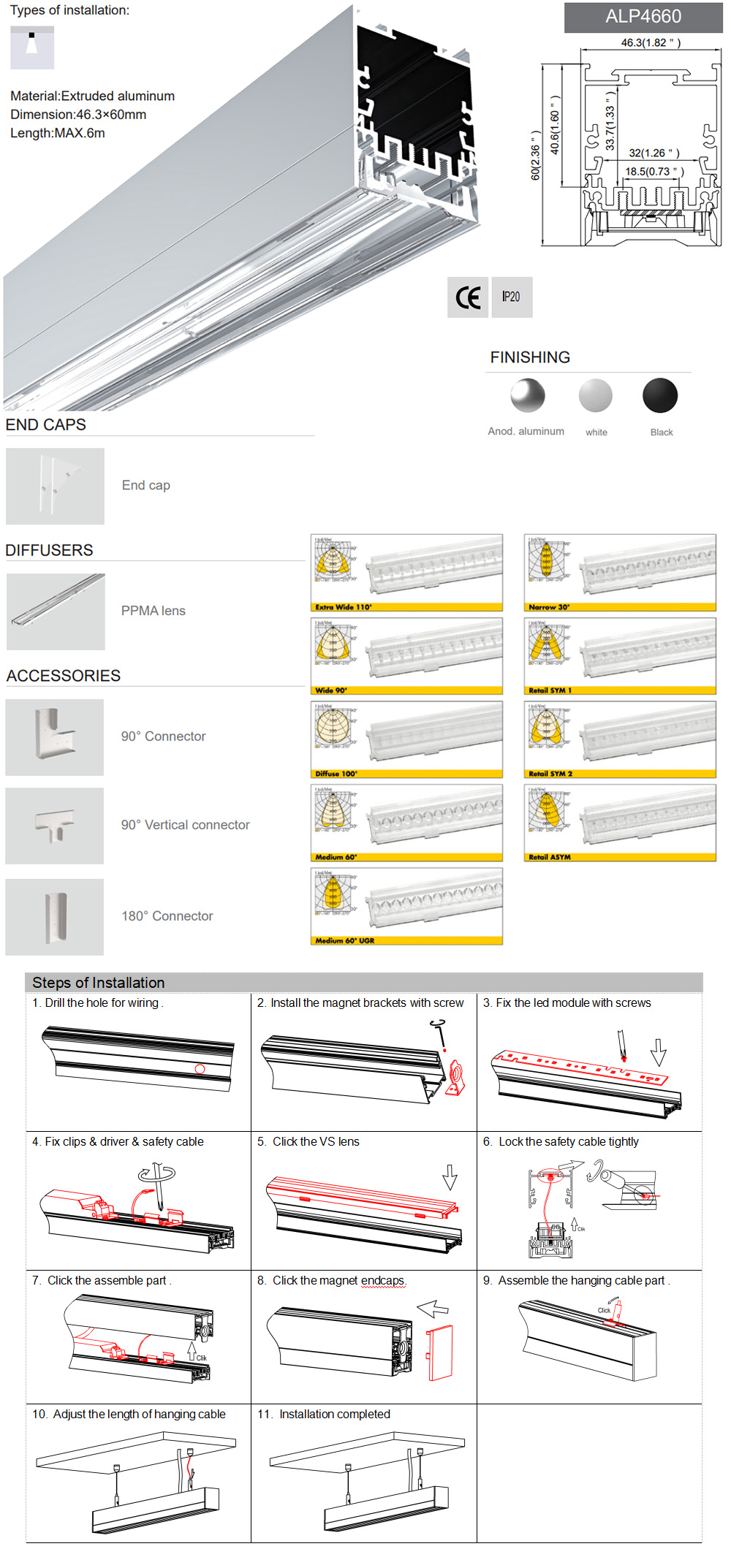

Specifications:
- Model: ALP4660
- Material: 6063-T5 Extruded Aluminum

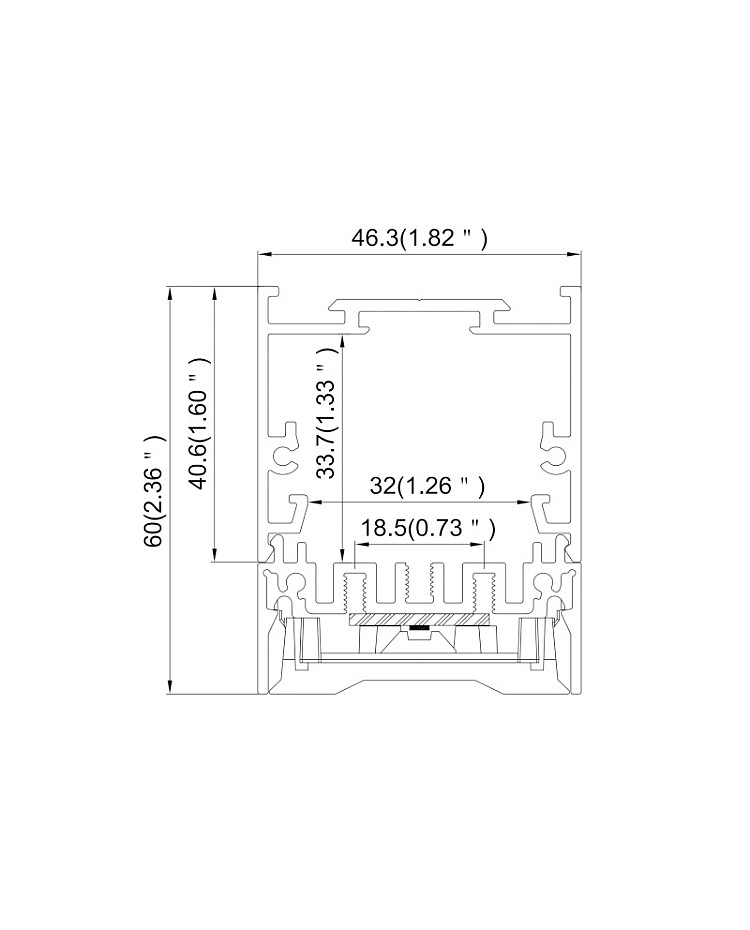

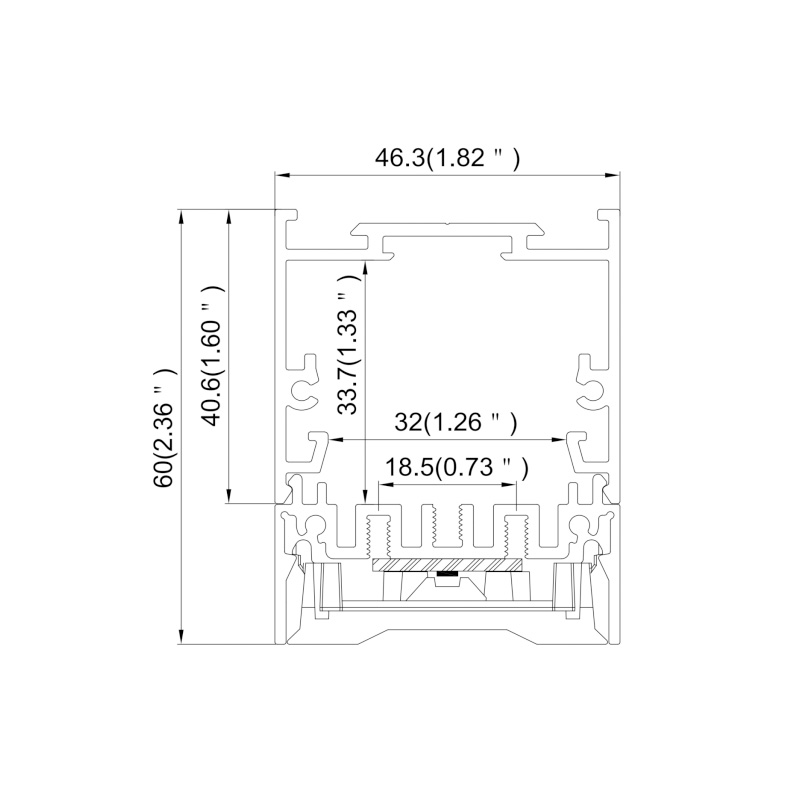

- Size: 60*46.3mm(H*W)
- Surface Treatment: Anodized
- Colors: Silver, Black, White
- Standard Length: 1M
- Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
- Custom Length Available: YES

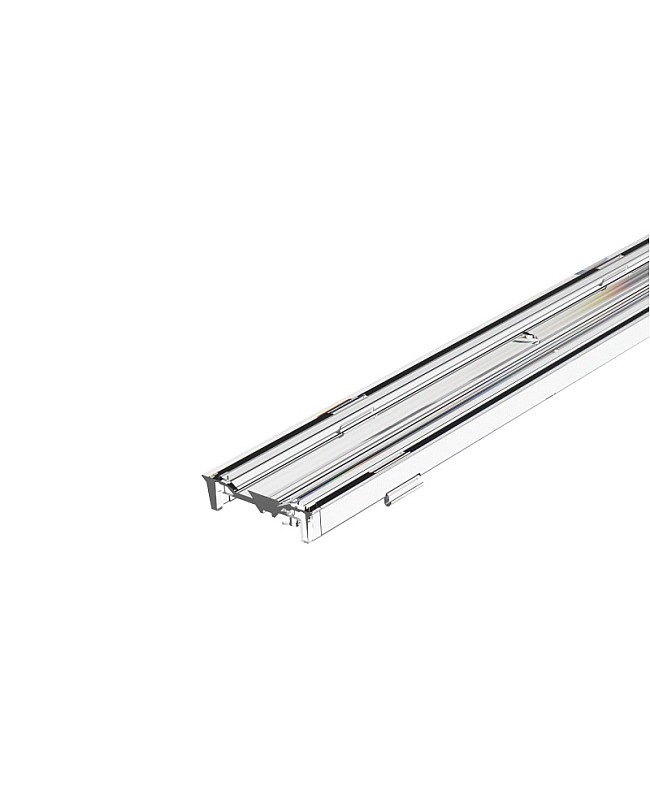

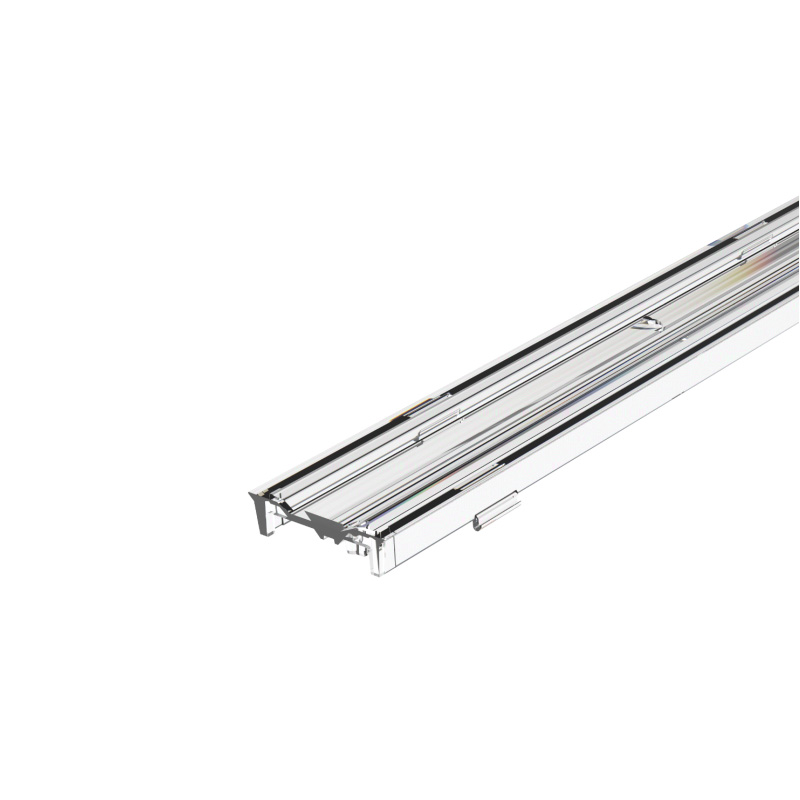

- Diffusers: 110° Extra Wide Lens, 90° Wide Lens, Medium 60° Lens, Medium 60° UGR, 30° Lens, 100° Diffuse Lens, Lens Retail SYM 1(560mm), Lens Retail SYSM 2
- Inner Width: 32mm
- Max Width Of LED Light: 24mm
- Max Power: 28W/M
- Beam Angle: 100°
- Tolerance: ±1%
- IP Rate: IP20 Non-waterproof
- LED Lights Not Included
- All Accessories Included

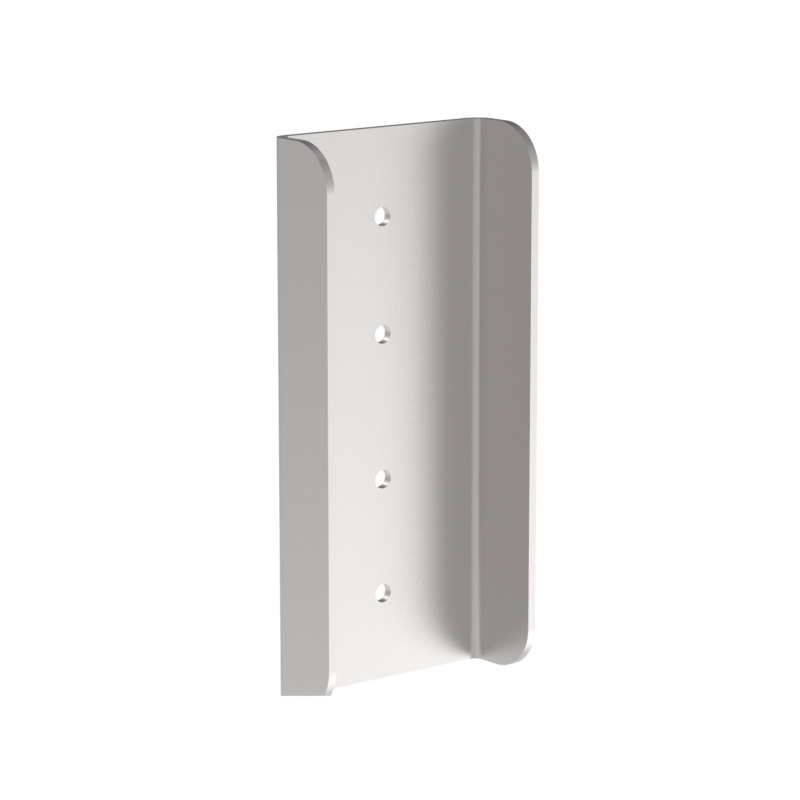

- 90°, 180° And T Connectors Sold Separately
- Installation: Pendant
- 5 Years Warranty
Includes:
1 * Linear Pendant Lighting Fixture
optional lens
Magnet Brackets
Internal Clips
External CLips
Safety Wires
Suspension Wires
