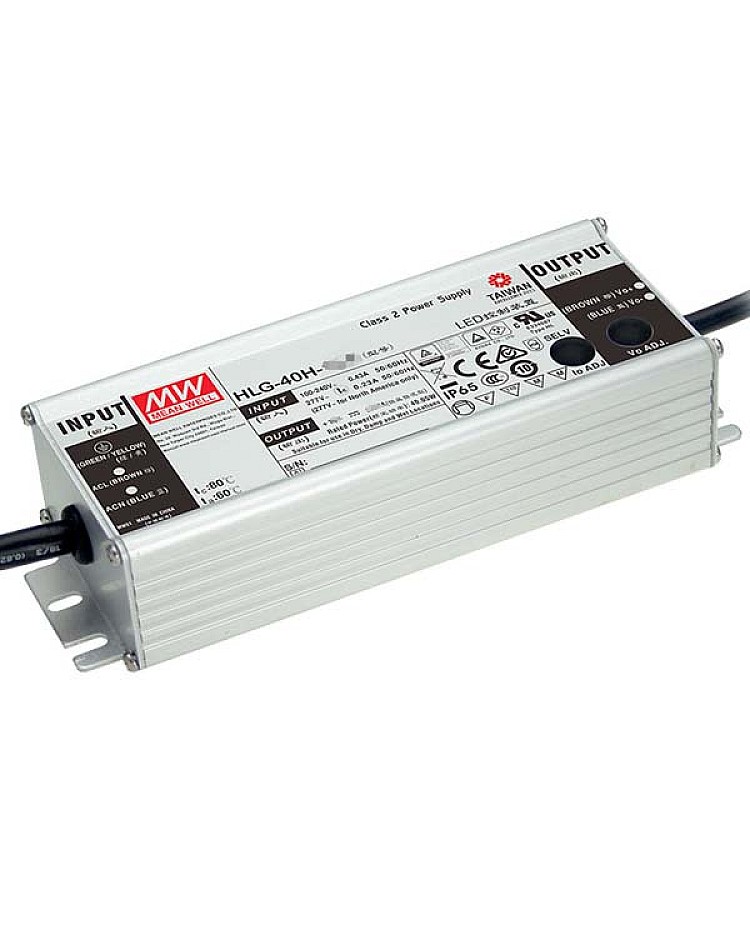

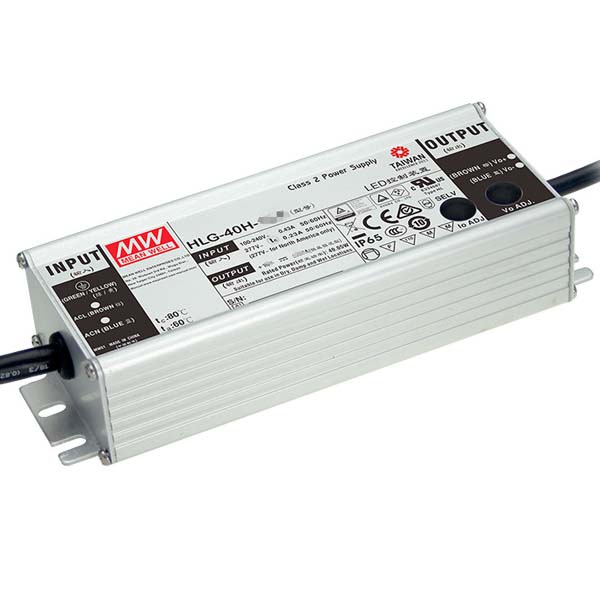

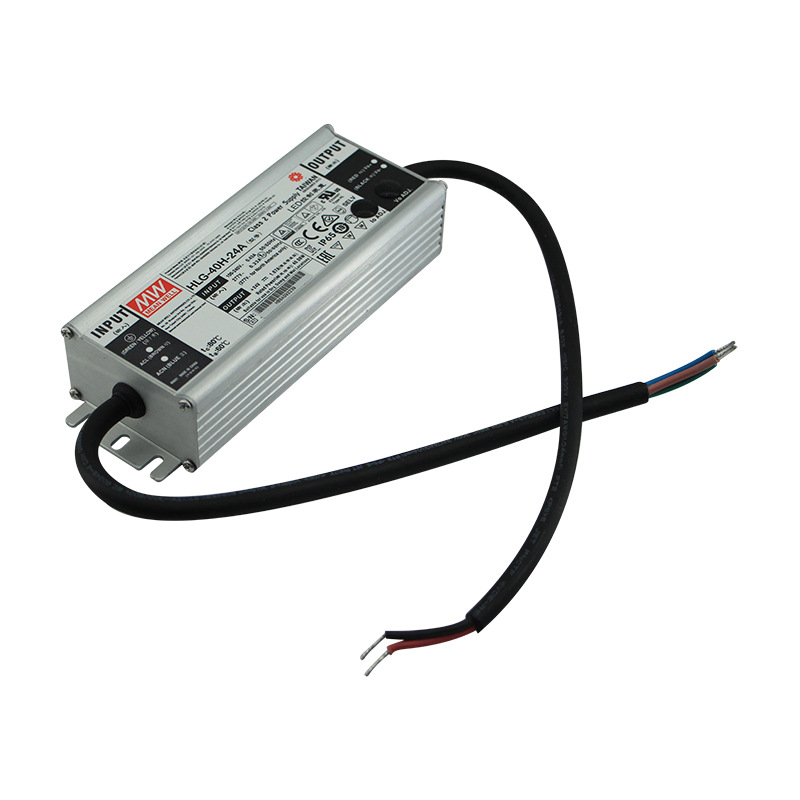

Mean Well HLG-40H Series LED Lighting Drivers

In Stock

1 reviews

Output Voltage

Type

$34.67

Reward Points: 35

Brand: Mean Well
Product Code: HLG-40H

Description
Reviews (1)

Check the Mean Well HLG-40H LED Lighting Drivers, with IP65 or IP67 waterproof rating for indoor or outdoor applications, the 40W AC/DC LED Driver featuring the dual mode constant voltage and constant current output design and adjustable via the built-in potentiometer, the input voltage range from AC90V to AC305V, can connect to the public power system without an adapter, offers various models with different rated voltage ranging between DC12V to DC54V, the high efficiency up to 89.5%, with the fanless design, the Meanwell LED Lighting Drivers are able to operate from -40℃ to 80℃ case temperature under free air convection. the design of metal housing and IP67/IP65 ingress protection level allows the LED Drivers to fit both indoor and outdoor applications. the lifespan over 62,000 hours and get 7 years warranty.

Constant Voltage + Constant Current Mode Output

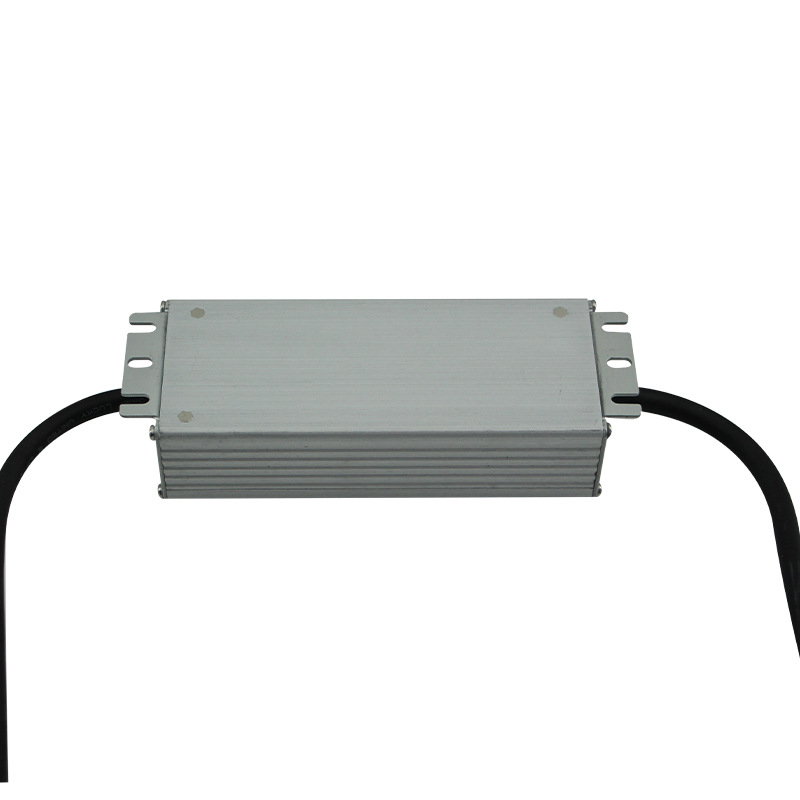

Metal Housing With Class I Design
Built-in Active PFC Function
Class 2 Power Unit
IP67 / IP65 Rating For Indoor Or Outdoor Installations
Function Options: Output Adjustable Via Potentiometer; 3 In 1 Dimming: Timer Dimming
Lifespan: >62,000 Hours
7 Years Warranty

Quick Links:

Mean Well HLG-40H Series Specification Document

Features:

Model: HLG-40H

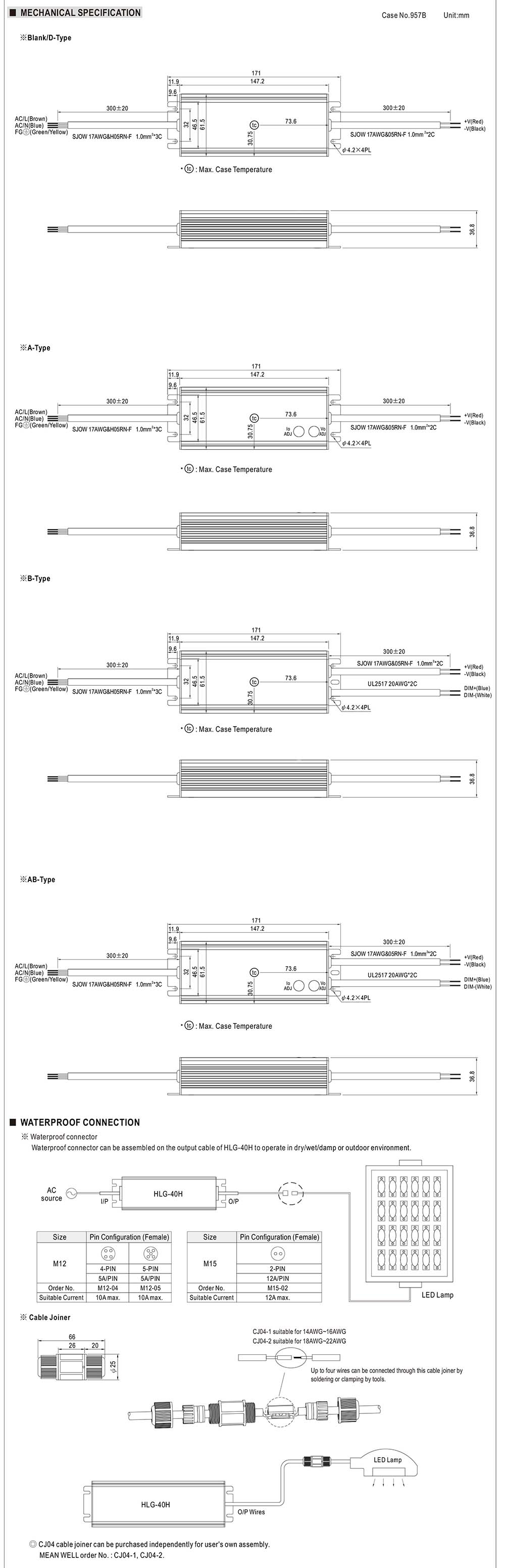

Size: 171*61.5*36.8mm(L*W*H)
Types:
Blank: IP67 Waterproof Level, Voltage And Current Fixed

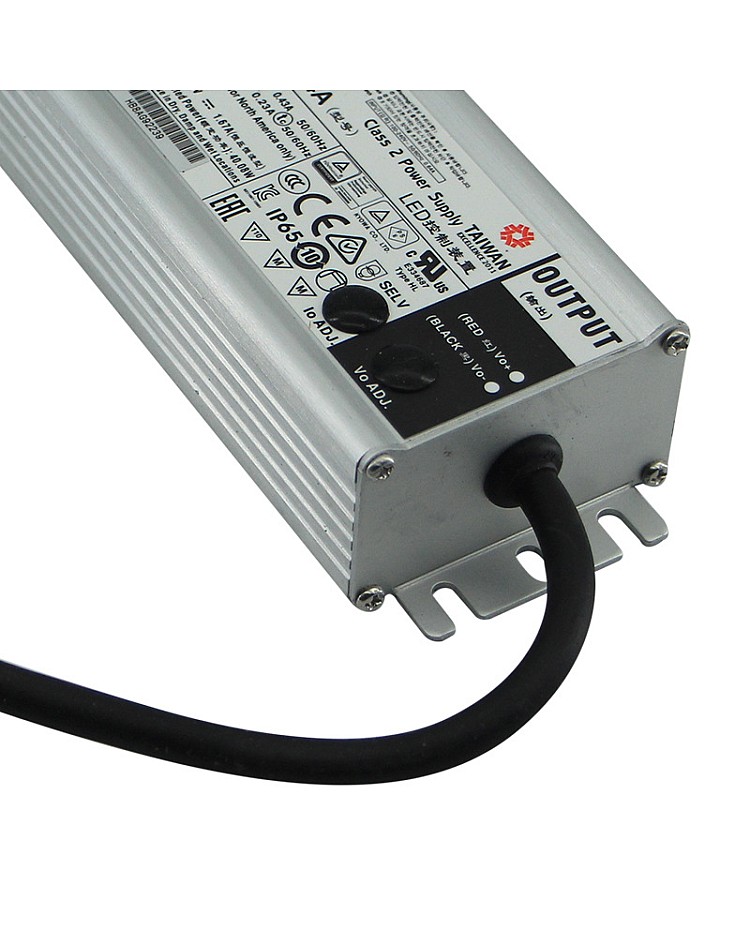

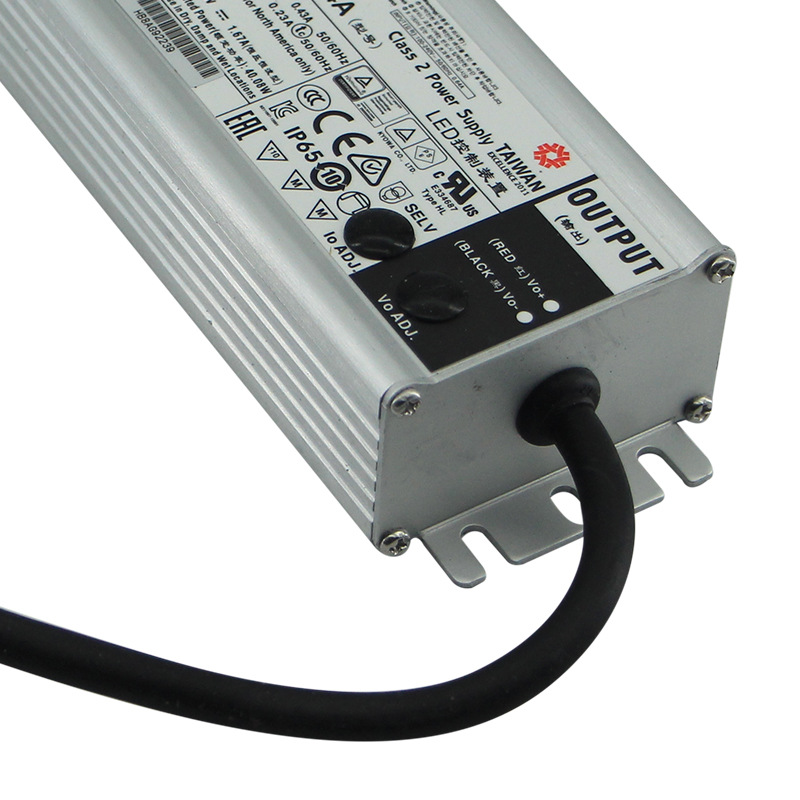

A: IP65 Waterproof Level, Voltage And Current Adjustable Through Built-in Potentiometer

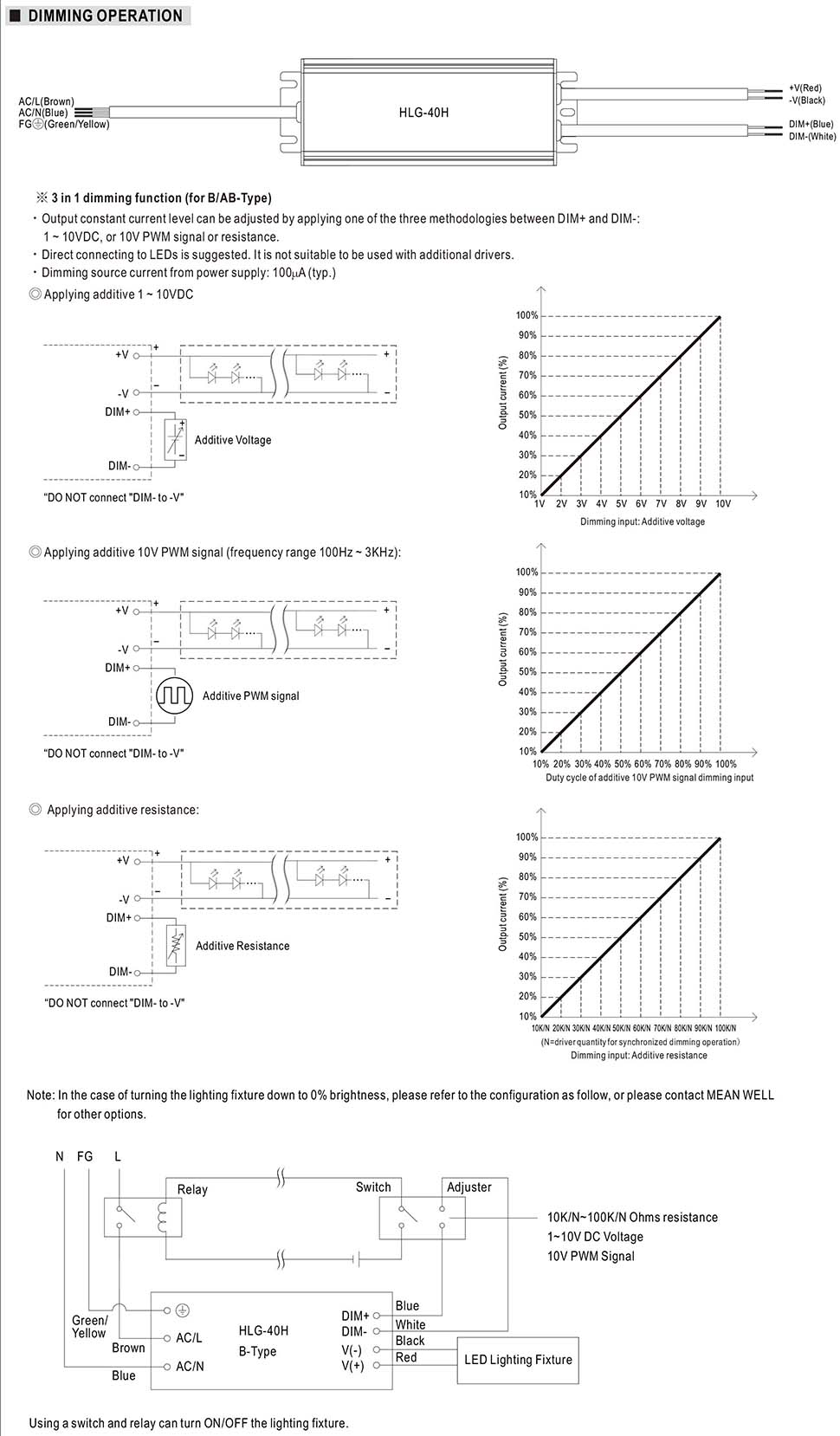

B: IP67 Waterproof Level, 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
AB: IP65 Waterproof Level, Voltage And Current Adjustable Through Built-in Potentiometer & 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
D: IP67 Waterproof Level, Timer Dimming Function

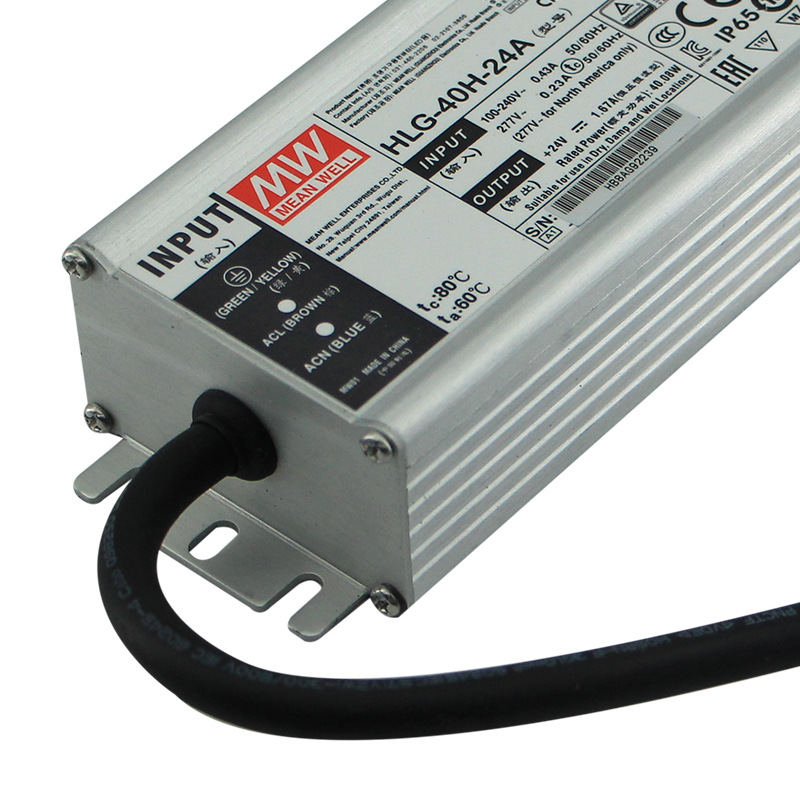

Input Voltage Range: 90-305VAC
Frequency Range: 47-63Hz
Power Factor: PF≥0.98/115VAC, PF≥0.95/230VAC, PF≥0.92/277VAC
Efficiency: 86.5%(DC12V), 86.5%(DC15V), 88%(DC20V), 88%(DC24V), 88.5%(DC30V), 88.5%(DC36V), 88.5%(DC42V), 89.5%(DC48V), 89.5%(DC54V)
AC Current: 0.43A/115VAC, 0.24A/230VAC, 0.23A/277VAC
Output Voltage: DC12V, DC15V, DC20V, DC24V, DC30V, DC36V, DC42V, DC48V, DC54V
Rated Current: 3.33A(DC12V), 2.67A(DC15V), 2A(DC20V), 1.67A(DC24V), 1.34A(DC30V), 1.12A(DC36V), 0.96A(DC42V), 0.84A(DC48V), 0.75A(DC54V)
Rated Power: 39.96W(DC12V), 40.05W(DC15V), 40W(DC20V), 40.08W(DC24V), 40.2W(DC30V), 40.32W(DC36V), 40.32W(DC42V), 40.32W(DC48V), 40.5W(DC54V)
Current Adjustable Range(For A/AB Type Only Via Built-in Potentiometer): 2-3.33A(DC12V), 1.6-2.67A(DC15V), 1.2-2A(DC20V), 1.4-1.67A(DC24V), 0.8-1.34A(DC30V), 0.67-1.12A(DC36V), 0.58-0.96A(DC42V), 0.5-0.84A(DC48V), 0.45-0.75A(DC54V)
Voltage Adjustable Range( For A/AB Type Only Via Built-in Potentiometer): 10.8-13.5V(DC12V), 13.5-17V(DC15V), 17-22V(DC20V), 22-27V(DC24V), 27-33V(DC30V), 33-40V(DC36V), 40-46V(DC42V), 44-53V(DC48V), 49-58V(DC54V)
Working Temperature: -40℃-+80℃
Vibration: 10-500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
Safety Standards: UL8750(Type "HL"), CSA C22.2 No.250.0-08, EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13 Independent, GB19510.1, GB19510.14, EAC TP TC 004, KC61347-2-13(Except For AB-Type), IP76 Or IP67 Approved
Short Circuit Protection
Over Voltage Protection
Over Temperature Protection
7 Years Warranty
