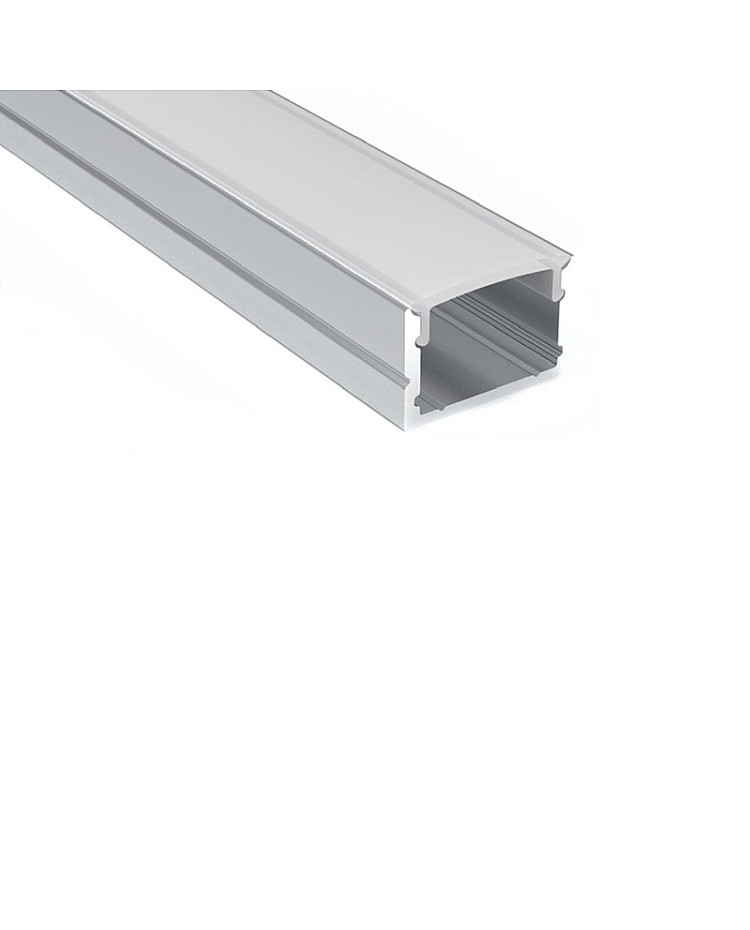

The slim LED channels are a versatile linear lighting solution that is designed for surface-mounted LED strip installations. They offer multiple installation options, including adjustable brackets, metal clips, and 45° clips, to meet a variety of design needs. Ideal for architectural, decorative, and task lighting. Suitable for both residential and commercial projects: living rooms, bedrooms, kitchens, offices, retail displays, hotels, and more. The mini aluminum LED profiles are made from high-quality extruded aluminum and feature a silver anodized surface finish, providing anti-oxidation resistance and a longer lifespan. It ensures excellent heat dissipation, extending LED lifespan while providing a sleek, modern finish. The standard lengths are 1 m and 2 m, and can be cut to any length to meet your needs. The surface mounting LED profiles come with PC diffused covers for smooth, uniform light output, eliminating harsh glare and hotspots. The inner width is 15.2 mm, allowing a maximum width of 15 mm for the 12V LED strips. We recommend choosing high-density SMD or COB flexible light strips as the light source, which feature no visible light dots or dark areas. End caps with and without wire holes are included. The metal mounting clips are included, and 45° clips and adjustable brackets are sold separately.
Specifications:

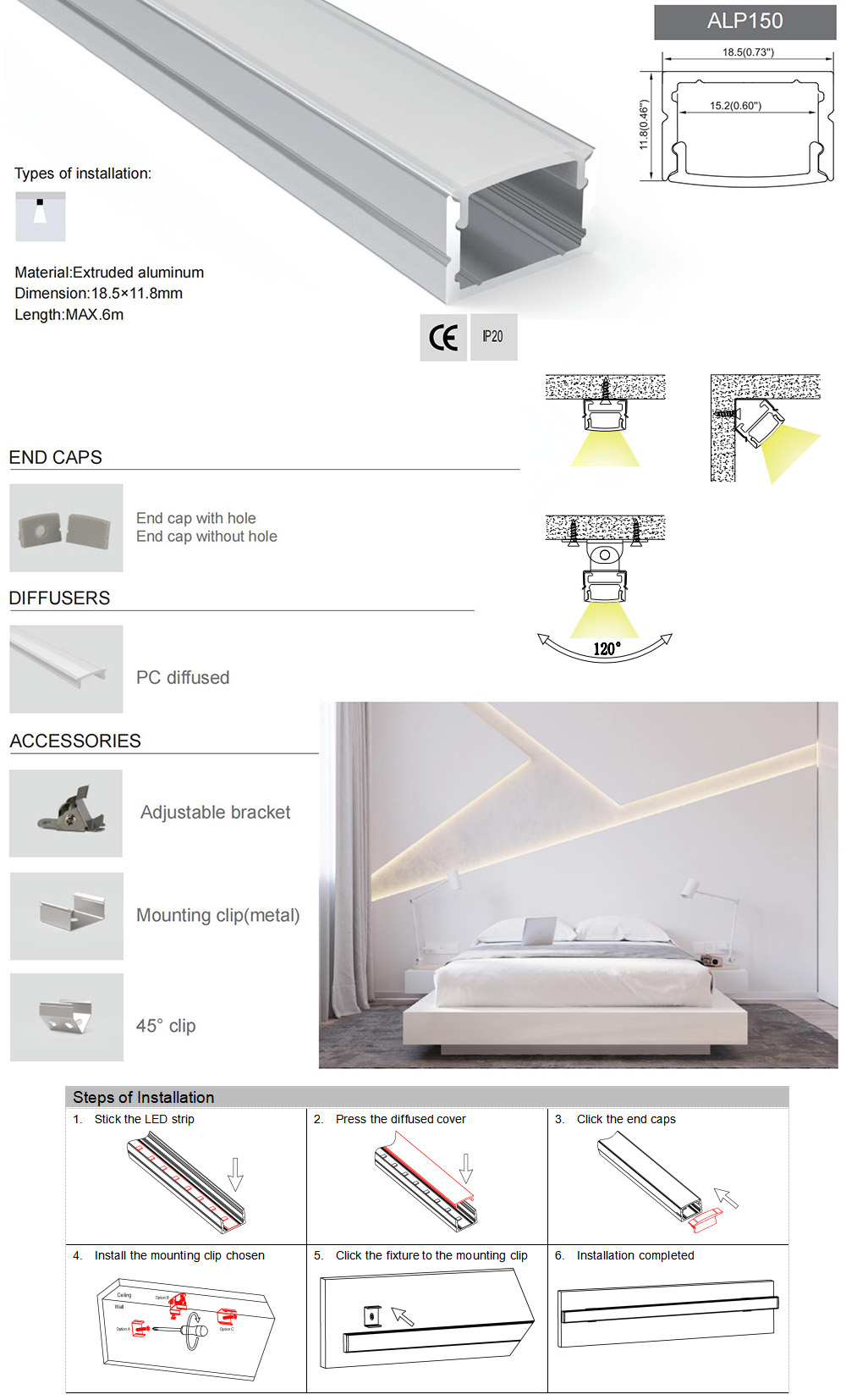

- Model: ALP150
- Material: Extruded aluminum
- Surface treatment: Anodized
- Colors: Silver

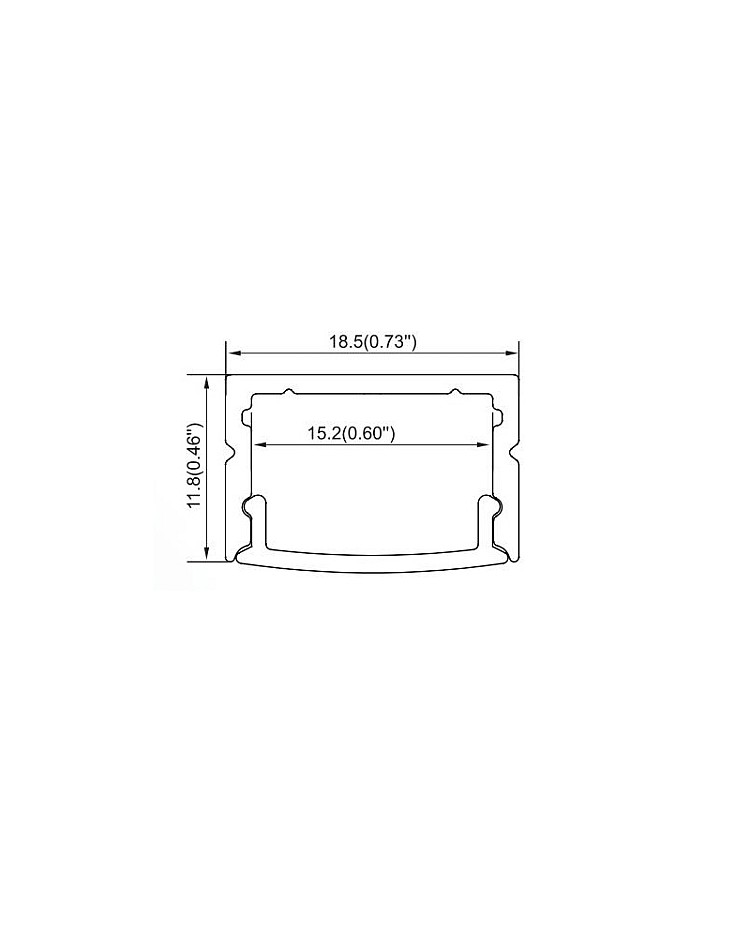

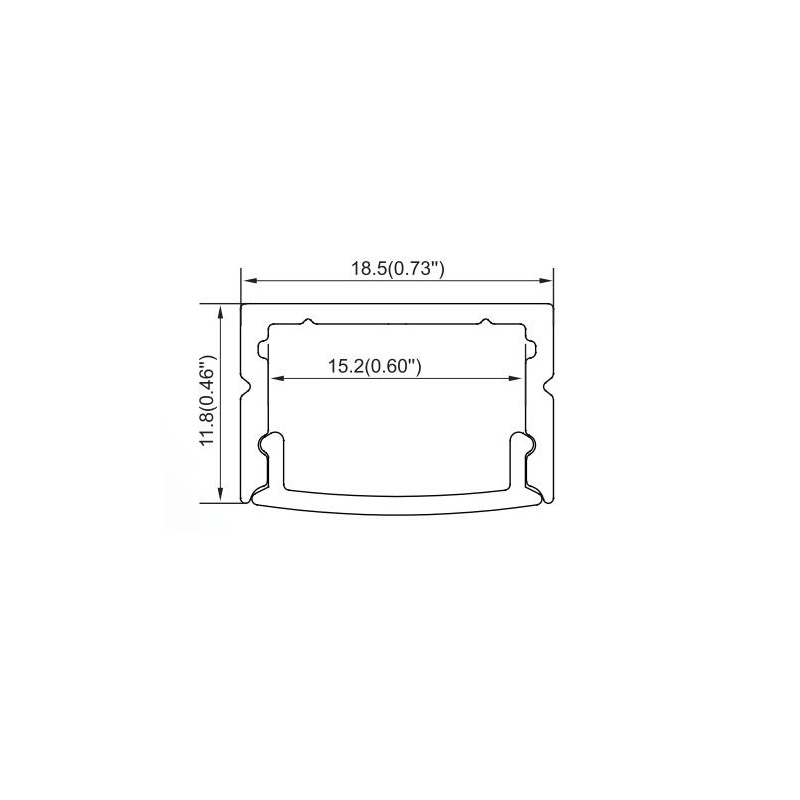

- Size ( W x H ): 18.5 mm x 11.8 mm ( 0.73" x 0.46" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Diffusers: PC diffused cover
- Inner width: 15.2 mm ( 0.6" )
- Max width of LED strips: 15 mm ( 0.59" )
- Max power: 15W/m
- Beam angle: 100°
- Tolerance: ±1%

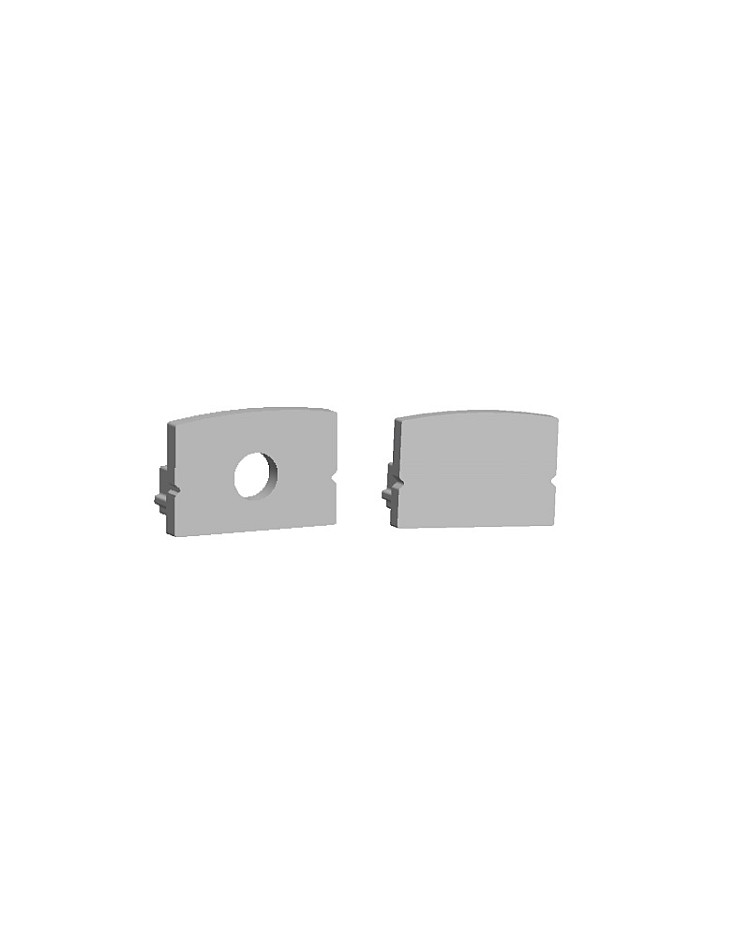

- End caps with and without wire holes are included

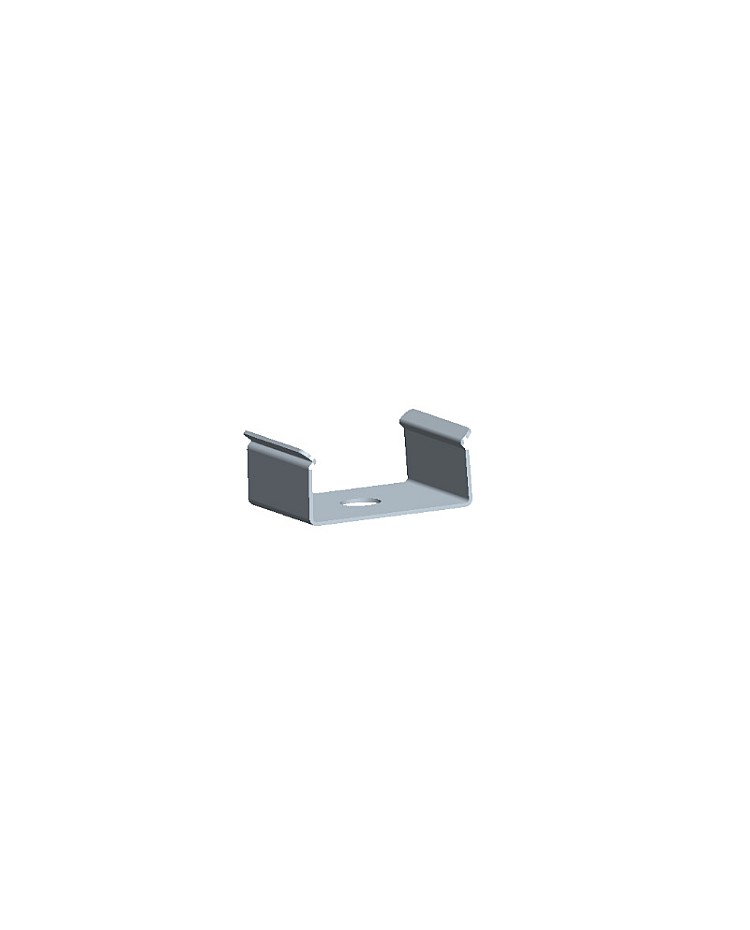

- Mounting clips are included,

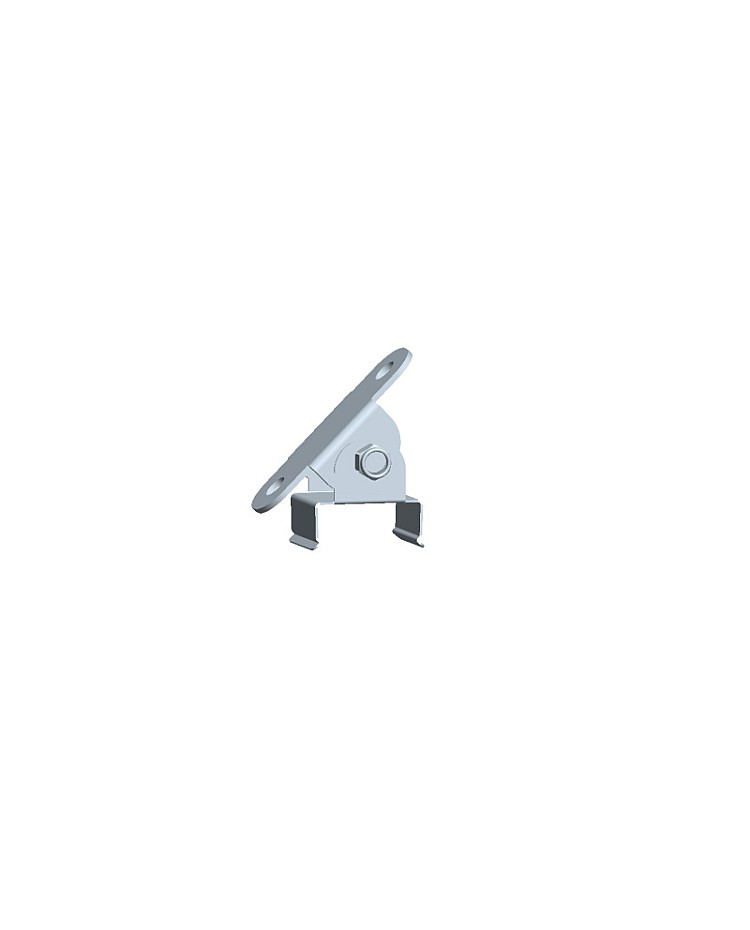

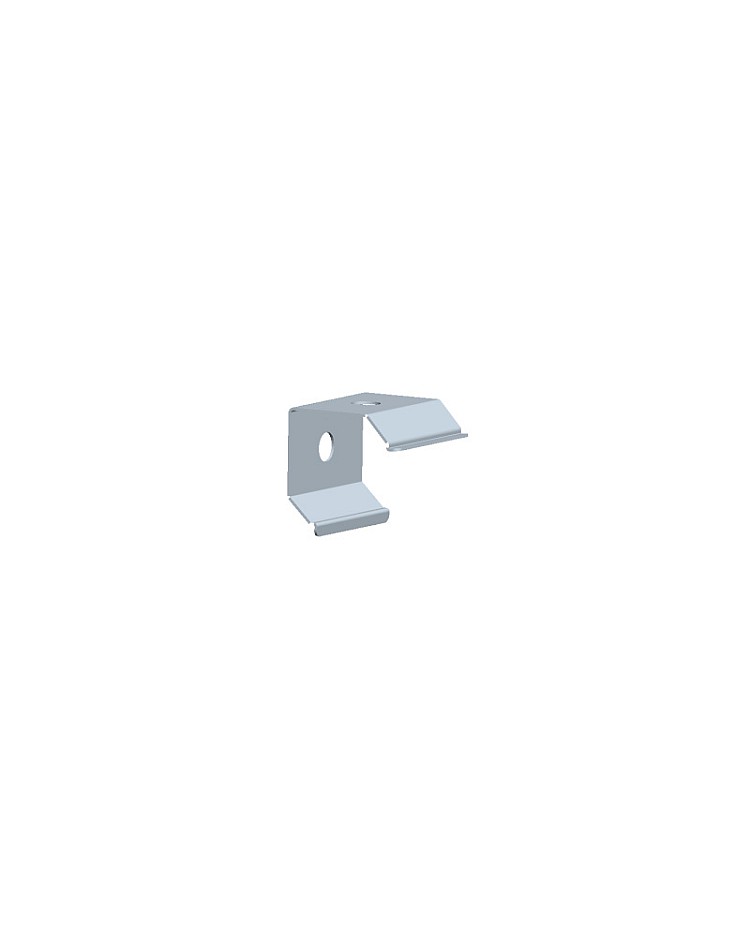

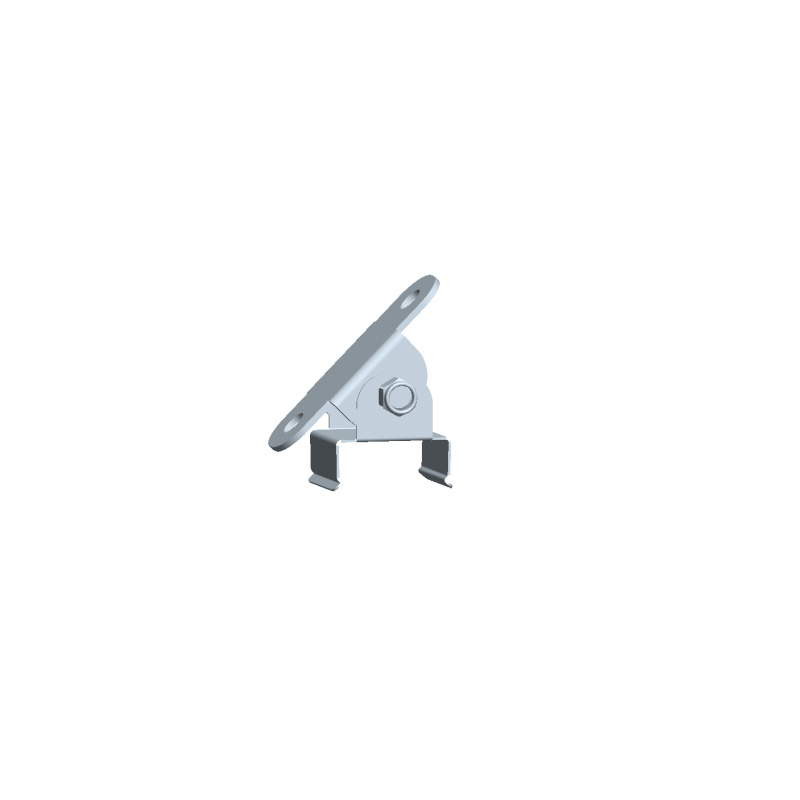

- 45° and adjustable clips are sold separately
- Installation: Surface-mounted
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:
- Architectural lighting: Create seamless recessed or surface-mounted lighting in walls and ceilings to highlight architectural lines and features with clean, uniform light.

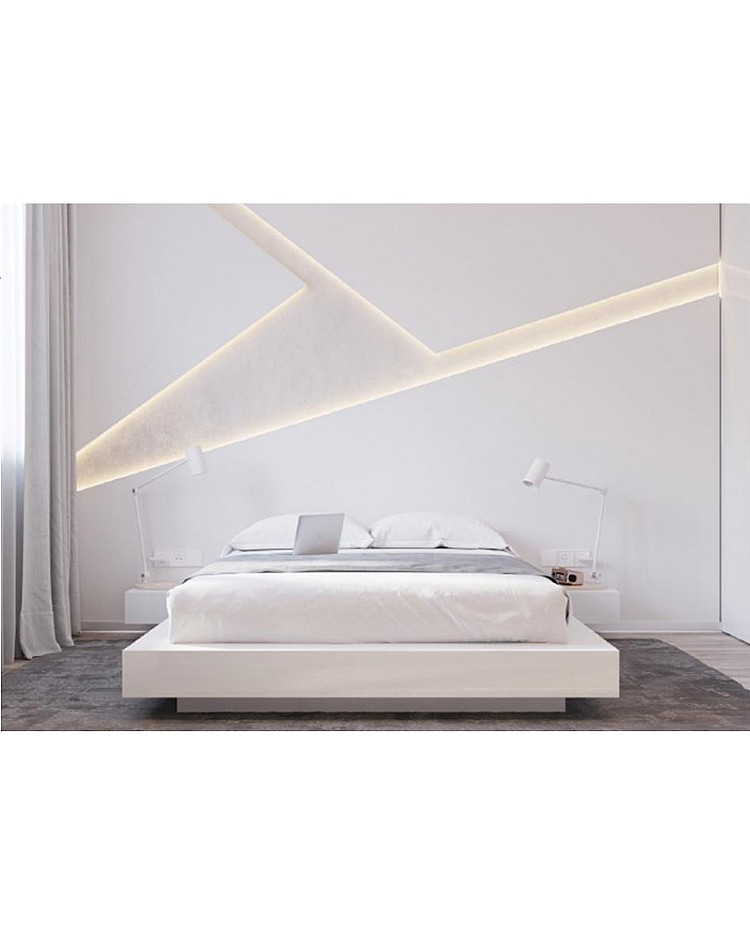

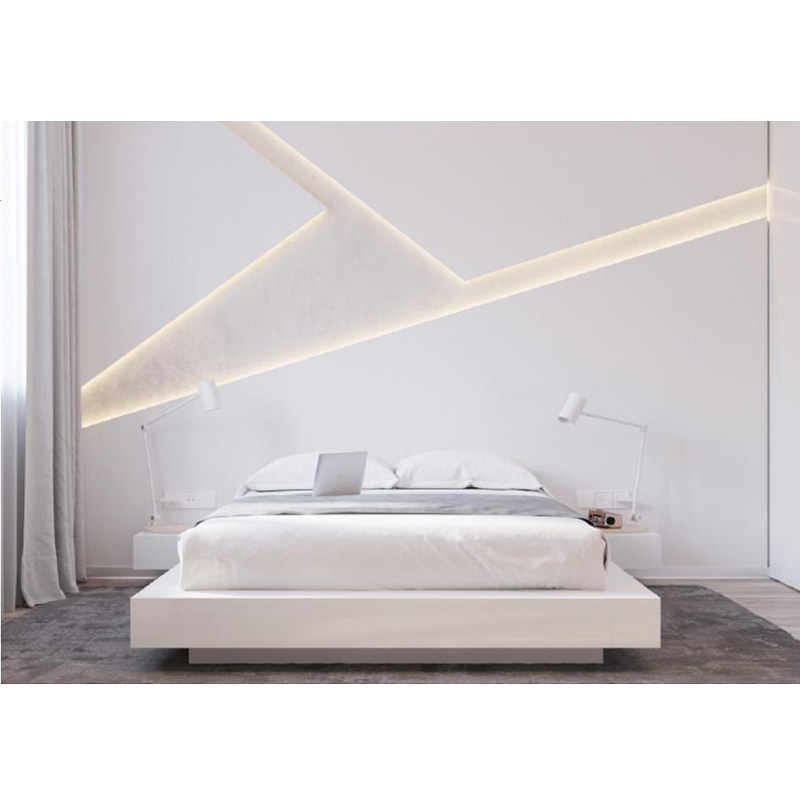

- Interior design & ambient lighting: Decorative linear lighting for bedrooms, living rooms, and hallways.
- Task & work lighting: Mounted under cabinets, shelves, or furniture for functional illumination.
- Accent & mood lighting: Add creative lighting effects in hotels, restaurants, and retail shops.
- DIY & custom projects: Can be cut to size and installed in creative patterns.
Includes:

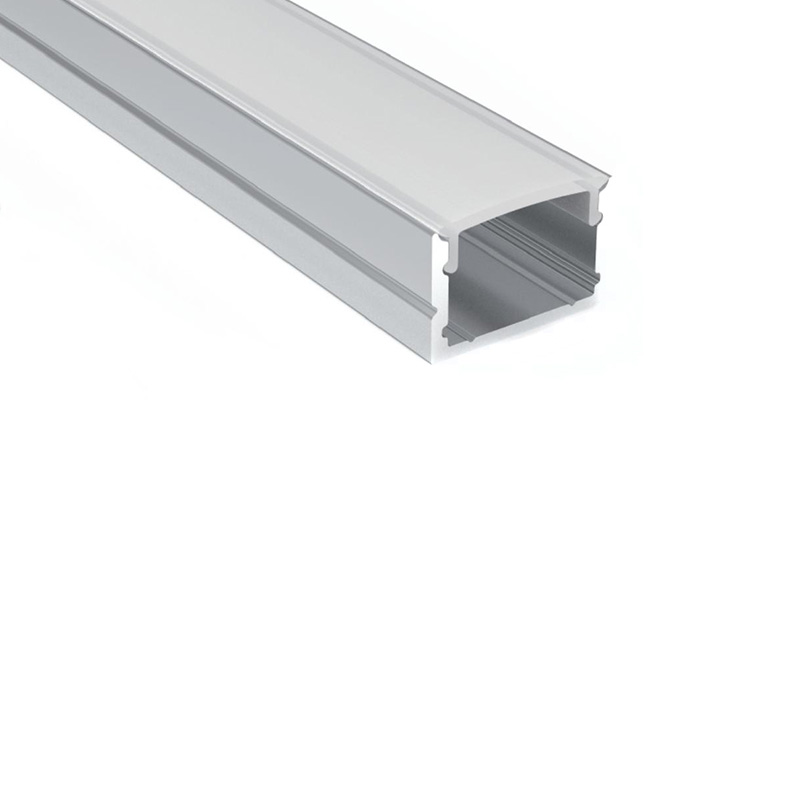

1 * Wall light fixture channel with diffuser
End caps ( With and without wire hole )
Metal mounting clips
