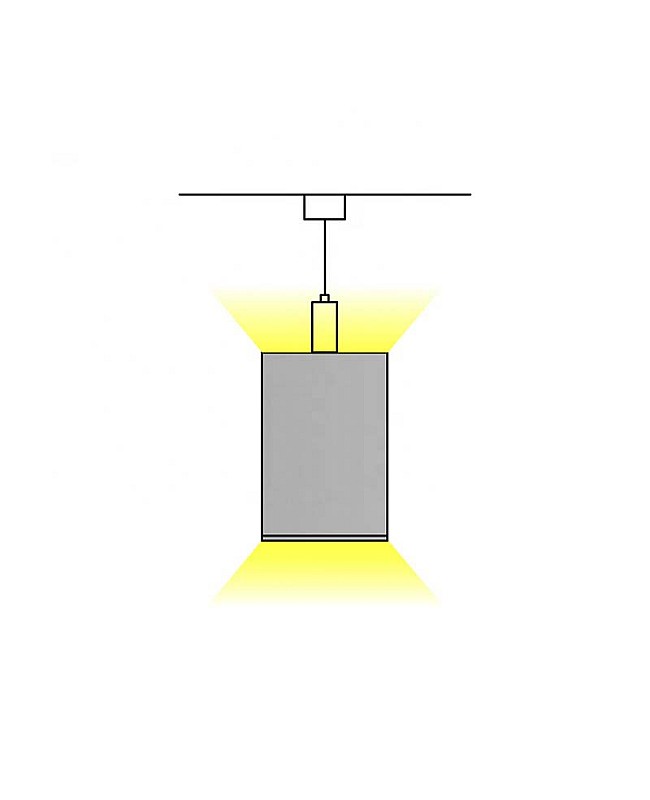

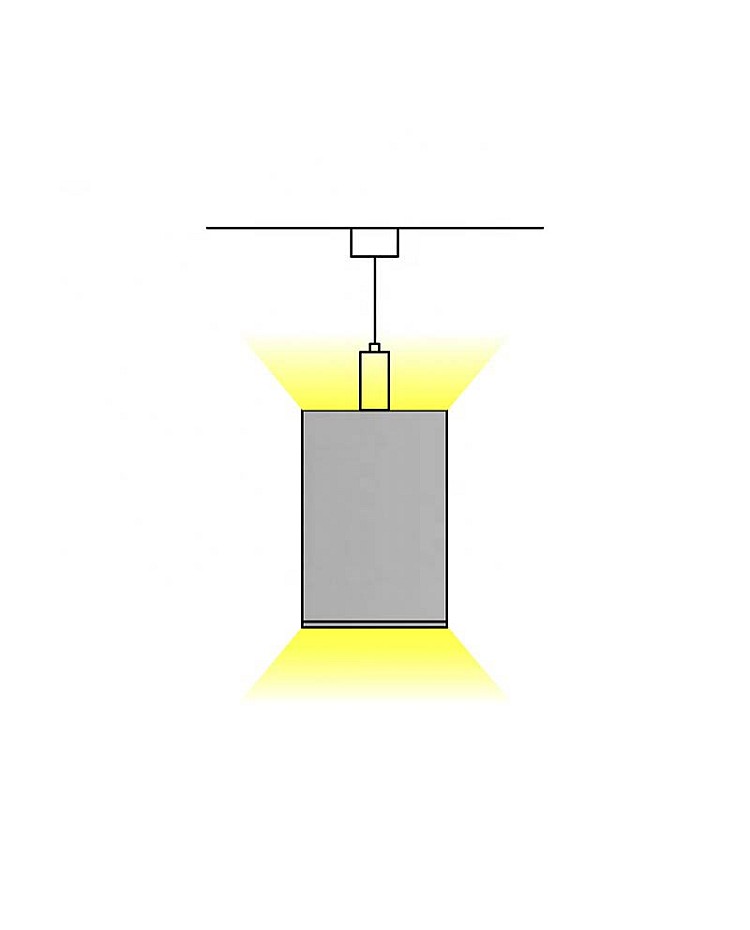

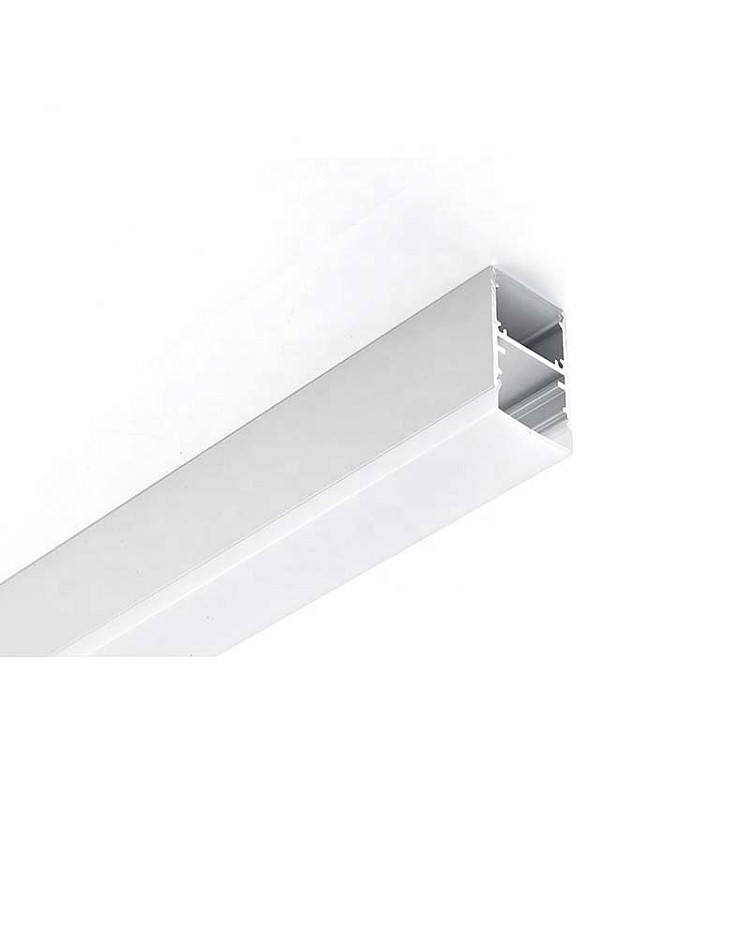

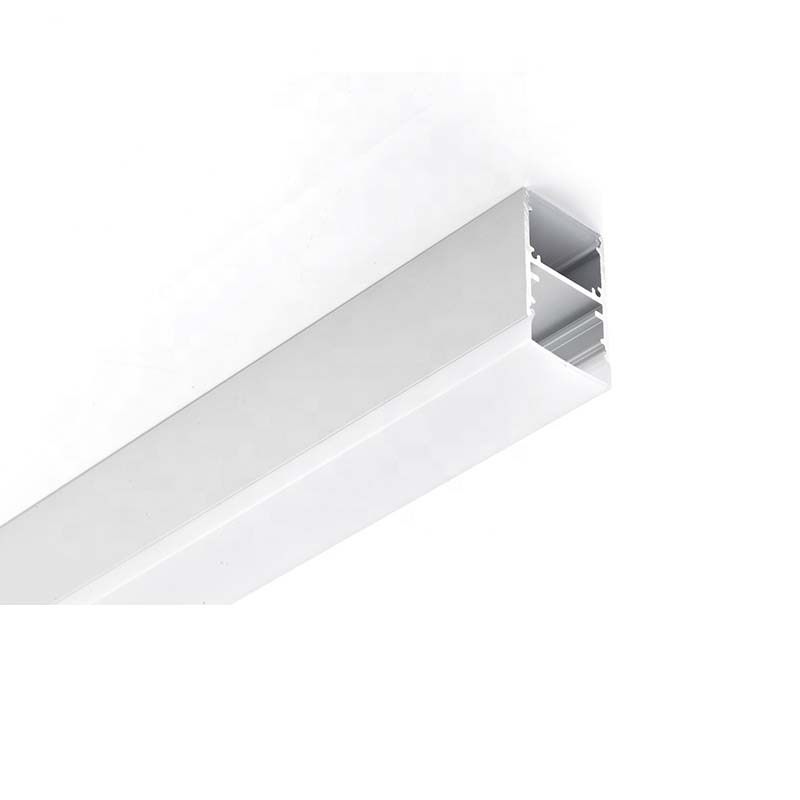

Check the Extruded Aluminum LED Housing, which supports Upside and Downside LED Strips Installation. made of 6063-T5 aluminum alloy material and with anodized silver surface treatment, which allows the better anti-oxidation feature and a longer lifespan than other similar products, the standard length is 1meter per piece, you also can choose other lengths, the max length is 3meter per piece. there is only one type of diffuser available, you only can choose the PC diffused cover, which will bring you the soft output lighting. the Extruded LED Housing supports up and downside LED Strips installation, the width of upside is 16.1mm and the downside is 17.4mm, compatible with the Flexible LED Strips the width up to 16mm and 17mm, you could install the LED Strips on the Aluminium Housing easily, the aluminium base for the better heat dissipation, the diffuser with clip-in design, easy to install and take off. the end caps with wire hole included, you could connect the LED Strips with LED Power Supply to light them up directly, the hanging clips and suspension wires included allows the surface mounted or pendant installation. you could use them for projects in offices, malls, homes, restaurants, schools and hospitals.


  • Model: ALP108
  • Material: 6063-T5 Aluminum Alloy
  • Surface Treatment: Silver Anodized
  • Colors: Silver, White, Black

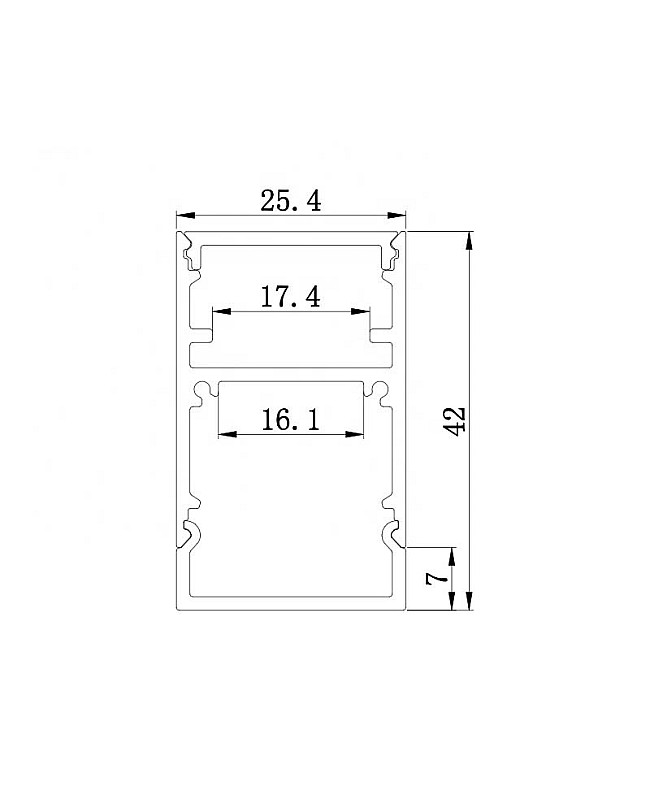

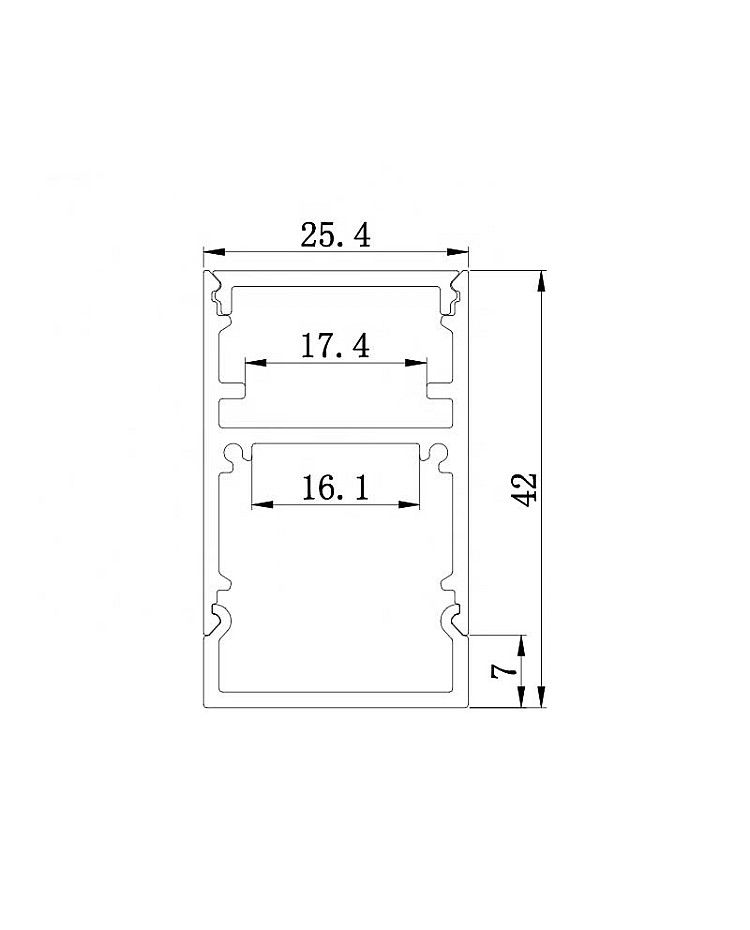

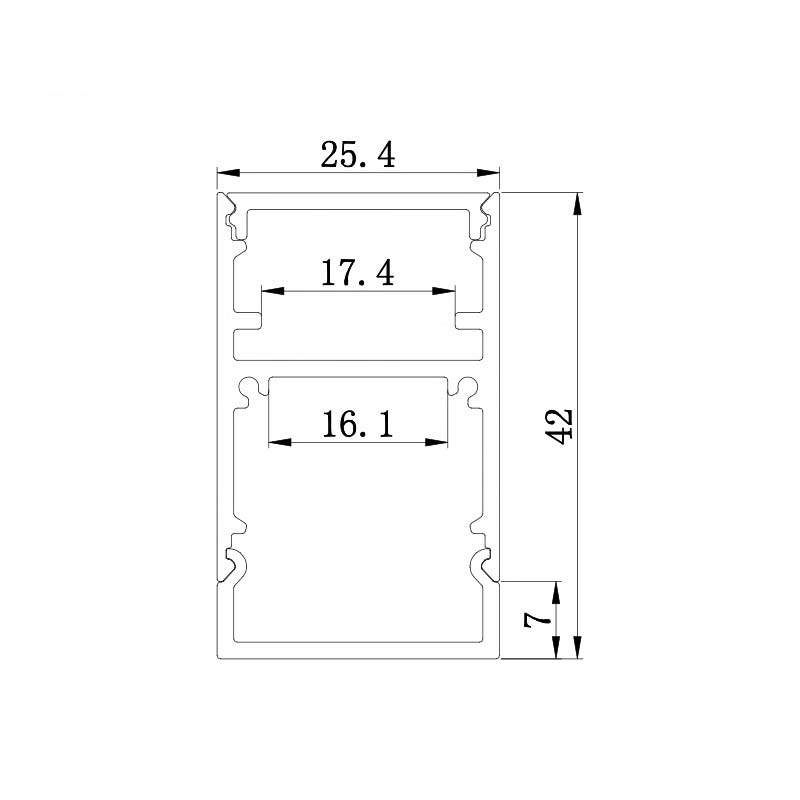

  • Size:42*25.4mm
  • Inner Width: 16.1mm And 17.4mm
  • Compatible With LED Strips Width Up To 16mm And 17mm
  • Max Power: 25W/Meter
  • Standard Length: 1Meter
  • Other Lengths Available: 1.5Meter, 2Meter, 2.5Meter, 3Meter
  • Custom Length Available: YES
  • Diffuser: PC Diffused Cover

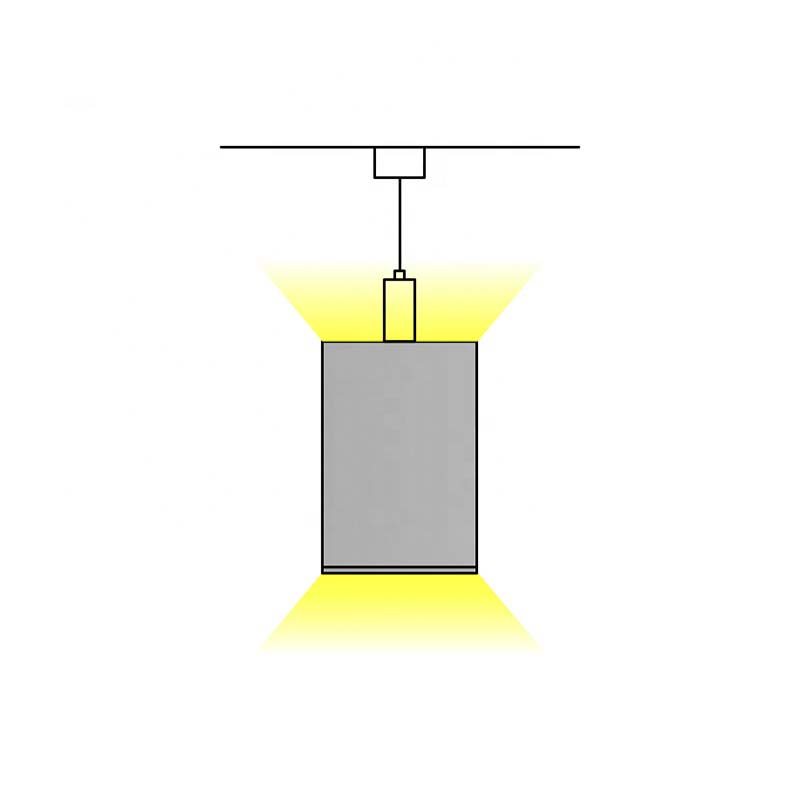

  • Installation; Pendant/Wall Mounted
  • Applications: Office, Kitchen, Hotel, Stores

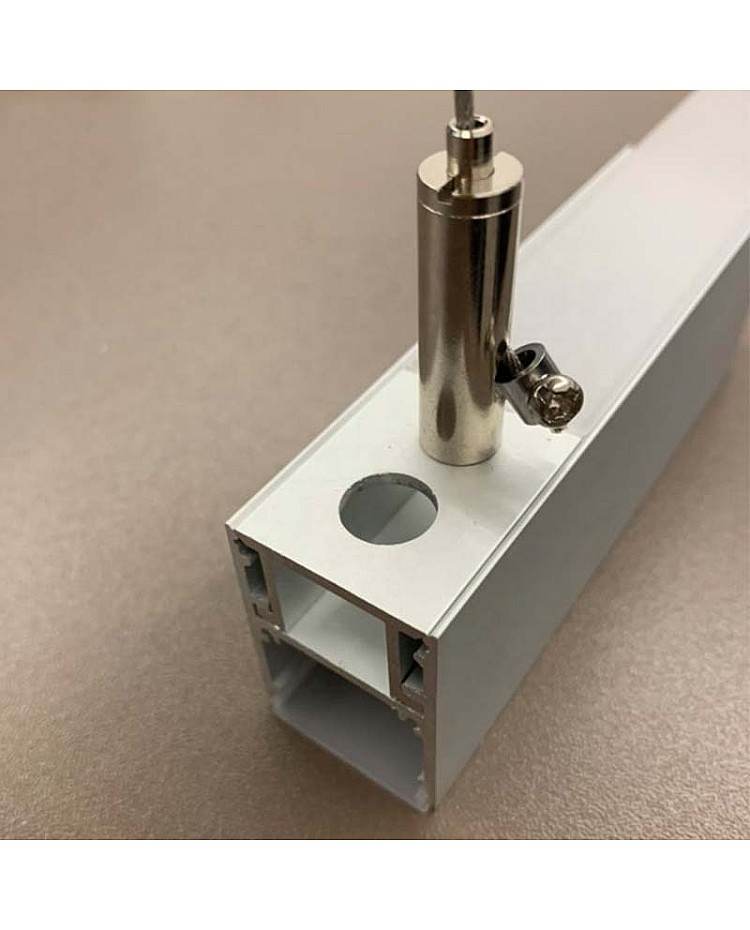

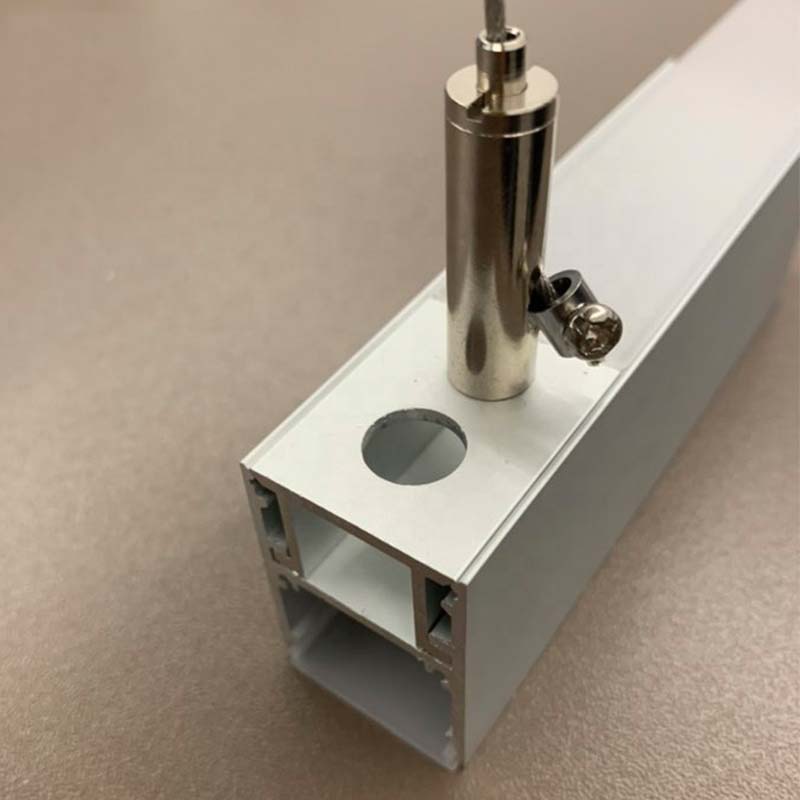

  • End Caps With Wire Holes, Hanging Clips And Suspension Wires Included
  • 5 Years Warranty
  • Shipping Method: By Express/By Sea(Send Inquiry)


1*Extruded Aluminum LED Housing

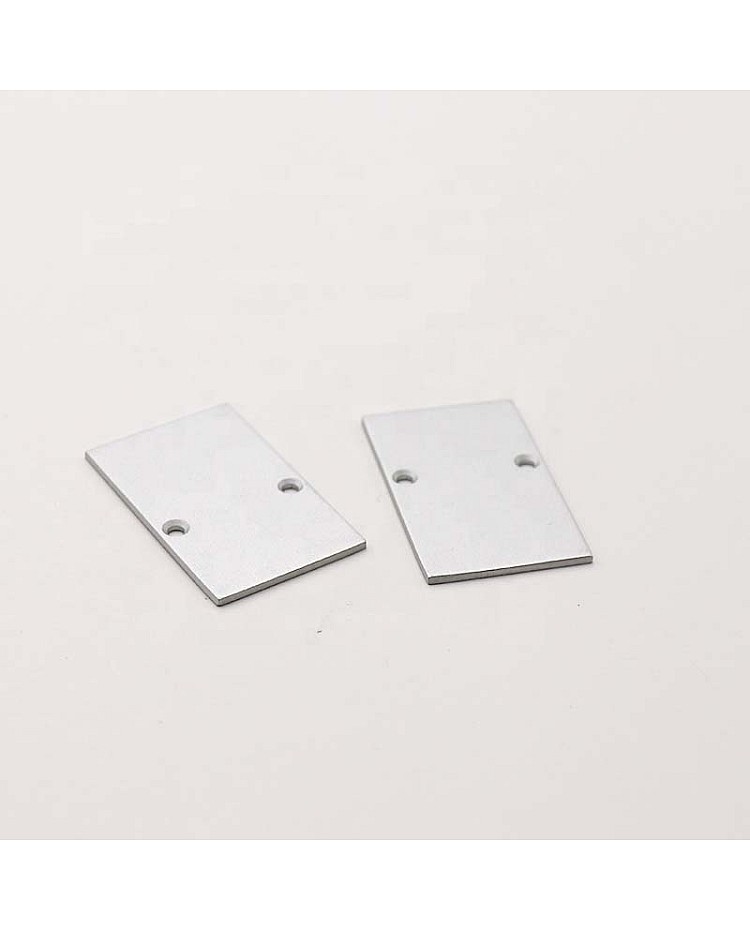

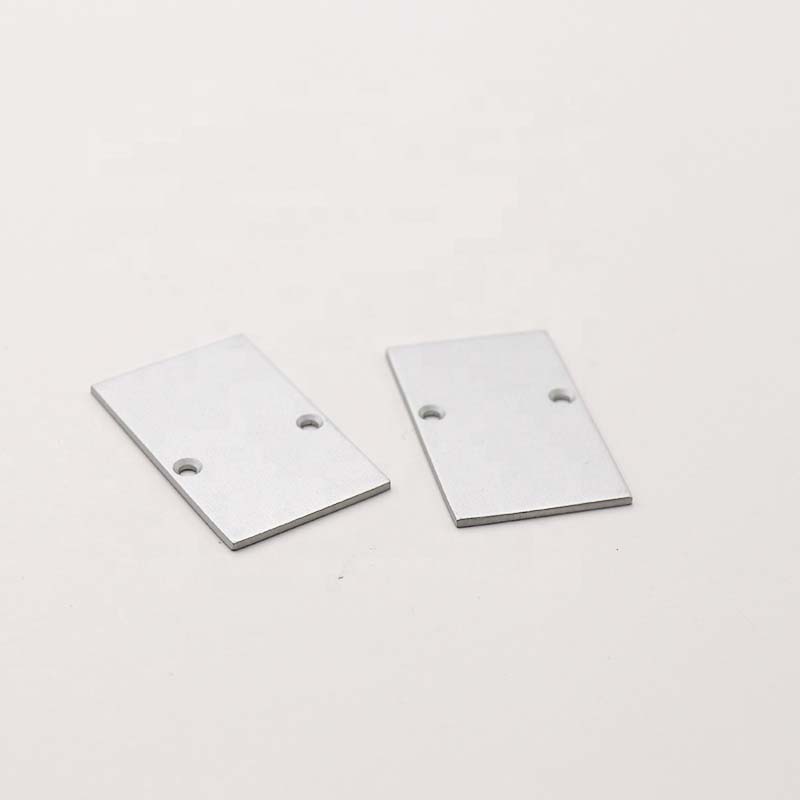

End Caps With Wire Holes

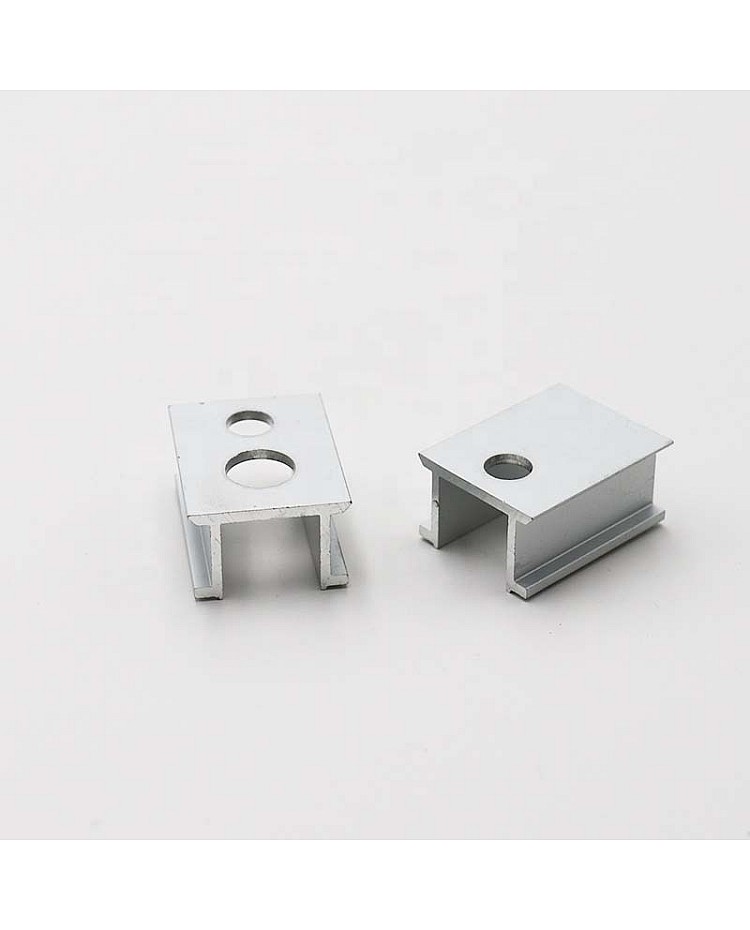

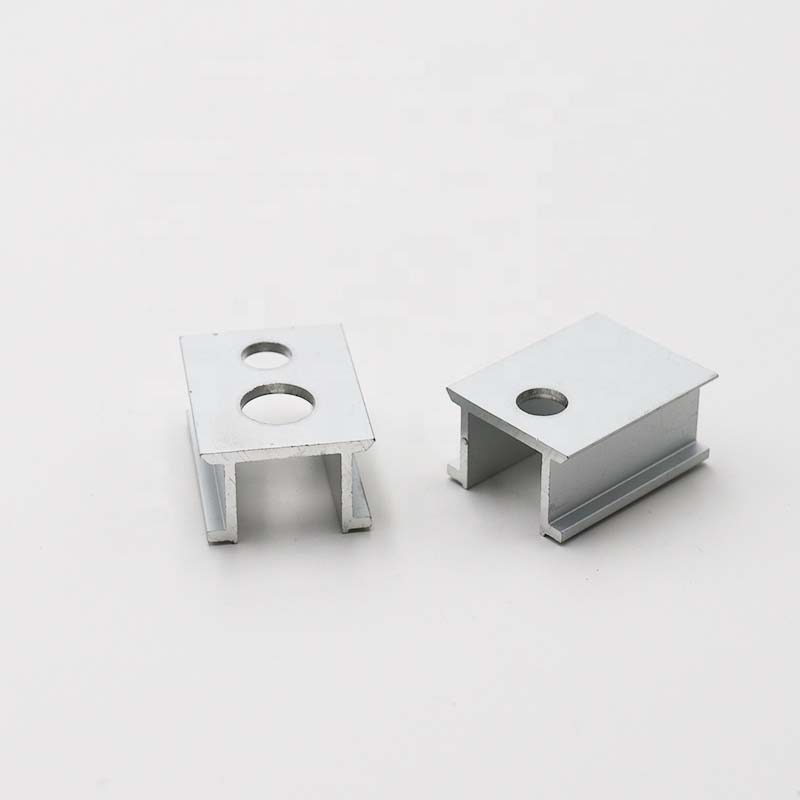

Hanging Clips

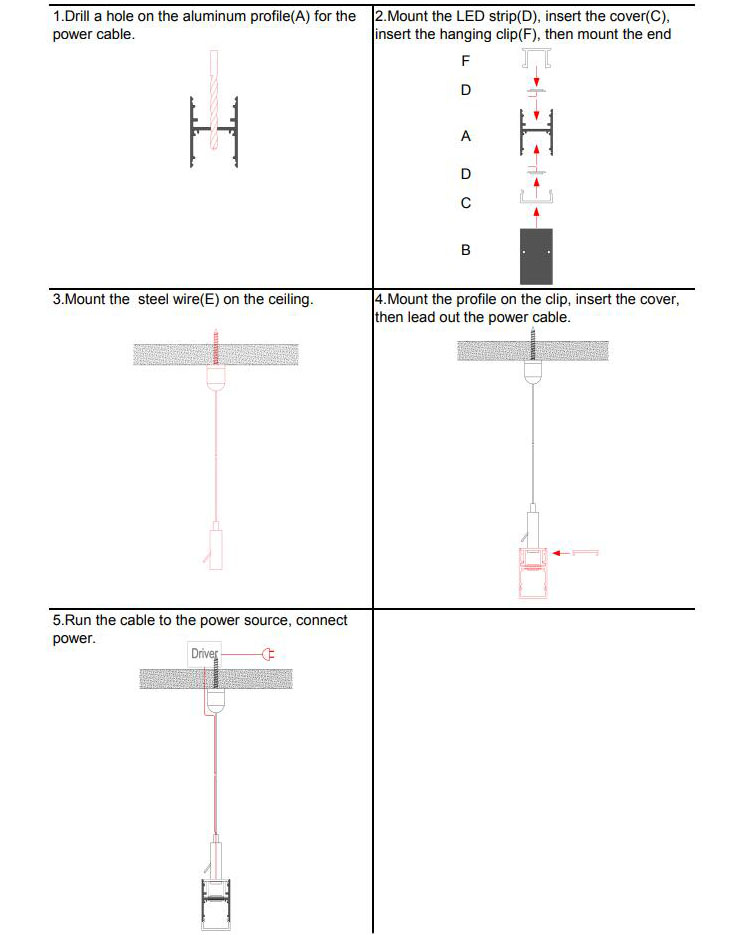

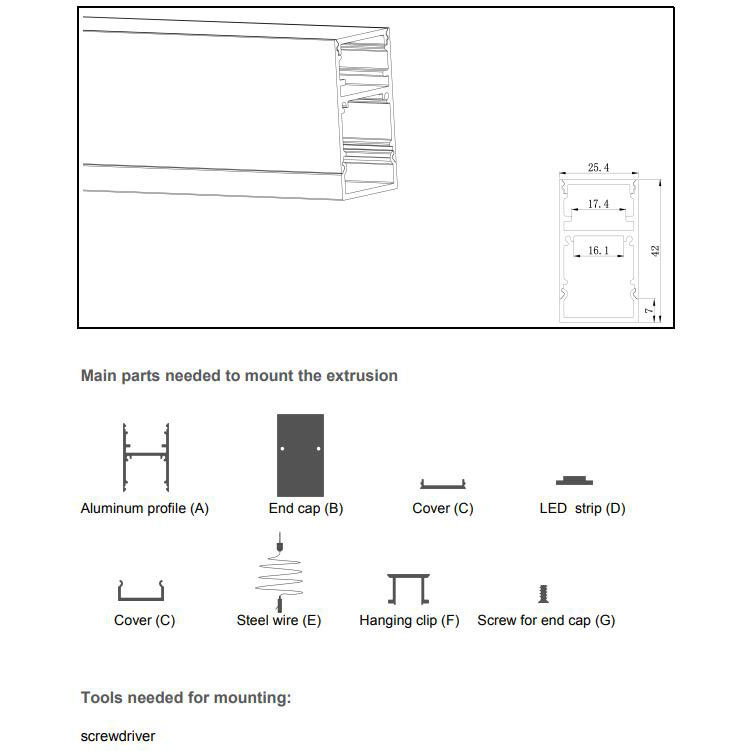

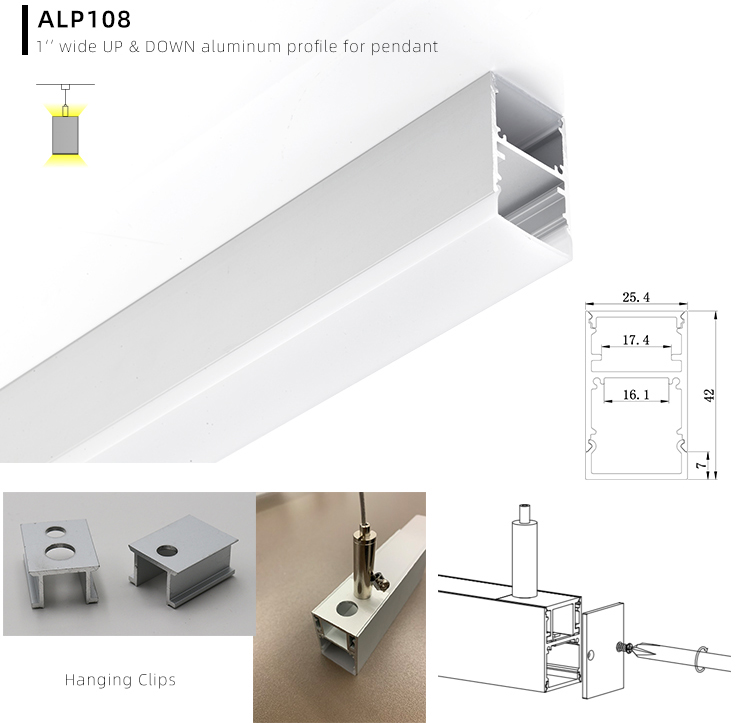

Up Down Extruded Aluminum LED Housing Extruded LED Housing How To Install Extruded LED Housing
