Check the Mean Well HLG-80H-C series Constant Current LED Driver, which includes the C350 and C700  models. featuring the constant current mode and high voltage output,, 4 types of products available, A, B, AB and D. the A type the output current adjustable through the built-in potentiometer, B type with 3 in 1 dimming function, the AB type with IO adjustable through a built-in potentiometer and 3 in 1 dimming function, the D type with timer dimming function. can operate from 90-305VAC, the max output current up to 350mA or 700mA, with the high efficiency up to 91.5%, with the fanless design, the working temperature can operate between -40° to +80° case temperature under free air convection. with the metal housing for better heat dissipation and the IP rating is IP65 or IP67 for indoor and outdoor applications. you can use them for various LED Lighting Projects.

  • Constant Current Output Mode Design
  • Metal Housing With Class I Design
  • Built-in Active PFC Function
  • IP67/IP65 Design For Indoor Or Outdoor Installations
  • Function options: Output Adjustable Via Potentiometer; 3 In 1 Dimming, Timer Dimming
  • Typical Lifespan: >62,000 Hours
  • Applications:
  • LED Street Lighting, Fishing Lamp, Harbor Lights, Architectural Lighting, Greenhouse Lights, Bay Lighting

Quick Links:

Meanwell HLG-80H-C350/C700 Specification Document


Features:

  • Size: 195.6*61.5*38.8mm(L*W*H)
  • Model: HLG-80H-C350/HLG-80H-C700
  • Type:
  • A, IP Rating IP65, IO Adjustable Through Built-in Potentiometer
  • B, IP Rating IP67, 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
  • AB, IP Rating IP65, IO Adjustable Through Built-in Potentiometer& 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
  • D, IP Rating IP67, Timer Dimming Function
  • Output:
  • Rated Power: 350mA/700mA
  • Rated Power: 89.95W(C350)/90.3W(C700)
  • Constant Current Region: HLG-80H-C350: 128V-257V(Type A)/167V-257V(Type B) ; HLG-80H-C700: 64-129V(Type A)/84-129V(Type B)
  • Current Adjustment Range(For A/AB Type Only---Via Built-in Potentiometer): 210-350mA(C350)/42-700mA(C700)
  • Current Ripple: 8.0% Max
  • Current Tolerance: ±5%
  • Set-Up Time: 500ms/115VAC, 230VAC
  • Input:
  • Input Voltage Range: 90-305VAC
  • Frequency Range: 47-63Hz
  • Power Factor: PF≥0.98/115VAC, PF≥0.96/230VAC, PF≥0.94/277VAC
  • Efficiency: 91.5%
  • AC Current: 0.88A/115VAC, 0.45A/230VAC, 0.38A/277VAC
  • Working Temperature: -40°-+80°
  • Short Circuit Protection
  • Over Voltage Protection
  • Over Temperature Proteciton
  • Vibration: 10-500Hz, 5G 12min./1cycle, period for 72min, each along X,Y,Z axes
  • Safety Standards: UL8750, CSA C22.2 No.250.0-08, EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-12 independent, GB19510.1, GB19510.14, EAC TP TC 004, IP65 Or IP67 Approved
  • 7 Years Warranty


Includes:

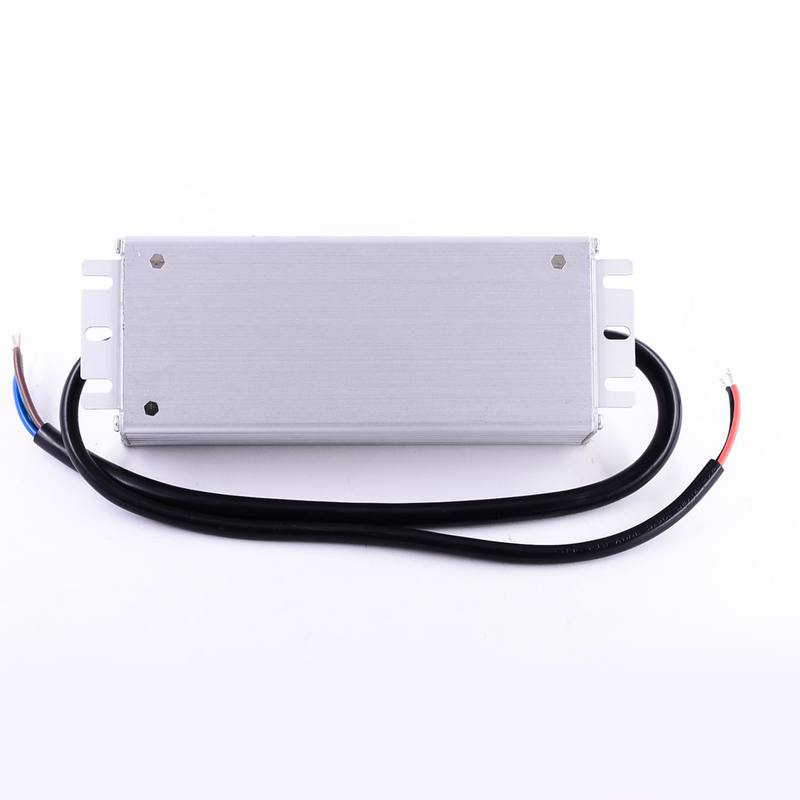

1*Mean Well HLG-80H-C LED Driver

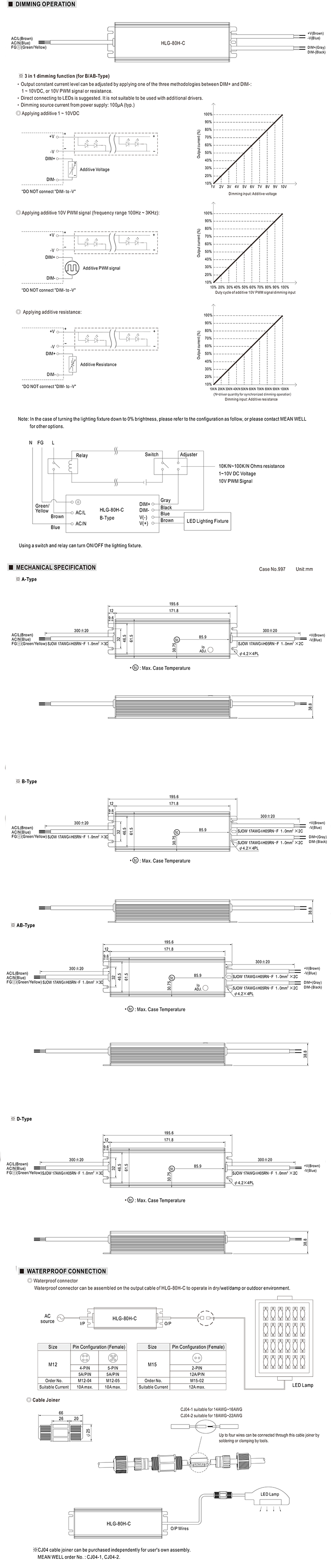

Meanwell LED Driver 700mA
