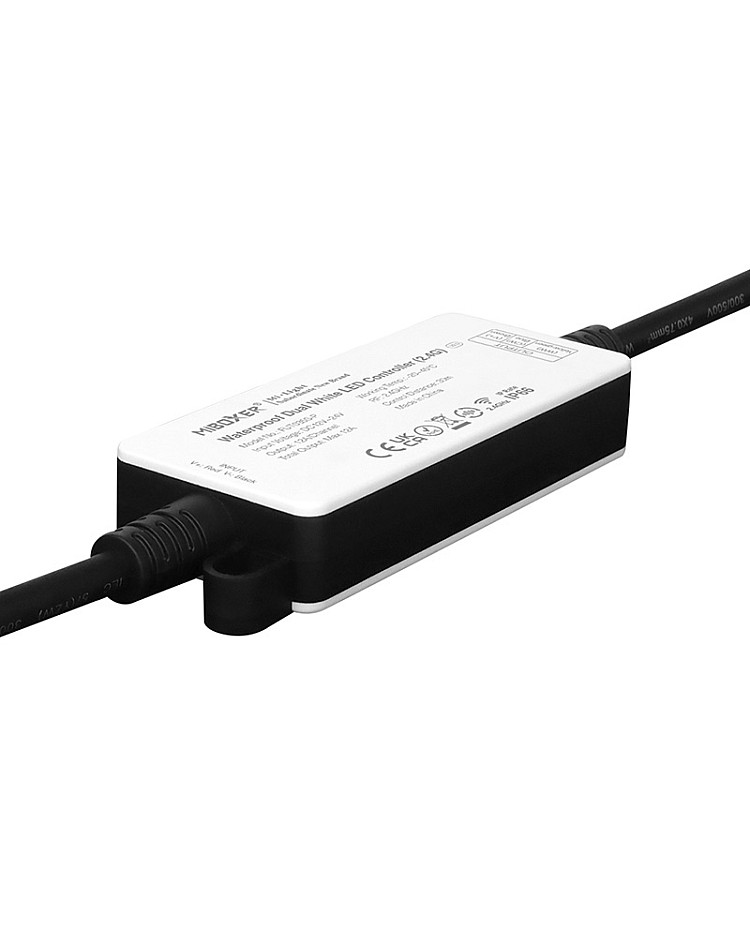

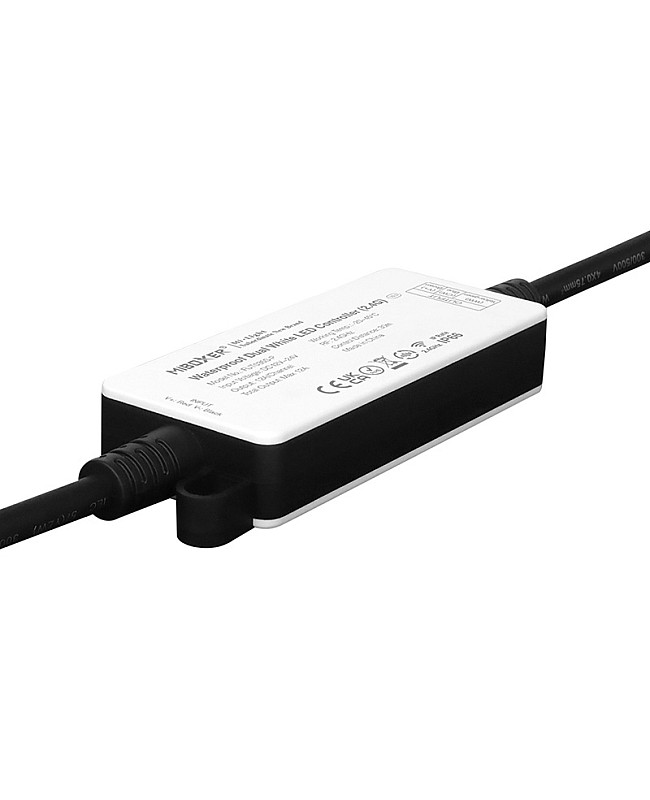

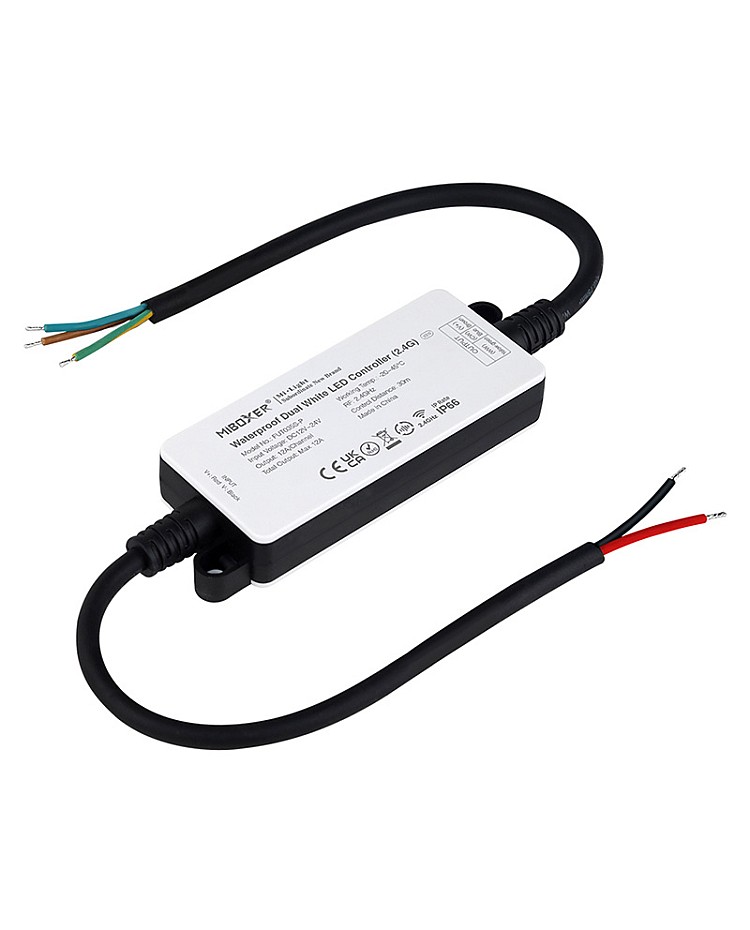

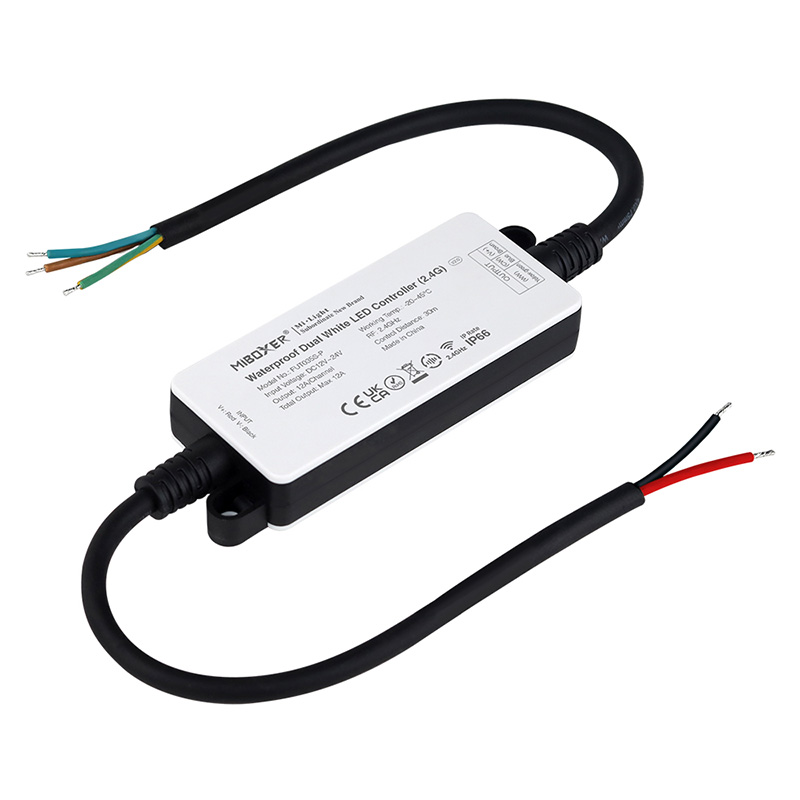

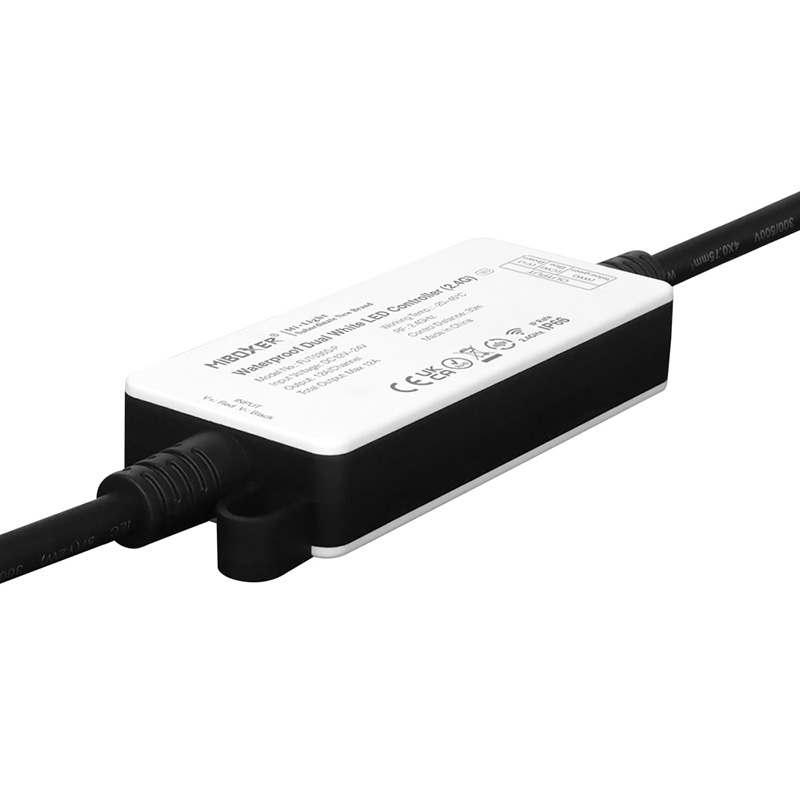

The Dual White Waterproof Outdoor Controller, which has a waterproof level of up to IP66, can use them for outdoor dual white lighting projects. The working voltage is DC12V-24V, with dual output channels, and the max output current is 12A. The Tunable White LED Controller with auto signal transmitting design; one controller can transmit the signals from the remote to another controller within 30m. The remote control distance can be limitless as long as a controller is within 30m. Compatible with 2.4G RF Remote Controls: FUT087, FUT007, FUT006, S1, B1, T1, B2, T2, K1, etc. You can use the Remote Controls to adjust the brightness from 1% to 100% stepless and control the color temperature from 2700K to 6500K for various scenes. After adding a 2.4G Gateway, the Outdoor CCT Controller supports smartphone APP Control and third-party voice control and can work with Amazon Alexa and Google Assistant. The working PWM frequency can be switched from high-frequency 8KHz to low-frequency 500Hz.

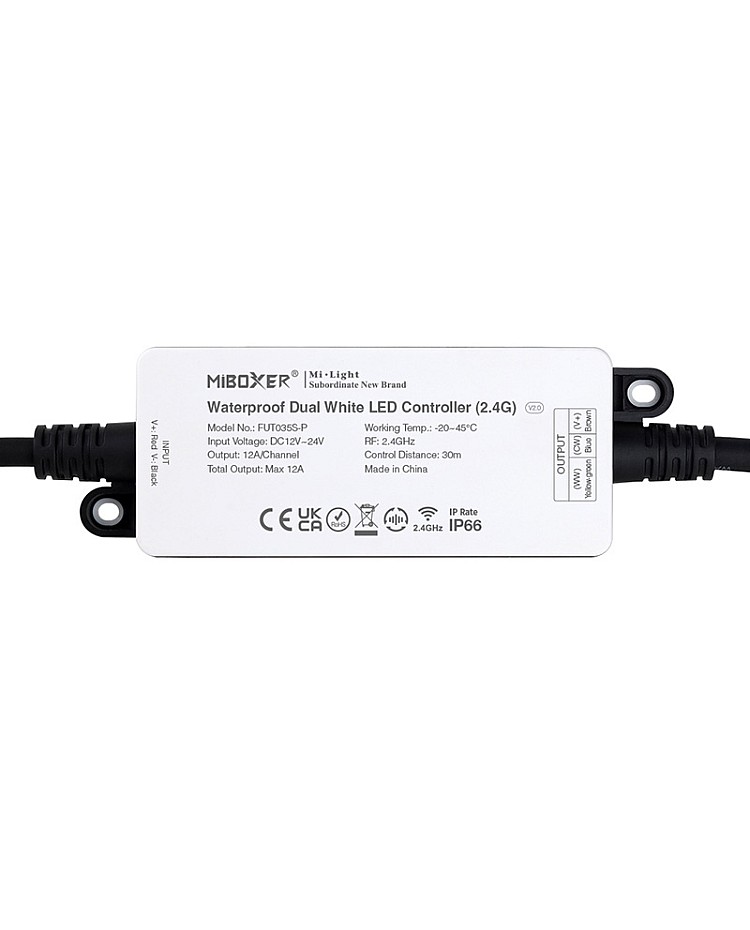

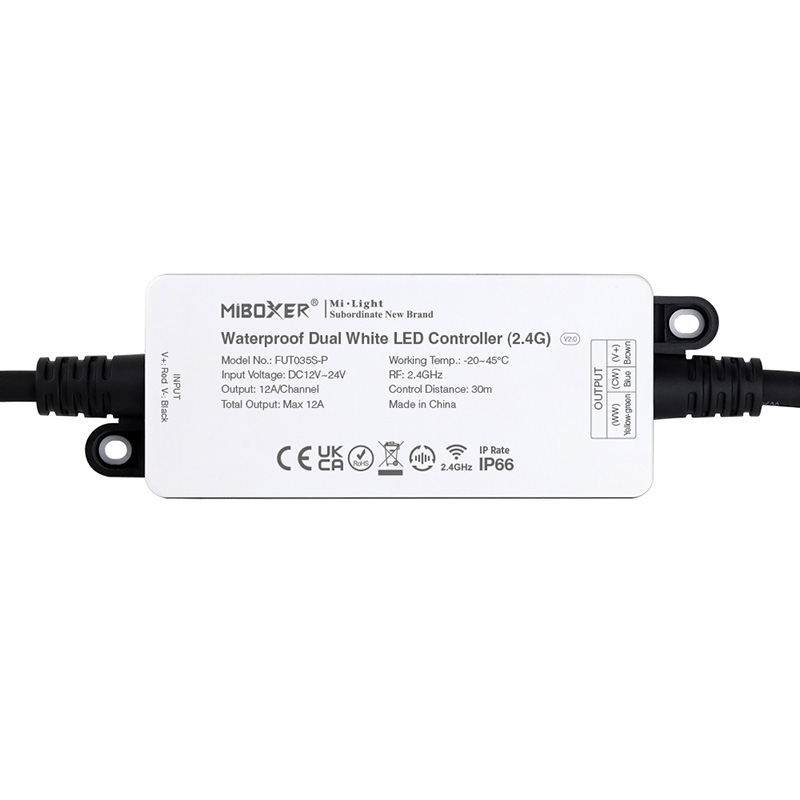

  • Model: FUT035S-P

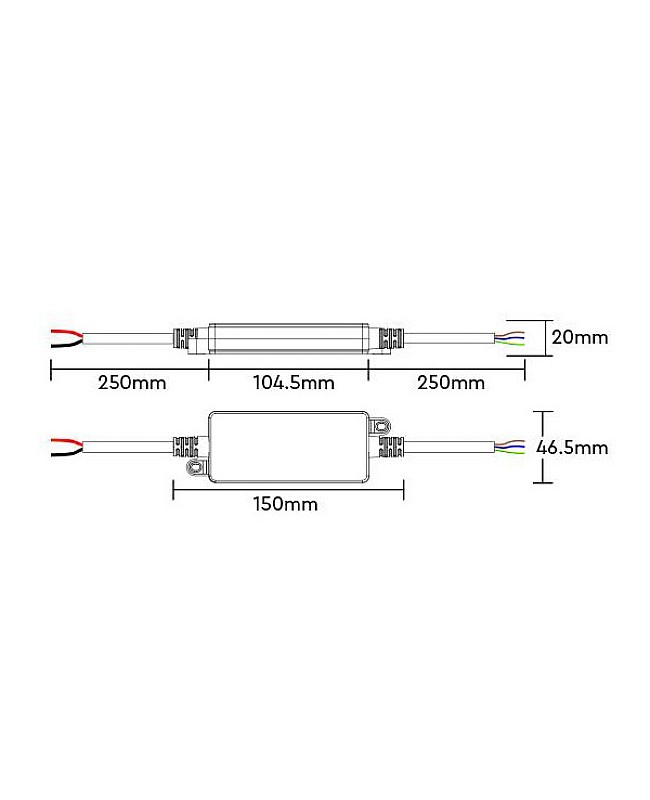

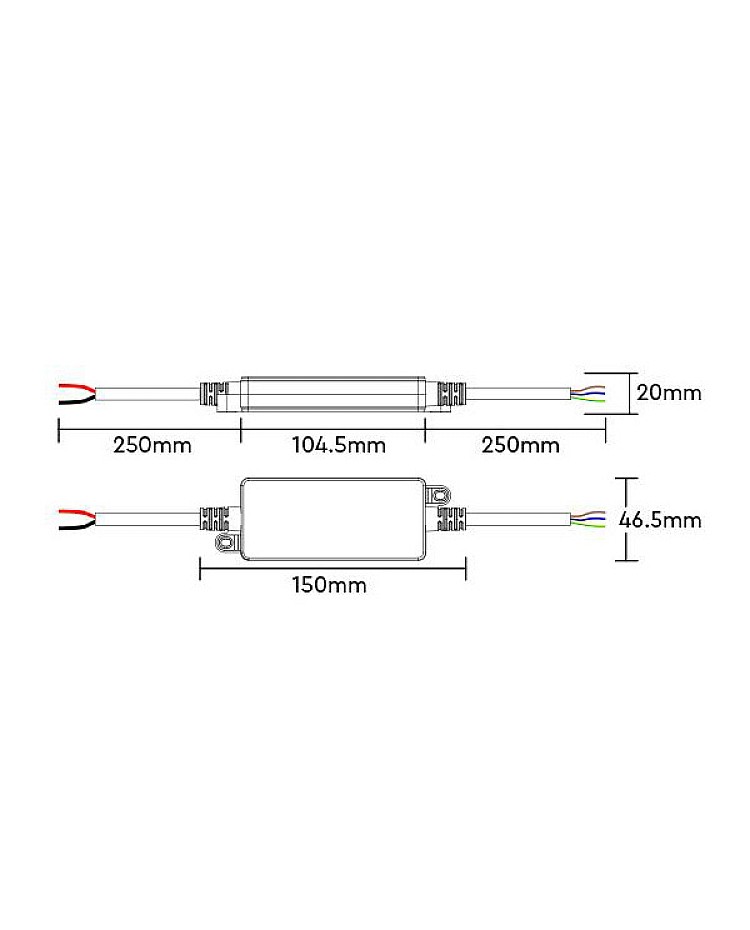

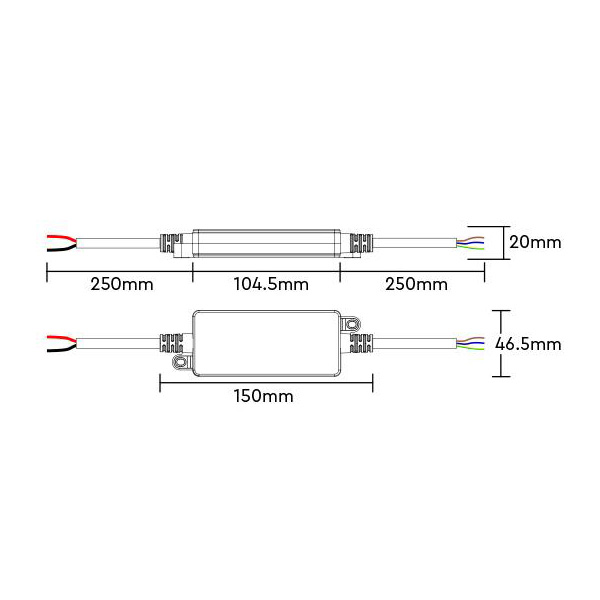

  • Size: 150*46.5*20mm(L*W*H)
  • Working Voltage: DC12-24V
  • Output Current: 12A Max
  • IP Rate: IP66 Waterproof
  • RF: 2.4GHz
  • RF Remote Controllable: FUT087, FUT007, FUT006, WL-BOX1, S1, B1, T1, B2, T2, K1
  • Stepless Dimming Brightness: 1%-100%
  • Color Temperature Adjustable From 2700K To 6500K
  • Control Distance: ≤30m
  • Output Connection: Common Anode
  • Support PWM High Frequency(8KHz)/Low Frequency(500Hz) Switched
  • Auto Signal Transmitting
  • Support Smartphone APP Control And Third-Party Voice Control(WL-BOX1 2.4G Gateway Needed)
  • Working Temperature: -20-45℃
  • 2 Years Warranty

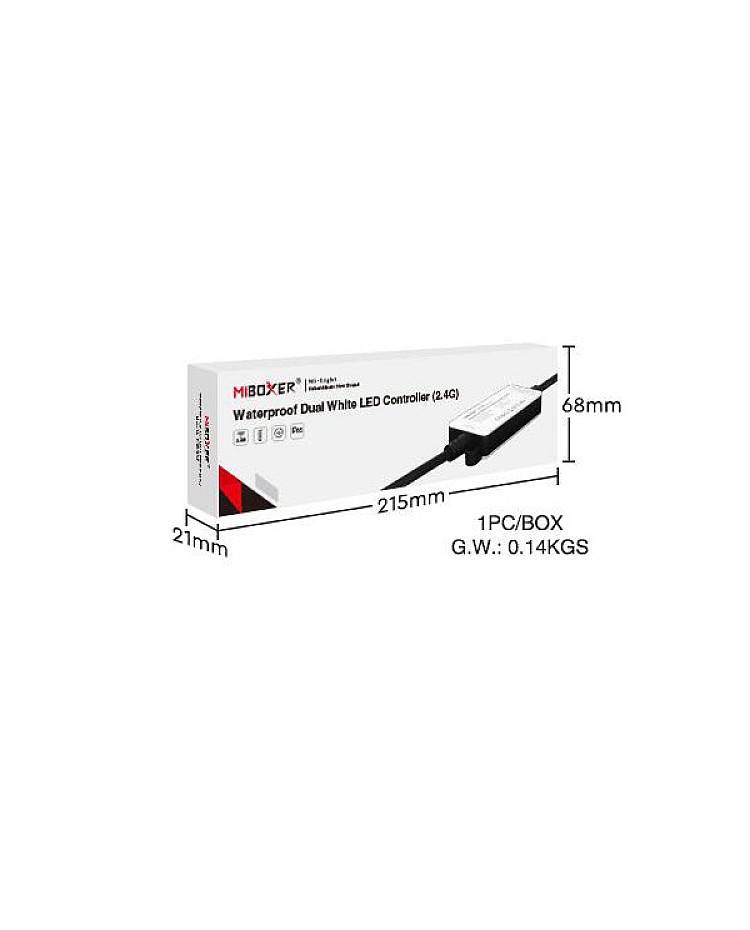

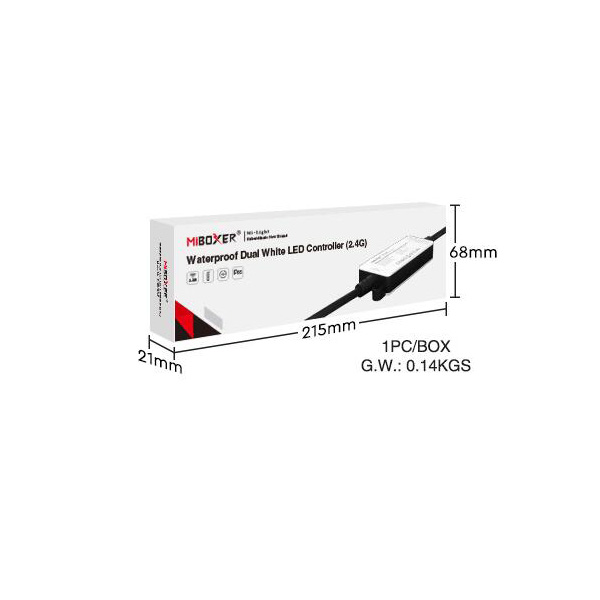

1*Dual White Waterproof Outdoor Controller

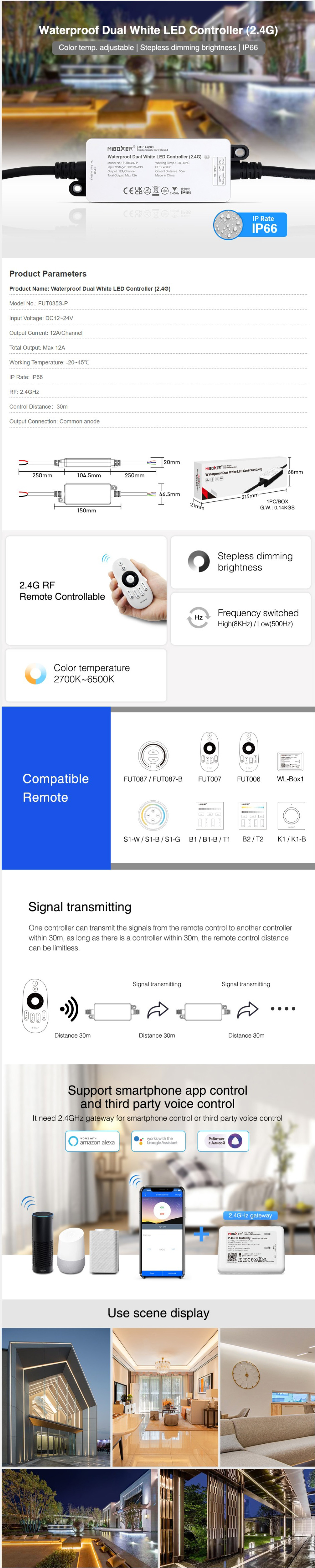

IP66 Waterproof Dual White LED Controller 2.4G
