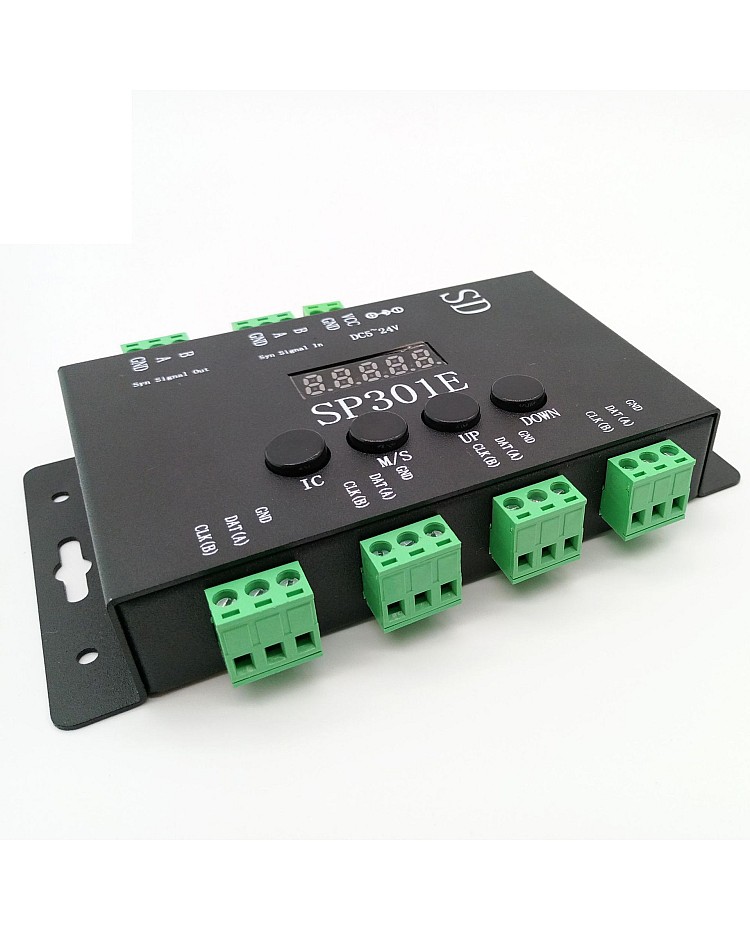

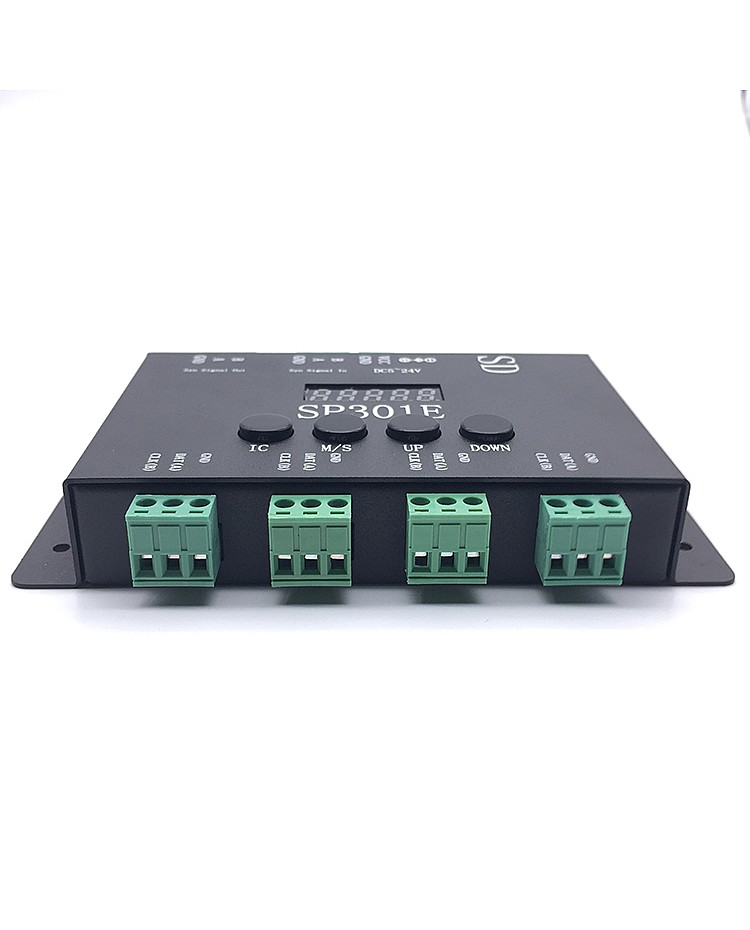

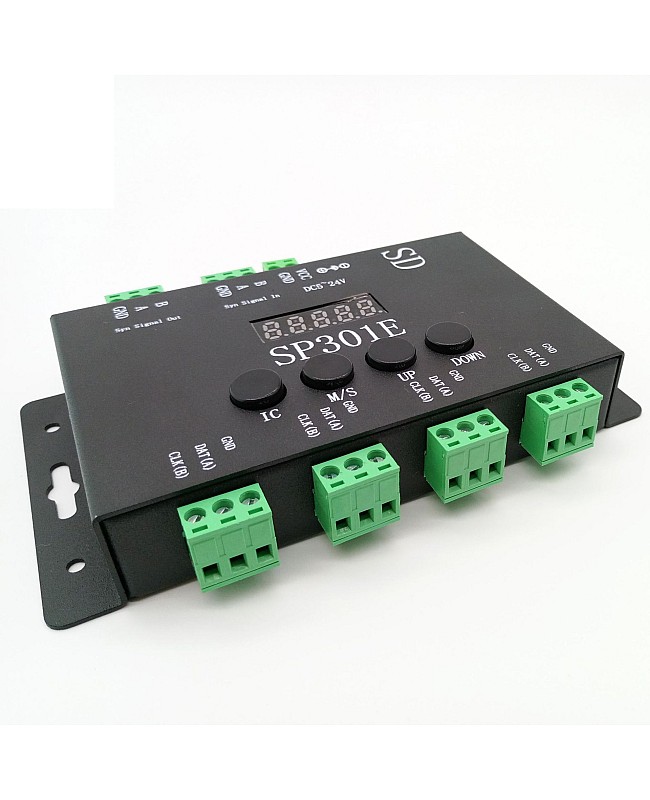

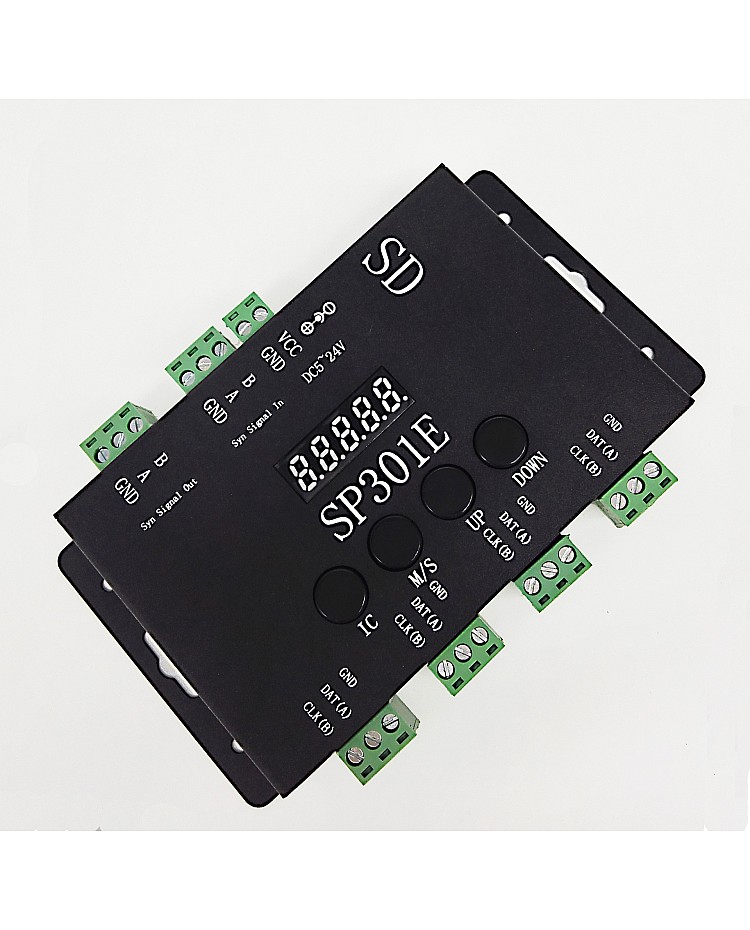

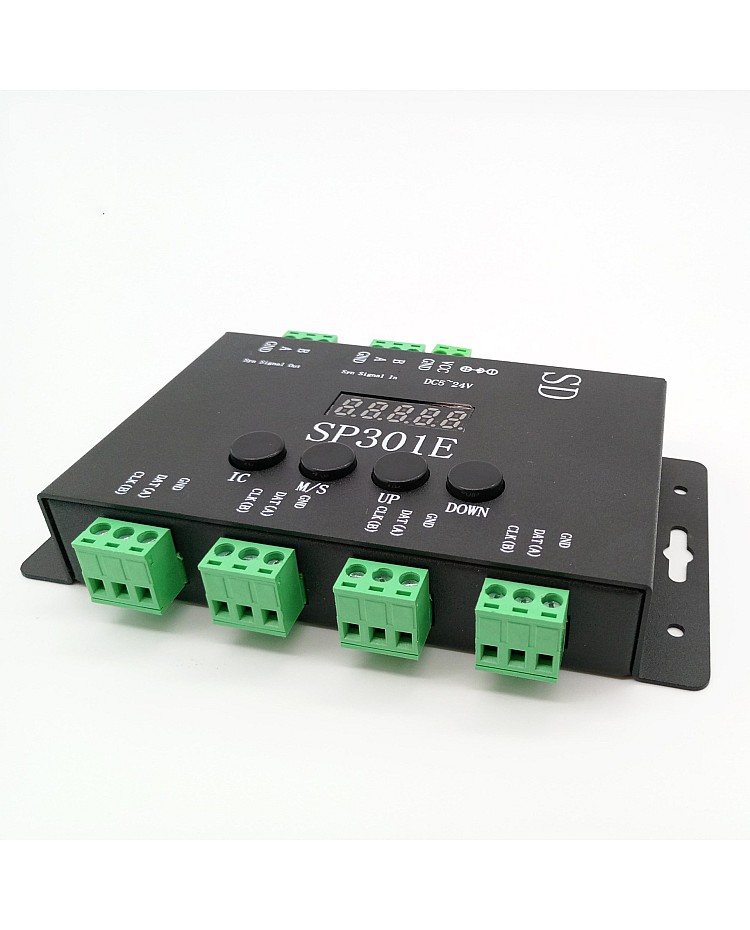

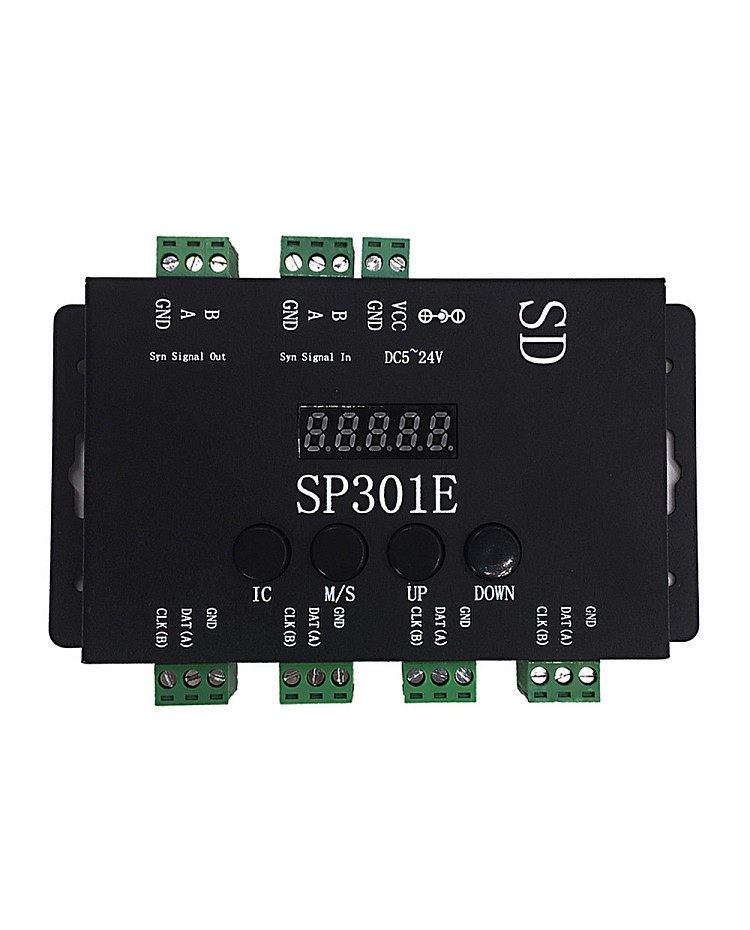

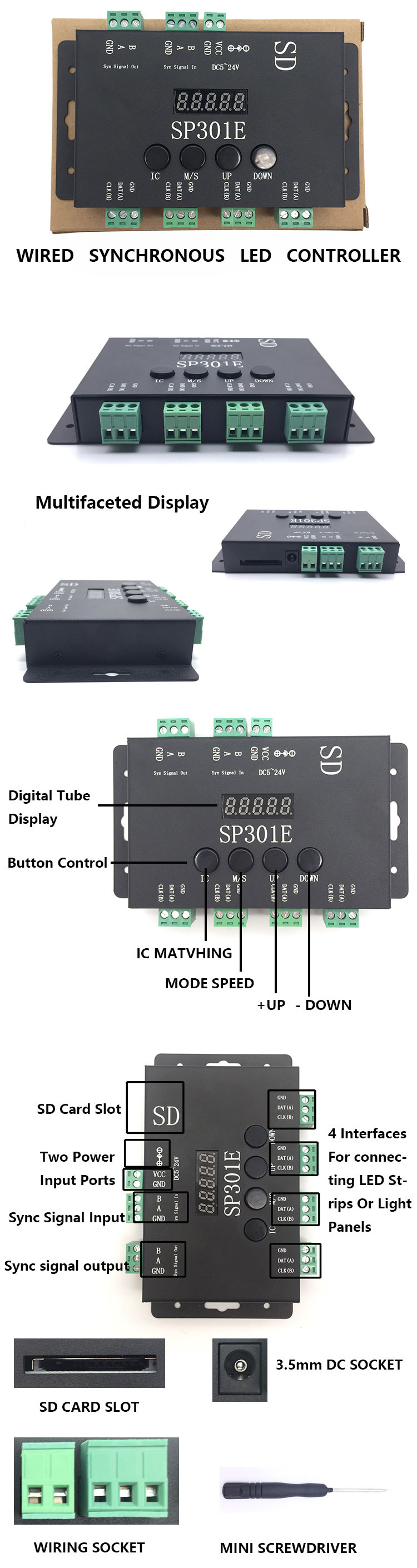

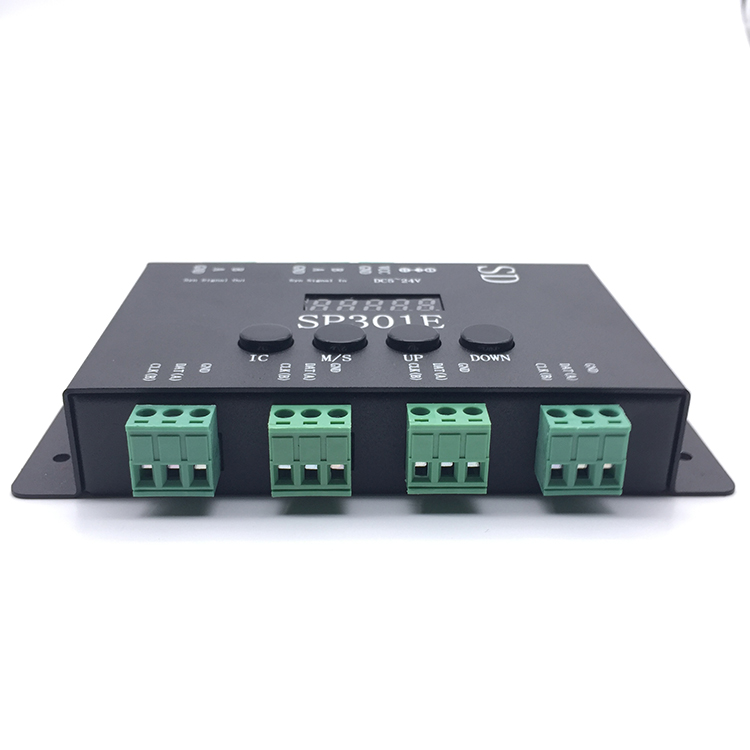

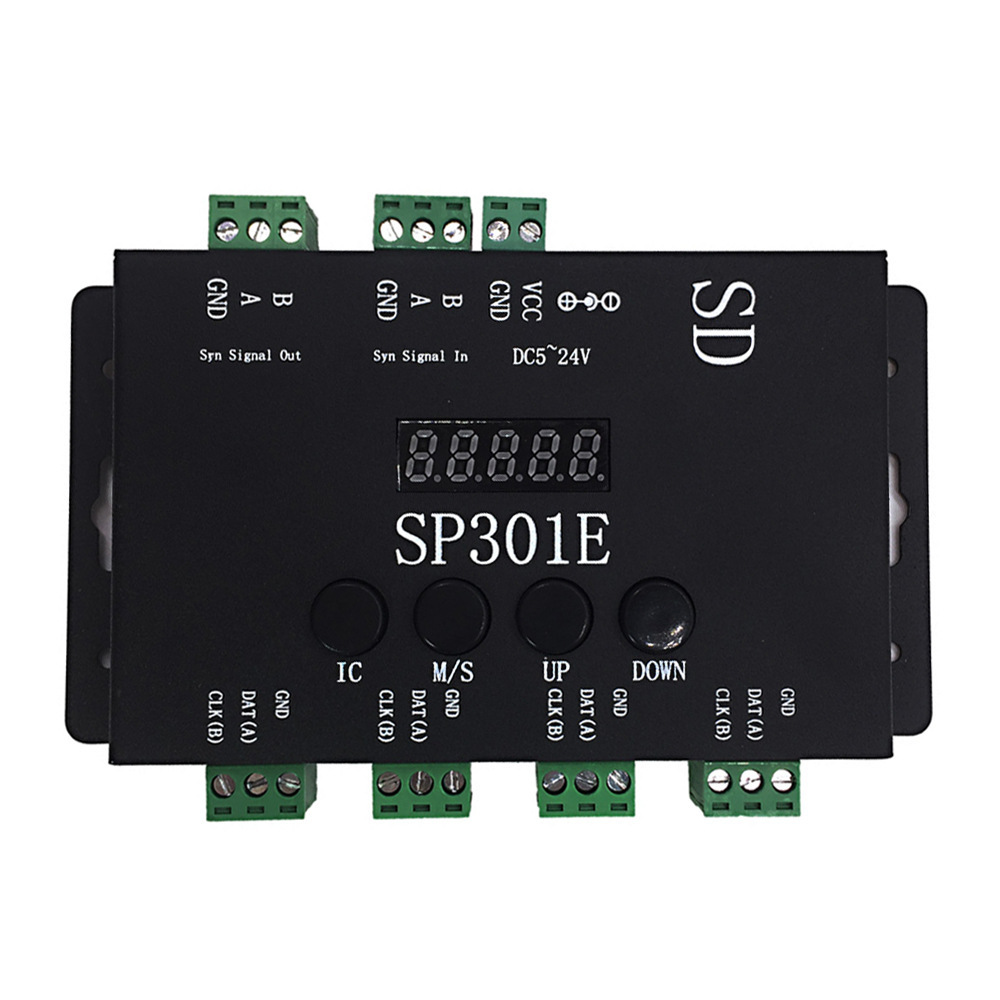

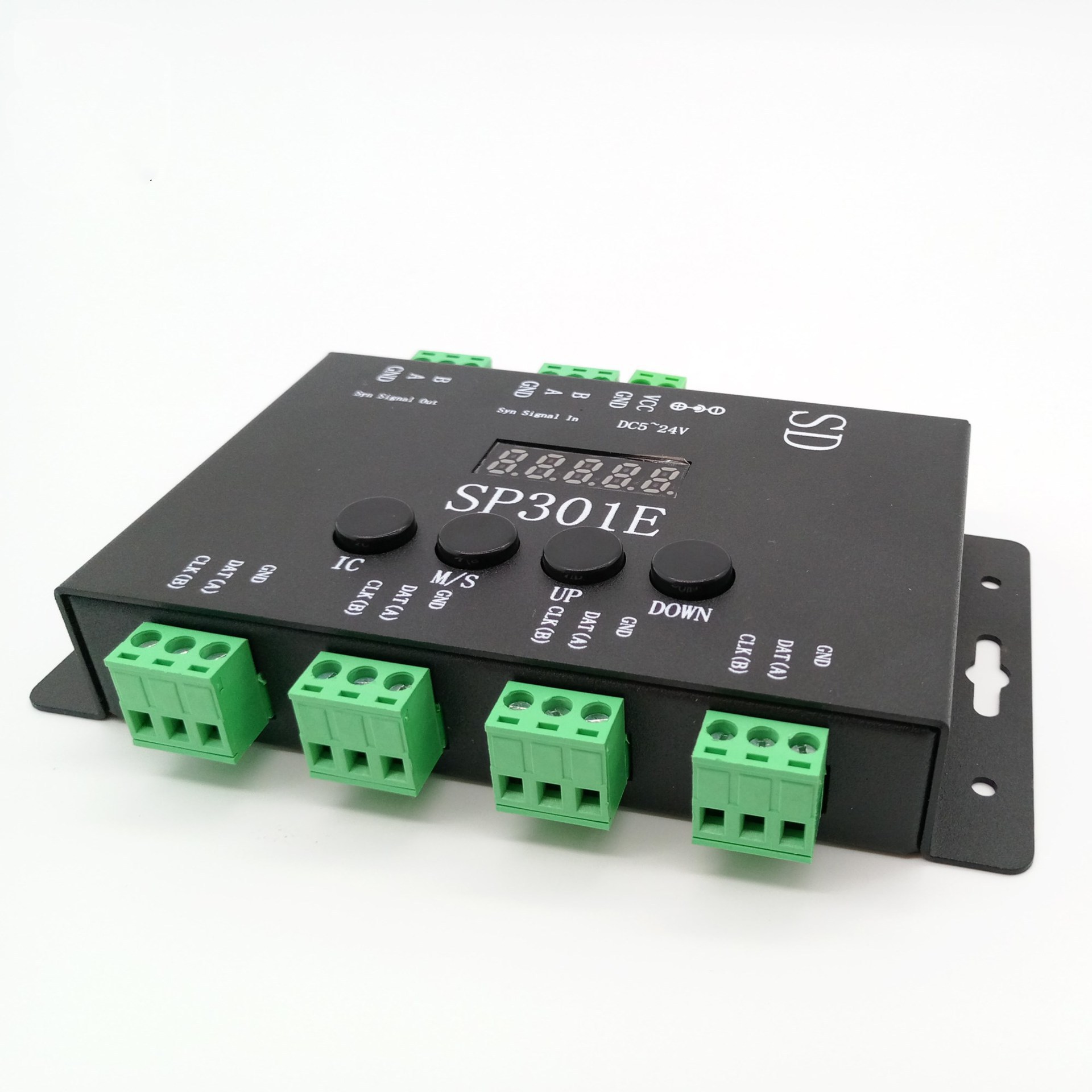

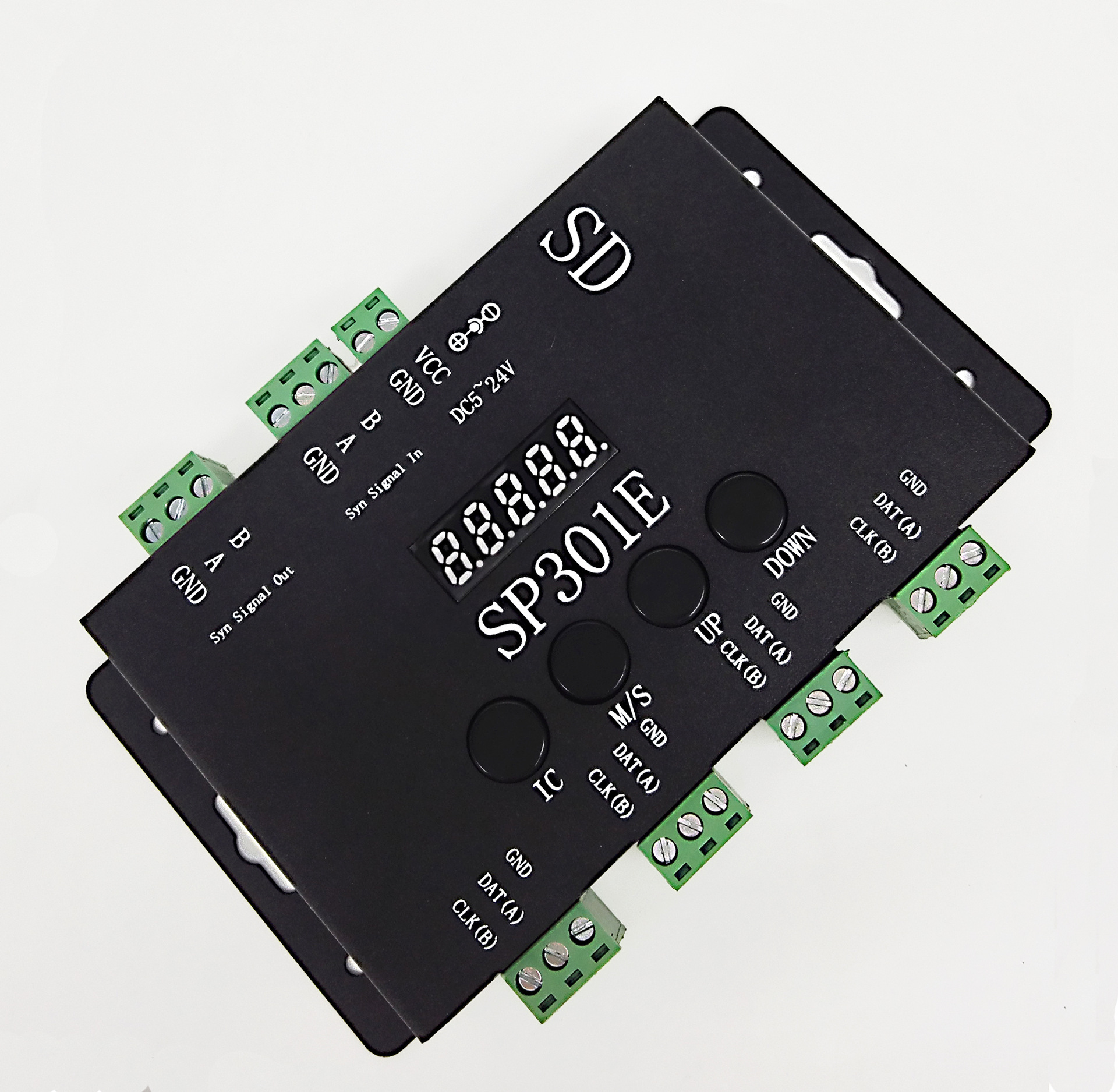

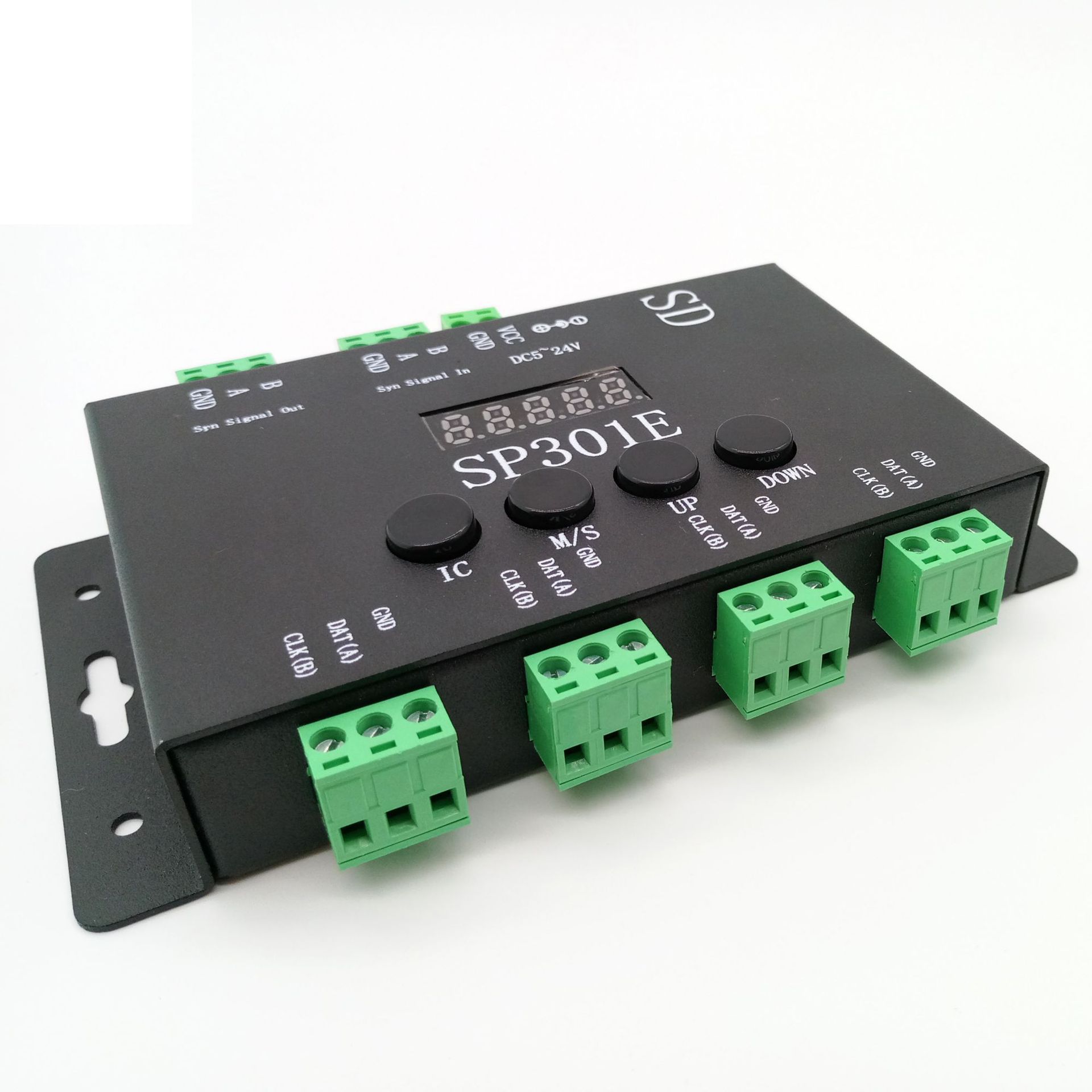

The SP301 programmable LED controller with four output channels is designed to support an SD card. You can edit the animation file and store it on the SD card. The SP301E pixel controller also has 99 built-in lighting patterns, and you can choose various lighting effects for different scenes. The programmable controller supports various working voltages from DC5V to DC24V and must connect the GNDs. The controller has four buttons; you can use them to choose the IC type, pattern setting, and speed setting. the SP301E controller supports almost one-wire or two-wire LED driver ICs like WS2812B, WS2811, SK6812, LPD8806, DMX512, etc.
Specifications:
- Working Voltage: DC5-24V
- Working Current: 18mA-77mA
- Max Loading Numbers Of Pixels: 2048PCS
- Output Signal: SPI
- Lighting Effects: 99 Kinds + SD Card DIY Effects
- Control Mode: Button Control
- RGB Sequence: Upper Computer Adjustable
- Support ICs: Common LED Driver ICs: WS2811, WS2812, WS2813, WS2801, SM16703, SK6812, LPD8806, UCS1903, UCS9812, APA102, APA105, TM1804, TM1914, TM1913, P9812, INK1003, DMX512, etc
- 4 Output Channels
- LED Software: LedSense

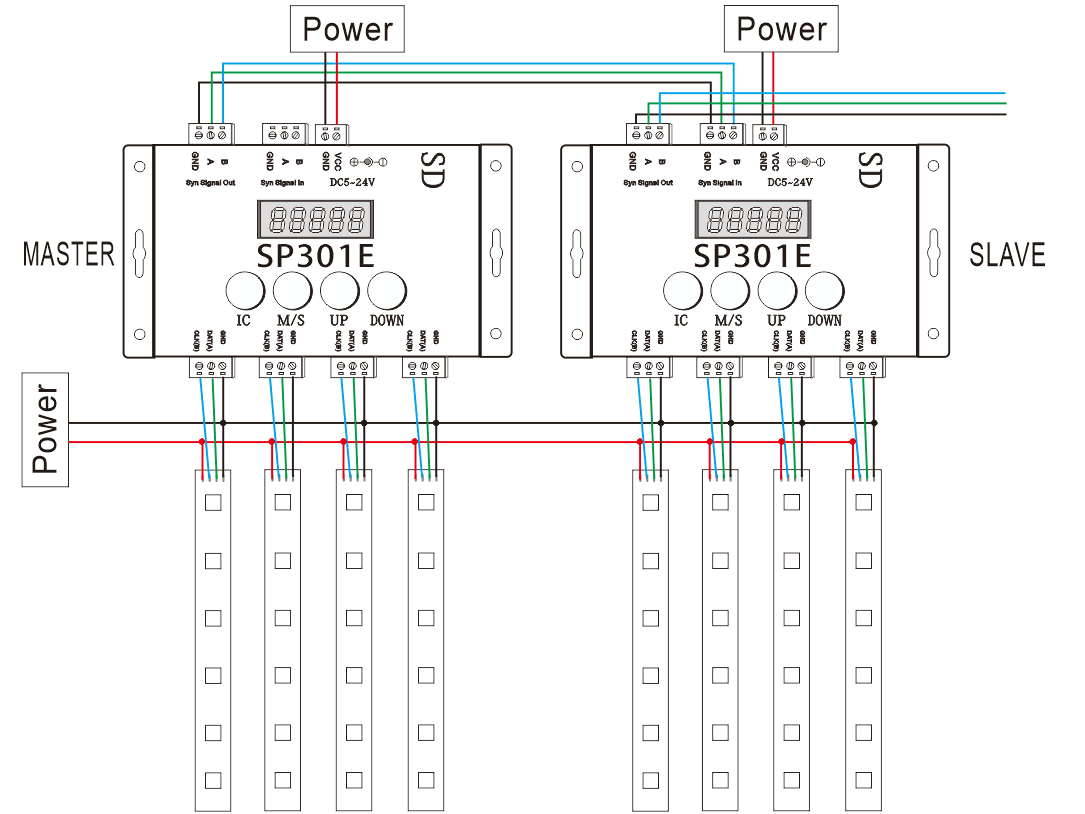

- Synchronous Function: Support Long Distance Synchronous Mode Using Differential Signal
- Working Temperature: -25℃-+85℃
- 2 Years Warranty
Includes:

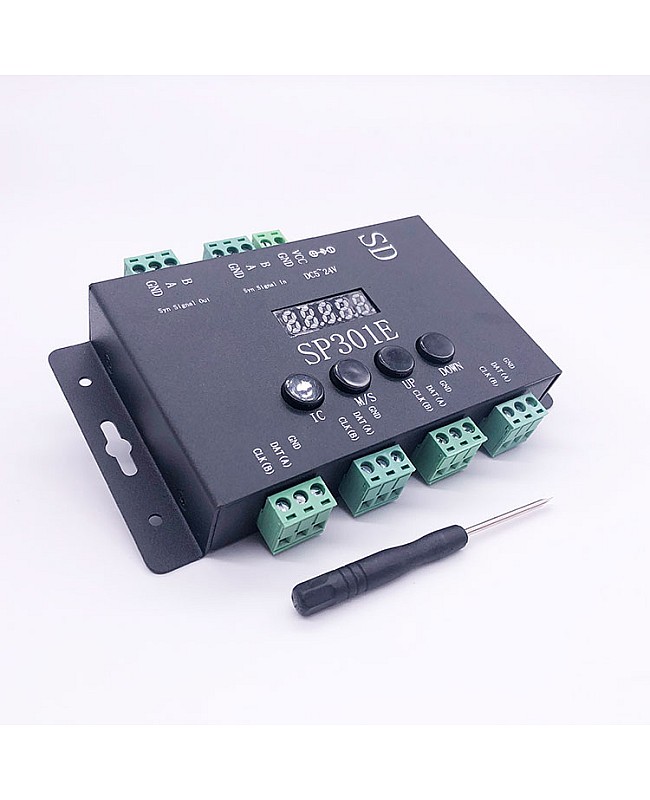

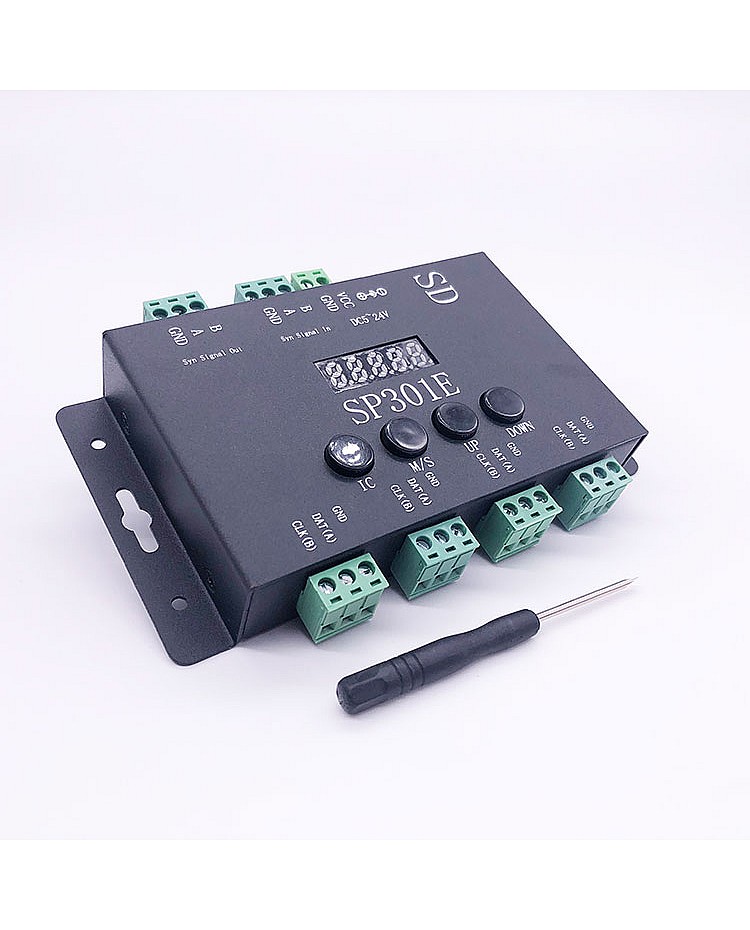

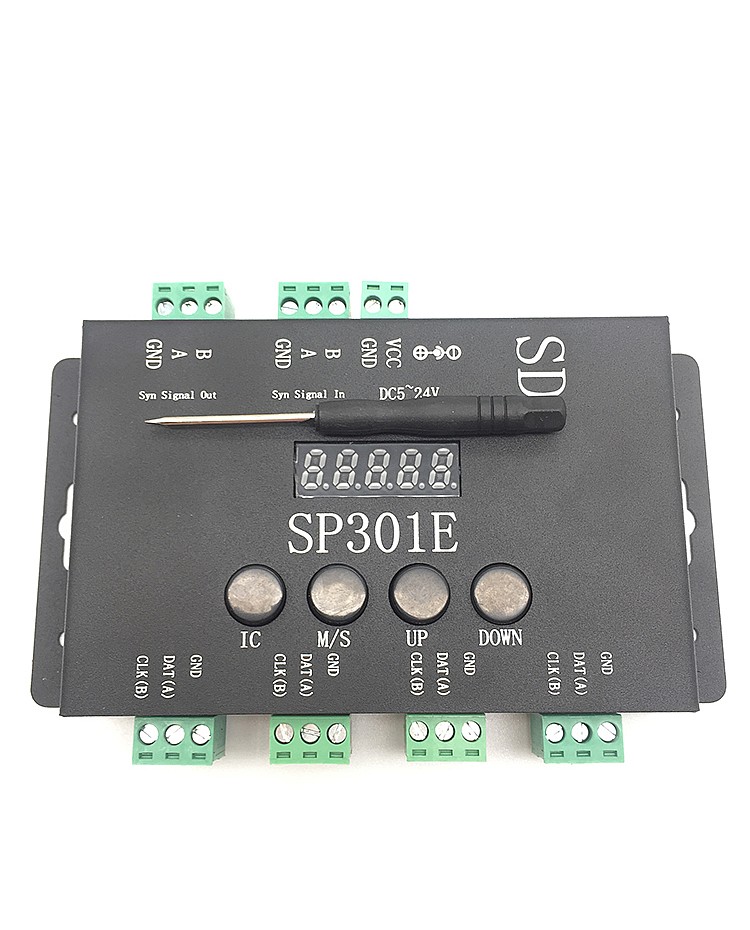

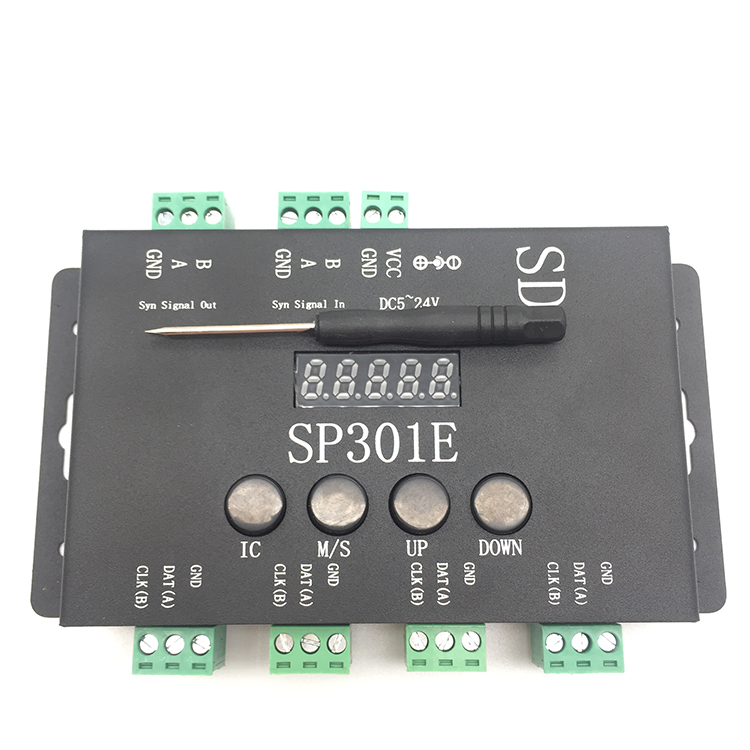

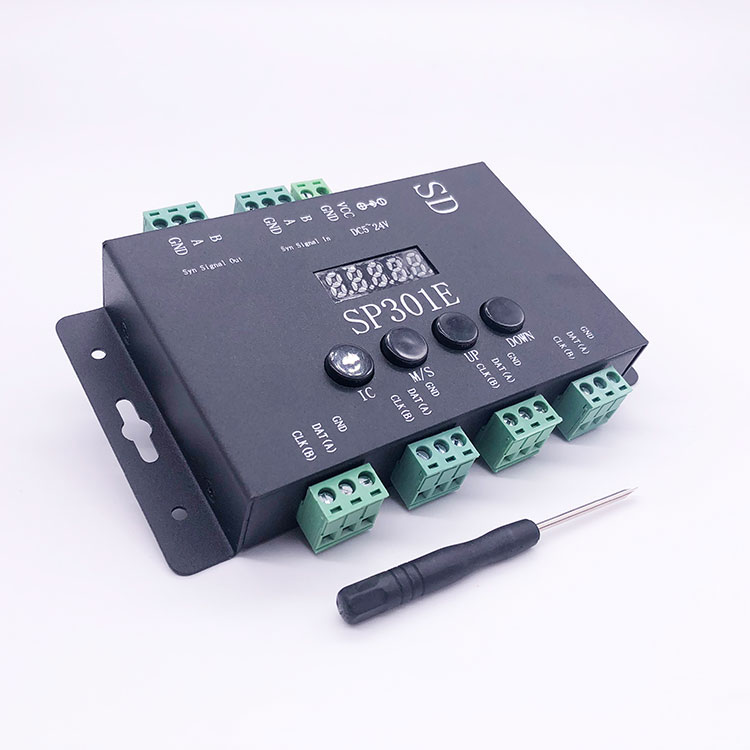

1 * SP301E Programmable LED Controller
1 * Screwdriver
1 * User Manual
