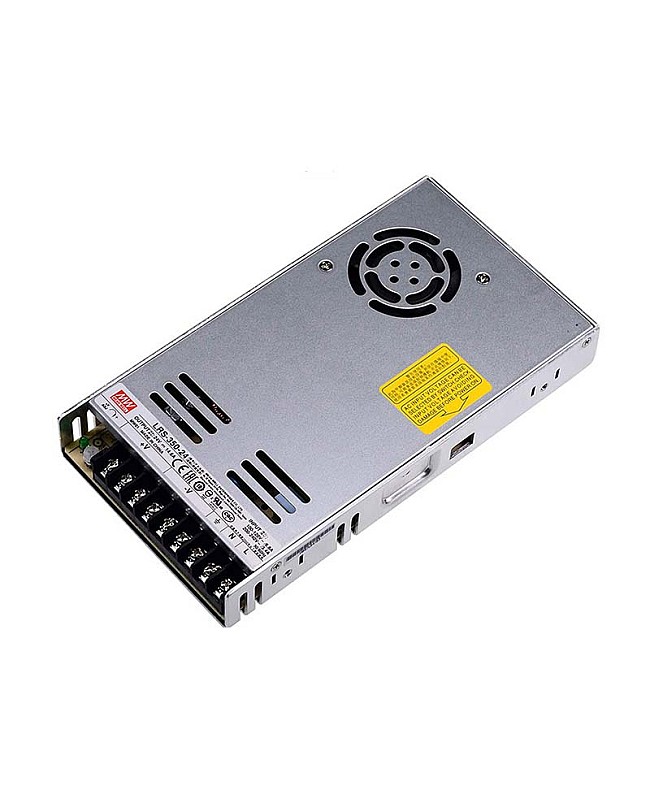

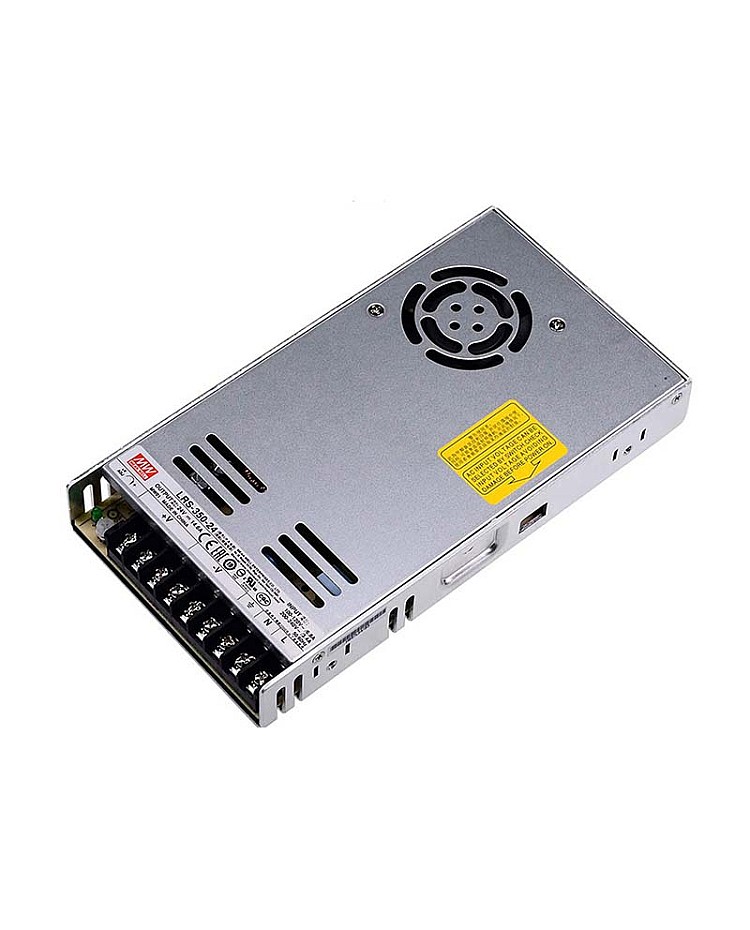

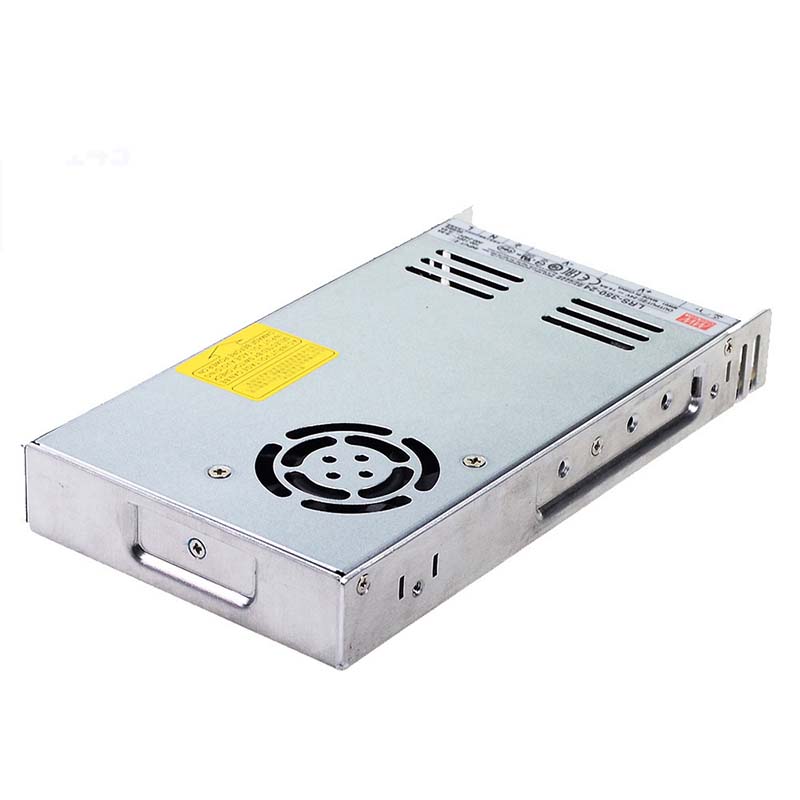

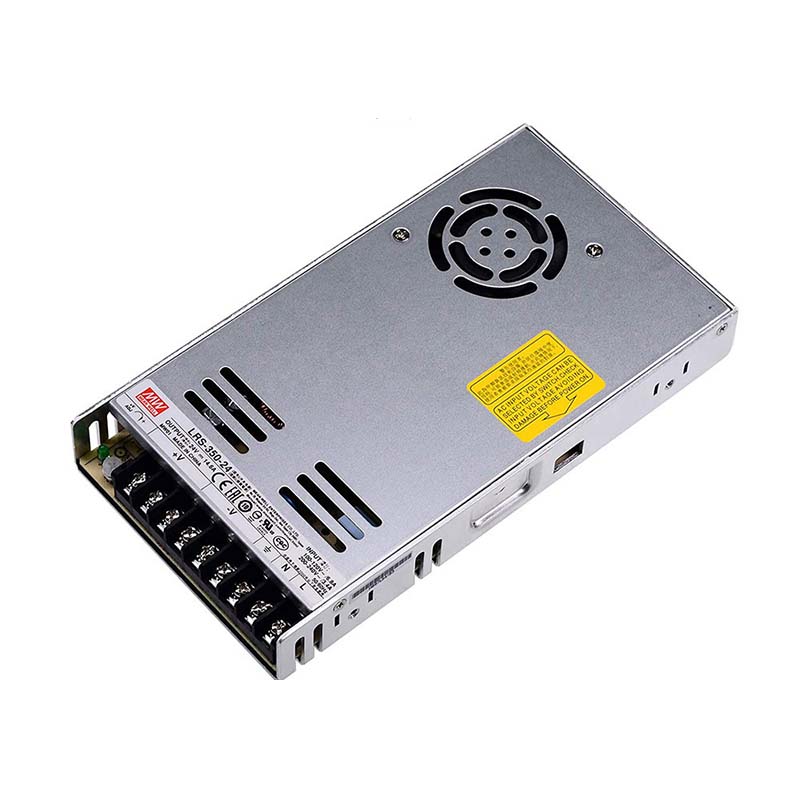

The Mean Well LRS-350 Series AC DC Converters, which is a single-output enclosed type power supply with a 30mm low profile design, the working input voltage between AC90V to 264V and selected by a switch, you can choose the various output voltage AC DC Power Supplies, DC3.3V, DC4.2V, DC5V, DC12V, DC15V, DC24V, DC36V and DC48V available. The LRS-350-12 has multiple protections to ensure it works safely and has high reliability, high efficiency, and a long lifespan. The built-in long-life fan allows it to work between -25℃ to 70℃ with a full load, delivering an extremely low no-load power consumption of less than 0.75W, allowing the end system to meet the worldwide energy requirement easily. The Meanwell LED Lighting Strip Power Supply has complete protection functions and 5G anti-vibration capability. It complied with international safety regulations such as IEC/UL 62368-1.

Quick Links:

LRS-350 Specifications Document


Features:

  • Model: LRS-350

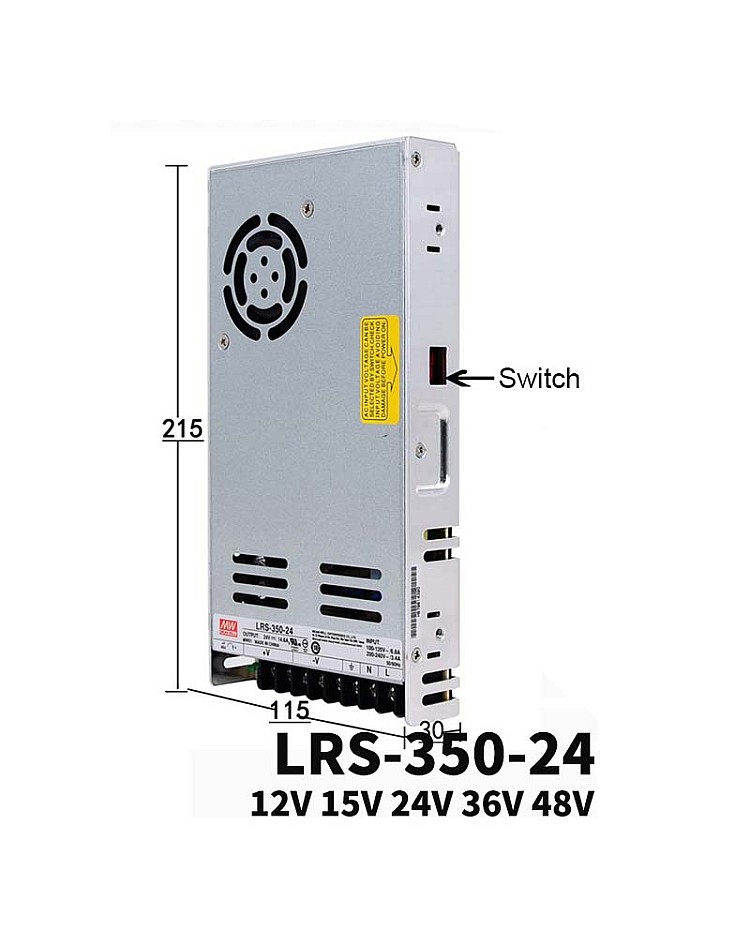

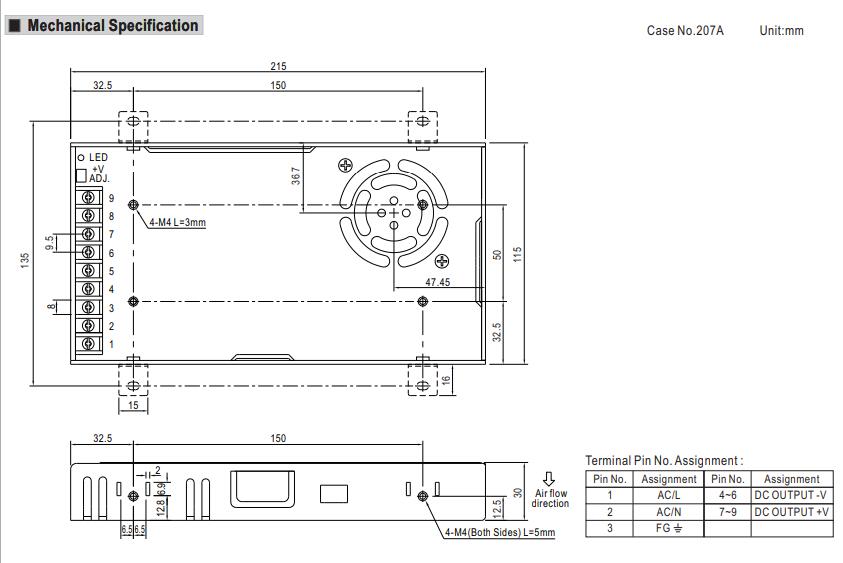

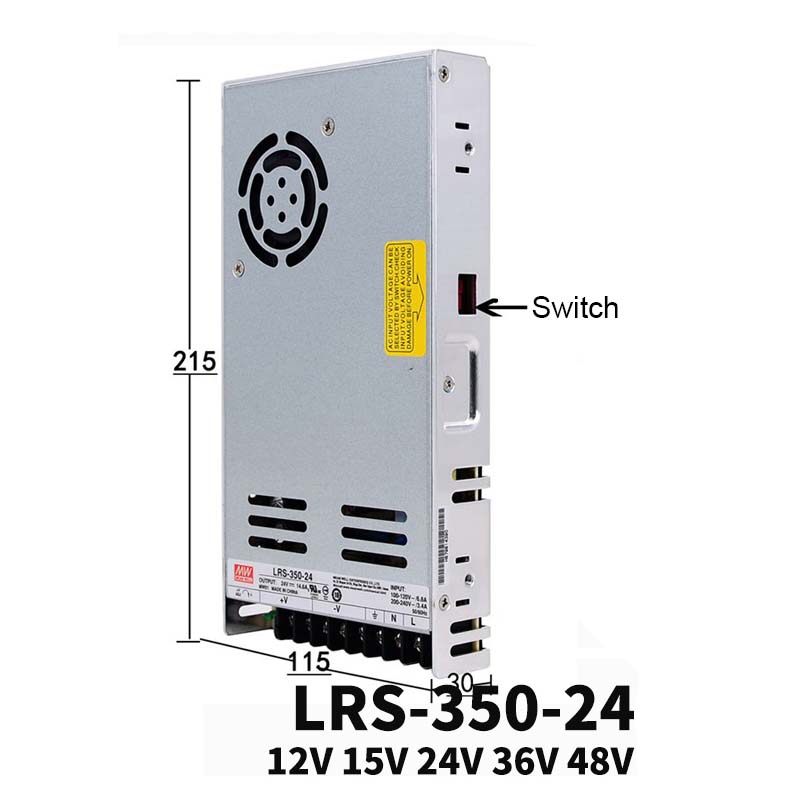

  • Size: 215*115*30mm(L*W*H)
  • Working Temperature: -25℃-70℃
  • Input Voltage: AC90V-AC132V---AC180V-AC264V By Switch

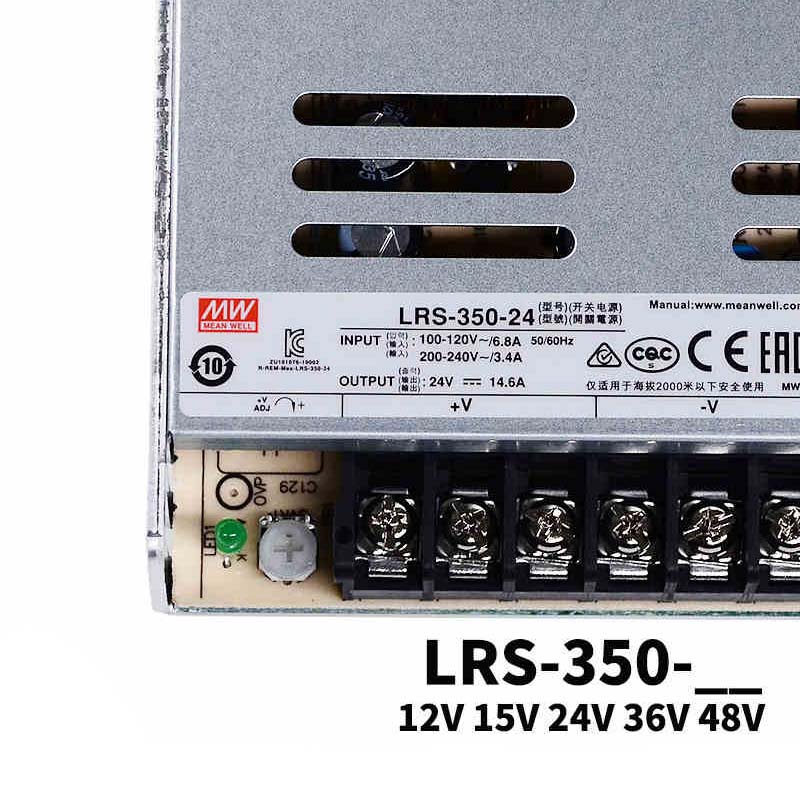

  • Output Voltage: DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
  • Rated Current: 60A(DC5V), 29A(DC12V), 23.2A(DC15V), 14.6A(DC24V), 9.7A(DC36V), 7.3A(DC48V)
  • Rated Power: 300W(DC5V), 348W(DC12V), 348W(DC15), 350.4W(DC24V), 349.2W(DC36V), 350.4W(DC48V)
  • No Load Power Consumption: <0.75W
  • Frequency Range: 47-63Hz
  • Efficiency:  83.5%(DC5V), 85%(DC12V), 86%(DC15V), 88%(DC24V)
  • AC Current: 6.8A/115VAC, 3.4A/230VAC
  • Inrush Current: 60A/115VAC, 60A/230VAC
  • Leakage Current: <2mA/240VAC
  • Vibration: 10-500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
  • Forced Air Cooling By Built-In DC Fan
  • Built-in Cooling Fan ON-OFF Control
  • 1U Low Profile
  • Withstand 5G Vibration Test
  • LED Indicator Light For Power On
  • 100% Full Load Burn-In Test
  • High Efficiency, Long Life And High Reliability
  • Over Load Protection
  • Over Voltage Protection
  • Over Temperature Protection
  • Short Circuit Protection
  • Weight: 0.85kg
  • 3 Years Warranty


Includes:

1*LRS-350 AC DC Converters


LRS 350 AC DC Converter AC DC Converter Adapter
