In Stock
Reward Points: 28
  • Brand: Ledbe
  • Product Code: TM1814

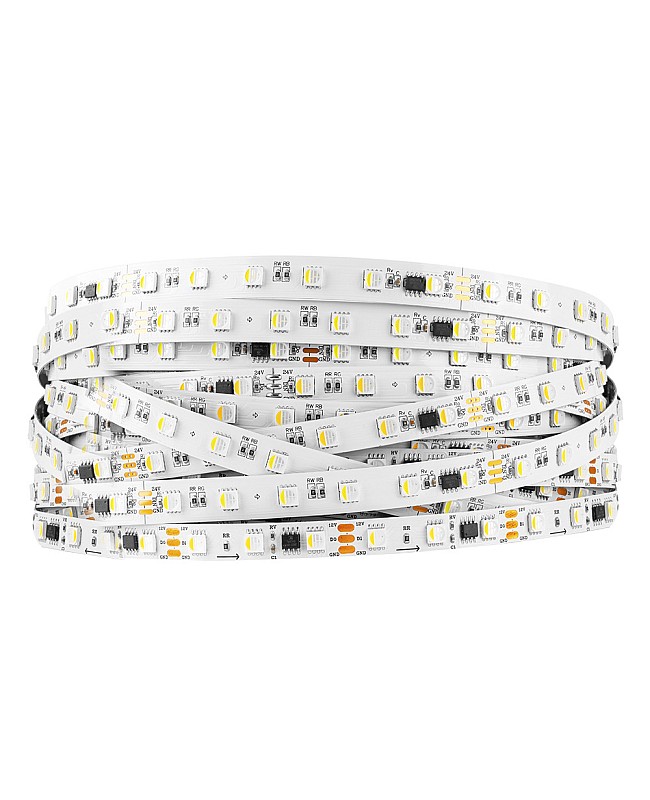

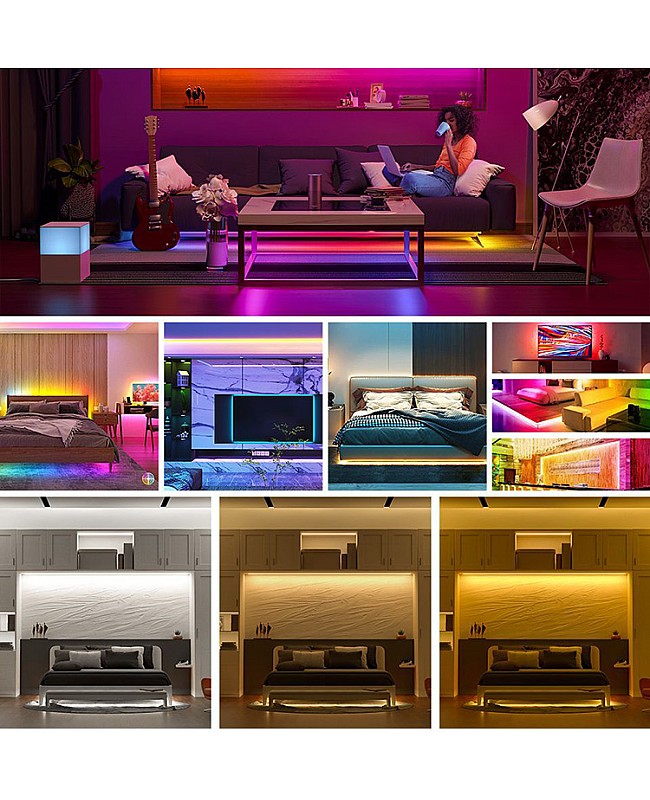

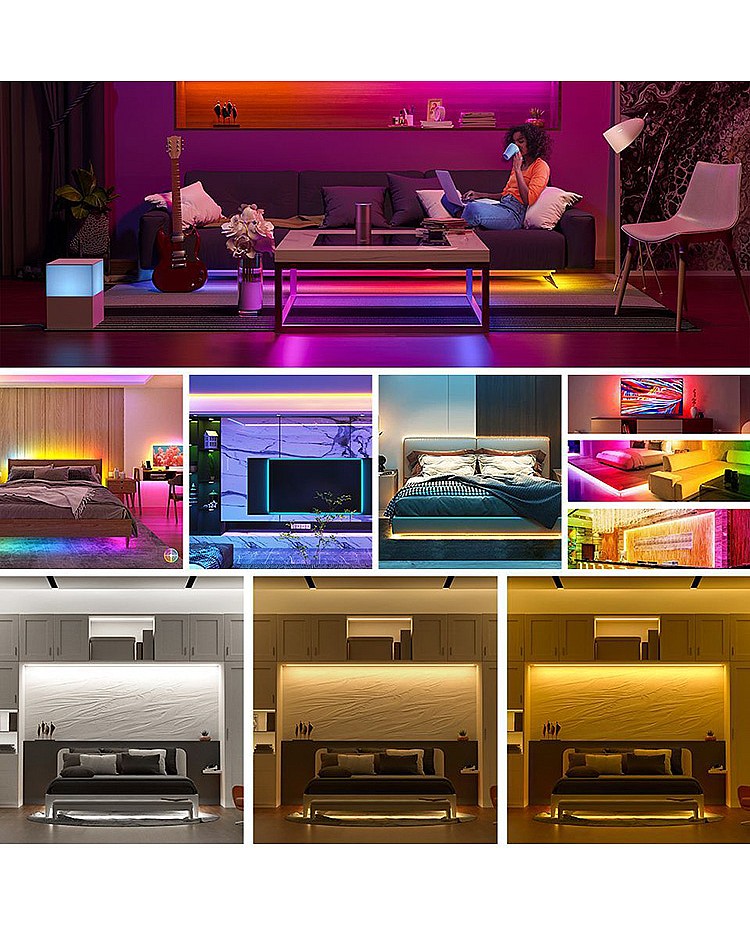

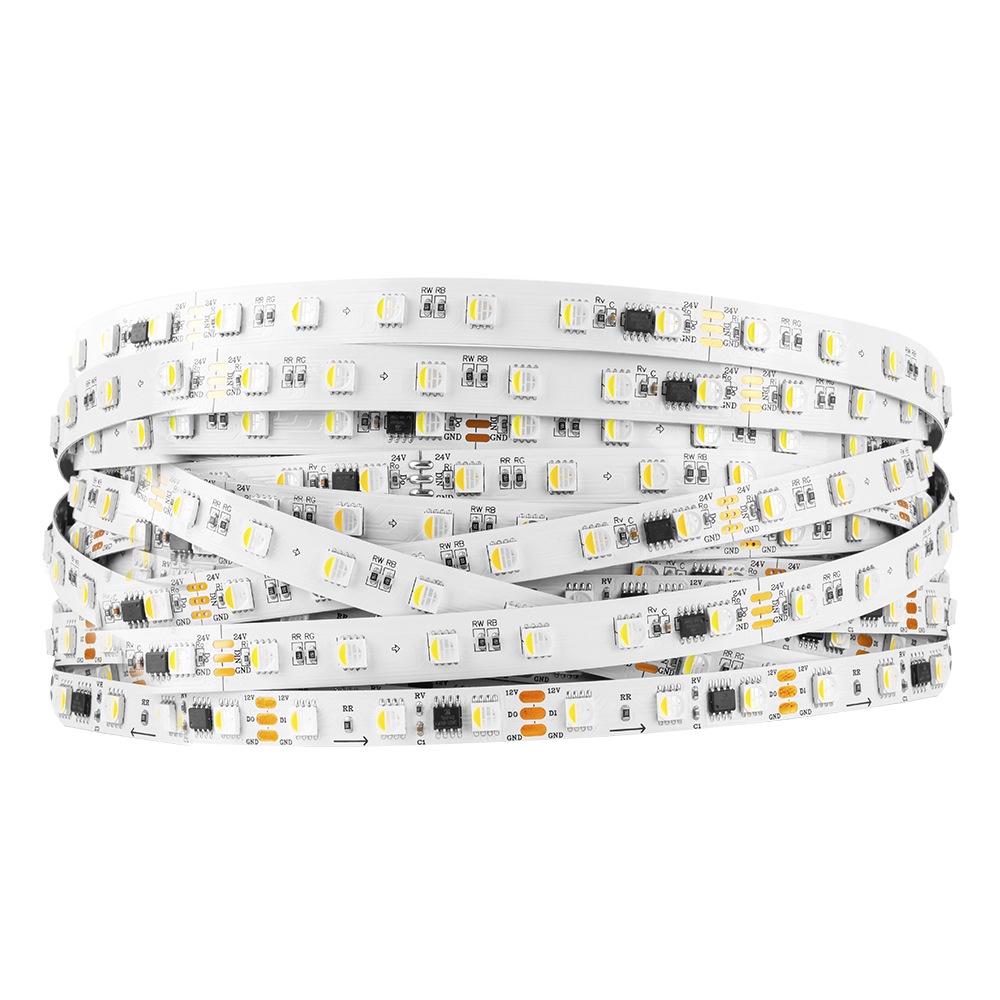

The Addressable Pixel RGBW TM1814 LED Strips are perfect for creating dynamic lighting effects in home decor, commercial lighting, stage lighting, etc.. They use the high-quality 5050 RGBW SMD LEDs as the light source for a richer color change and color combination possibilities, RGB+CW or RGB+WW available. The LEDs controlled by the TM1814 IC can work with K-1000C or K-8000C LED Controllers to achieve hundreds of fantastic lighting effects, like flashing, chase, jumping change, clockwise running horse, counterclockwise running horse, monochrome running horse, flowing water, etc. TM1814 LED Strips with 60LEDs per meter, every 3PCS LEDs(12V) or 6PCS LEDs can be cut to any length for your project. With their ability to be cut to any size, they offer maximum flexibility in design and installation. The RGBW Smart LED Strips come in three waterproof levels and can be used in a variety of settings indoors and outdoors. The back with double-sided adhesive tape makes them easy to install.


  • Working Voltage: DC12V/DC24V
  • LED Type: 5050 RGBW SMD LEDs
  • LED QTY: 60LEDs/Meter
  • Luminous Flux: 20-22lm/LED
  • Wavelength: 2000-2500MCD
  • IC Type: TM1814 IC
  • IC QTY: 10PCS/M(24V)/20PCS/M(12V)
  • Power: 72W/Reel
  • Emitting Colors: RGB+CW/RGB+WW
  • View Angle: 120°

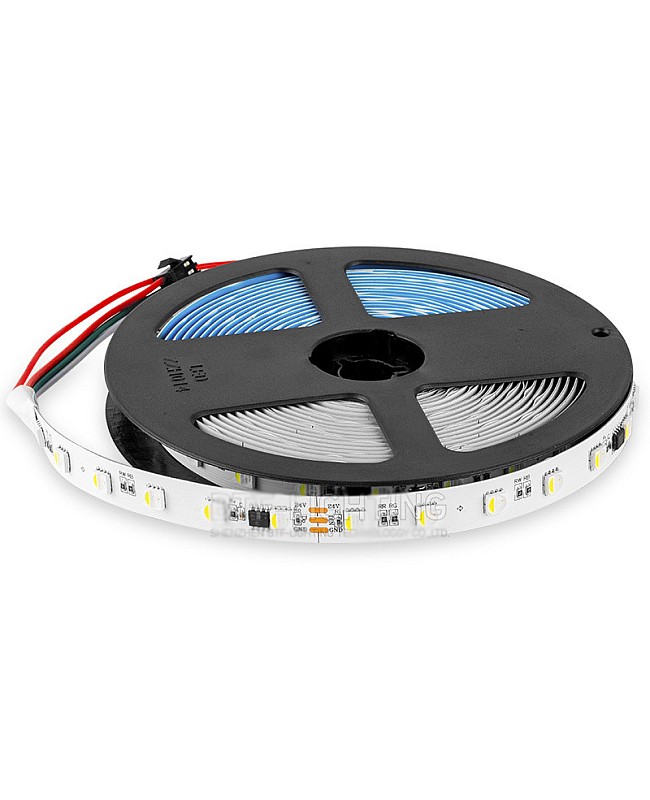

  • Length: 5Meters(16.4FT)/Reel
  • Width: 10mm
  • Colors Of PCB Board: White
  • Back With Double-Sided Adhesive Tape
  • Waterproof Level: IP30 Non-waterproof, IP65 Coating Waterproof, IP67 Silicone Tube Waterproof
  • Dimmable: YES

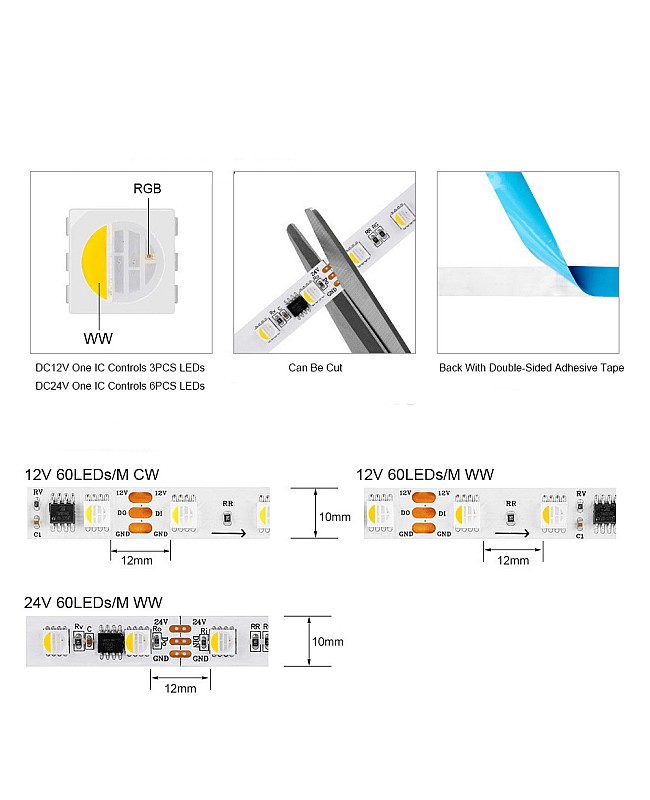

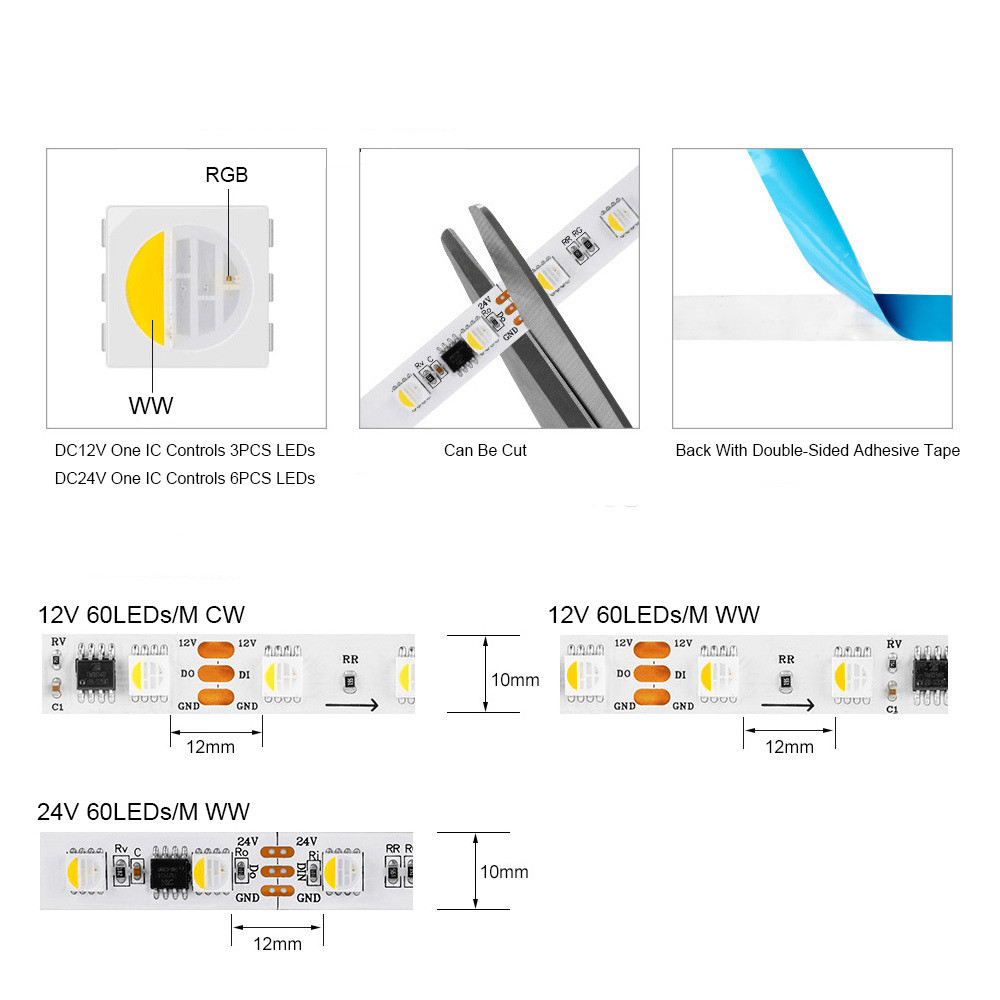

  • Cuttable: YES, Every 3PCS(12V)/6PCS(24V) LEDs Can Be Cut
  • Grayscale Levels: 256
  • Compatible With K-1000C, K-8000C
  • Working Temperature: -20℃-+50℃
  • Lifespan: 50,000 Hours
  • 2 Years Warranty


1*TM1814 LED Strip With 3 Pin Connector

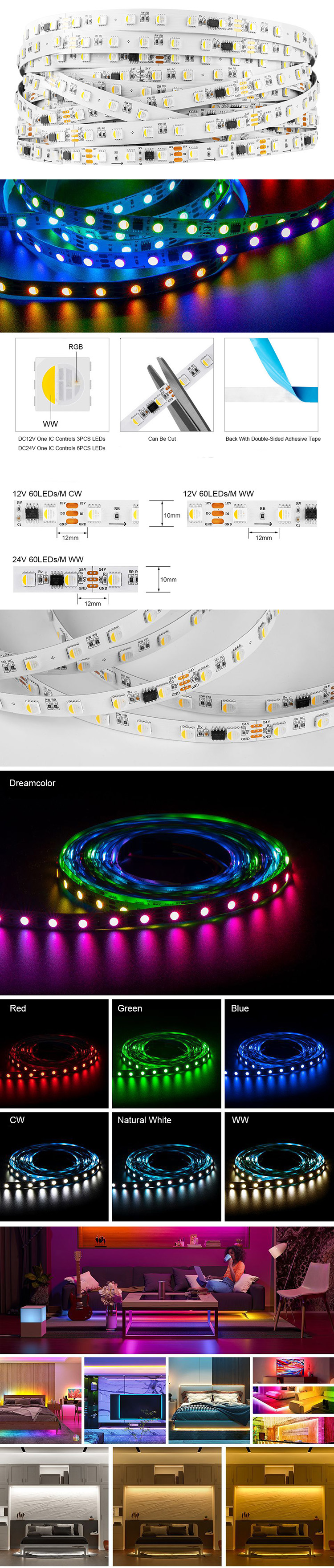

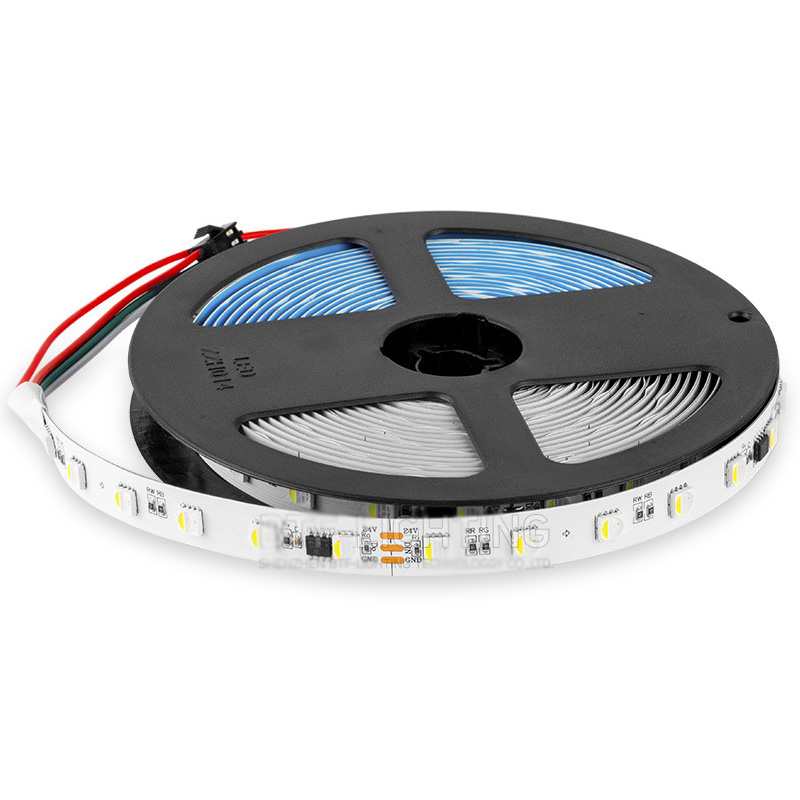

RGBW Programmable TM1814 LED Strip
