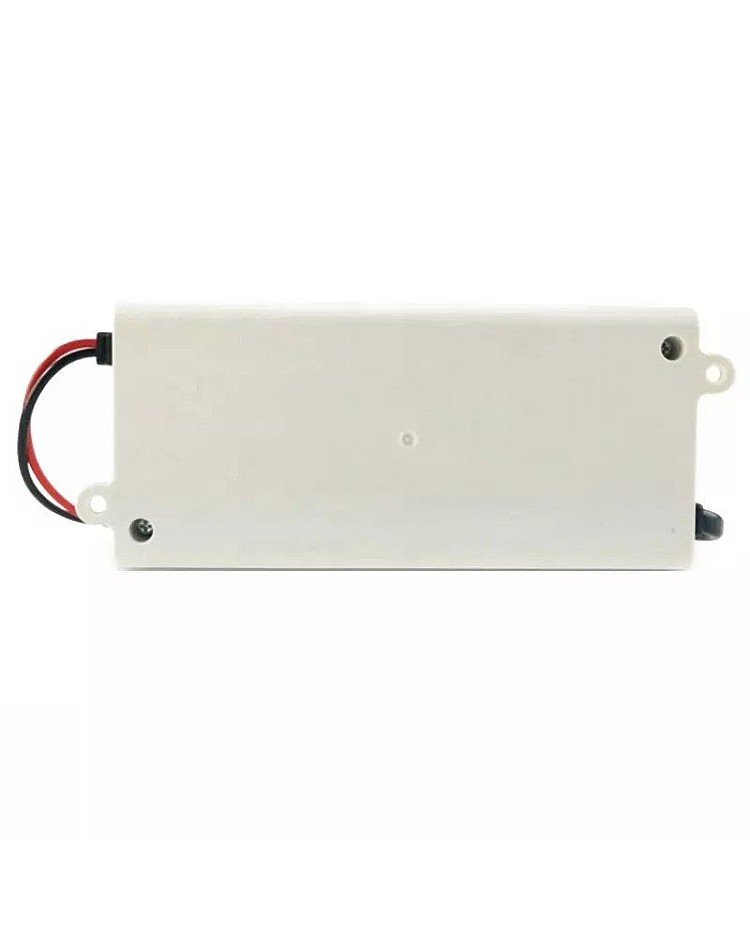

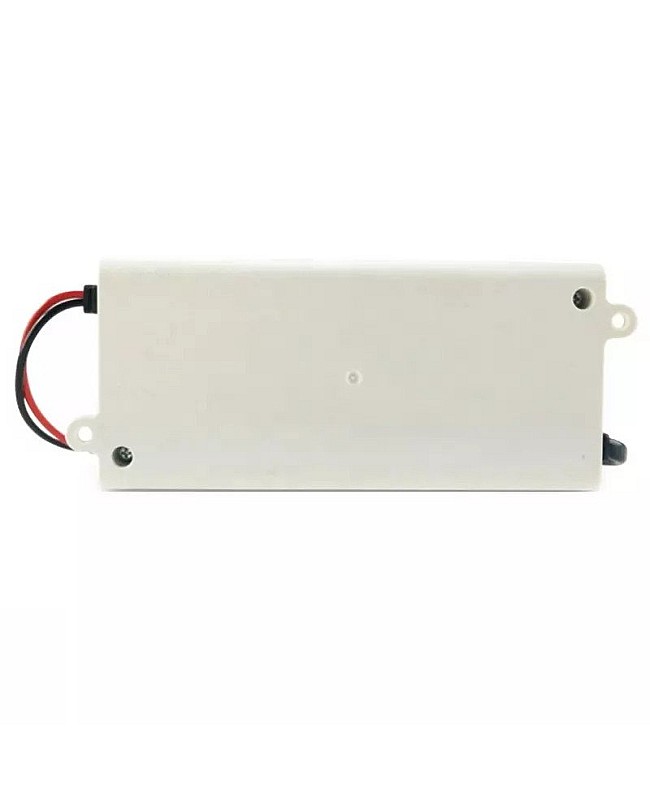

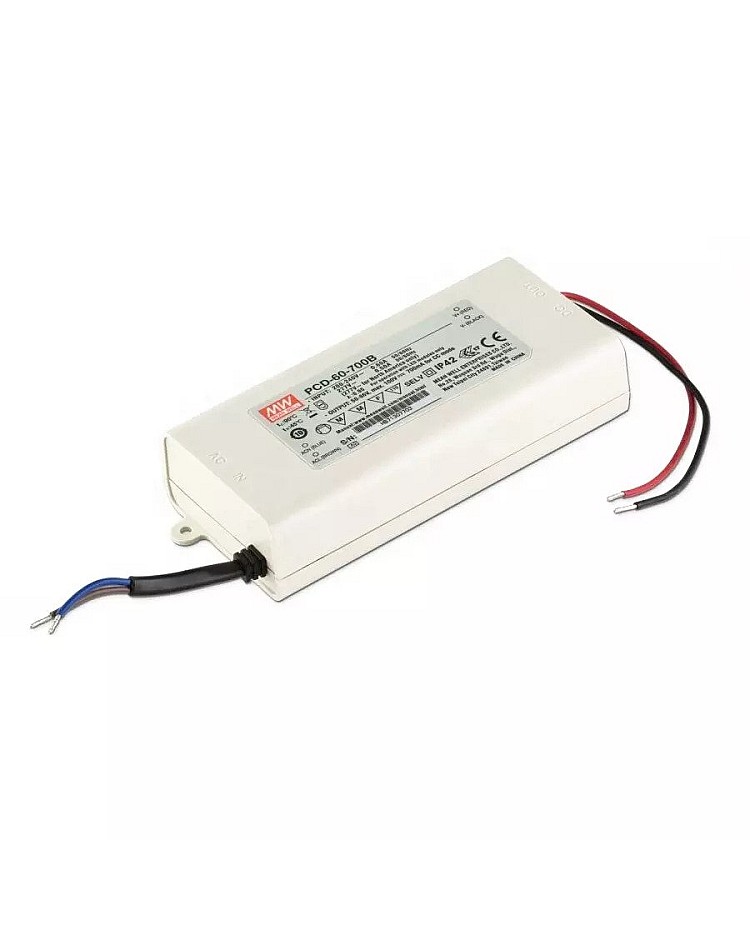

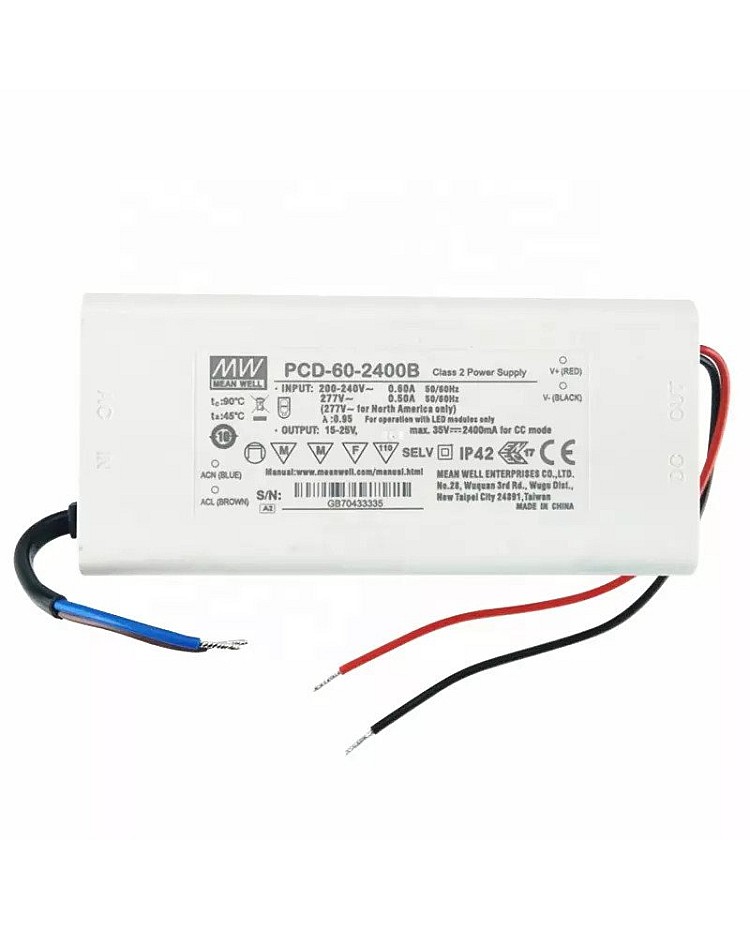

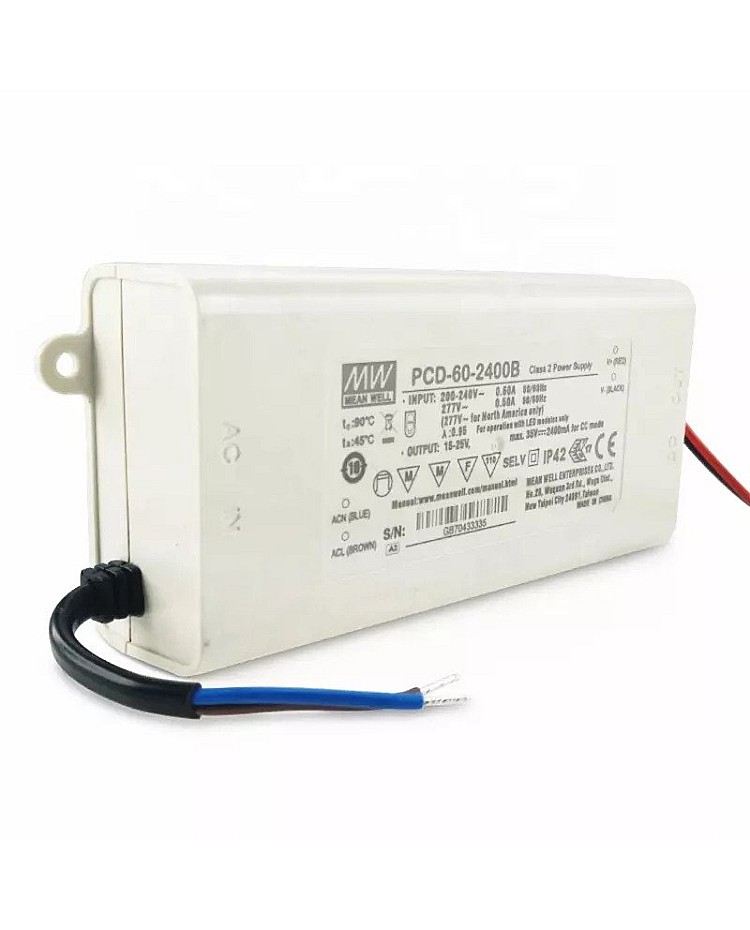

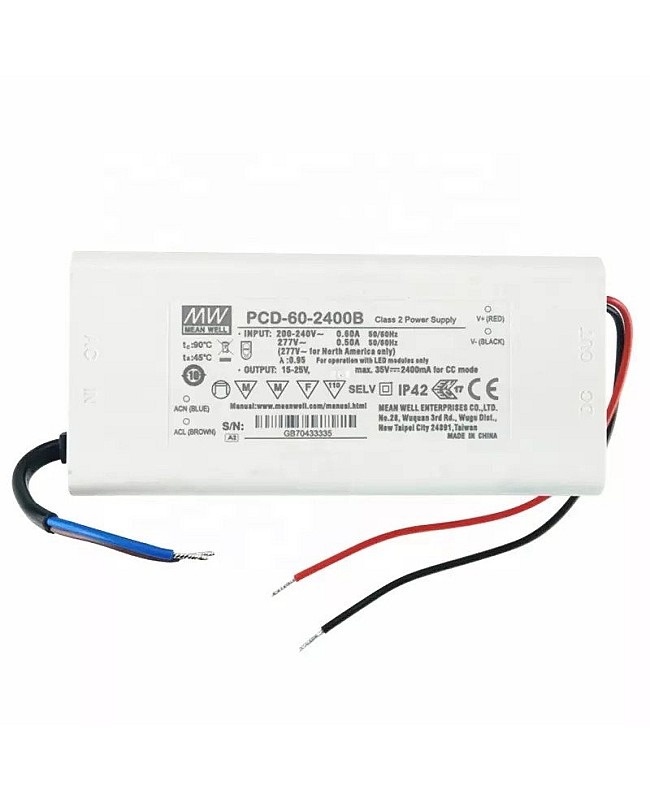

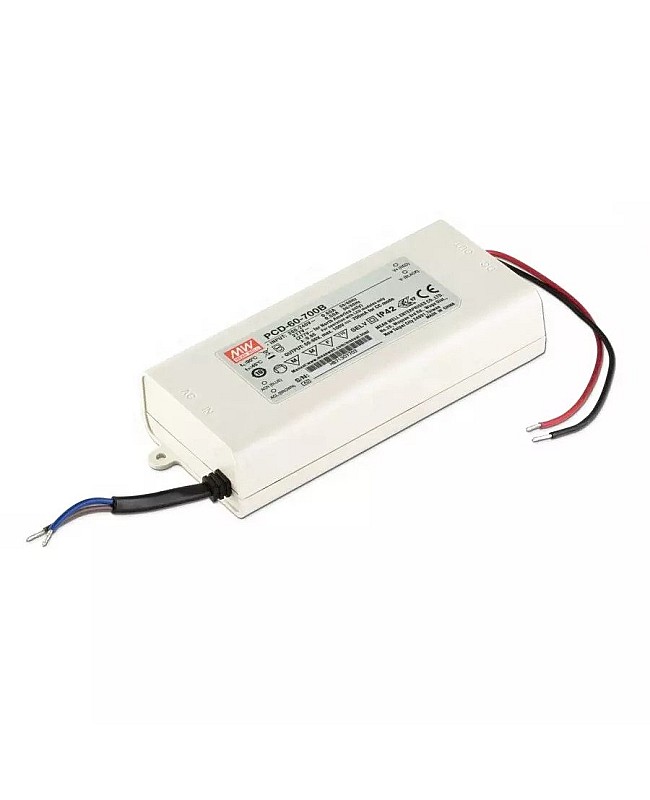

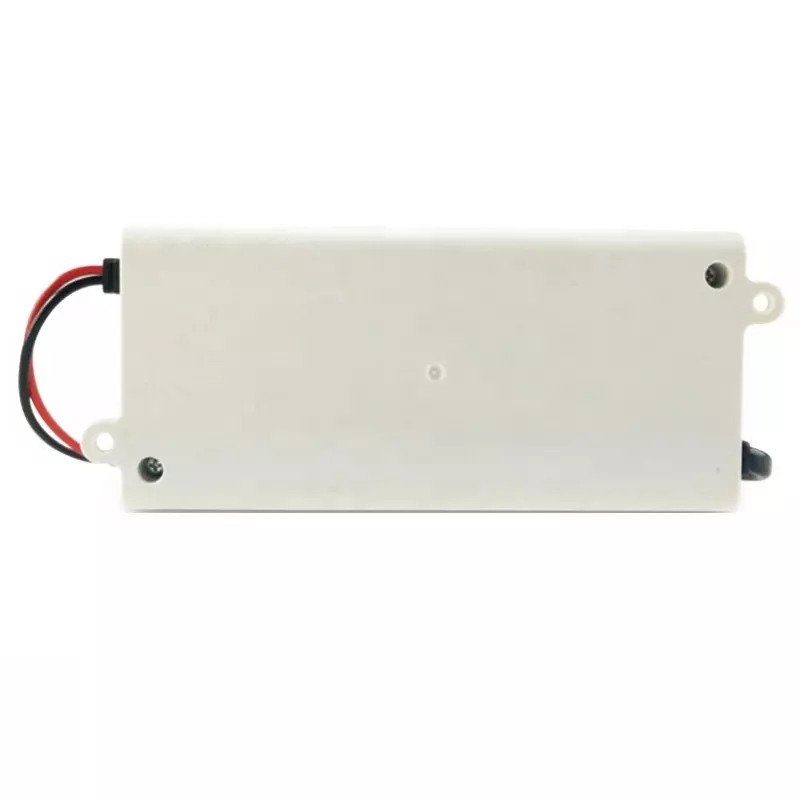

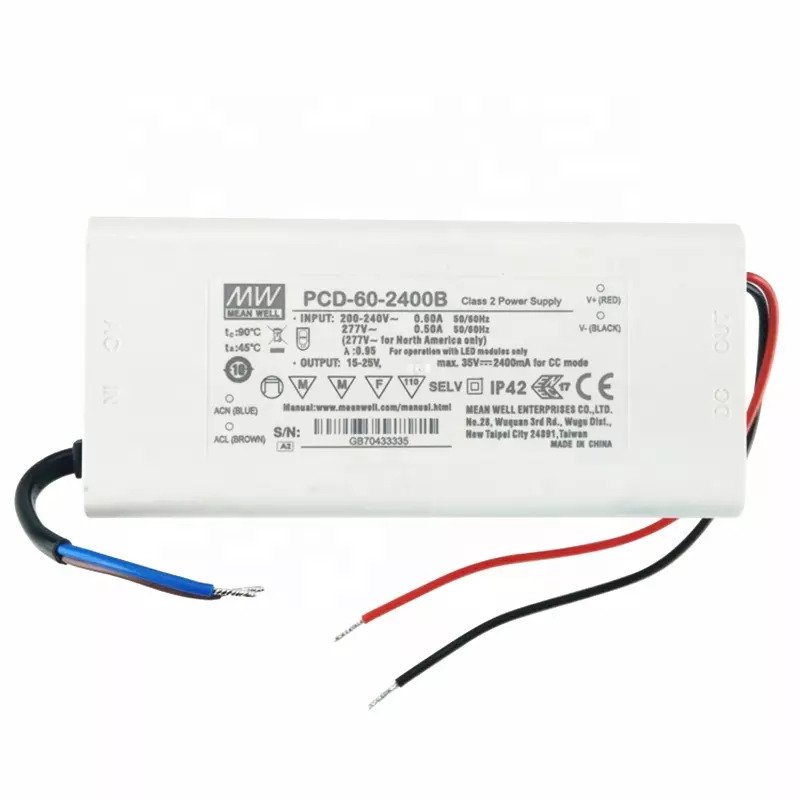

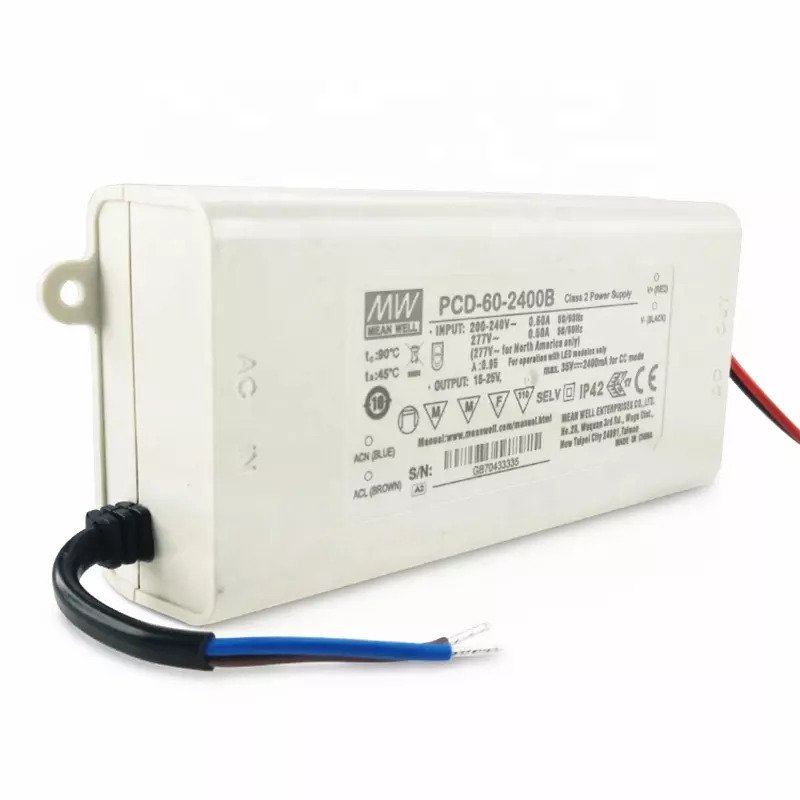

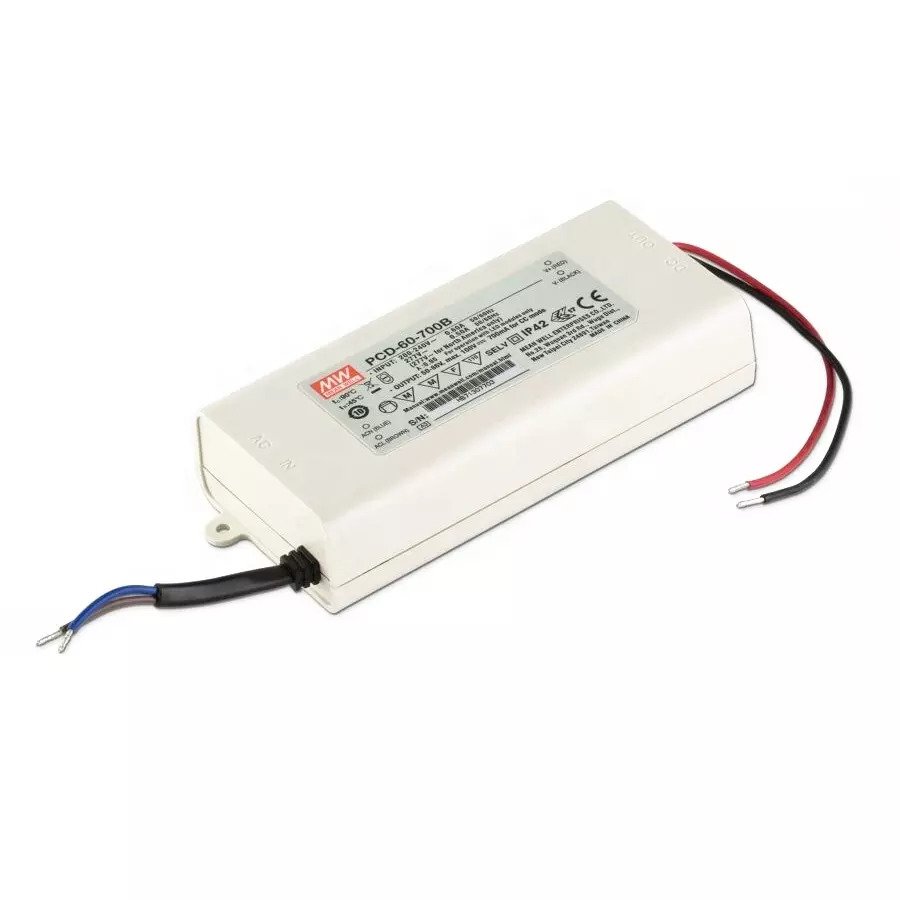

Check the Mean Well PCD-60 60W Dimmable Driver Triac, with a constant current output design and suitable for the constant current LED Lights, the output current from 500mA to 2400mA. the Dimmable Light Driver is fully isolated in a plastic case, cooling by free air convection, low cost and high reliability, with IP42 design, waterproof and dustproof. offers AC phase-cut dimming and works with leading-edge and trailing-edge Triac Dimmers to adjust the brightness for various scenes.
- AC Phase-cut Dimming
- Work With Leading-Edge And Trailing-Edge Triac Dimmers
- Built-in Active PFC Function
- Constant Current Design
- Cooling By Free Air Convection
- Fully Isolated Plastic Case
- IP42 Design
- Class II Power Unit, no FG
- Low Cost And High-Reliability
- Suitable For Constant Current LED Lights
Features:
- Model: PCD-60
- Brand: Mean Well
- Size: 128*60*31.5mm(L*W*H)
- Models: PCD-60-500B, PCD-60-700B, PCD-60-1050B, PCD-60-1400B, PCD-60-1750B, PCD-60-2000B, PCD-60-2400B
- Type: B: With AC Input 180-295VAC
- Rated Current: 500mA(PCD-60-500B), 700mA(PCD-60-700B), 1050mA(PCD-60-1050B), 1400mA(PCD-60-1400B), 1750mA(PCD-60-1750B), 2000mA(PCD-60-2000B), 2400mA(PCD-60-2400B)
- Working Voltage Range: 70-108V(PCD-60-500B), 50-86V(PCD-60-700B), 34-57V(PCD-60-1050B), 25-43V(PCD-60-1400B), 20-34V(PCD-60-1750B), 18-30V(PCD-60-2000B), 15-25V(PCD-60-2400B)
- Current Accuracy: ±5%
- Rated Power: 54W(PCD-60-500B), 60.2W(PCD-60-700B), 59.85W(PCD-60-1050B), 60.2W(PCD-60-1400B), 59.5W(PCD-60-1750B), 60W(PCD-60-2000B), 60W(PCD-60-2400B)
- Ripple & Noise (Max.) note.1: 10.2Vp-p(PCD-60-500B), 5.6Vp-p(PCD-60-700B), 3.8Vp-p(PCD-60-1050B), 3.4Vp-p(PCD-60-1400B), 3.3Vp-p(PCD-60-1750B), 2.4Vp-p(PCD-60-2000B), 2.4Vp-p(PCD-60-2400B)
- No Load Output Voltage(Max): 118V(PCD-60-500B), 100V(PCD-60-700B), 63V(PCD-60-1050B), 50V(PCD-60-1400B), 50V(PCD-60-1750B), 35V(PCD-60-2000B), 35V(PCD-60-2400B)
- Setup Time: 500ms/230VAC At Full Load
- Frequency Range: 47-63Hz
- Power Factor: PF>0.9/230VAC, PF>0.9/277VAC At Full Load
- Total Harmonic Distortion: THD<20% When Output Loading ≥60%(PCD-60-500B loading≥65%) At 230VAC Input And Output Loading≥75% At 277VAC Input
- Efficiency: 87%(PCD-60-500B), 86%(PCD-60-700B), 86%(PCD-60-1050B), 87%(PCD-60-1400B), 87%(PCD-60-1750B), 87%(PCD-60-2000B), 86%(PCD-60-2400B)
- AC Current: 0.6A/230VAC, 0.5A/277VAC
- Inrush Current: Cold Start 13A At 230VAC
- Max NO. Of PSUs On 16A Circuit Breaker: 32 Units At 230VAC
- Leakage Current: <0.5mA/240VAC
- Working Temperature: -30℃-+50℃
- Working Humidity: 20-95% RH Non-condensing
- Storage Temp., HUMIDITY: -40-+80℃, 10-95% RH
- Temp.Coefficient: ±0.03%/℃(0-50℃)
- Vibration: 10-500Hz, 2G 12min./1 cycle, period for 72 min. each along X, Y, and Z axes
- Safety Standards: ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 Independent, BS EN/EN62384, EAC TP TC 004, IP42 Approved
- Short Circuit Protection
- Over Temperature Protection
- 3 Years Warranty
Includes:
1*Mean Well PCD-60 Triac Dimmable Driver
