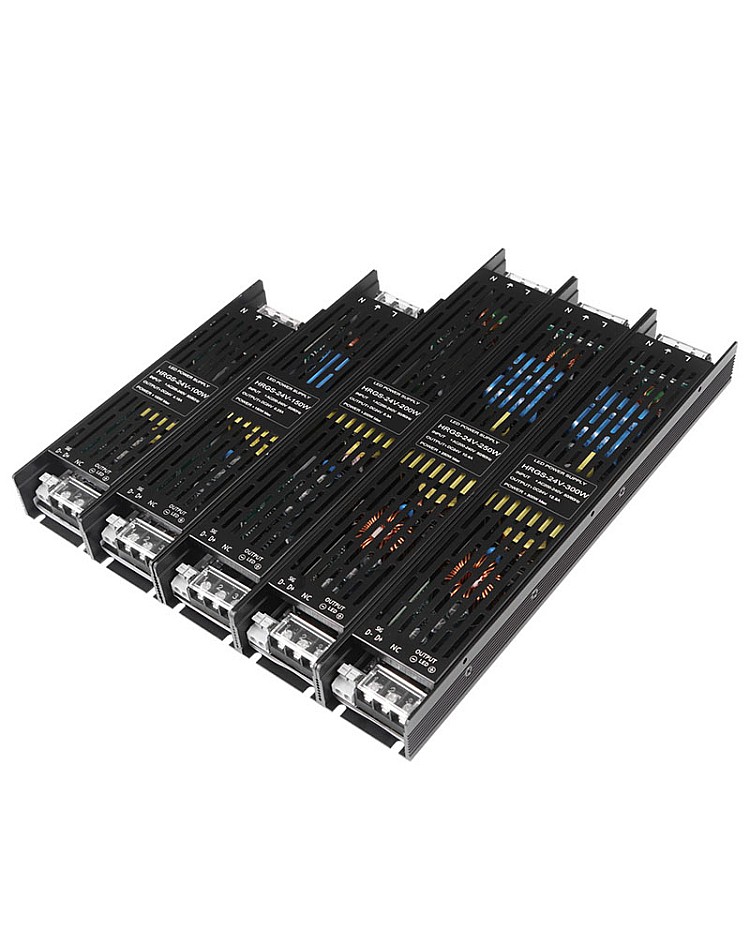

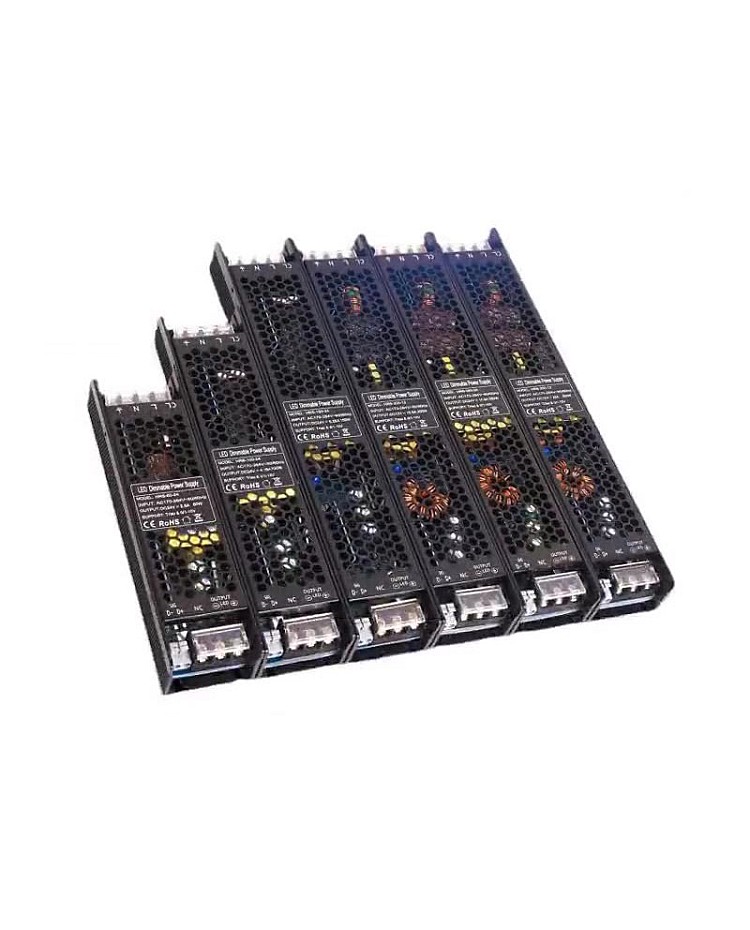

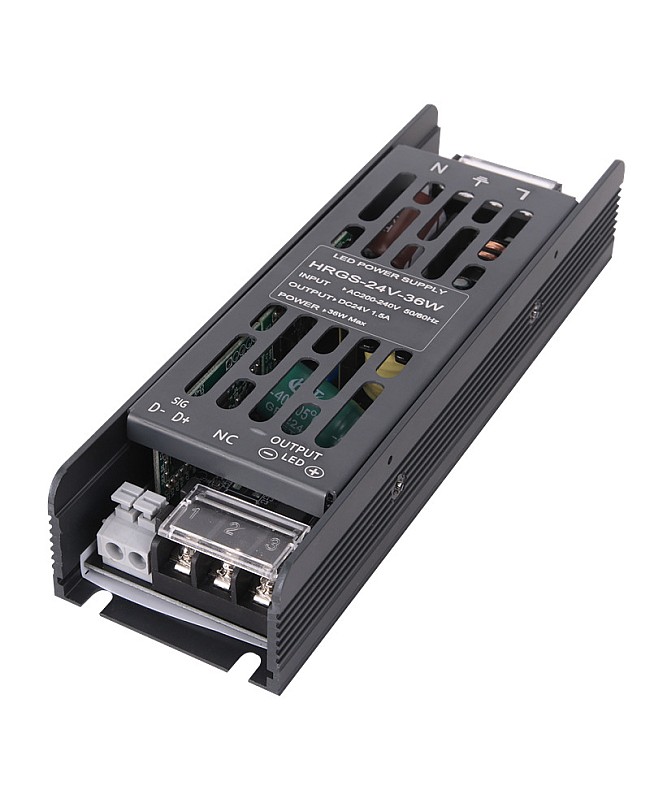

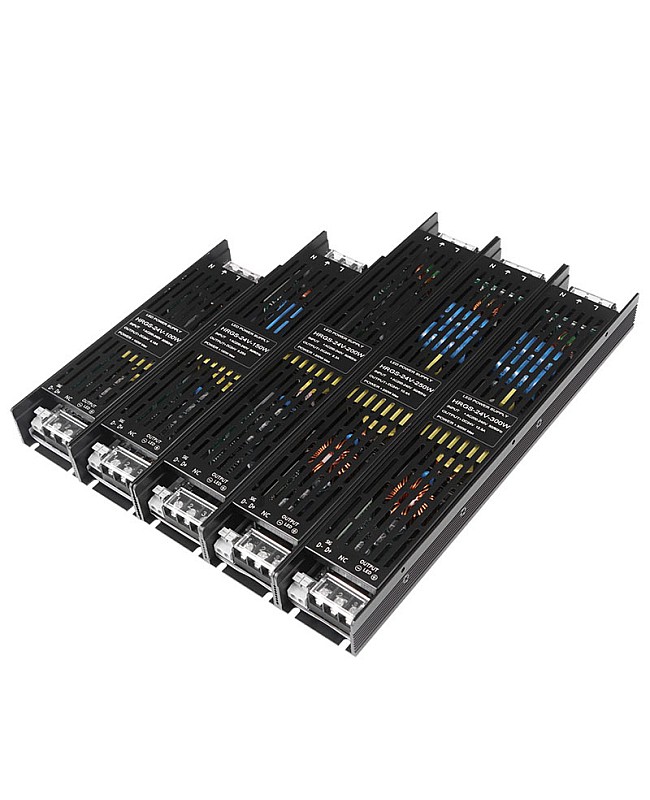

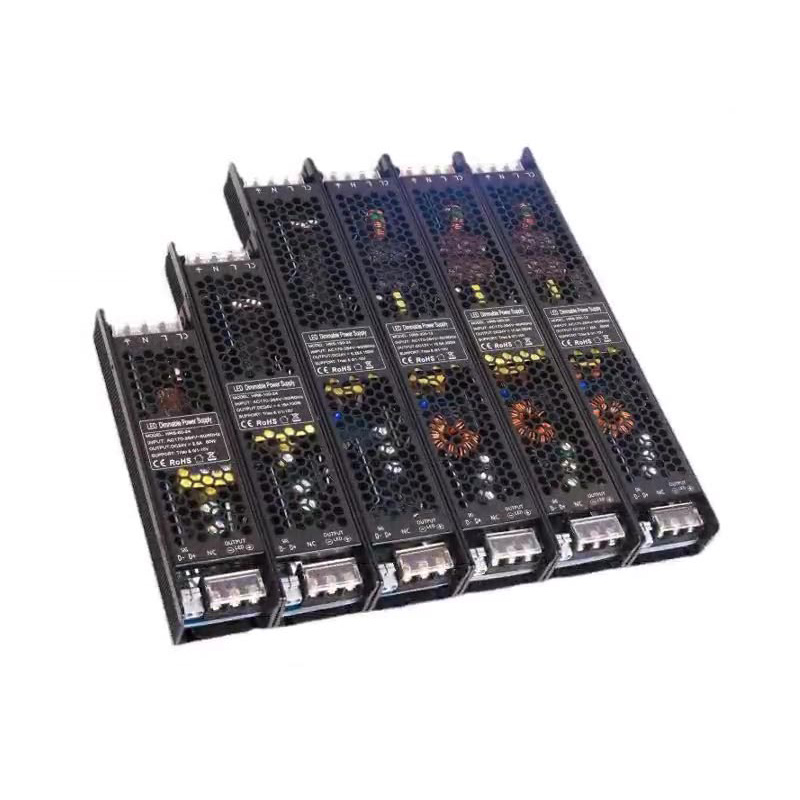

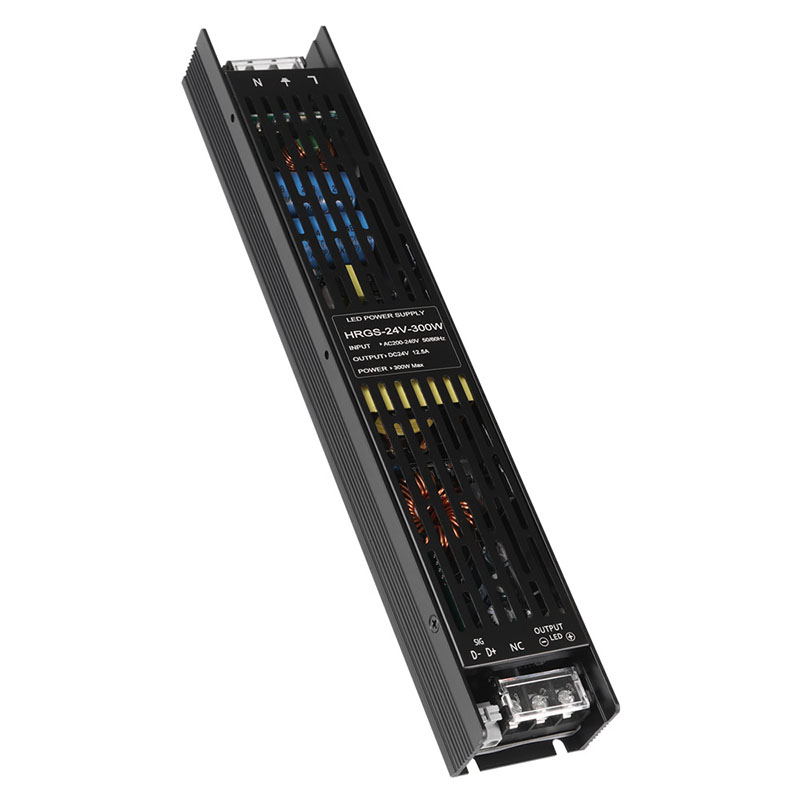

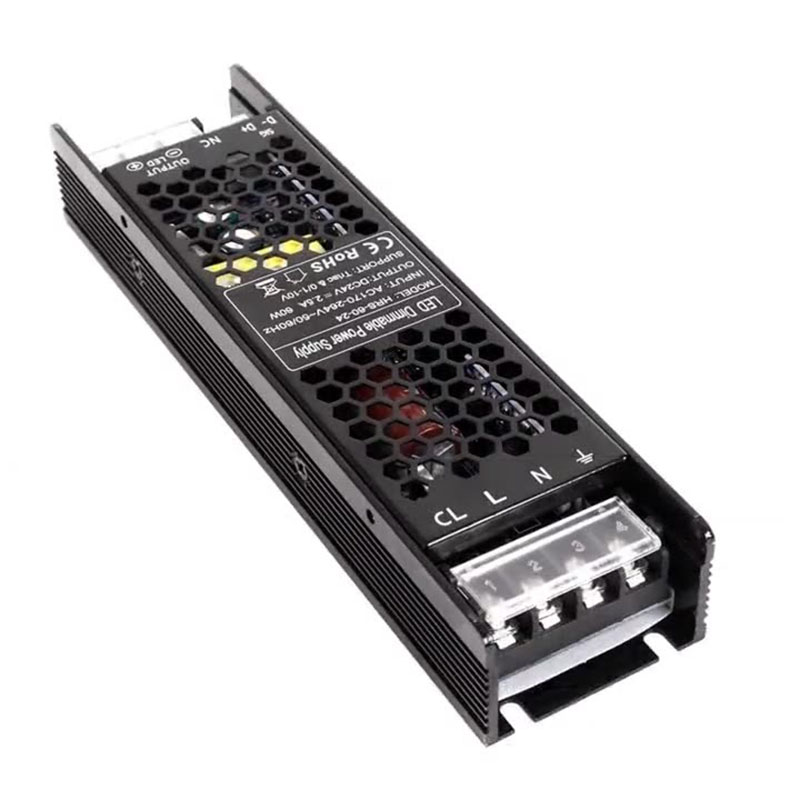

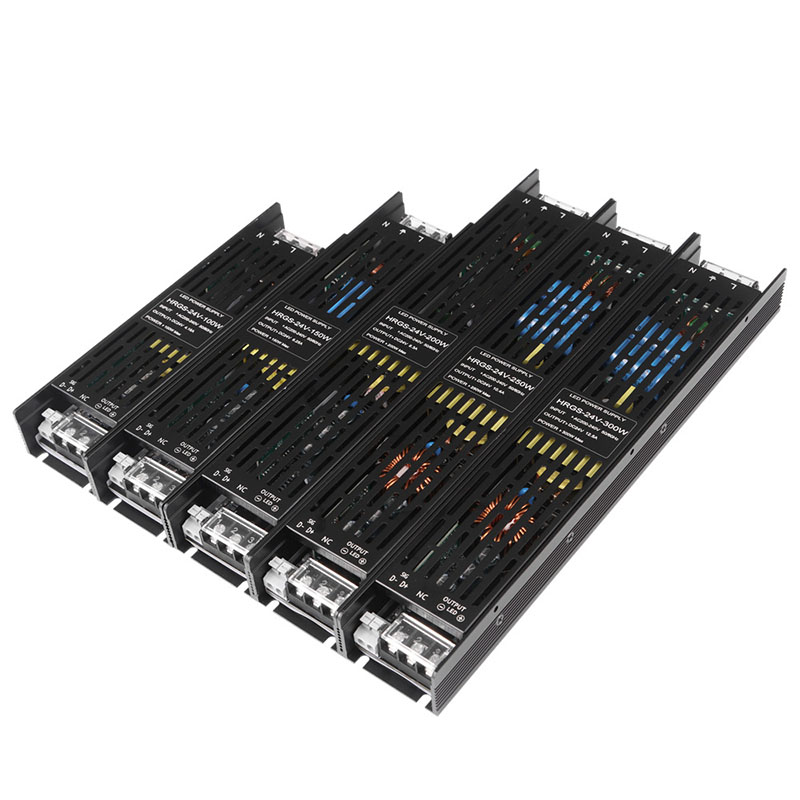

The constant-voltage dimmable LED drivers support TRIAC and 0-10V dimming methods, offering outstanding compatibility and performance for both residential and commercial lighting applications. You can use them with constant-voltage SMD tape lights, 12/24V COB LED strips, module lights, wall washing, and other similar applications. They can work with TRIAC light dimmers or 0-10V dimming panels.
- Compatible with leading-edge and trailing-edge triac dimming
- Support with 0-10V / 1-10V / resistance dimming
- TRIAC and 0-10V automatic recognition
- For above 200W, trailing-edge TRIAC or 0-10V dimming is recommended for enhanced stability.
- Dimming range: TRIAC: 40-200V (subject to the connected device); 0-10V: 0.8-9.5V (subject to the connected device)
- Dimming depth: TRIAC: 0.5-1.0%(subject to the connected device); 0-10V: 0.1-0.5% (subject to the connected device)
- Compatible with Lutron and Leviton dimmers
Features:

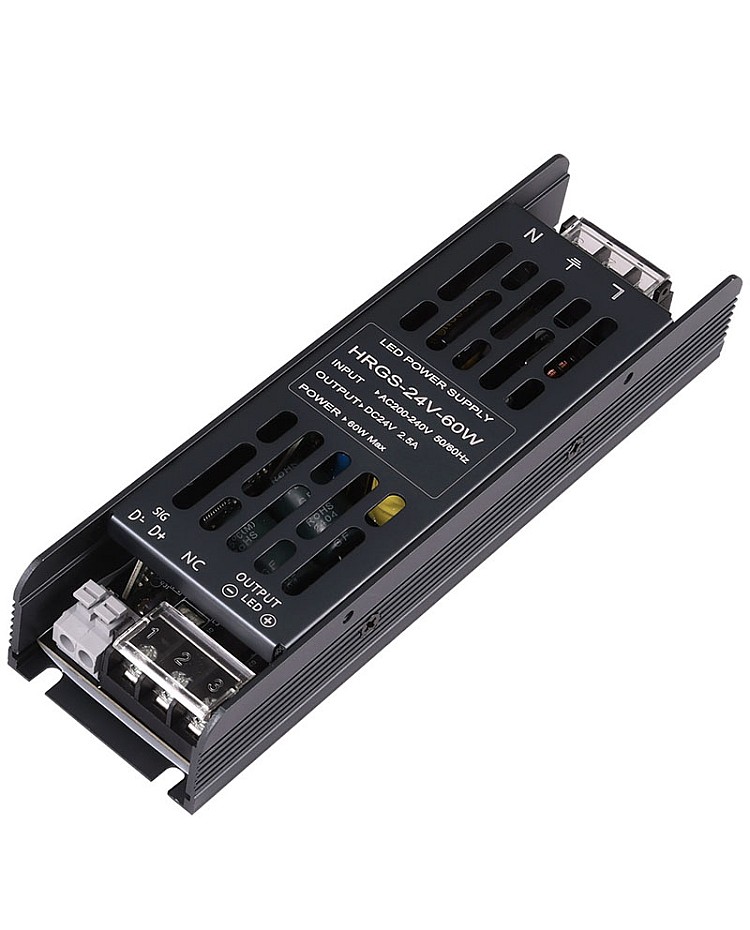

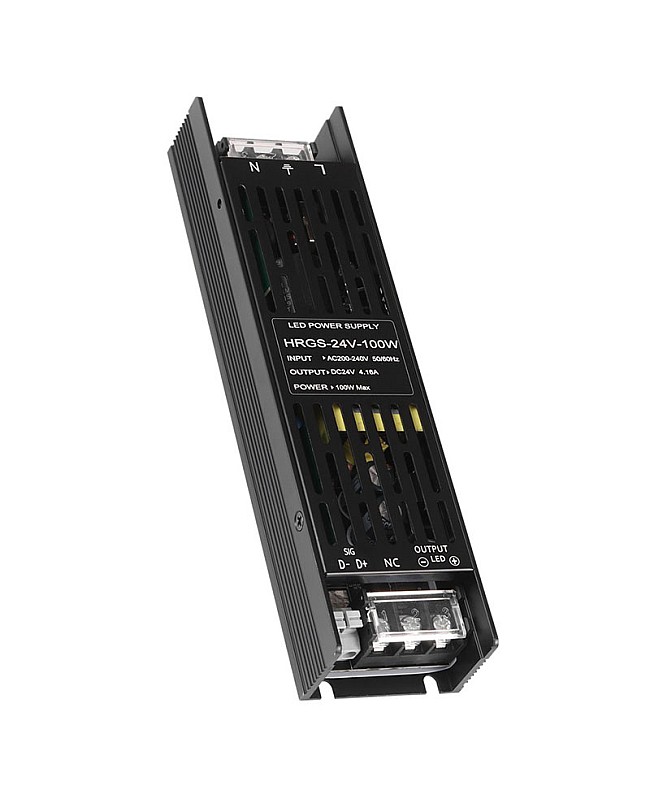

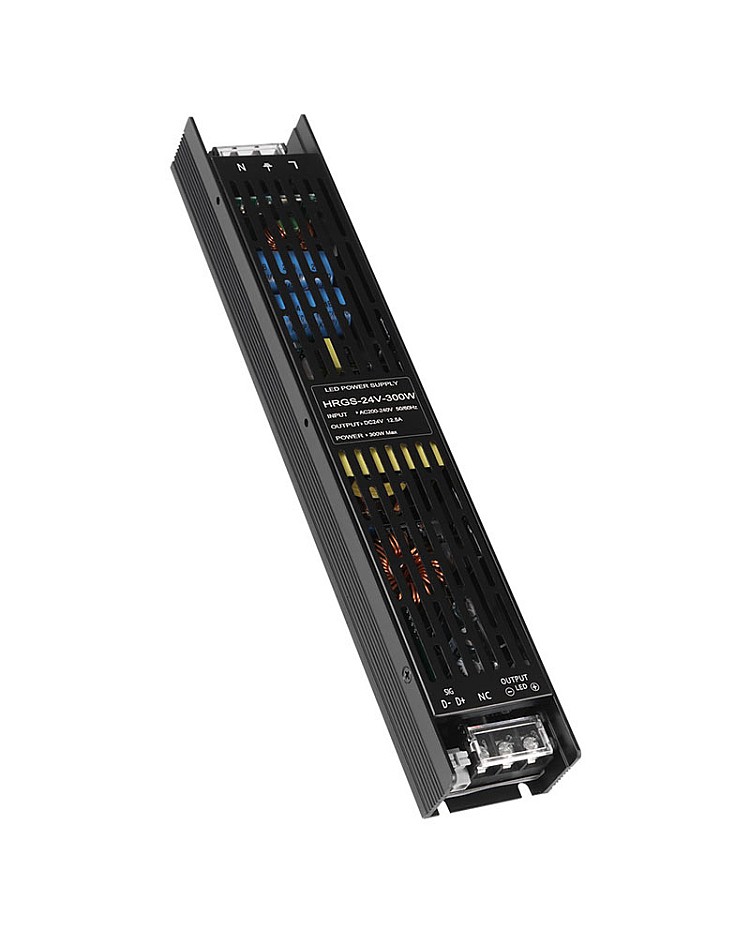

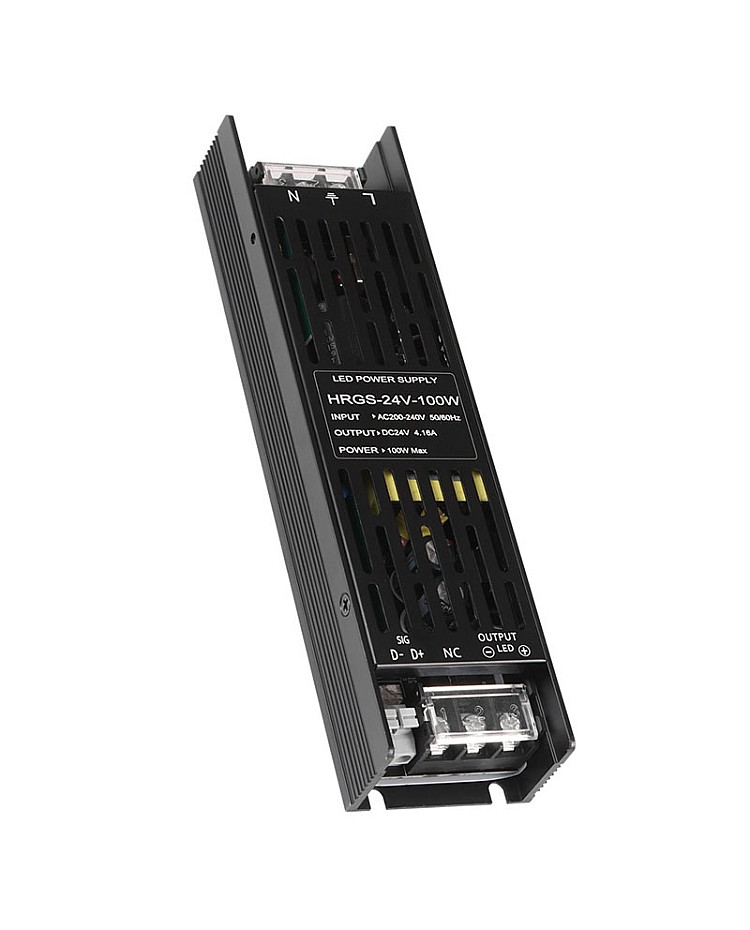

- Type: TRIAC / 0-10V constant voltage dimmable LED power supply
- Size ( L x W x H ): 167 x 50 x 30 mm ( 60W ), 188 x 50 x 30 mm ( 100W ), 230 x 50 x 30 mm ( 150W ), 287 x 50 x 30 mm ( 200W ), 287 x 50 x 30 mm ( 250W ), 287 x 50 x 30 mm ( 300W )
- Input voltage: AC100-130V / AC170-260V
- Working frequency: 50/60Hz
- Output voltage: DC12V/DC24V
- Output current: 5A(12V/60W), 2.5A(24V/60W), 8.33A(12V/100W), 4.16A(24V/100W), 12.5A(12V/150W), 6.25A(24V/150W), 16.6A(12V/200W), 8.3A(24V/200W), 20.8A(12V/250W), 10.4A(24V/250W), 25A(12V/300W), 12.5A(24V/300W),
- Power: 60W, 100W, 150W, 200W, 250W, 300W
- PF: 0.5-0.6
- Output efficiency: >80% ( 30-200W), >85%(250-300W)
- Load Ratio: 60-150W: 80% max; 200-300W: 75% max
- LED Indicator: Steady green light
- IP rating: IP20 non-waterproof, IP67 waterproof
- Over-load protection
- Short-circuit protection
- Humidity: Below 90% ( no icing)
- Working temperature: -20℃-+50℃
- Lifespan: 50,000 hours
- Warranty: 3 years
Includes:
1* TRIAC dimming LED strip driver
