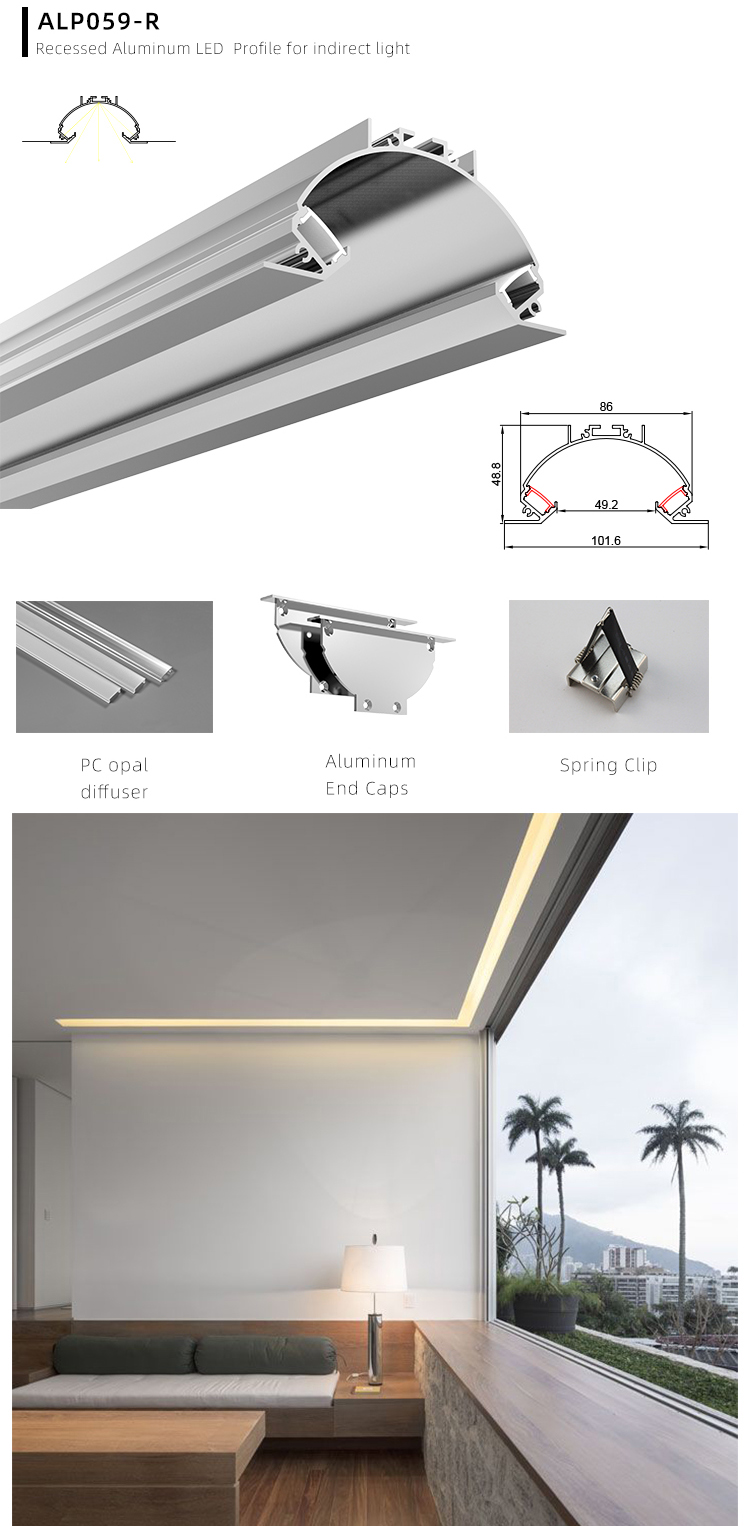

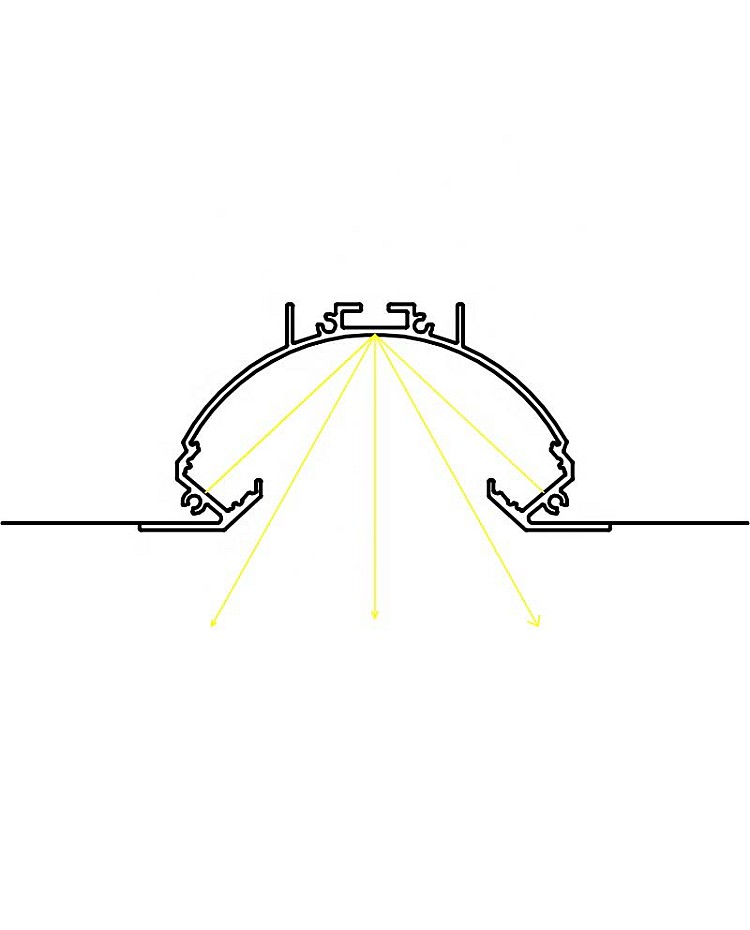

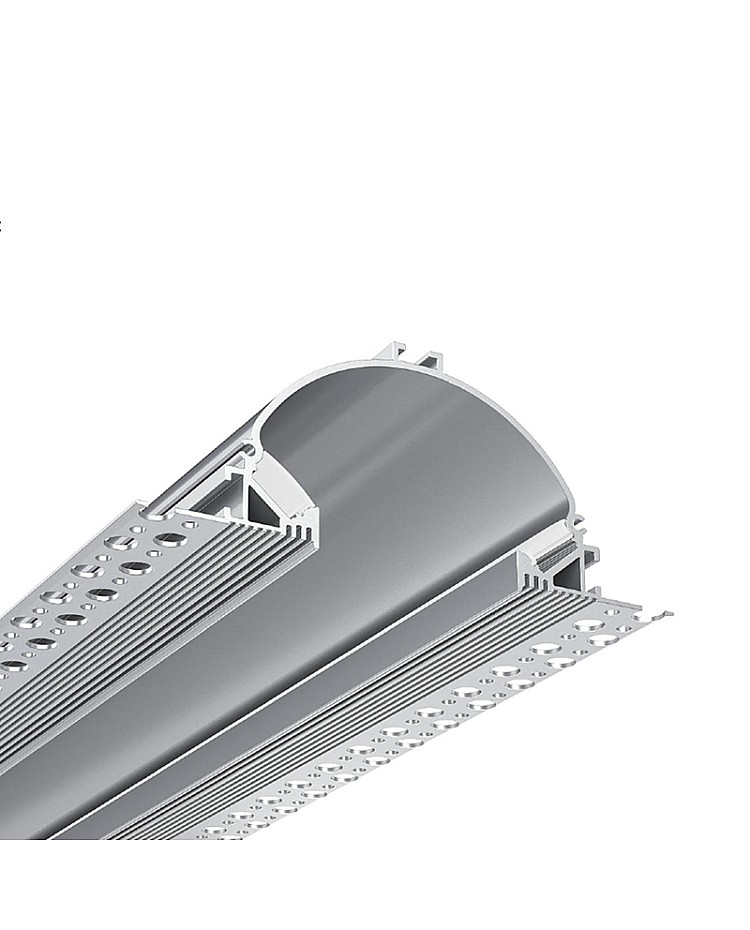

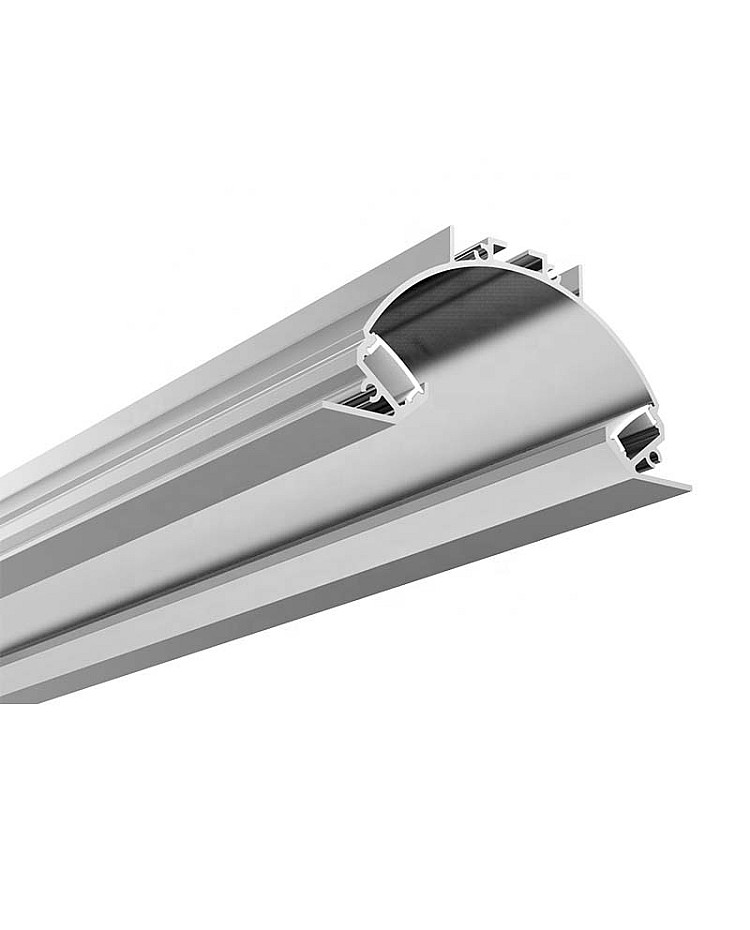

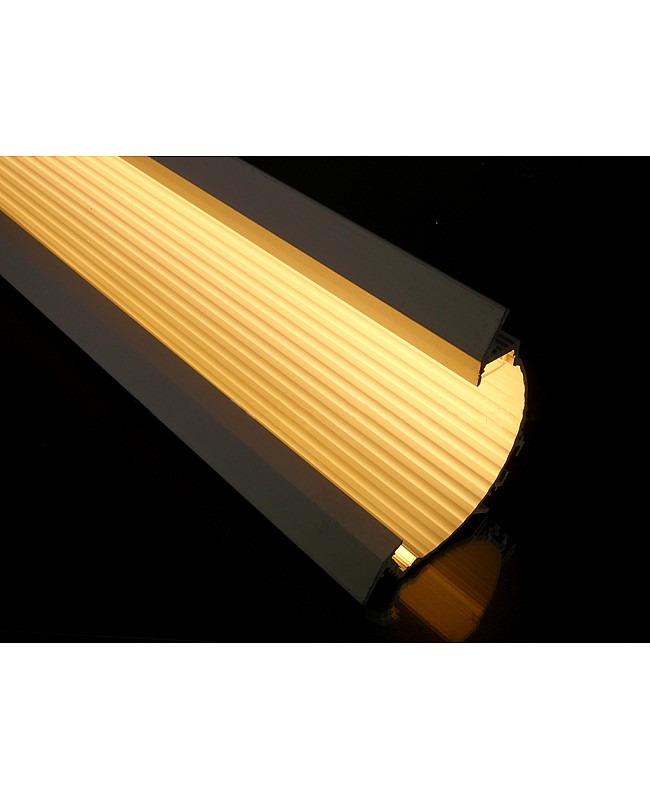

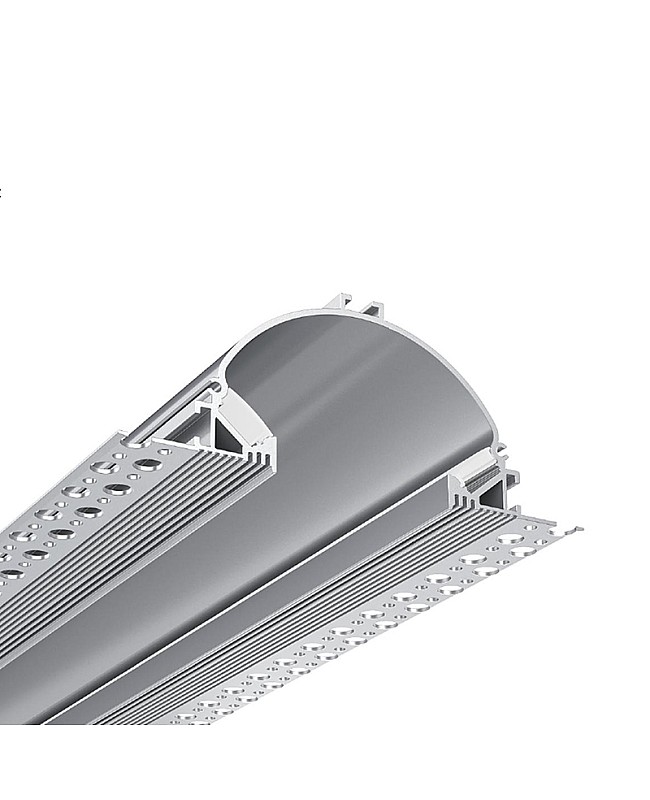

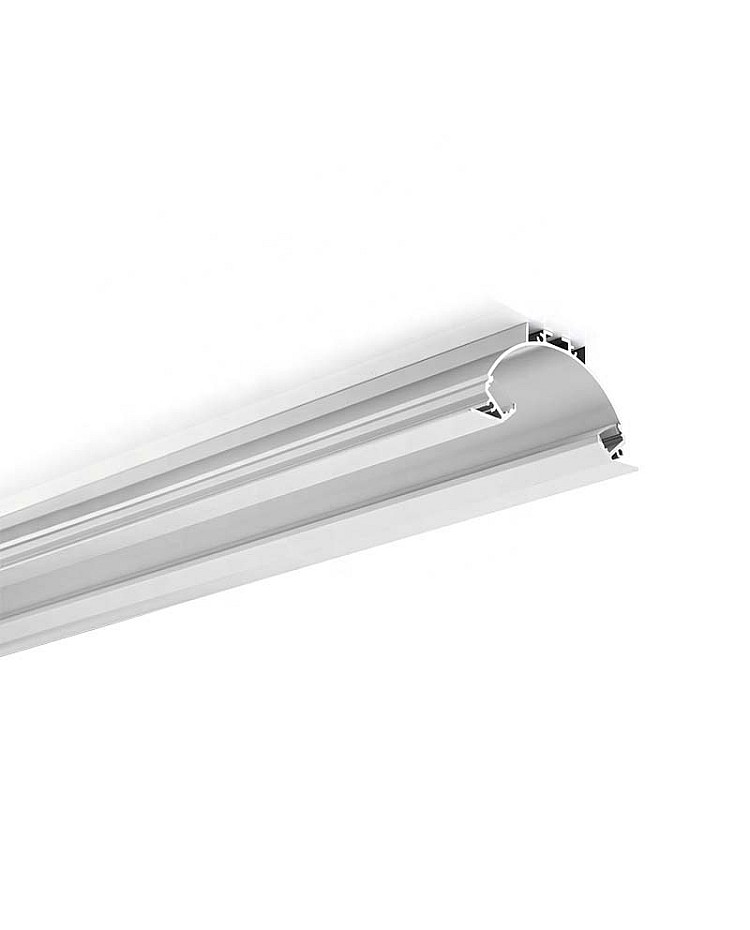

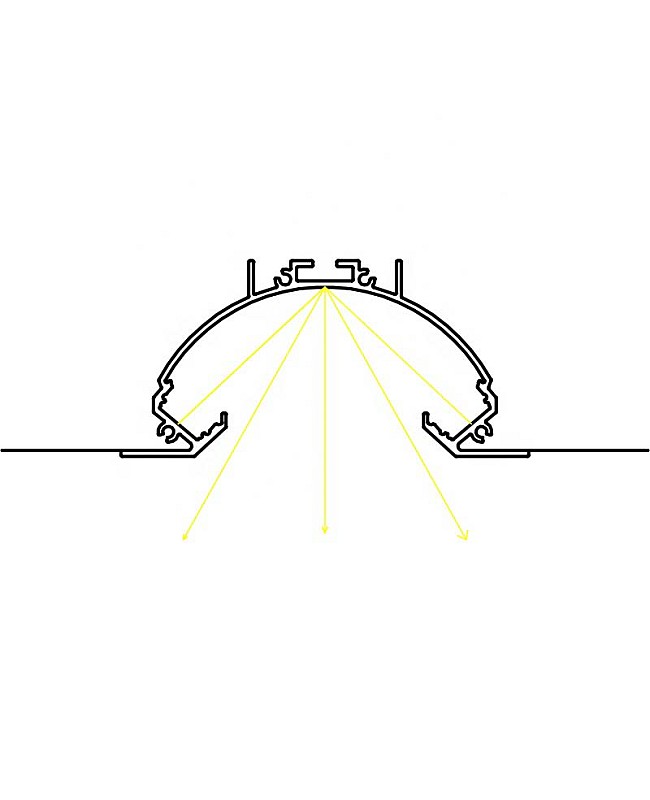

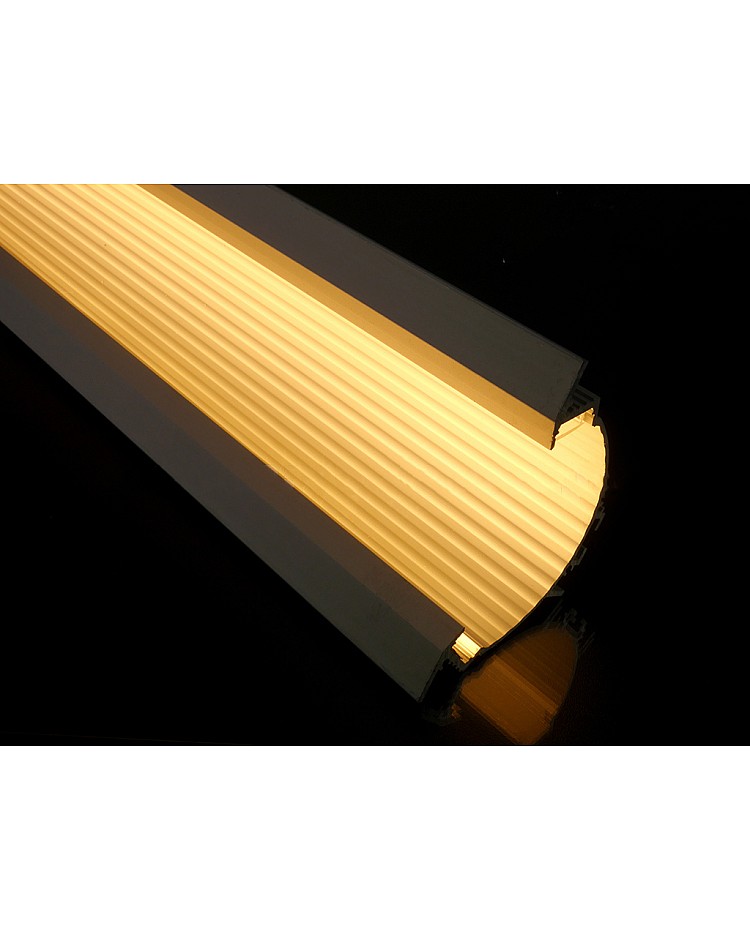

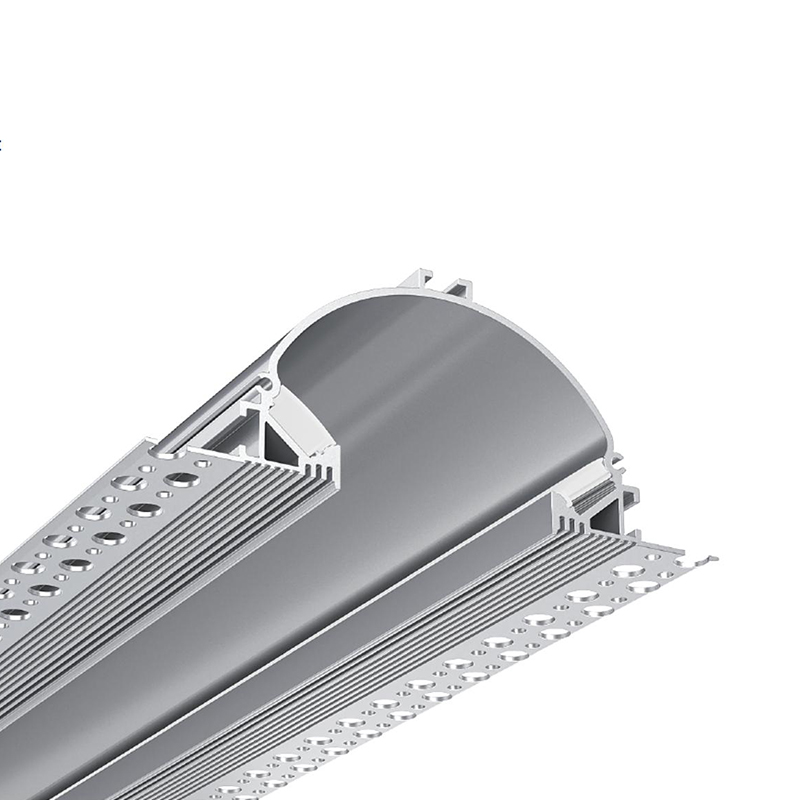

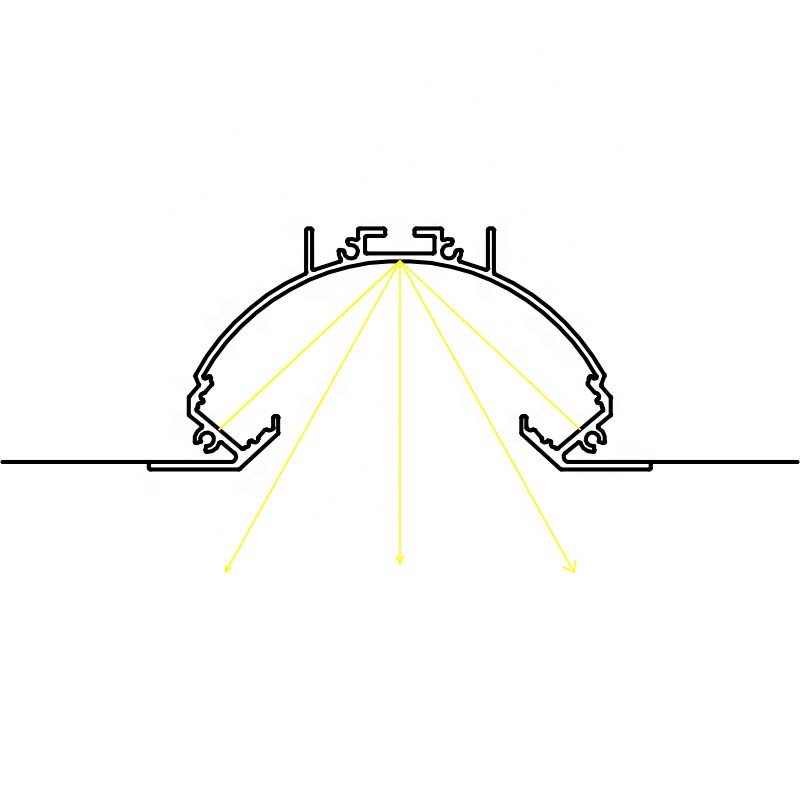

The plasterboard LED channels feature a dome structure to maximize reflection, eliminating hotspots for ultra-uniform illumination. They are designed to be plastered onto ceilings and walls to create a smooth, hidden light source, perfect for indirect ambient lighting in homes, offices, and commercial spaces. The standard length is 2 meters per piece, and you can cut to any size you prefer. Only one type of diffuser is available: PC diffused covers, which are made of high-quality brand material with stable properties, anti-yellowing characteristics, perfect light distribution, and high light output. The aluminum profile LED is designed to accommodate two pieces of 10 mm-wide flexible LED strips, hiding the light source and eliminating LED spotting for smooth, even light output. There are three types of joiners available: 180°, 90°, and 90° vertical. You can use them for angled or straight connections. The end caps are included.
Specifications:

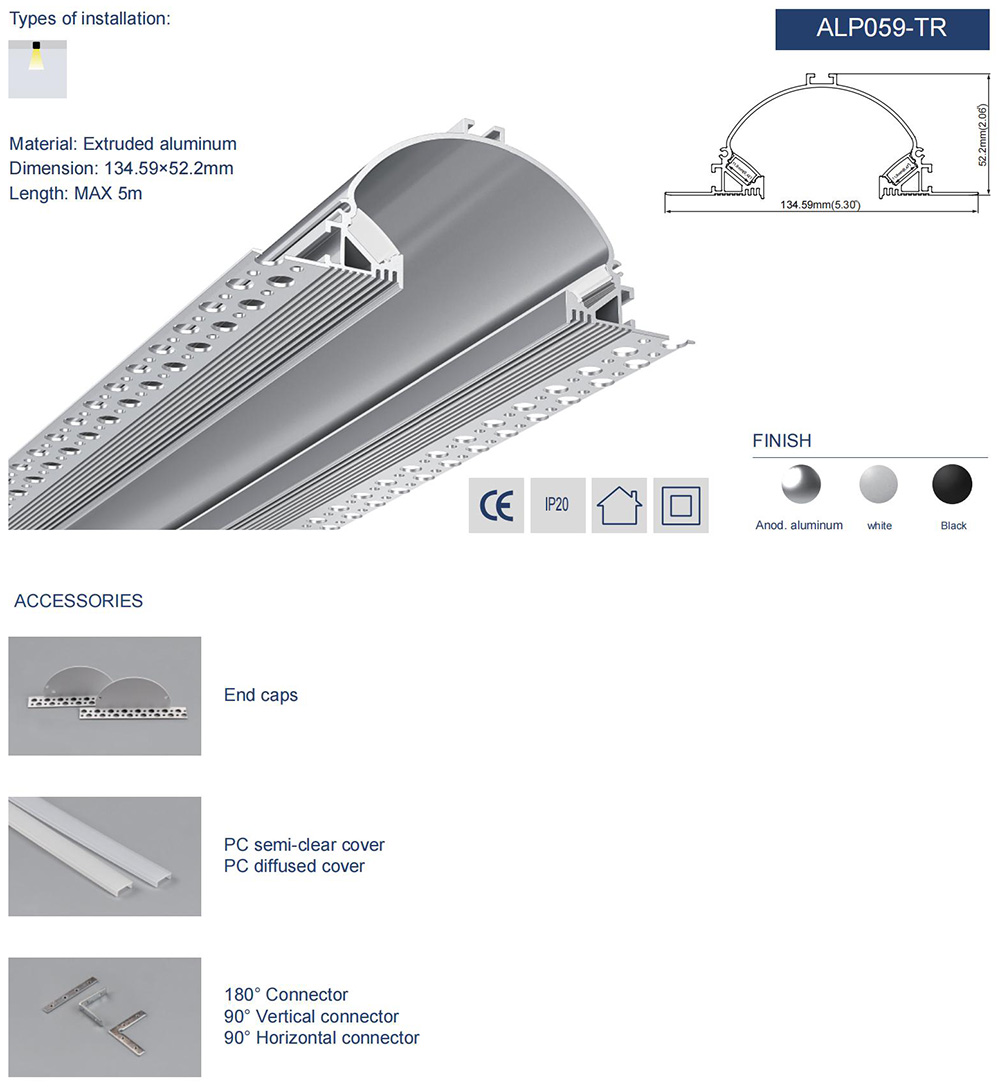

- Model: ALP059-TR
- Material: AL6063-T5 aluminium alloy
- Surface Treatment: Powder-coated
- Colors: White

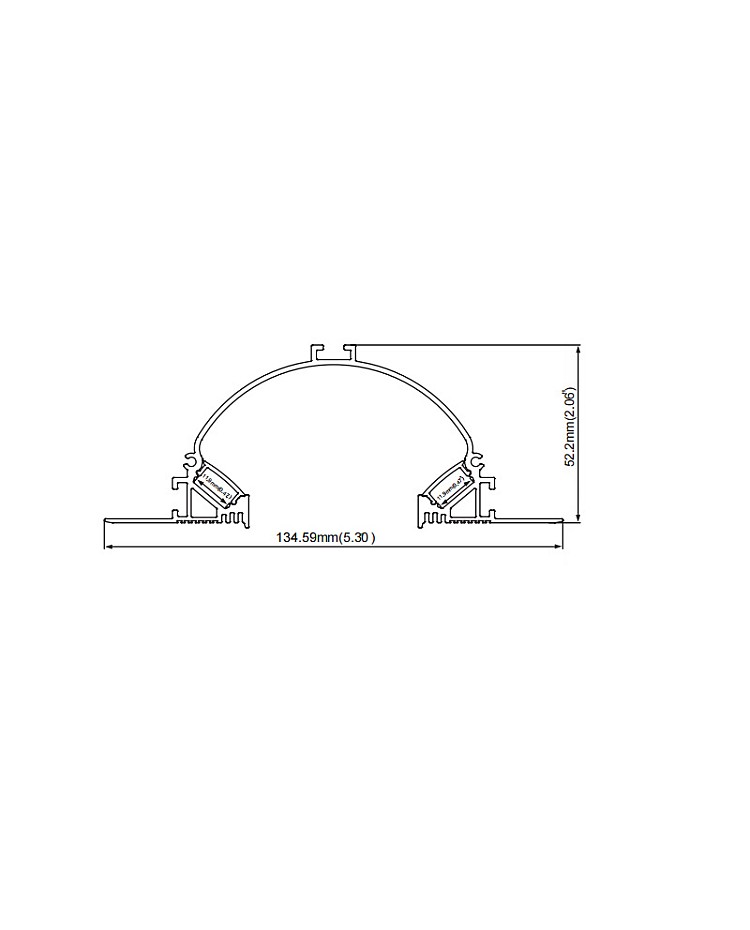

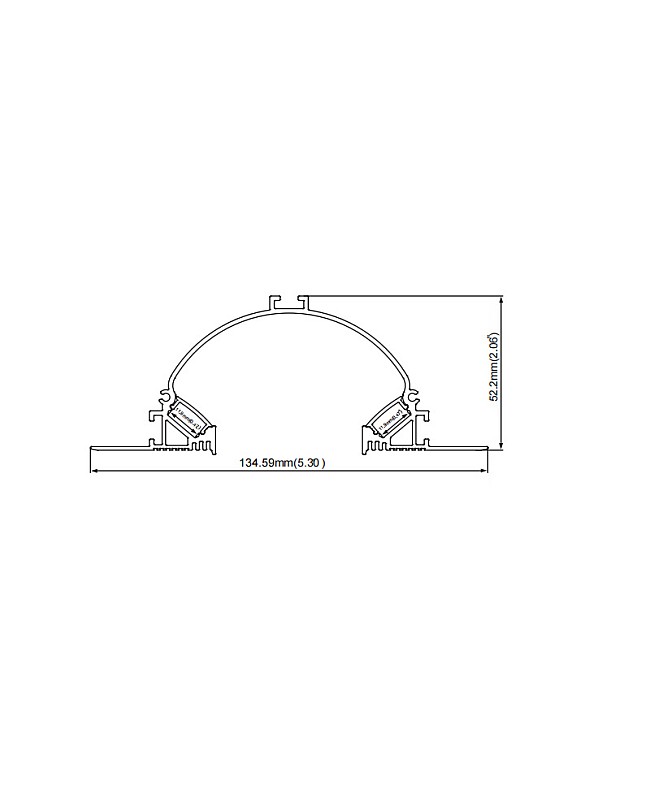

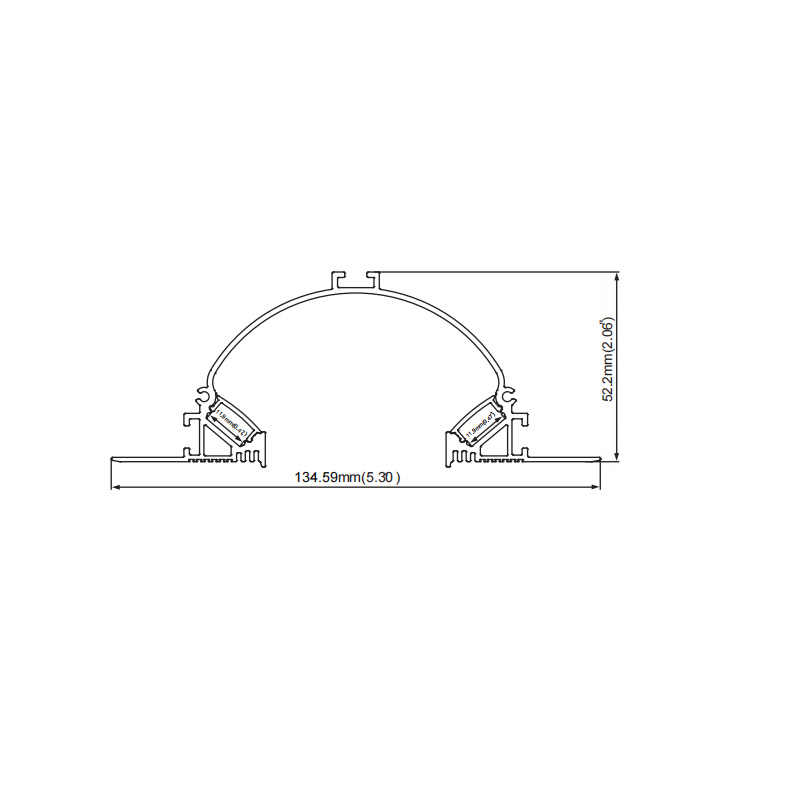

- Size: 134.59*52.2mm/5.3"*2.06"
- Standard Length: 1M(39"), 2M(78")
- Custom Length Available: YES
- Inner Width: 11.9mm/0.47"
- Accommodate 8mm and 10mm LED strips
- Max Power: 20W/Meter
- Diffusers: PC diffused cover
- Beam Angle: 100°

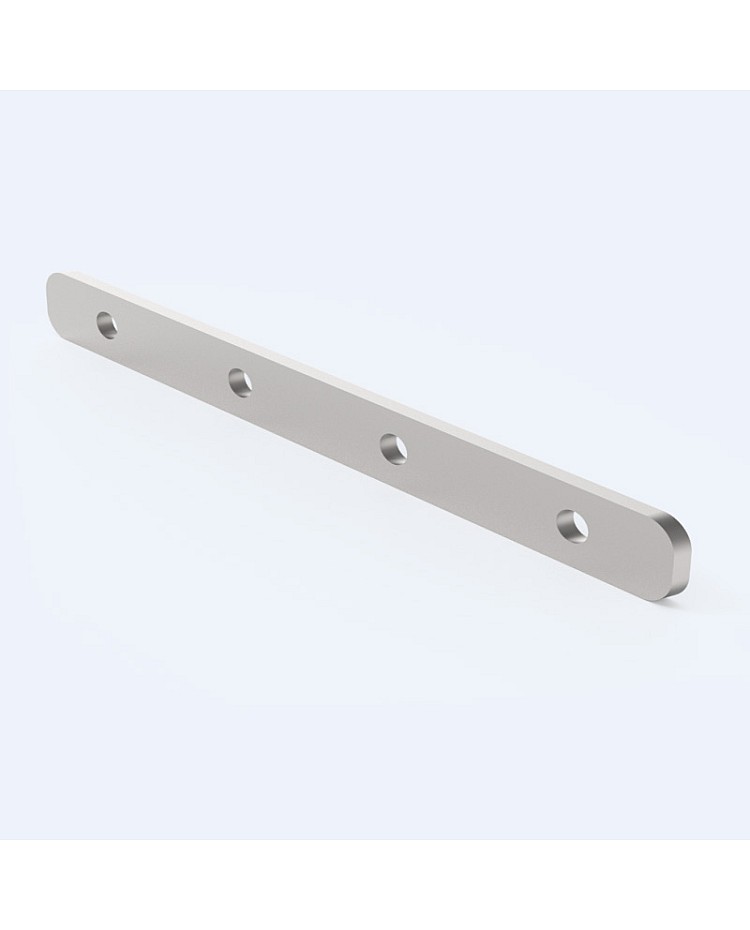

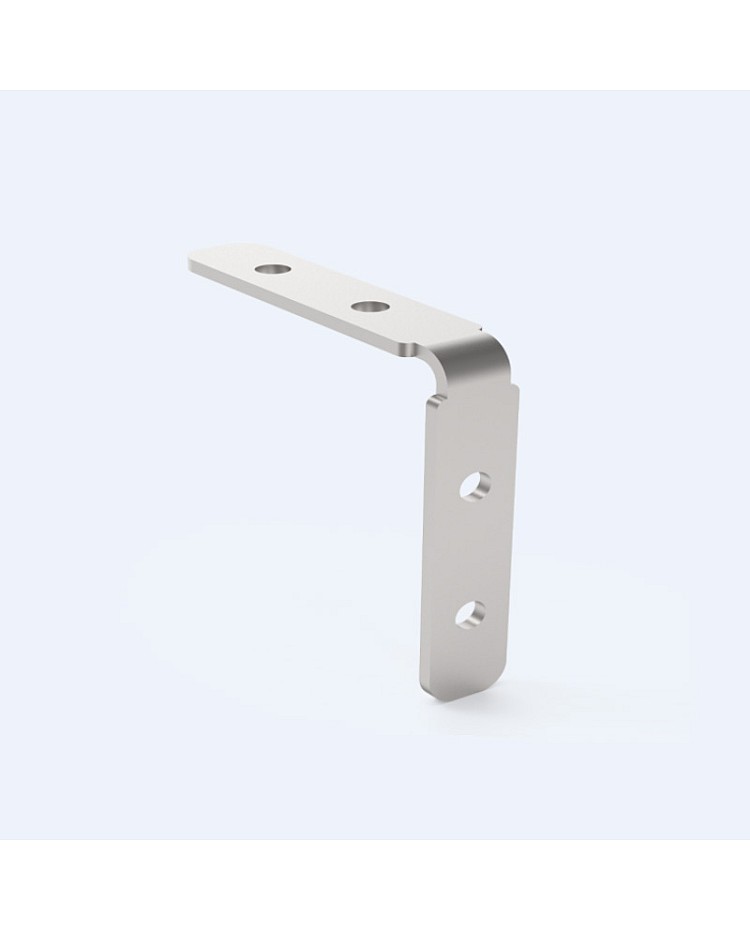

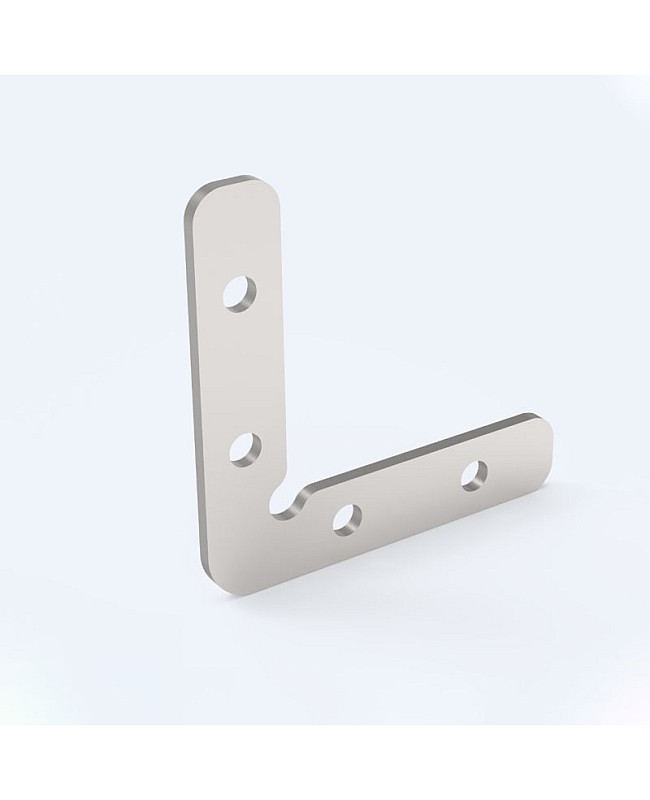

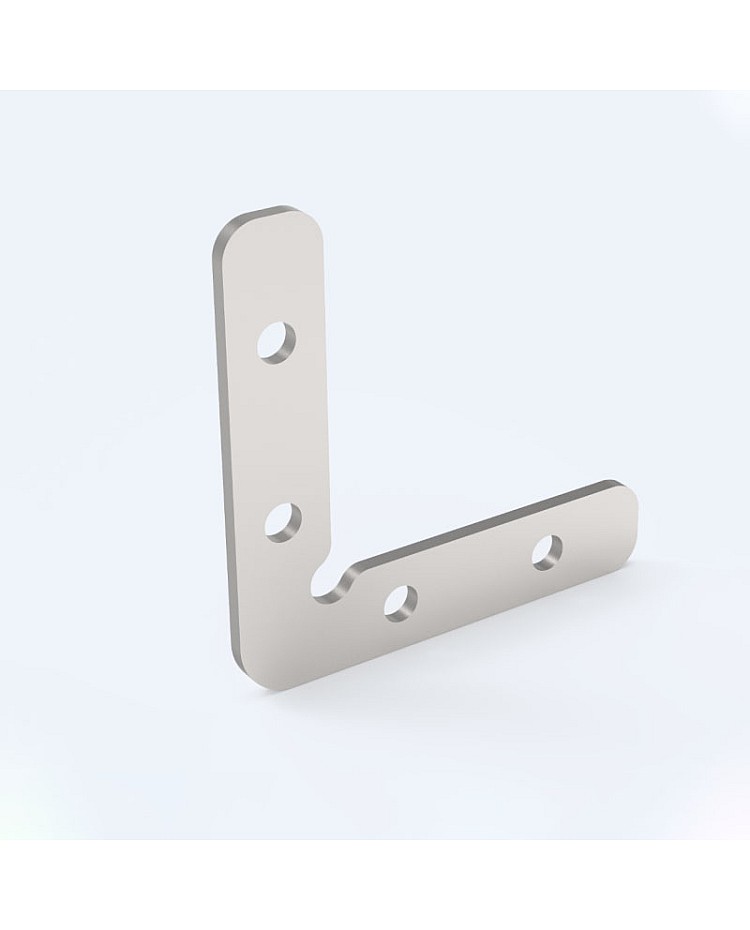

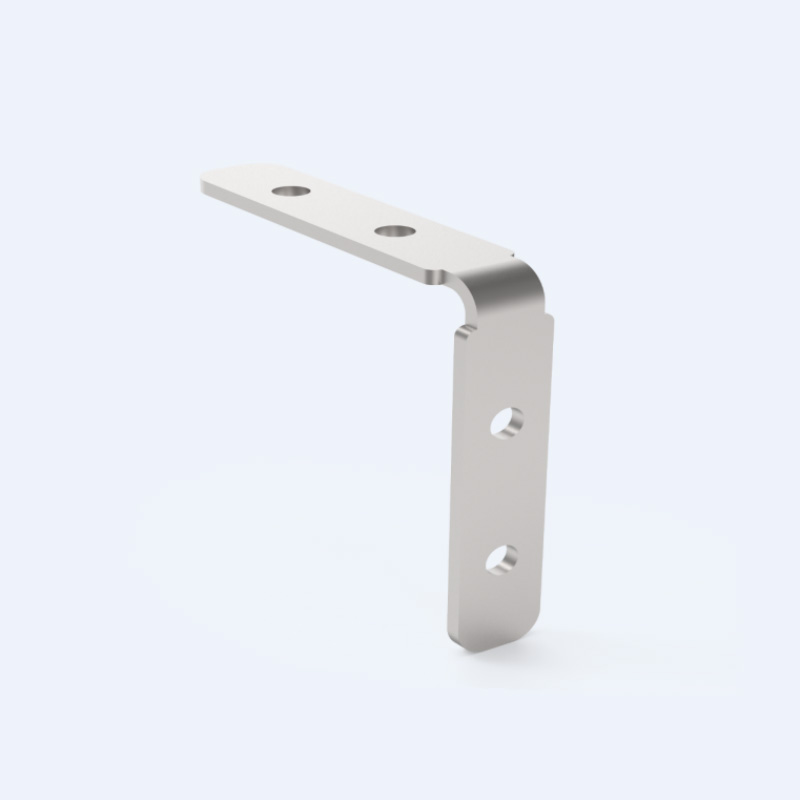

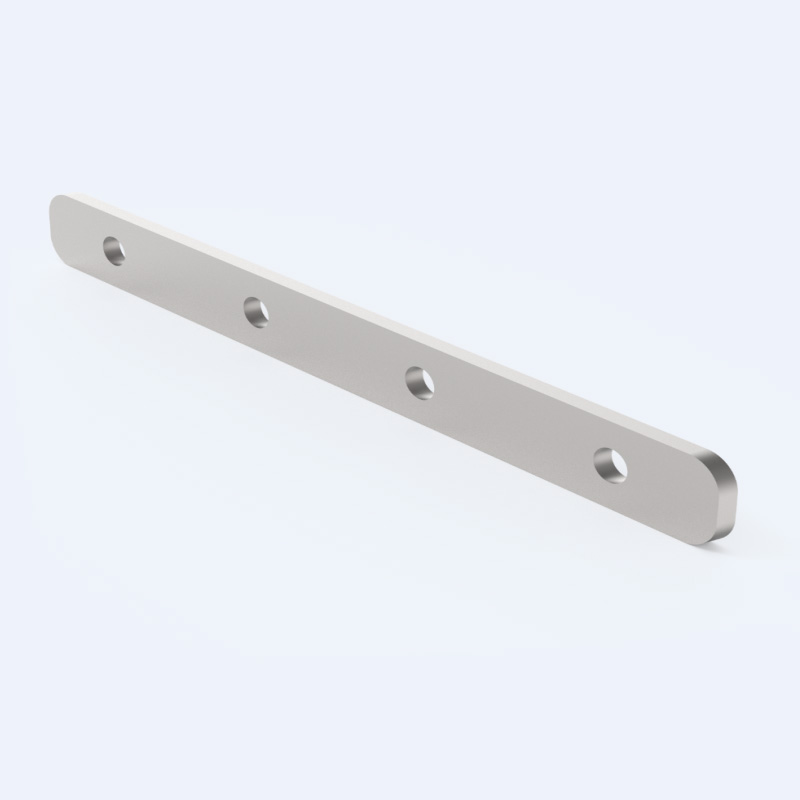

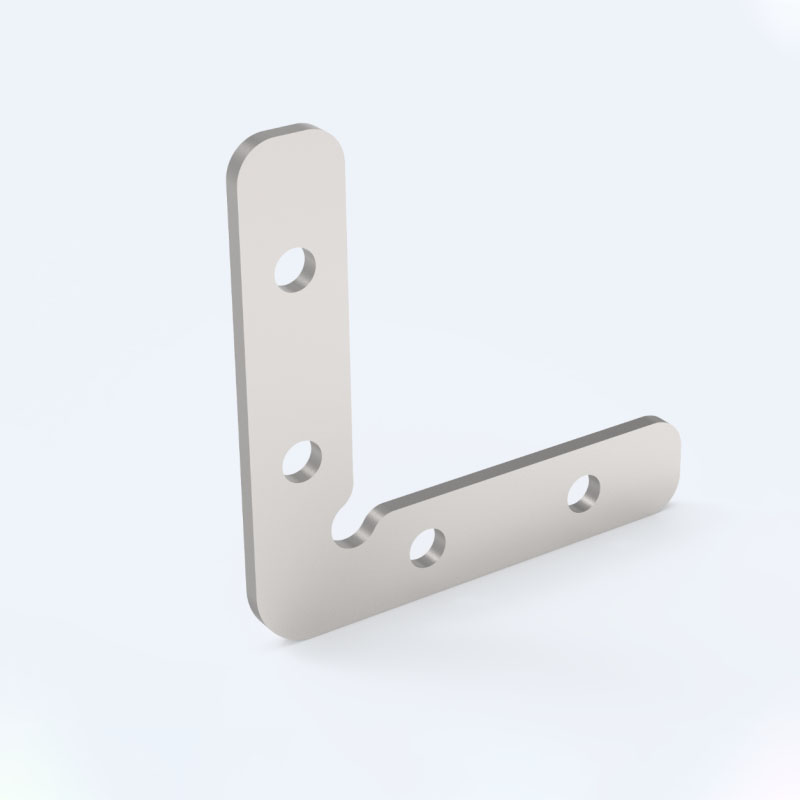

- 90° horizontal, 90° vertical, and 180° joiners are sold separately

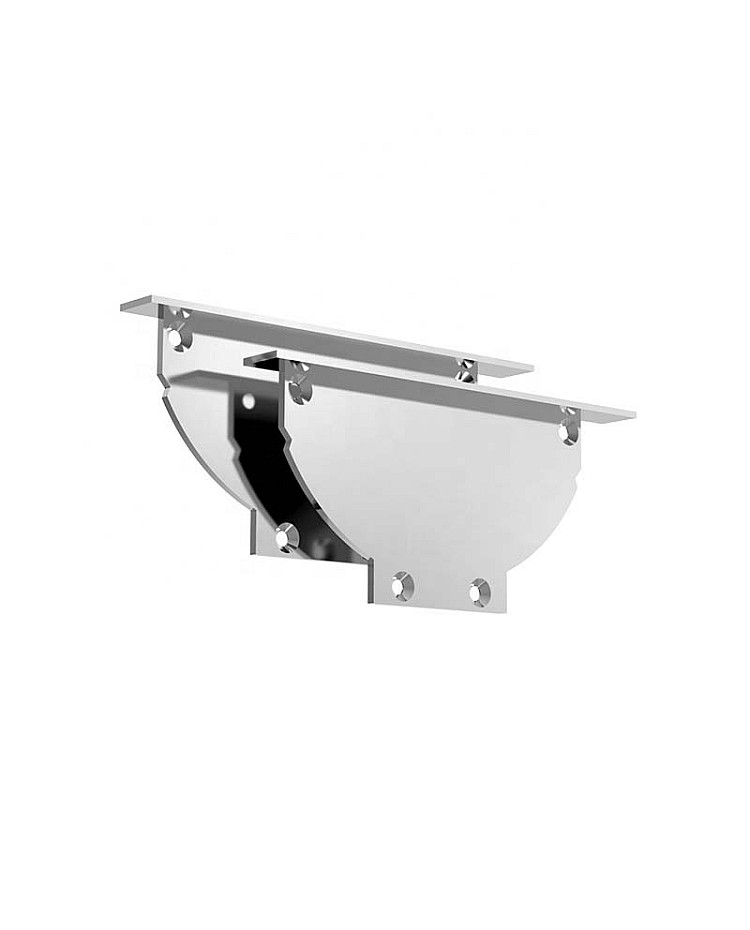

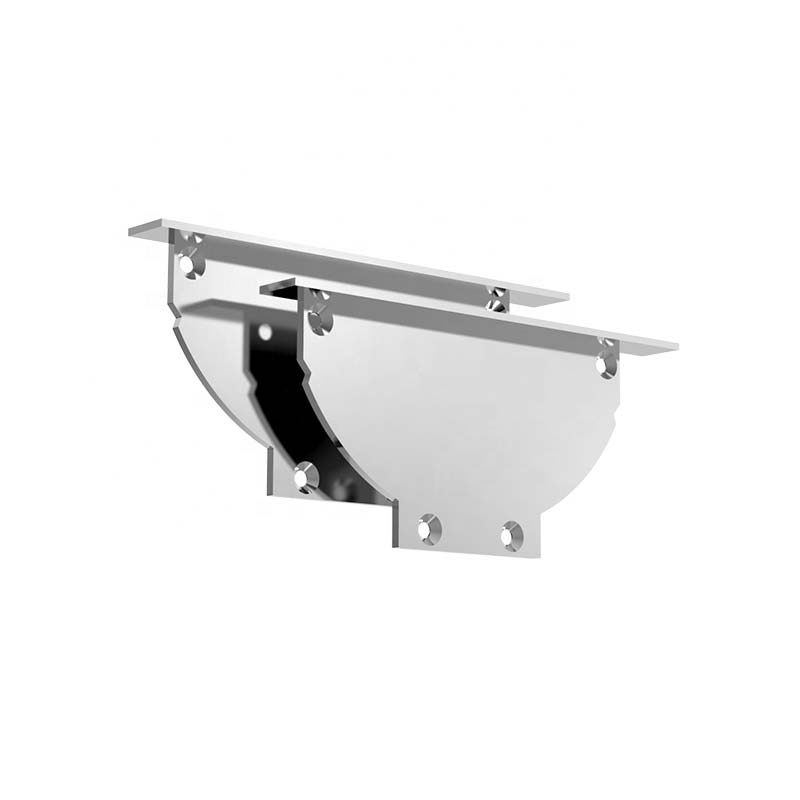

- End caps are included
- Installation: Plaster-in
- Warranty: 5 years
Includes:
1 * Indirect lighting LED channels with diffused cover
End caps
