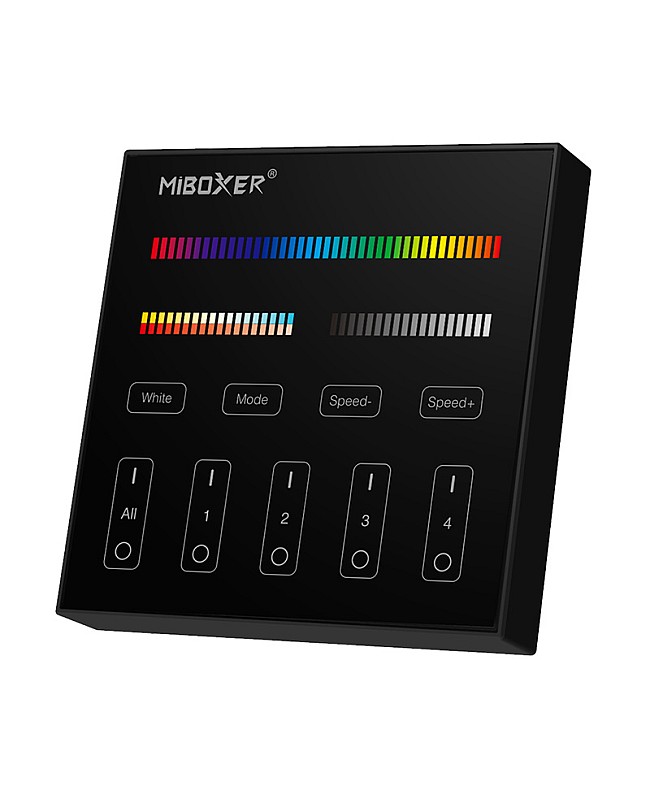

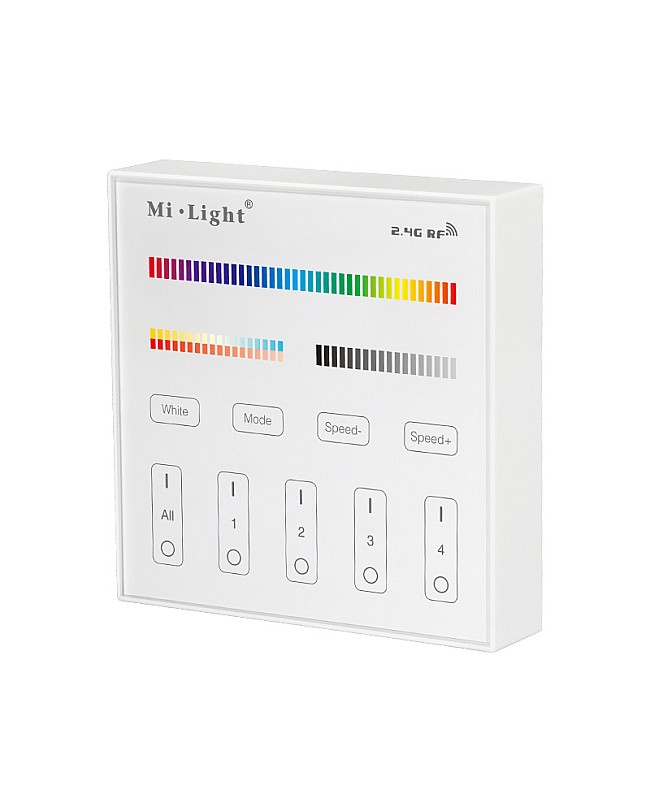

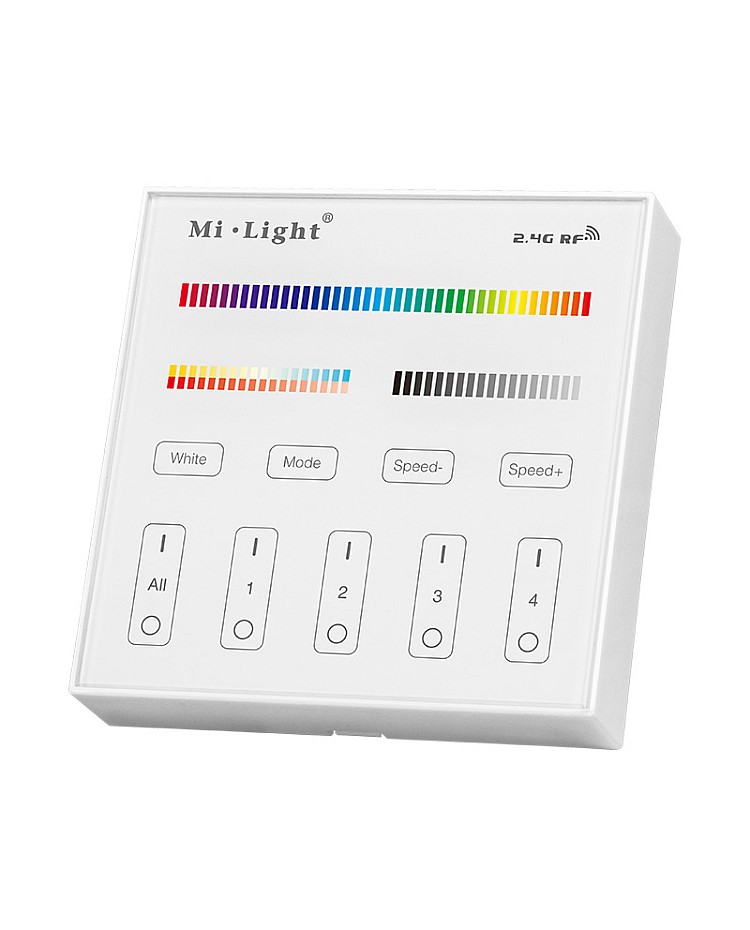

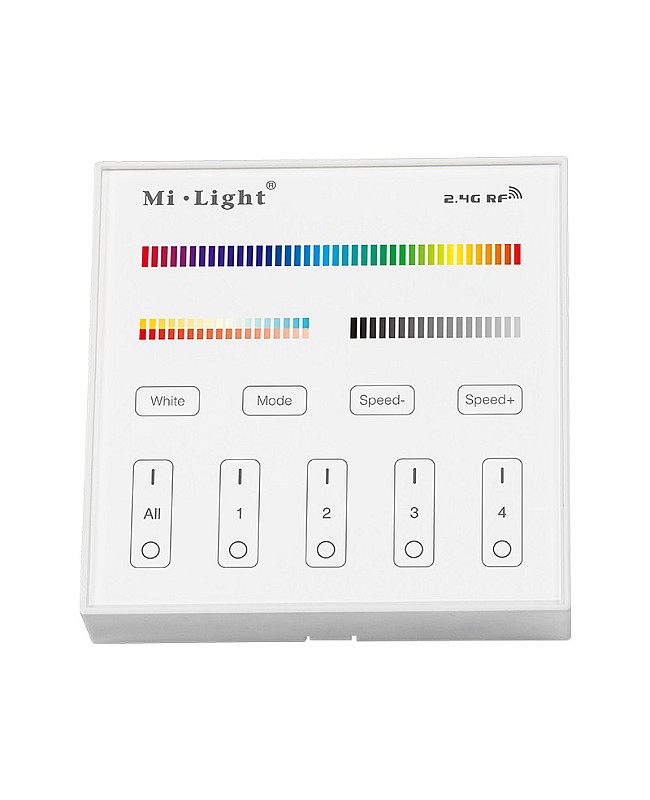

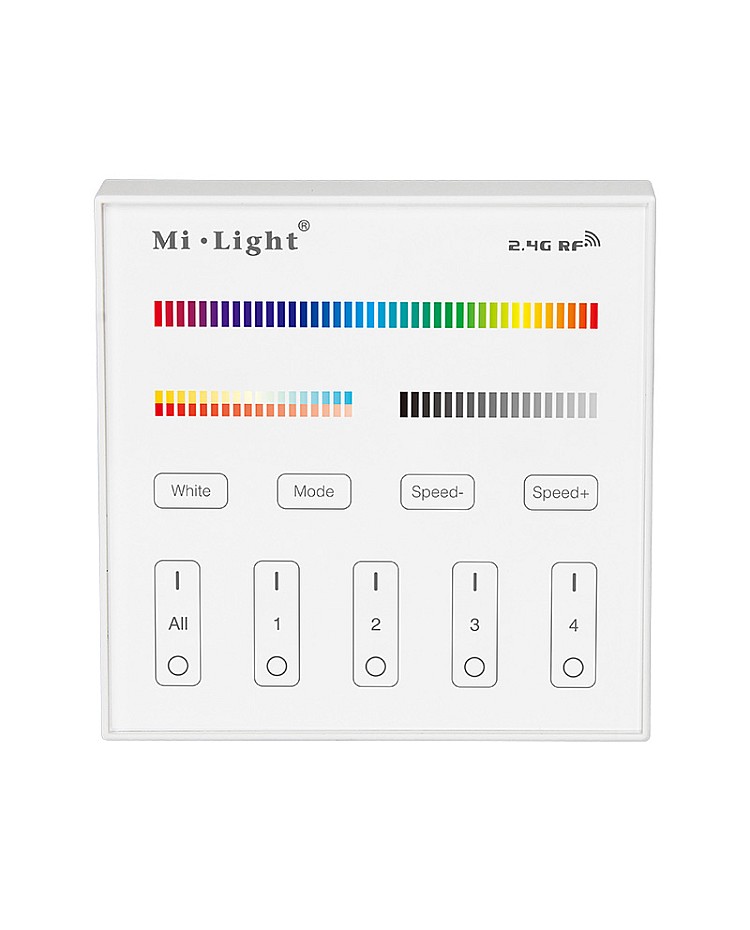

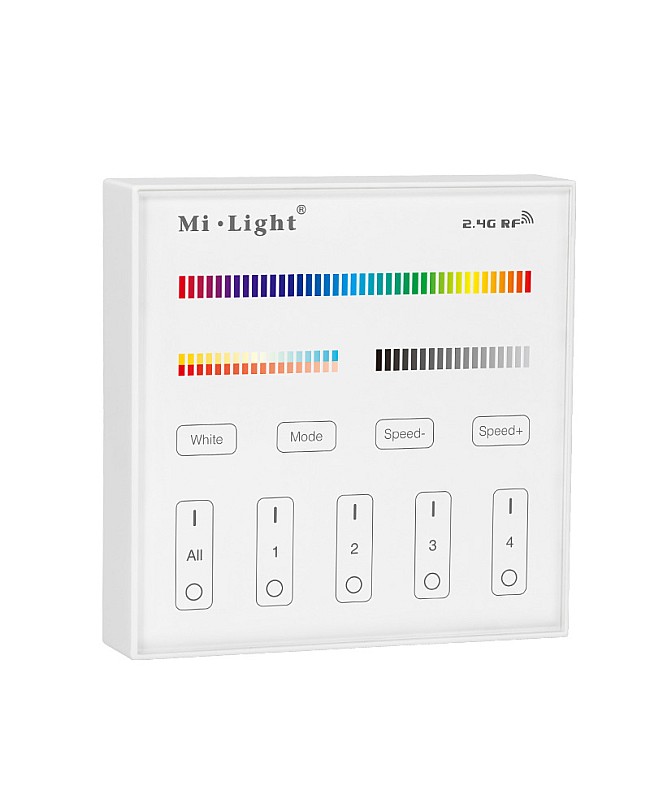

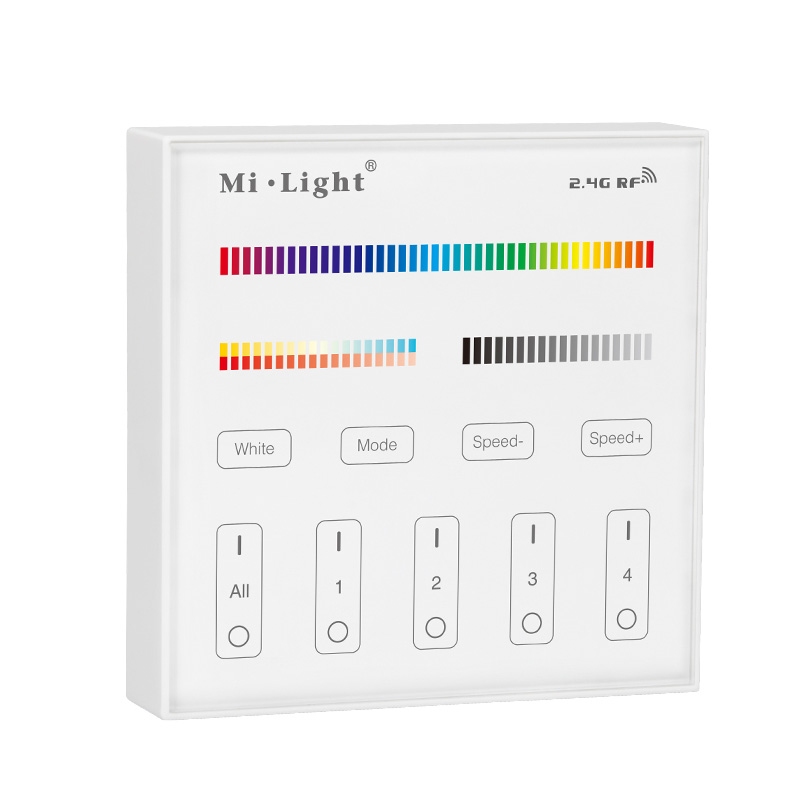

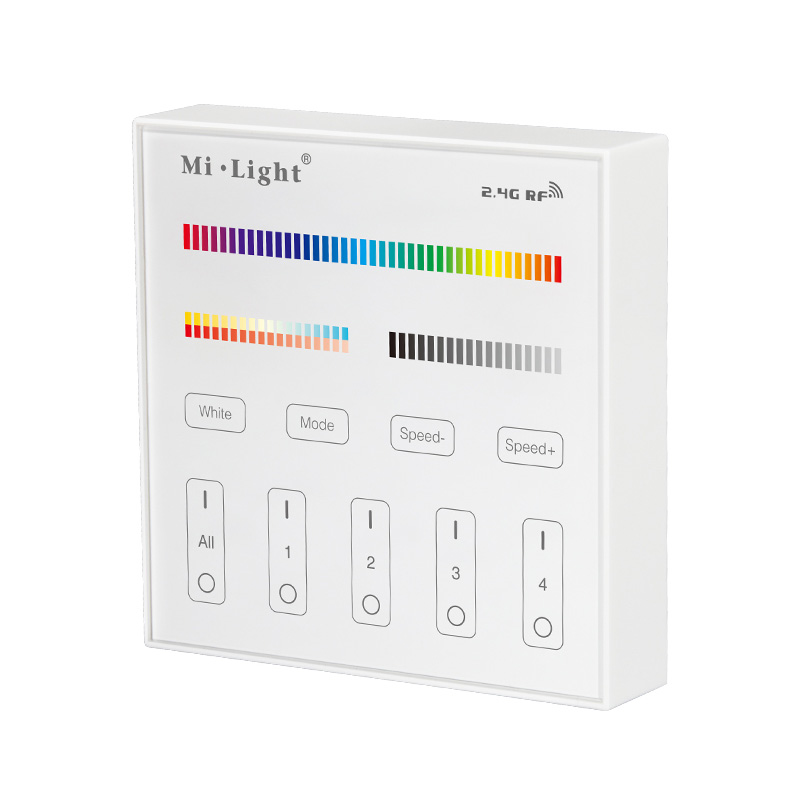

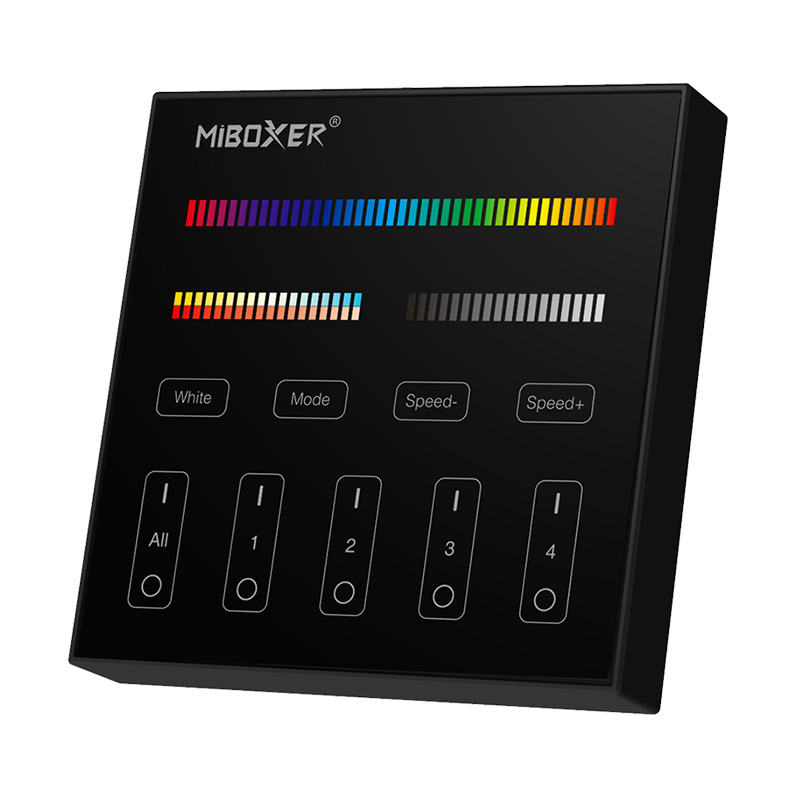

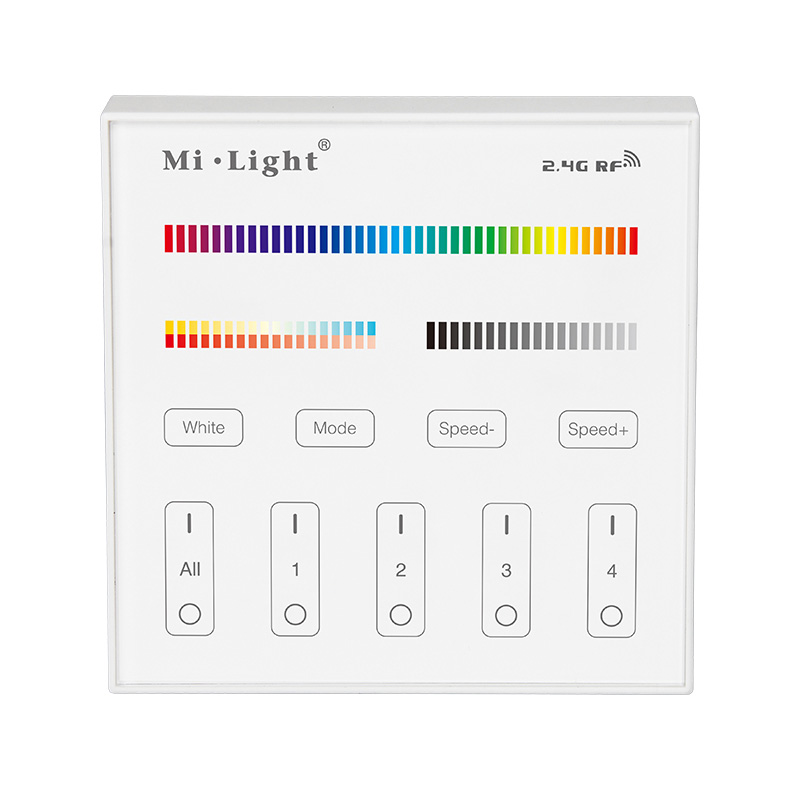

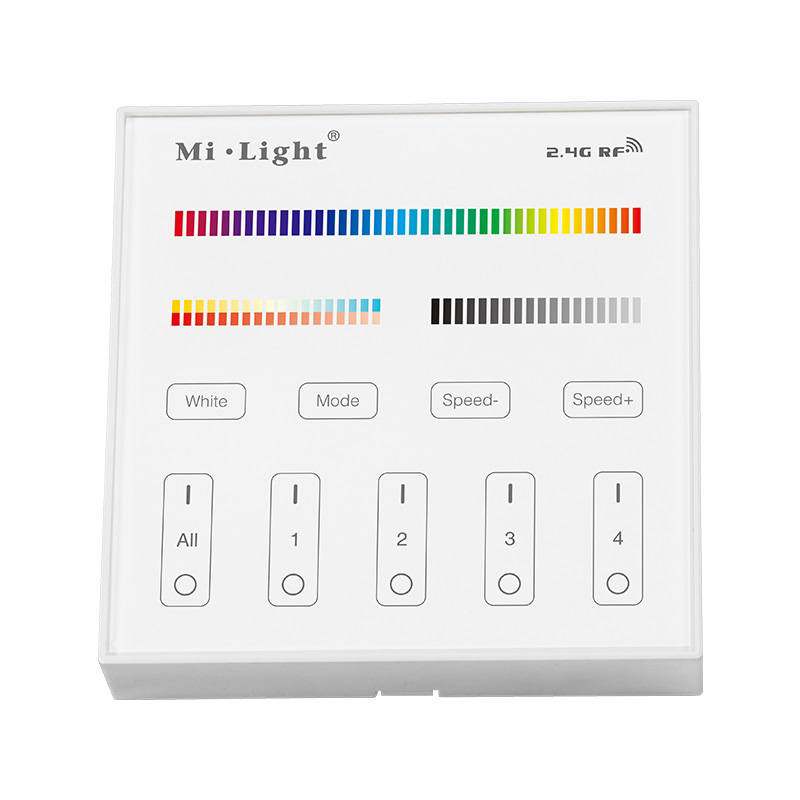

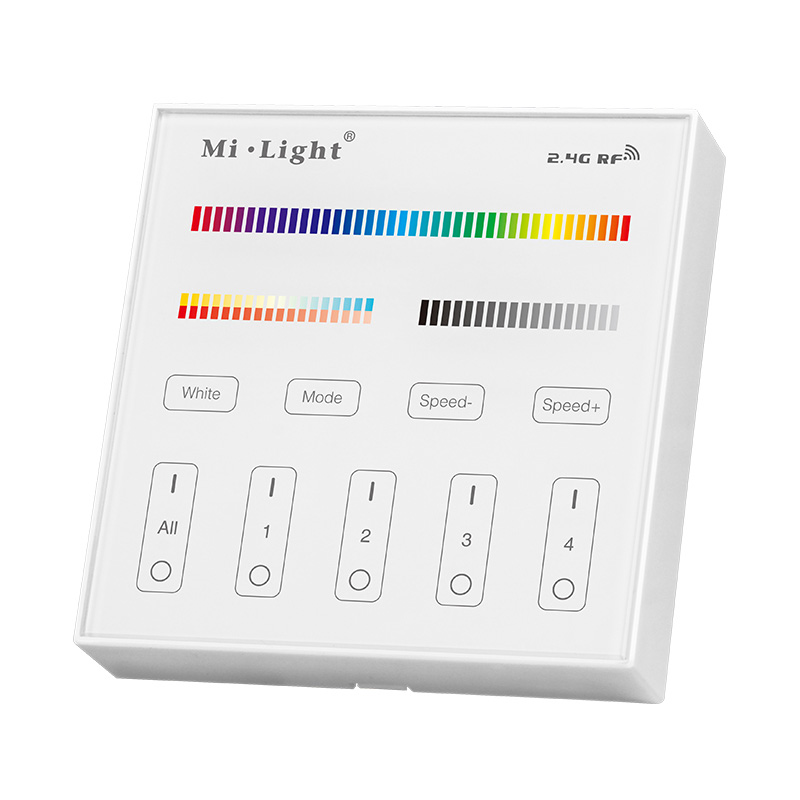

The MiBoxer B4 RGBW panel remote can work with Mi-Light and MiBoxer RGB/RGBW/RGB+CCT products, with 4 zones individually and all control designs; each zone controls countless lights or controllers. The MiBoxer RGB CCT remote control has a sensitive touch panel design; touch the panel to finish the operation. You can touch the color slider to choose the color from 16 million colors, adjust the color temperature from 2700K to 6500K, change color saturation under the color mode, and adjust the brightness from 1% to 100%. There are 9 dynamic modes available, and you can choose the color-changing mode you want. When touching the button, the indicator light will flash with different sounds. The MiBoxer B4 adopts a 2.4G RF wireless communication module and a control distance of up to 30 meters. It has a magnetic holder, and you can attach the remote control to the base.
Quick Links:
MiBoxer B4 RGB CCT Panel Remote Manual
Specifications:
- Size: 86*86*16mm(L*W*H)
- Working Voltage: DC3V
- Powered By 2PCS AAA Batteries(Sold Separately)
- Transmission Frequency: 2400- 2483.5MHz
- Modulation Method: GFSK
- Transmitting Power: 6 dBm
- Control Distance: 30m
- Standby Power: 20uA
- NO Wiring
- Magnetic Holder
- 4 Zones Individually Controlled
- Sensitive Touching Panel
- 16 Million Colors Available
- Color Temperature(2700-6500K) And Saturation Adjustable
- 1-100% Brightness Adjustable
- 9 Color Changing Modes Available
- Compatible With Mi-Light And MiBoxer RGB/RGBW/RGBWW Light Products: FUT045, FUT044, FUT039, FUT038, LS2, P3, WL5
- Working Temperature: -10-+40℃
- 2 Years Warranty
Includes:
1 * B4 RGBWW Panel Remote Control
1 * User Manual
