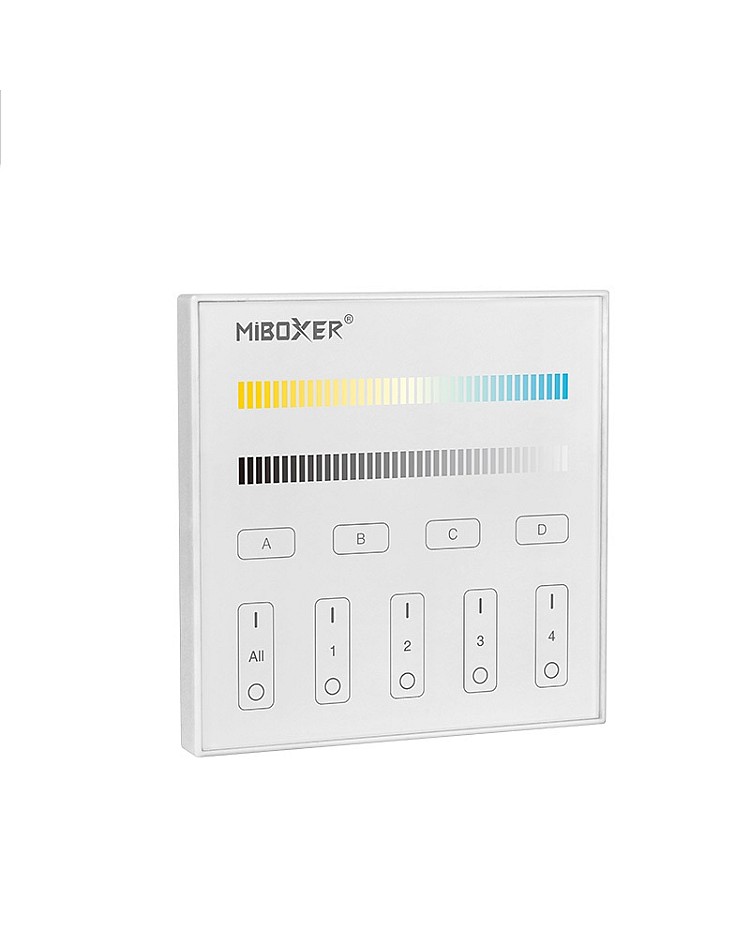

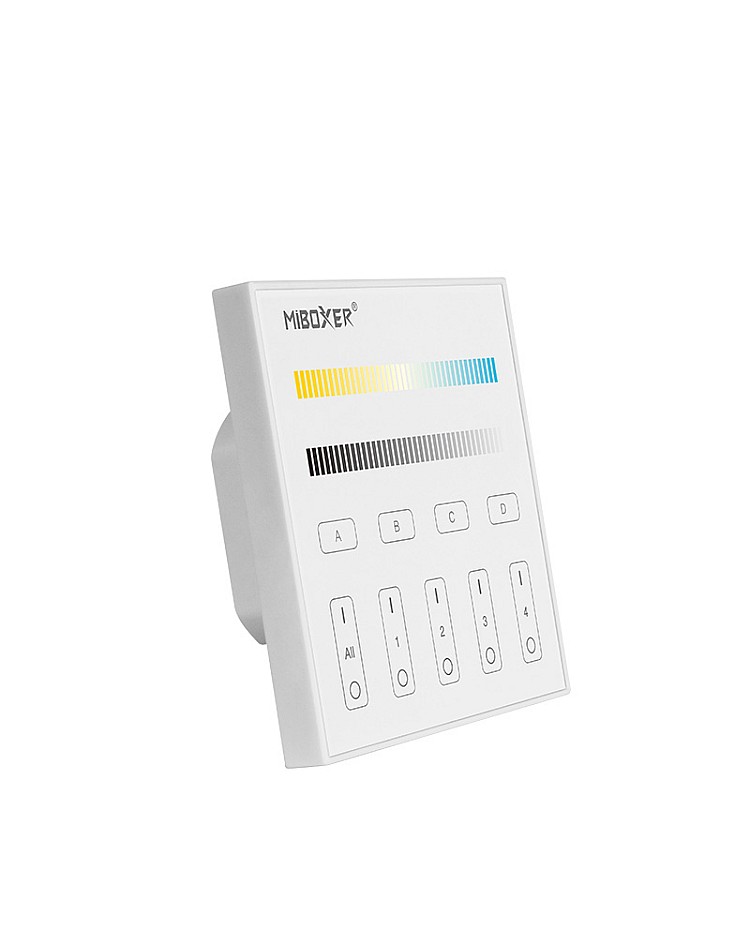

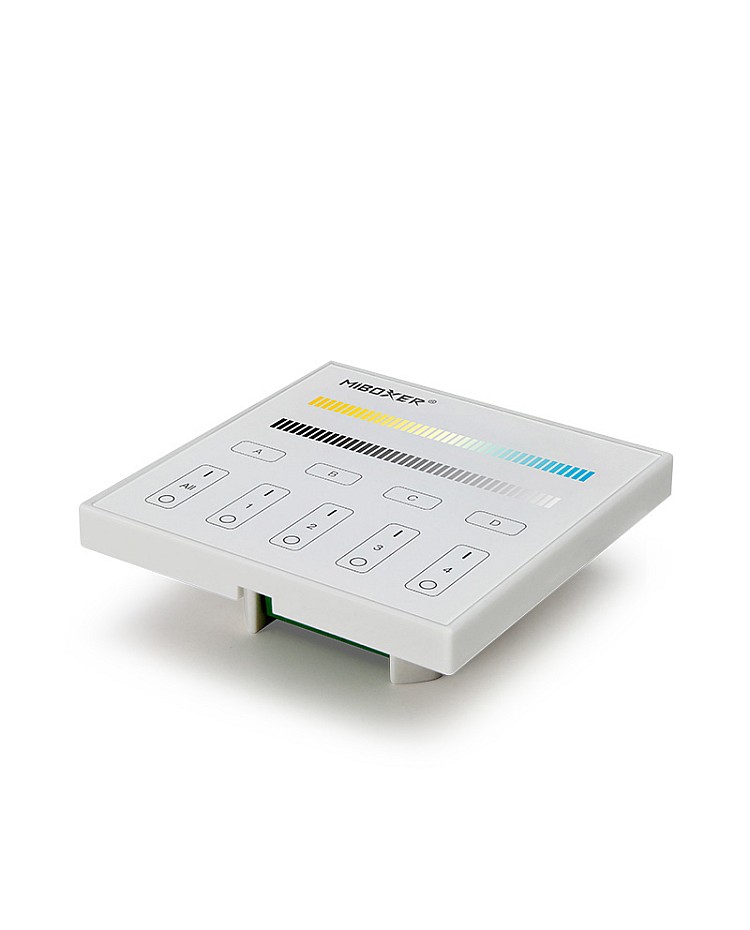

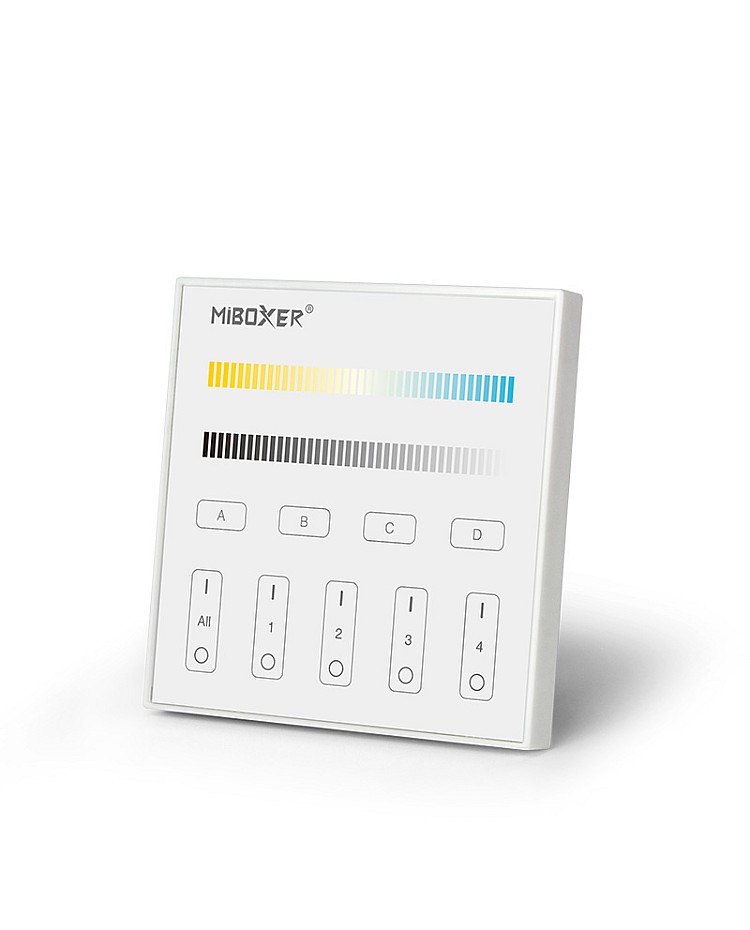

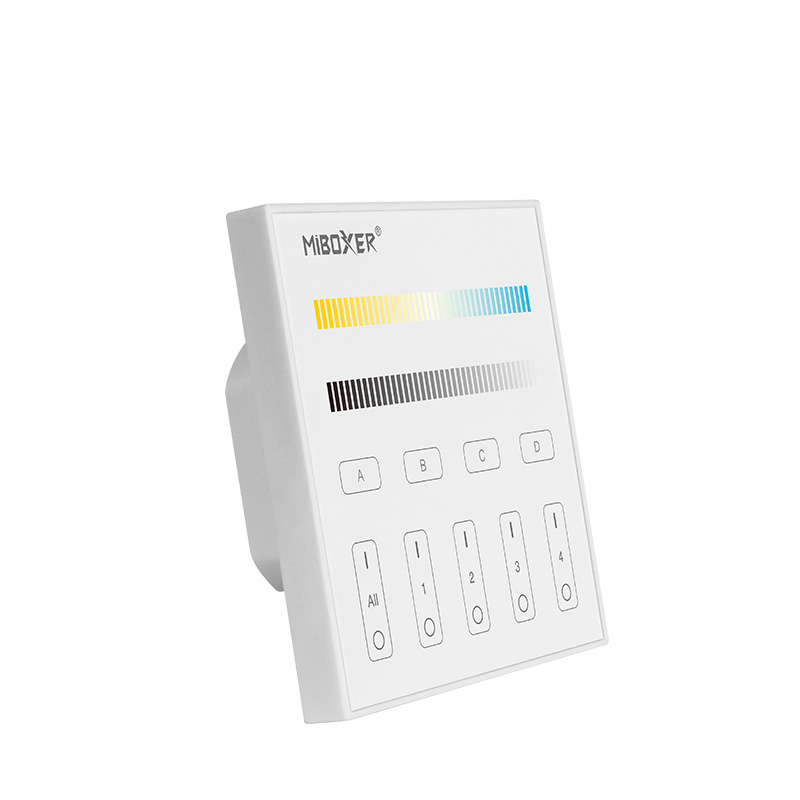

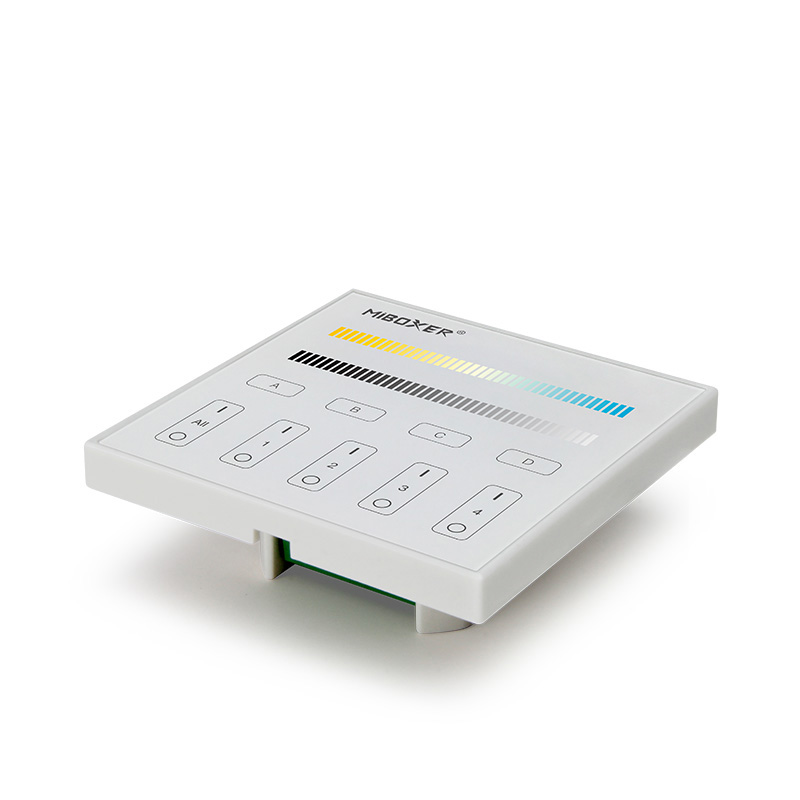

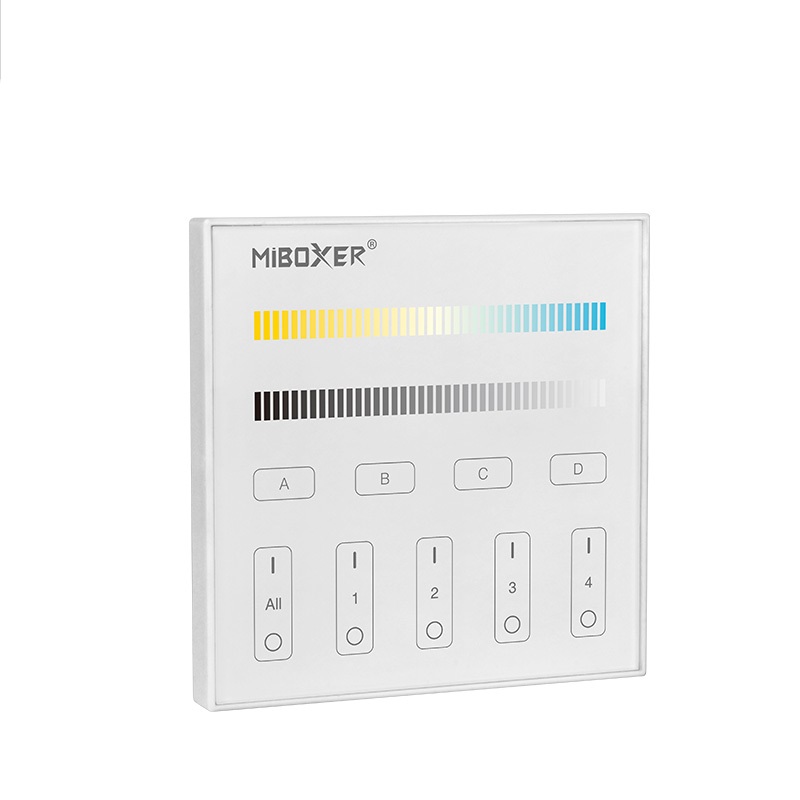

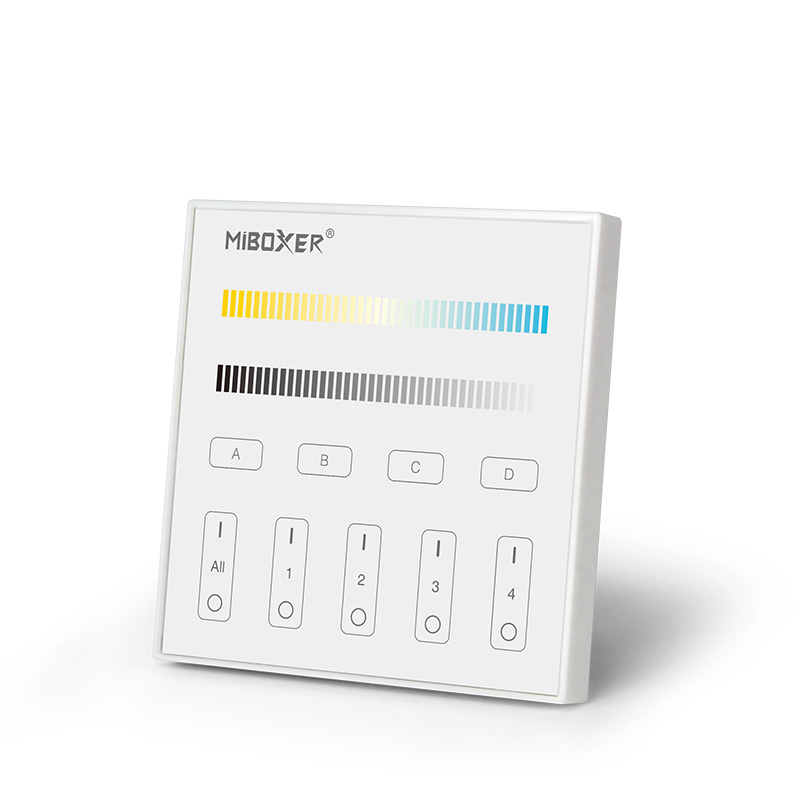

The MiBoxer DP2S DALI DT8 CCT Dimming Panel for Color Temperature LED Lights, with standard European 86-type structure and sensitive touching panel design, comply with DALI standard protocol and support DT8 type, supports DALI standard protocol IEC62386-102, 207, 209, you can press the buttons to set the address, and the LED display will show you the address clearly, you can set the unicast address(0-63), multicast address(0-15), broadcast address(255) and scene mode(0-15). There are 4 scene modes available, and you can press the scene mode button to set the original DALI scene. There are 4 zones individually controlled design, and you can control each zone separately. You can touch the sliders on the DP2S Panel to adjust the brightness from 1% to 100% or adjust the color temperature from 2700K to 6500K. The LED indicator light will flash with different sounds when touching the buttons.

Quick Links:

MiBoxer DP2S DALI DT8 CCT Control Panel Manual


Features:

  • Size: 86*86*33mm(L*W*H)
  • Power Supply: DALI Power
  • DALI Bus Standard: IEC62386-102, 207, 209
  • Output Signal: DALI
  • Controlling Type: CCT(DT8 Type: TC)
  • Standby Current: <4mA@16V

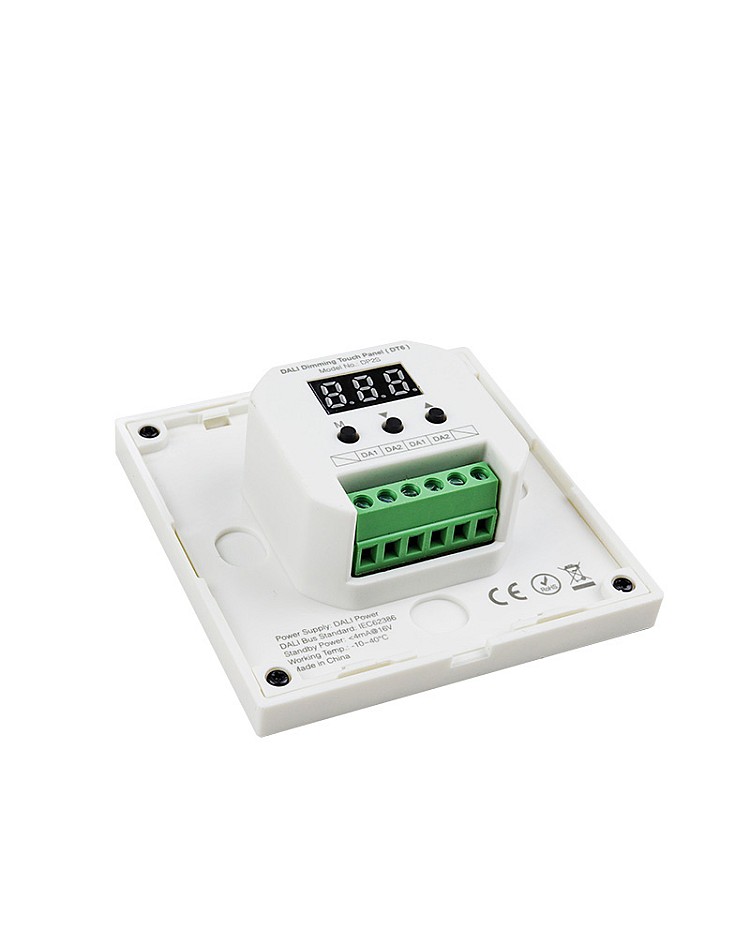

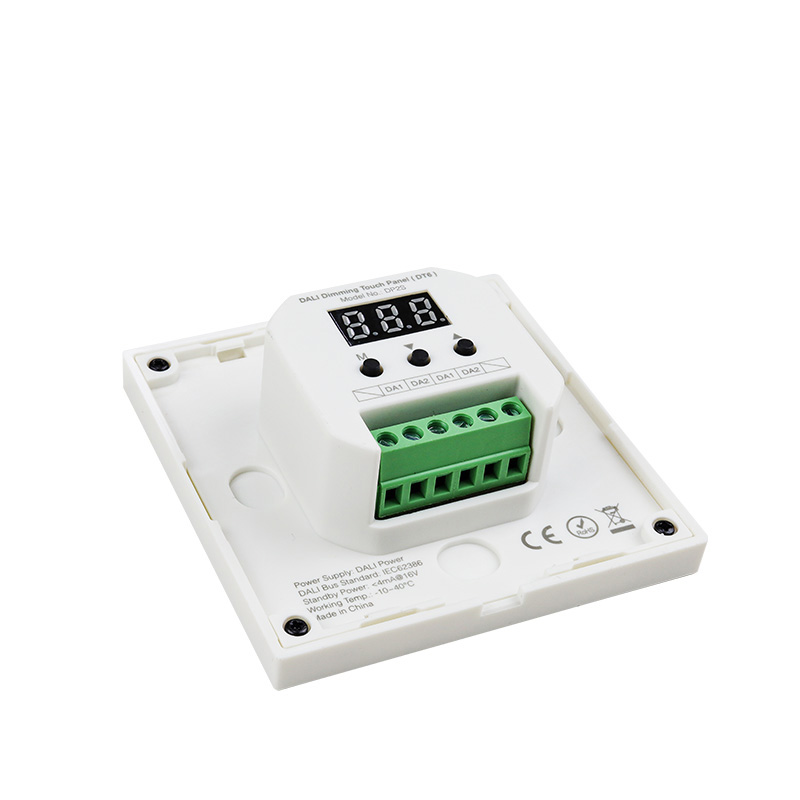

  • Press Button Setting And LED Display
  • 4 Scenes Modes Available
  • 4 Zones Individually Control
  • Color Temperature Adjustable(2700K-6500K)
  • 1%-100% Dimming
  • Sensitive Touching Panel
  • Working Temperature: -10-40℃
  • 2 Years Warranty


Includes:

1*MiBoxer DP2S CCT Dimming Panel


MiBoxer DP2S DALI DT8 Color Temperature Control Panel
