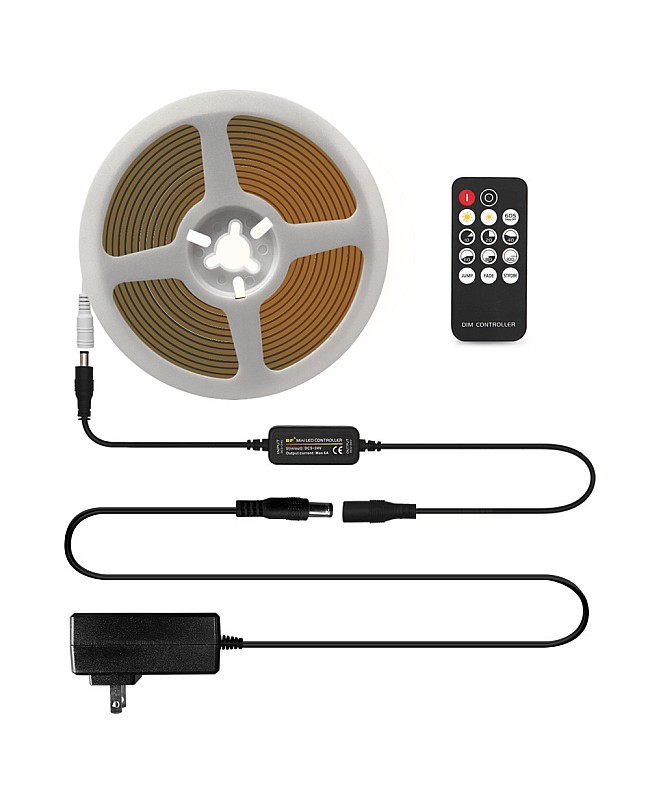

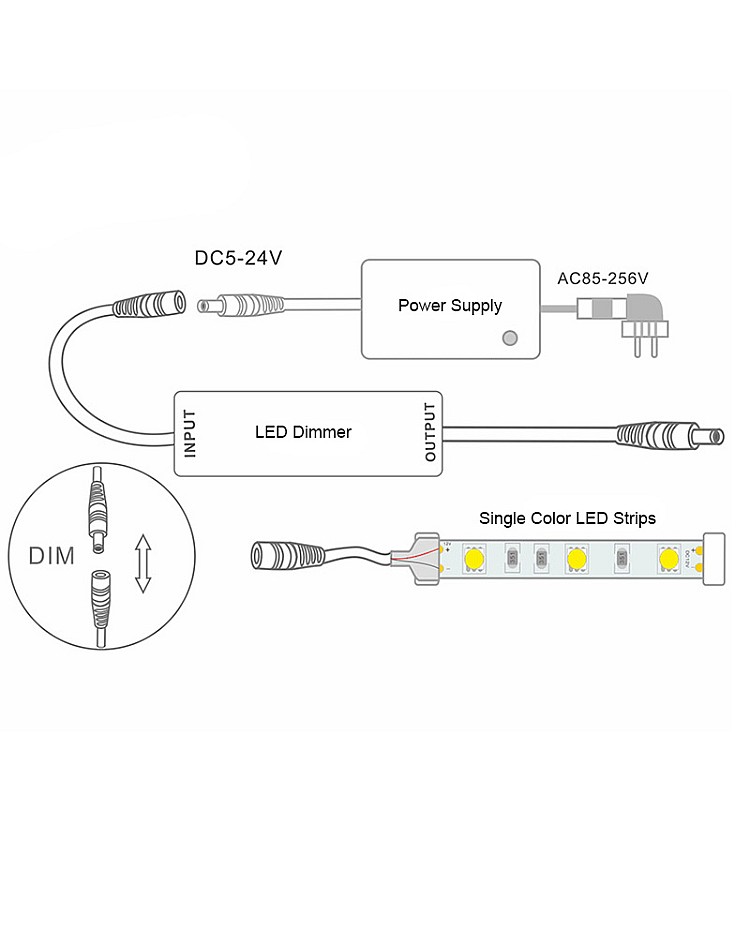

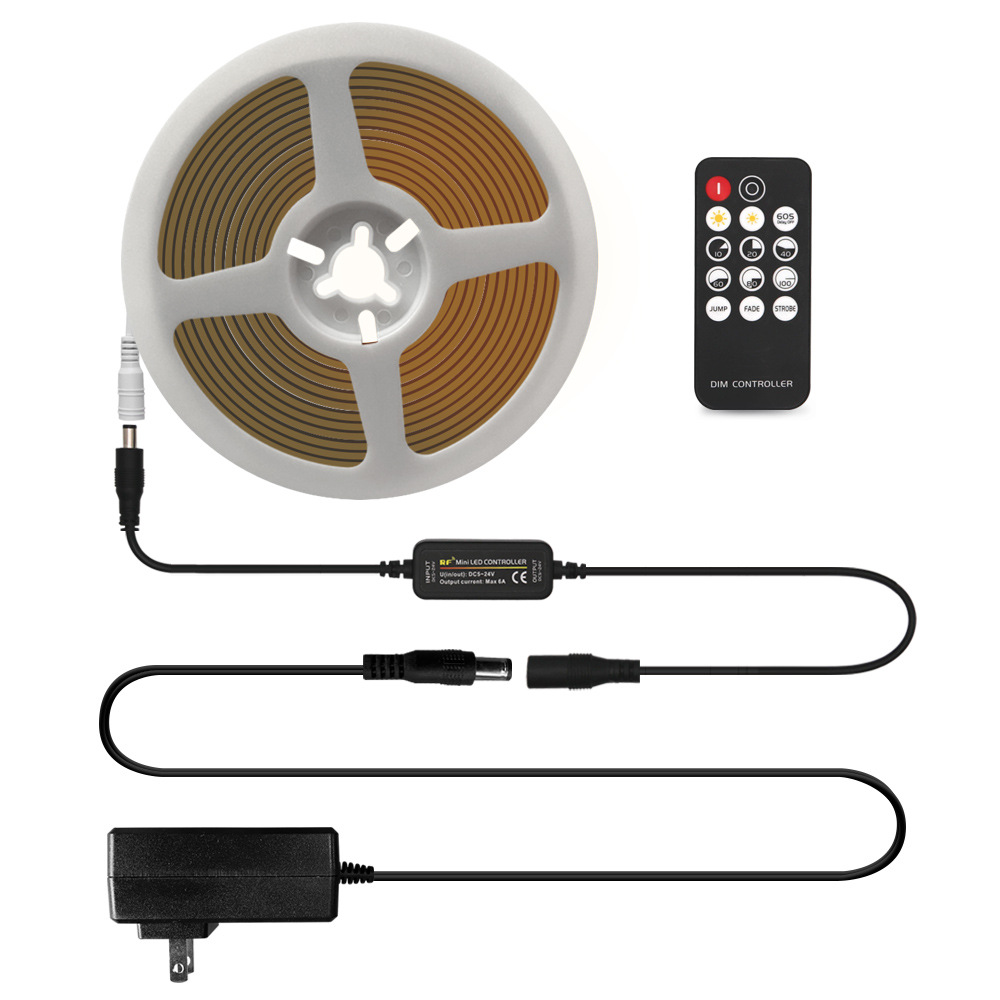

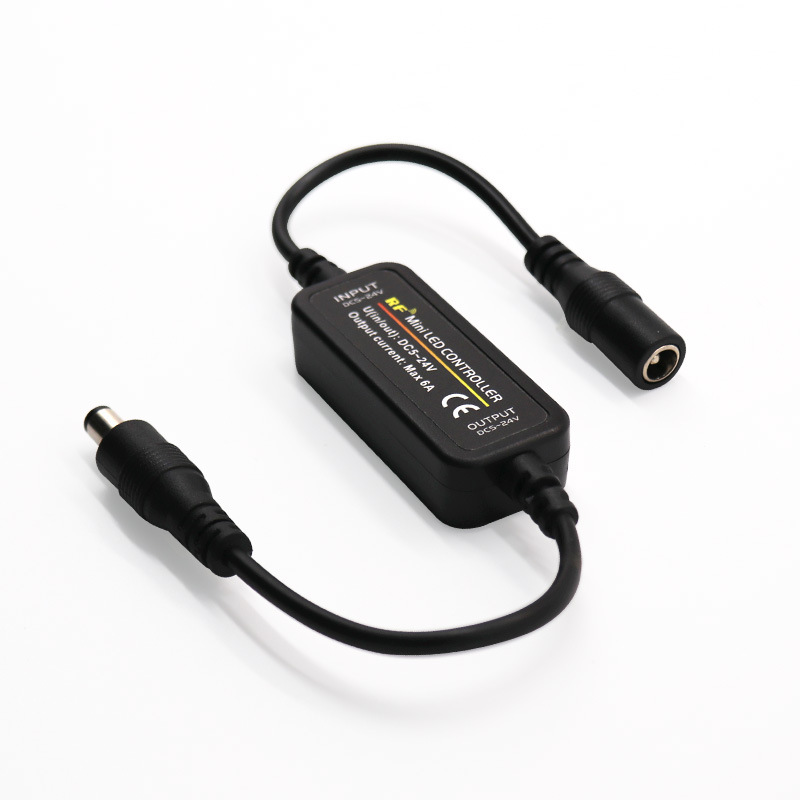

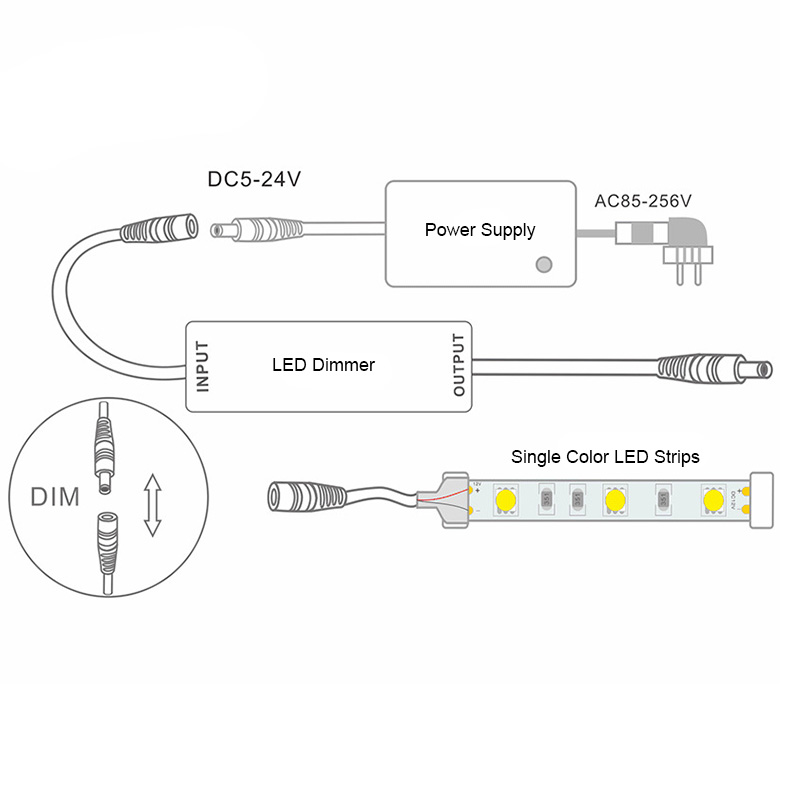

Check the mini Inline LED Dimmer 12V PWM, which with 5.5*2.1mm DC male and female connectors, easy to connect to the Single Color LED Lights and LED Power Supply, the LED Dimmer with one output channel design and max output current is 6A, the 14 keys RF remote control included, you can use it to control the LED Lights remotely, turn on/off, adjust the brightness from 0 to 100%, adjust the speed of dynamic modes, there are 3 dynamic modes available, Jump, Fade and Strobe. you can use it to work with Single Color LED Flexible Strips and control the brightness conveniently.


  • Colors: Black

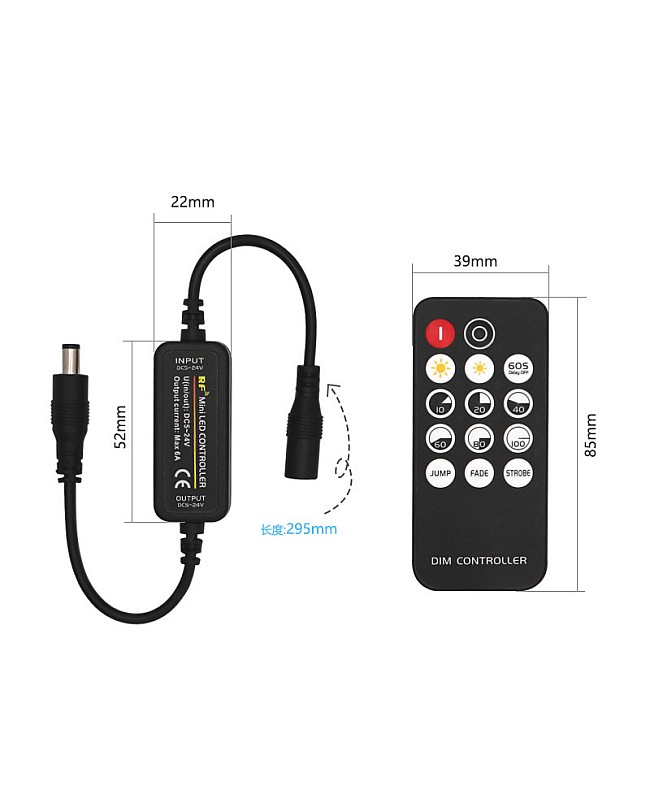

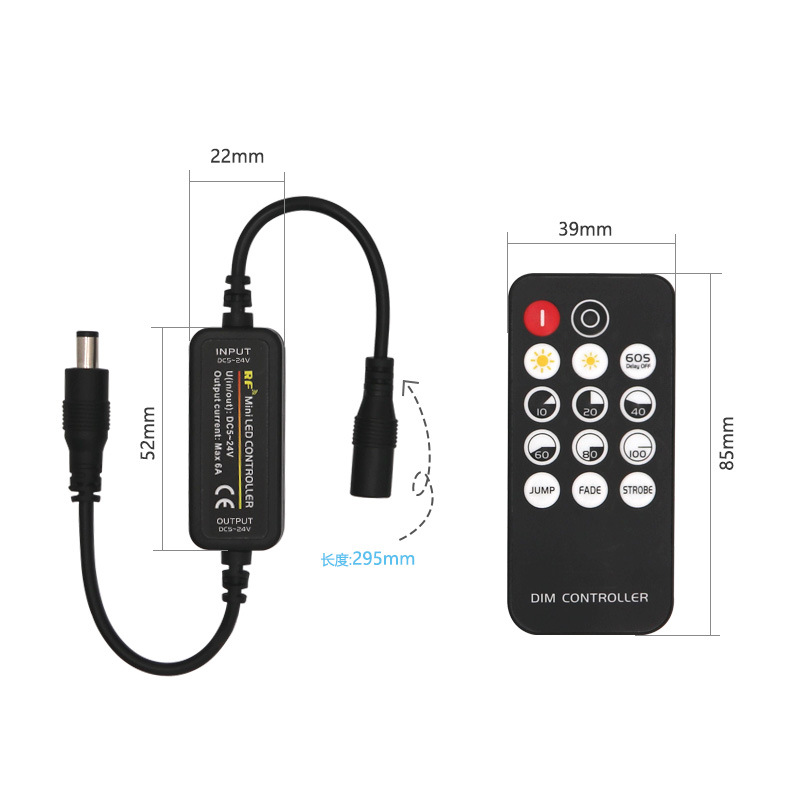

  • Size: 55*22*13mm(L*W*H)
  • Working Voltage: DC5-24V
  • Connecting Method: Common Anode
  • Static Power Consumption: <0.5W
  • Output Channel: 1
  • Max Output Current: 6A
  • Power: <30W(DC5V), <72W(DC12V), <144W(DC24V)
  • Working Temperature: -20℃-+60℃

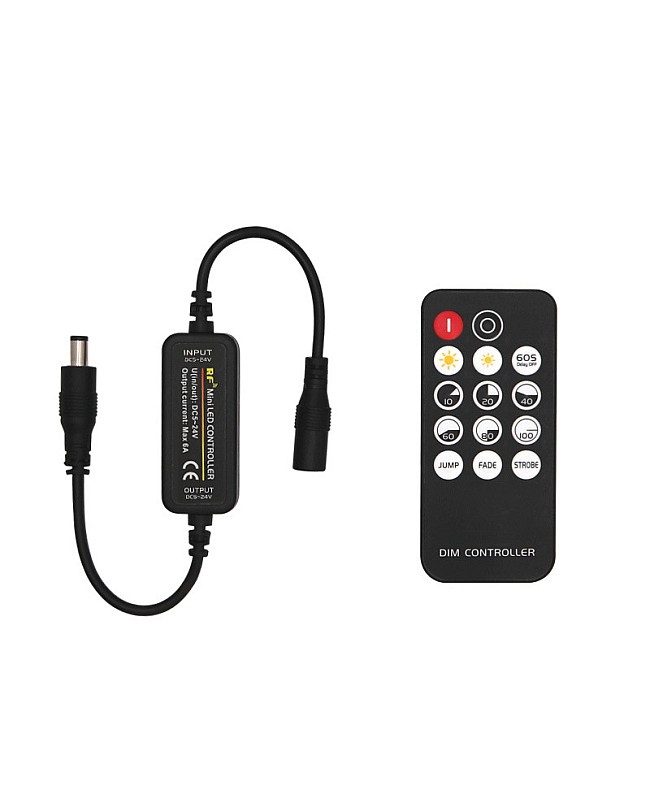

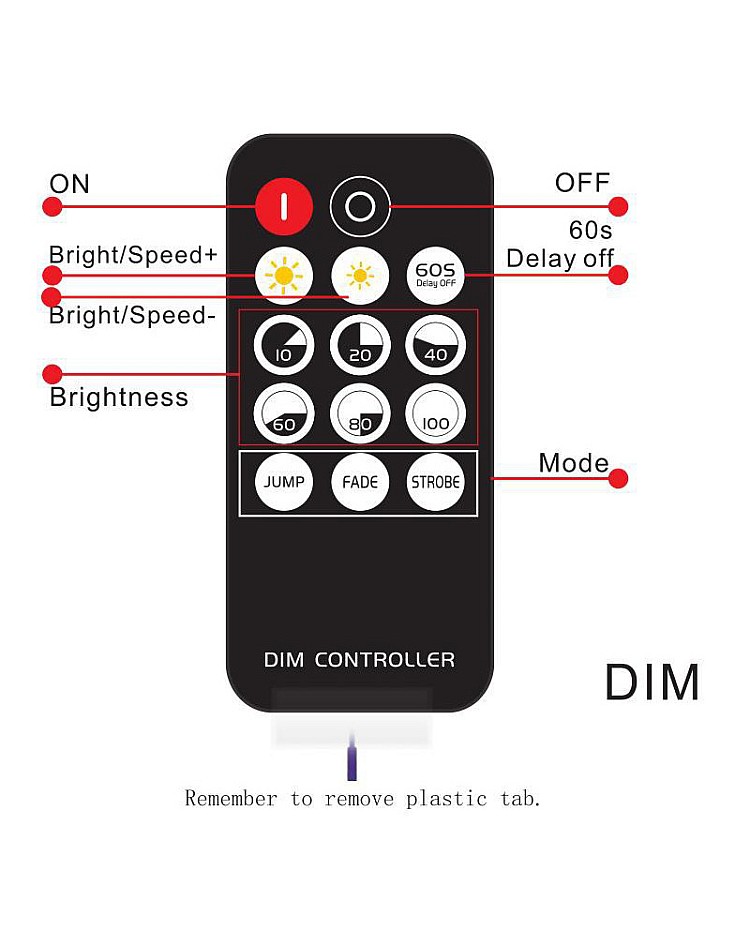

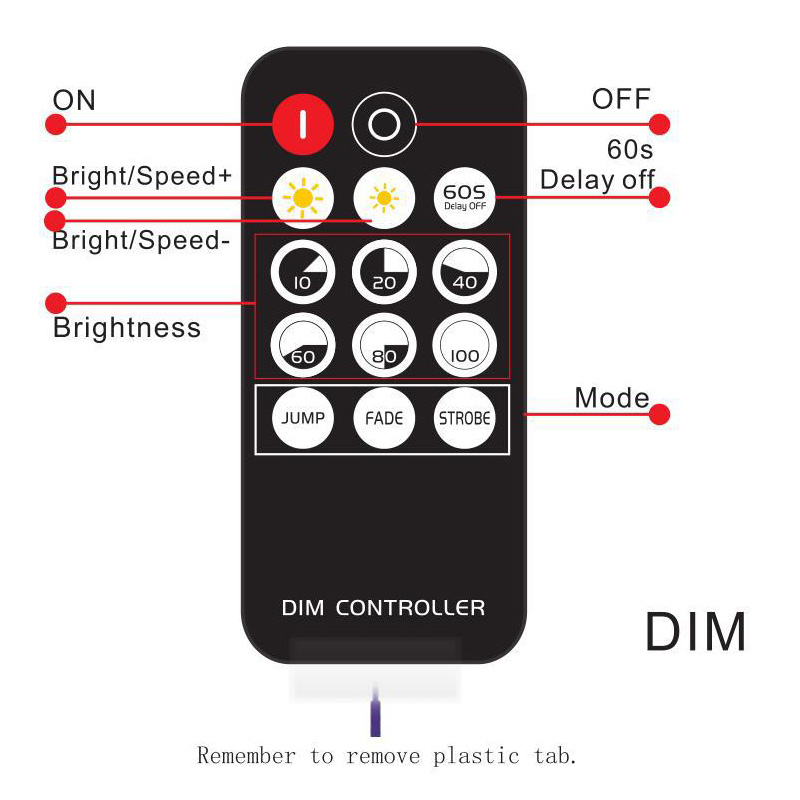

  • 14 Keys RF Remote Control Included
  • Modes: Jump, Fade, Strobe
  • Brightness And Speed Adjustable

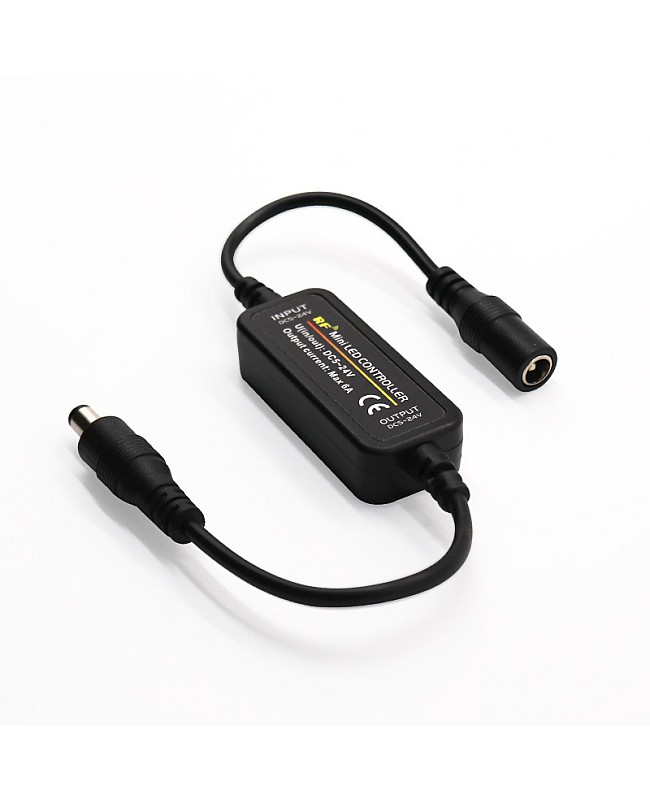

  • The LED Dimmer With 5.5*2.1mm DC Connectors
  • Remote Control Distance: ≤20M

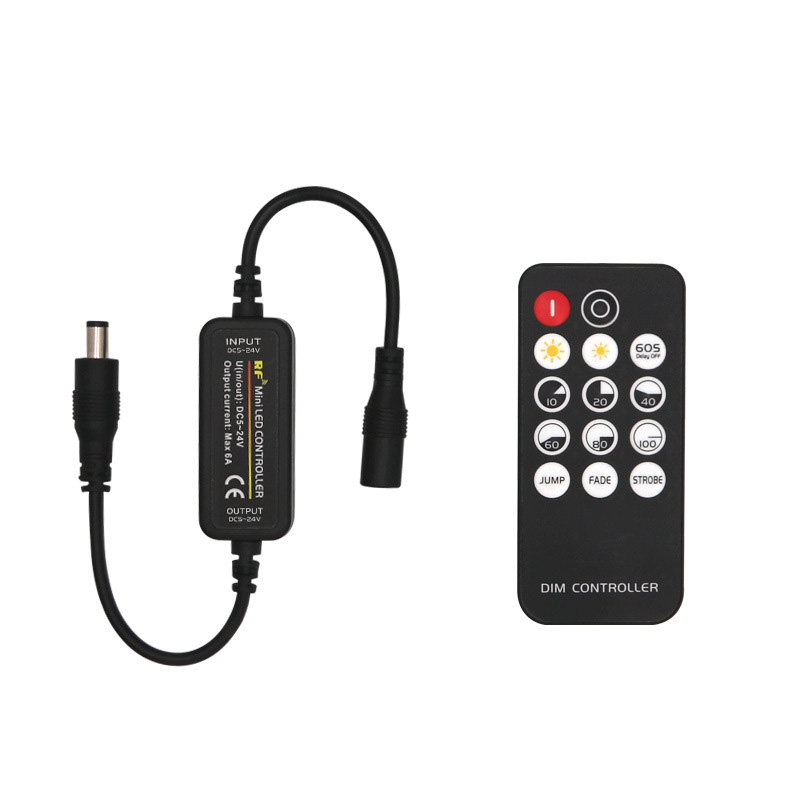

1*LED Dimmer 12V PWM

1*14 Keys RF Remote Control
