In Stock
Reward Points: 3
  • Brand: Ledbe
  • Product Code: WS2812B LEDs

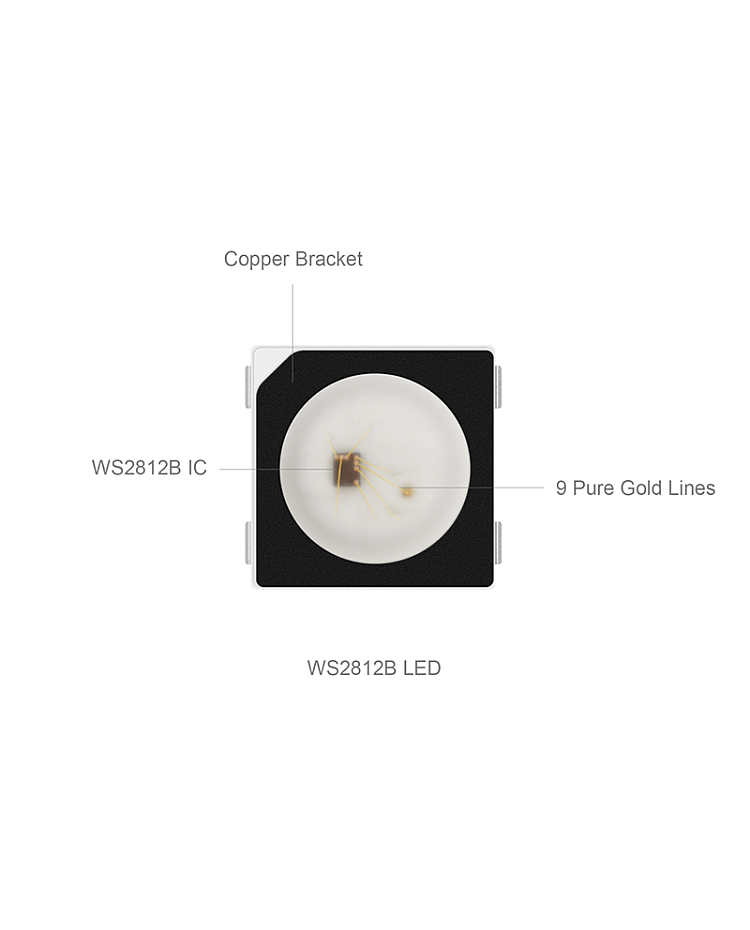

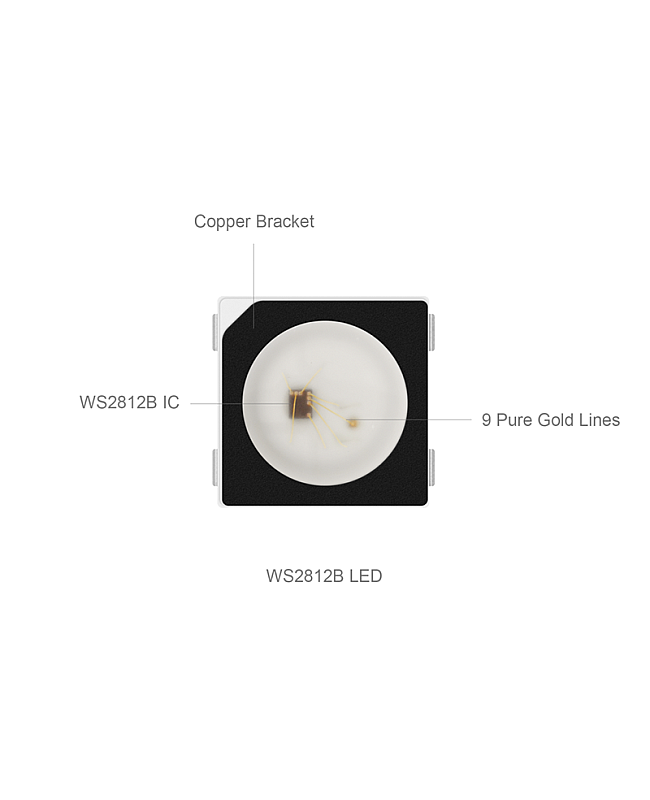

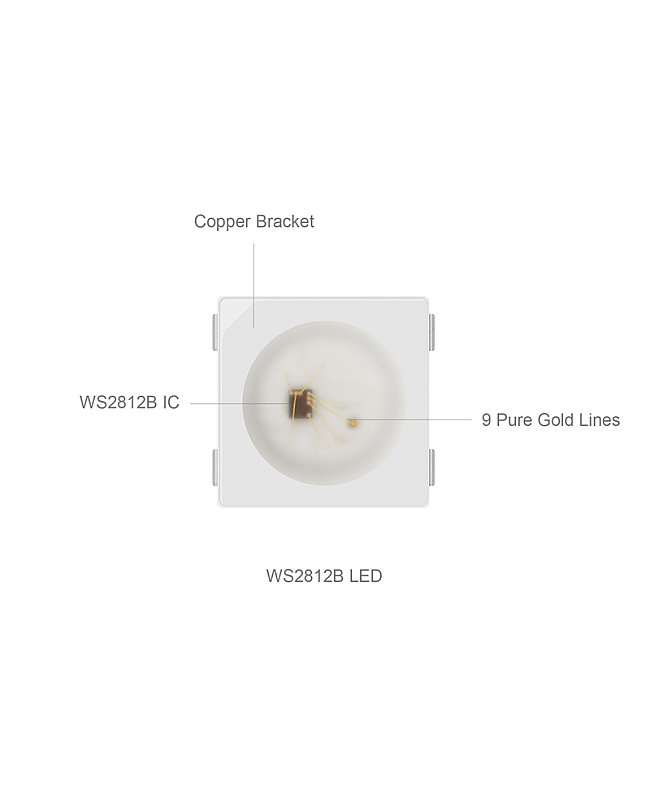

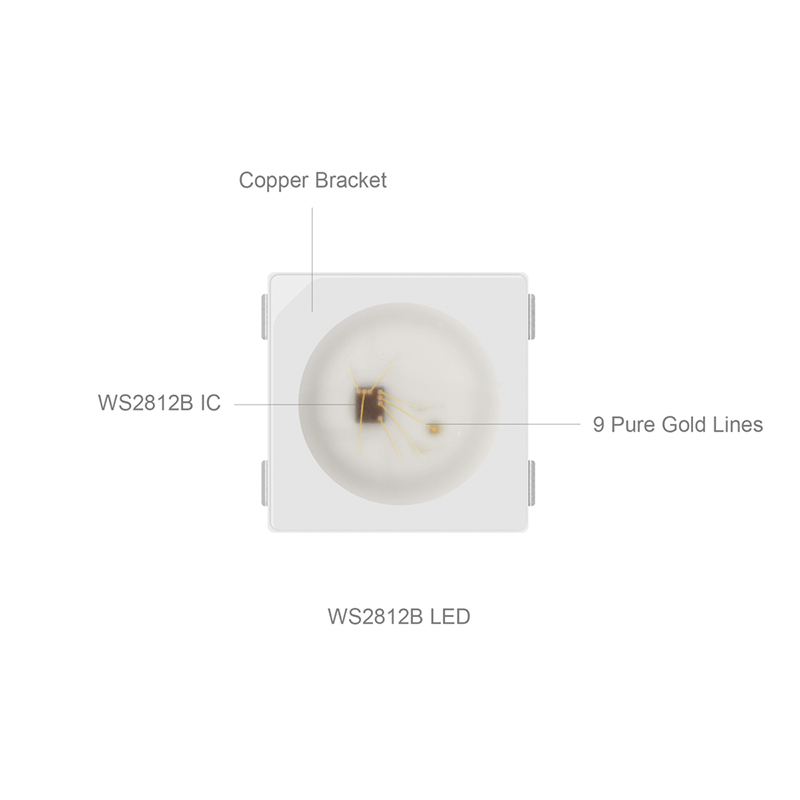

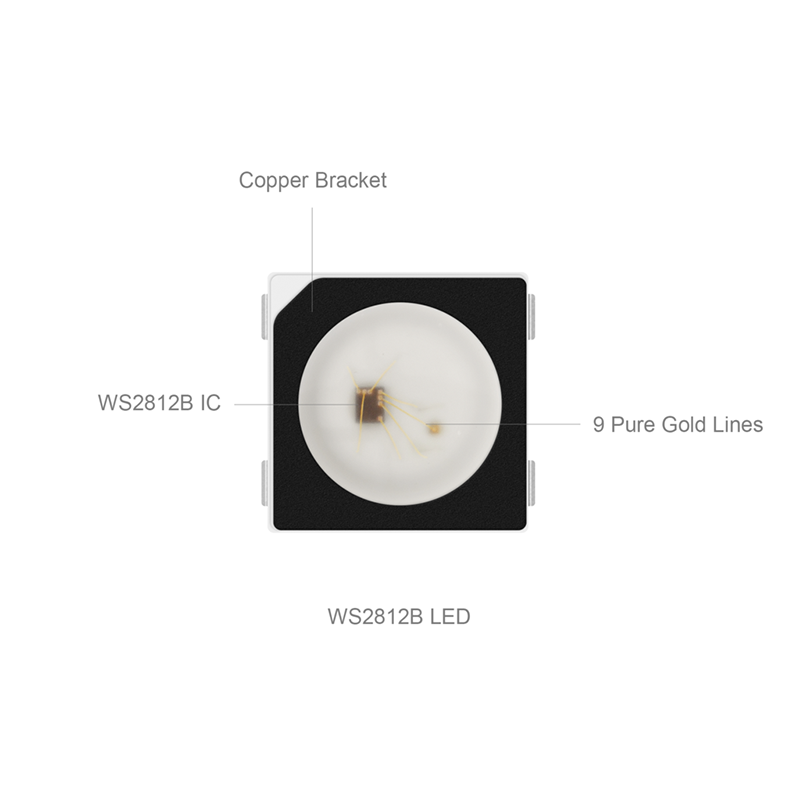

Check the RGB SMD LED Chips, which are built-in WS2812B IC. You can use them to replace the broken LEDs on your WS2812B's LED Strips, the LED Chip's built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion does not accumulate, built-in electric reset circuit and power lost reset circuit. Each Pixel LED can achieve a 256 brightness display, a completed 16777216 color full-color display, and a scan frequency of not less than 400Hz/s. Cascading port transmission signal by a single line, any two-point distance not more than 3m transmission signal without any increase circuit. When the refresh rate is 30fps, the cascade number is not less than 1024 points. Send data at speeds of 800Kbps; the color of the light is highly consistent and cost-effective. You can use them for the LED Modules, LED Strips, etc.


  • LED Type: 5050 SMD LEDs
  • IC Type: WS2812B Built-In

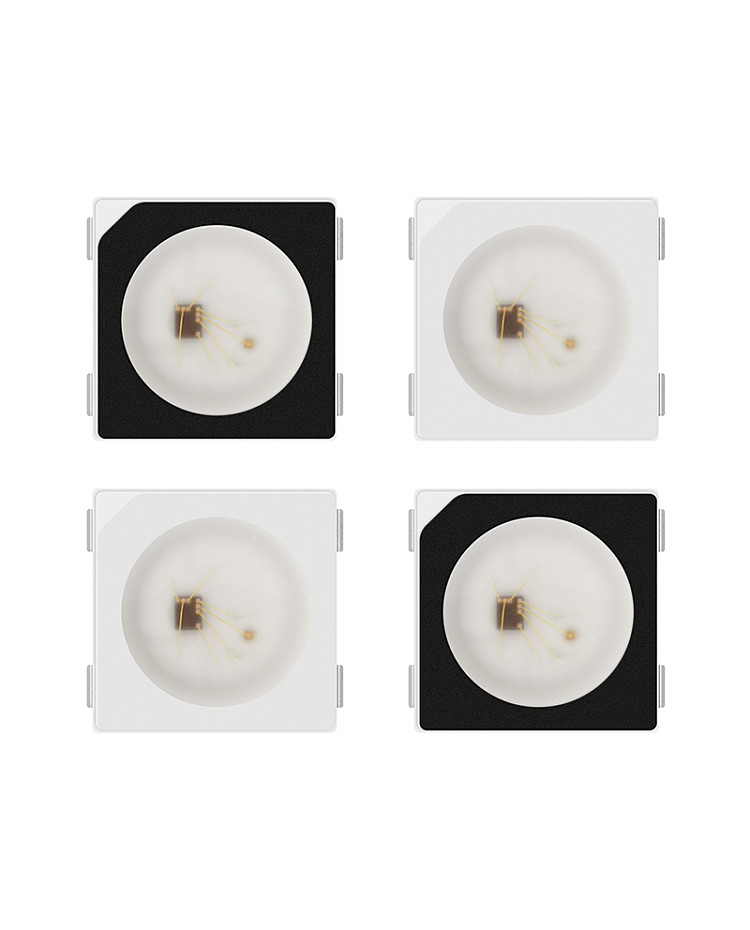

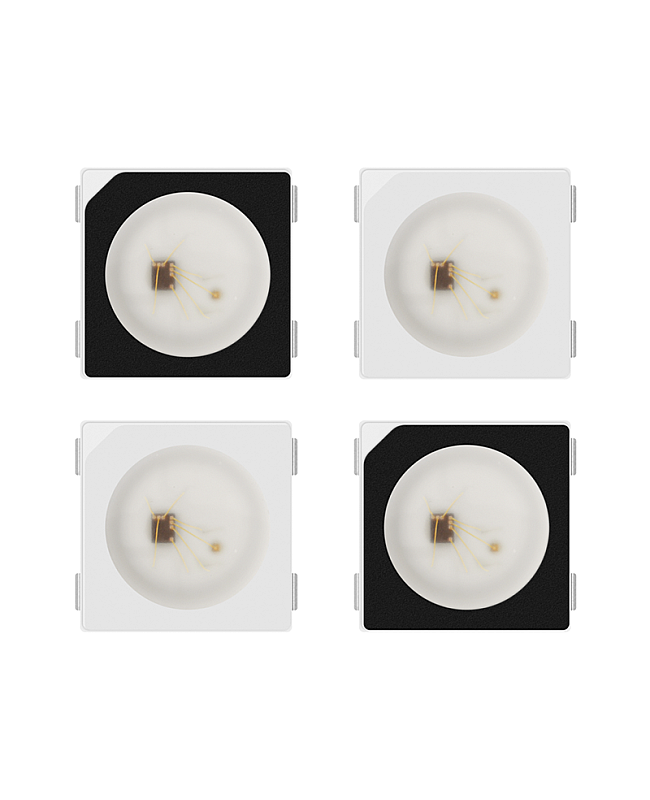

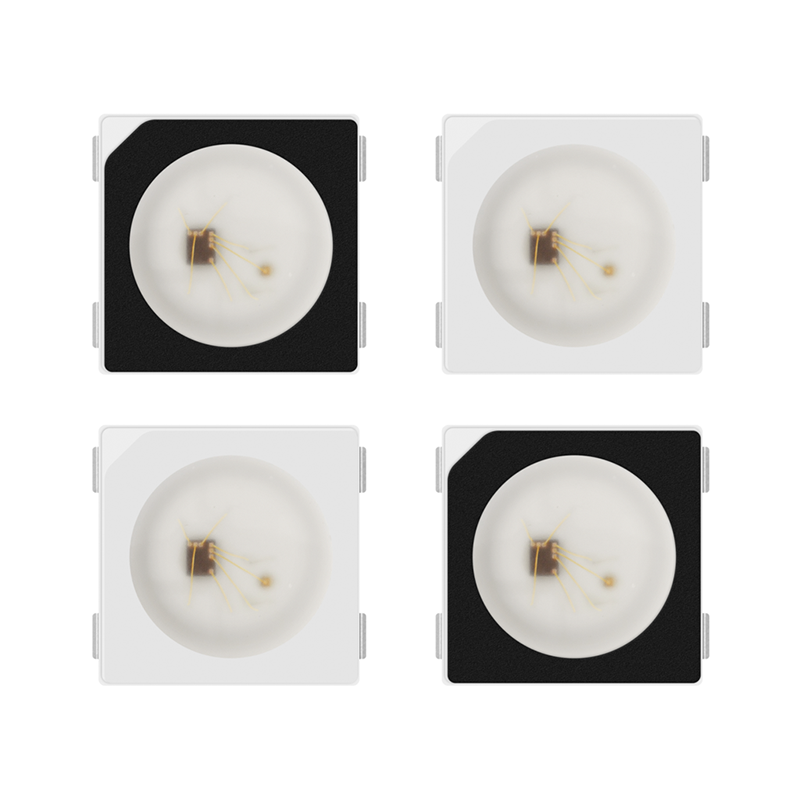

  • Colors Of SMD Surface: White/Black
  • Emitting Color: Magic Full Color
  • Absolute Maximum Ratings: Ta=25℃, VSS=0V)
  • Power Supply Voltage Symbol: VDD Range: +3.5V-+5.3V
  • Input Voltage Symbol: V(I) Range: -0.5-VDD +0.5V
  • RED Wavelength: 620-630nm; Luminous Intensity: 550-700MCD
  • GREEN Wavelength: 515-530nm; Luminous Intensity: 1100-1400MCD
  • BLUE Wavelength: 465-475nm; Luminous Intensity: 200-400MCD

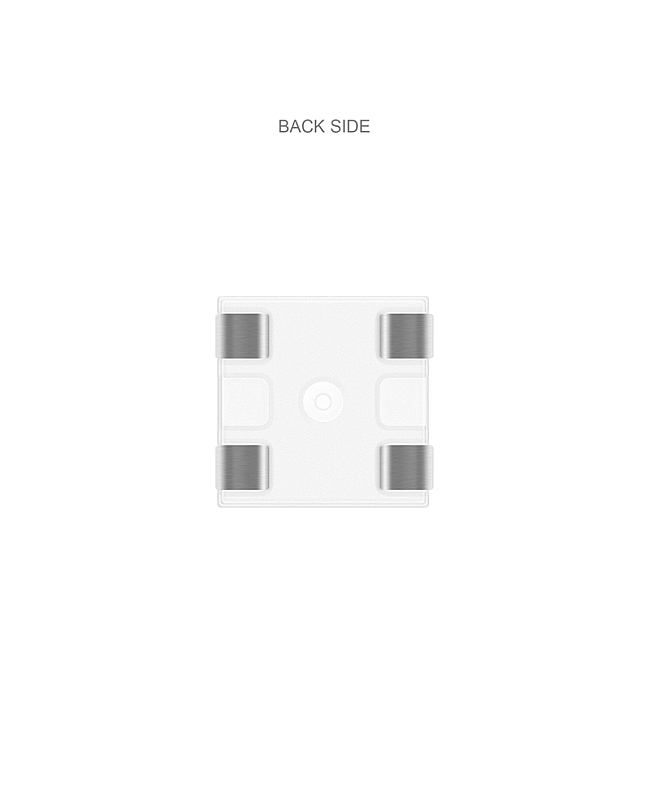

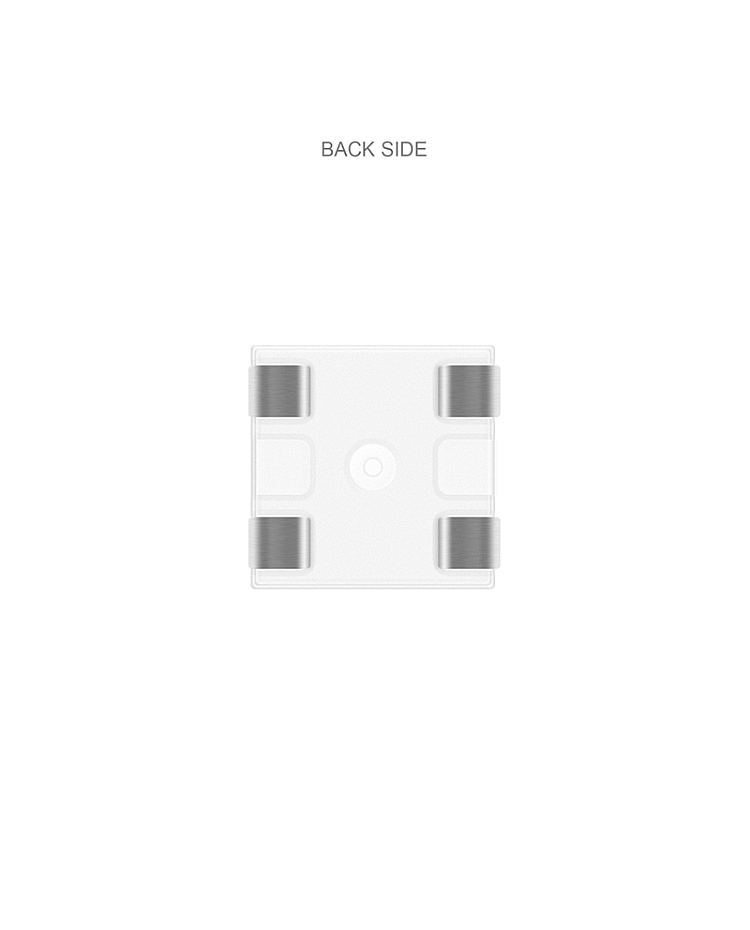

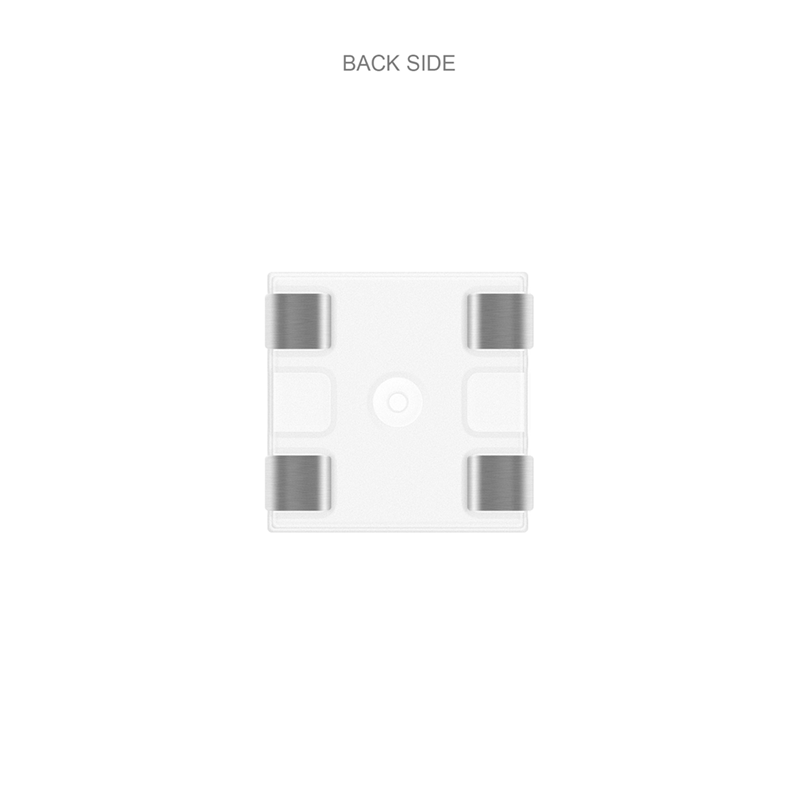

  • PINs Configuration:
  • VSS Function: Ground
  • DIN Function: Control Data Signal Input
  • VDD Function: Power Supply
  • DOUT Function: Control Signal Output
  • Working Temperature: -25℃-+80℃
  • Storage Temperature: -40℃-+105℃


1*WS2812B LED Chips
