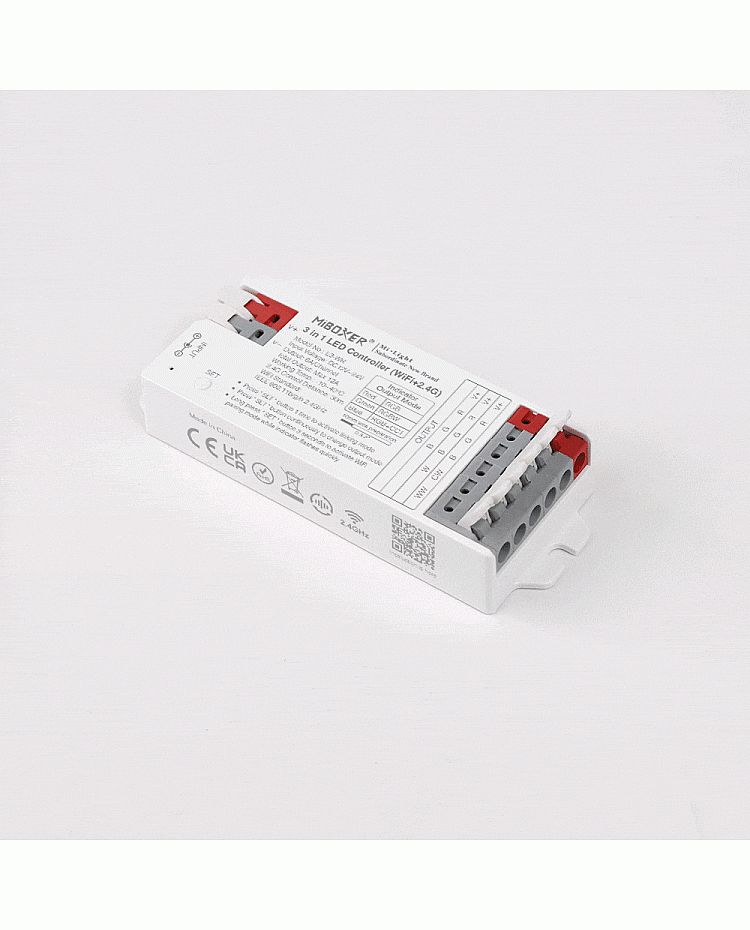

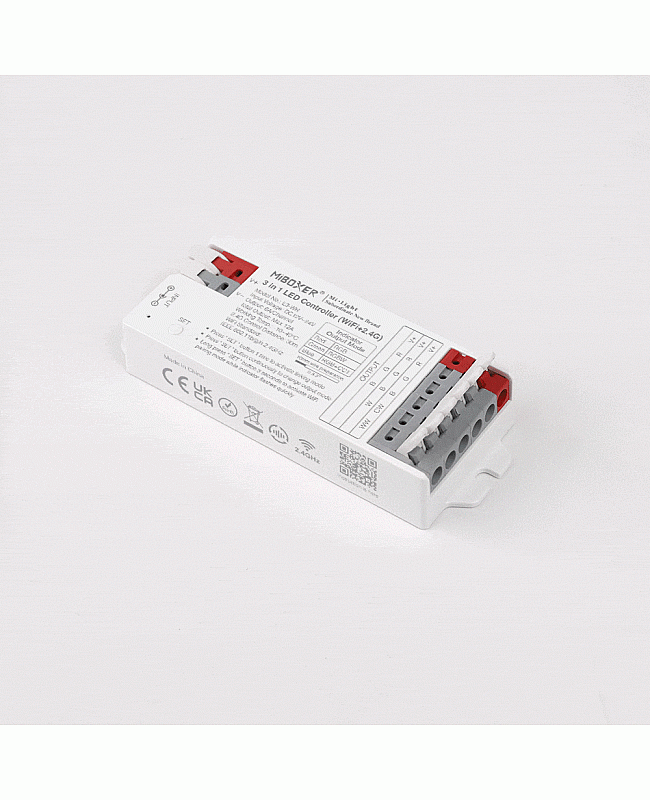

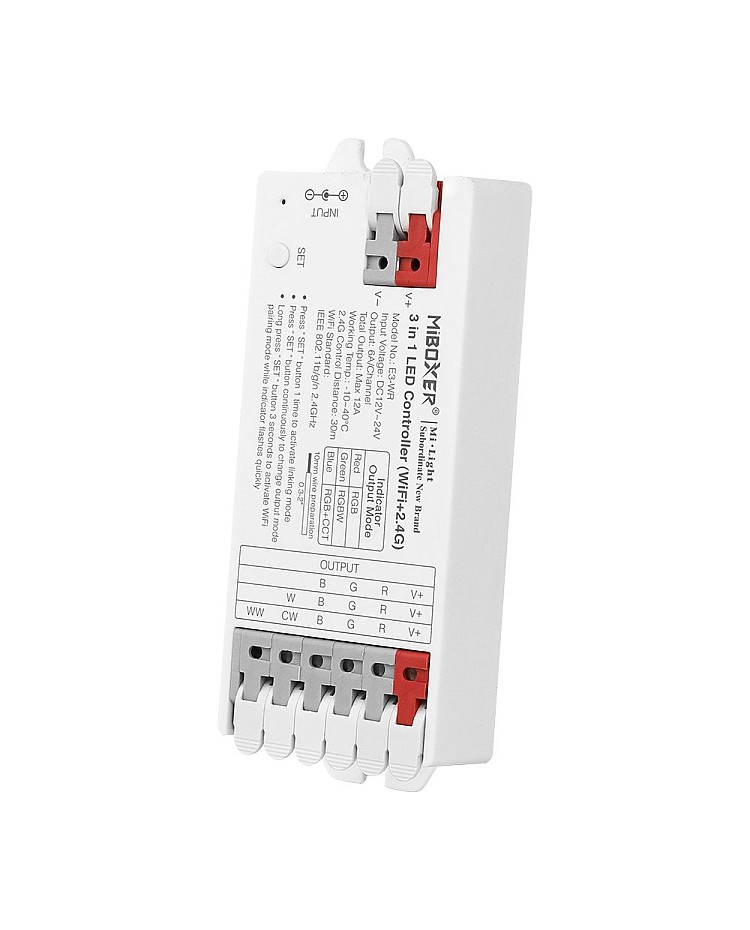

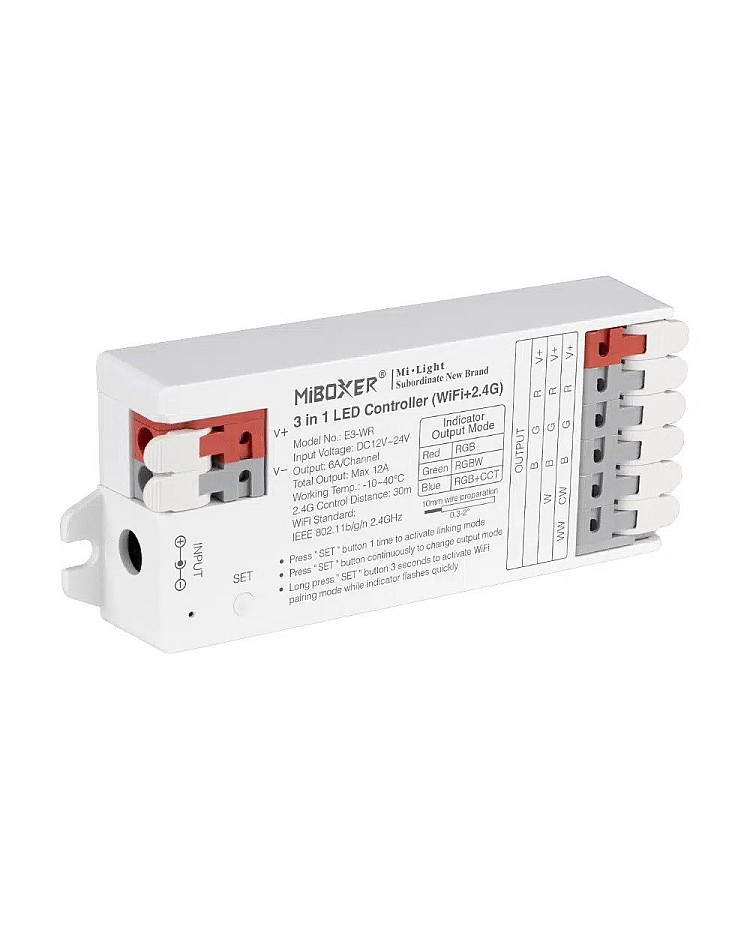

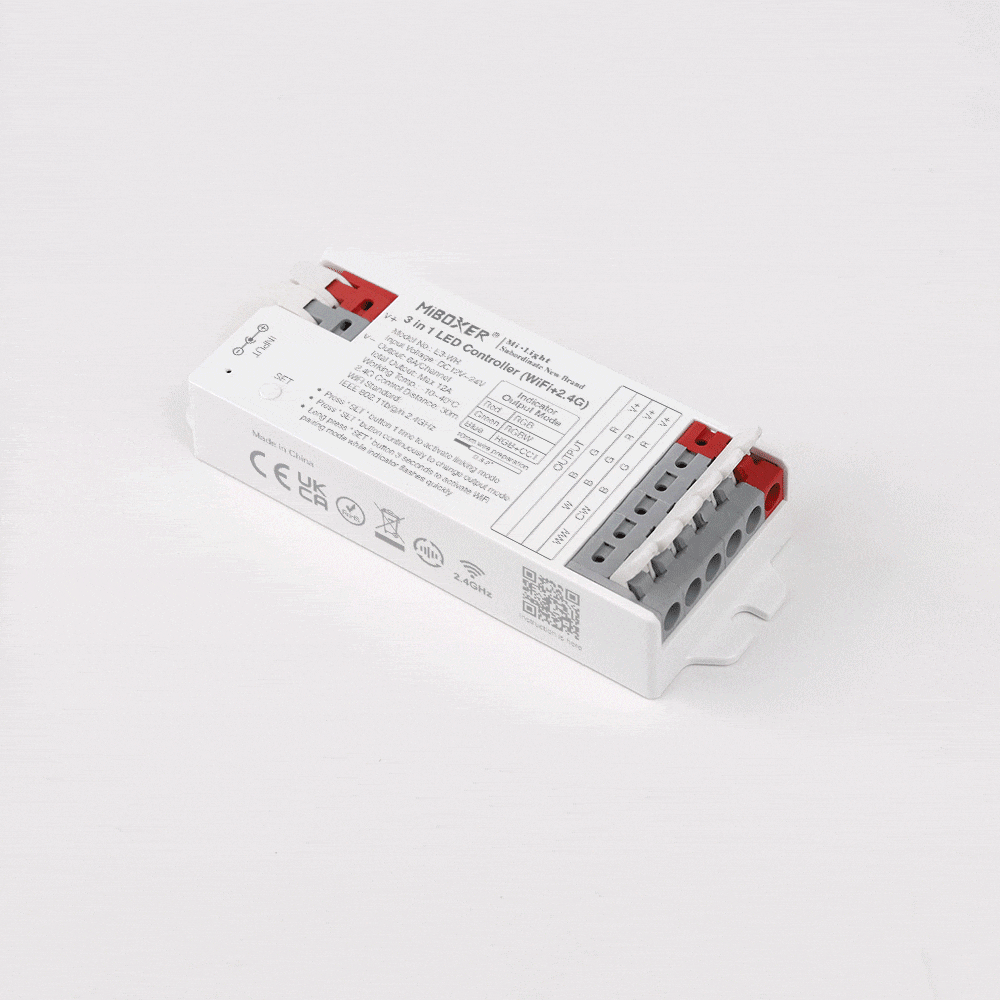

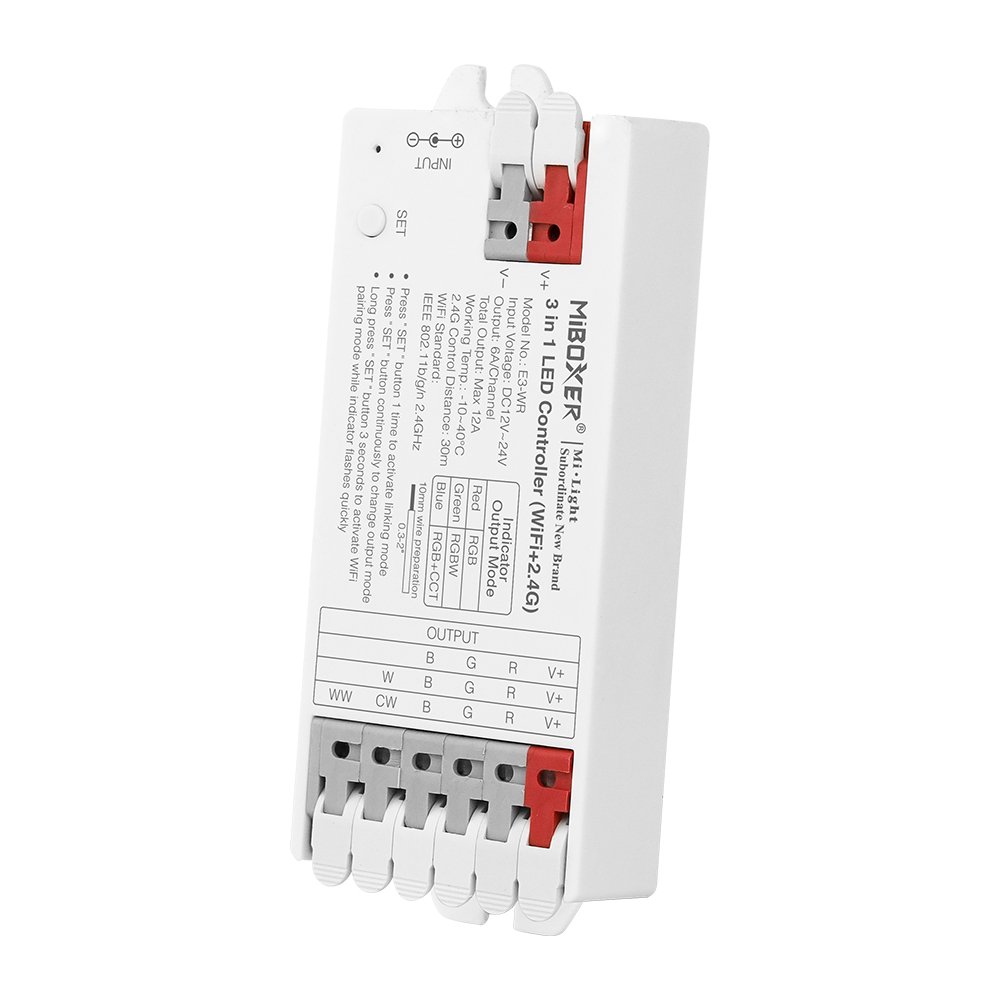

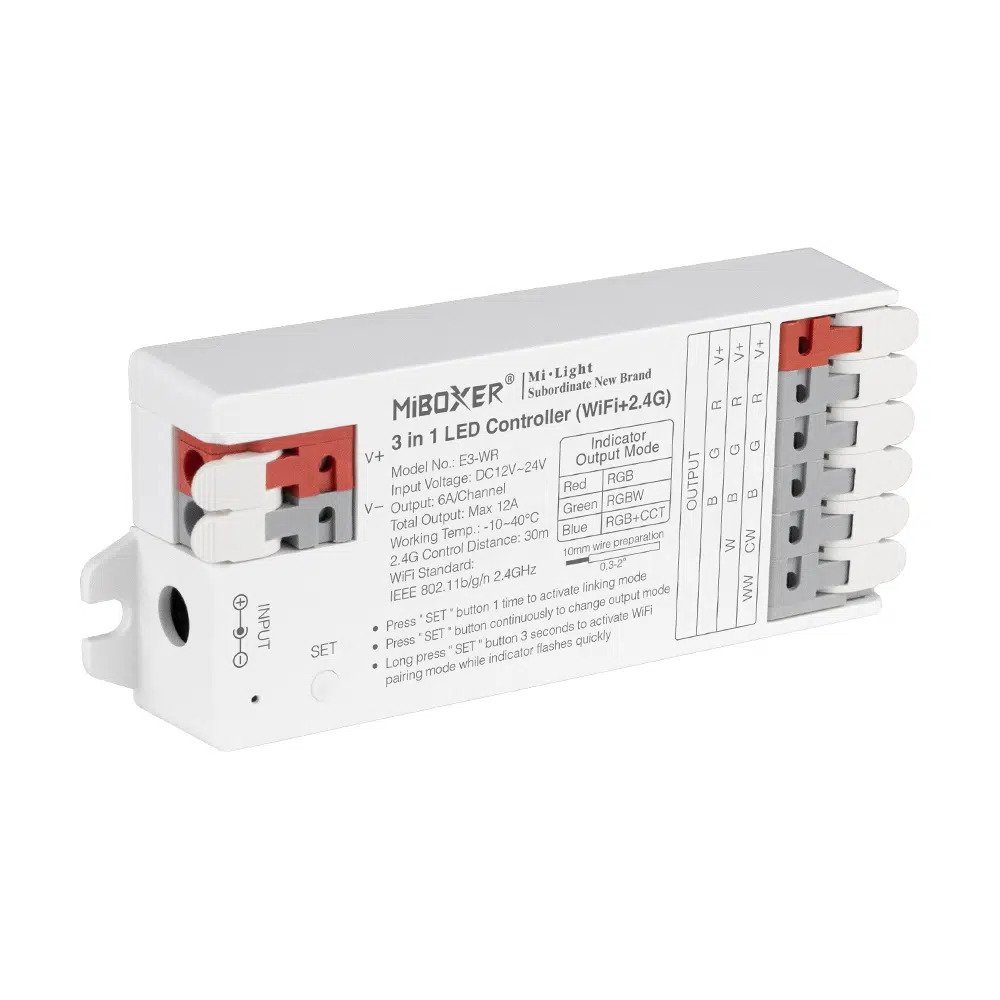

The MiBoxer E3-WR WiFi light controller has a 3-in-1 function design, pressing the " SET " button to switch the output mode from RGB, RGBW, and RGB+CCT. It utilizes WiFi, Bluetooth, and 2.4G wireless transmission technology, features low power consumption, and boasts strong anti-interference capabilities. It can be controlled by a 2.4G remote control, a smartphone APP, and third-party voice commands. There are 16 million colors, with adjustable color temperature and brightness, and saturation control for various scenes. The WiFi LED controller with auto signal transmitting and modes synchronization function, which can transmit the signals from the remote control to another lighting fixture with 30 meters, different lighting fixtures can work synchronously when they are started at other times, controlled by the same remote, under same dynamic mode and within 30m distance. The Mi Boxer controller features a tool-free, instant wiring design that makes it extremely easy to connect to LED lights without the need for any tools.
Specifications:
- Type: 3 In 1 WiFi LED controller
- Model: E3-WR
- Size(L*W*H): 100.6*40*17.6mm
- Input Voltage: DC12-24V
- Output: 6A/channel
- Total Output: 12A Max
- 16 million colors to choose from
- Color temperature and brightness are adjustable
- Saturation controllable
- Switching 3 output modes via one button(RGB/RGBW/RGB+CCT)
- Communication Protocol: WiFi + 2.4GHz
- 2.4G RF Control Distance: ≤30m
- 2.4G RF Remote Controllable: FUT100, FUT089S, FUT089, FUT089-B, FUT088, FUT092, FUT092-B, FUT096, FUT096-B, B8, B0, B0-B, B4, B4-B, T4, B3, B3-B, T3, S2-B, S2-W, S2-G, FUTD01
- WiFi Standard: IEEE 802.11 b/g/n 2.4GHz
- Support the " Tuya Smart " app control
- Support music rhythm
- Support third-party voice control(Amazon Alexa, Google Assistant)
- Bluetooth Protocol: Bluetooth 4.2(low power consumption)
- High Frequency(16KHz) / Low Frequency(250Hz) can be switched
- Support DMX512 controllable(DMX 512 LED transmitter needed)
- Two Power Interfaces: Wiring ports, DC5.5*2.1mm
- IP Rate: IP20 non-waterproof
- Tool-free instant wiring
- Working Temperature: -10-40℃
- 2-year warranty
Includes:
1 * E3 WR WiFi light controller
