In Stock
Reward Points: 11
This product has a minimum quantity of 6
  • Brand: Ledbe
  • Product Code: MAG3425

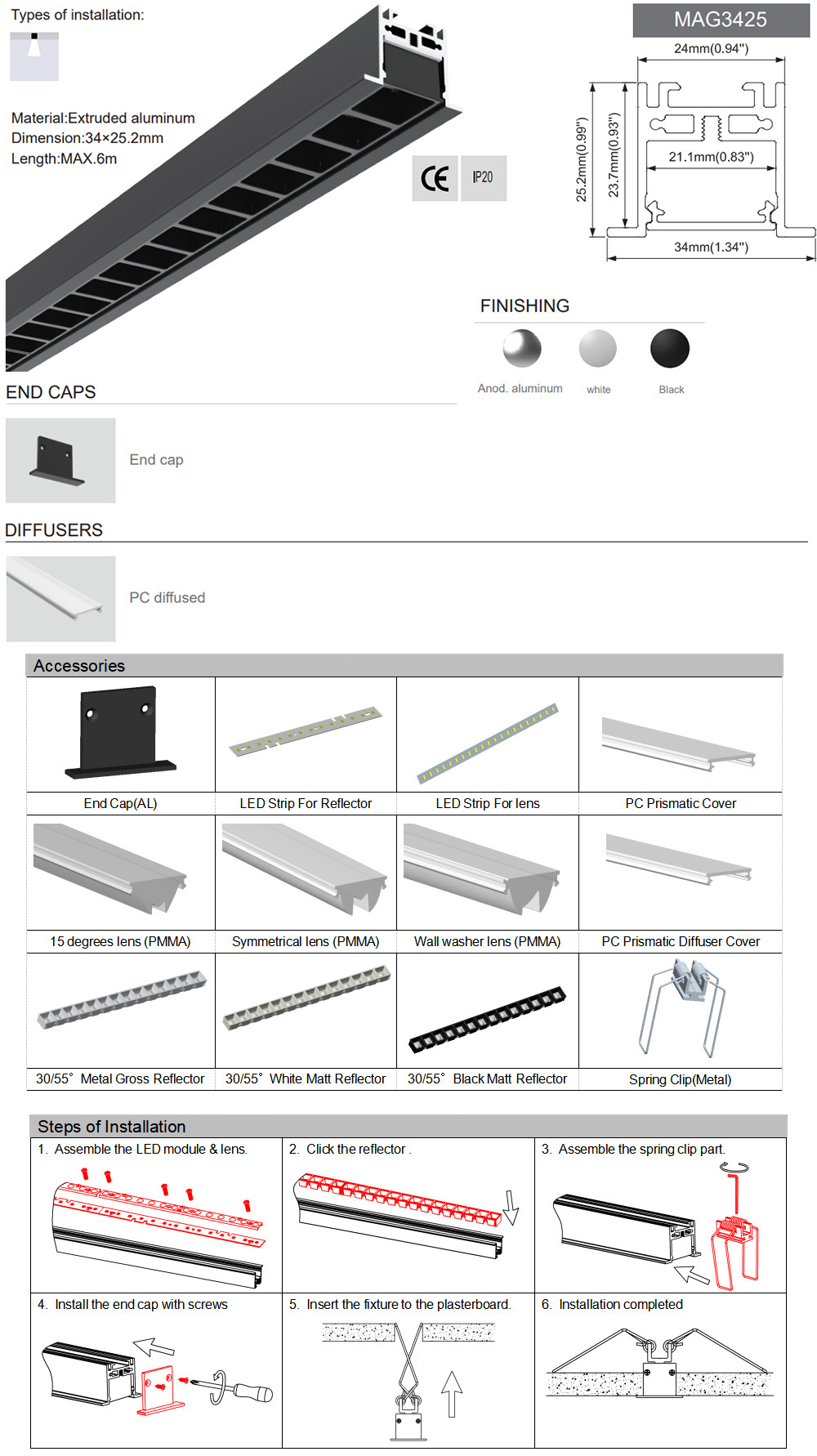

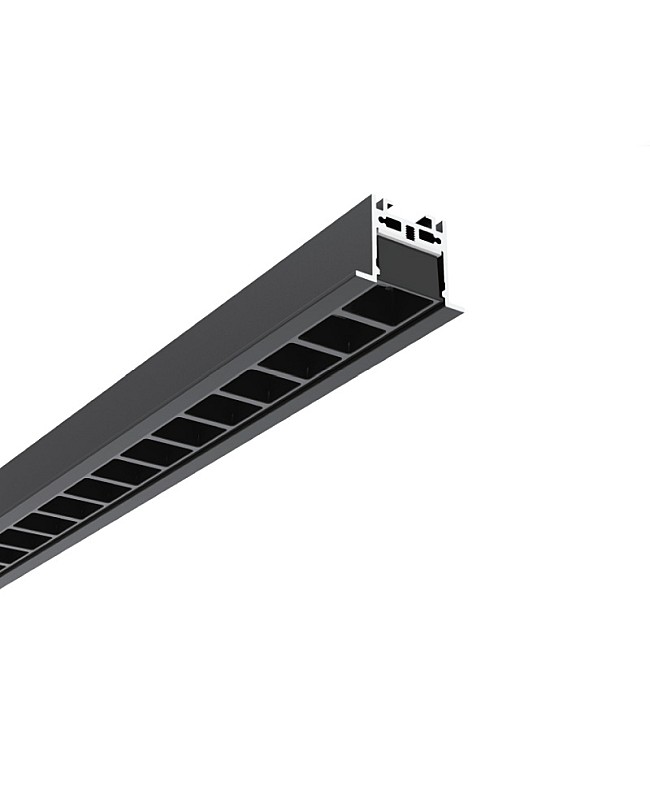

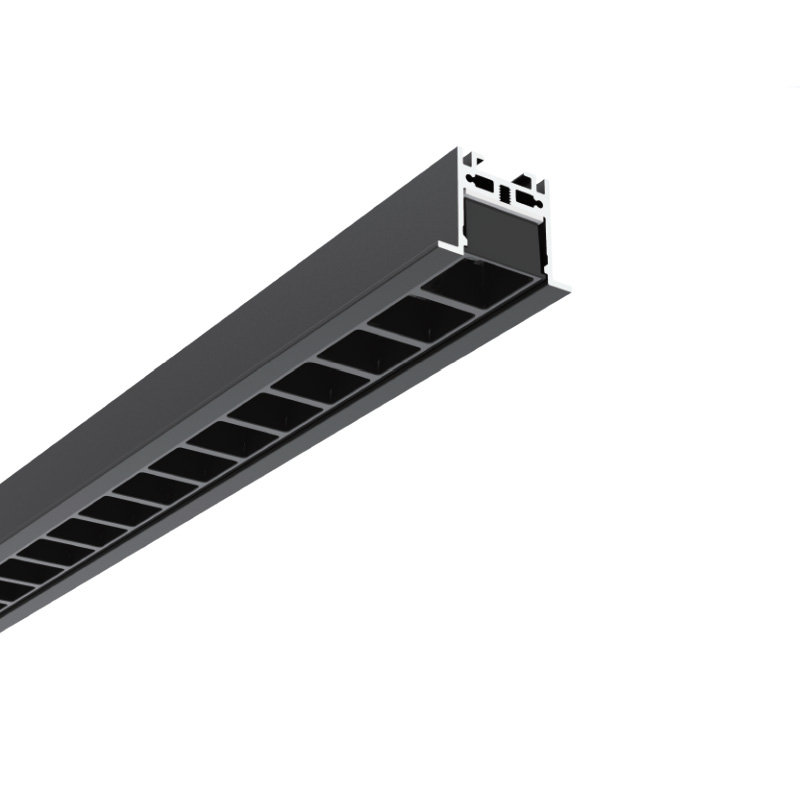

Check the Mini Anti-glare Light Strip Diffuser with Channels, with flanges that can be recessed into the wall or ceiling for interior indoor linear lighting projects. Three anti-glare reflectors are available to prevent glare effectively and offer healthy ambient light. Light Strip Channels are made of 6063-T5 extruded aluminum material with anodized surface treatment, anti-oxidation resistance, and a longer lifespan than similar products. The standard length is 1M and 2M; custom lengths are available, and you can cut to any size for your projects. The inner width is 21.1mm, allowing the max-width of LED Strips to be 20mm. You can install a single row or multiple rows of LED Strips inside as the light source. Recommend installing the high-density FCOB LED Strips with no visible light dots or hot spots, creating seamless linear lighting. End caps and spring clips are included, making it easy to recess into the wall or ceiling for indoor lighting projects. Various types of Light Diffusers For LED Strips are available for different light transmissions, and you can take the PC diffused cover, Black PC diffused cover, prismatic cover, and prismatic covers.


  • Model: MAG3425
  • Material: 6063-T5 Extruded Aluminum
  • Surface Treatment: Anodized
  • Colors: Black, Silver, White

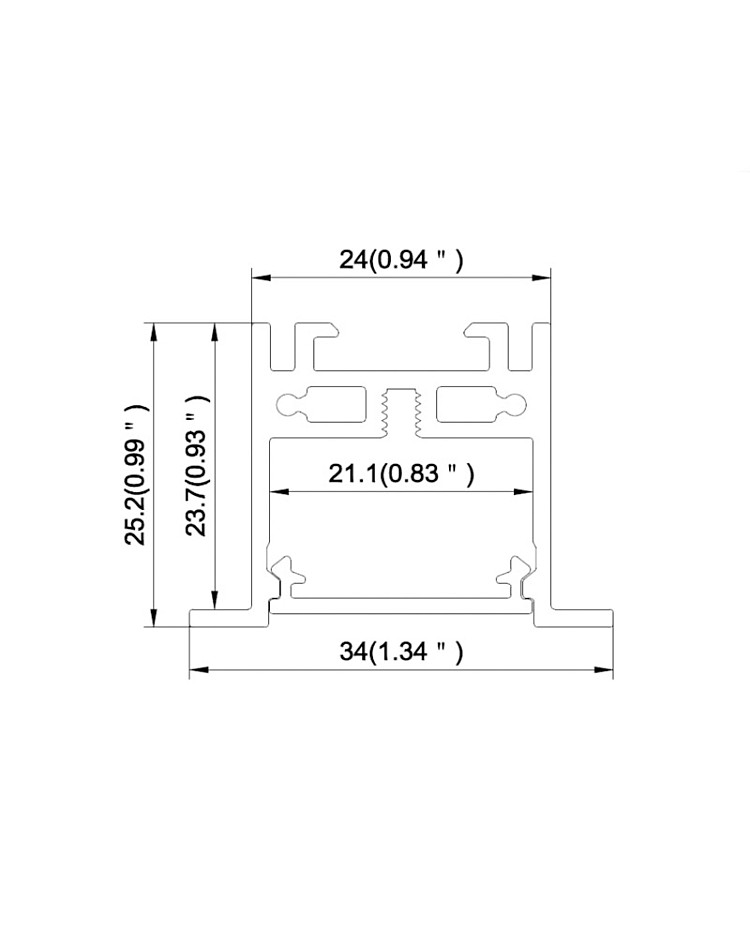

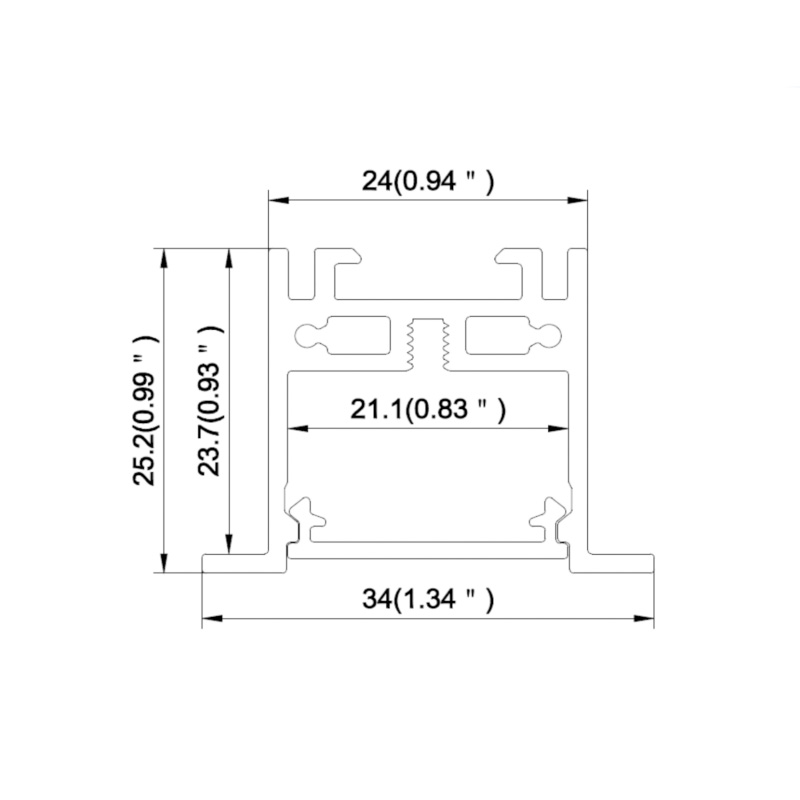

  • Size: 34*25.2mm(W*H)
  • Standard Length: 1M
  • Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
  • Custom Length Available: YES

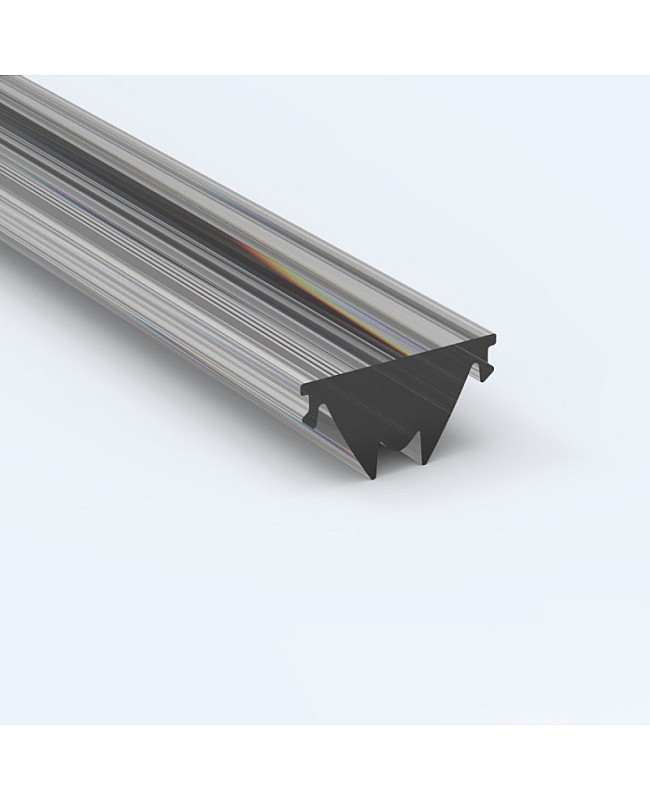

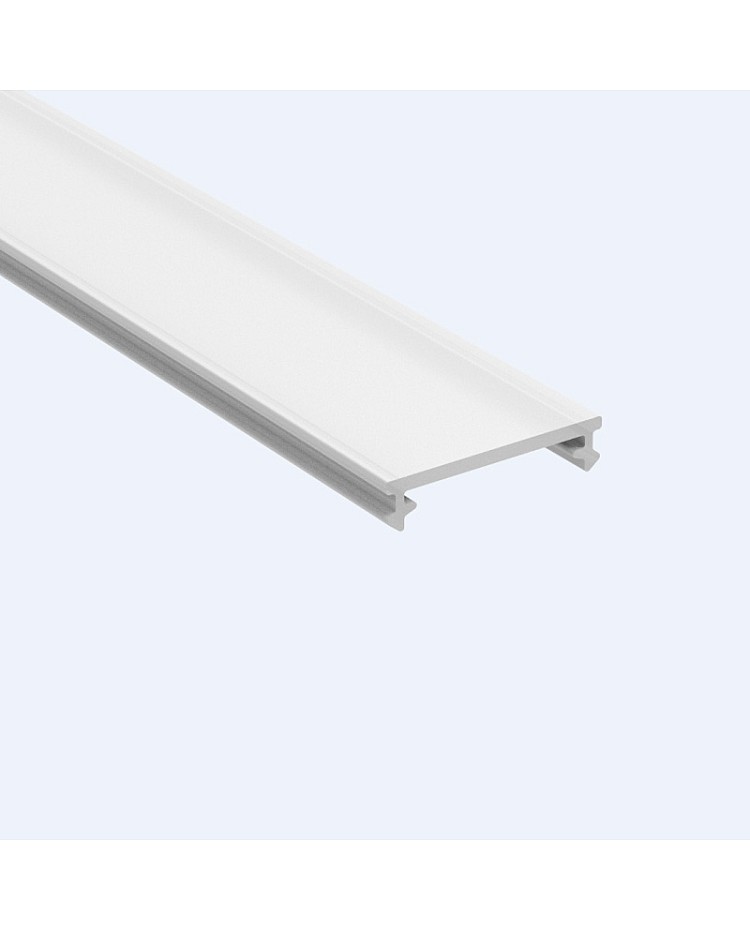

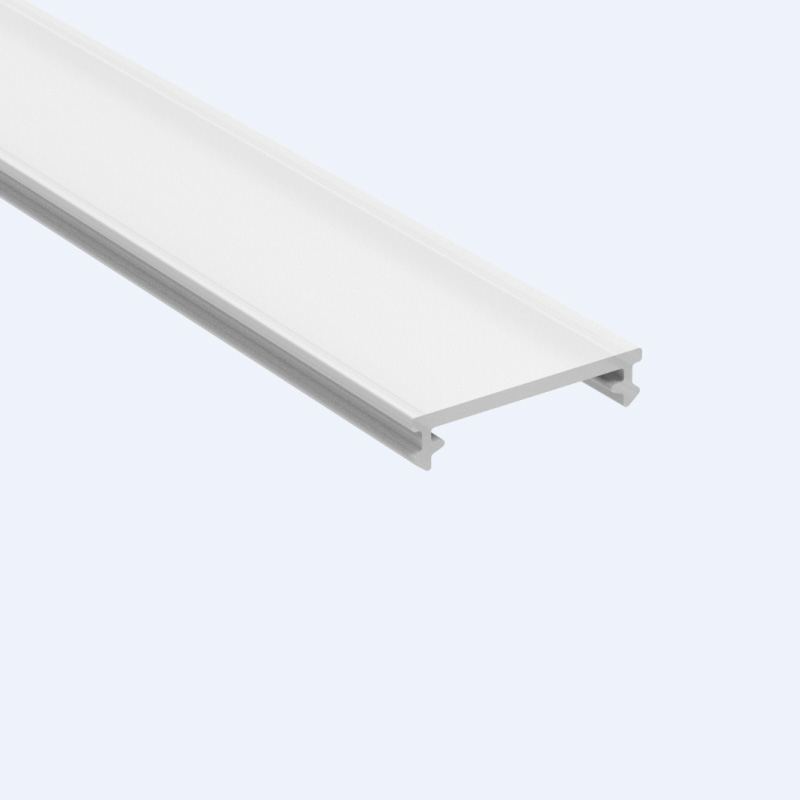

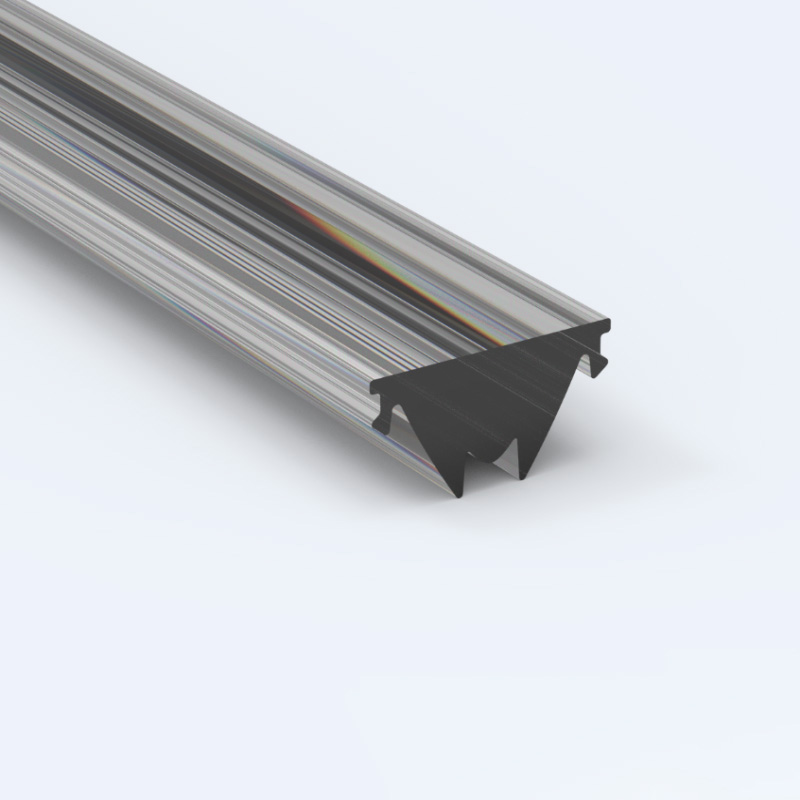

  • Diffusers: PC Diffused Cover, Prismatic Cover, 30°/55° Black Reflector, 30°/55° White Reflector, 30°/55° Silver Reflector
  • Inner Width: 21.1mm
  • Max Width Of LED Strips: 20mm
  • Max Power: 24W/M
  • Beam Angle: 100°
  • Tolerance: ±1%
  • IP Rate: IP20 Non-waterproof
  • End Caps And Spring Clips Included

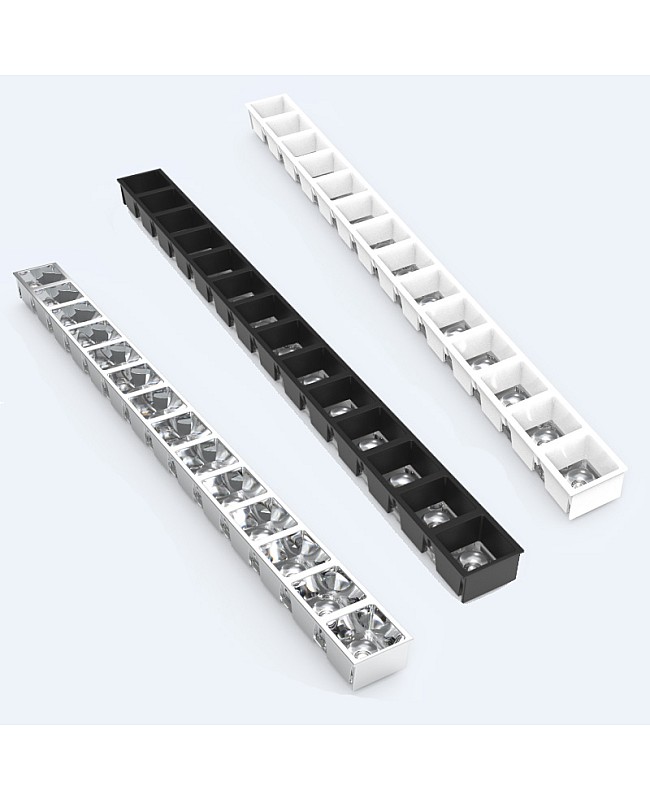

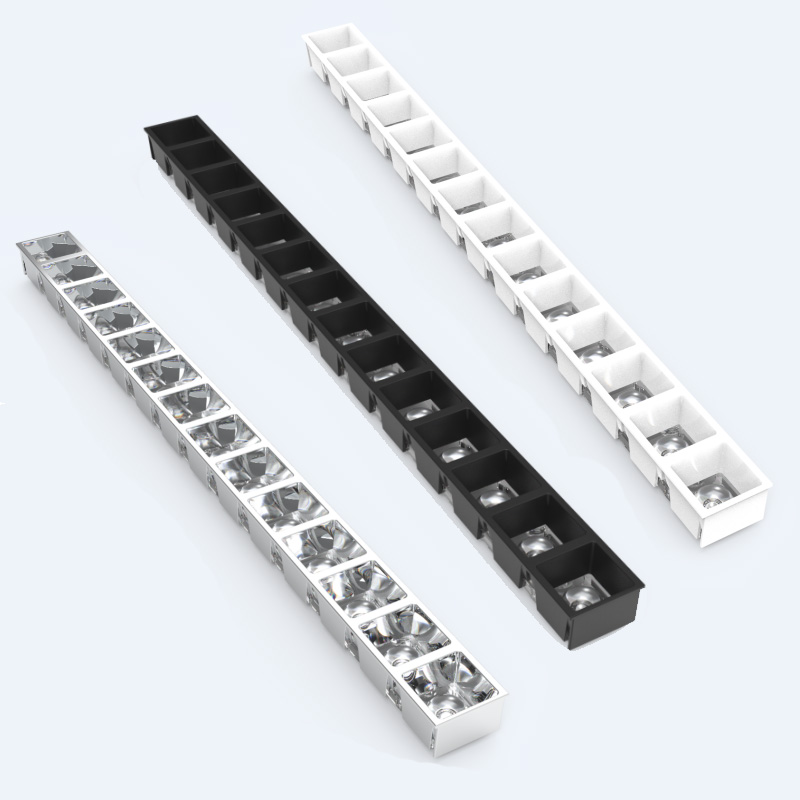

  • Black/White/Silver Anti-Glare Reflectors(280mm/Piece) Sold Separately
  • Installation: Recessed
  • 5 Years Warranty


1*Light Strip Diffuser With Channel

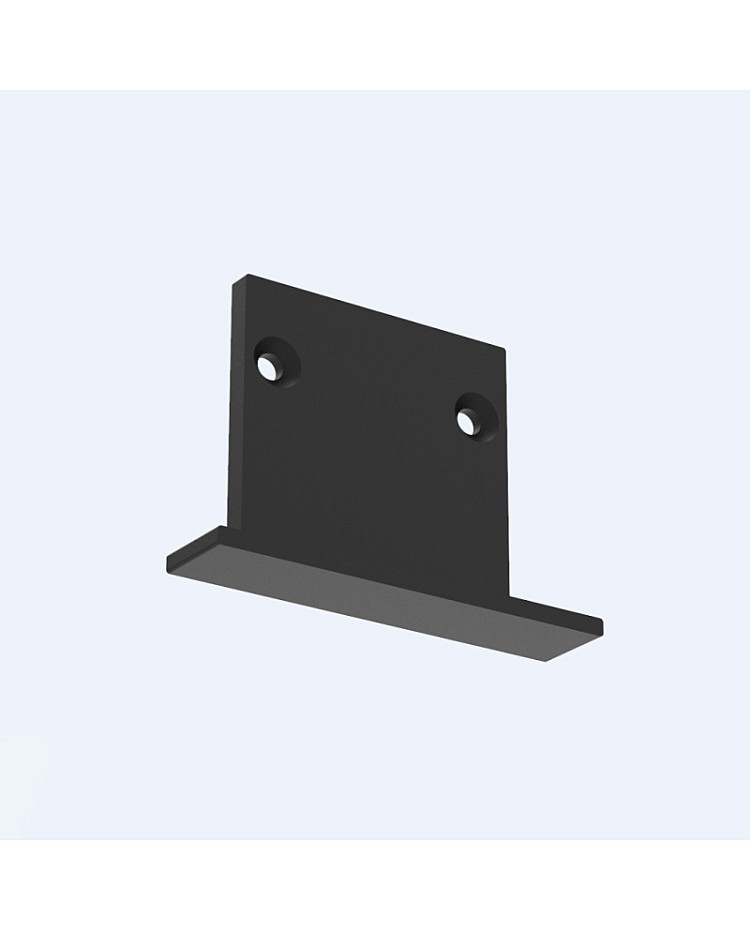

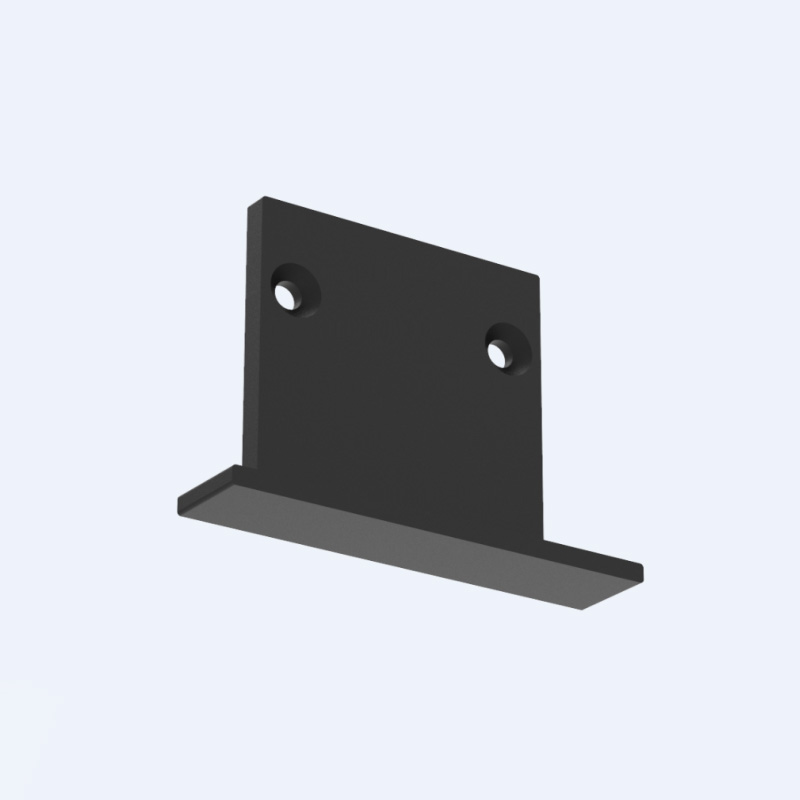

End Caps

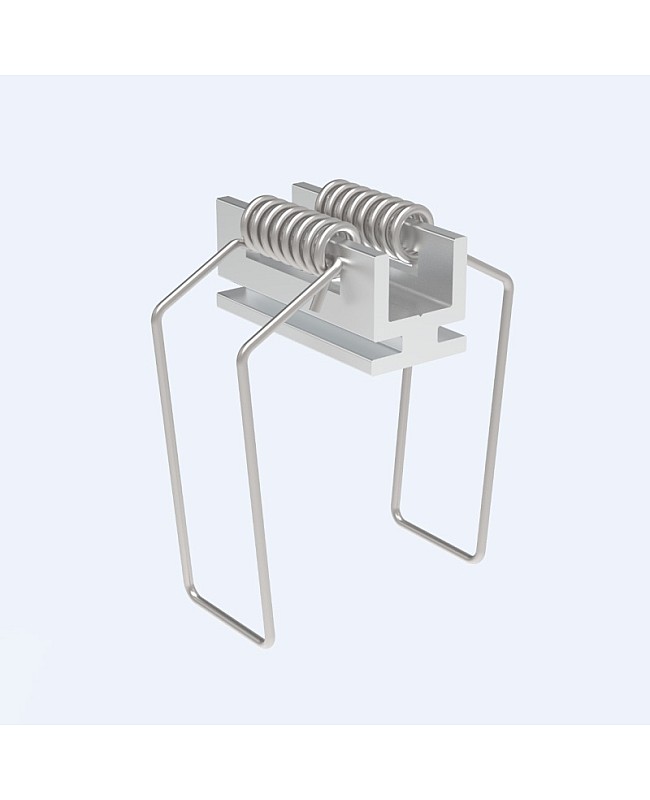

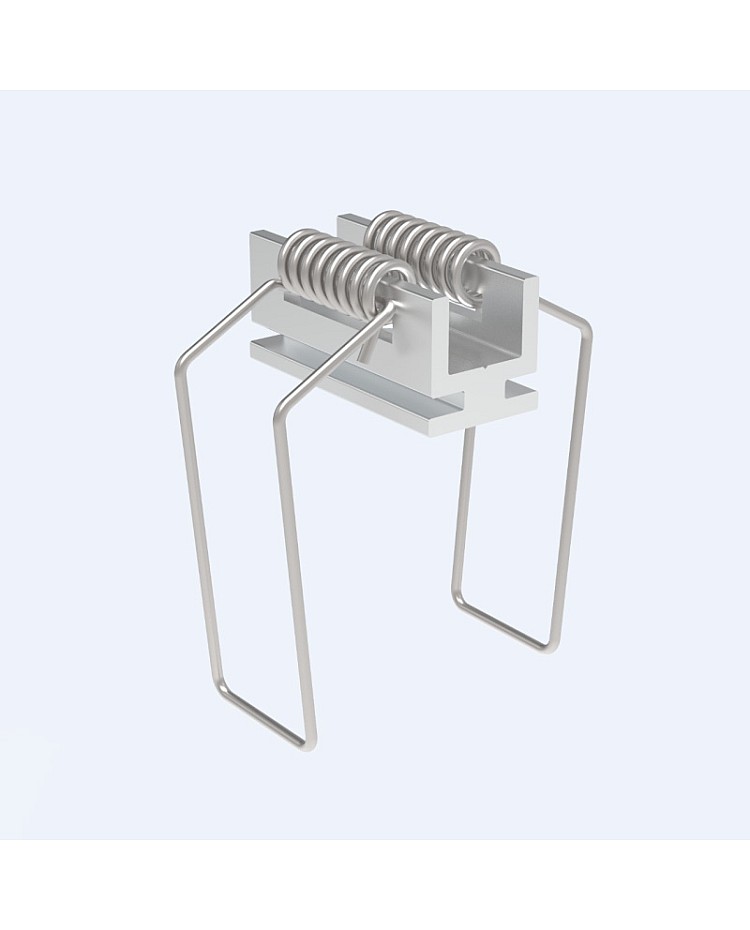

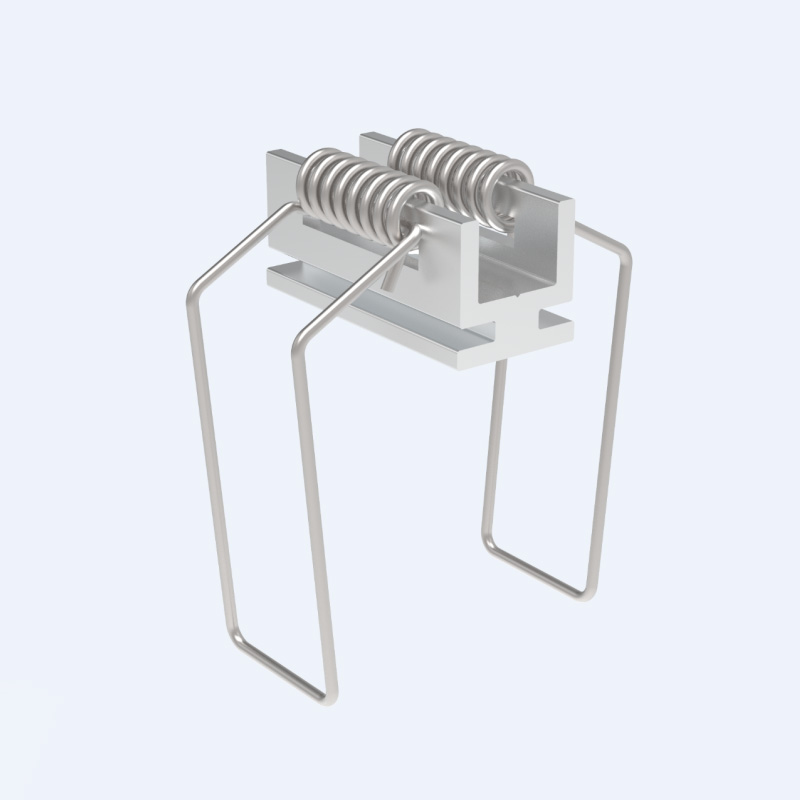

Spring Clips

LED Light Strip Diffuser
