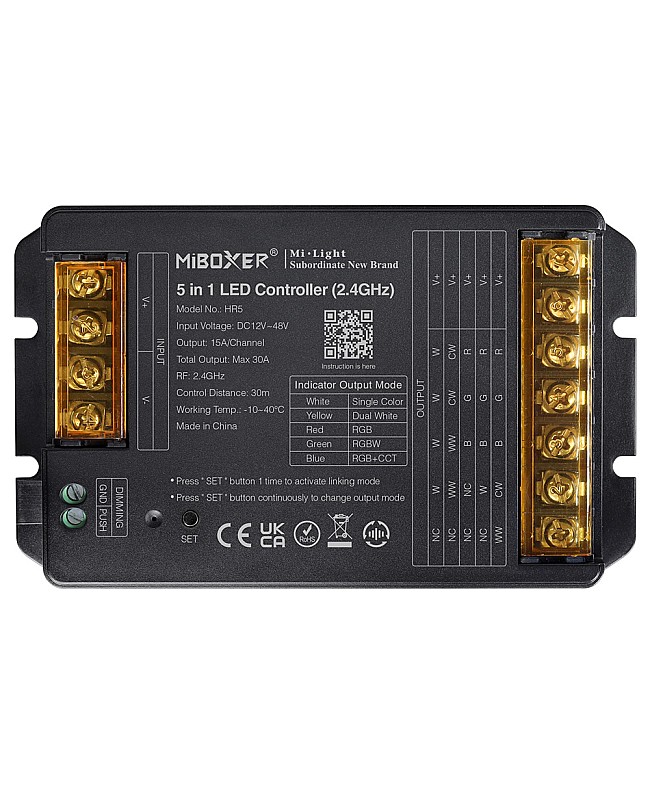

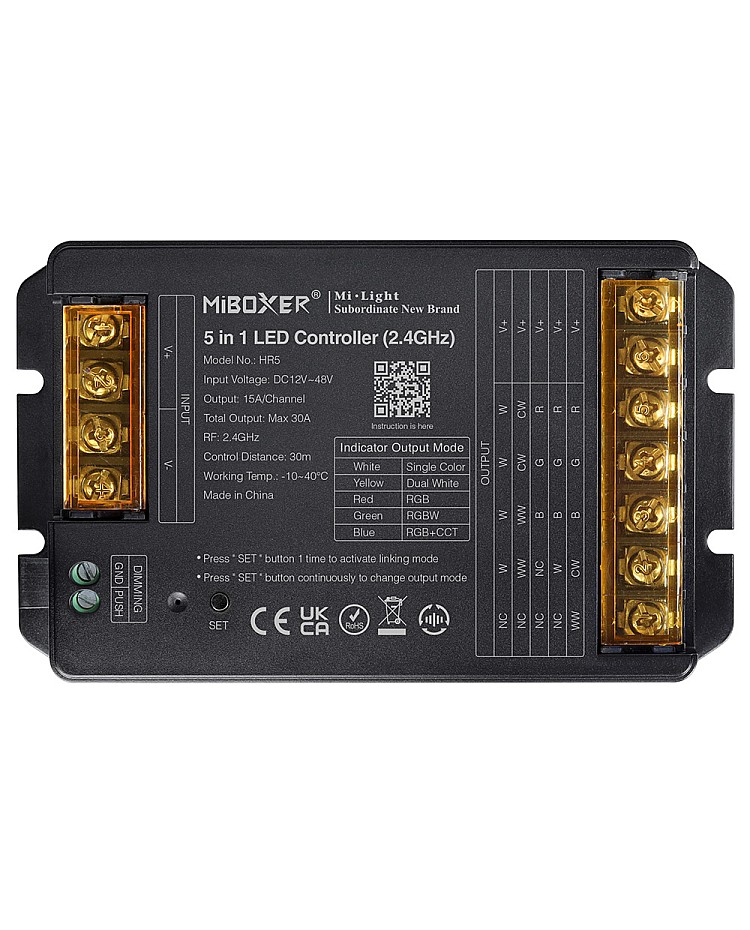

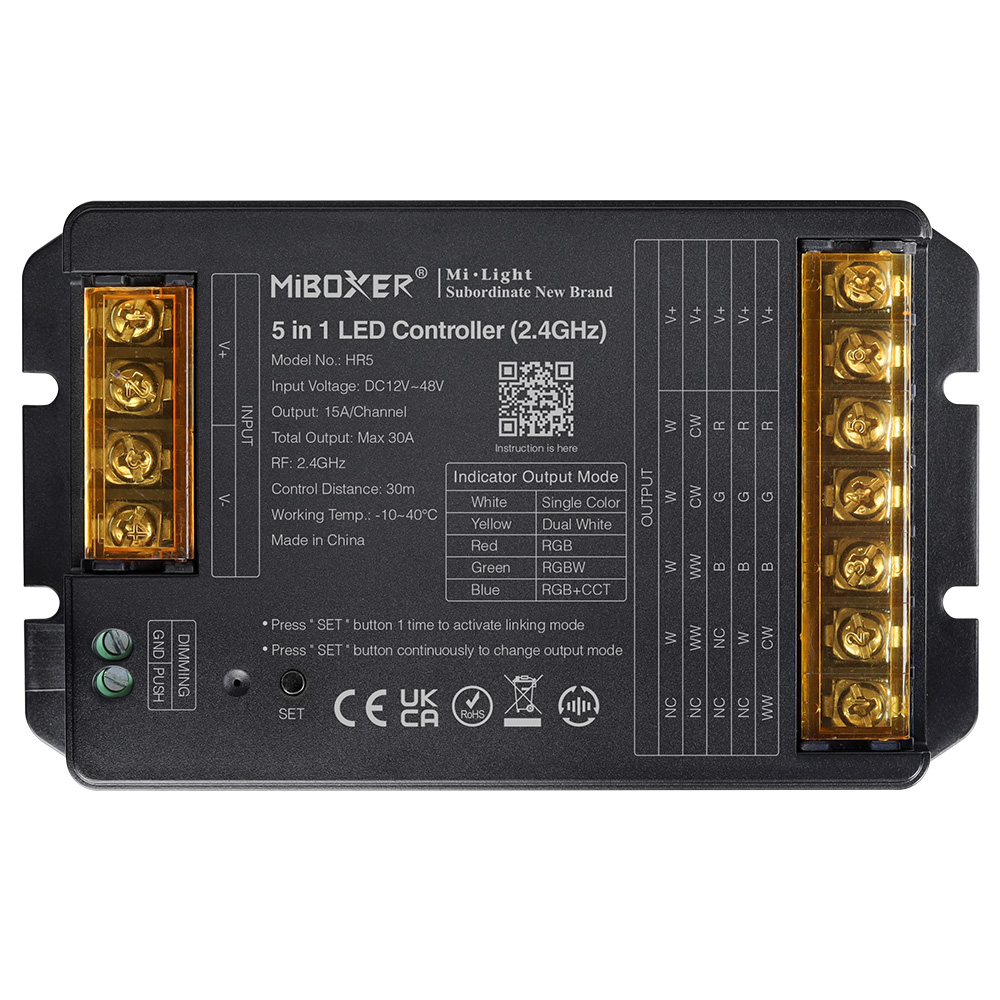

The MiBoxer HR5 is a 5 in 1 RF Lighting Controller for single color, dual white, RGB, RGBW, and RGBWW Strip Lights. The max output current is 30A, which can support more LED Lights. It adopts the widely used 2.4G wireless technology, low power consumption, long signal transmitting distance, and strong anti-interference, etc. Compatible with MiBoxer 2.4G Remotes to choose the color and adjust the color temperature, brightness, and saturation for various scenes. With auto-transmitting and auto-synchronizing design, one controller will transmit the signal from the remote to another within 30 meters, and all of them will synchronize. After pairing to a 2.4G Gateway, the Controllers can be controlled by the Tuya smartphone APP and third-party voice commands. It supports Amazon Alexa and Google Assistant. There is a small physical button on the Controller. Simply press it to switch the output mode from brightness, CCT, RGB, RGBW, and RGBWW output modes. There are HW5 5 In 1 WiFi Tuya LED Controllers available.
Features:
- Type: 2.4G RF 5 IN 1 Controller
- Model: HR5(2.4G)/HW5(2.4G+WiFi)

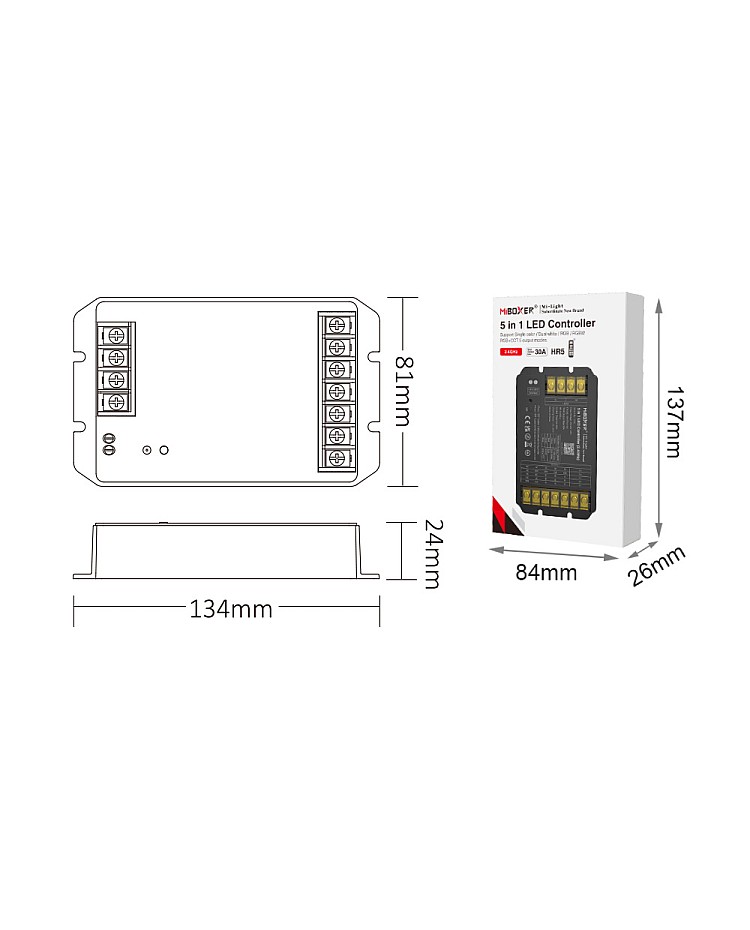

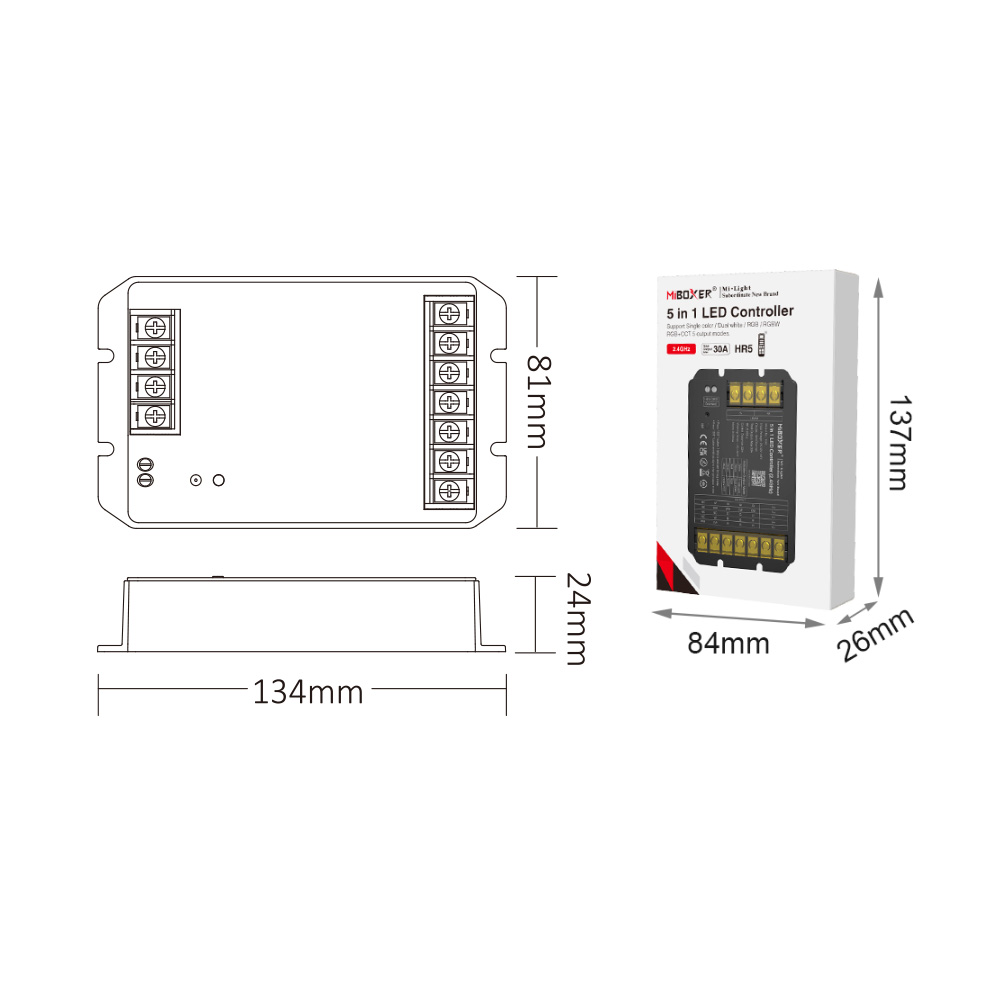

- Size: 134*81*24mm(L*W*H)
- Input Voltage: DC12-48V
- Output: 15A/Channel
- Total Output: Max 30A(Max Output Current Of Each Channel: 15A)
- 16 Million Colors To Choose
- Color Temperature Adjustable
- Dim Brightness/Saturation
- Auto Transmitting & Synchronization
- RF: 2.4G
- Control Distance: ≤30m
- Compatible With MiBore RF Remotes: B3, B4, B0, B8, FUT100, FUT089S, FUT089, FUT092, FUT088, FUT096, FUT095, S2W+
- Support Tuya Smart APP Control(2.4G Gateway Needed)
- Support Third Party Voice Control(Amazon Alexa And Google Assistant)(2.4G Gateway Needed)
- Output Connection: Common Anode
- Support Push Dimming

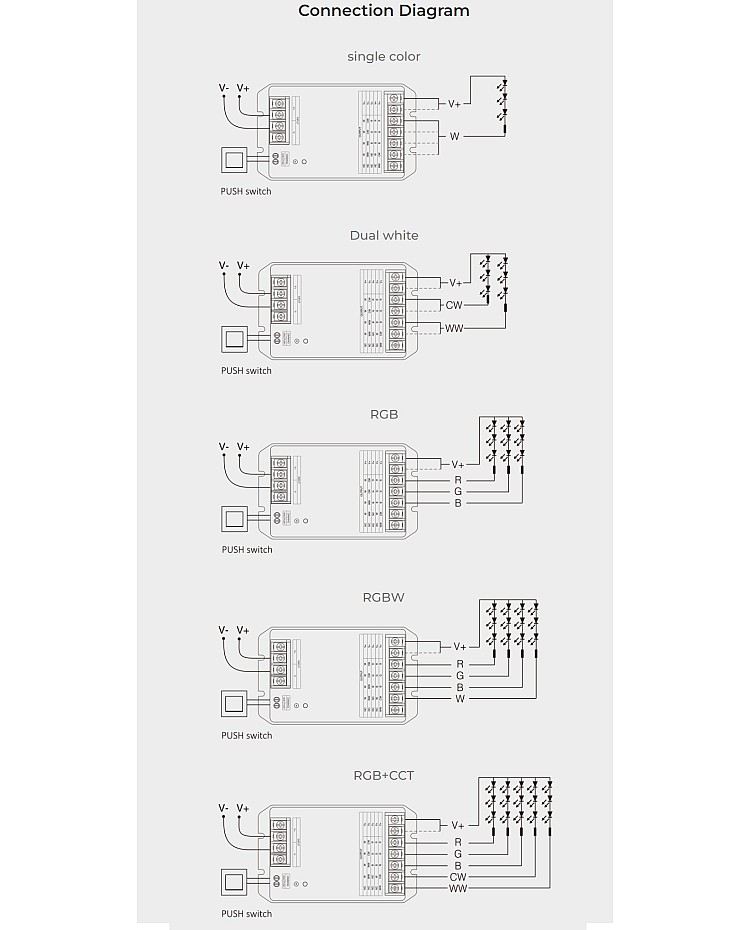

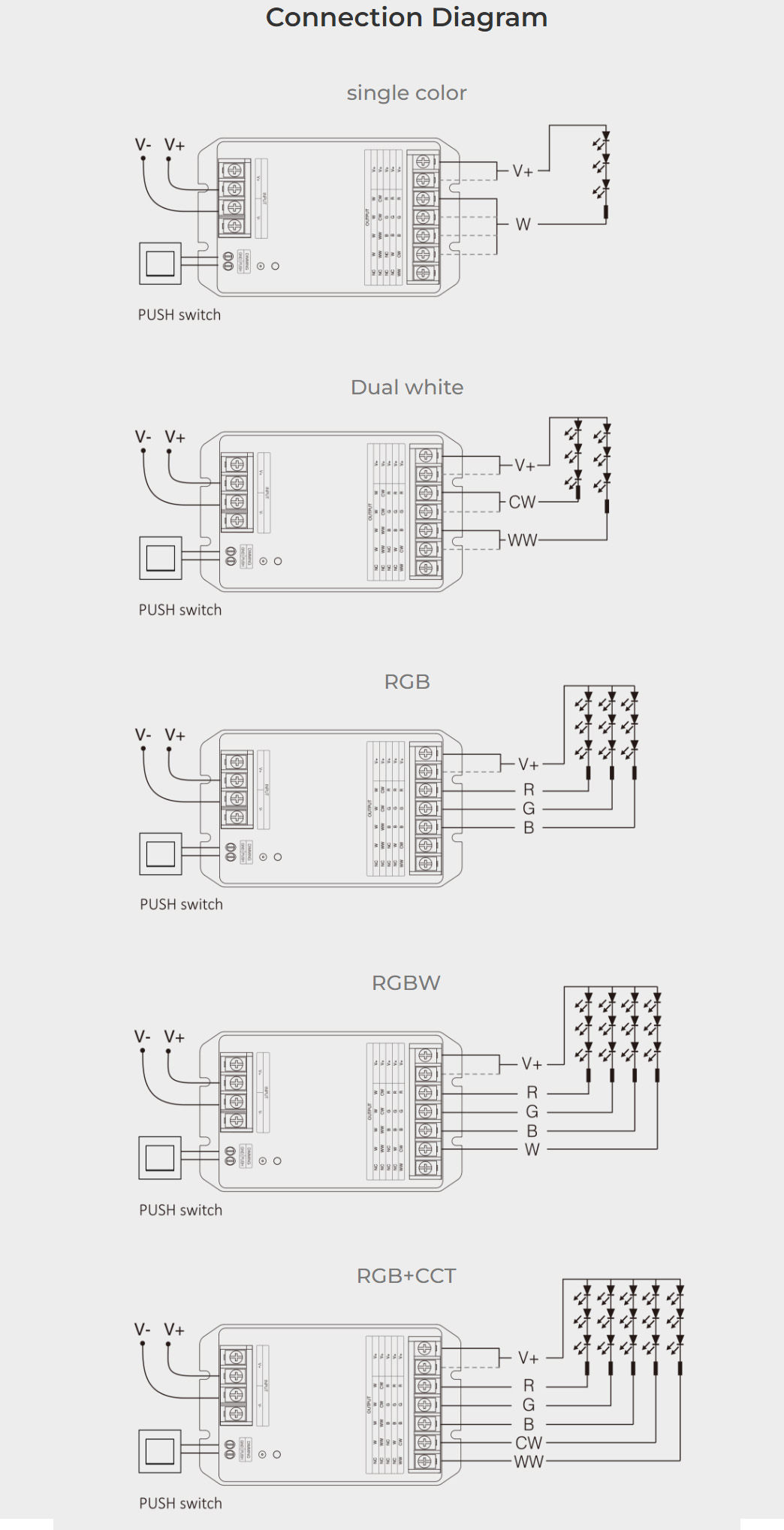

- Switch 5 Output Modes Via One Physical Button(Single Color/Dual White/RGB/RGBW/RGB+CCT)
- DMX Control(Only 5 Channel Output, And FUTD01 Signal Transmitter Needed)
- IP Rate: IP20 Non-waterproof
- Working Temperature: -10-40℃
- 2 Years Warranty

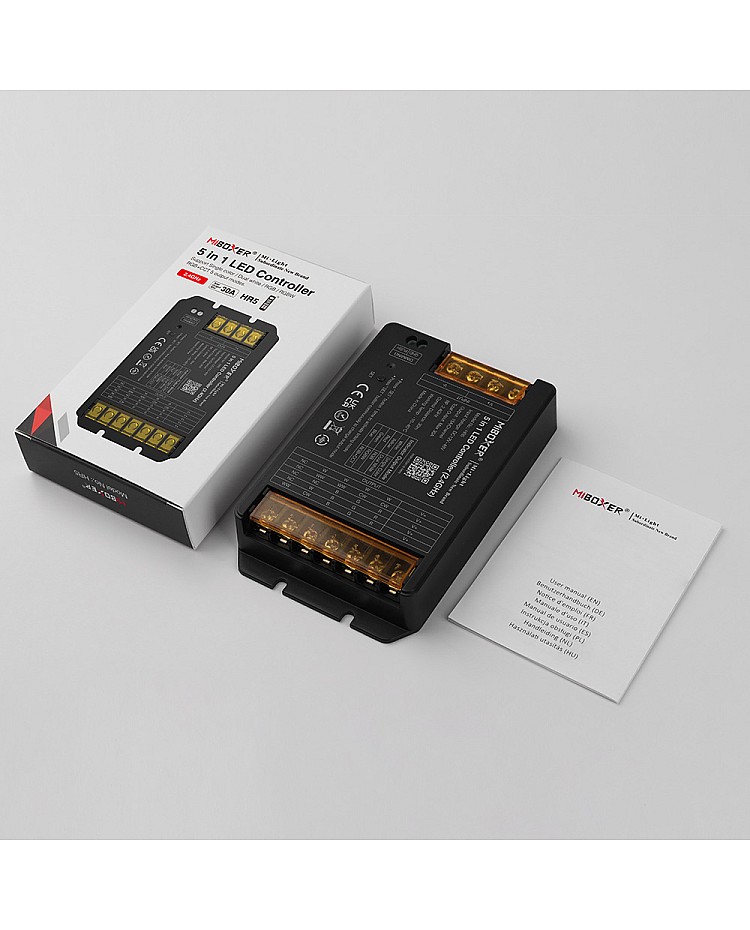

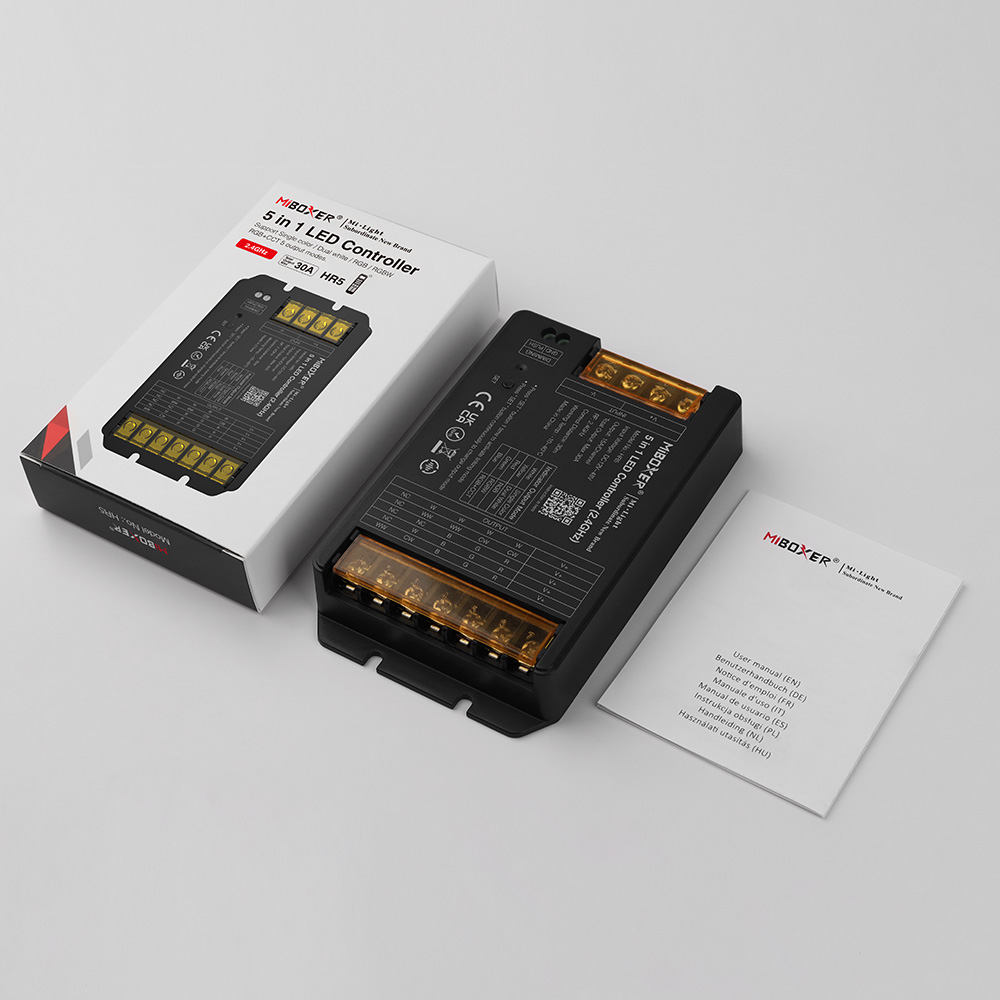

Includes:
1*HR5 30A Lighting Controller
