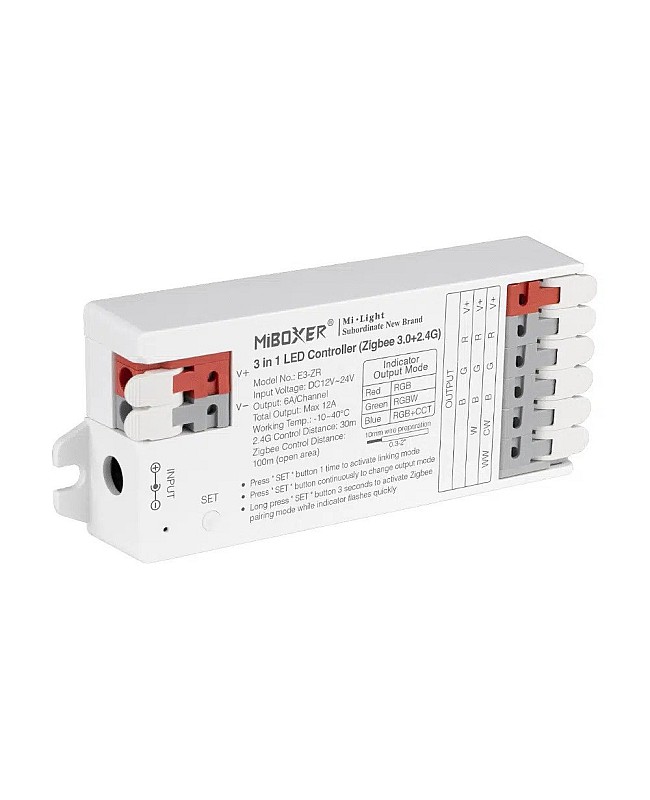

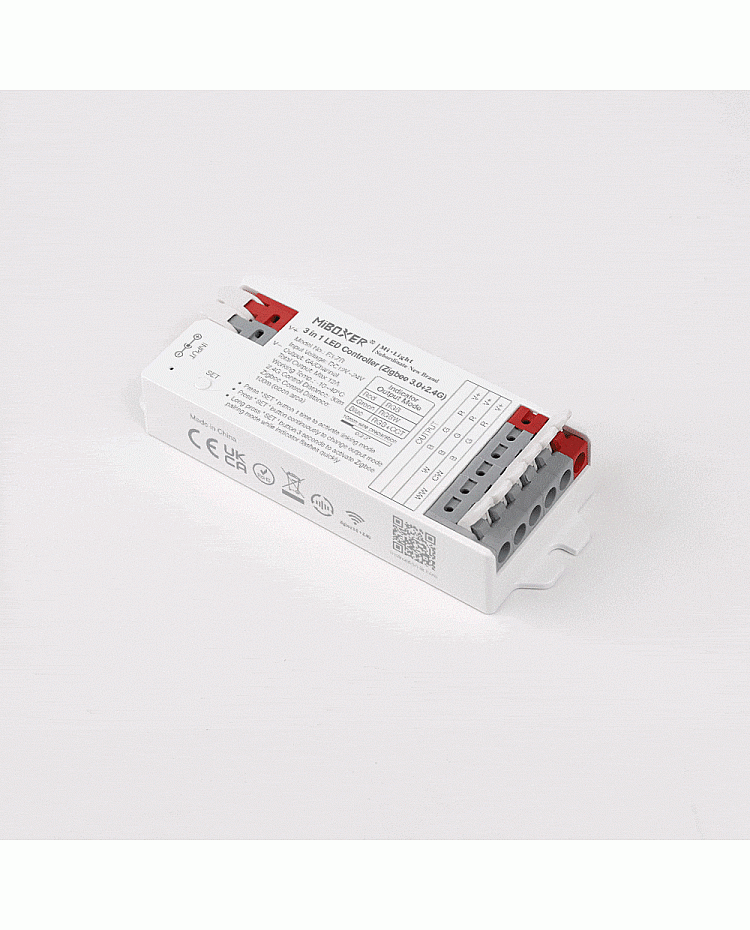

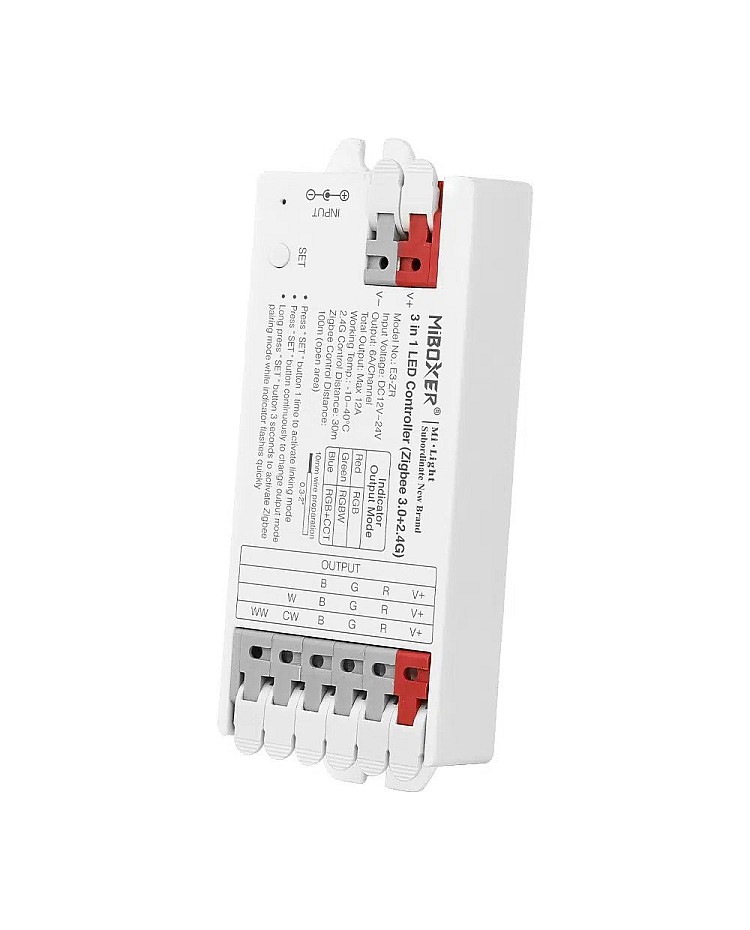

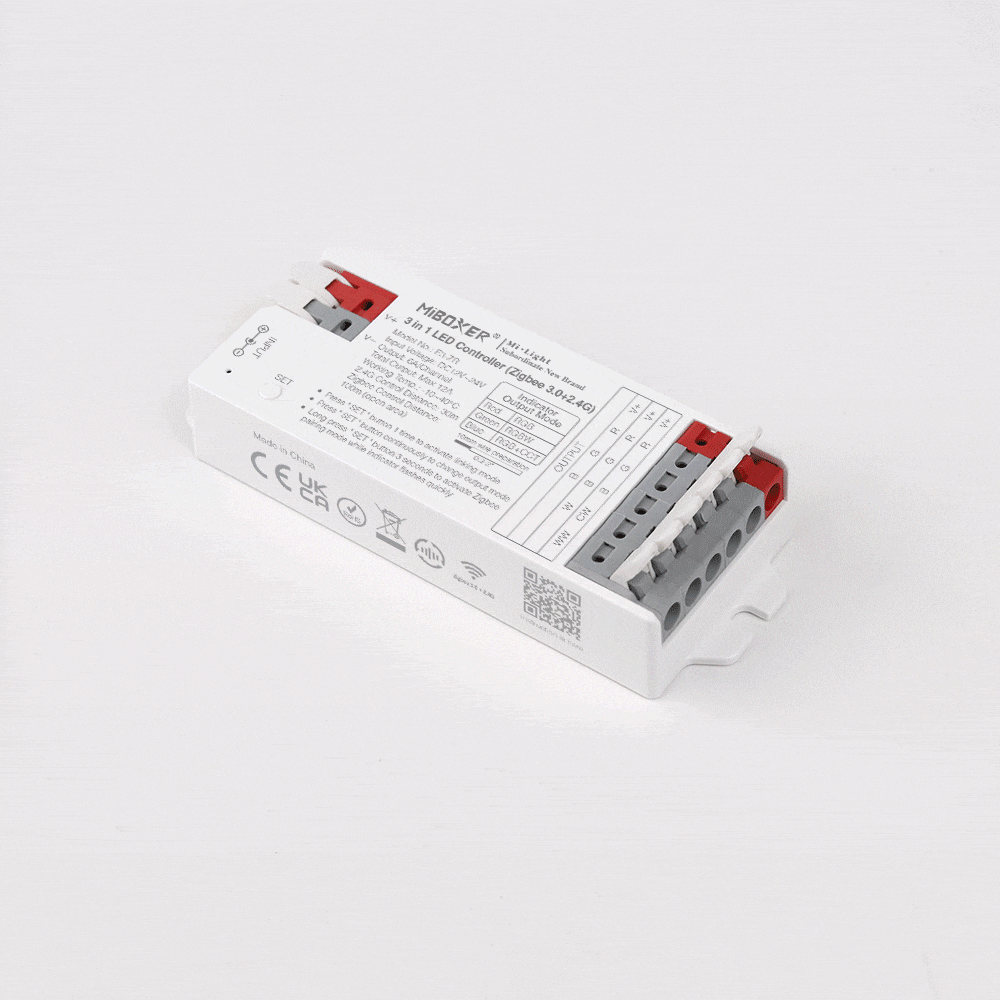

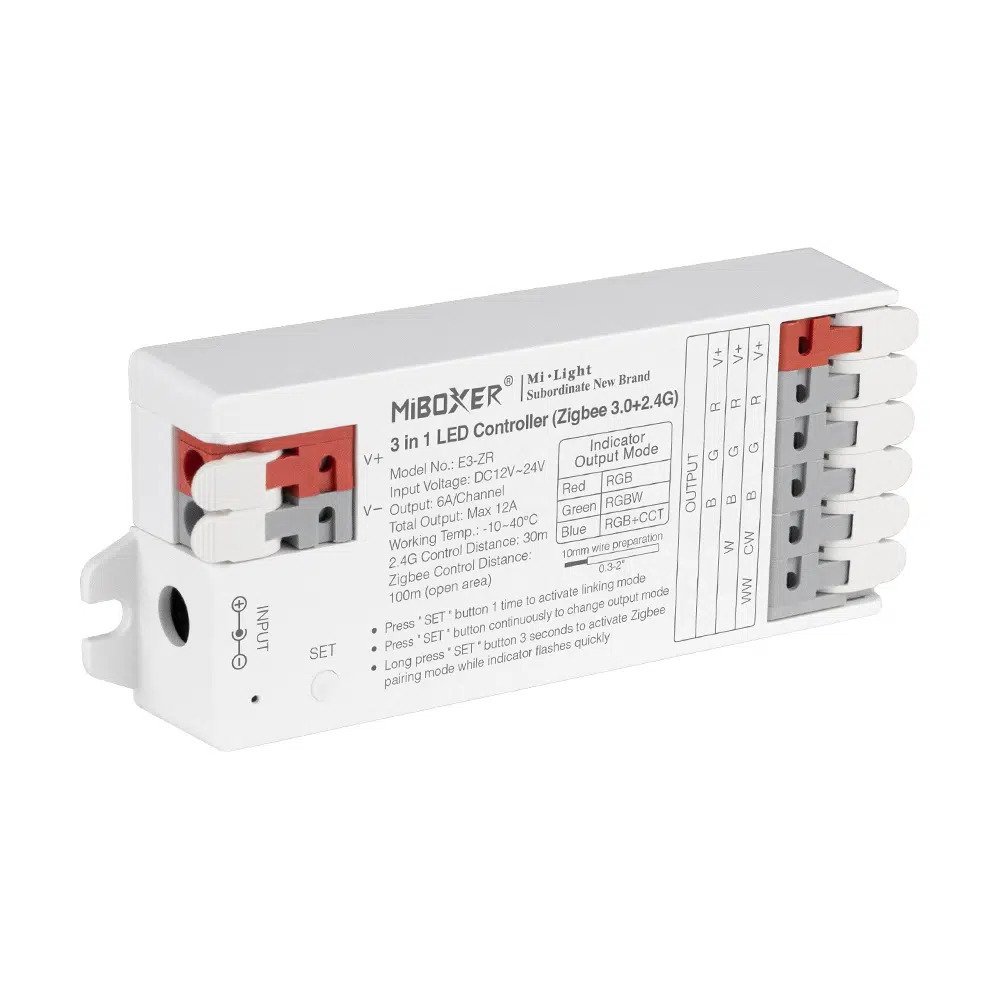

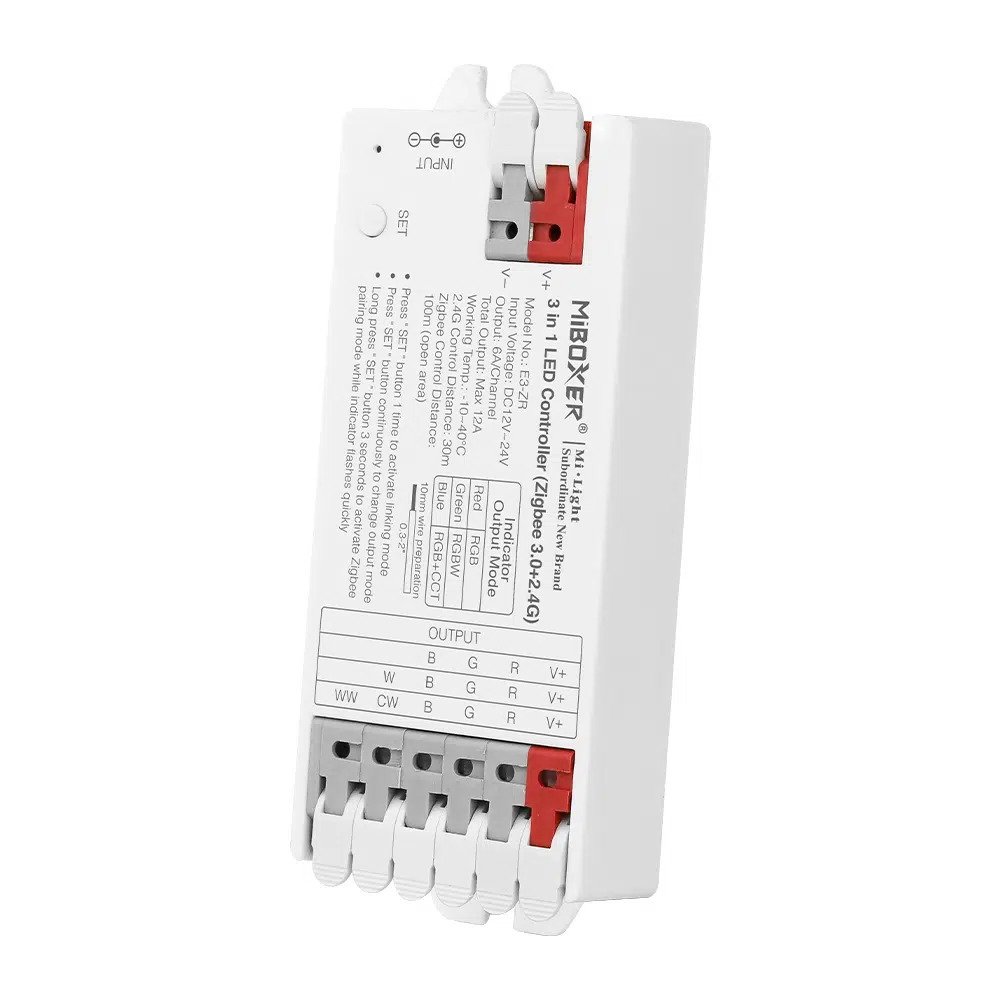

The MiBoxer E3-ZR Zigbee Light Strip Controllers with 3 in 1 design for RGB, RGBW, and RGB+CCT LED Lights. It adopts a 2.4GHz communication module and can be controlled by 2.4G RF Remote Controls. And follow Zigbee 3.0 standard protocol, which can be controlled by a smartphone APP and third-party voice commands after pairing to Zigbee Gateways. You can use Remote Control, smartphone APP, and voice commands to choose the color and adjust brightness and color temperature for various scenes. The E3 ZR will receive signals from Remote Control and transmit them to other Controllers within 30 meters, and different controllers can work synchronously. You can download the APP " Tuya Smart " to your smartphone to achieve more functions like scene customization, music rhythm, timing, device sharing, etc. The MiBoxer Zigbee Controller can enter into the other Zigbee Gateways like Philips Hue, IKEA TRADFRI, and Amazon Echo series. The Zigbee Controller with tool-free instant wiring design is super easy to connect to Power Supply and LED Lights without any necessary tools.
Features:
- Type: 3 In 1 Zigbee Light Controller
- Model: E3-ZR
- Size: 100.6*40*17.6mm(L*W*H)
- Input Voltage: DC12-24V
- Output: 6A/Channel
- Total Output Current: 12A Max
- Switching 3 Output Modes(RGB/RGBW/RGB+CCT) Via One Button
- 16 Millon Of Colors To Choose
- Saturation Adjustable
- Color Temperature Adjustable
- Brightness Adjustable
- Compatible With 2.4G RF Remote Controls: FUT100, FUT089S, FUT089, FUT089-B, FUT088, FUT092, FUT092-B, FUT096, FUT096-B, B8, B0, B0-B, B4, B4-B, T4, B3, B3-B, T3, S2-B, S2-W, S2-G, FUTD01
- Auto Signal Transmitting And Modes Synchronization
- Communication Protocol: Zigbee 3.0 + 2.4GHz
- Control Distance: Zigbee≤100m(Open Area); 2.4G RF≤30m
- Wireless Technology: Zigbee 802.15.4
- Wireless Frequency: 2.400-2.480GHz
- High Frequency(16KHz) / Low Frequency(250Hz) Can Be Switched
- Tuya Smart APP Control(Zigbee 3.0 Gateway Needed)
- Support Third-party Voice Control: Amazon Alexa And Google Assistant(Zigbee Gateway Needed)
- Support DMX512 Controllable
- Two Power Interfaces: Wiring Ports, DC5.5*2.1mm
- Instant Wiring Tool-free
- IP Rate: IP20 Non-waterproof
- Working Temperature: -10-40℃
- 2 Years Warranty
Includes:
1*E3 ZR Zigbee Light Controller
1*User Manual
