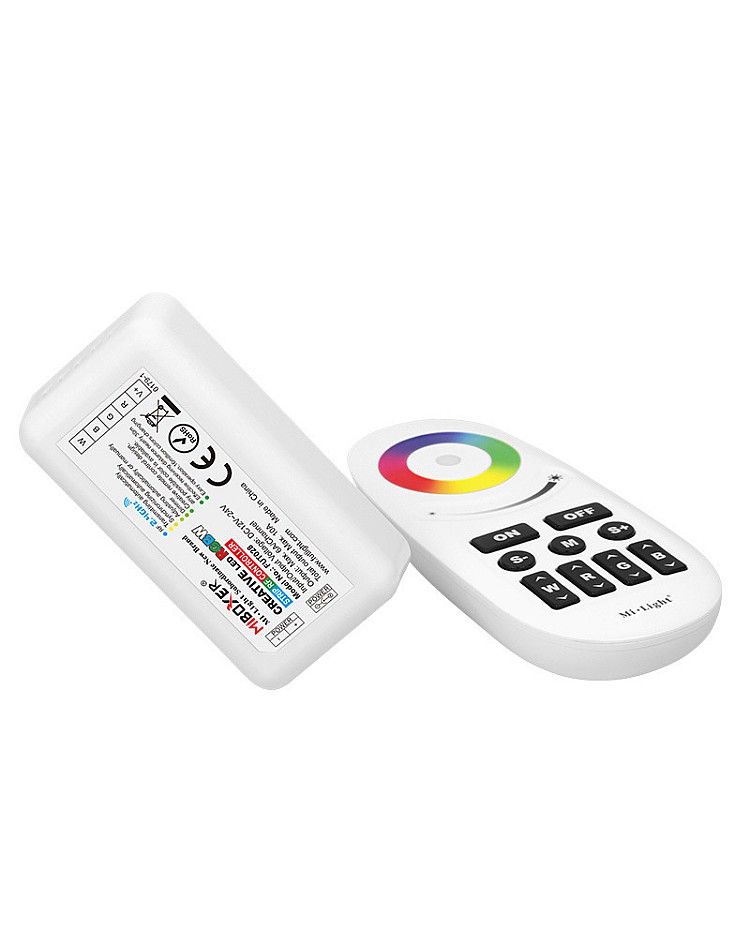

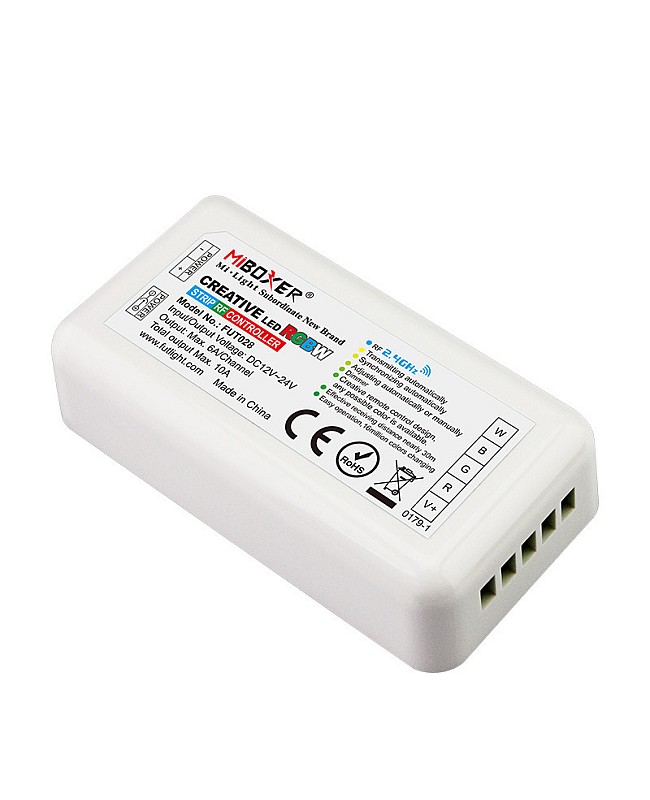

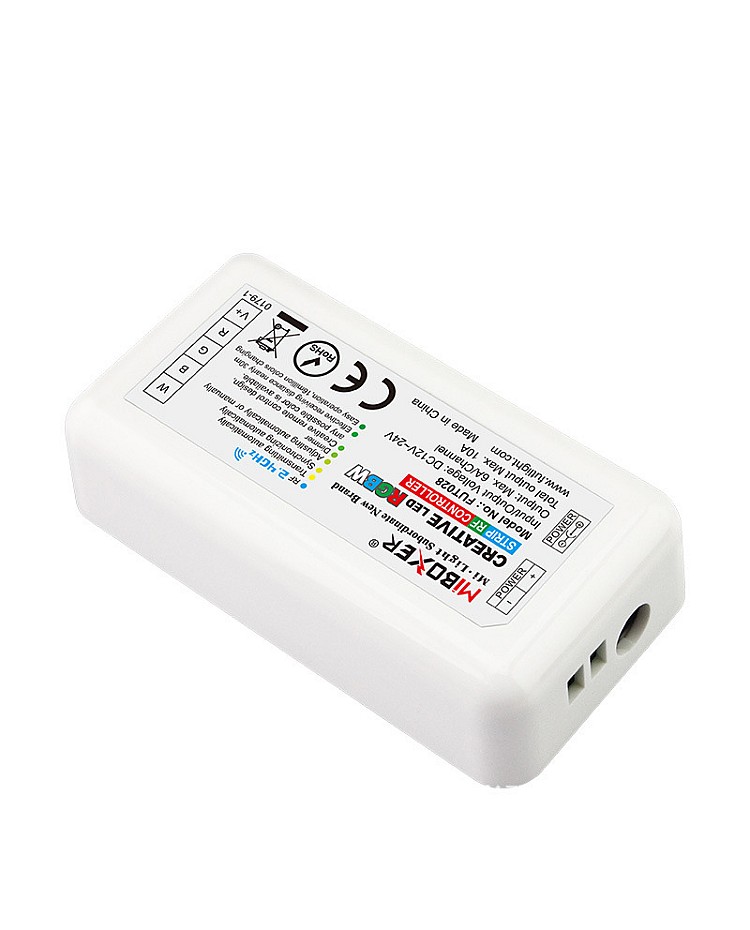

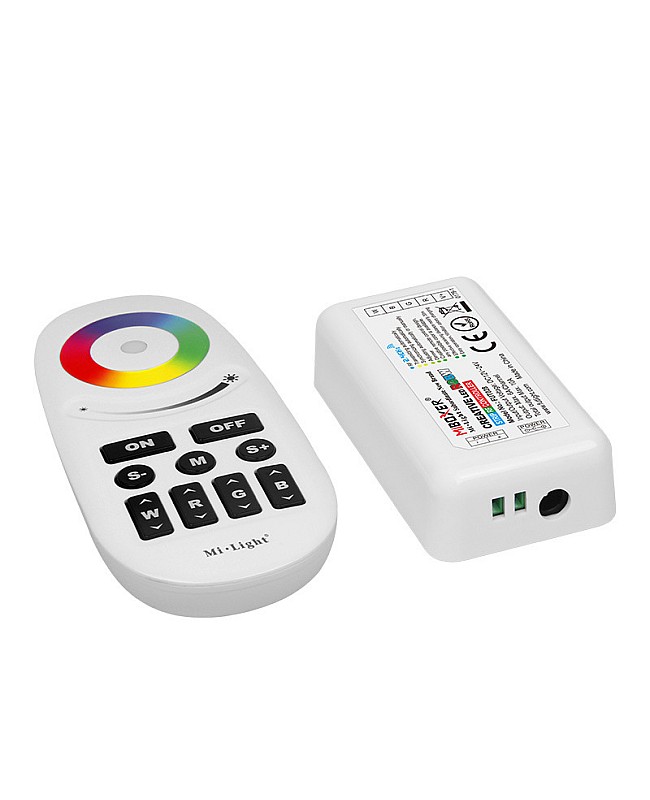

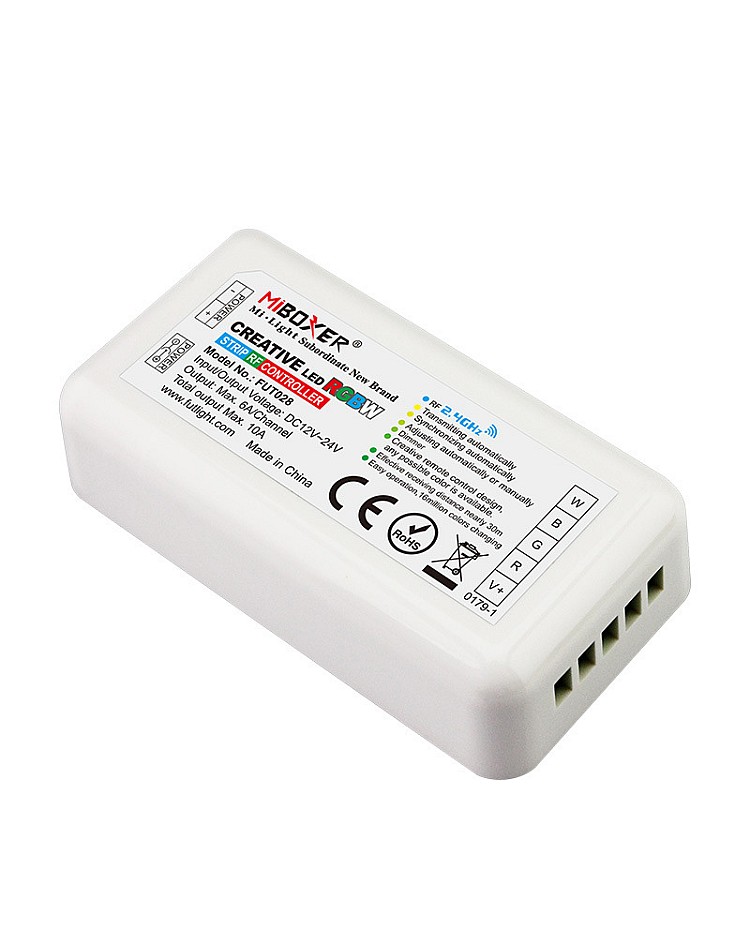

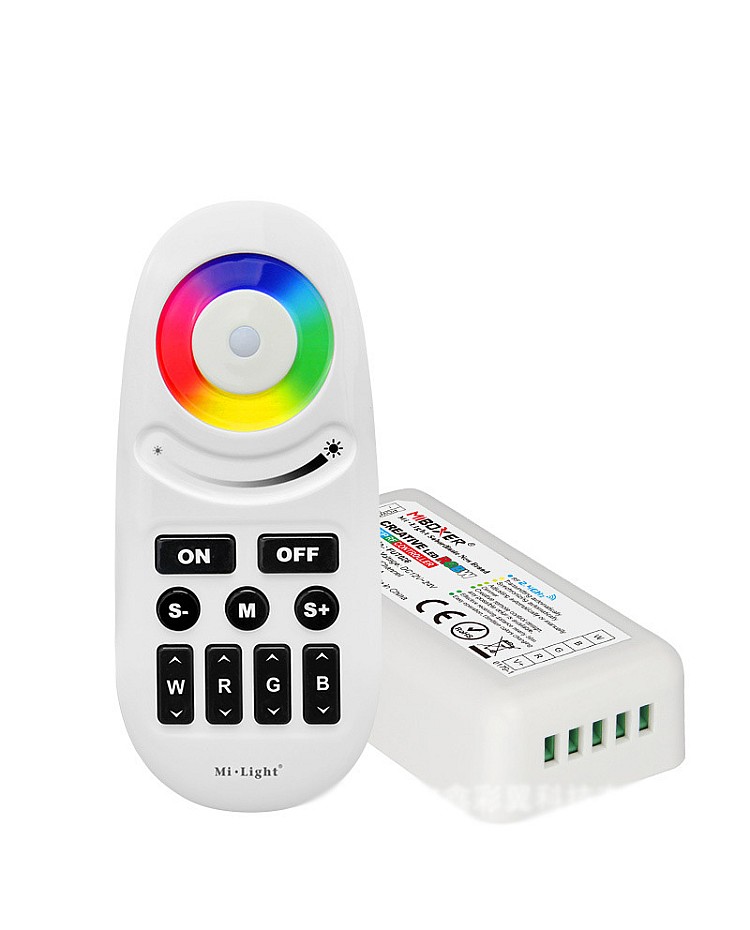

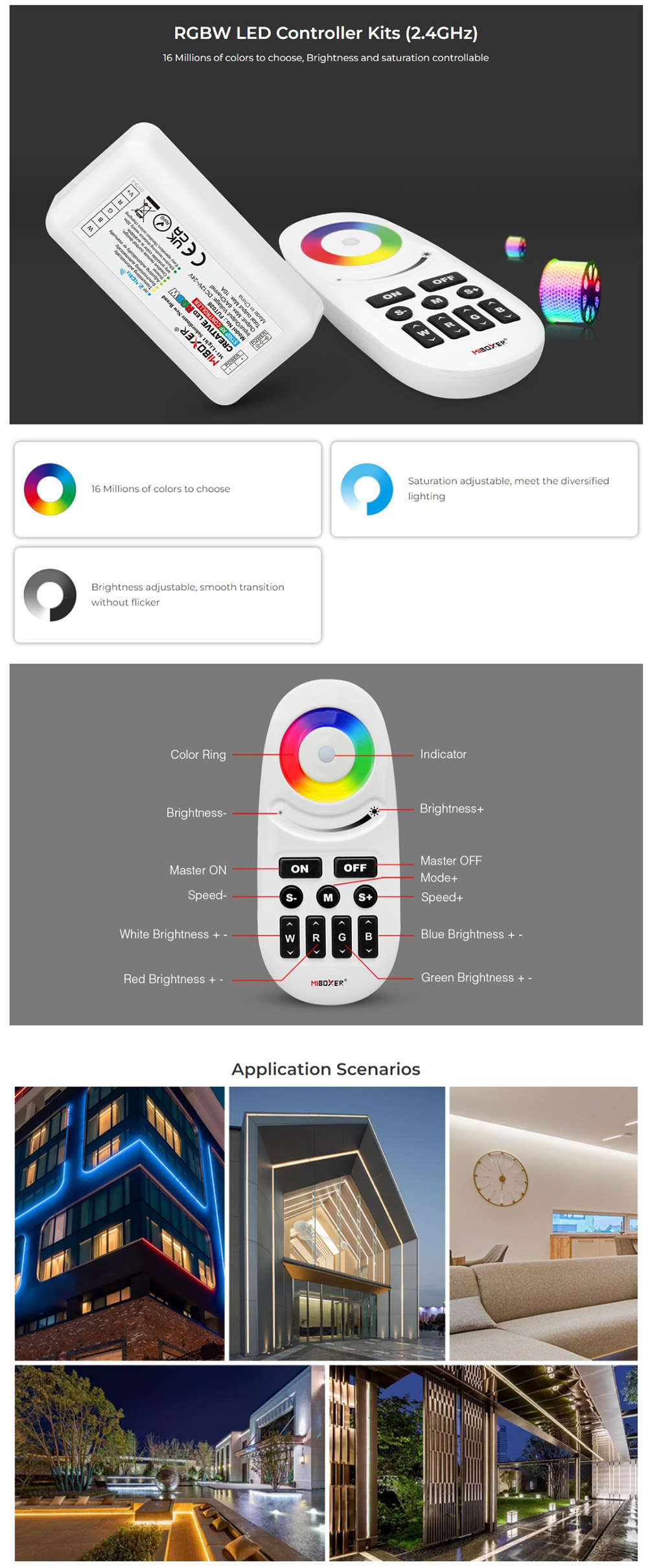

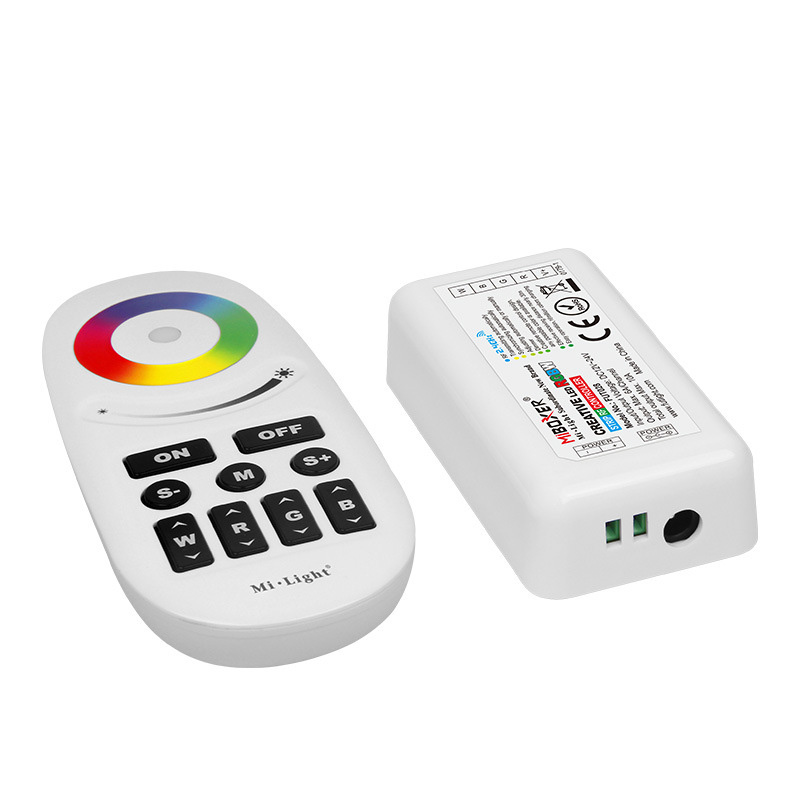

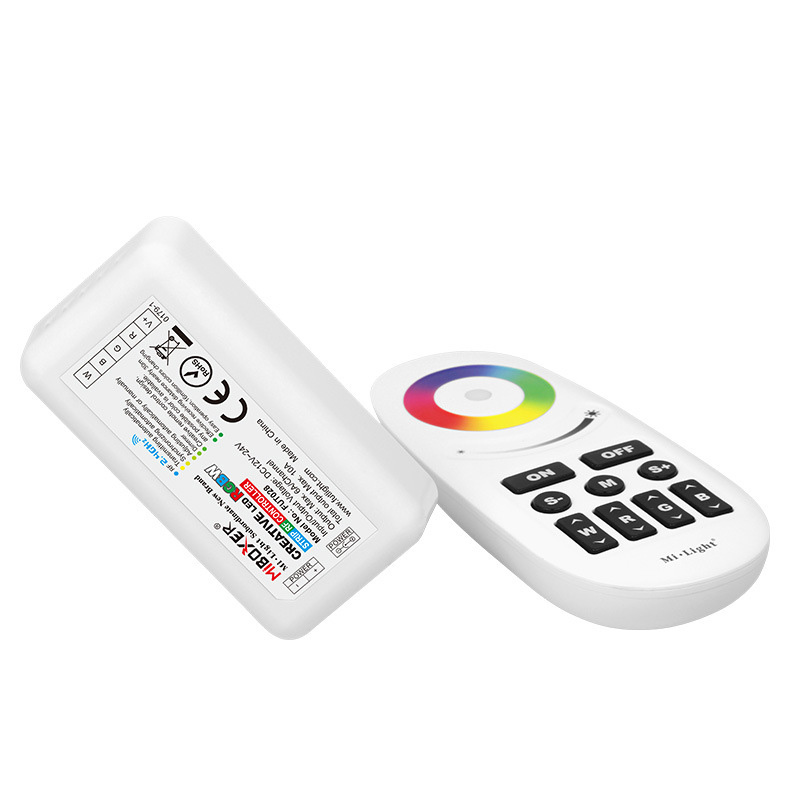

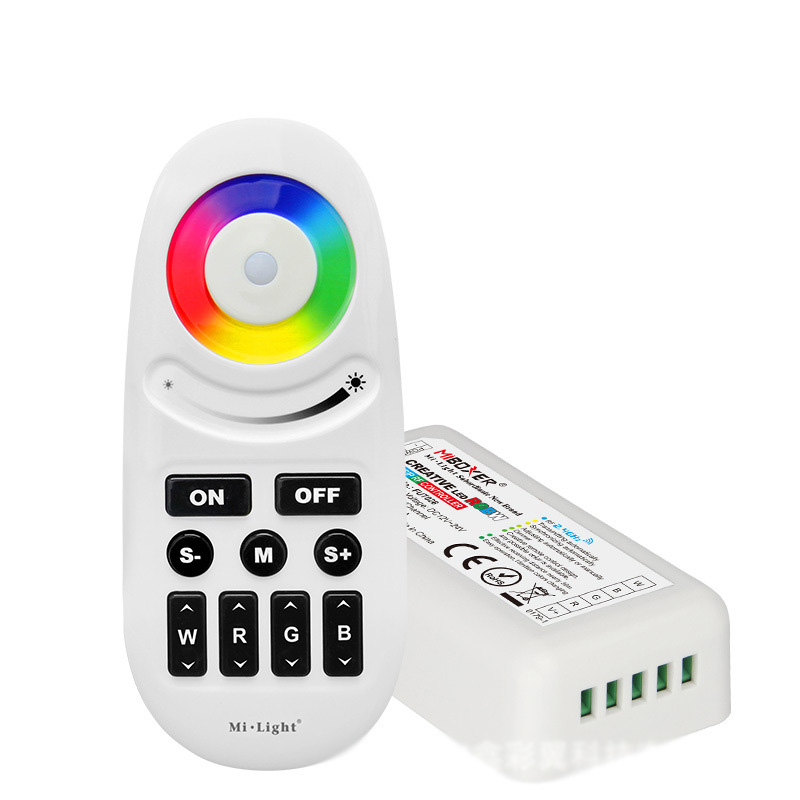

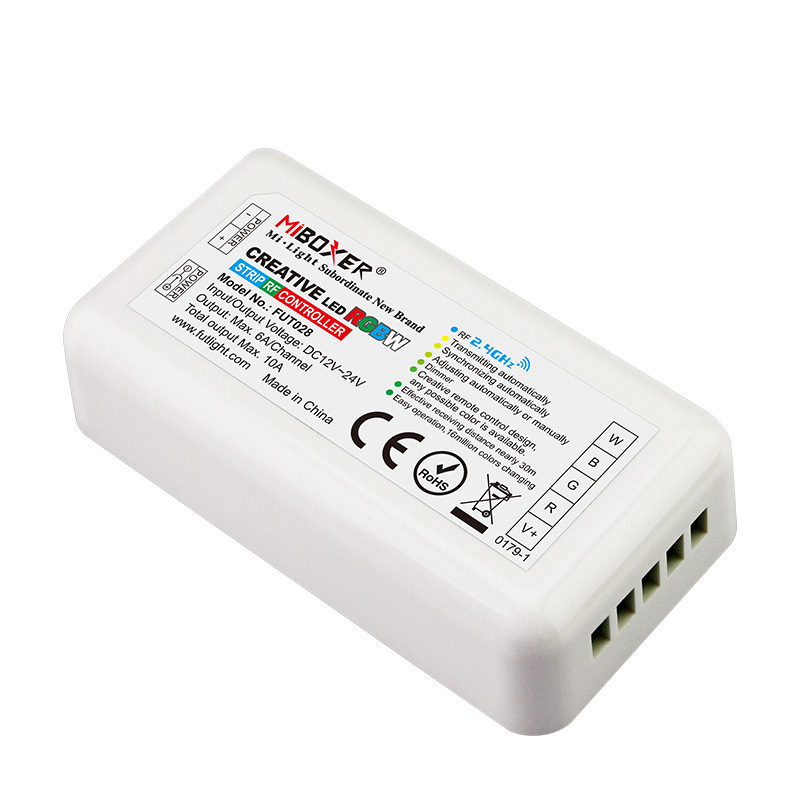

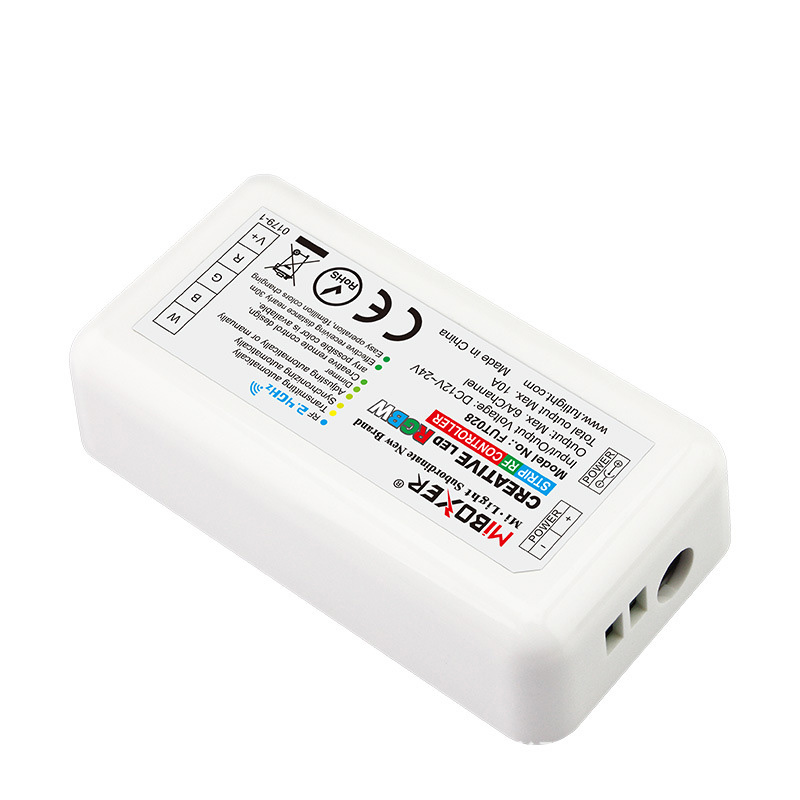

The MiBoxer FUT028 RGBW remote controller can control RGBW light fixtures. The 2.4G RF remote is included, works in DC12V or DC24V, the max output current is 10A, and with 5 5-channel output design, you can use it for the RGB+W LED lights. The RF remote can set the static color or dynamic mode. There are 16 million colors and nine dynamic modes available. You can adjust the brightness and speed conveniently. The wireless remote has a color ring and a dimming slider. You can touch them to set the color and adjust the brightness conveniently. There are 9 physical buttons, and you can use them to turn ON/OFF the LED light, set the working mode, and adjust the speed of the dynamic mode. There are four buttons on the bottom, and you can press them to adjust the brightness of white, blue, red, and green. The RGBW controller is non-waterproof and only recommended for indoor lighting applications.
Specifications:
- Control Size: 85*45*22.5mm(L*W*H)
- Remote Size: 120*52.5*21mm(L*W*H)
- Working Voltage: DC12-24V
- Output Max: 6A/Channel
- Total Output Max: 10A
- 16 Million Colors Available
- 9 Dynamic Modes Available
- Brightness Of Static Color And Speed Of Dynamic Mode Adjustable
- Control Distance: ≤30m
- Connection Method: Common Anode
- Automatic Signal Transmission
- Automatic Group Synchronization
- Signal Modulation: GFSK
- IP Rating: IP20 Non-Waterproof
- Working Temperature: -20-60℃
- 2 Years Warranty
Includes:
1 * RGBW Remote LED Controller With RF Remote Control
1 * User Manual
