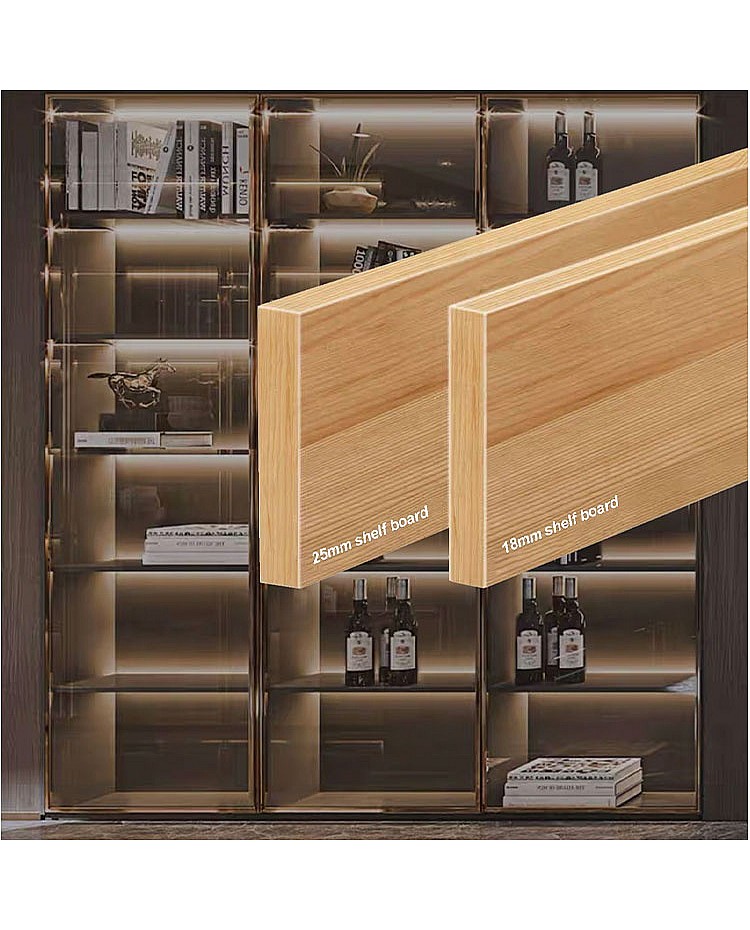

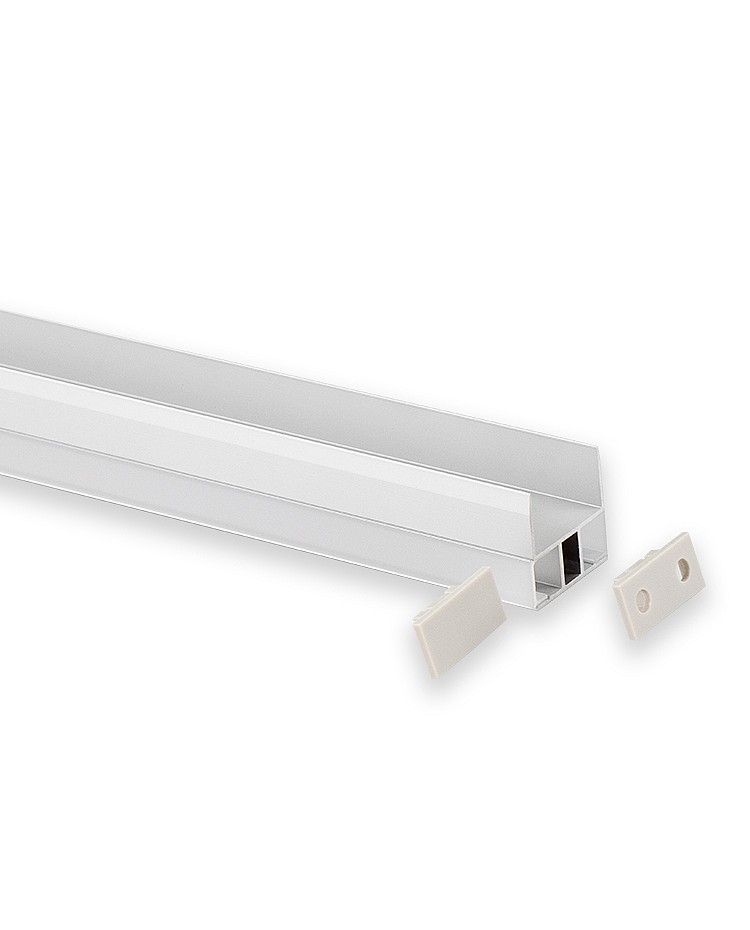

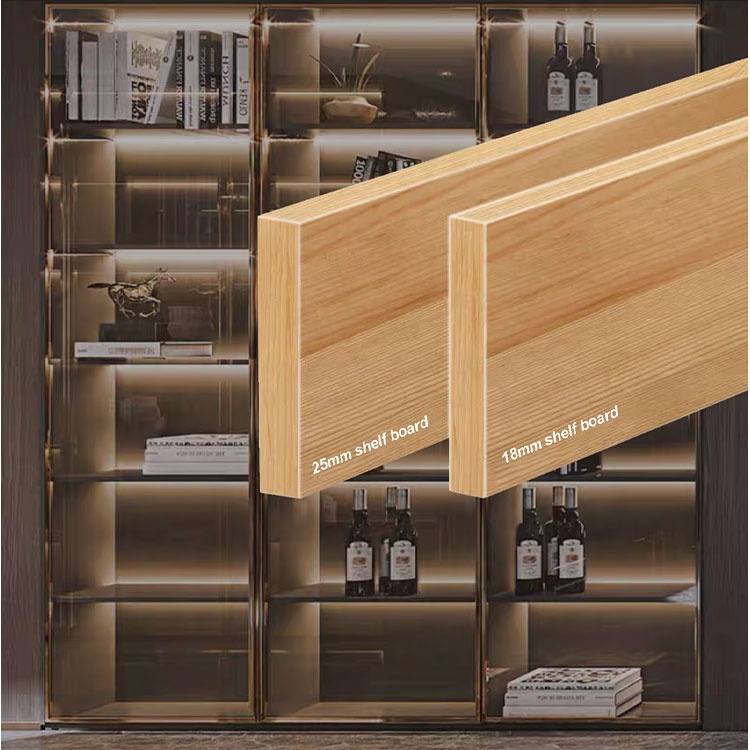

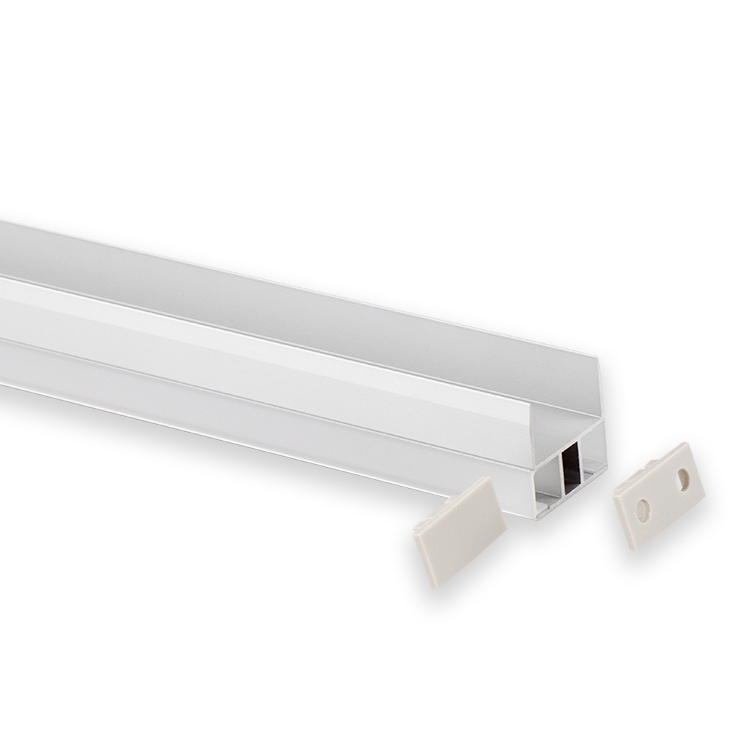

The strip light housings are designed to add LED light to shelves and can be recessed into the 25mm shelf board, offering dual-direction lighting for both functionality and style. They will provide balanced illumination: downward light for tasks and upward lighting for ambient or accent effects. Perfect for kitchen cabinets, display cases, bookshelves, wine cabinets, and more. The LED housings are made of 6063-T5 aluminum material with an anodized surface treatment, anti-oxidation resistance, and a longer lifespan. The standard lengths are 1 m and 2 m, and can be cut to any size for your project. Only one type of diffuser is available: the PC diffused cover, which is made of imported brand material and is anti-yellowing, with perfect lighting distribution, soft light, and even illumination output without hotspots. The inner width is 10 mm and 10.5 mm, allowing the maximum width of LED strips to be 10mm. The aluminum channels can serve as heat sinks for better heat dissipation. End caps with wire holes and diffused covers are included.
Specifications:

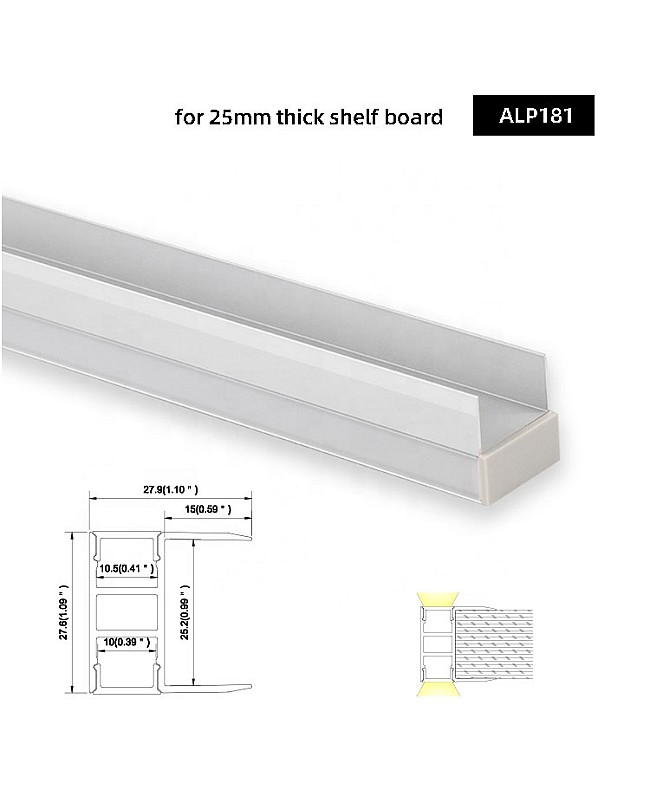

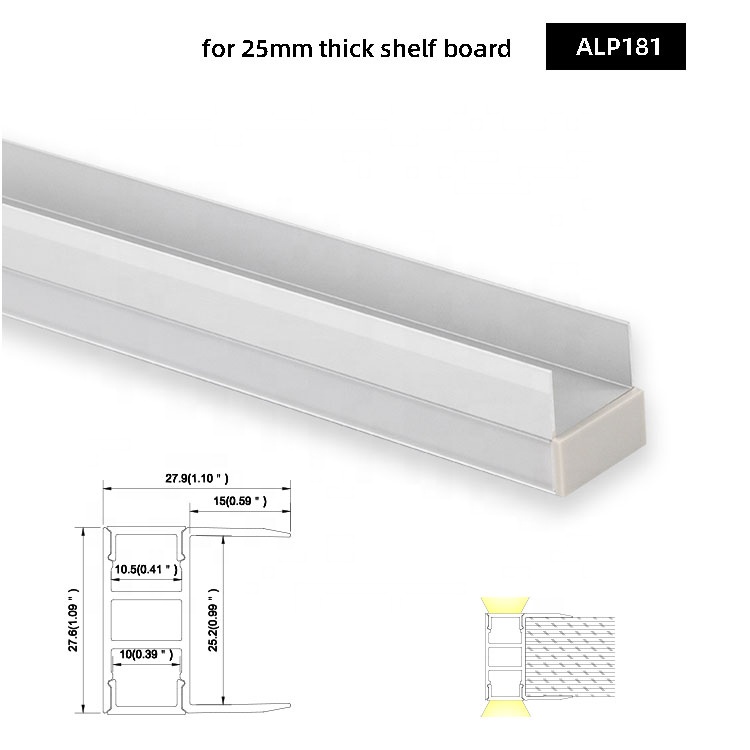

- Model: ALP181
- Material: Extruded aluminum
- Surface treatment: Anodized
- Color: Silver

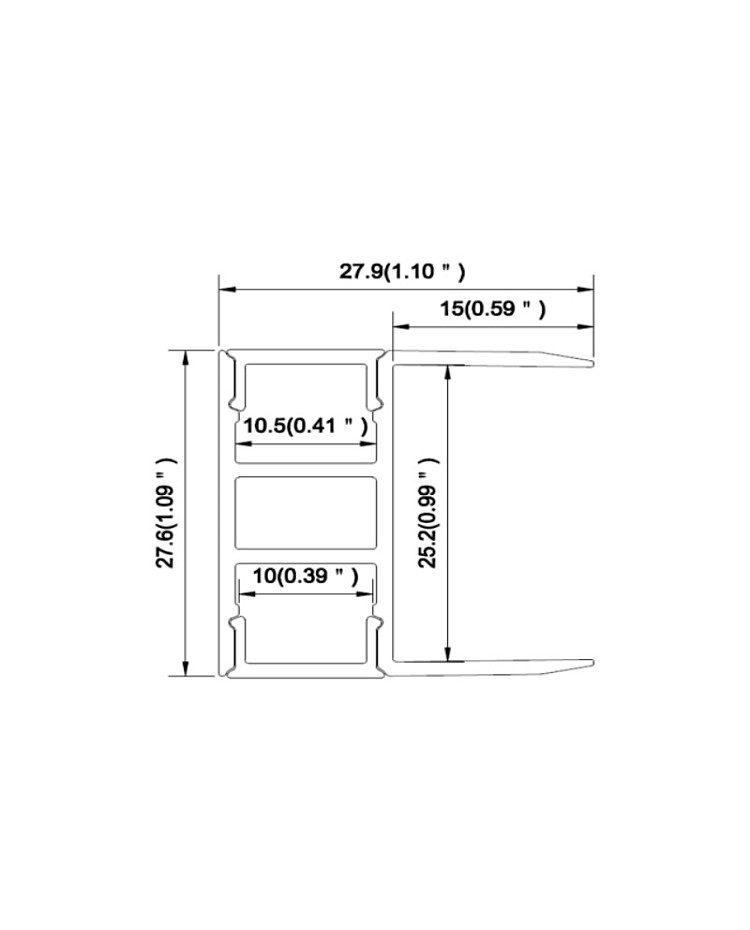

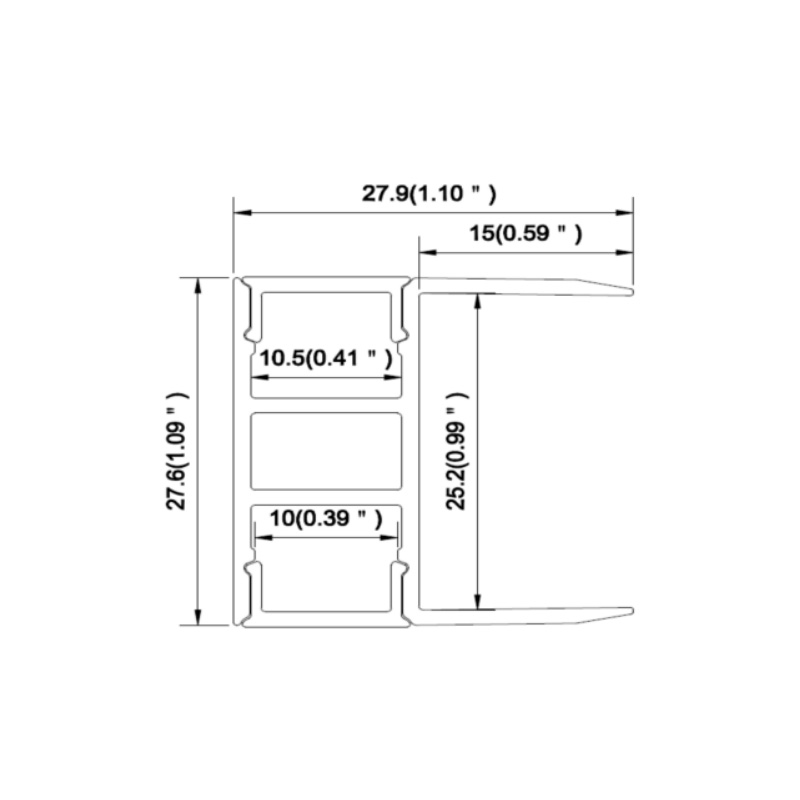

- Size ( W x H ): 27.9 mm x 27.6 mm ( 1.1" x 1.09" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 10 mm ( 0.39" ) and 10.5 mm (0.41" )
- Max width of LED strips: 10 mm ( 0.39" )
- Max power: 24W/m

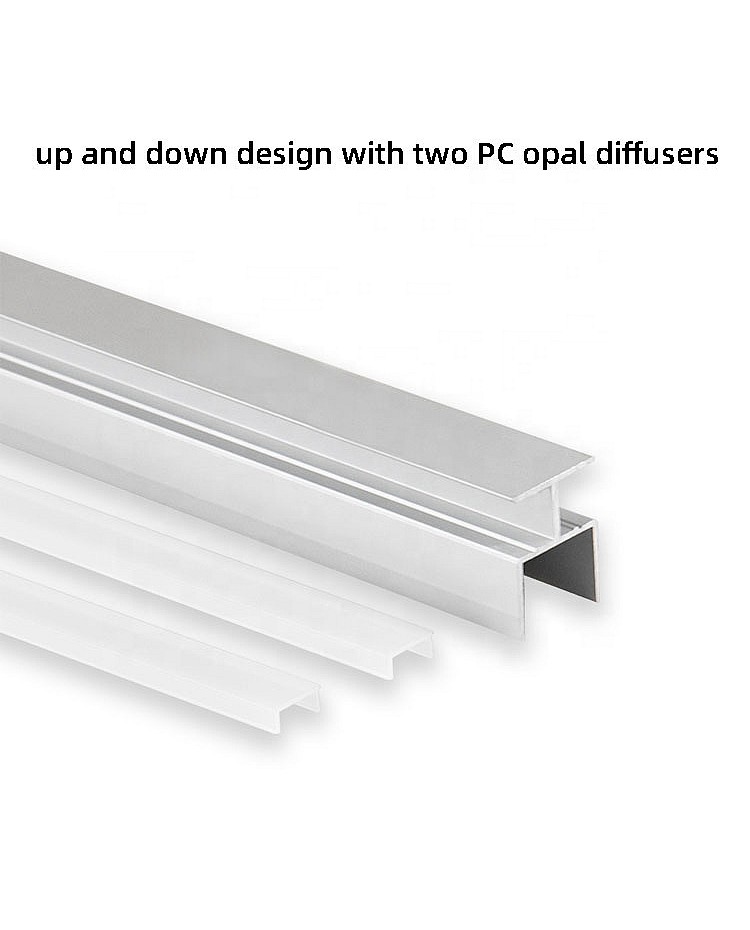

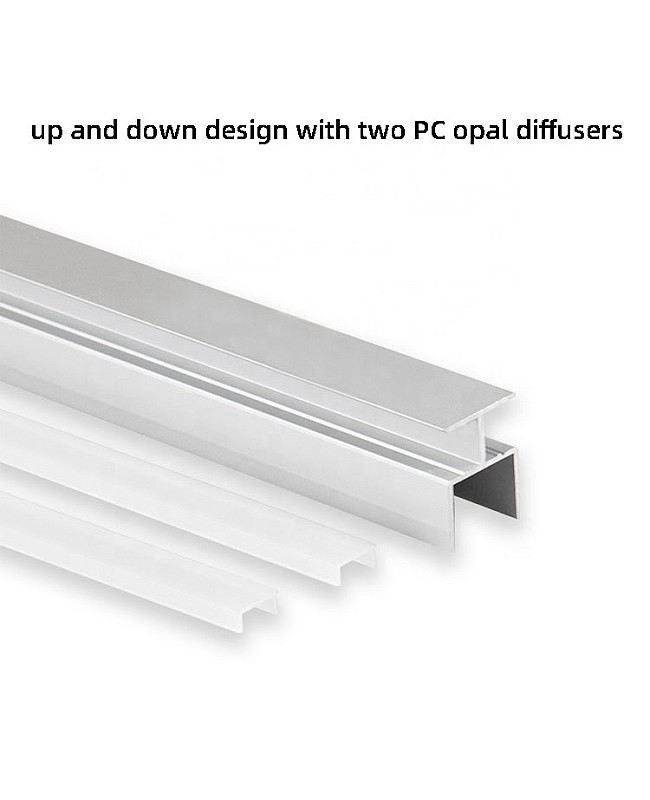

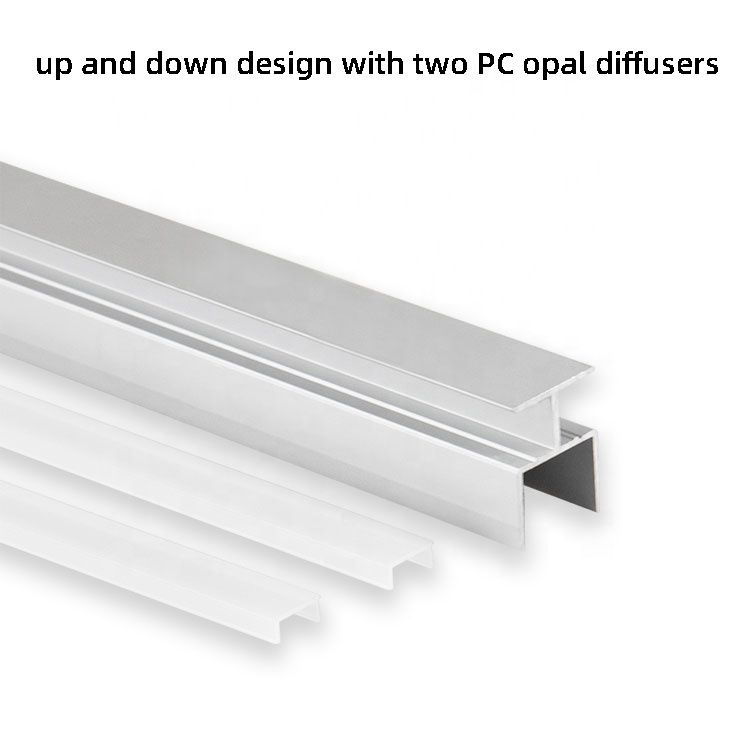

- Diffusers: PC diffused cover
- Beam angle: 100°
- IP rate: IP20 non-waterproof
- Tolerance: ±1%

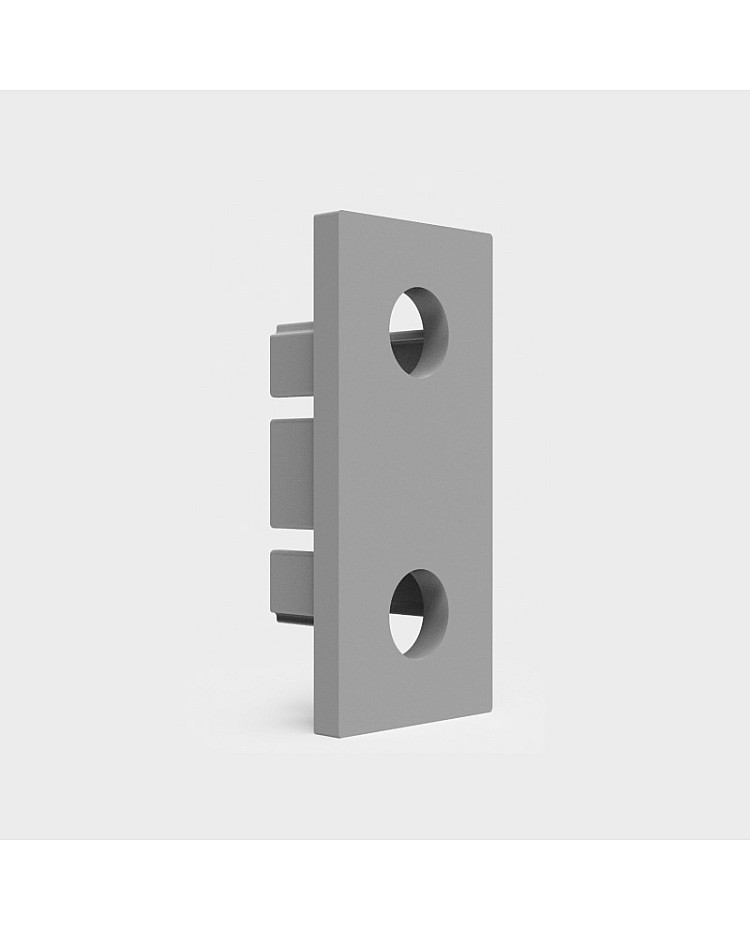

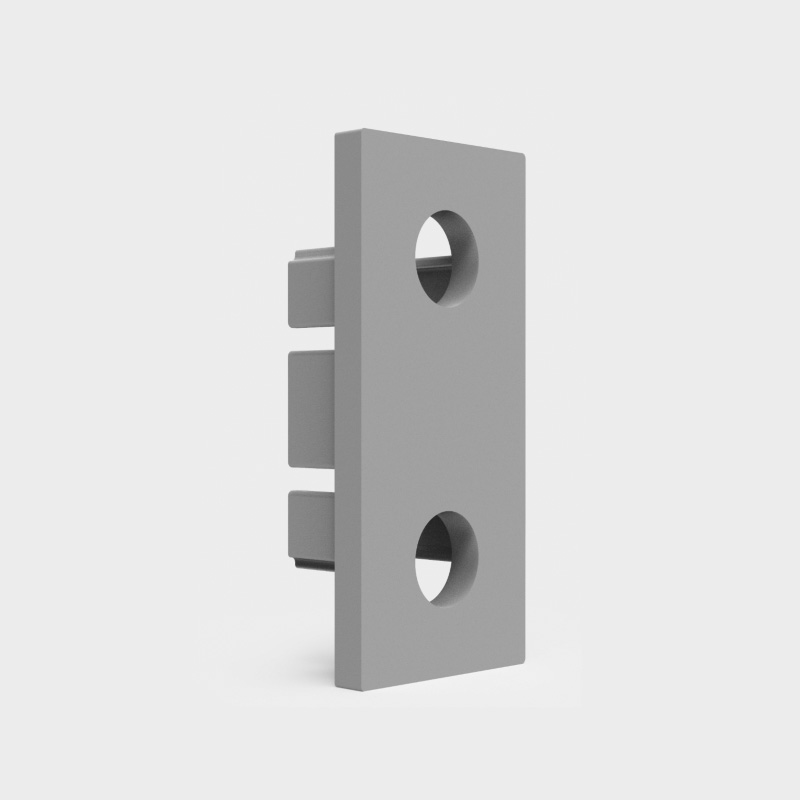

- End caps with and without wire holes are included

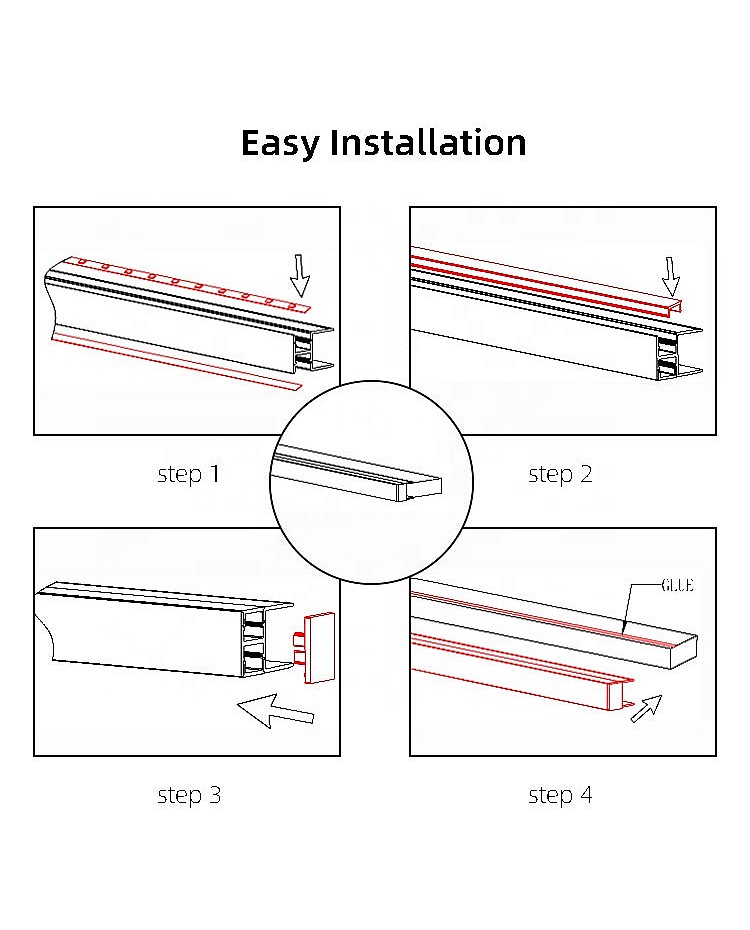

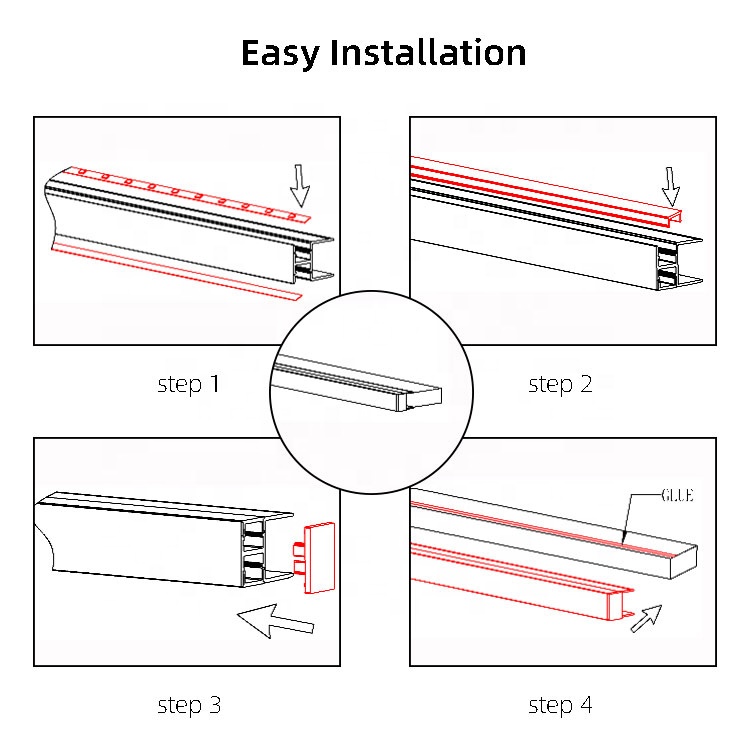

- Installation: Recessed
- Warranty: 5 years
Applications:
- Kitchen cabinets and shelves: Provide downward task lighting for countertops and upward ambient lighting.
- Wardrobes and closets: Illuminate clothing and accessories.
- Bookcases and display units: Highlight books, collectibles, or merchandise.
- Offices and workspace furniture: Adds functional lighting to desks, workstations, and storage shelves.
Includes:
1 * 25mm shelf board LED strip housing
End Caps(With and without wire hole)
