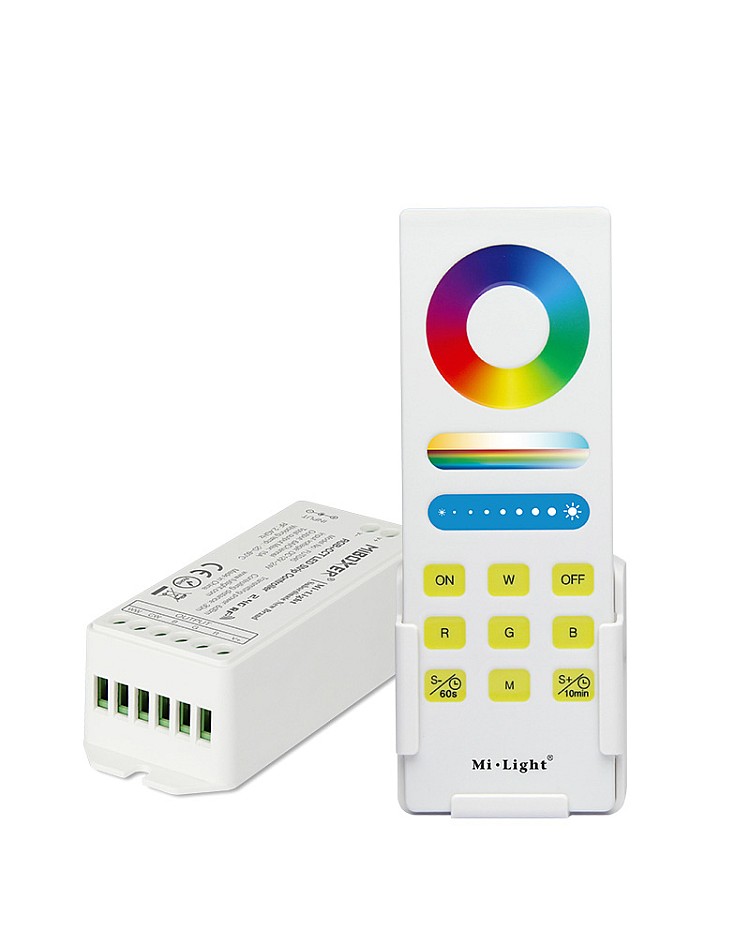

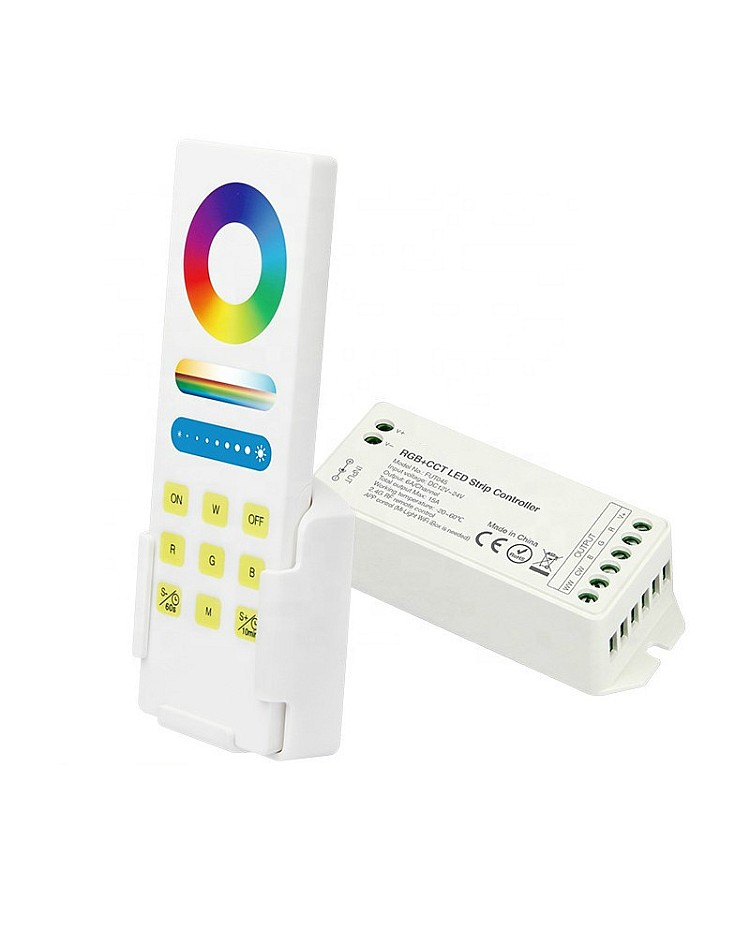

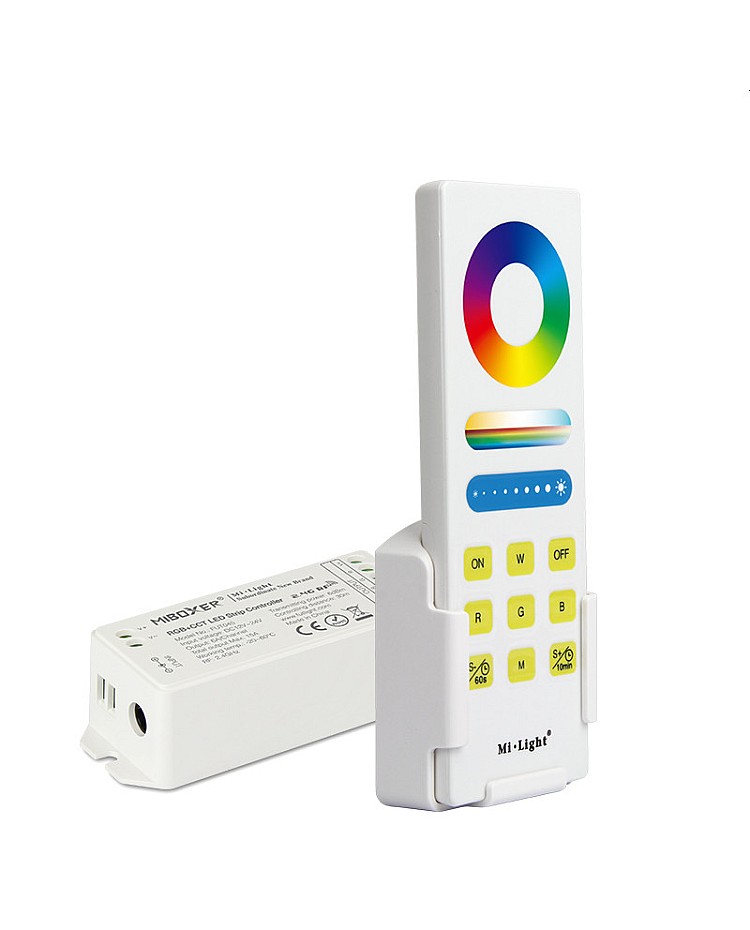

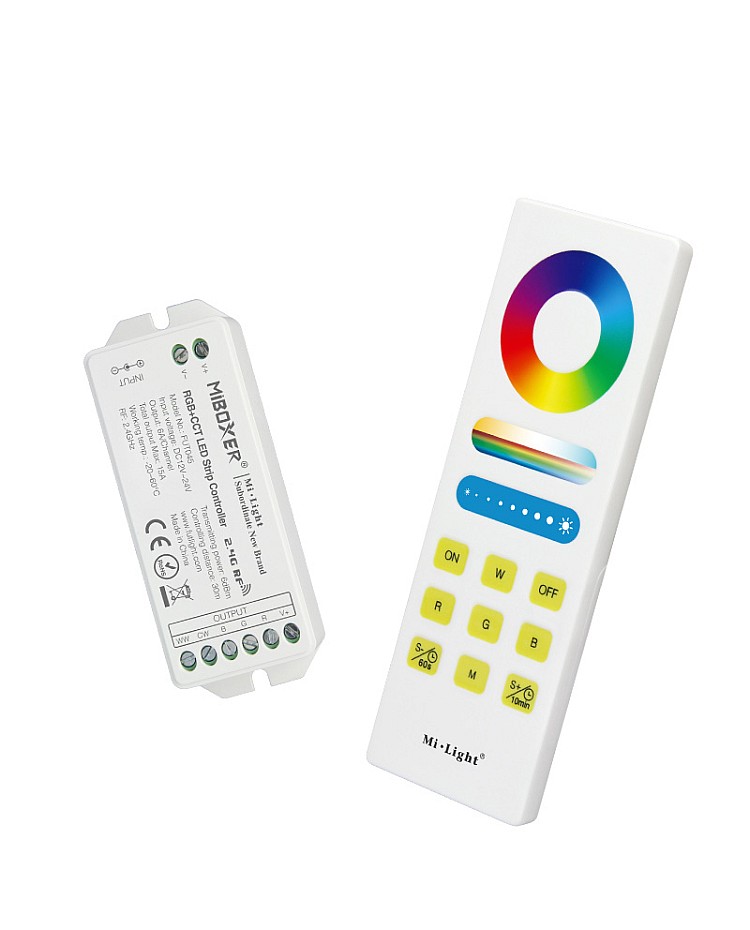

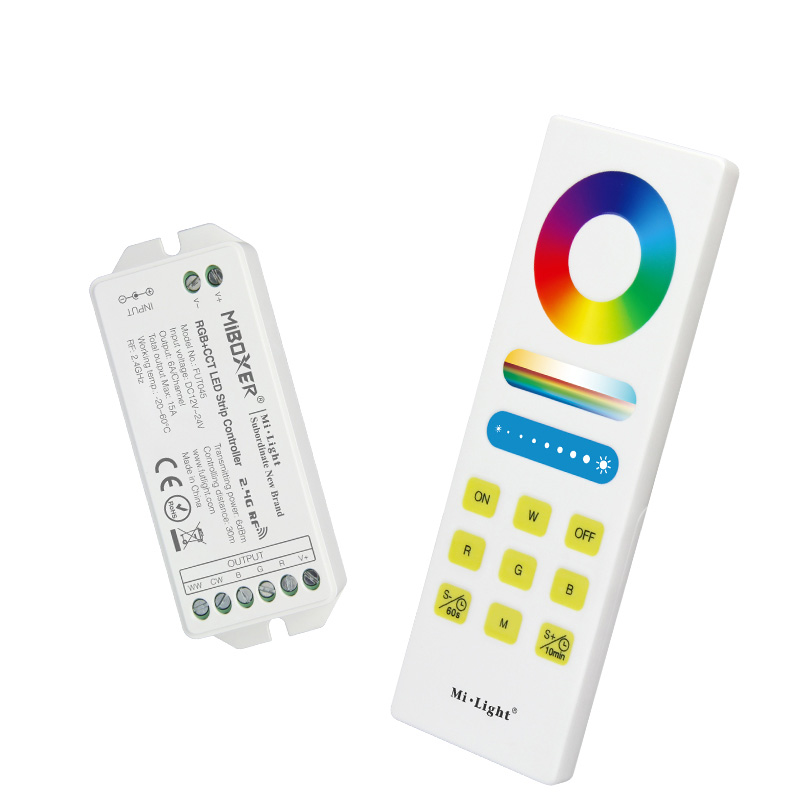

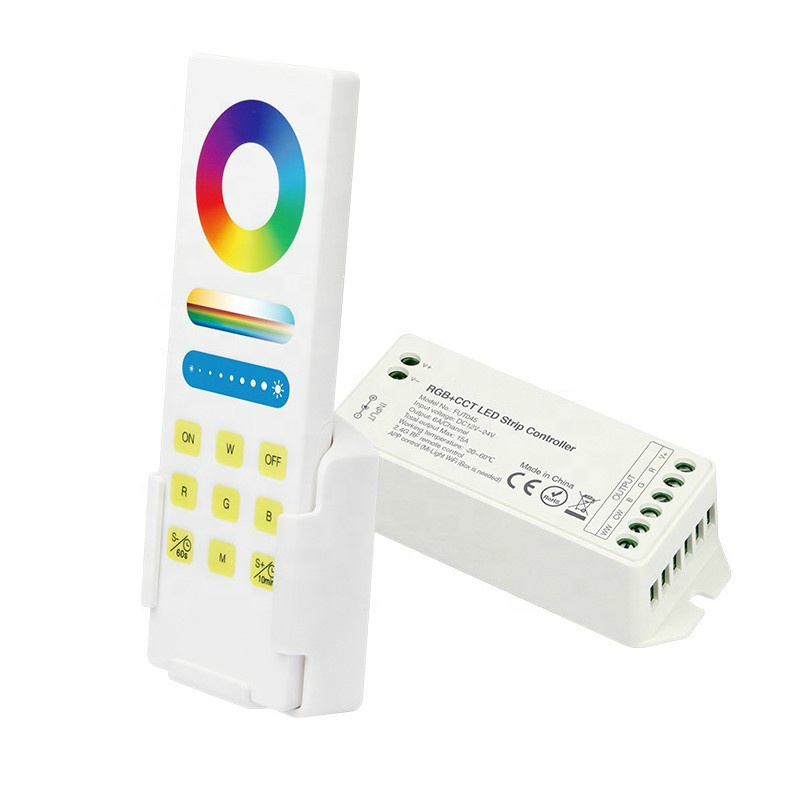

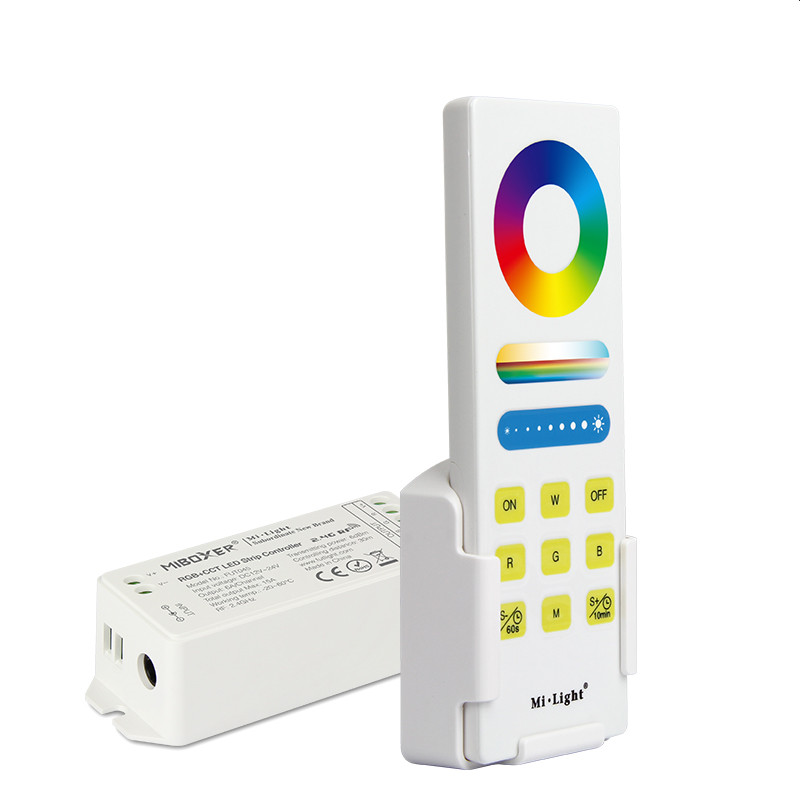

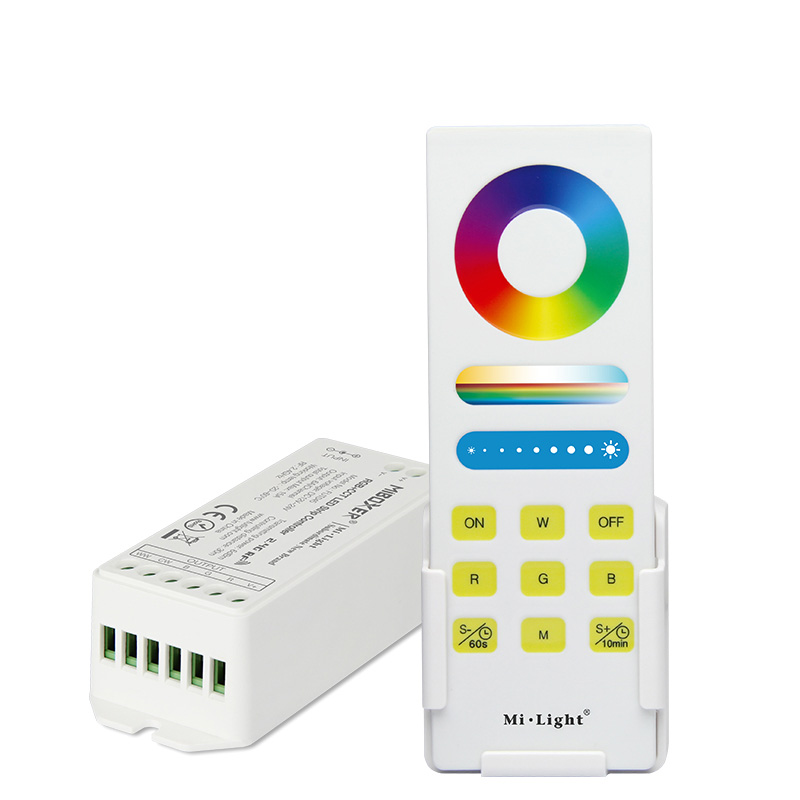

The MiBoxer FUT045A Smart LED controller comes with an RF touch remote designed for the RGB+CCT LED lights. You can use the remote control to set the color, adjust the color saturation, brightness from 0.1% to 100%, and color temperature from 2700K to 6500K for various scenes. The smart controller adopts 2.4G wireless transmitting technology with long-distance transmission. The control distance is 30m, and one controller will receive the signals from the remote and transmit them to other controllers within 30 meters. All can work synchronously even if they are started at different times. After adding the 2.4G gateway WL-BOX1, the controller can be controlled by a smartphone APP and third-party voice commands and can work with Amazon Alexa and Google Assistant. The RF remote with touch panel design, touch the buttons or sliders to finish the setting. You can press the 60S or 10Min delay-off buttons, and the lights will be turned off automatically after 10 seconds or 10 minutes.
Quick Links:
MiBoxer FUT043A FUT044A FUT045A User Manual
Smart LED Controller Specifications:
- Models: FUT043A(RGB), FUT044A(RGBW), FUT045A(RGBWW)
- Size: 97*37*28mm(L*W*H)
- Working Voltage: DC12-24V
- Max Output Current: 6A/Channel
- Total Output Max: 15A
- RF: 2.4GHz
- Max Controlling Distance: 30m
- Output Connection: Common Anode
- New Updating Connecting Terminal
- 16 Million Colors Available
- 2700 K- 6500 K Color Temperature Adjustable
- Brightness Adjustable
- Smartphone APP Control And Third-Party Voice Control(WL-Box1 Gateway Needed)
- Signal Auto-Transmitting And Auto-Sync Function
- Working Temperature: -20℃-+60℃
- 2 Years Warranty
RF Remote Specifications:
- Size: 134*47*16.5mm(L*W*H)
- Working Voltage: DC3V
- Powered By 2PCS AAA Batteries(Not Included)
- Transmission Frequency: 2400- 2483.5MHz
- Modulation Method: GFSK
- Transmitting Power: 6 dBm
- Standby Power: 20uA
- Control Distance: ≤30m
- 60Sand 10Mins Delay-Off
- 16 Million Colors Available
- Saturation Control
- Color Temperature Adjustable: 2700 K- 6500 K
- Brightness Adjustable: 1%-100%
- 2.4G Wireless Transmitting
- New Appearance And Sensitive Touch

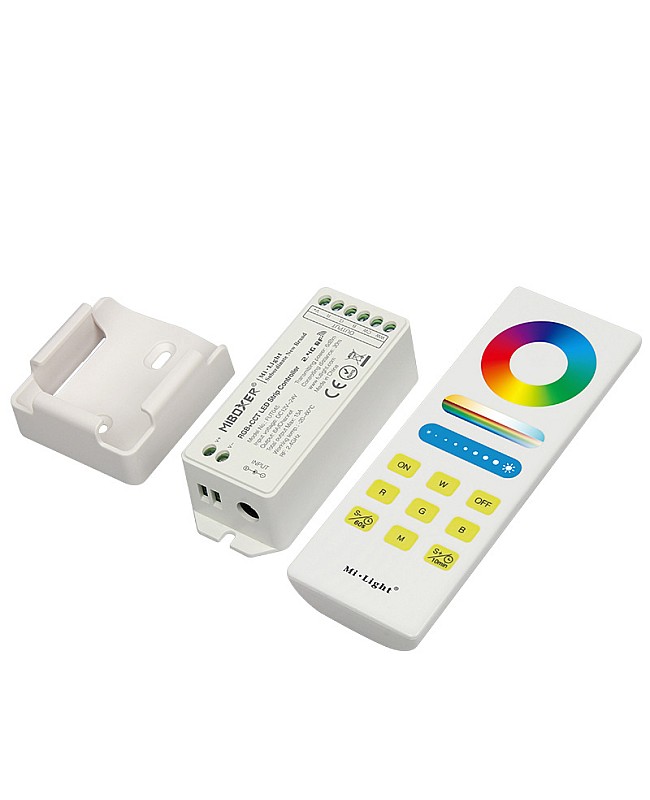

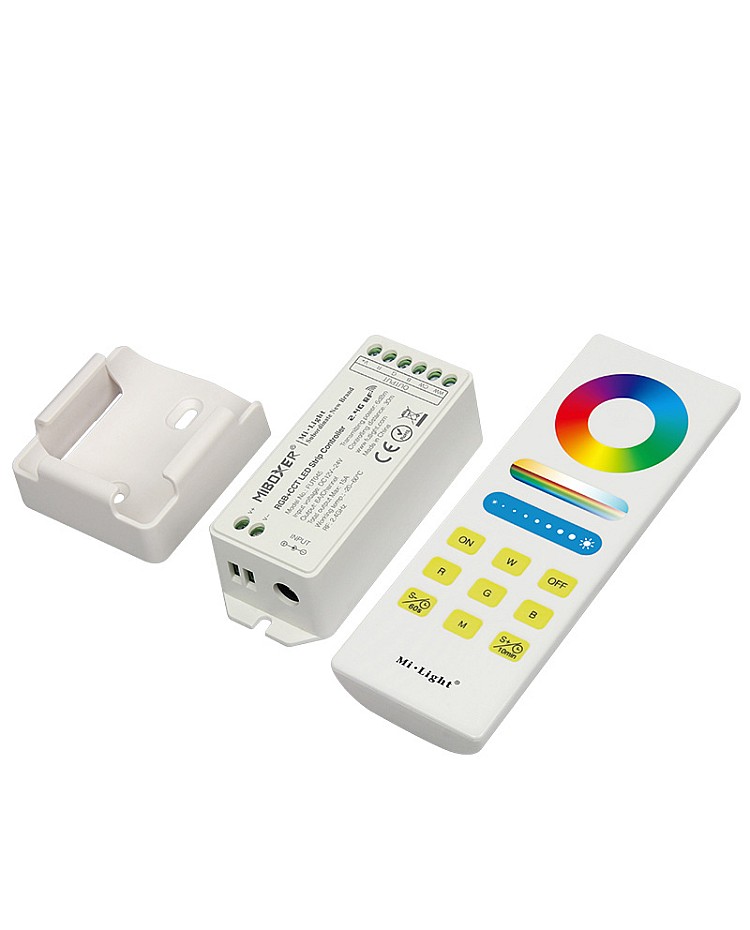

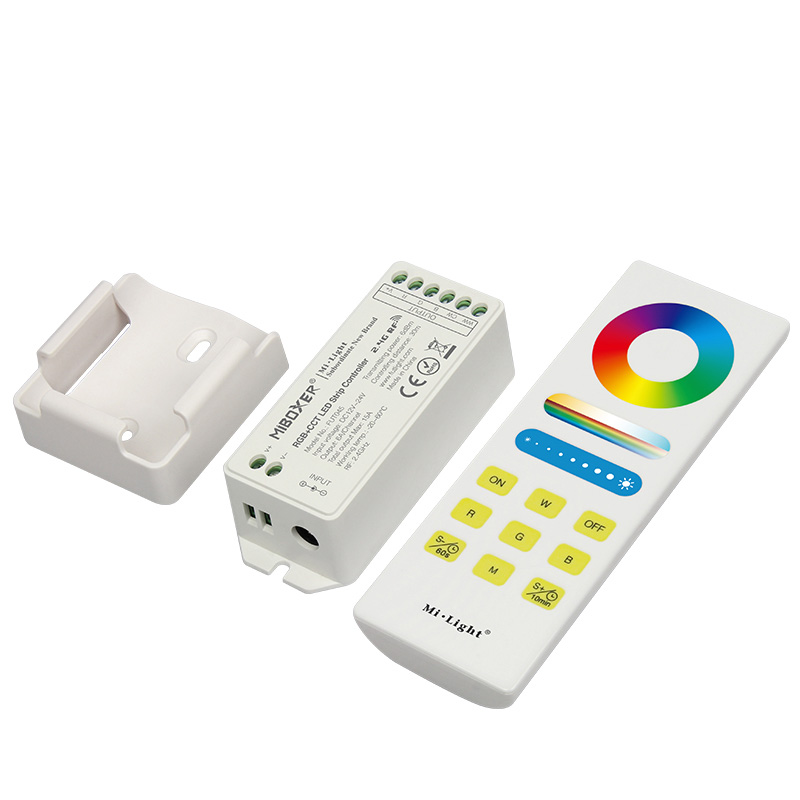

Includes:
1 * FUT045 Smart LED Controller
1 * FUT088 RF Remote
1 * Holder
1 * User Manual
