The Sperll SP617E WS2814 LED controller is compatible with RGBW 4-channel single-line RZ Code driver ICs, such as WS2814, SK6812, SM16704, UCS2904, and TM1824. The maximum number of pixels that can be loaded is 450. It can be controlled by buttons, a smartphone APP, and an IR remote to set the dynamic modes, static color, and pure white color. Built-in 152 dynamic effects include ten kinds of white effects, and the effect length is adjustable. The SP617E features 18 music effects, with adjustable effect length and sensitivity. Under the music modes, the lighting will automatically change in sync with the music's beats. Multiple sound collection methods are available: phone mic, player streaming, and onboard mic. You can download the app to your phone to access additional functions, such as group control, timer function, modifying the device name, and calibrating the RGBW channel sequence, among others. The music IR controller supports IOS 10.0 and Android 4.4 and above mobile operating systems.
Specifications:
- Model: SP617E

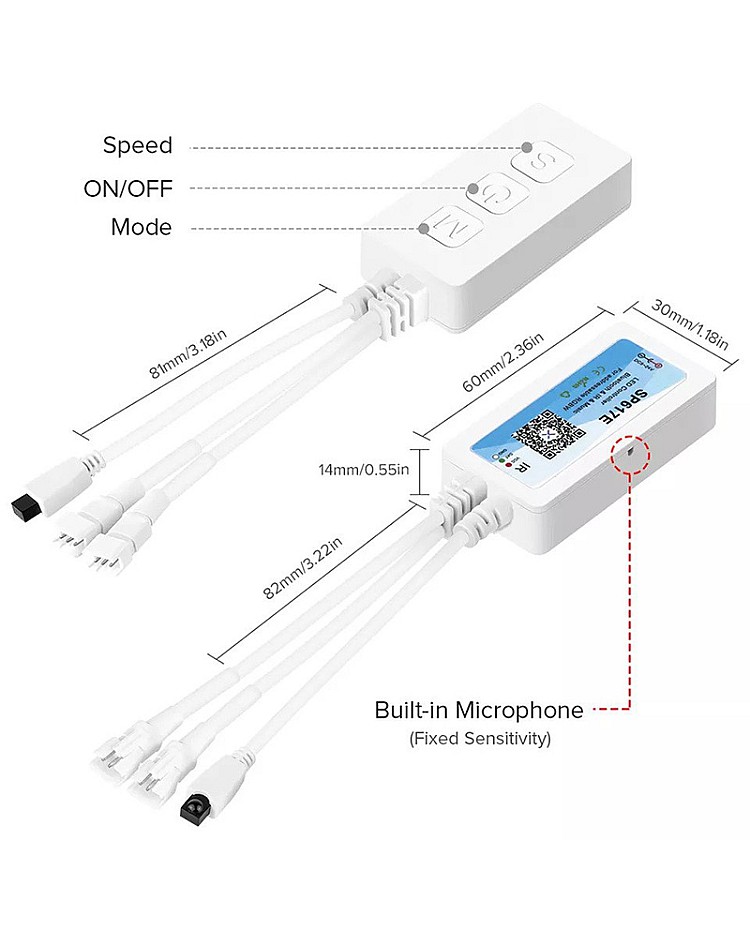

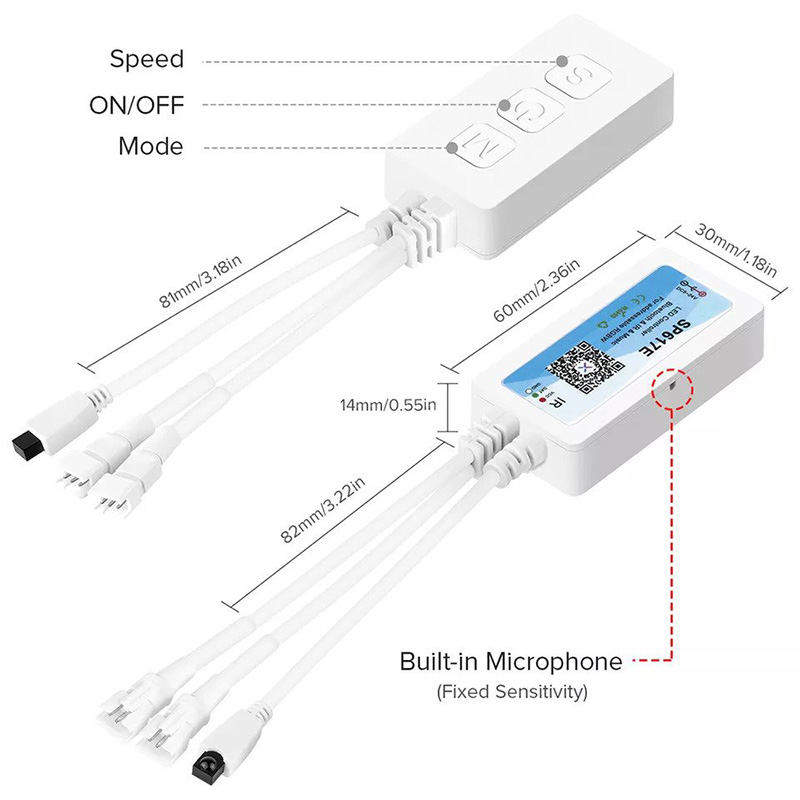

- Size: Controller: 60*30*14mm(L*W*H); Remote: 125*56*7.5mm(L*W*H)
- Connection Mode: SPI
- Working Voltage: DC5-24V
- Working Current: 15mA-18mA
- Max Loading Pixels: 450PCS
- Compatible With ICs: SK6812, SM16704, UCS2904, WS2814, TM1824

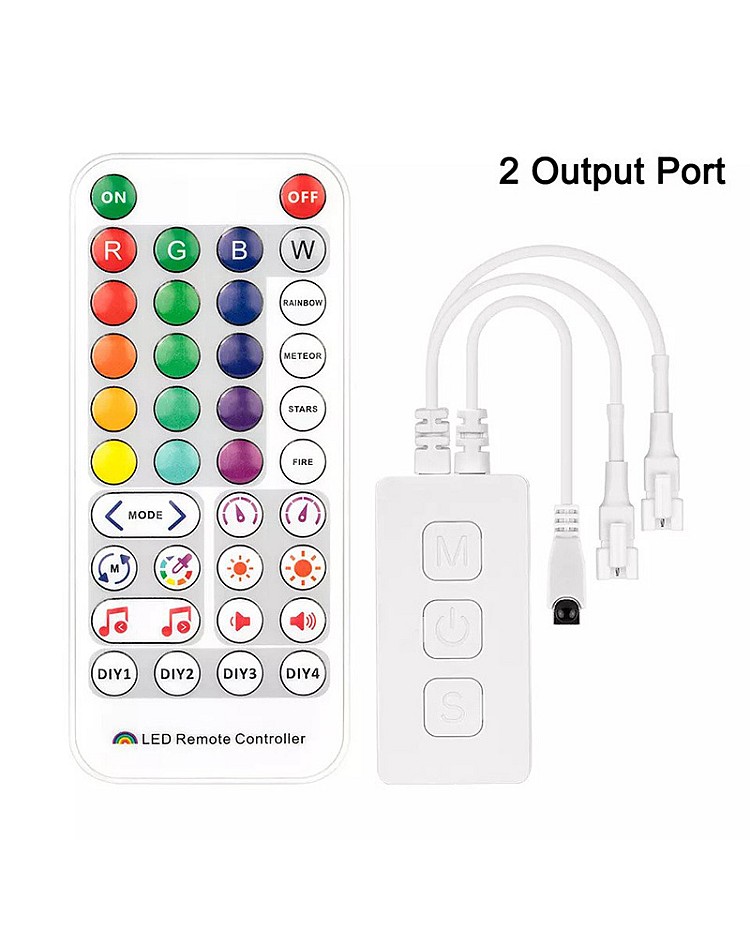

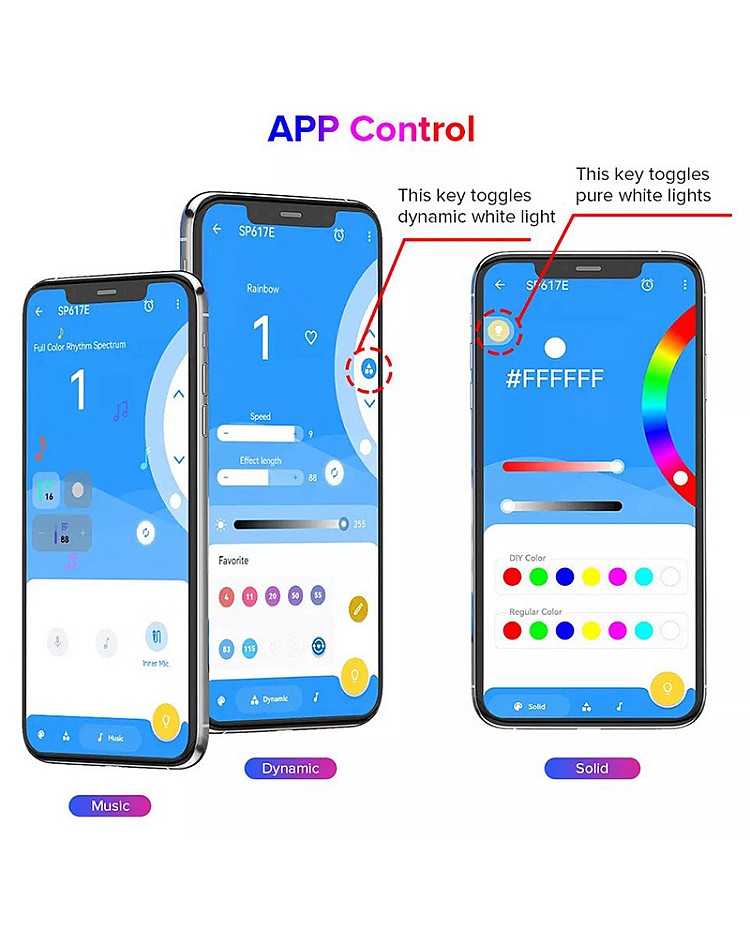

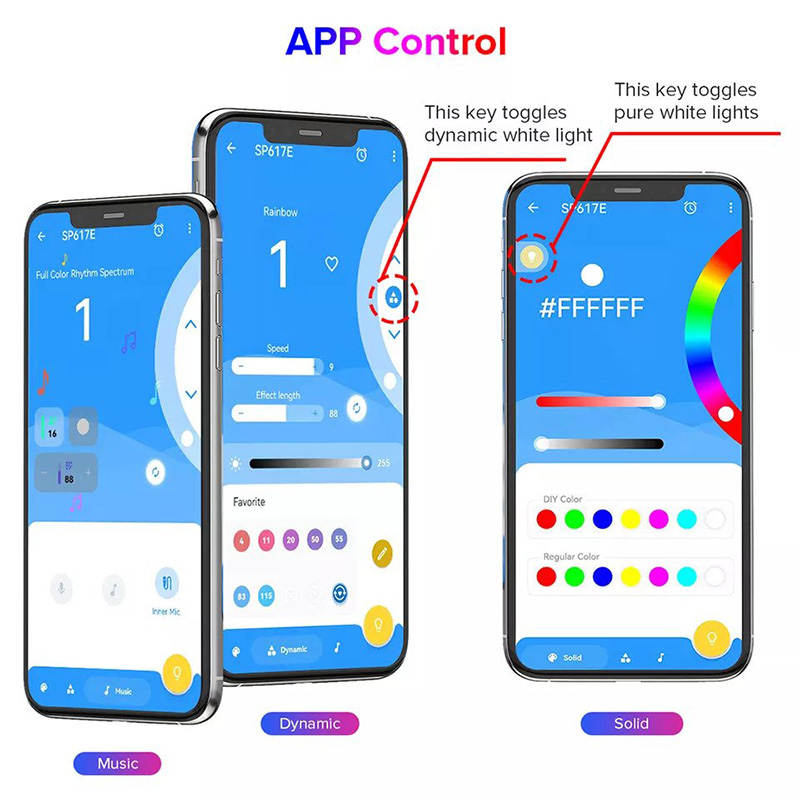

- Control Methods: Button Control/Smartphone APP And IR Remote
- Individually Controllable Static Pure White Light(W Channel)
- 16 Million Monochrome Effects
- Built-in 152 Dynamic Effects(10 Kinds Of W Channel Effect)
- 18 Music Effects are Available

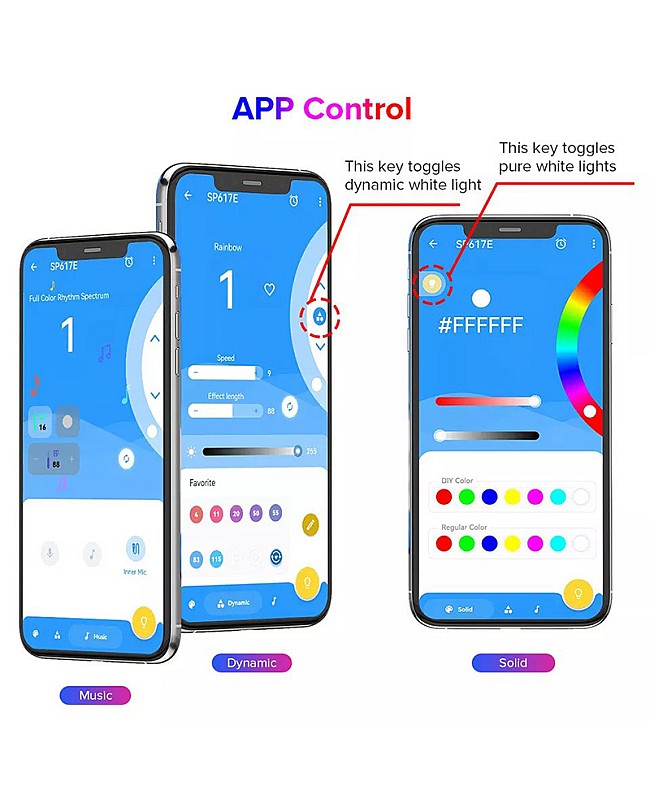

- APP Name: BanlanX
- Sync With Music Function
- RGB Color Calibration
- Timer Function: YES
- Group Control: YES
- Connection Method: Bluetooth
- Working Temperature: -20℃-60℃
- Certifications: CE, ROHS
- 2 Years Warranty
Includes:

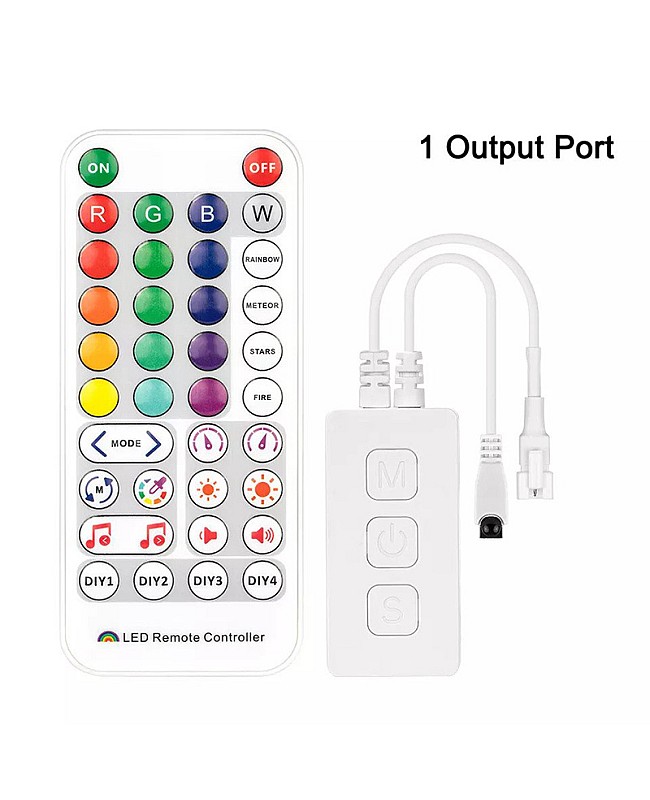

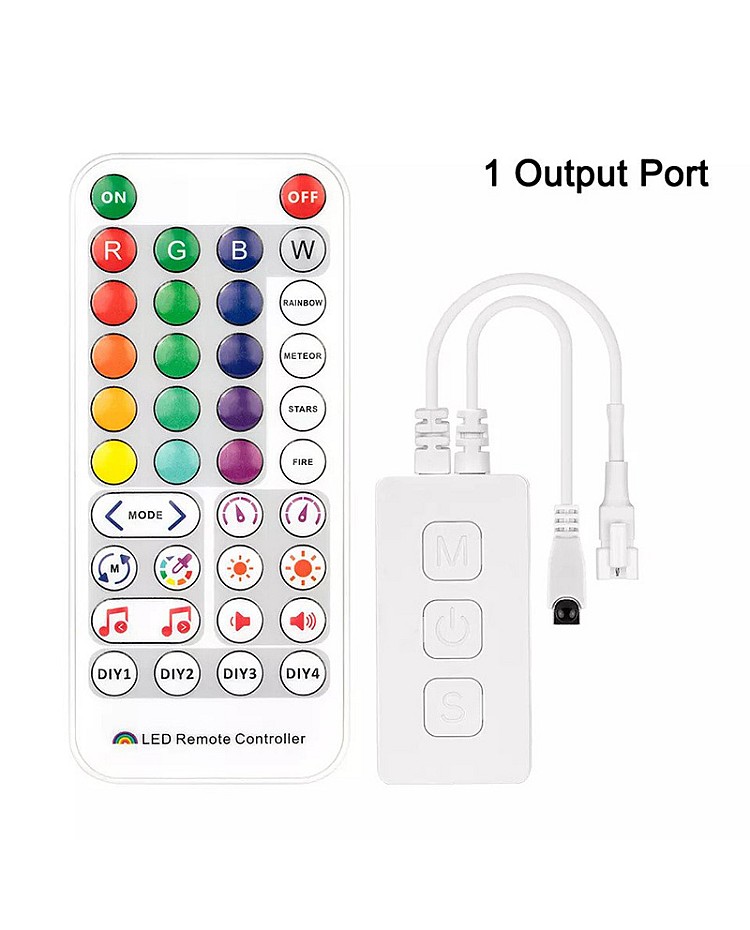

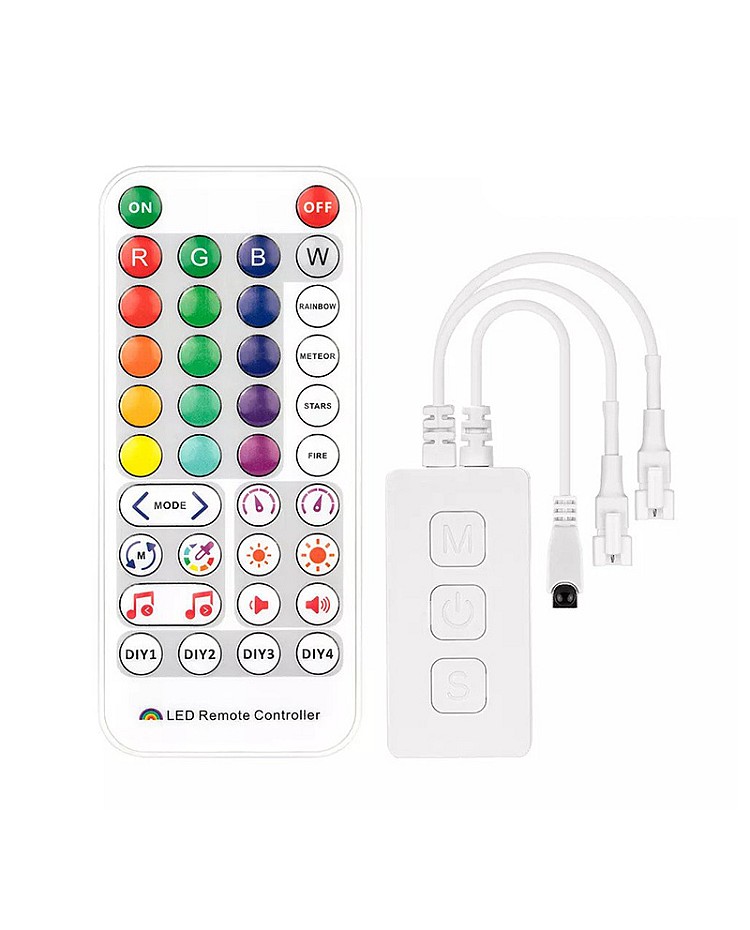

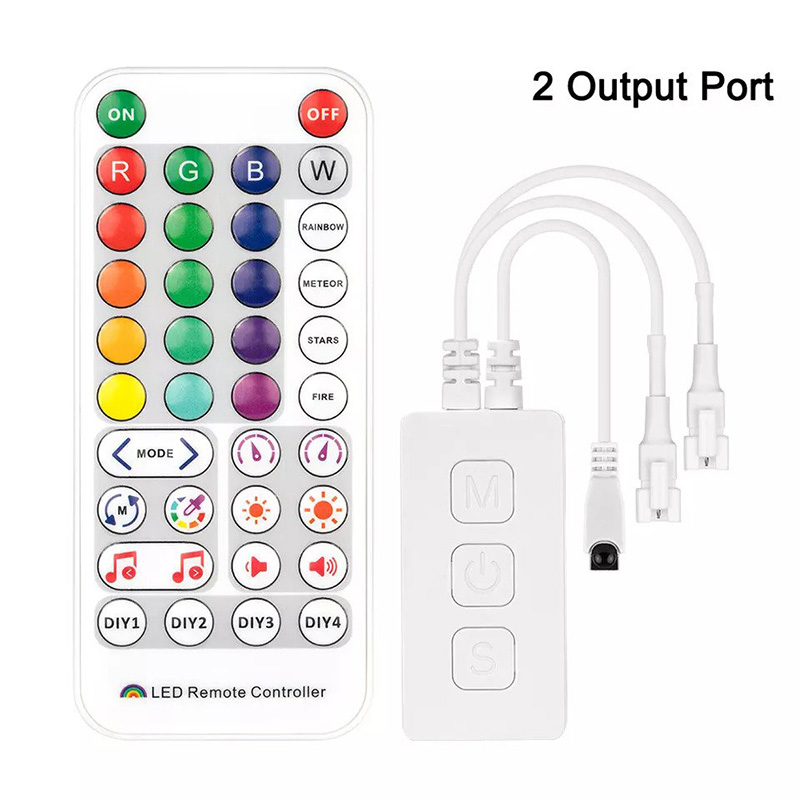

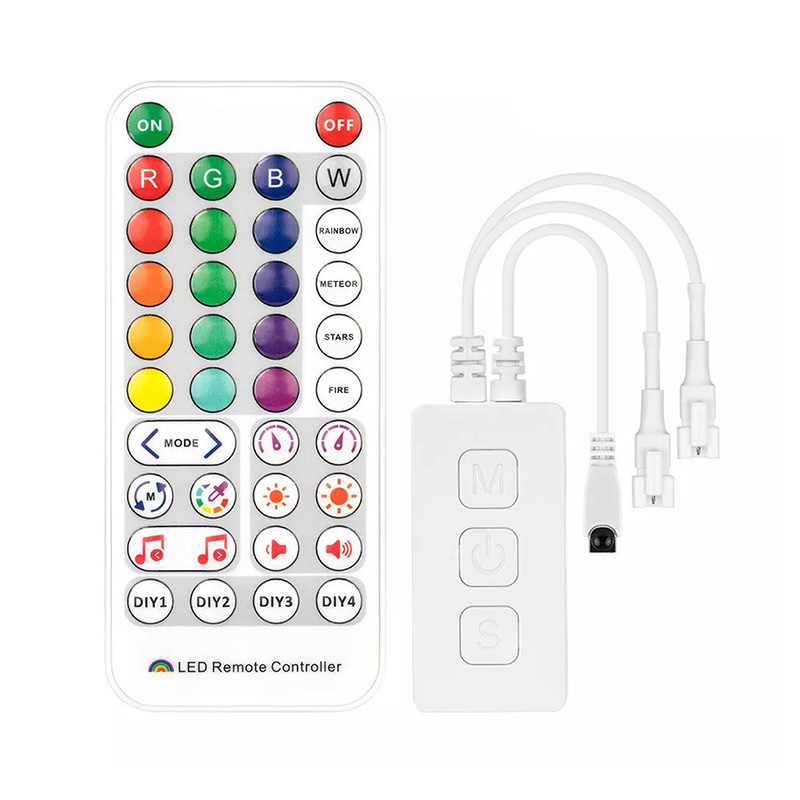

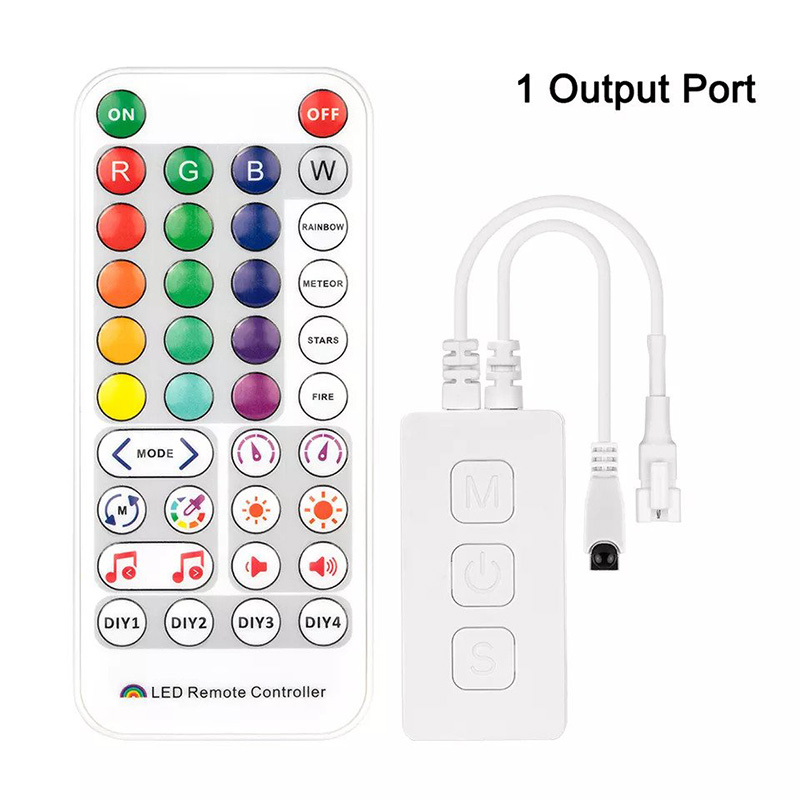

1 * Sperll SP617E LED Controller
1 * 38Keys IR Magic Lighting Remote
