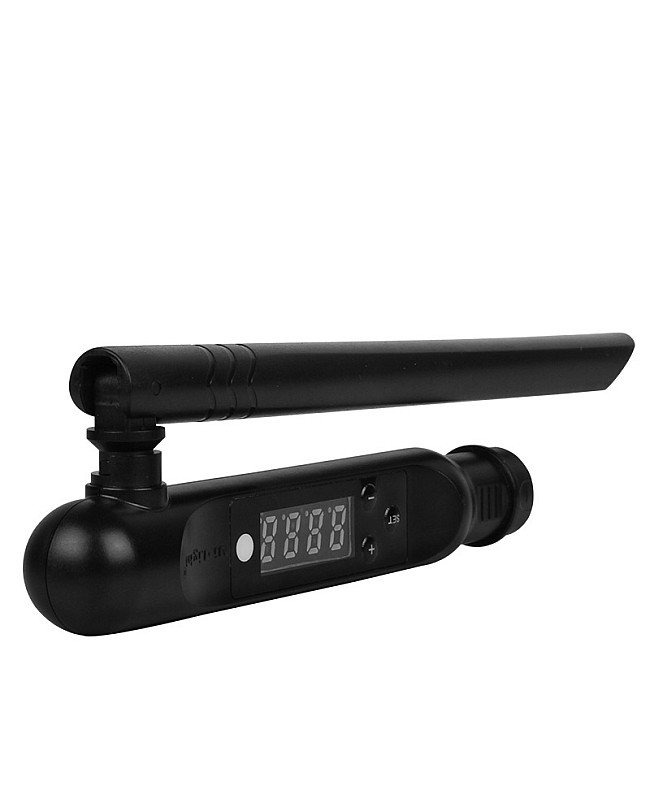

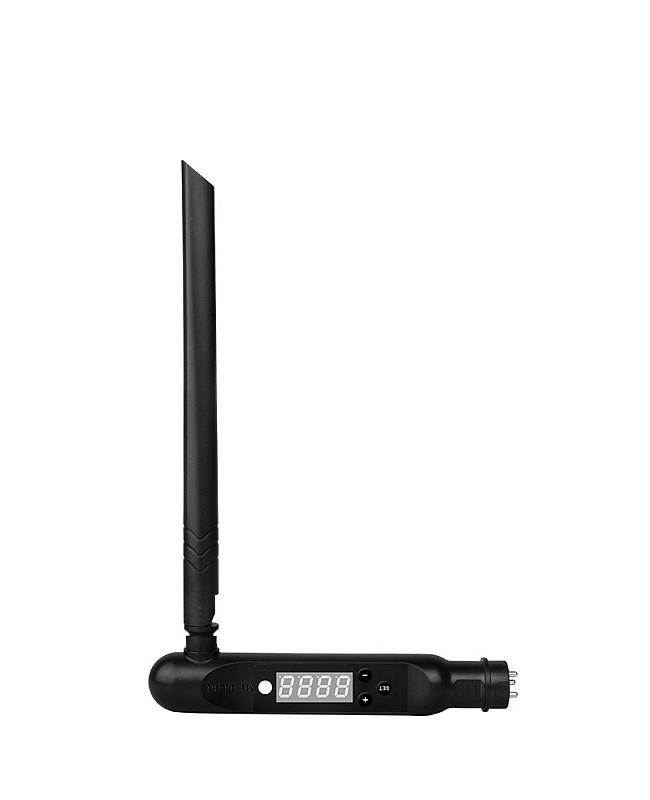

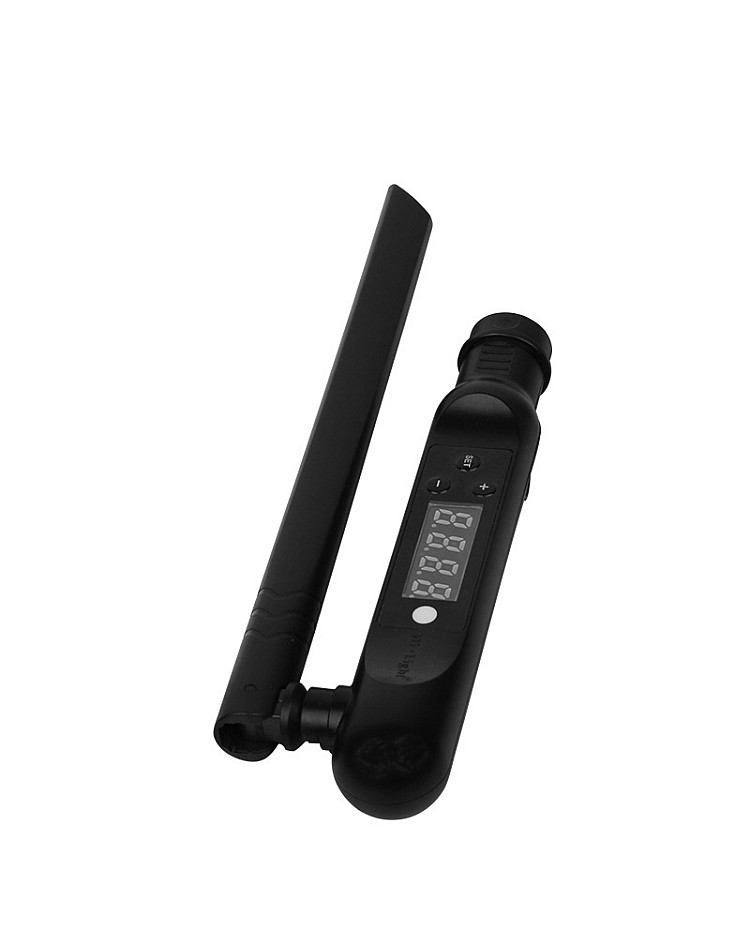

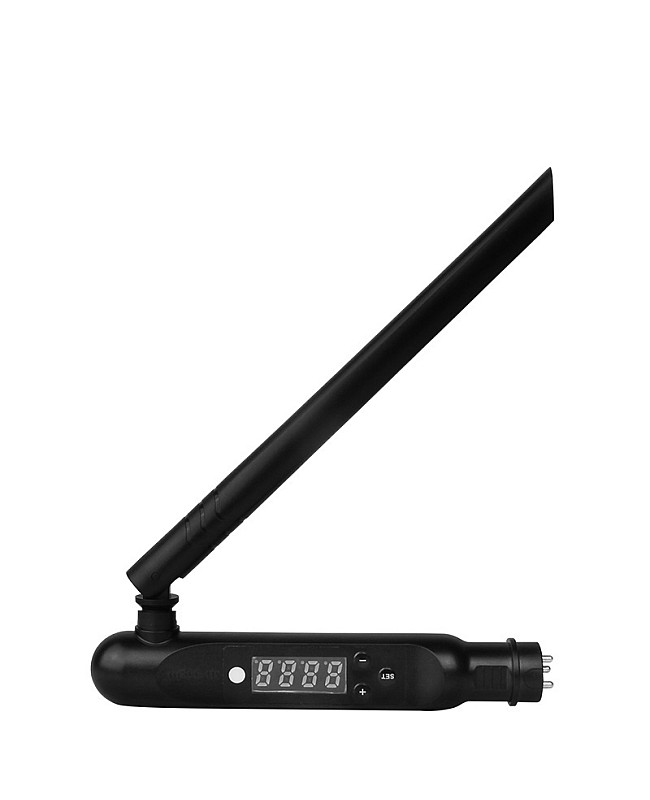

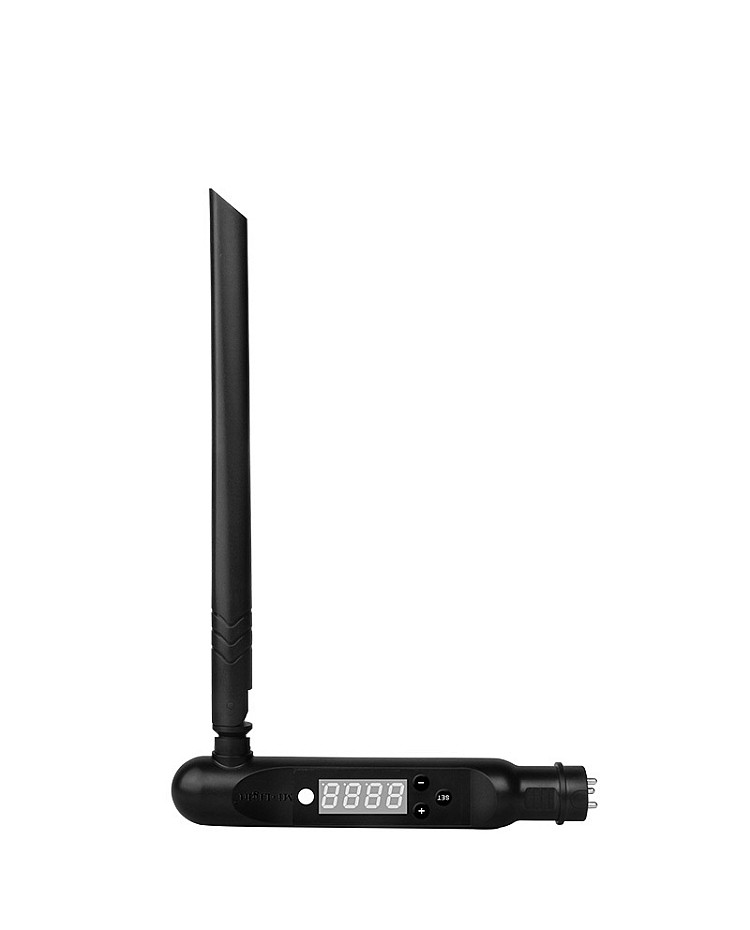

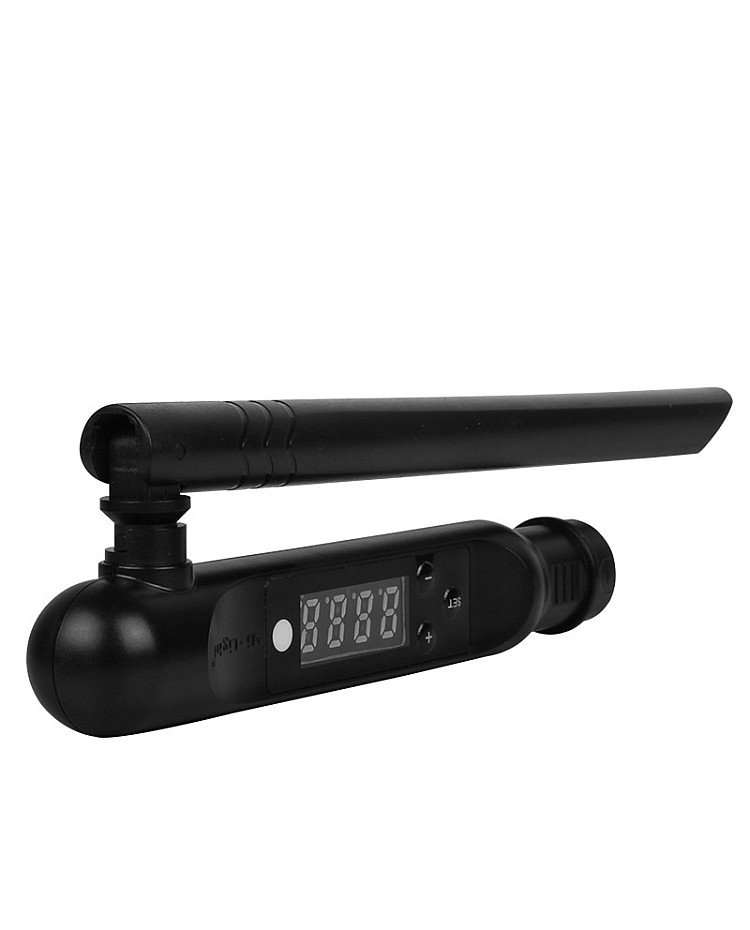

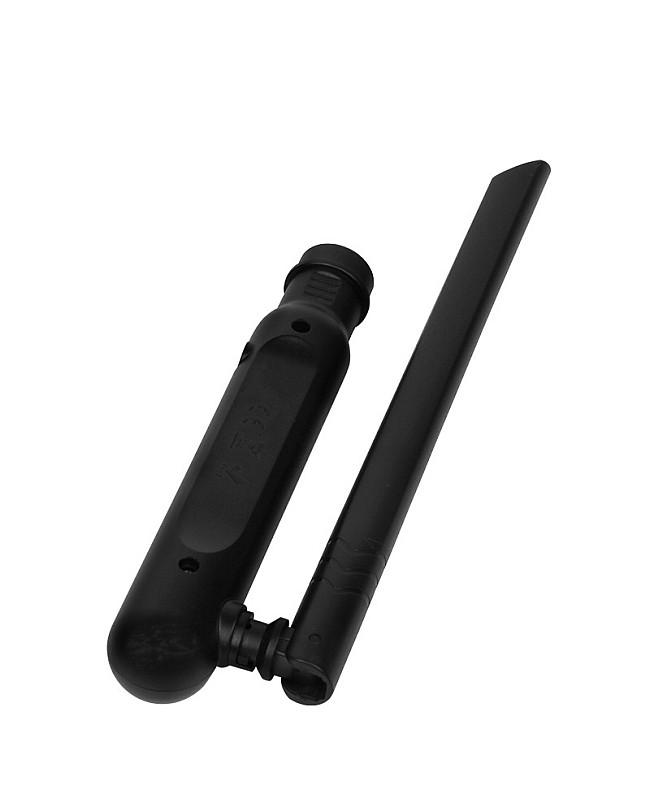

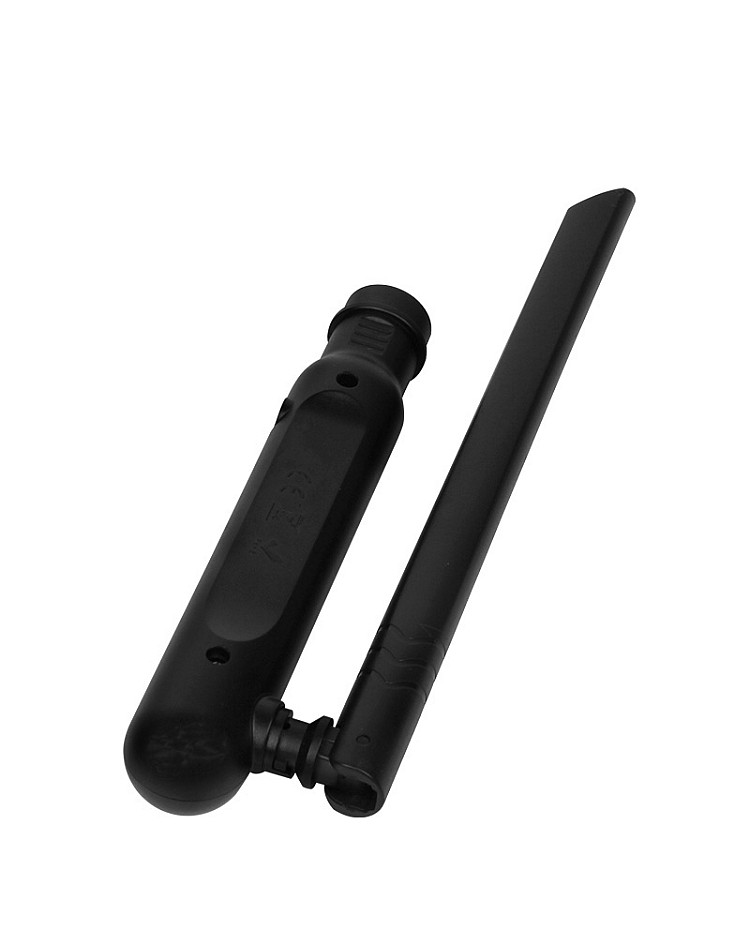

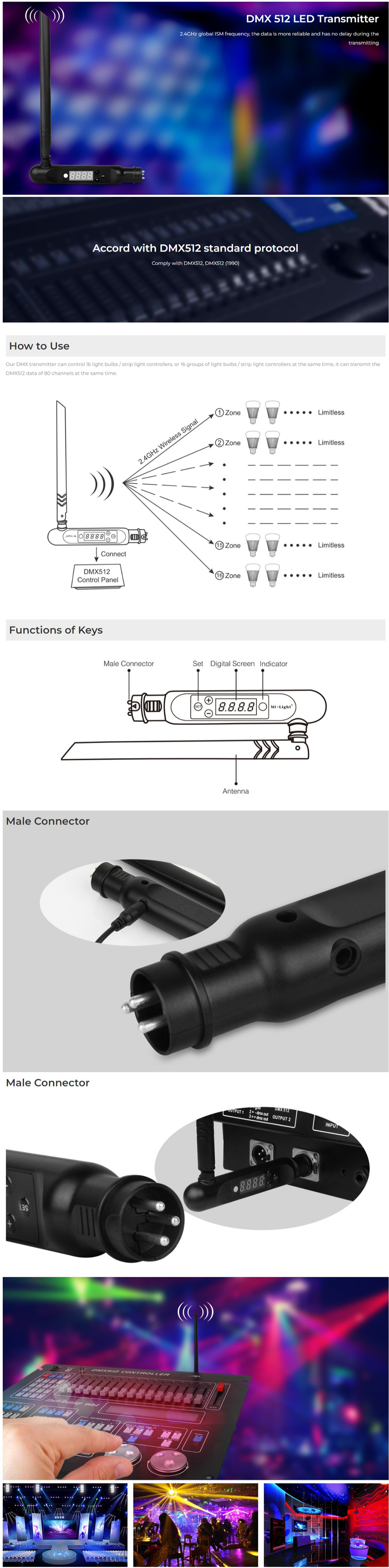

The MiBoxer FUTD01 DMX 512 LED Transmitter, which can control 16PCS or 16 groups of LED Light Bulbs or LED Strip Controllers, can transmit the DMX512 data of 80 channels at the same time, each DMX Light Bulb or DMX Controller uses 5 DMX Channels, these 5 channels can adjust the brightness of red, green, blue, warm white, cool white, from 0% to 100%. The Signal Transmitter works in 2.4G global ISM frequency. The data is more reliable and has no delay during the transmission. Works in DC5V and comes with a male connector. Easy to connect to the DMX console. There is an LCD screen that will show you the address clearly.

Quick Links:

MiBoxer FUTD01 Manual


  • Size: 188*47*23mm(L*W*H)
  • Working Voltage: DC5V/500mA
  • Frequency: 2400-2483.5MHz
  • Transmitting Method: GFSK
  • Power: 6dBm
  • Distance: ≤30m
  • 2.4G Global ISM Frequency
  • Can Control 16 Groups Lights Bulbs Or Strip Light Controllers
  • Can Transmit DMX512 Data Of 80 Channels


1*DMX 512 LED Transmitter

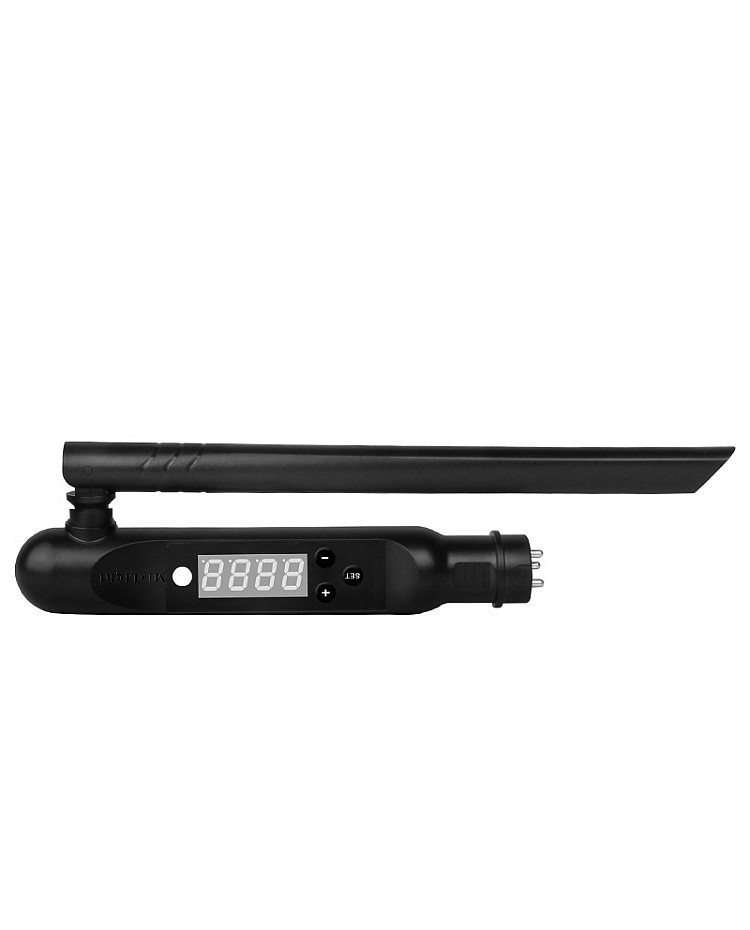

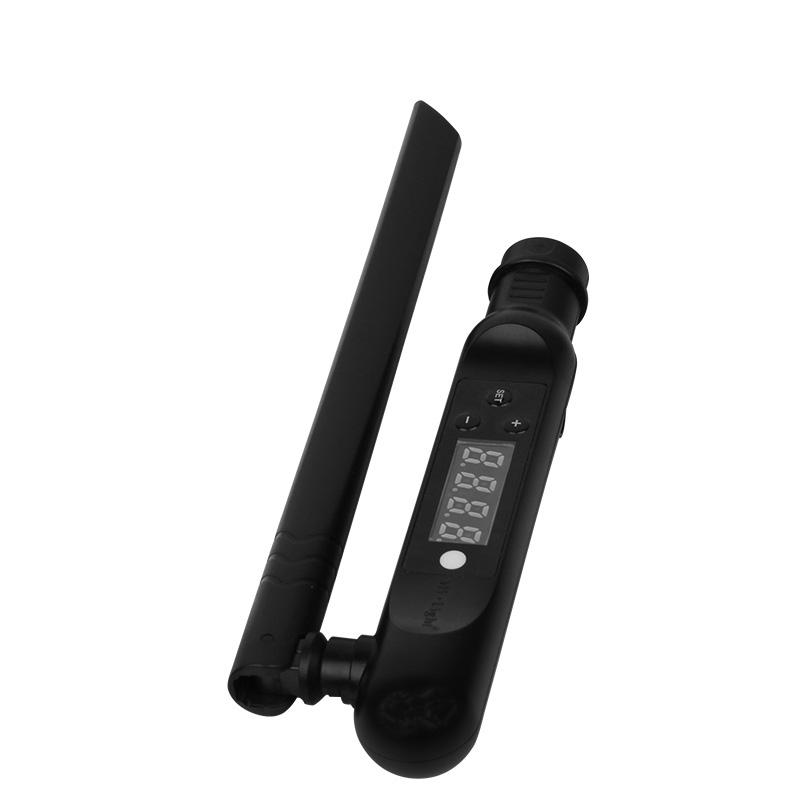

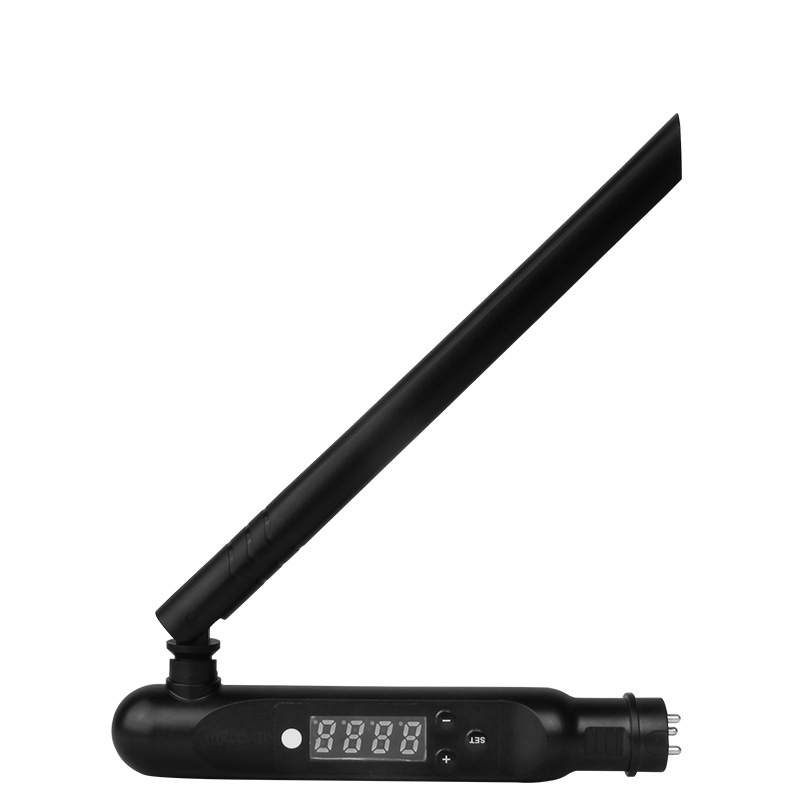

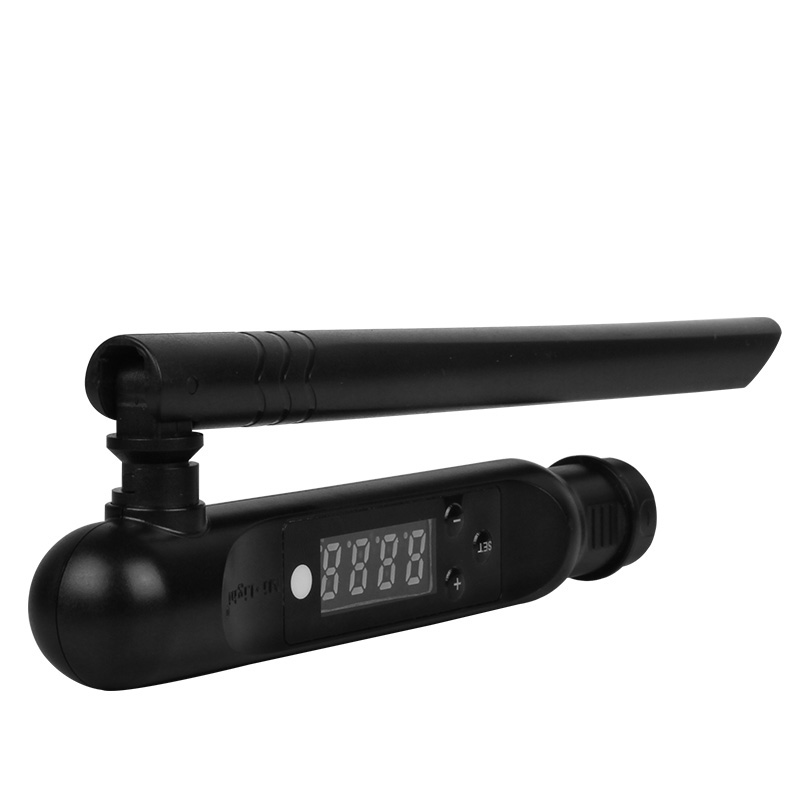

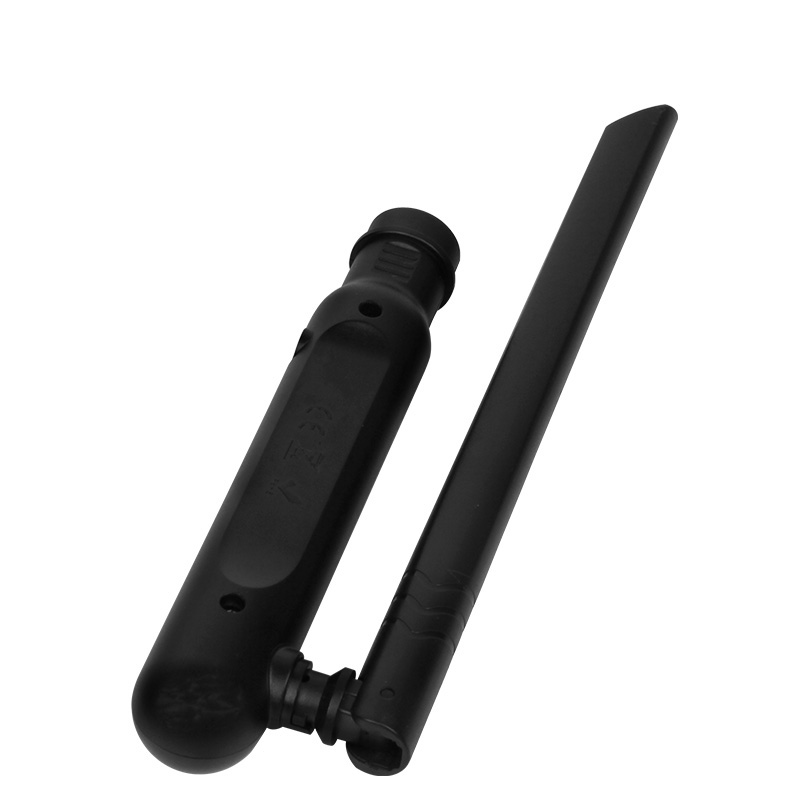

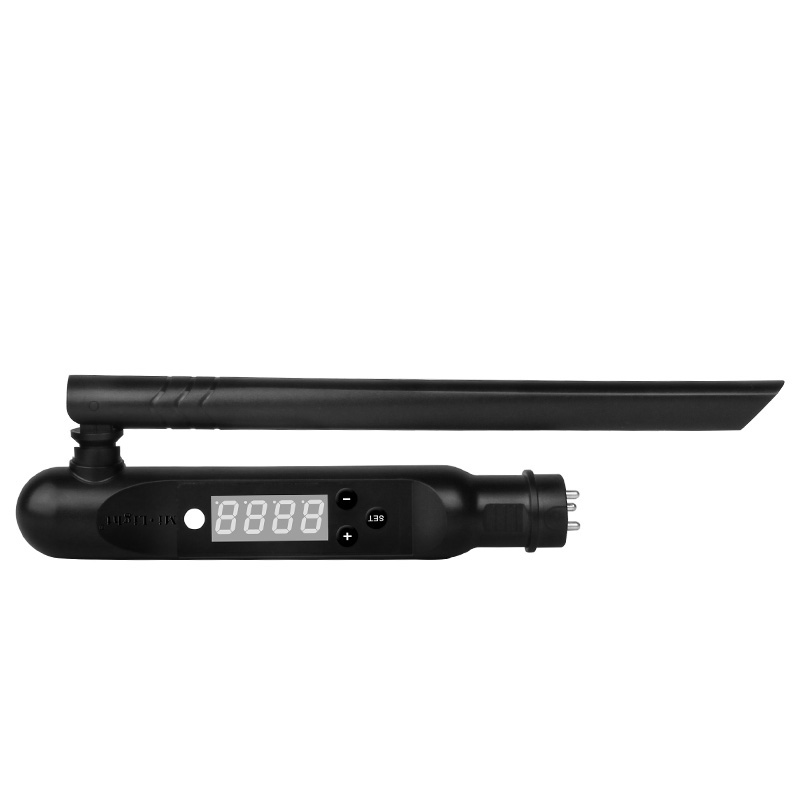

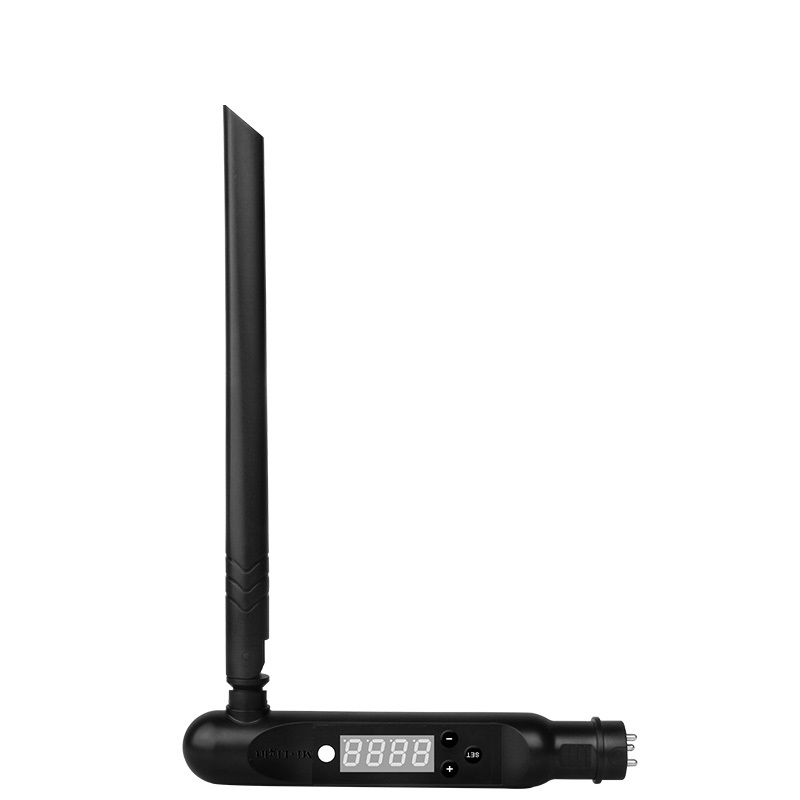

MiBoxer FUTD01 DMX512 Signal Transmitter
