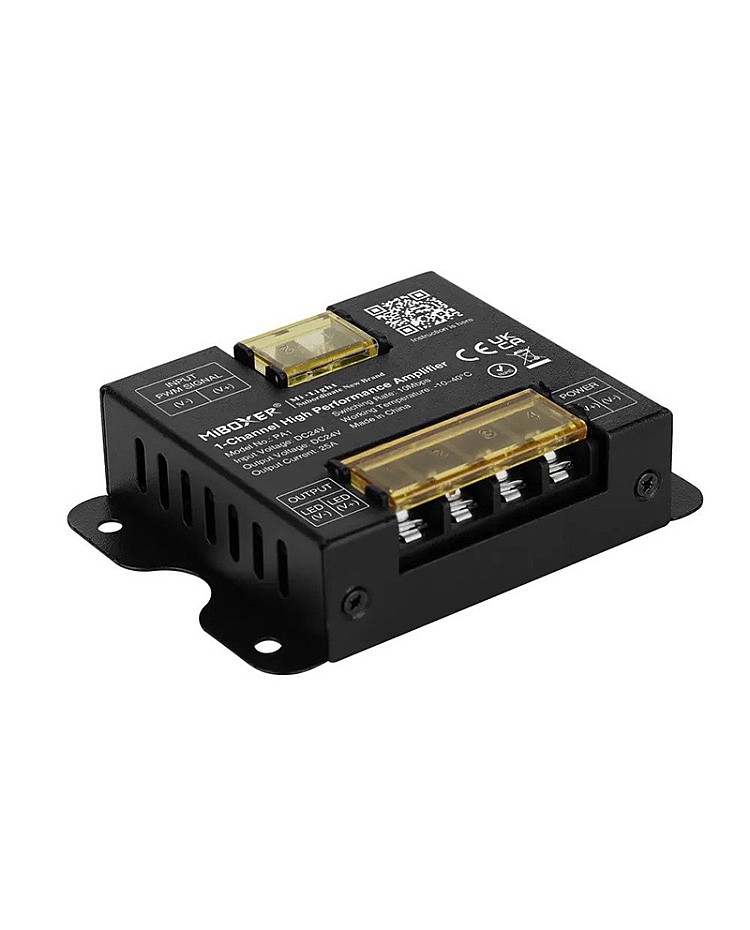

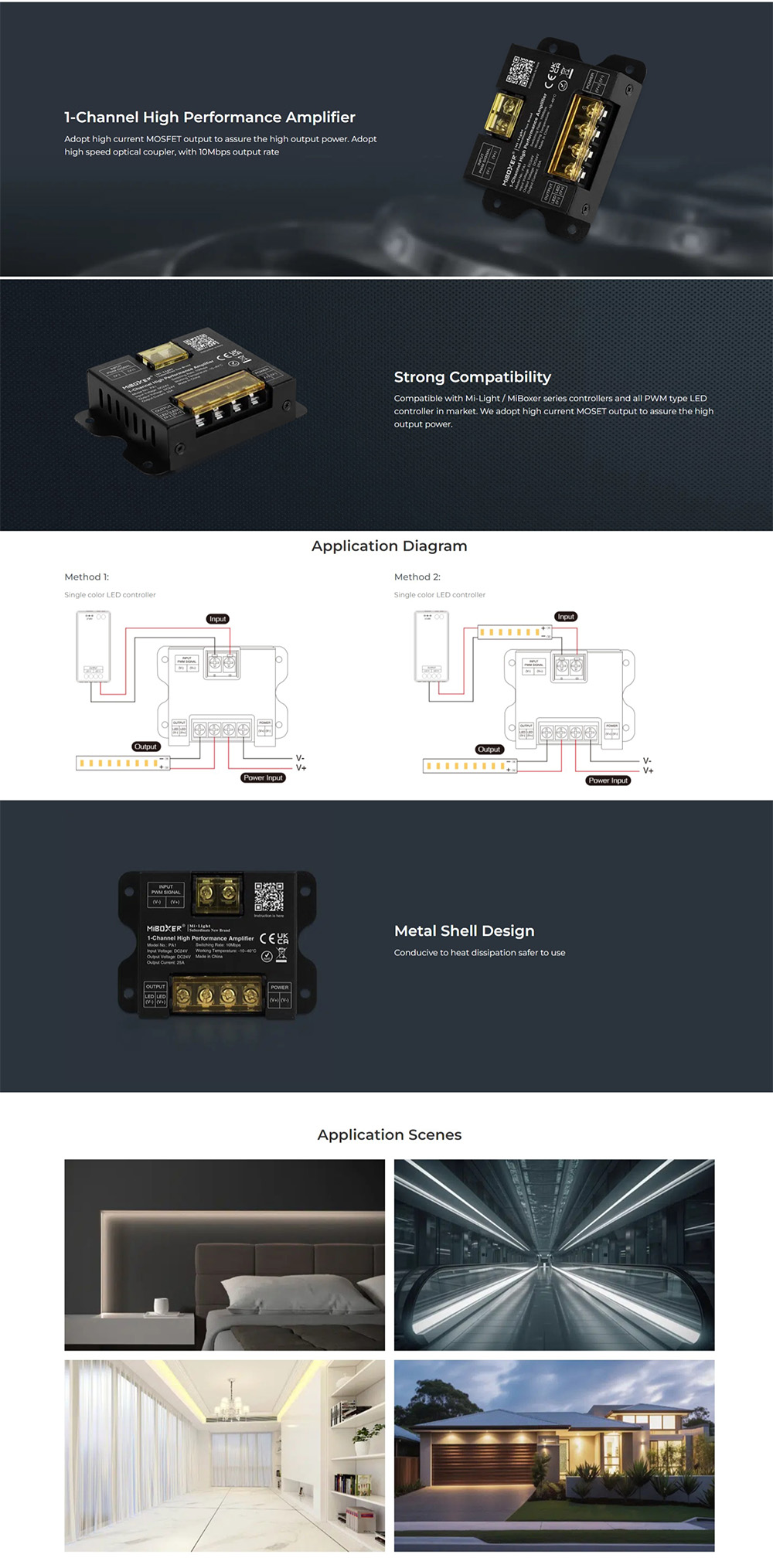

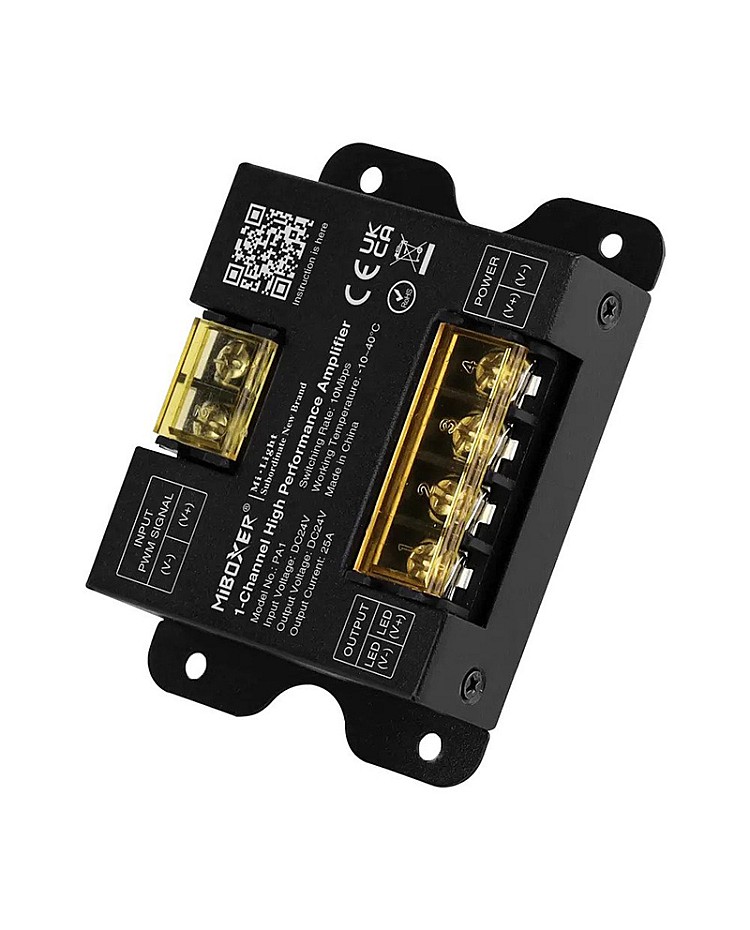

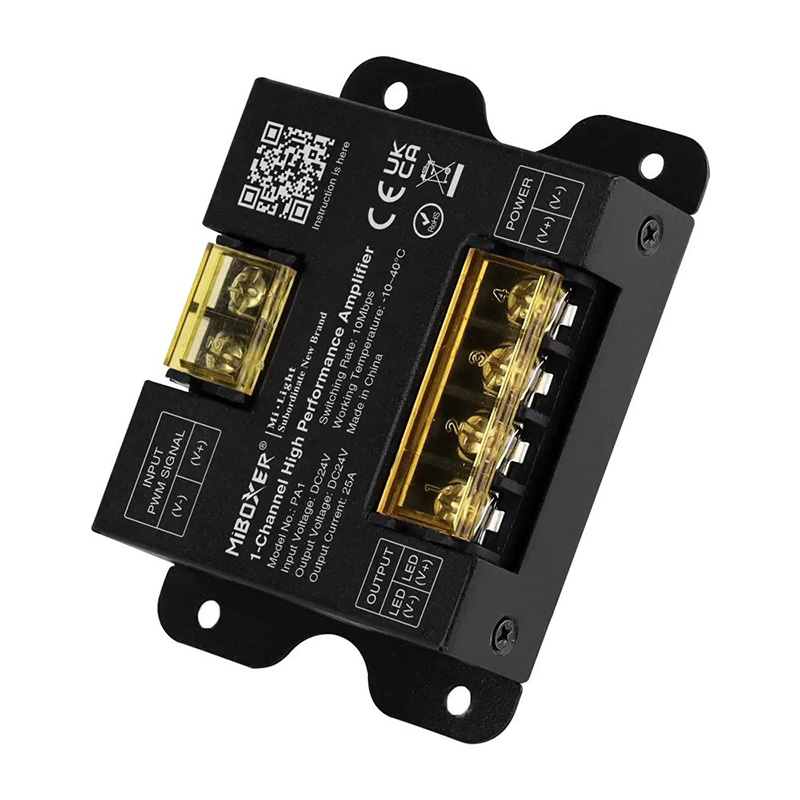

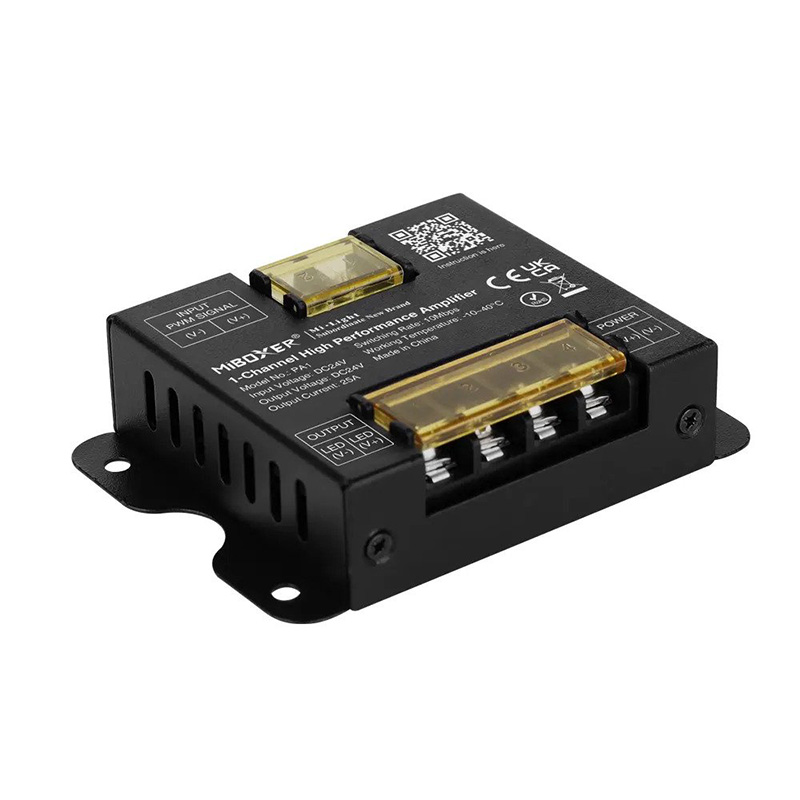

The MiBoxer PA1 high-performance Amplifier has a one-channel output design, an excellent choice for powering single-color LED strips. Compatible with MiBoxer and Milight series controllers and all PMW-type light controllers in the market. It adopts a high current MOSFET output to ensure high output power. It has a high-speed optical coupler and a 10 Mbps output rate. The MiBoxer amplifier works on DC24V, and the maximum output current is 25A. Its metal shell design is conducive to heat dissipation and safer to use.
Specifications:
- Type: 1-Channel High-Performance Amplifier
- Size: 86.5*62.5*21.2mm(L*W*H)
- Color: Black
- Input Voltage: DC24V
- Max Output Current: 25A
- Switching Rate: 10 Mbps
- Connection: Common Anode
- IP Rate: IP20 Non-waterproof
- Working Temperature: -10-40℃
- 2 Years Warranty

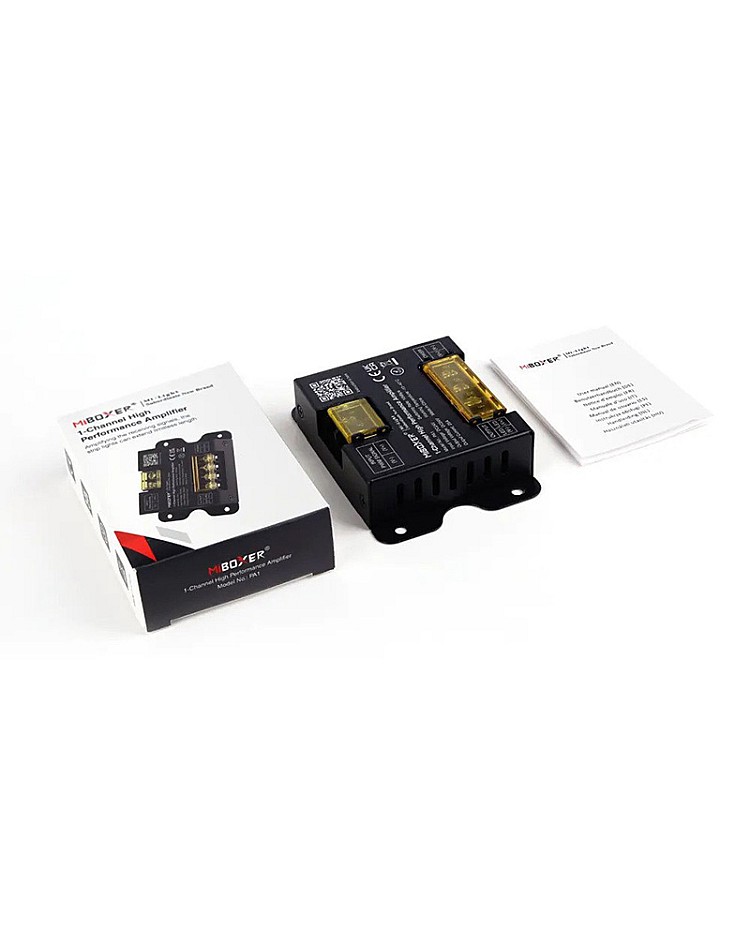

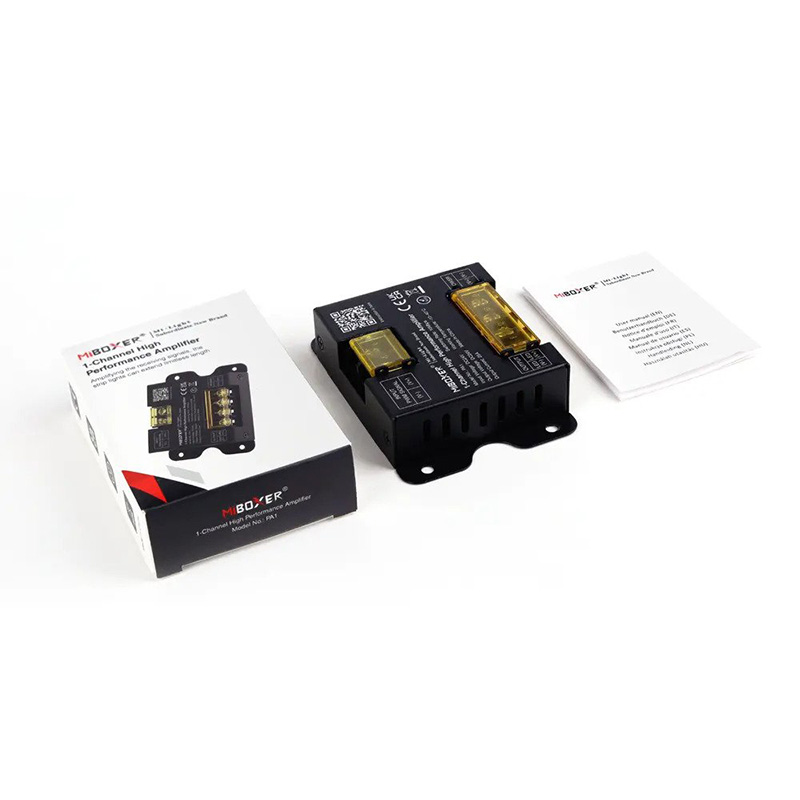

Includes:
1 * PA1 One Channel Amplifier
