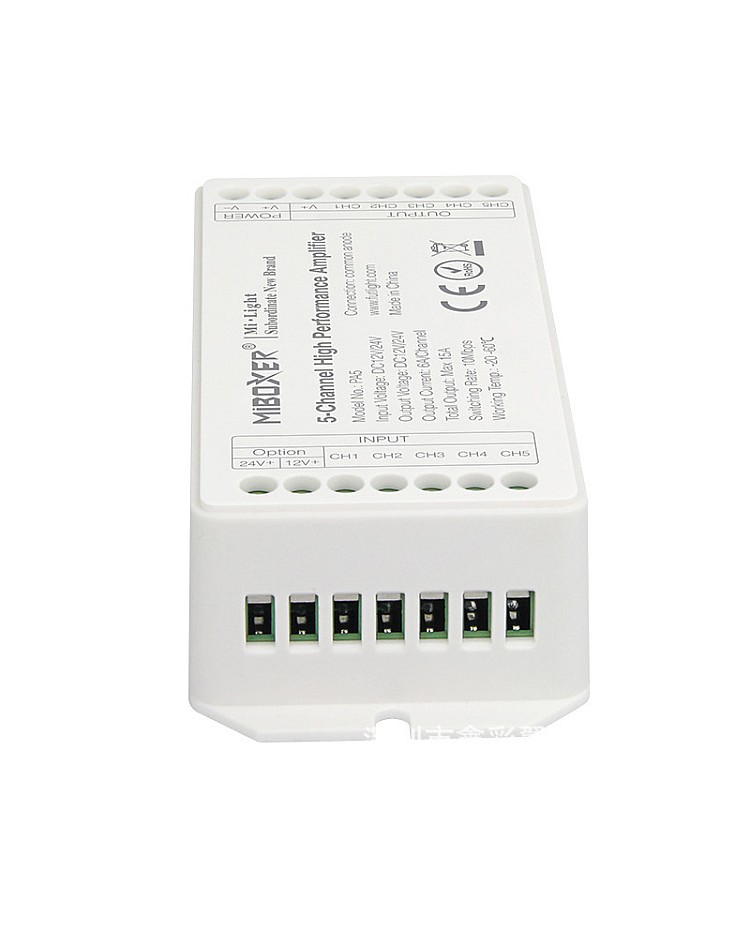

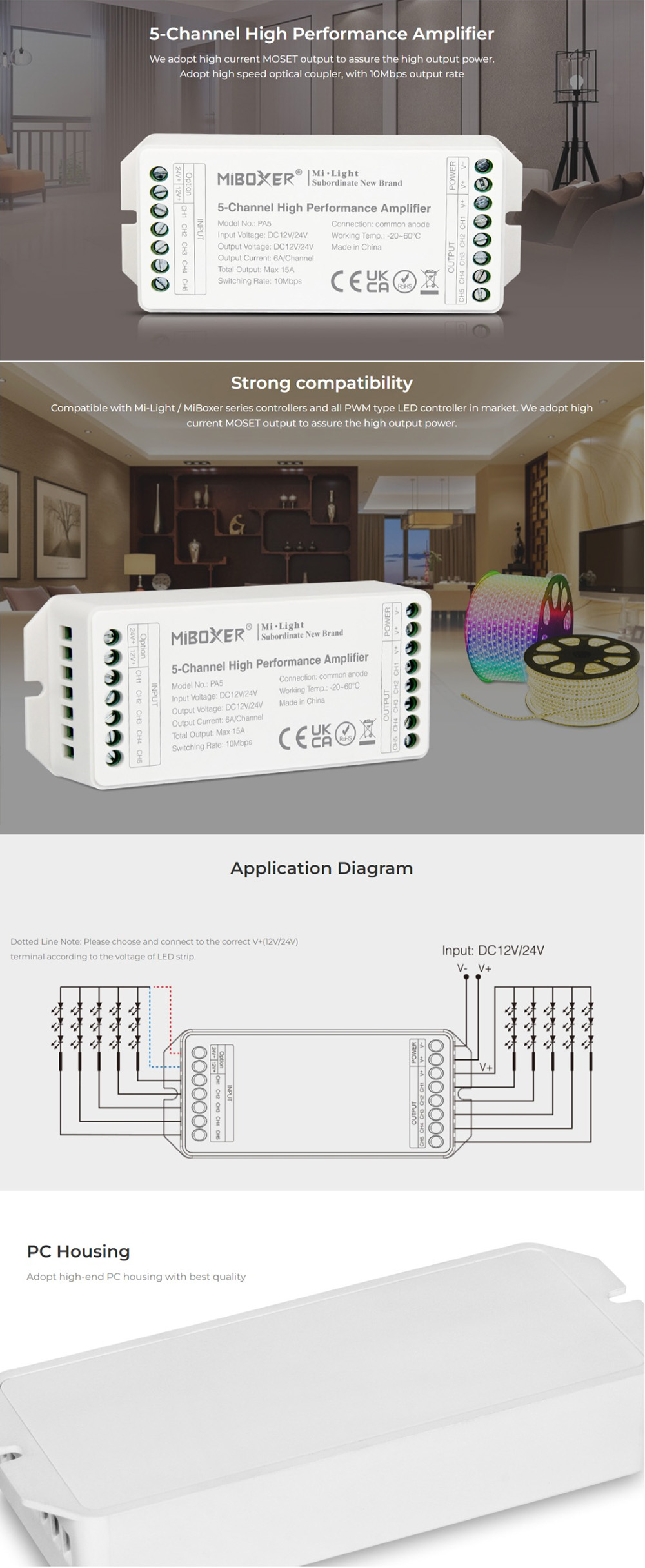

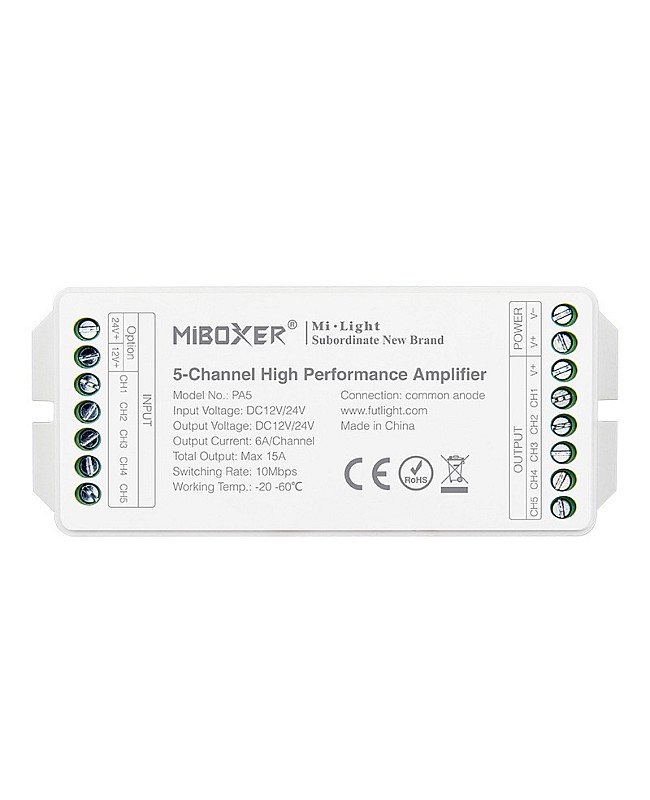

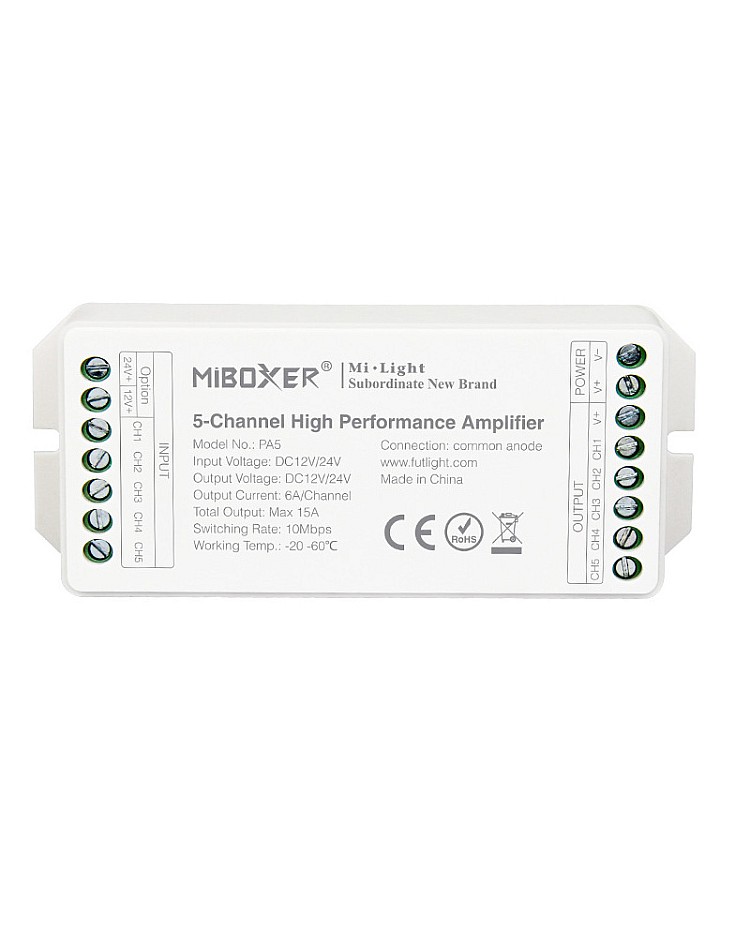

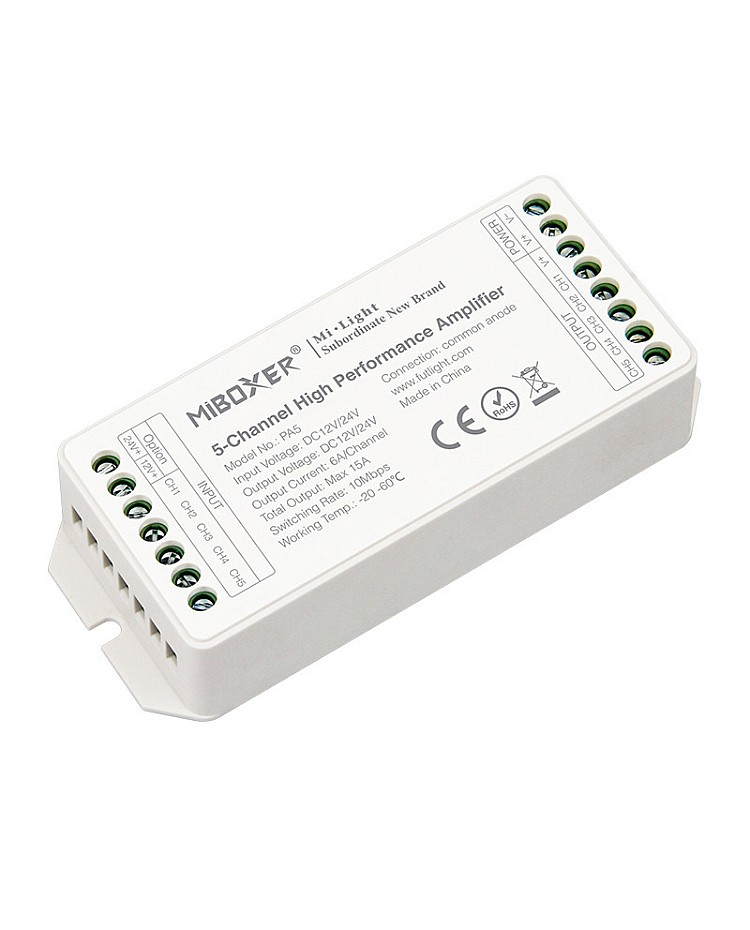

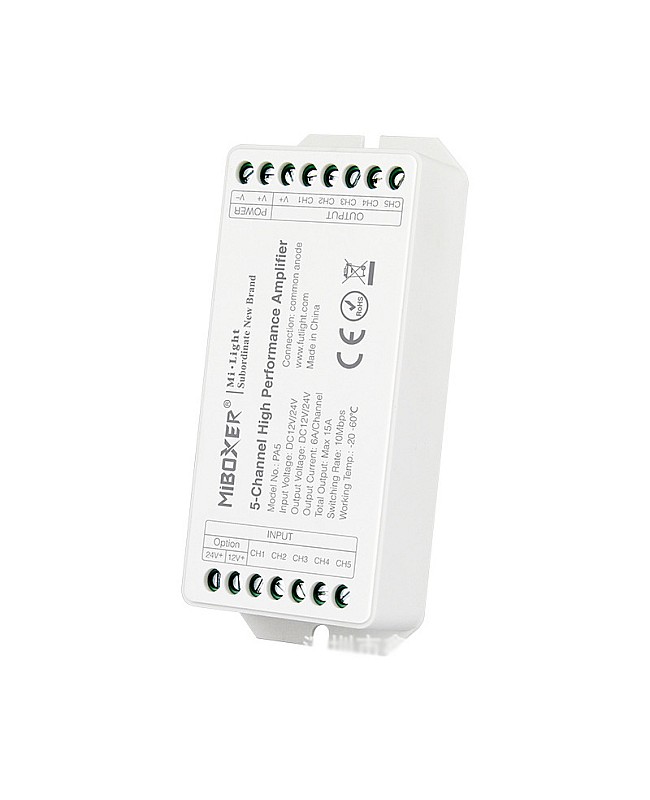

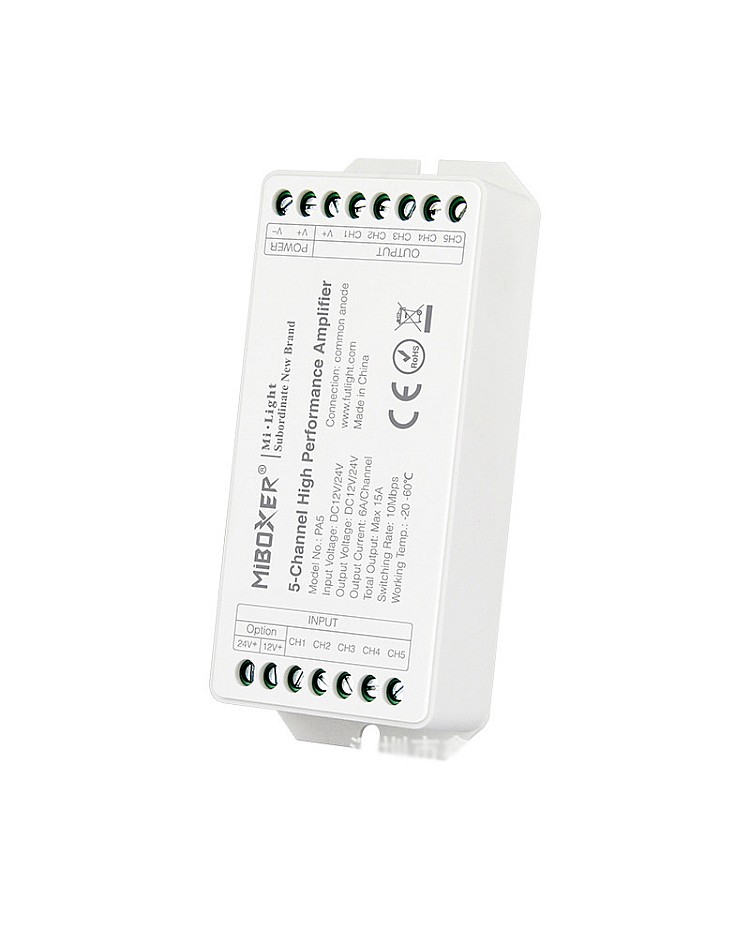

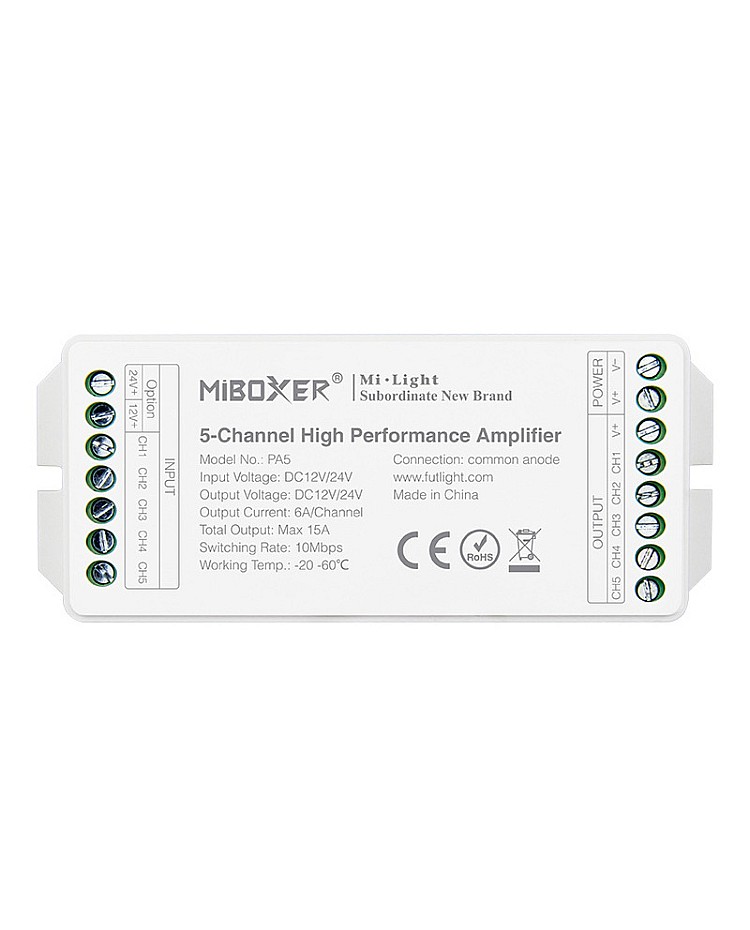

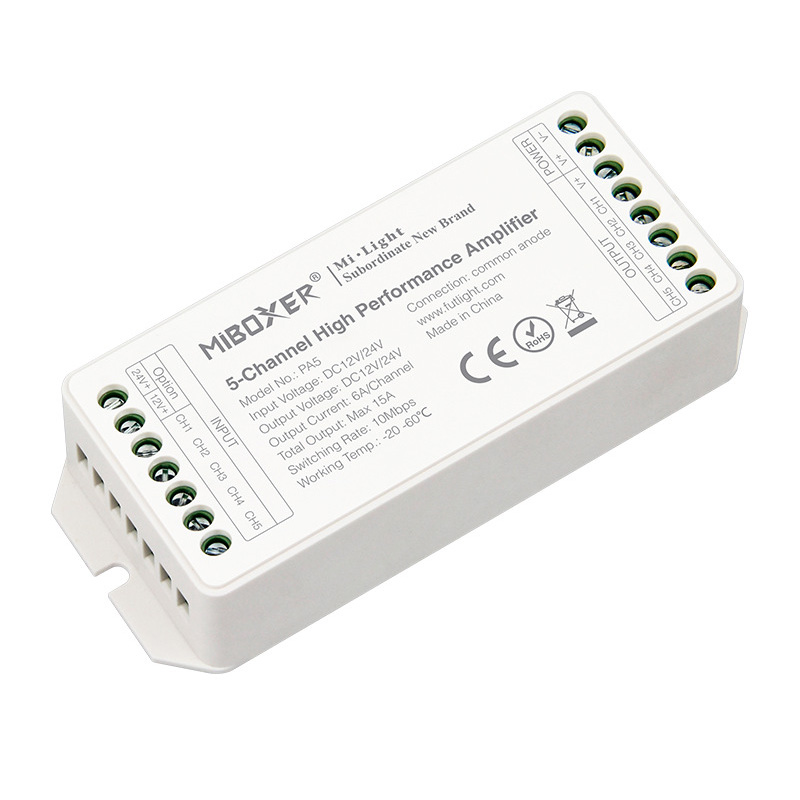

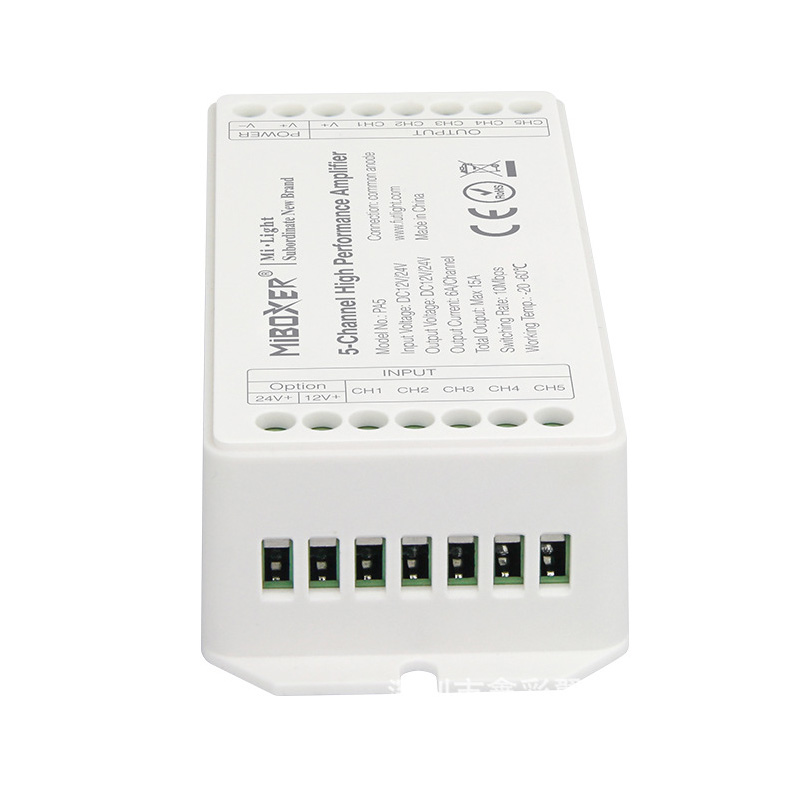

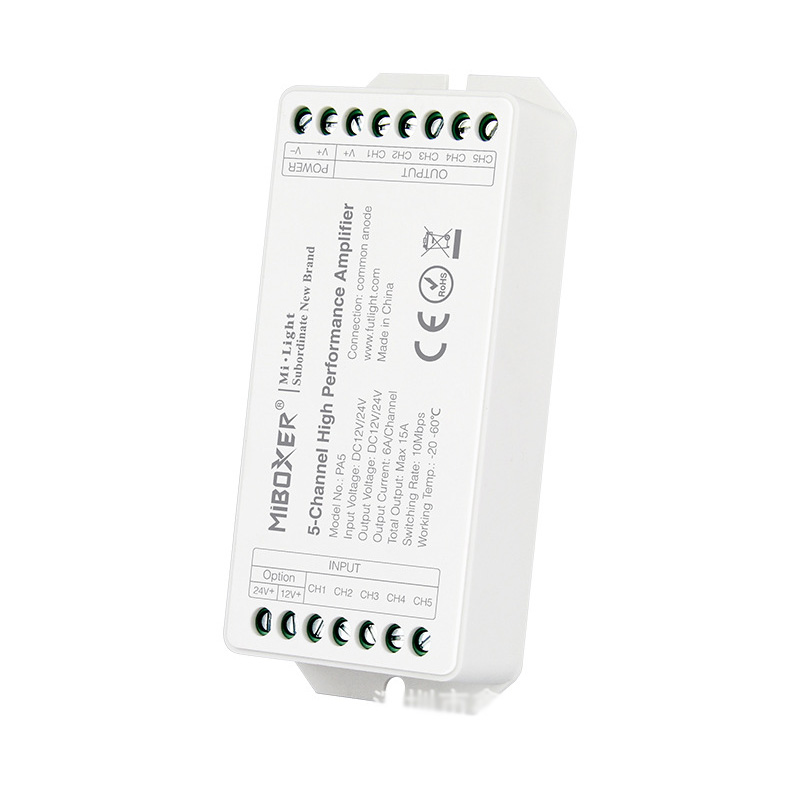

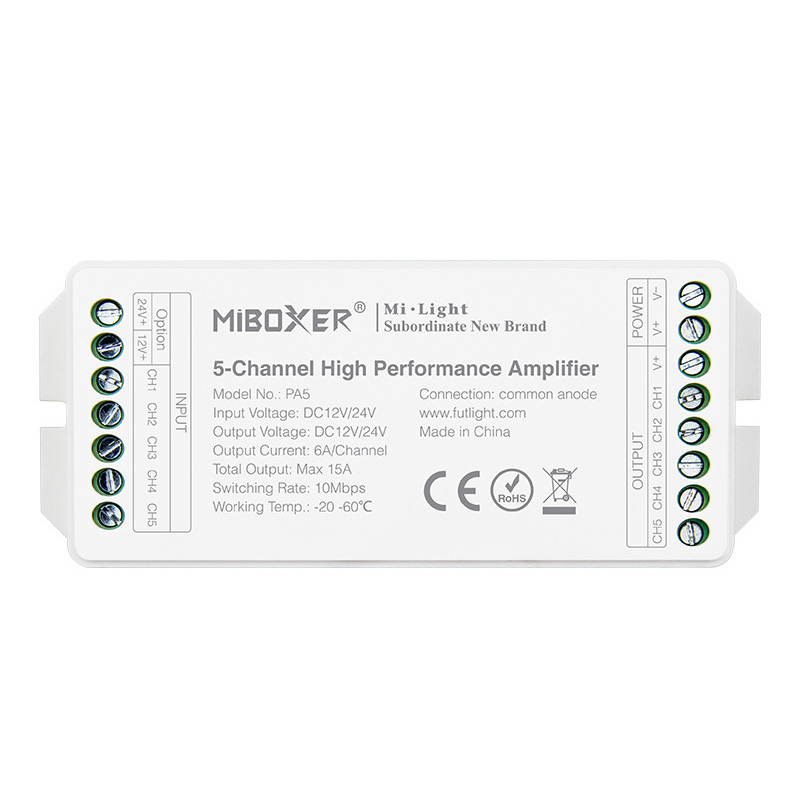

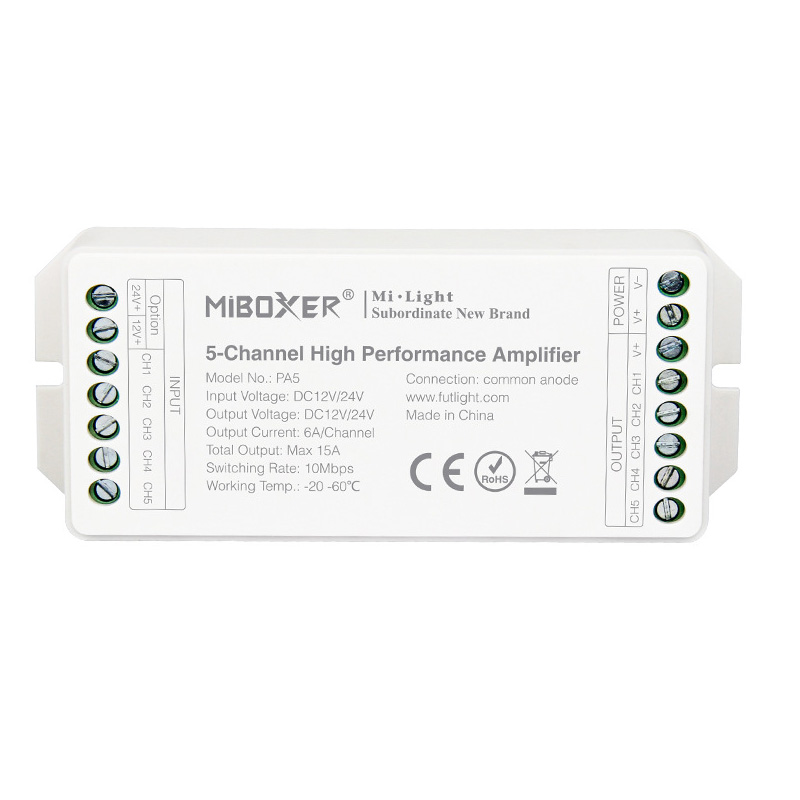

The MiBoxer PA5 LED RGB amplifier has a five-channel design. You can use them for RGB, RGBW, RGBWW, and RGB+CCT LED strips. The PA5 adopts a high-speed optical coupler with a 10 Mbps output rate, which can output the signal of the main controller altogether and synchronously. The input and output are with optoelectronic isolation. Theoretically, you can add unlimited MiBoxer amplifiers to your lighting project and let all LED strips simultaneously change the lighting effect. The MiBoxer amplifier works on all PWM series LED controllers, which are made with a big current MOSFET to ensure a high rate of output. You can connect twice as many LEDs every time you add one more amplifier.
Quick Links:
Specifications:
- Size: 115*48*27mm(L*W*H)
- Input Voltage: DC12V/DC24V
- Output Voltage: DC12V/DC24V
- Max Output Current: 6A/Channel
- Total Output Max: 15A
- Switching Rate: 10Mbps
- Connection: Common Anode
- Compatible With Mi-Light/MiBoxer Series Controllers And All Other PWM LED Controllers
- Working Temperature: -20℃-+60℃
- For Single Color, Dual White, RGB, RGBW, RGB+CCT LED Strips
- 2 Years Warranty
Includes:
1 * PA5 Signal Amplifier
