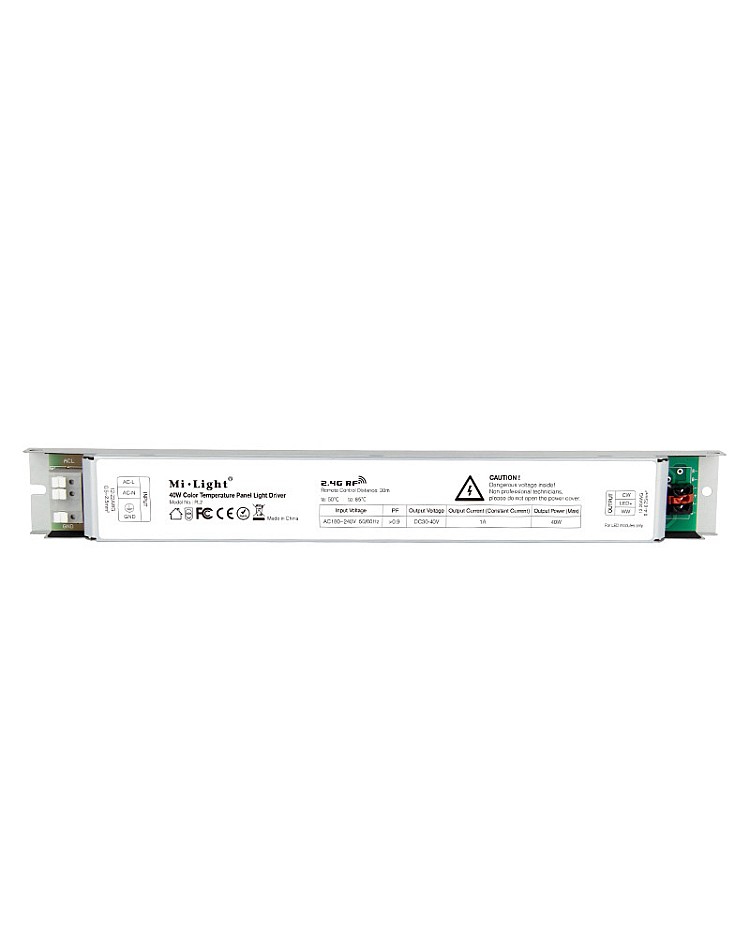

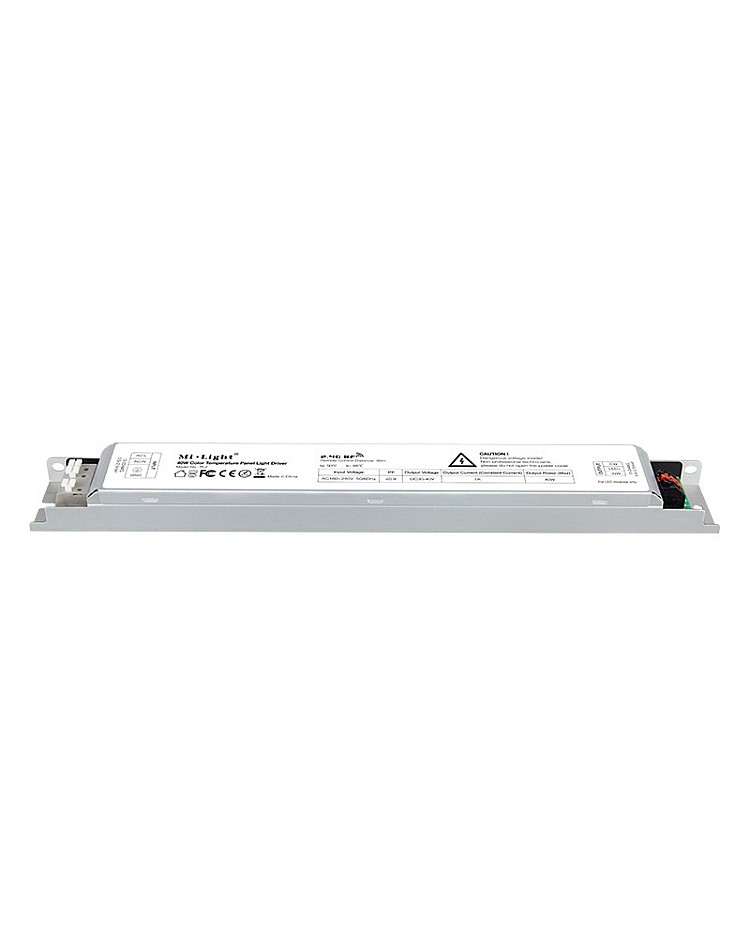

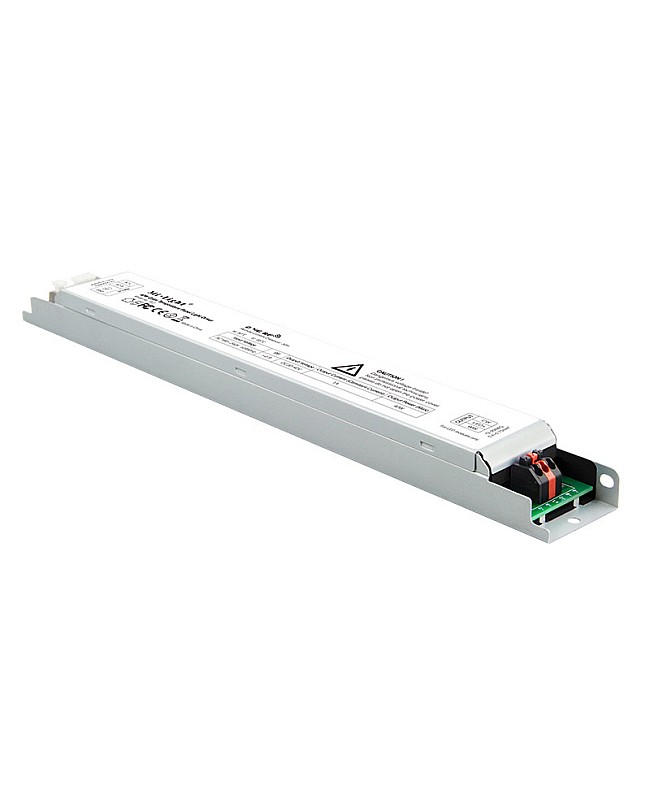

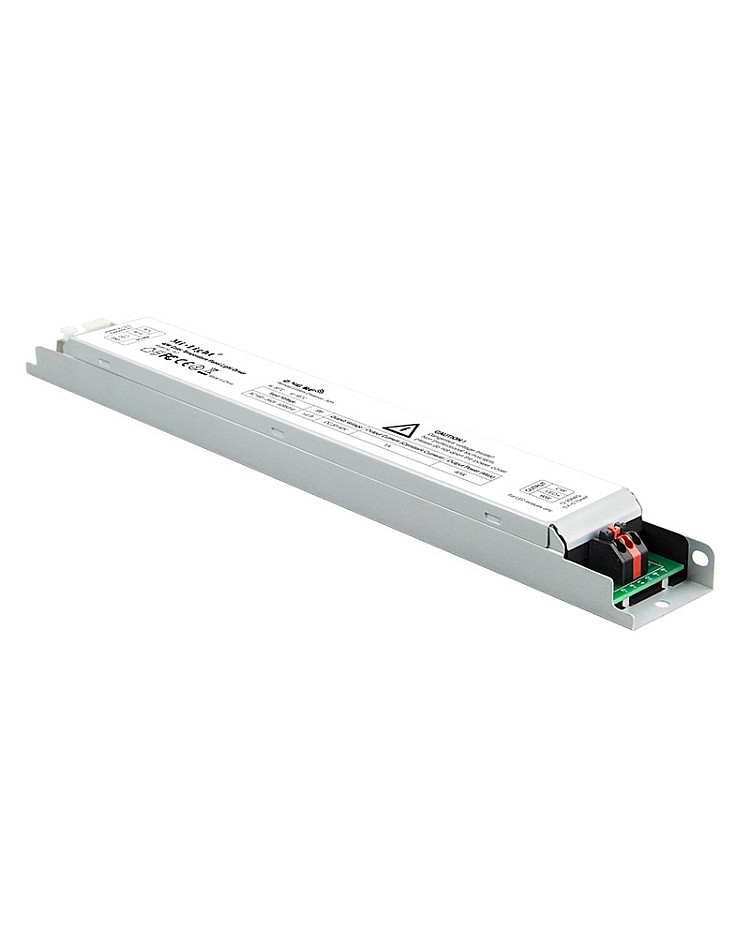

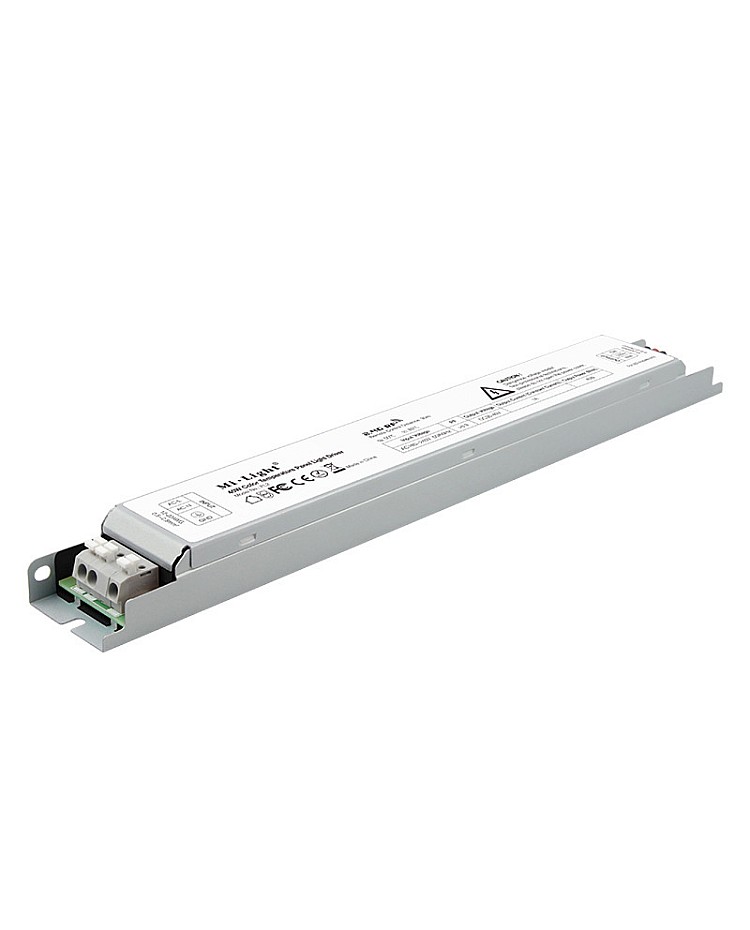

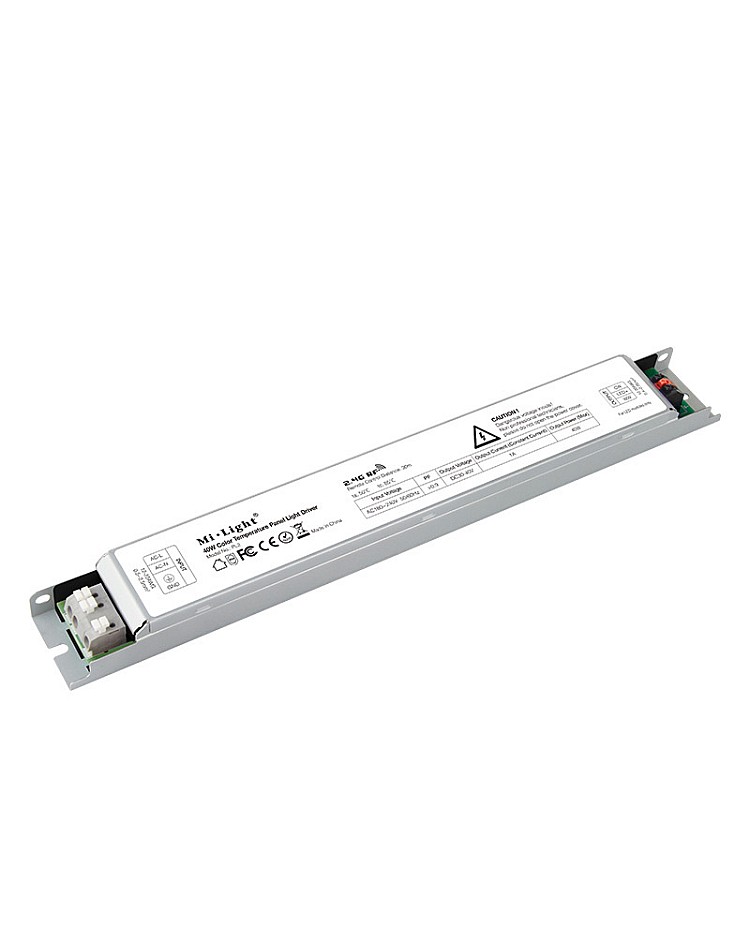

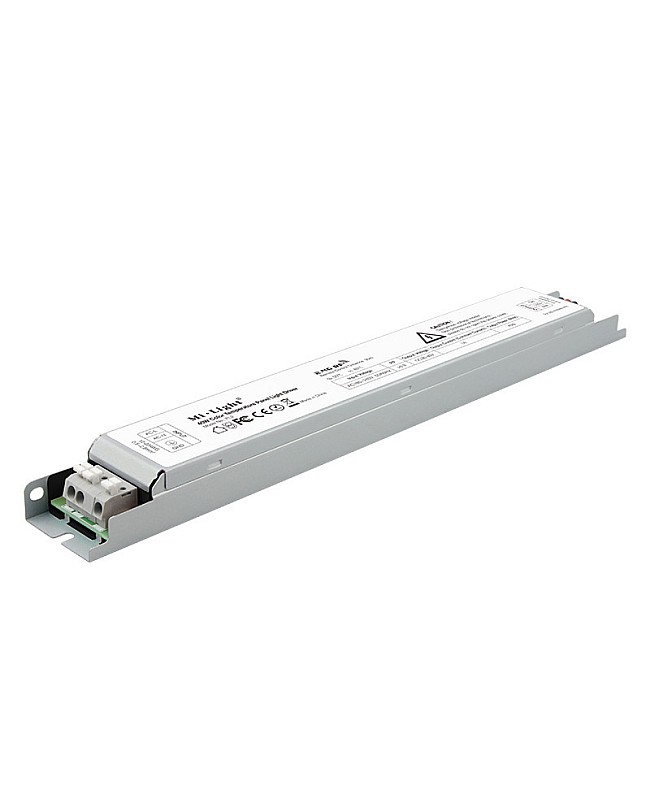

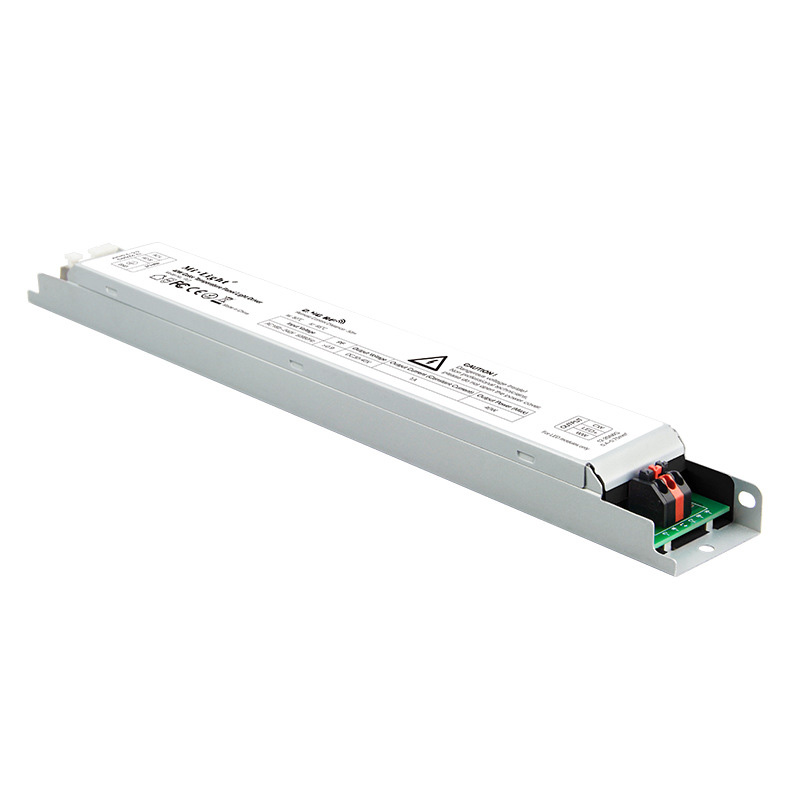

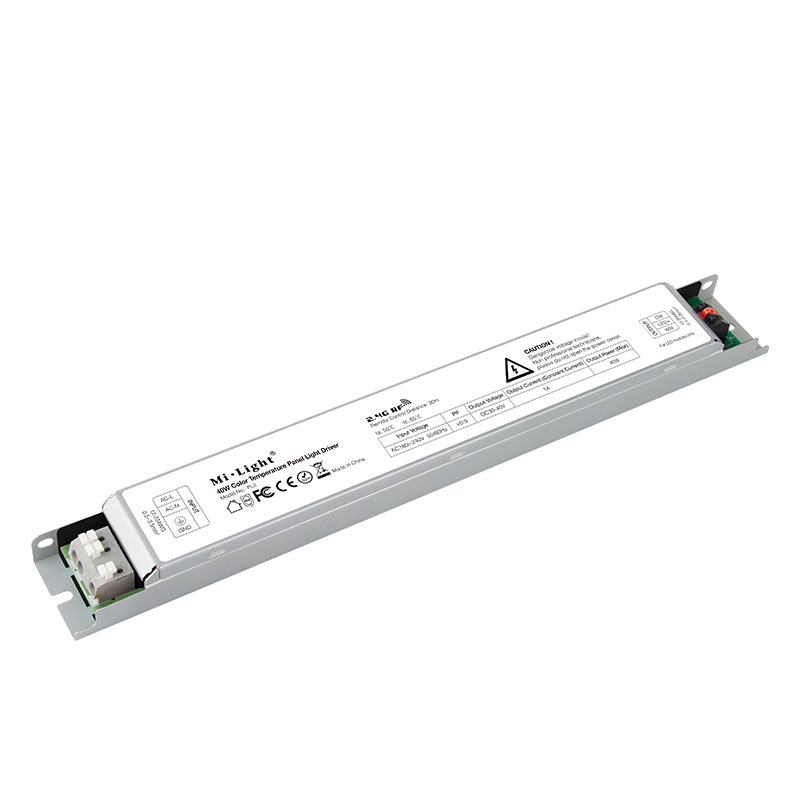

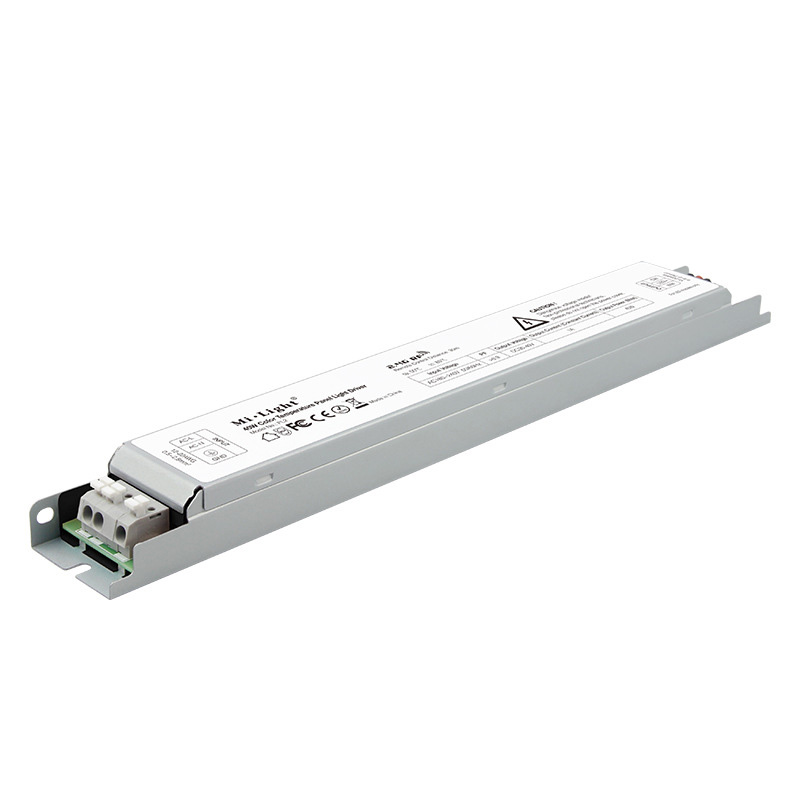

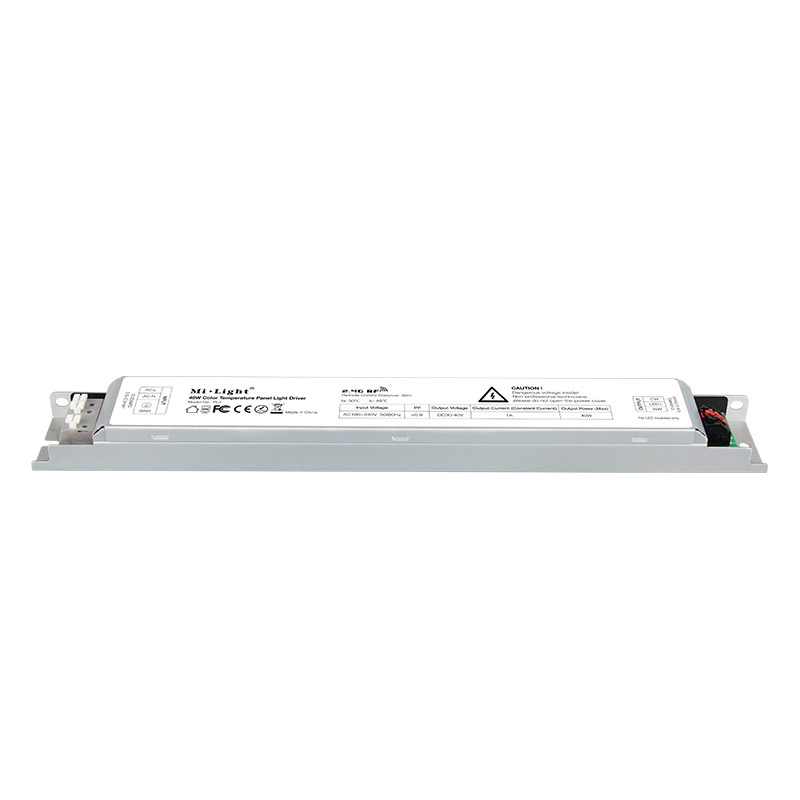

The MiBoxer PL2 Dimmable LED Driver for the CCT LED Strips, which with slim linear size and galvanization metal shell, the constant output current is 1A, and the max output power is 40W. The MiBoxer CCT Dimming Driver adopts a 2.4G transmission technology and can be controlled by 2.4G CCT Remote Controls to adjust the brightness and color temperature. After adding WiFi iBox, it can be controlled by a smartphone APP. One CCT Dimming LED Driver receives the signals from the Remote Control and transmits them to other same Drivers within 30 meters. The Drivers will work synchronously, with the same dynamic mode and speed, etc. The MiBoxer 40W Dimming Drivers are non-waterproof and only recommended for indoor applications.

Quick Links:

MiBoxer PL2 CCT Dimmable Constant Current LED Driver Manual


  • Size: 300*37*22.5mm(L*W*H)
  • Input Voltage: AC180-240V, 50/60Hz
  • Output Voltage: DC30-40V
  • Output Current: Max 1A
  • Output Power: Max 40W
  • PF: >0.9
  • Controllable Channels: 2
  • Remote Control: ≤30m
  • Compatible With Single White And Dual White Output Modes
  • Brightness And Color Temperature Adjustable
  • Compatible With 2.4G Remote Controls: FUT091, FUT006, FUT007, MiBoxer B2, T2
  • Smartphone APP Control(WiFi iBox Needed)
  • Auto-Transmitting Function And Auto-Synchronization Function
  • IP Rating: IP20 Non-Waterproof
  • Ta: 50℃
  • Tc: 85℃
  • 2 Years Warranty


1*MiBoxer PL2 CCT Dimmable LED Driver

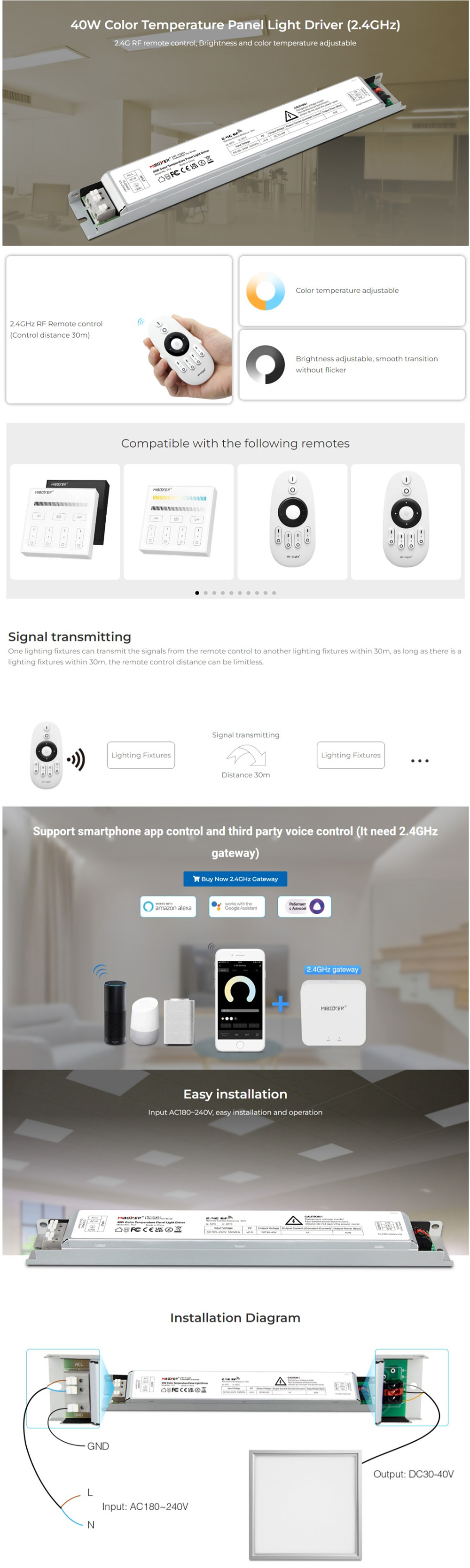

MiBoxer PL2 Color Temperature Dimmable Constant Current LED Driver
