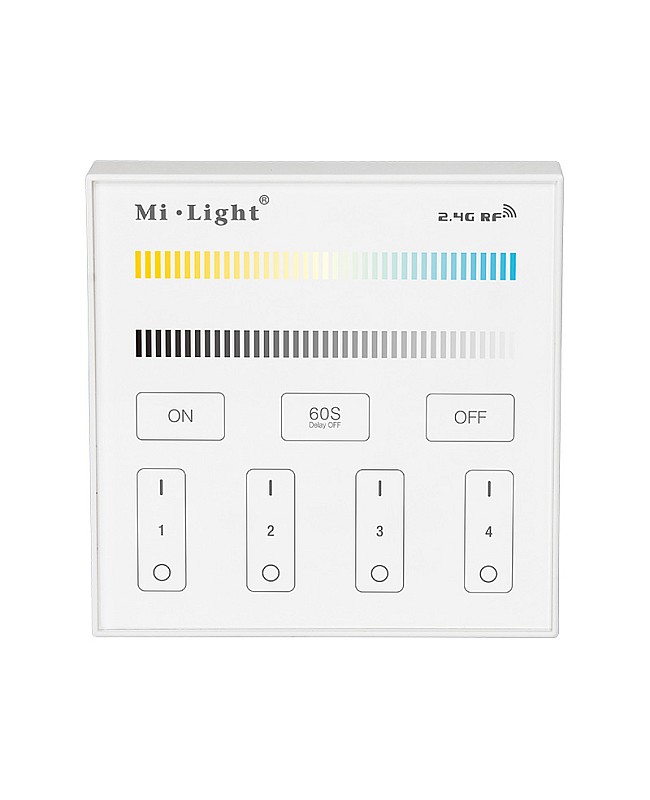

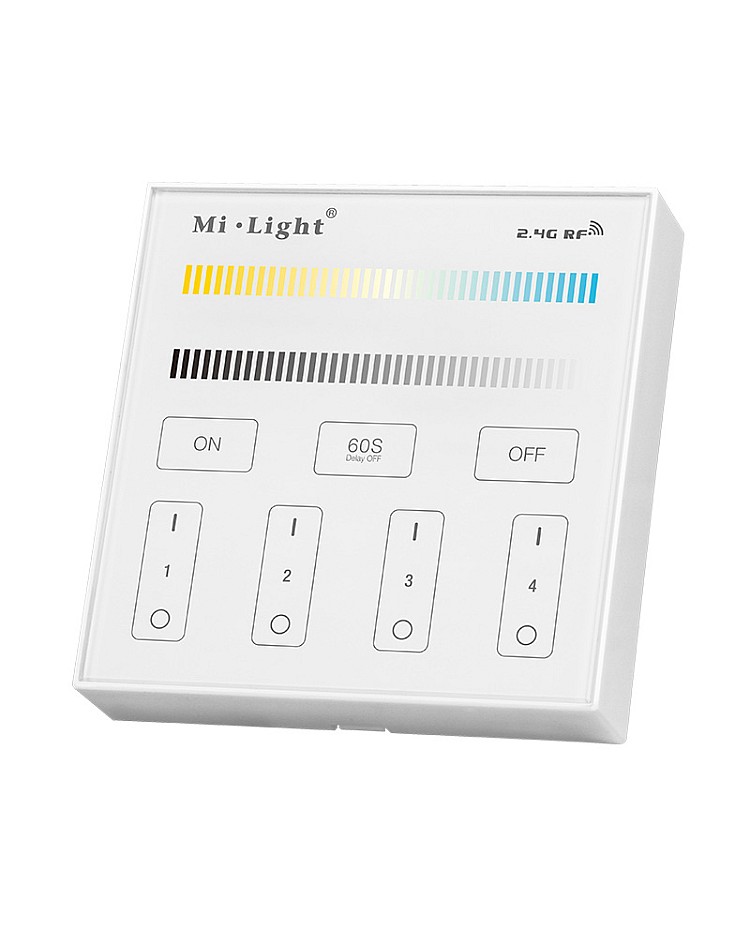

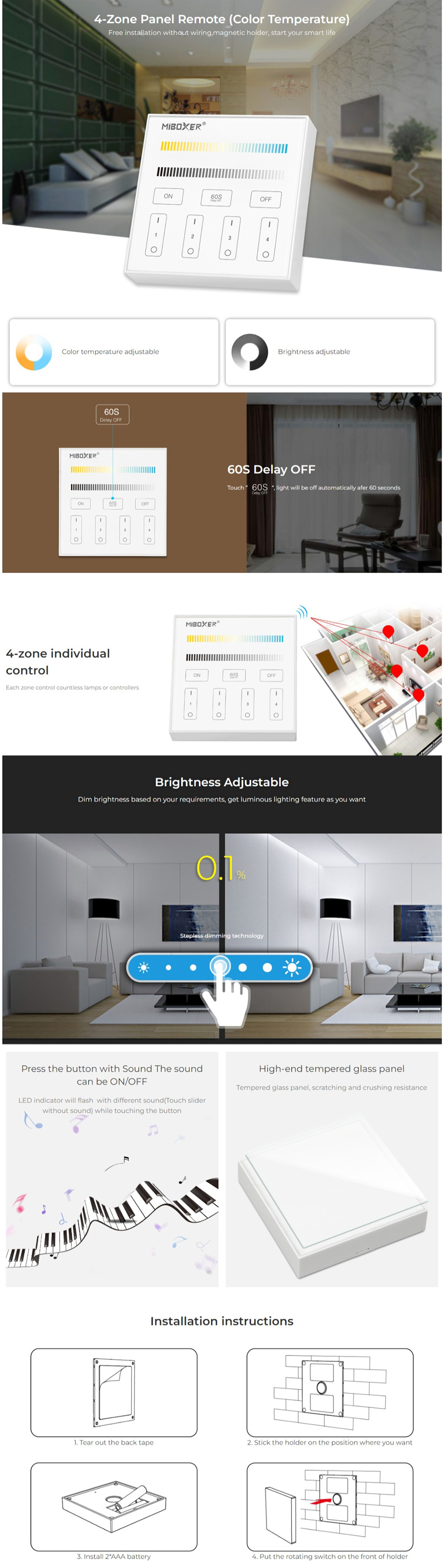

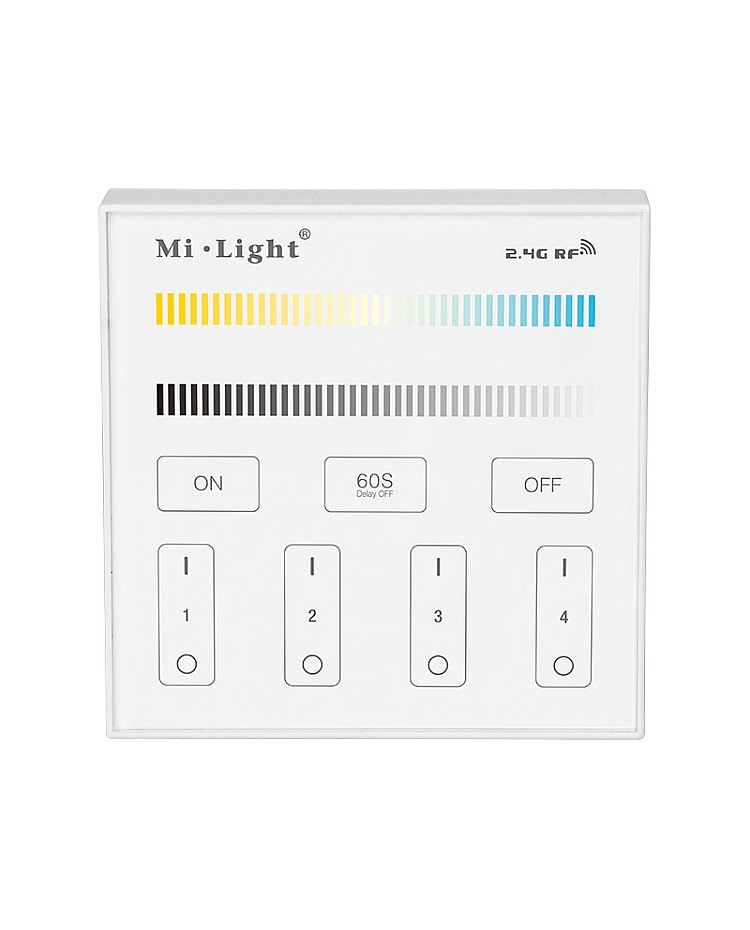

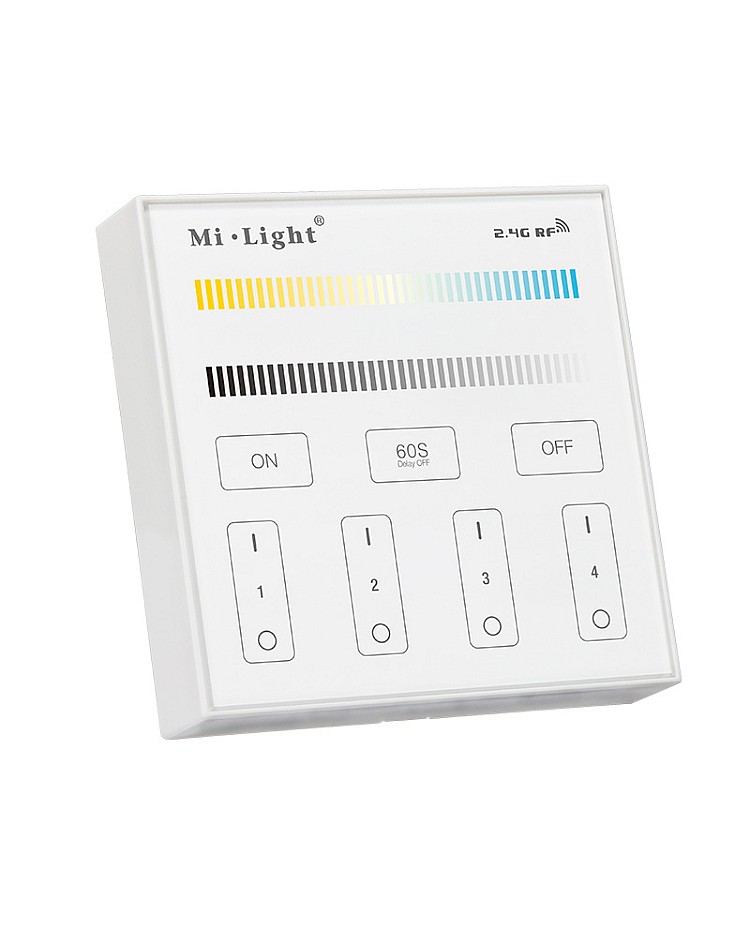

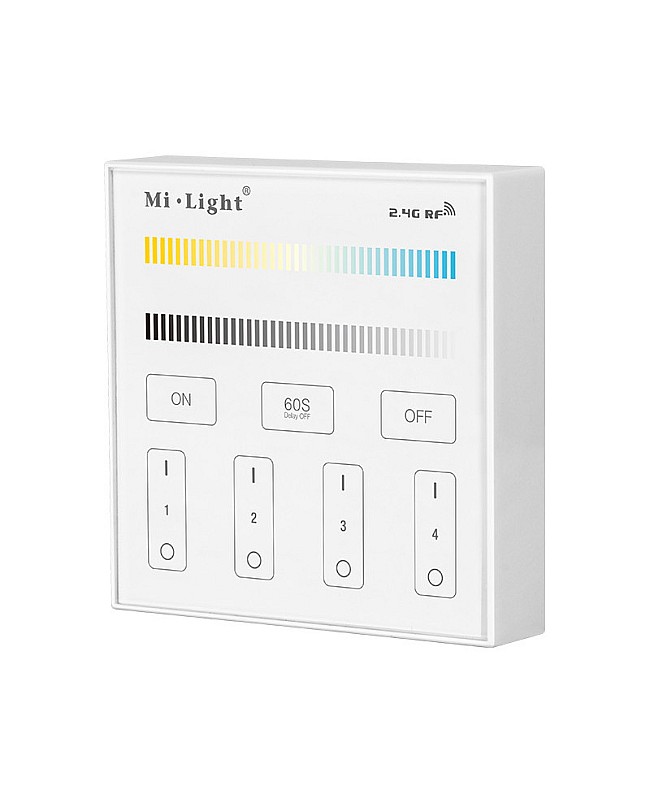

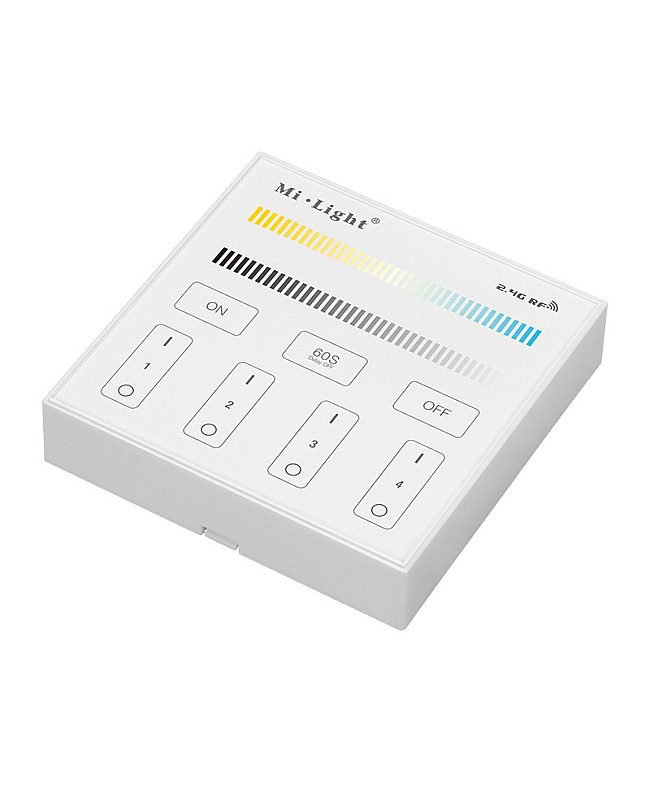

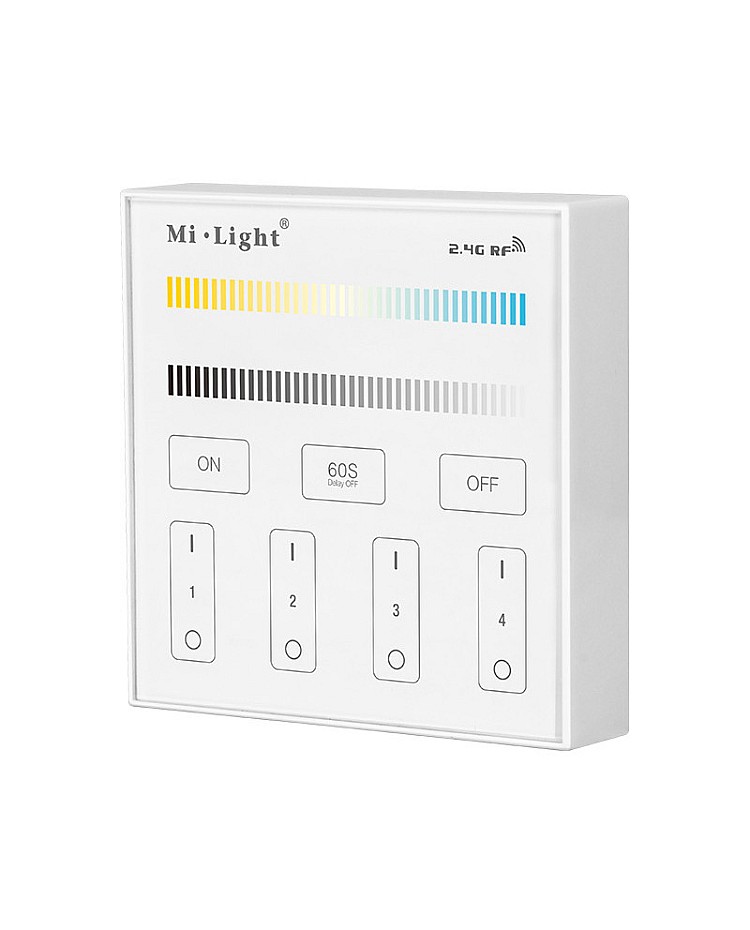

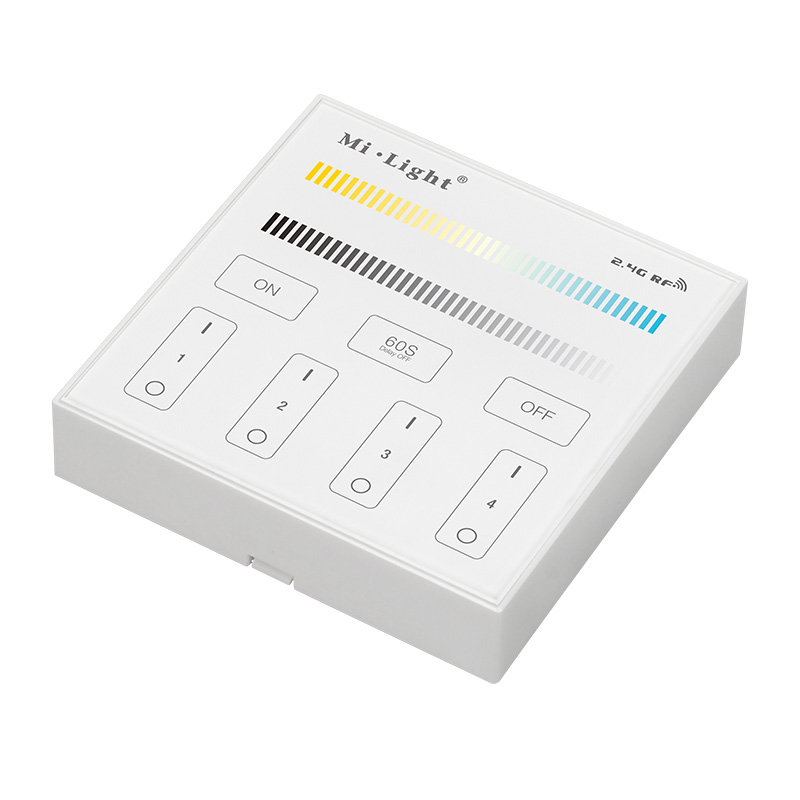

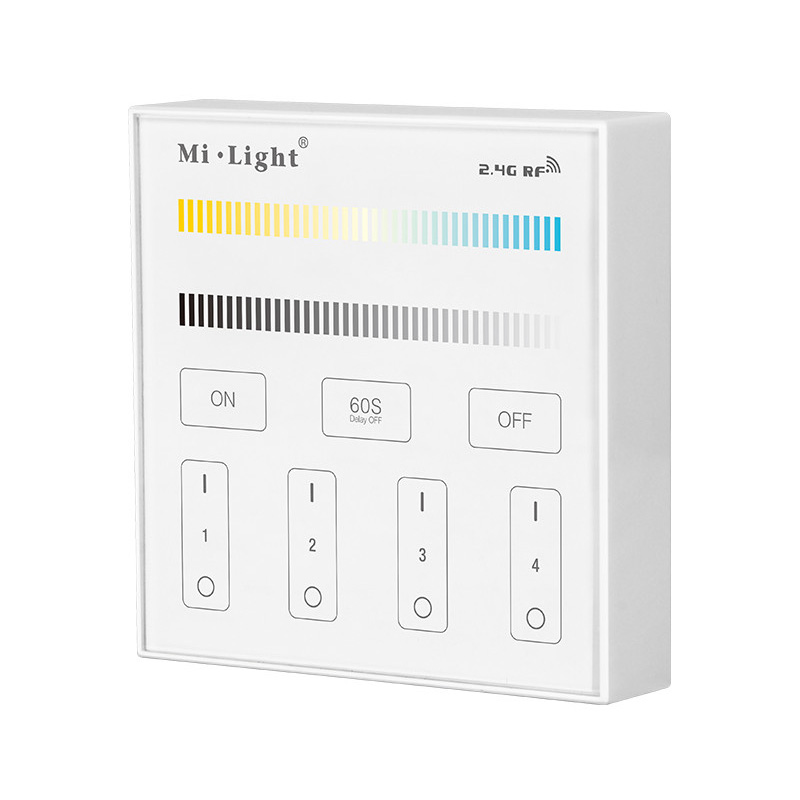

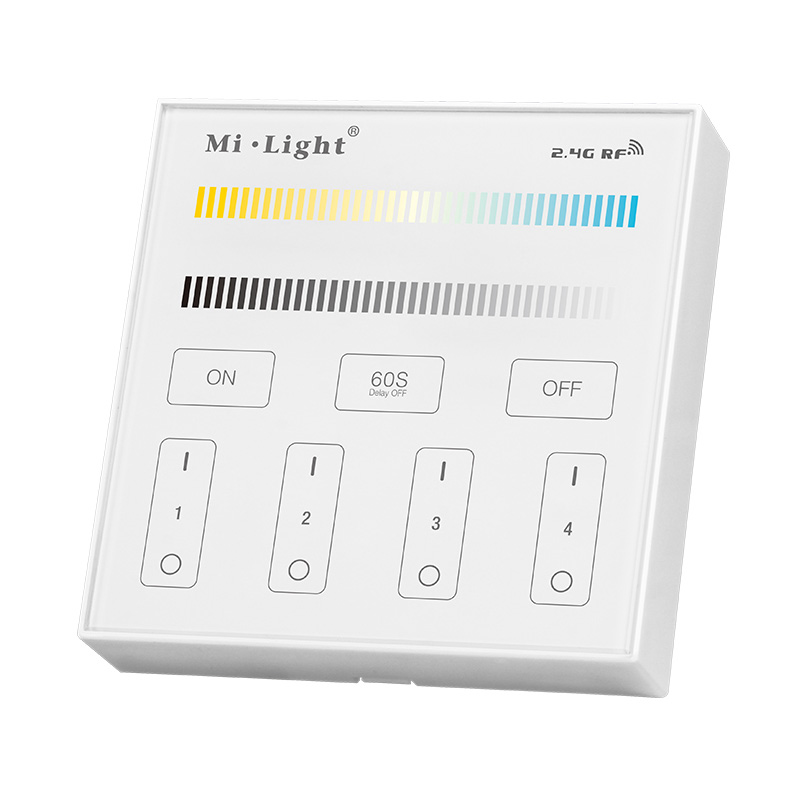

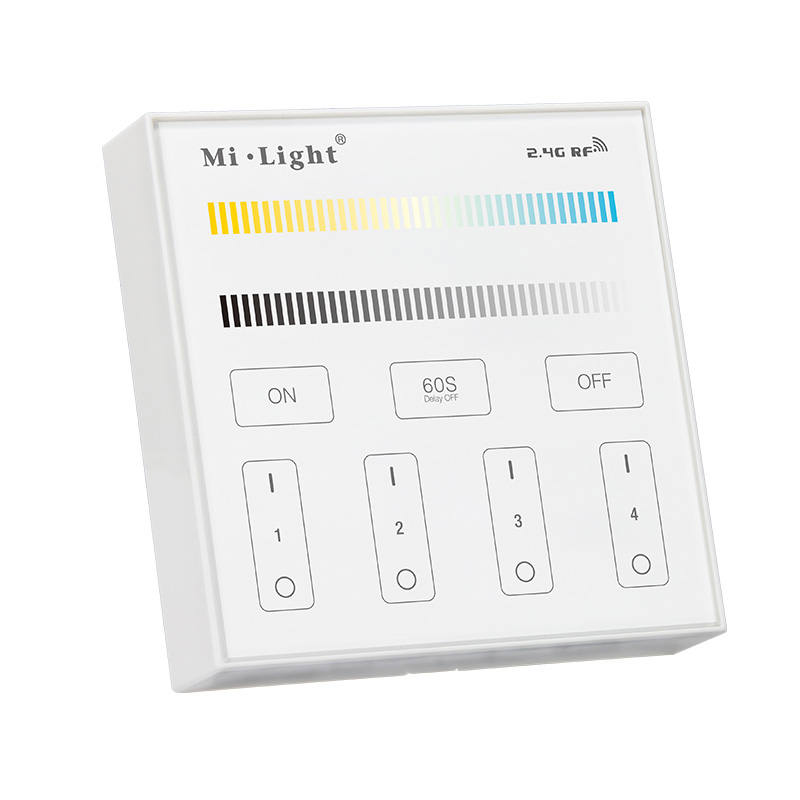

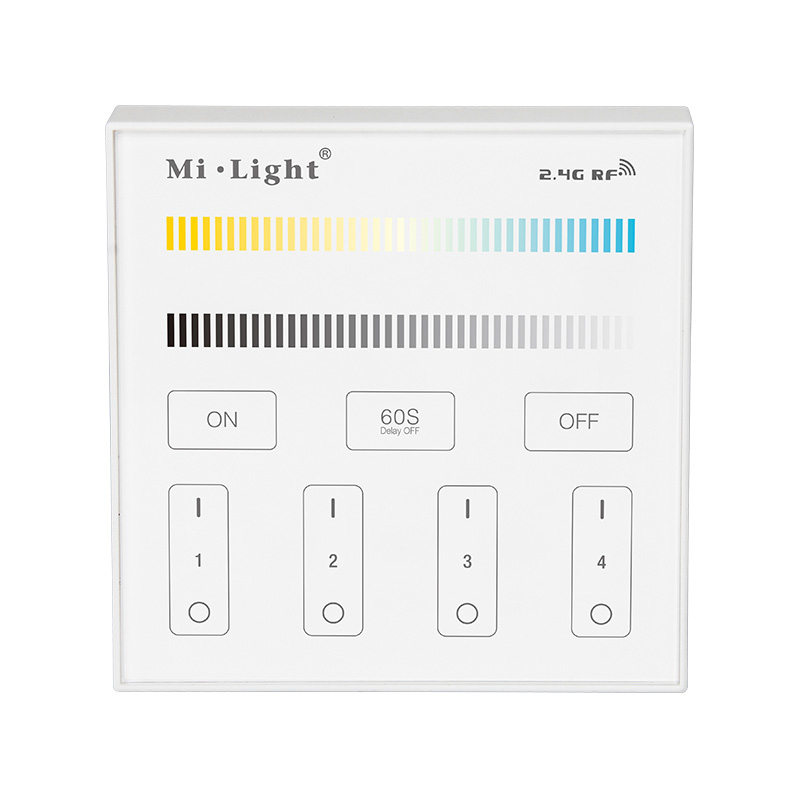

The MiBoxer B2 LED Panel CCT has 4 individual zone control designs. Each zone controls countless lamps or controllers, and you can use it to control Mi-Light Dual White Lamps and MiBoxer CCT Controllers. The LED Panel CCT has a sensitive touching panel design and a high-precision capacitive touch screen IC. The touch screen is very stable and easy to use. You can use it to adjust the color temperature from 2700K to 6500K and the brightness from 1% to 100%. The Milight B2 with the 60S delay OFF function, touch the button "60S", and the light will be turned off automatically after 60 seconds. When touching the button, the LED indicating light will flash once with a different sound. The MiBoxer CCT LED Panel adopts a 2.4G communication module and a control distance of up to 30 meters. With a magnetic holder, you can attach the panel remote control to the base easily.

Quick Links:

MiBoxer B2 CCT Panel Remote Manual


  • Size: 86*86*16mm(L*W*H)
  • Working Voltage: DC3V
  • Powered By 2PCS AAA Batteries(Not Included)
  • Transmission Frequency: 2400-2483.5MHz
  • Modulation Method: GFSK
  • Transmitting Power: 6dBm
  • Control Distance: 30M
  • 4 Zones Individually Control
  • NO Wiring
  • Magnetic Holder
  • 60S Delay OFF
  • Color Temperature Adjustable: 2700K-6500K
  • 1-100% Brightness Dimming
  • Sensitive Touching Panel
  • Compatible With MI-Light And MiBoxer Color Temperature Products: MiBoxer LS2, MiBoxer WL5
  • Working Temperature: -10℃-+40℃
  • 2 Years Warranty


1*MiBoxer B2 LED Panel CCT

1*User Manual
