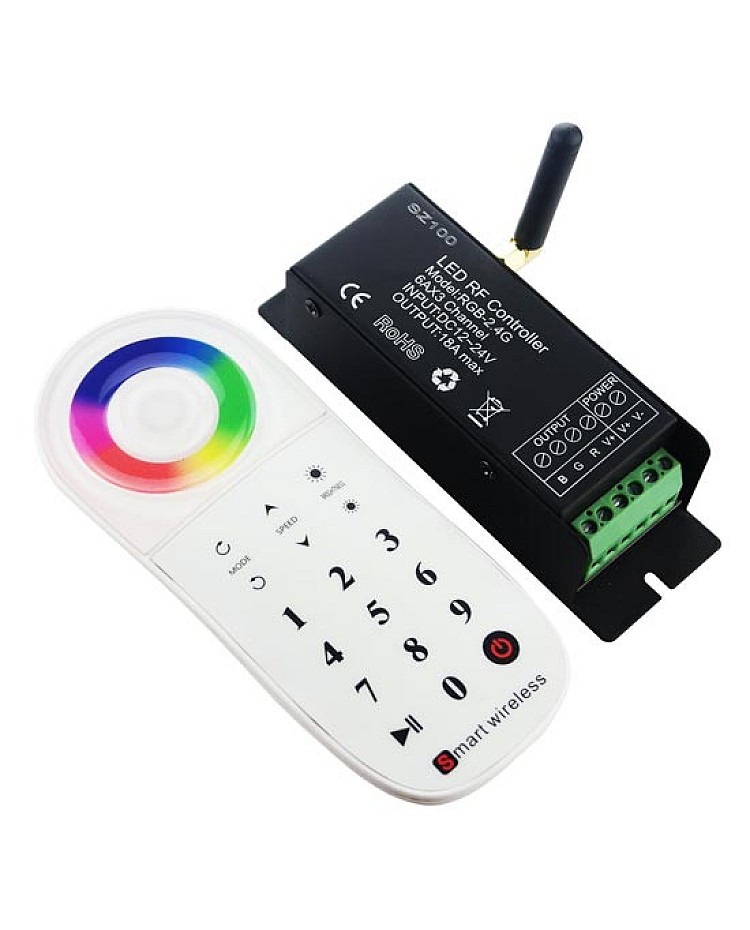

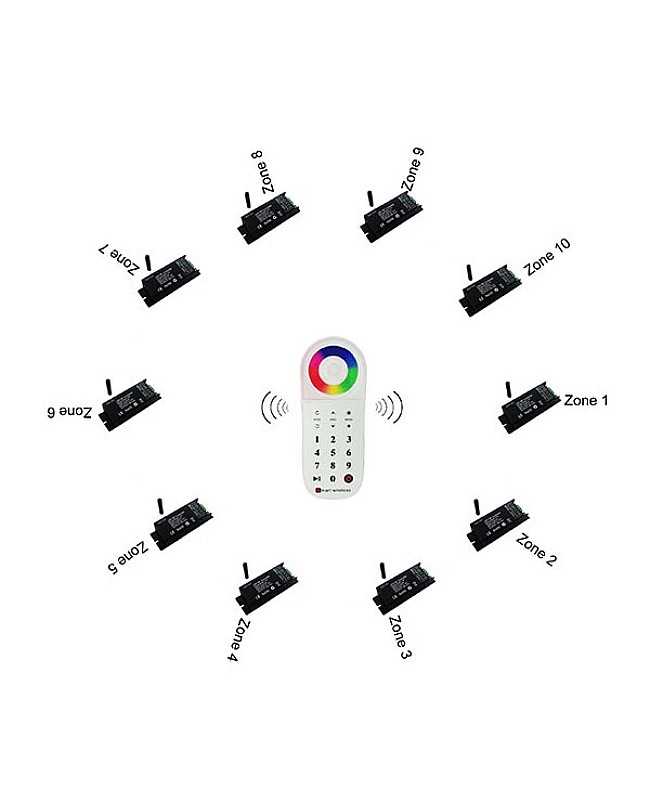

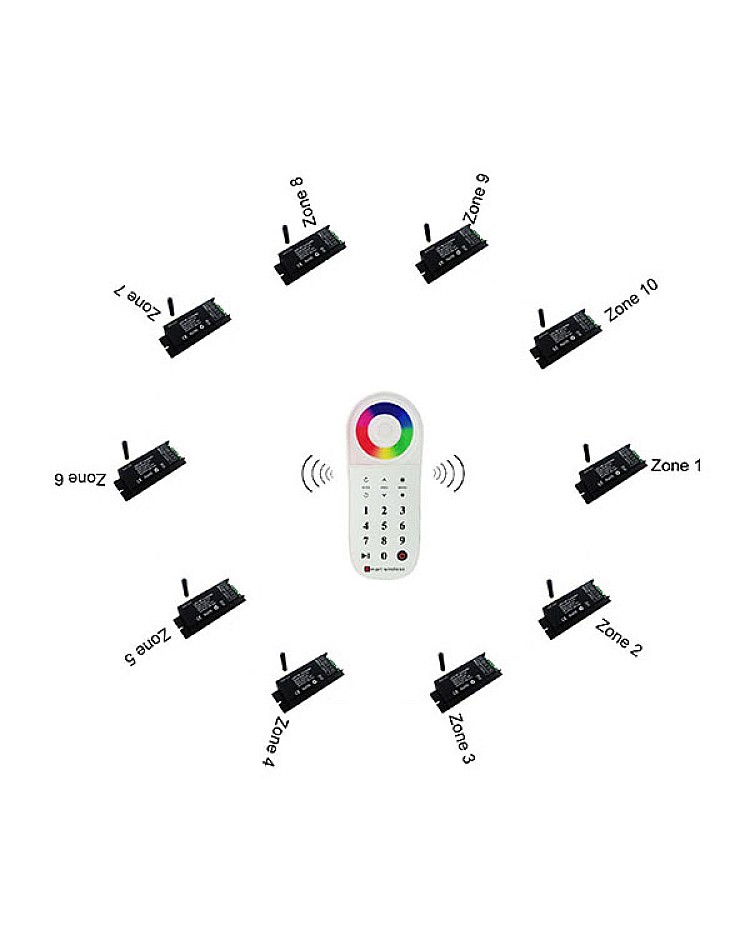

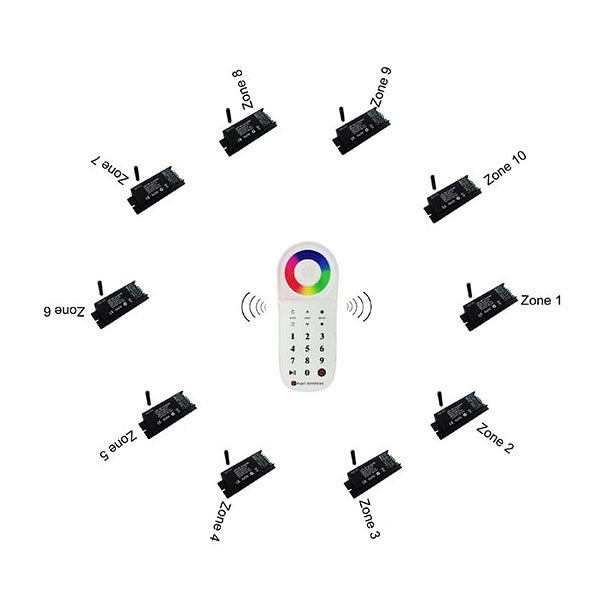

Check the Multi Zones 2.4G RF RGB LED Controllers, which includes the RGB LED Controller and RF Remote Control, to achieve integrated control of multiple areas within the effective distance range, meet the growing demands of LED Lighting environmental control. working in DC12V or DC24V, with 3 output channels design, the max output current of each channel up to 6A and the max loading power up to 432W when working in 24V. you can use them for the RGB LED Strips, Color-Changing LED Modules, LED String Lights or other Colour LED Lights. the 18 keys RF remote control included, to achieve independent control for up to 10 various areas, including switching, pause, speed and brightness adjustable. you can adjust the color by pressing the color ring conveniently.

RGB LED Controller Features:

  • Working Temperature: -20-60℃
  • Size: 127*41*32mm(L*W*H)
  • Working Voltage: DC12-24V
  • Standby Power: <1W

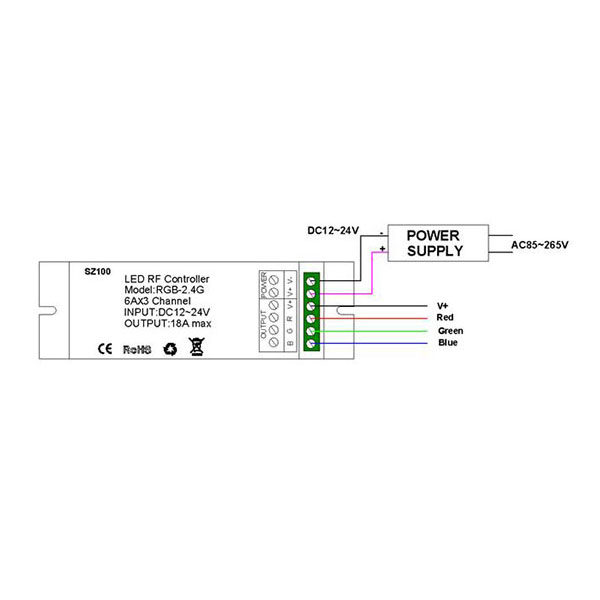

  • Connecting Mode: Common Anode
  • Brightness Level: 256
  • Speed Levels: 100
  • Output Channels: 3
  • Output Current: <6A Each Channel
  • Output Power: <216W(DC12V), <432W(DC24V)
  • Memory Function: YES
  • Effect: 11
  • Weight: 200g

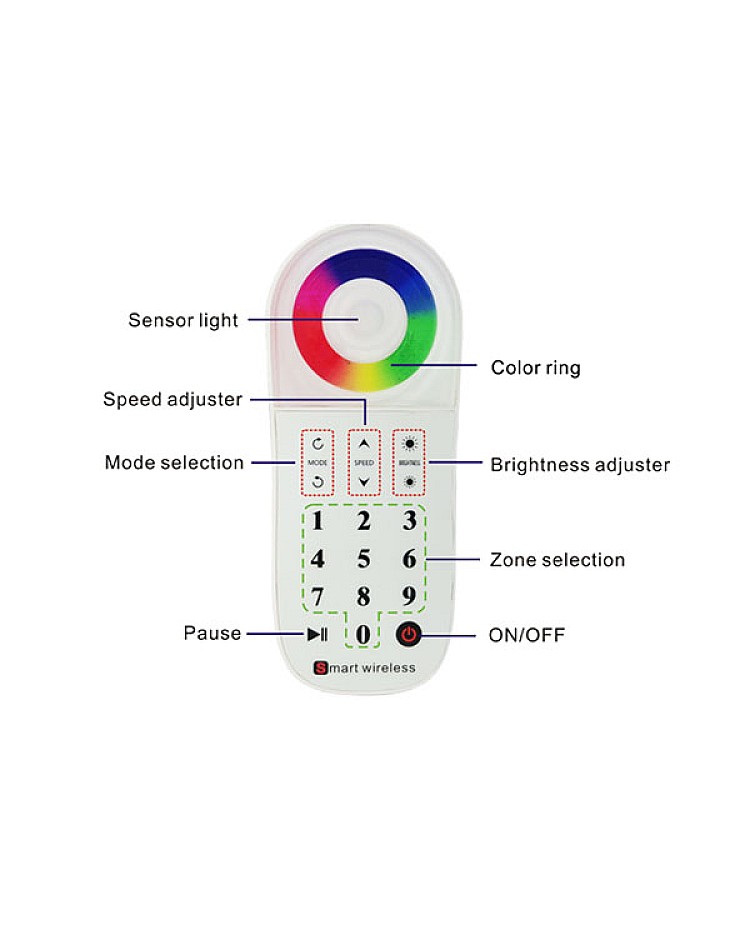

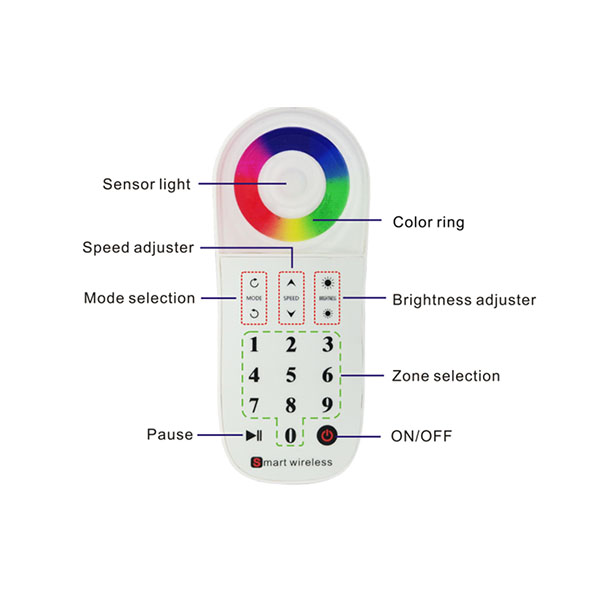

RF Remote Control Features:

  • Size: 150*62*25mm(L*W*H)
  • Working Temperature: -20℃-60℃
  • Working Voltage: 3V(AAA*2)
  • Standby Current: 6.5uA
  • Working Current: 16mA
  • Standby Power: 0.078mW
  • Working Power: 0.192W
  • Weight: 120g

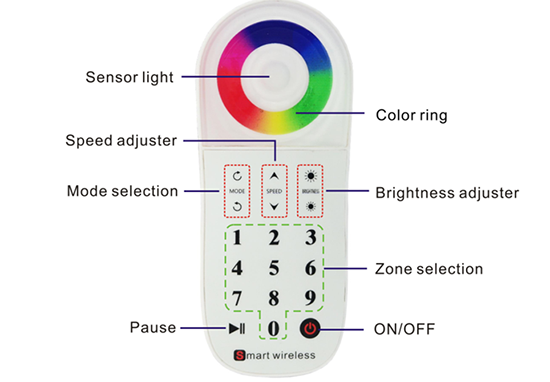

multi zone rgb led light controller

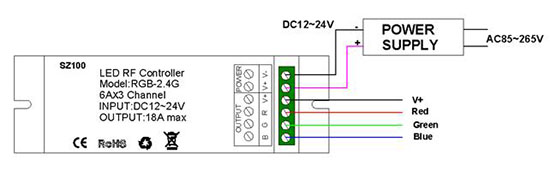

multi zone rgb led strip controller

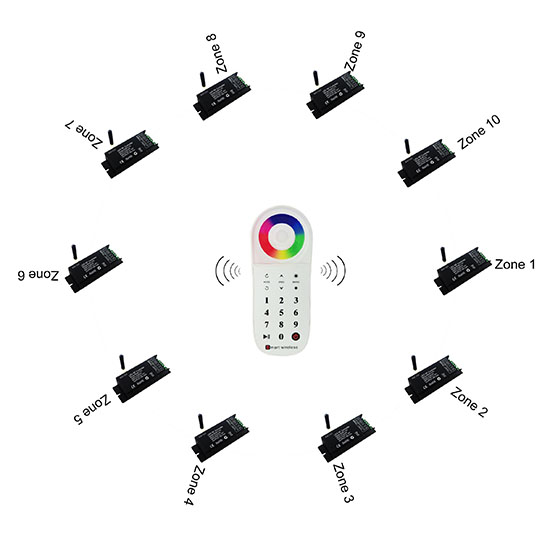

multi zone rgb led controllers

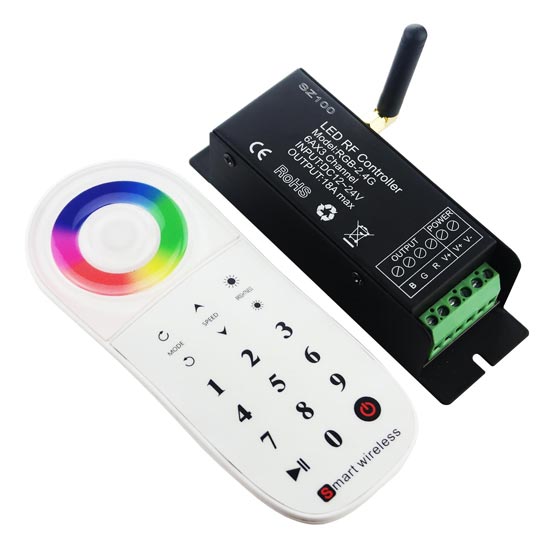

1*Multi Zones LED Controller

1*RF Remote
