The MiBoxer PR5 LED Lighting Controllers feature a 5-in-1 design, compatible with single-color, dual-white, RGB, RGBW, and RGB+CCT LED Lights. They adopt widely used 2.4GHz wireless technology and can be controlled by MiBoxers and Mi-Light 2.4G Remote Controls. The lightweight design and compact size enable quick and convenient installation. There is a physical button labeled "SET" on the controller, which you can press continuously to switch the output mode between single color, dual white, RGB, RGBW, and RGB+CCT. Built-in 18 dynamic modes, including jump and gradient. 16 million colors, saturation, brightness, and color temperature are adjustable for various scenes. One lighting controller can be paired with up to 12 remotes and has a control distance of up to 30 meters. The PR5 will forward the remote control signal to another device, effectively increasing the control distance to infinity, and the controllers will operate under the same color or dynamic pattern. After pairing with 2.4G Bridges, the MiBoxer Lighting Controller supports Tuya Smart APP control and can be controlled by voice commands from Amazon Alexa or Google Assistant. They are suitable for residential and commercial modern LED lighting control applications.
Specifications:
- Type: 5 In 1 LED Lighting Controller
- Model: PR5

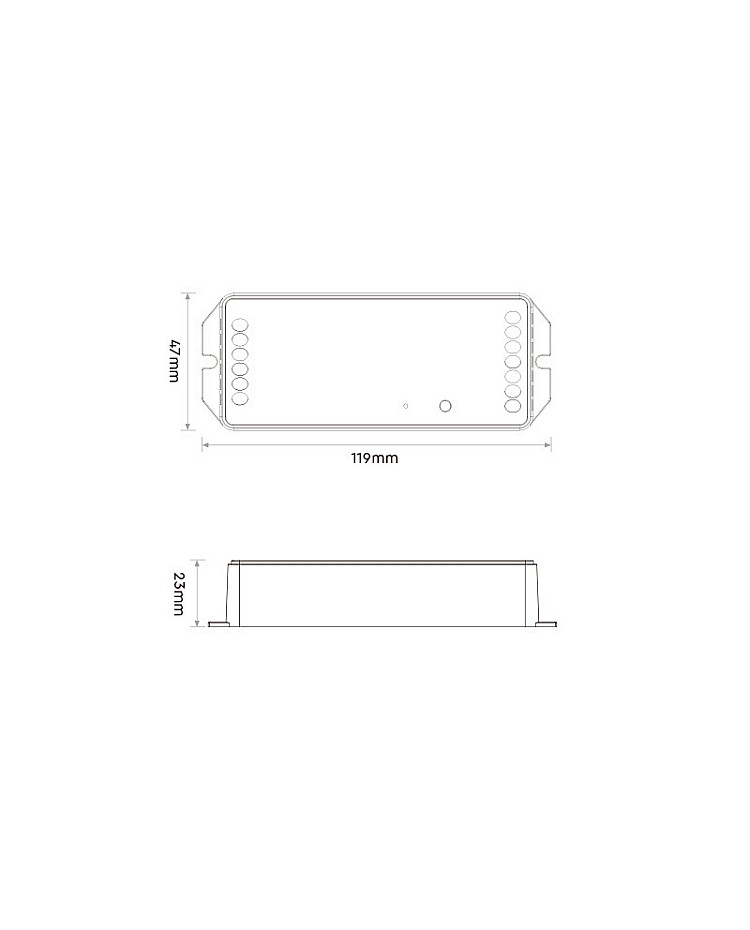

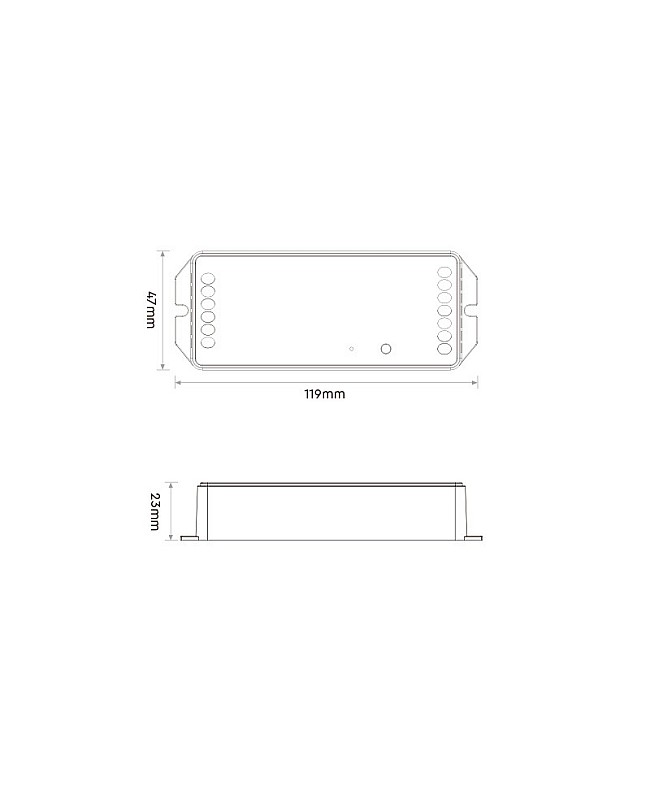

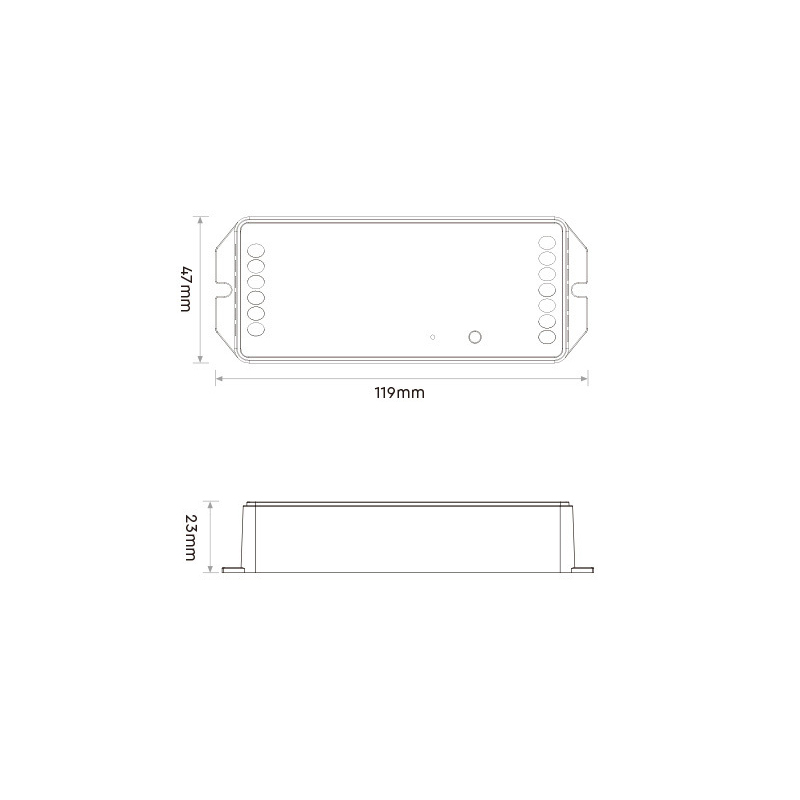

- Size: 119*47*23mm(L*W*H)
- Input Voltage: DC12-48V
- Output Current: 20A Max
- Output Power: 960W Max
- Built-in 18 Dynamic Modes
- 16 Million Colors And Saturation Adjustable
- Brightness And Color Temperature Adjustable
- Dimming Grayscale: 4096 Levels
- Dimming Range: 0.1%-100%
- Dimming Curve: Logarithmic
- Output Type: Constant Voltage
- Control Signal: 2.4G RF
- Support Tuya Smart APP Control(2.4G Bridge Needed)
- Support Third Party Voice Control: Amazon Alexa, Google Assistant(2.4G Bridge Needed)
- Support DMX512 Control(DMX512 LED Transmitter Needed)
- Remote Control Distance: ≤30M
- Compatible With MiBoxer / Mi-Light 2.4G Series Remote Controls
- Working Temperature: -10-40℃
- 5 Years Warranty

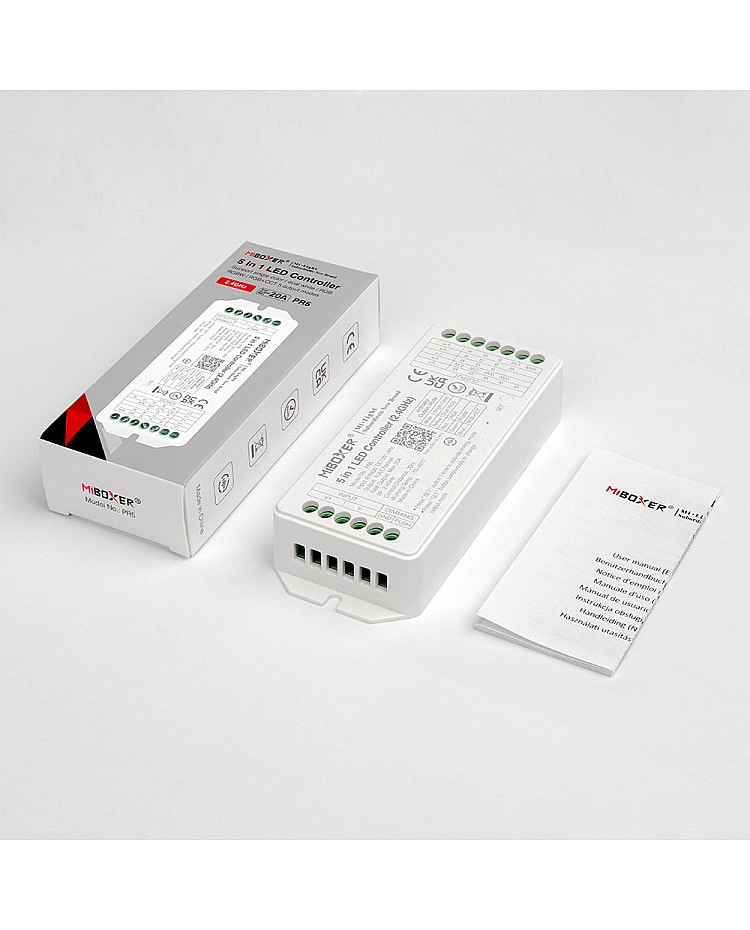

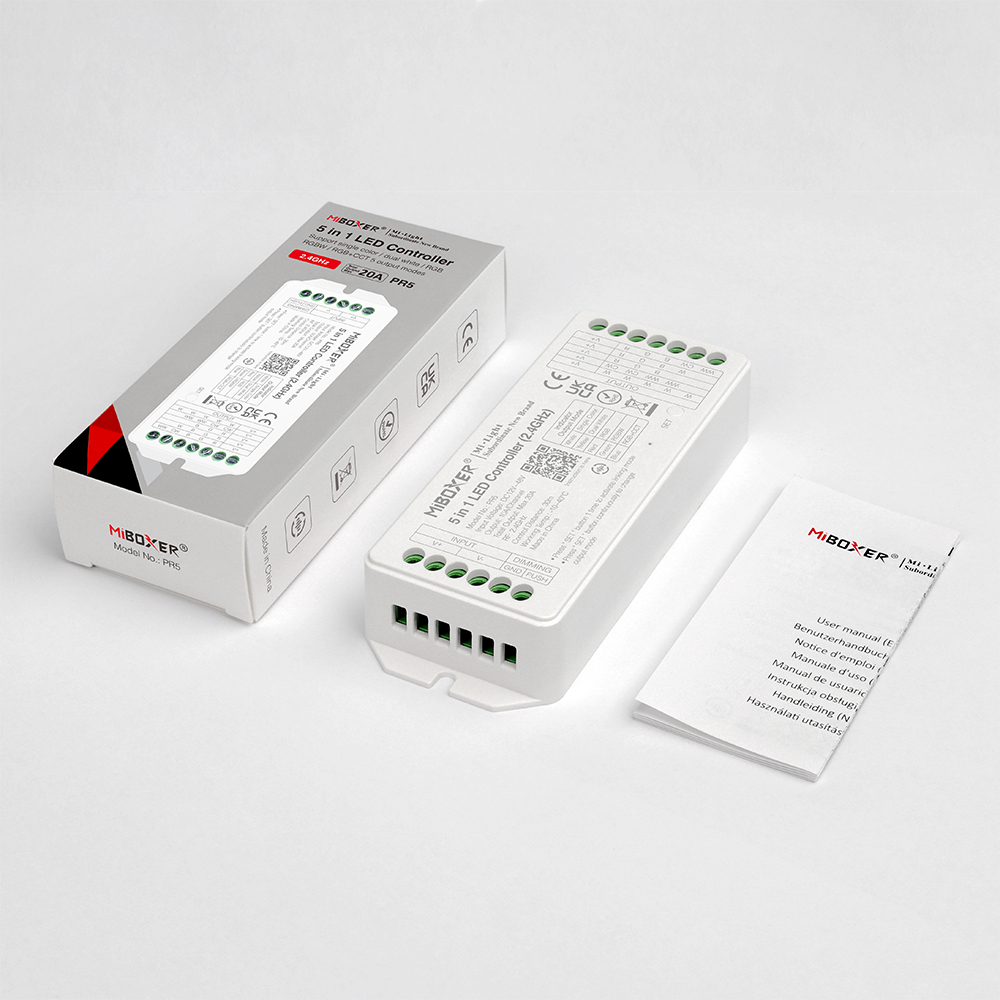

Includes:
1*PR5 LED Lighting Controller
