The MiBoxer SPIR3 is a 3-in-1 pixel controller designed for single color, RGB, and RGBW pixel strip lights, which C6 or B6 remotes can control to adjust dynamic modes and colors, brightness, ON/OFF time, and edit dynamic lighting features. A total of 20 dynamic modes and support for editing their color. It adopts the 2.4G wireless transmission technology, has high-speed transmitting, strong anti-interference ability, and a stable signal. They can work with most pixel chips and do not need to set chip types; they can work with TM1809, TM1812, UCS1903, WS2811, WS2812, WS2813, WS2815, SK6812, WS2813, WS2814, etc. The SPIR3 LED controller supports a maximum number of pixels of up to 2048 pieces when operating in single-color working mode. A " SET" button on the pixel light controller lets you switch the output modes from single color, RGB, and RGBW.
Specifications:
- Type: 3 In 1 SPI Controller For Single Color/RGB/RGBW Pixel LED Strips
- Model: SPIR3

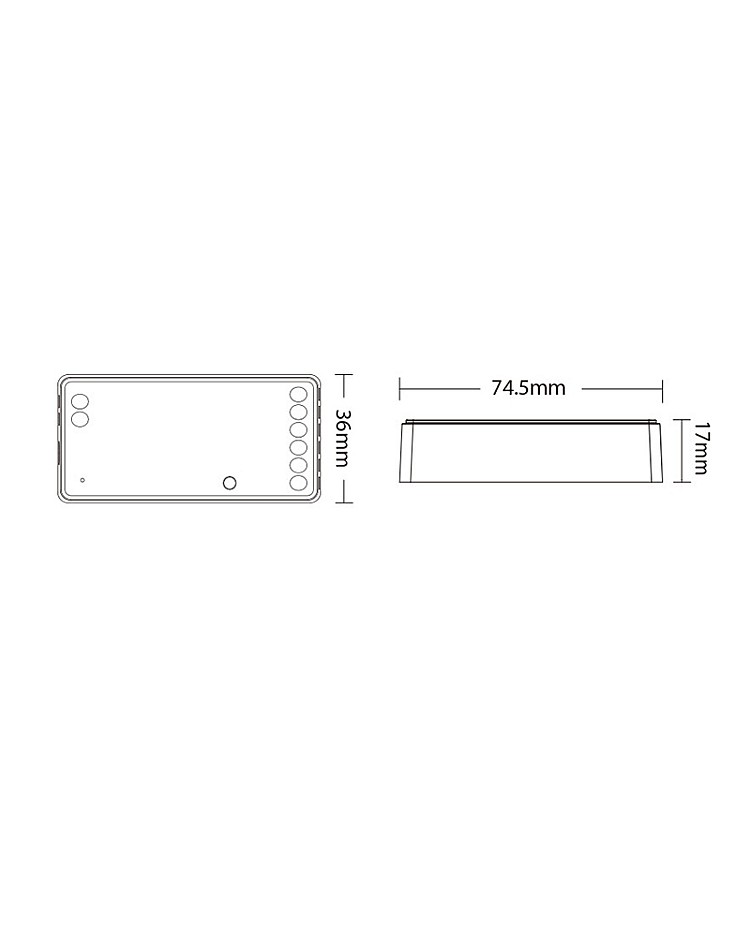

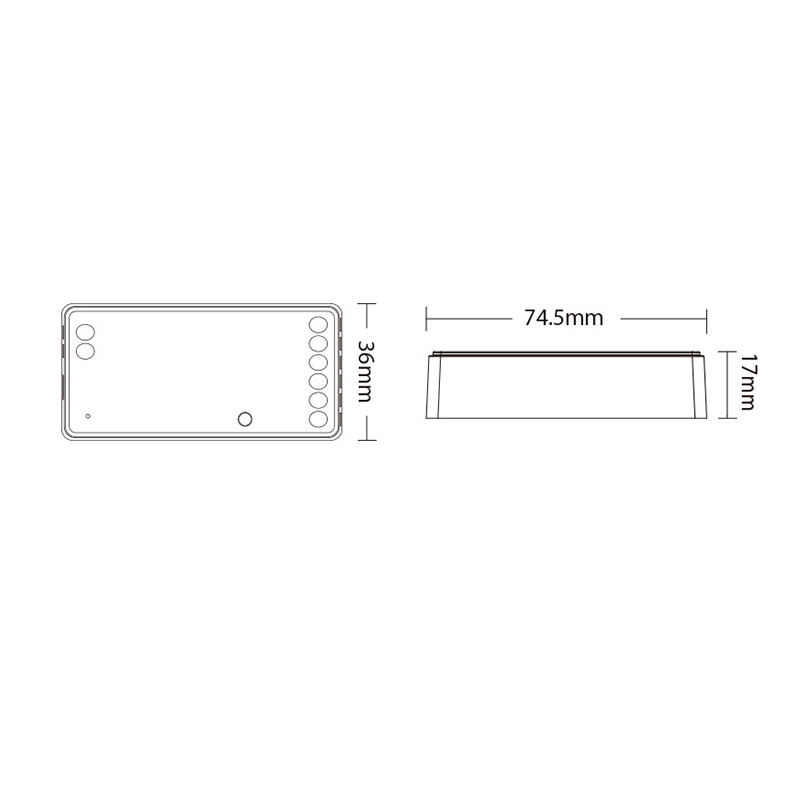

- Size: 74.5*36*17mm(L*W*H)
- Input Voltage: DC5V-24V
- Output Current: 10A Max
- Output Power: 50- 240W
- Output Type: Constant Voltage
- Output Signal: SPI(TTL)800kbs
- Max Support Number Of Pixels:: 2048PCS(Single Color), 1536PCS(RGB), 1024PCS(RGBW)
- Compatible With Pixel Chips: TM1809, TM1804, TM1812, SK6813, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815, SK6812(RGBW), WS2813(RGBW), WS2814(RGBW)
- Control Signal: 2.4GHz RF
- Control Distance: ≤30m
- IP Rate: IP20 Non-waterproof
- Dimming Grayscale: 4096 Levels
- Dimming Range: 0/1%-100%
- Dimming Curve: Logarithmic
- Certification: CE, RMC, LVD, RED
- Working Temperature: -10-40℃
- Warranty: 5 Years

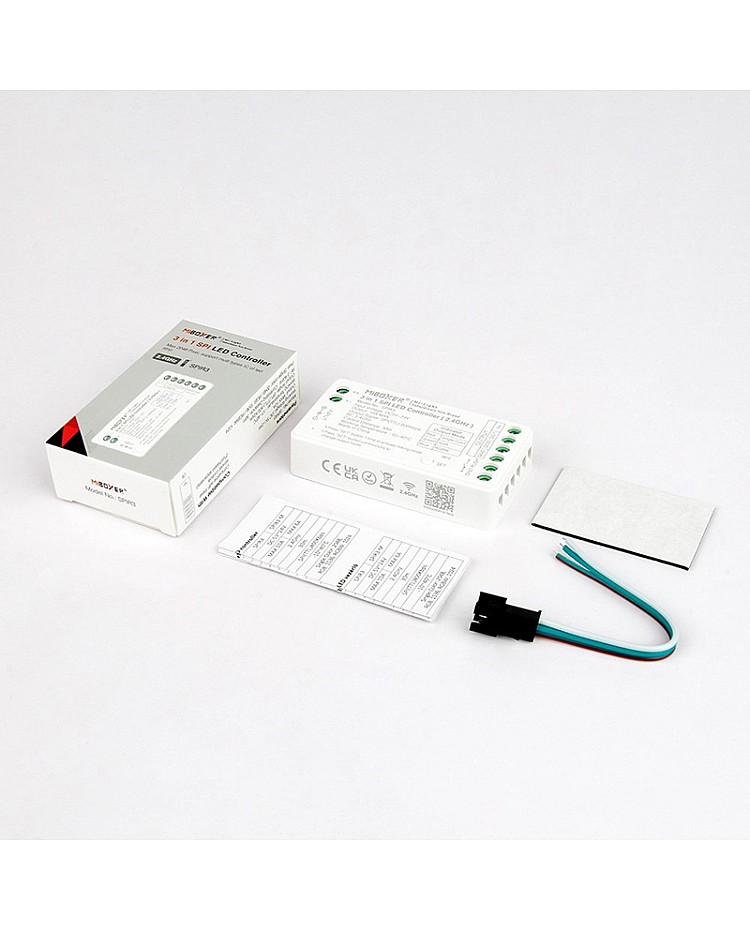

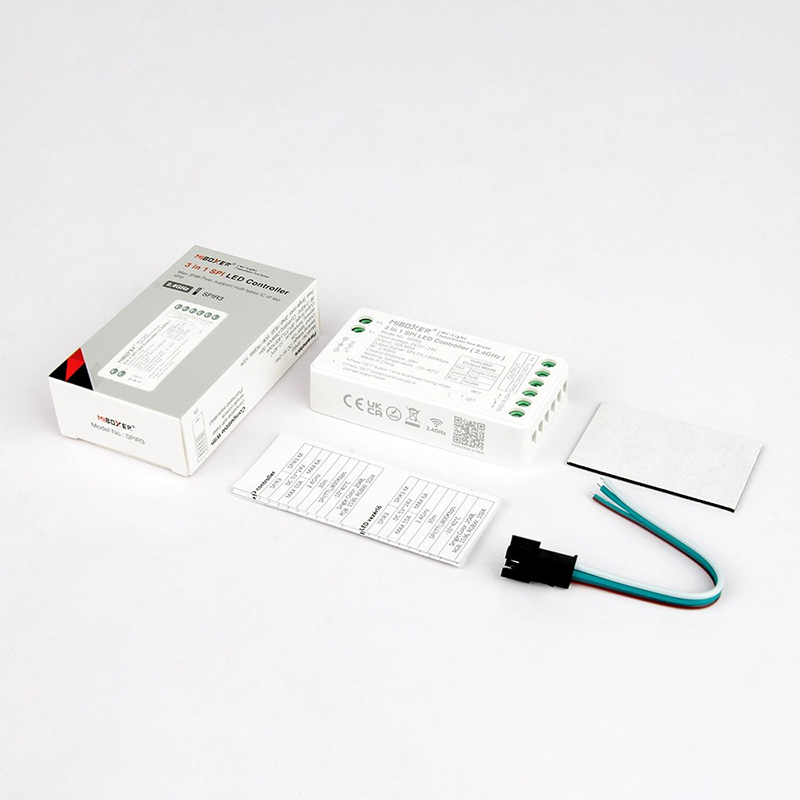

Includes:
1 * SPIR3 Pixel Controller
1 * C6 SPI Remote
