In Stock
$4.99
Reward Points: 5
-
+
  • Brand: Sperll
  • Product Code: SP002E

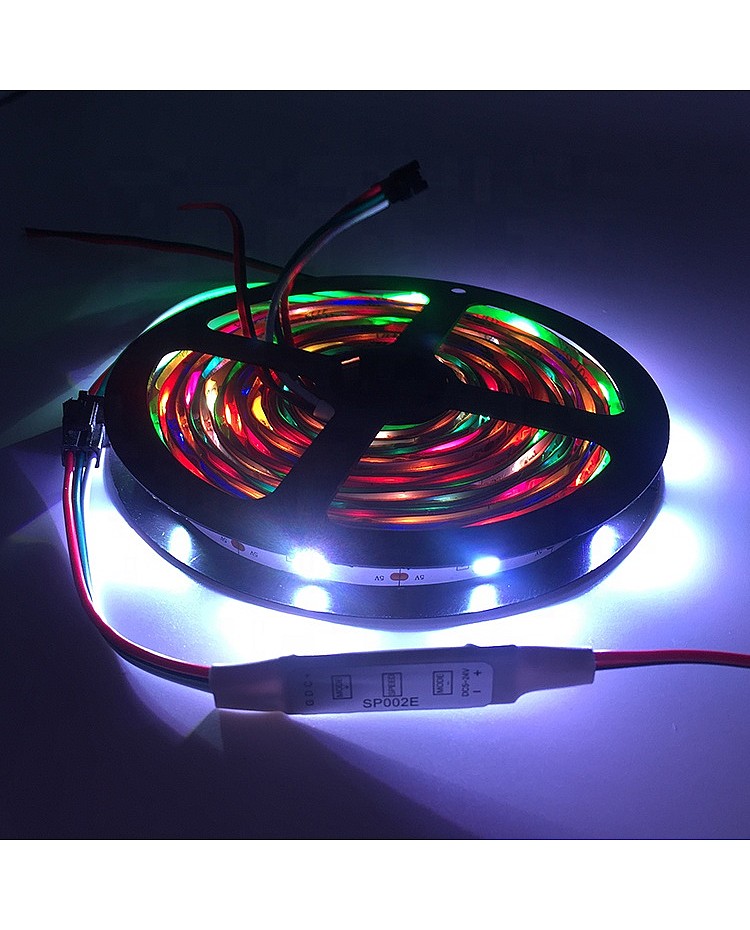

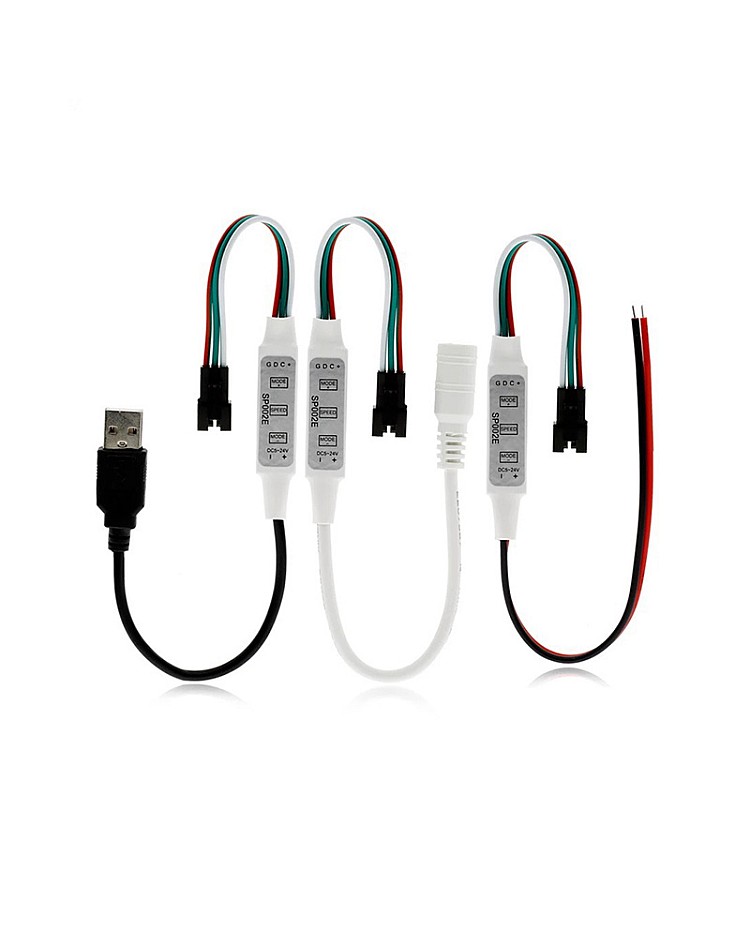

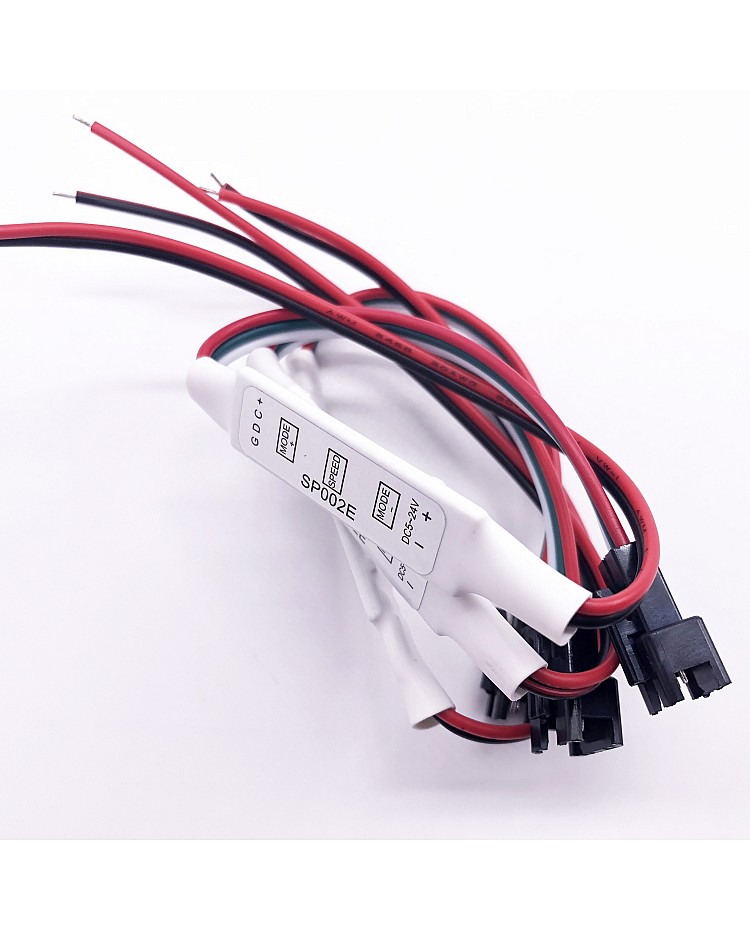

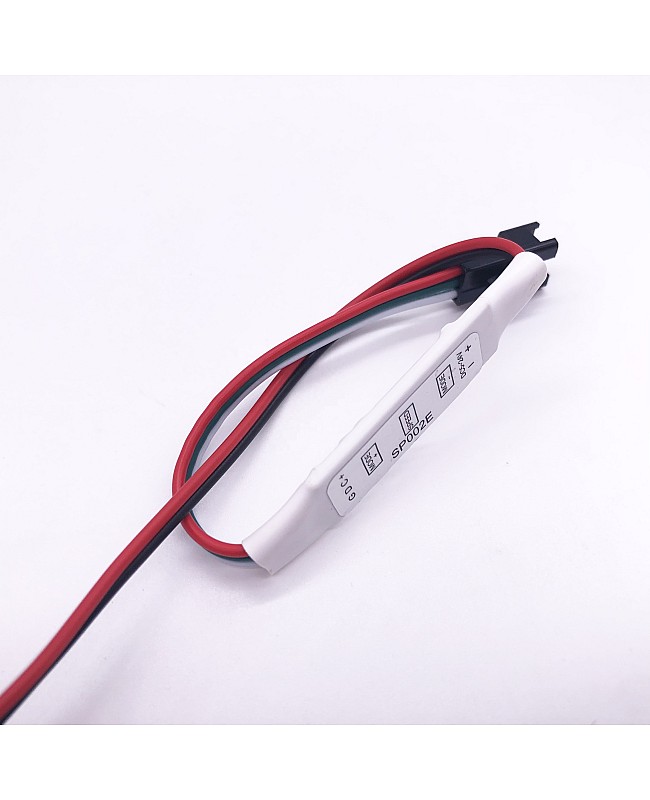

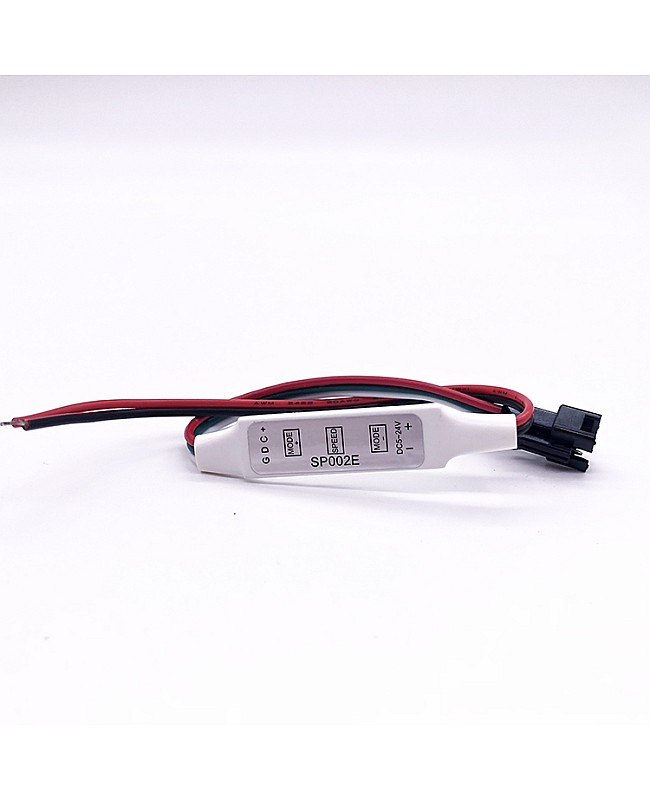

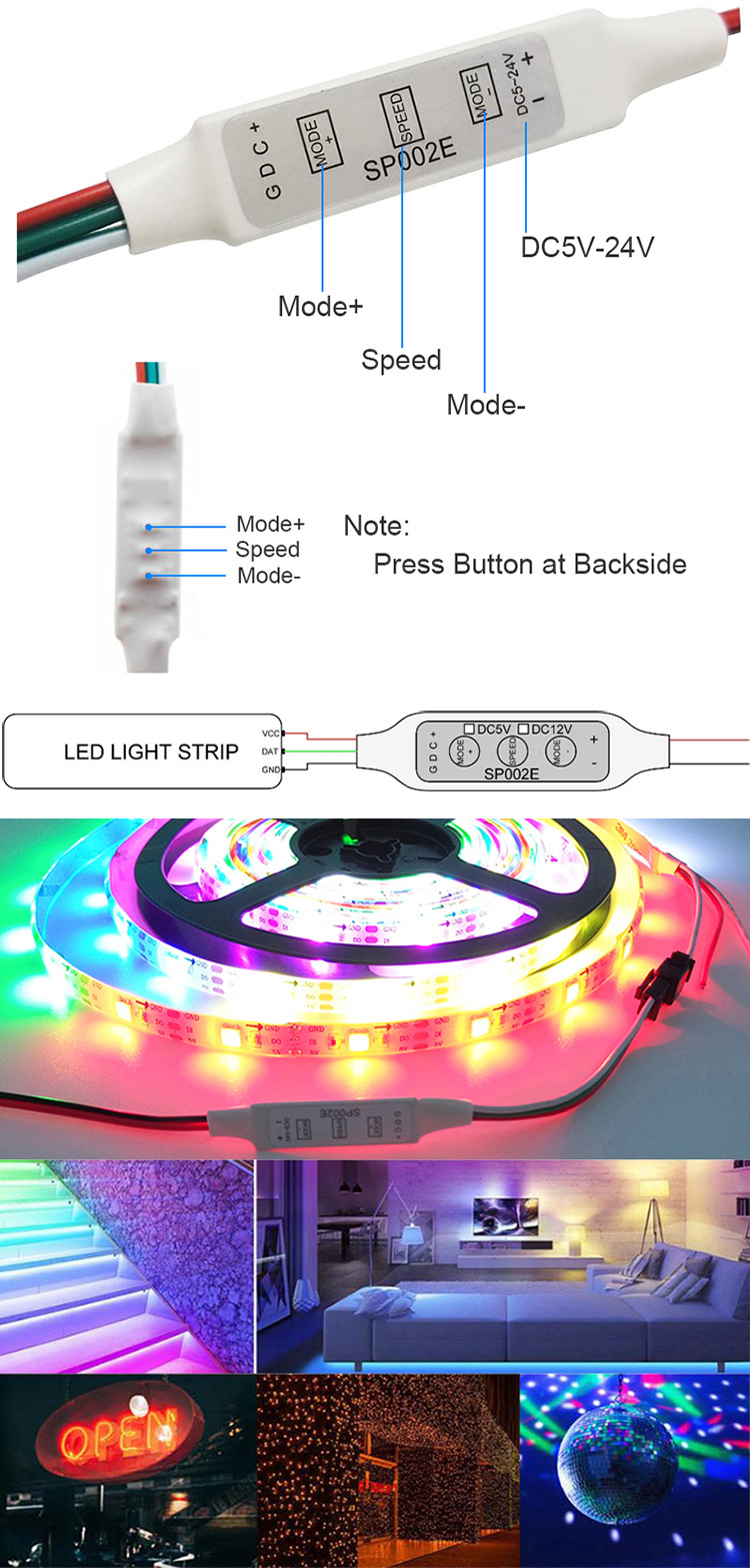

The SP002E inline mini pixel light controller, with a mini size and inline structure, is easy to install and use. It is built with 68 kinds of lighting effects. The mini pixel controller can take up to 600 Pixels, working in DC5V to DC24V. There are three buttons on the mini controller, and you can use the buttons to switch the lighting pattern, adjust the speed, etc. It can work with WS2801, WS2811, LPD6803, LPD8806, TM1809, UCS1903, UCS9812, APA102, APA104.


Specifications:

  • Working Voltage: DC5-24V
  • Working Current: 5mA-13mA
  • Power Consumption: <1W
  • Output Signal: SPI
  • Support ICs: WS2801, WS2811, LPD6803, LPD8806, TM1809, UCS1903, UCS9812, APA102, APA104
  • 68 Kinds Of Lighting Patterns Available
  • Max Loading Pixels: 600PCS

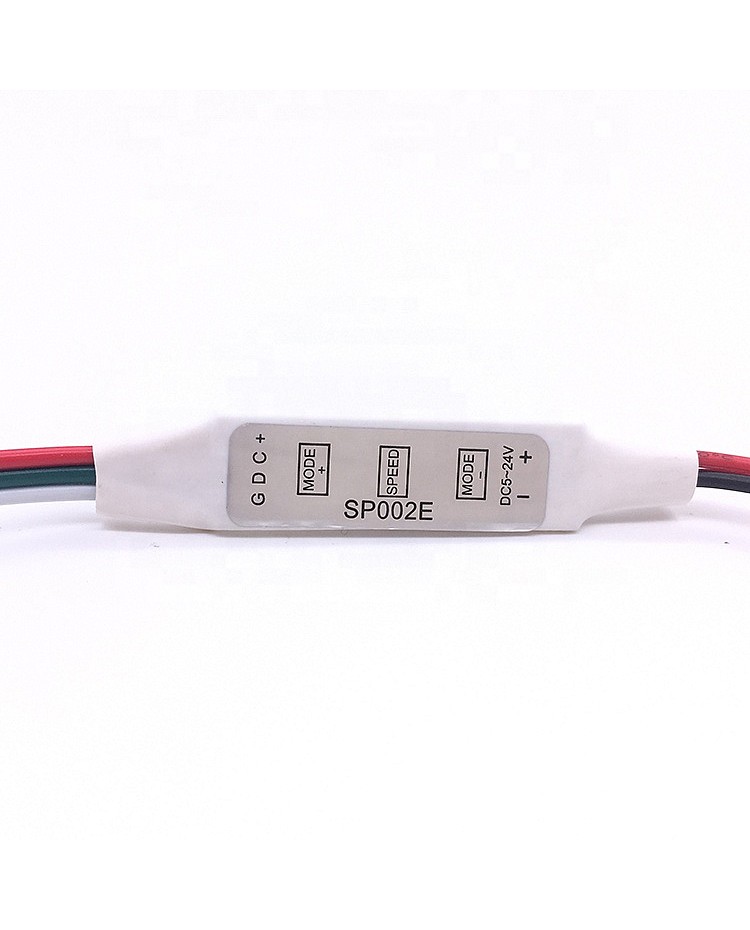

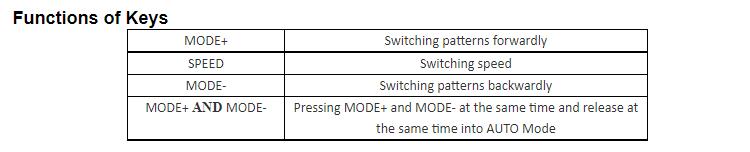

  • With 3 Keys Control Mode Design
  • RGB Sequence: RGB
  • Working Temperature: -25℃-+85℃
  • 1 Year Warranty


Includes:

1 * SP002E Pixel Light Controller

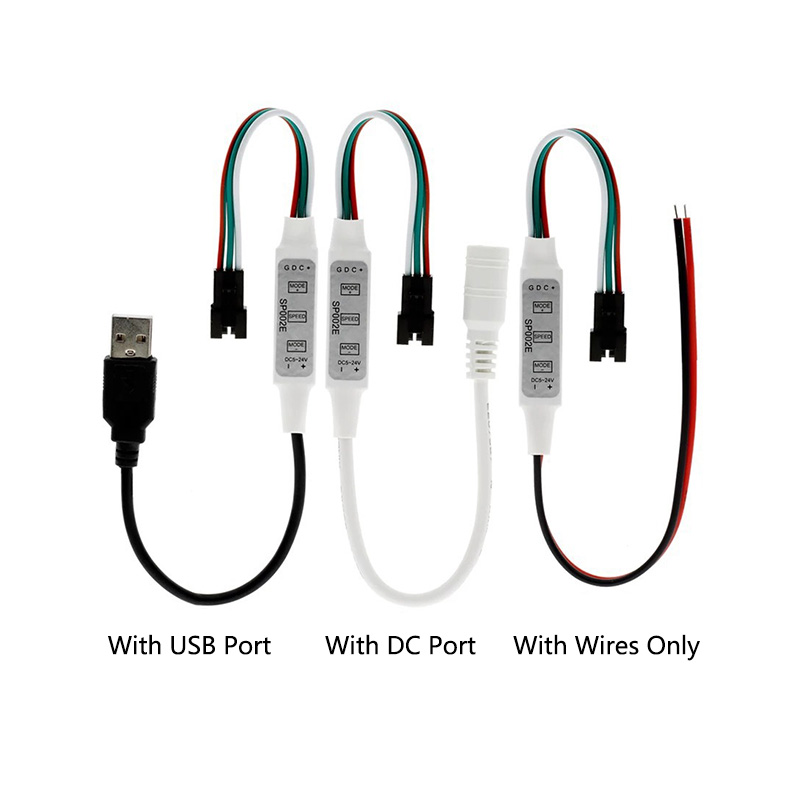

SP002E LED Pixel Controller Kit Pixel Controller
