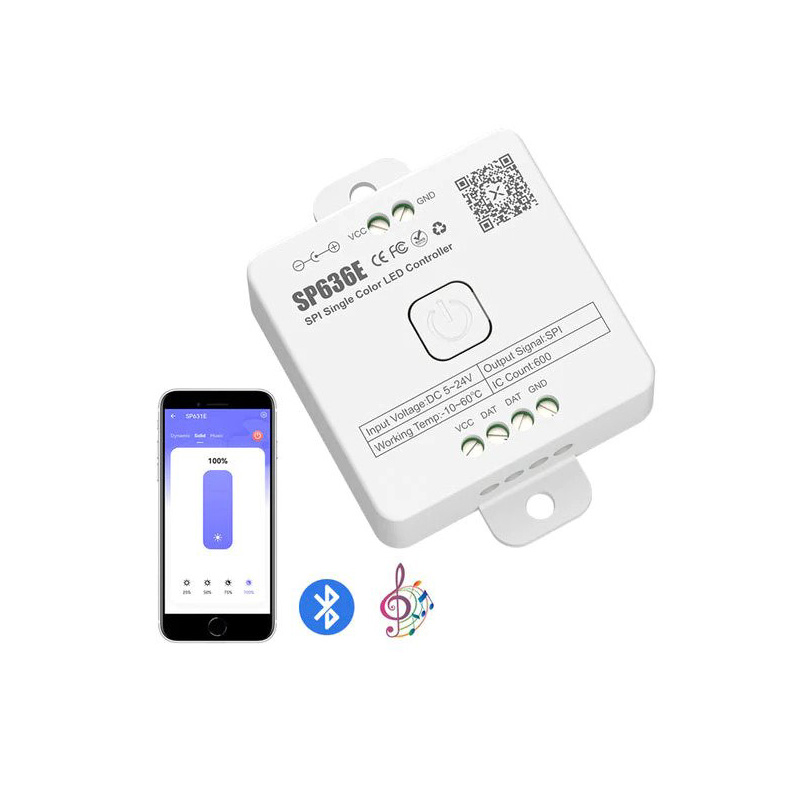

The SP636E Wireless SPI Light Dimmers are designed for single-color addressable LED Strips. It allows for music sync and APP control, making it easier to customize and program your LED Lighting. The SPI Light Dimmer utilizes SPI signals to control ICs on the LED Strips to achieve various lighting effects. Built-in multiple music and dynamic effects support adjusting brightness, speed, direction, and effect length adjustment. Under the music effects, the lighting will change automatically following the music beats. With its easy-to-use interface and intuitive design, the SPI Dimmer makes controlling your LED Lights a snap, and you can create exciting light shows and stunning effects with just a few tapes of your finger. It's the perfect tool for anyone looking to get creative with their LED Lighting.
Features:
- Type: Light Dimmer For Single Color Addressable LED Lights

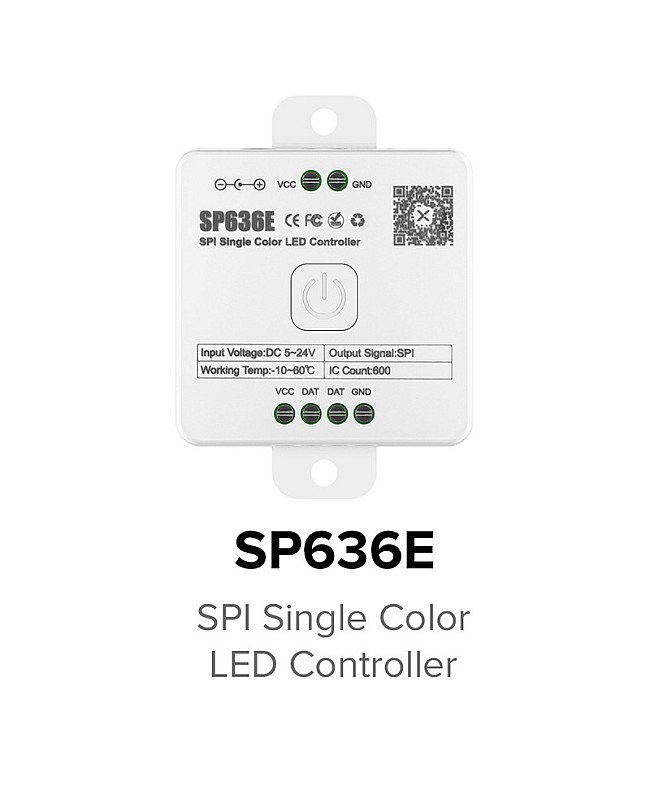

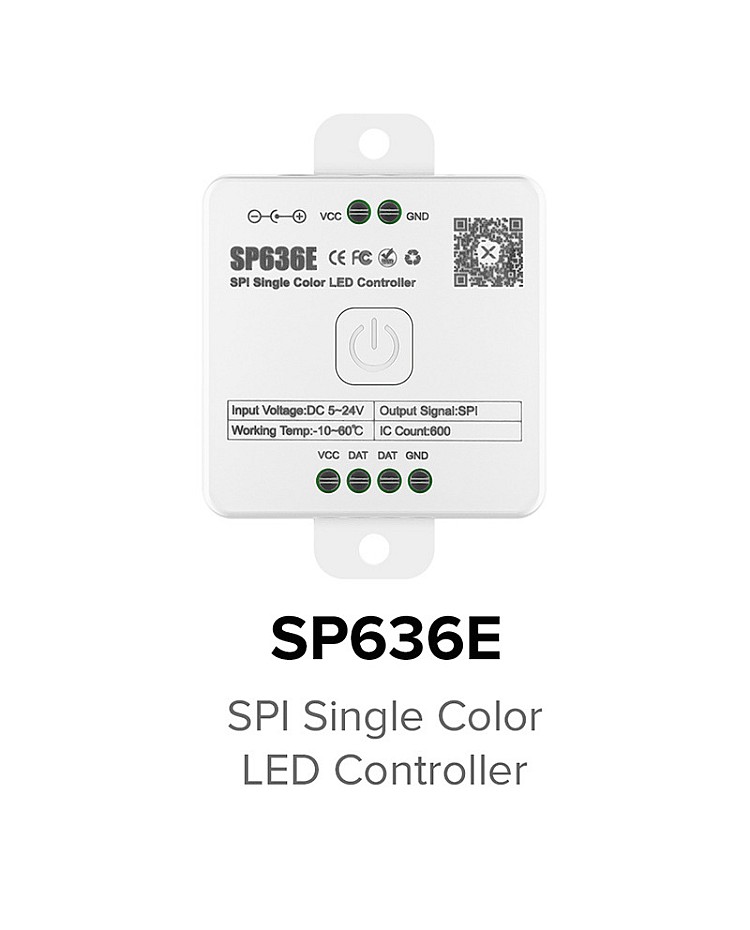

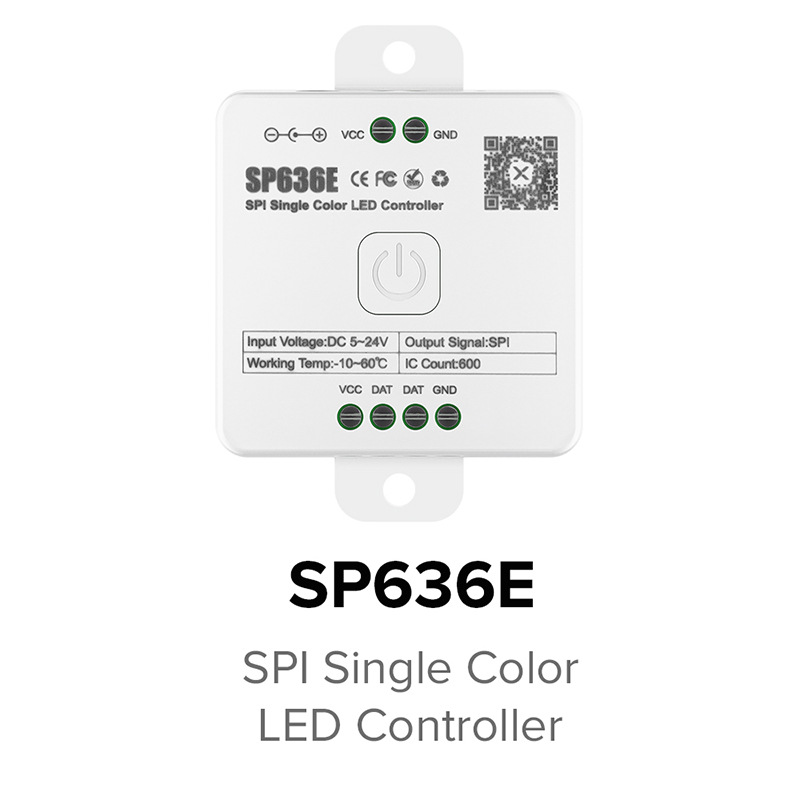

- Model: SP636E

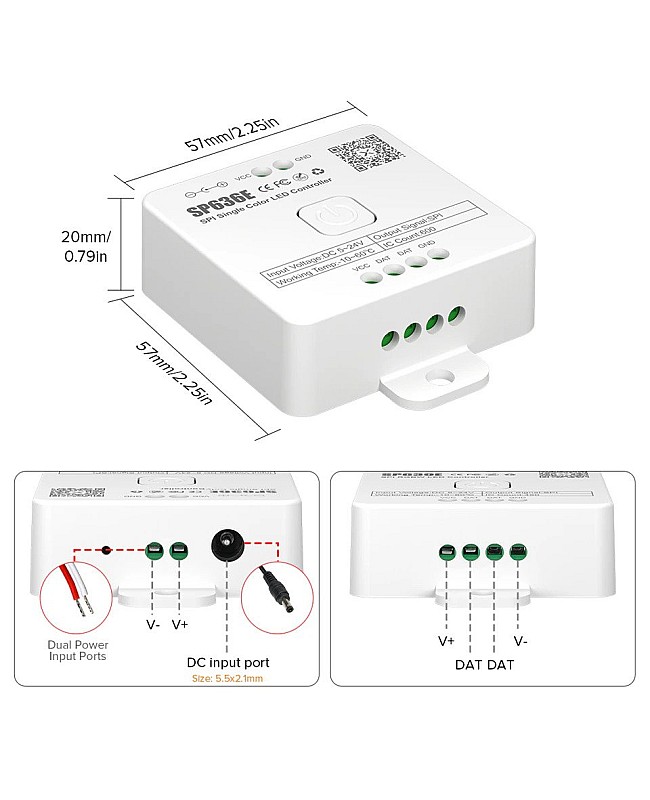

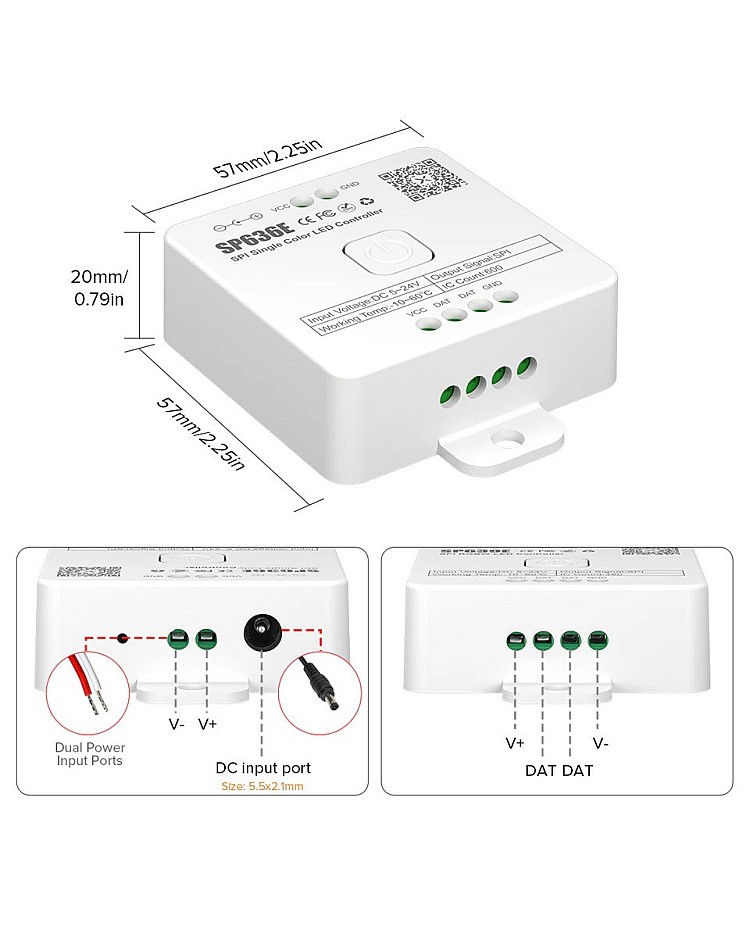

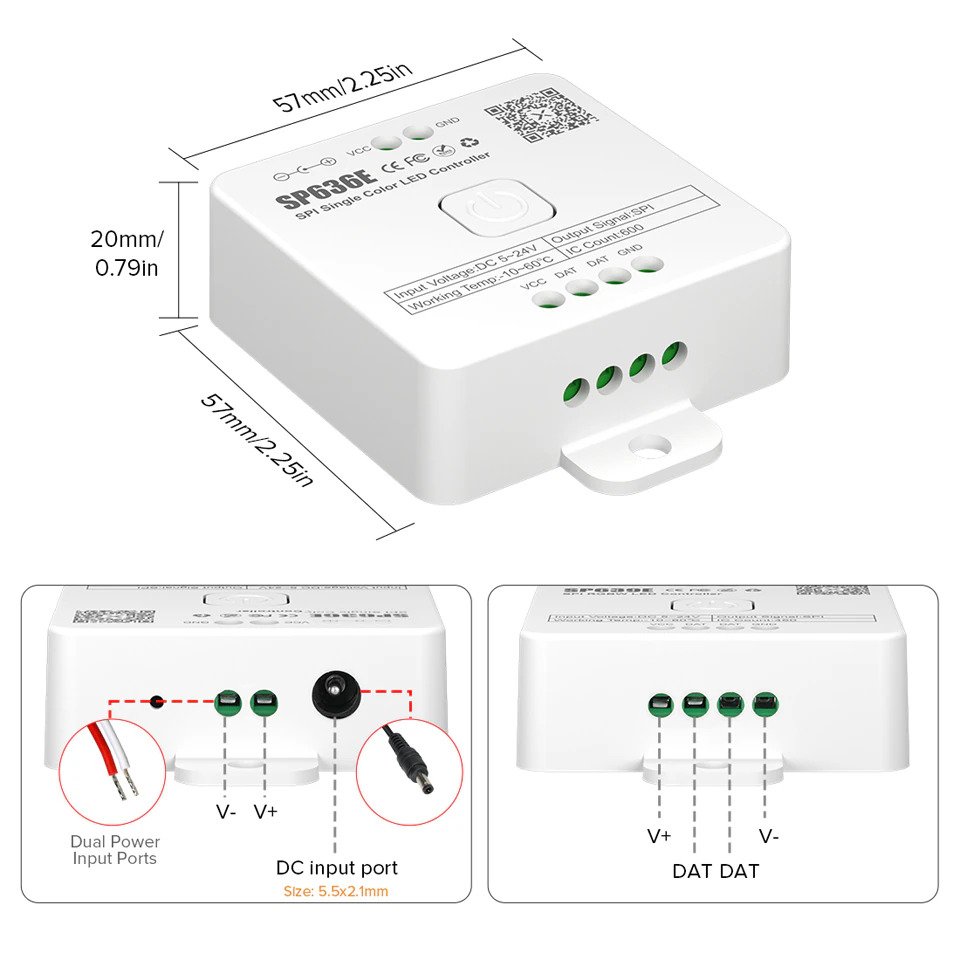

- Size: 57*57*20mm(L*W*H)

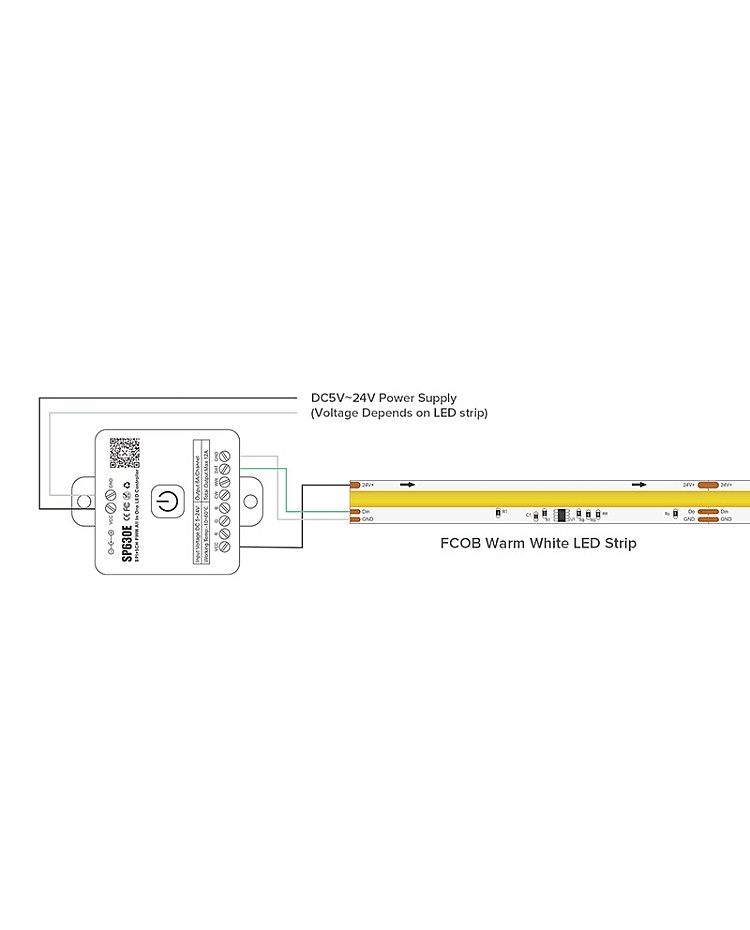

- Working Voltage: DC5-24V
- Output Signal: SPI
- Supports Quantity Of ICs: 600PCS
- Input Ports: 5.5*2.1mm DC Input Port / V+ & V- Ports
- Output Ports: VCC, DAT, GND
- Compatible With WS2811, SK6812, SM16703, WS2812B, WS2813, WS2814, WS2815, etc
- Built-in 5 Music Effects, 10 Dynamic Effects
- Supports Brightness, Speed, Direction, And Effect Length Adjustment
- 10 Dynamic Effects Include Chasing White Light Effect
- Brightness Adjustable: 20%, 40%, 60%, 80%, 100%
- 5 Music Synchronisation Effects
- Supports Microphone, Player Streaming, And On-board Microphone For Music Capture
- Supports Dynamic Effect Collection And Collection List Loop
- Support Custom Effects
- Supports Working With Monochrome IC Strip Lights

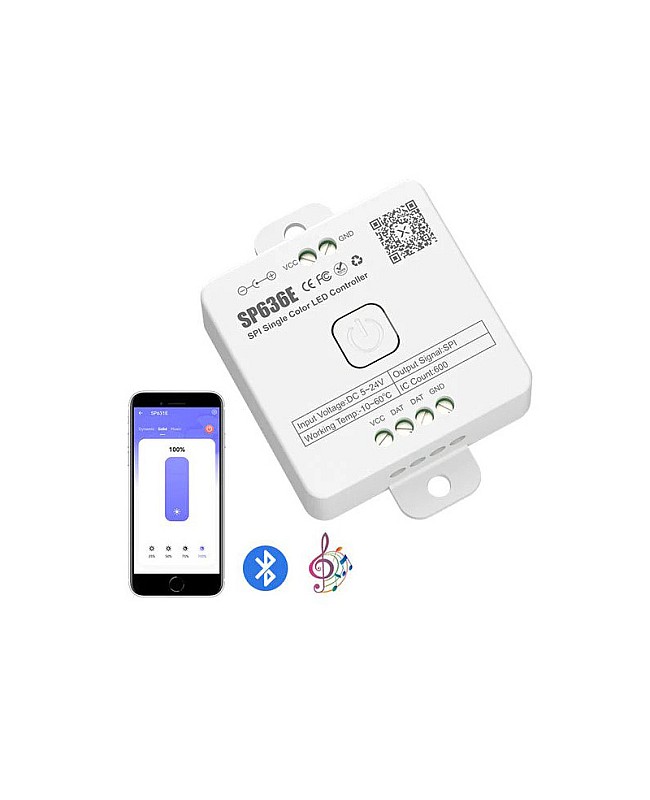

- APP Control Via Bluetooth / 2.4G RF Remote Control
- APP Name: BalanX
- Mobile Operating Systems: Android 4.4 Or Above And IOS 10.0 Or Above
- Firmware Upgradeable: YES
- Working Temperature: -10-60℃
- 2 Years Warranty
Includes:
1*SP636E SPI Dimmer
1*Screwdriver
1*User Manual
