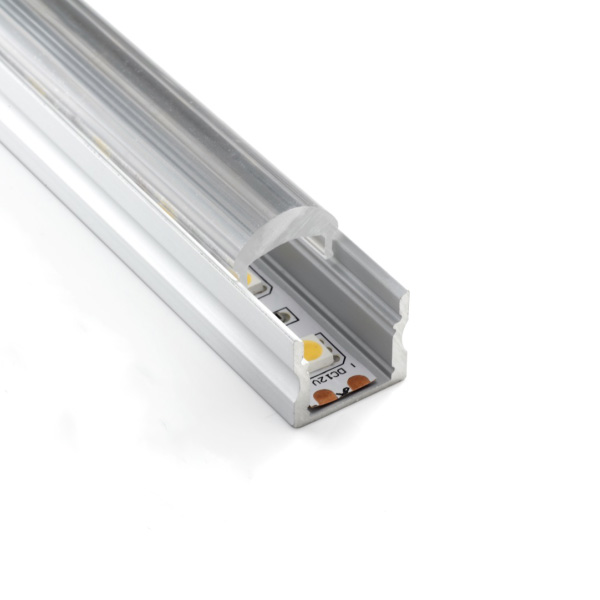

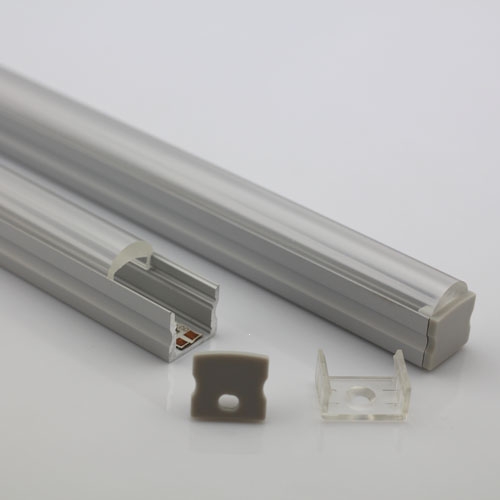

Aluminium LED Strip Profiles With 30 Degree Lens

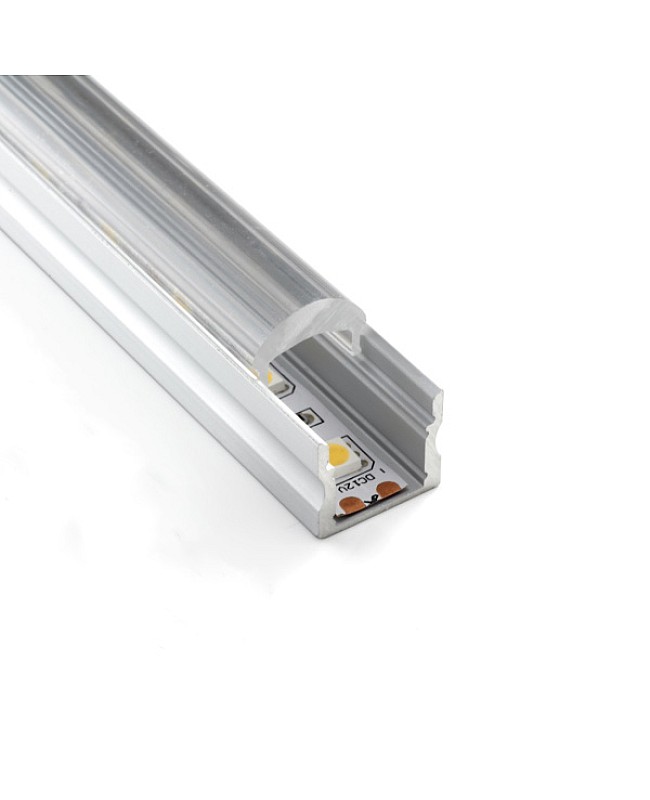

The aluminium LED strip profiles are designed to house LED strips, providing a sleek and professional finish in your rooms. The 30-degree lens helps to direct the light emitted by the LED strips, ensuring optimal illumination and minimizing glare. This makes them ideal for applications that require precise and focused lighting, such as display cases, cabinets, and signage. The inner width is 12.3mm, allowing for a maximum width of 12mm for strip lights. Recommend adding high-density SMD or COB strip lights as the light source without visible light dots. The aluminum profiles can be used as heat sinks for better heat dissipation, saving energy and allowing the lighting to have a longer lifespan. The LED profiles are made of high-quality aluminum alloy and have anodized or powder-coated finishes, ensuring they are corrosion-resistant, durable, and long-lasting. Six models of lenses are available: the PMMA series and PC series, which are made from brand material, anti-yellowing, and with perfect light distribution. The standard lengths are 1 m and 2 m; you can cut to any length. End caps with and without wire holes are included, making them easy to connect to LED drivers or LED dimmers for lighting up or adjusting brightness. The mounting clips are included, allowing surface-mounted installation.

Specifications:

• Model: ALP004-RL
• Material: Aluminium alloy(6063-T5)
• Surface Treatment: Anodized / powder-coated
• Color: Silver, White, Black

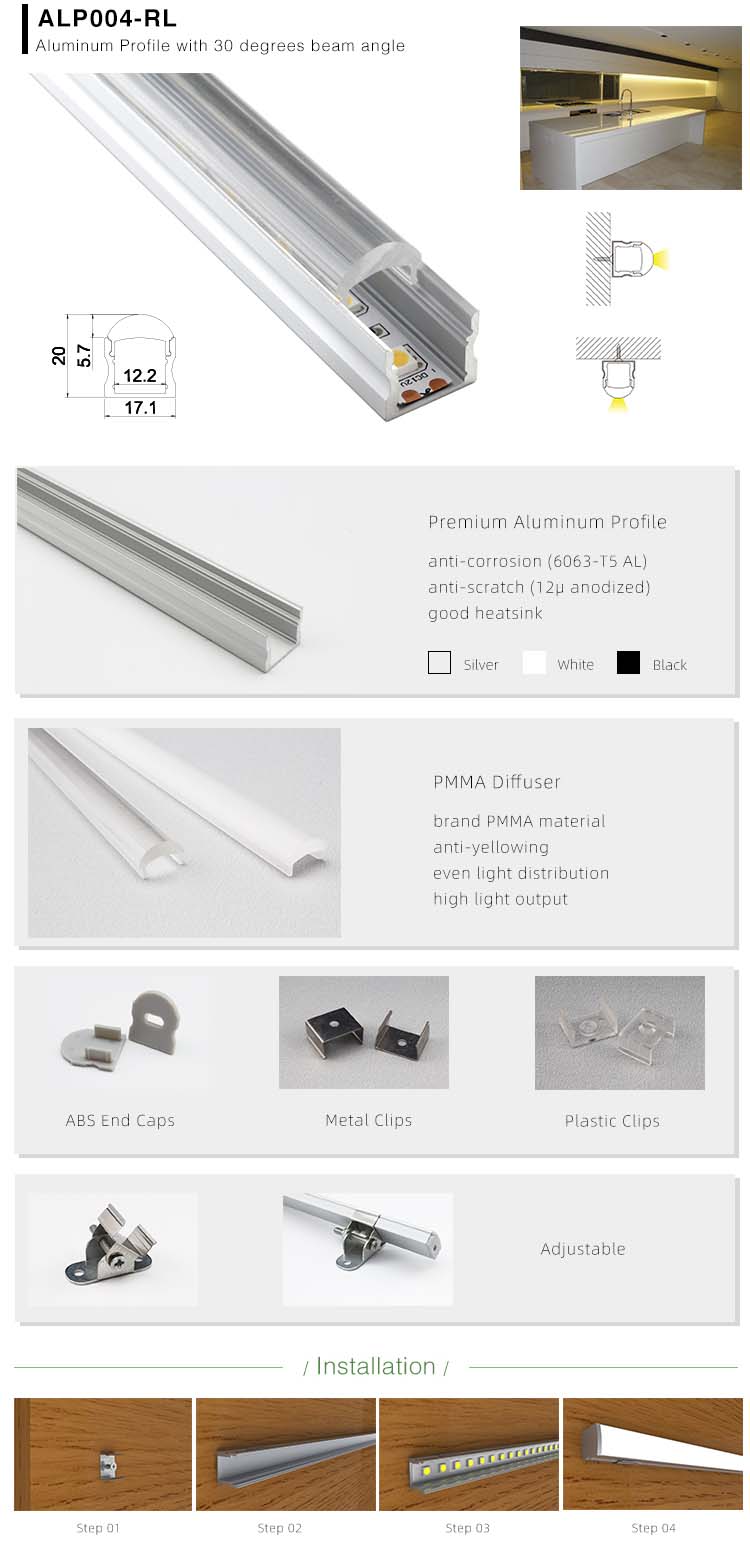

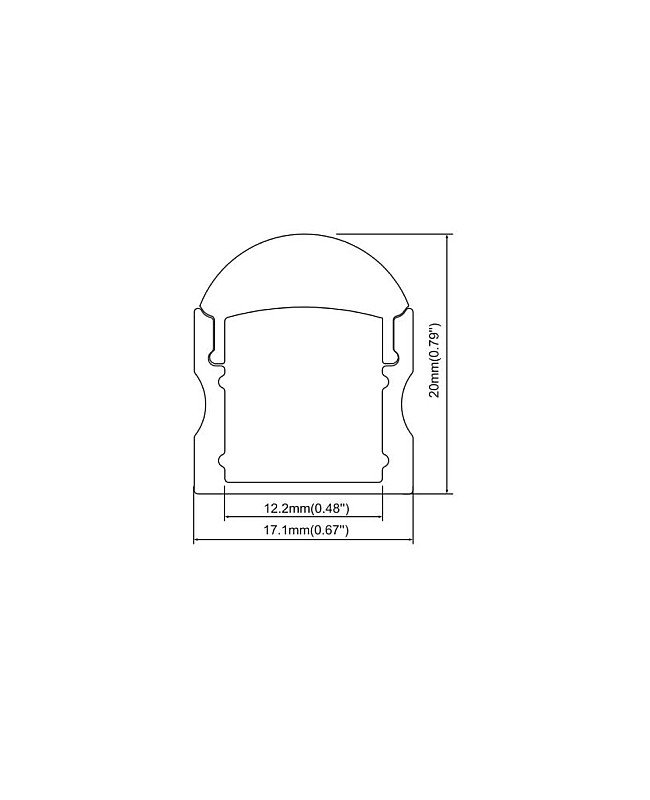

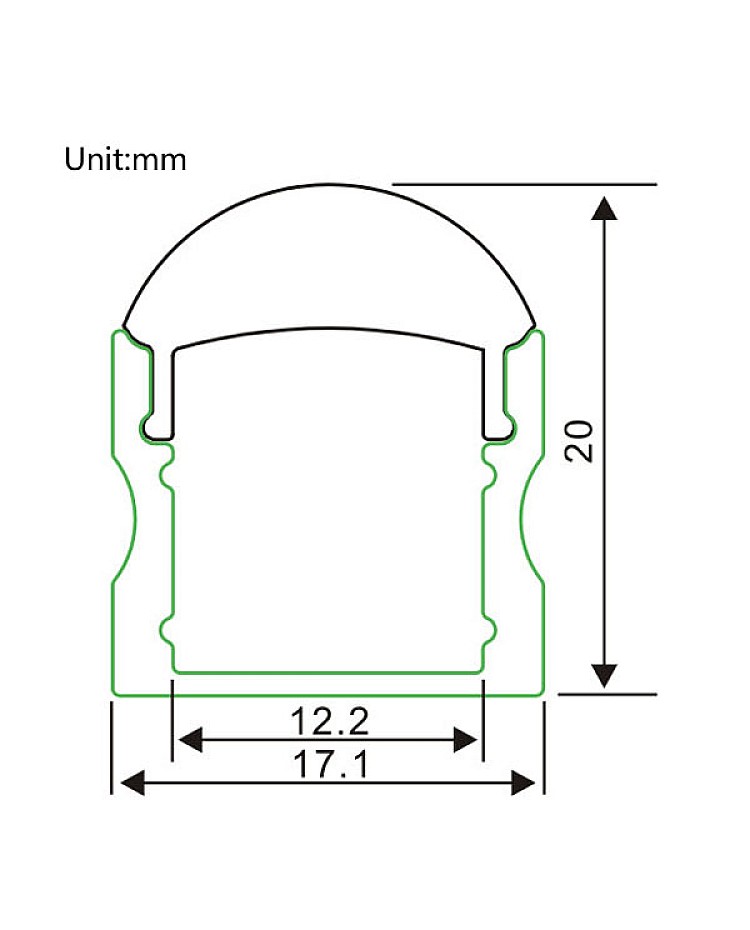

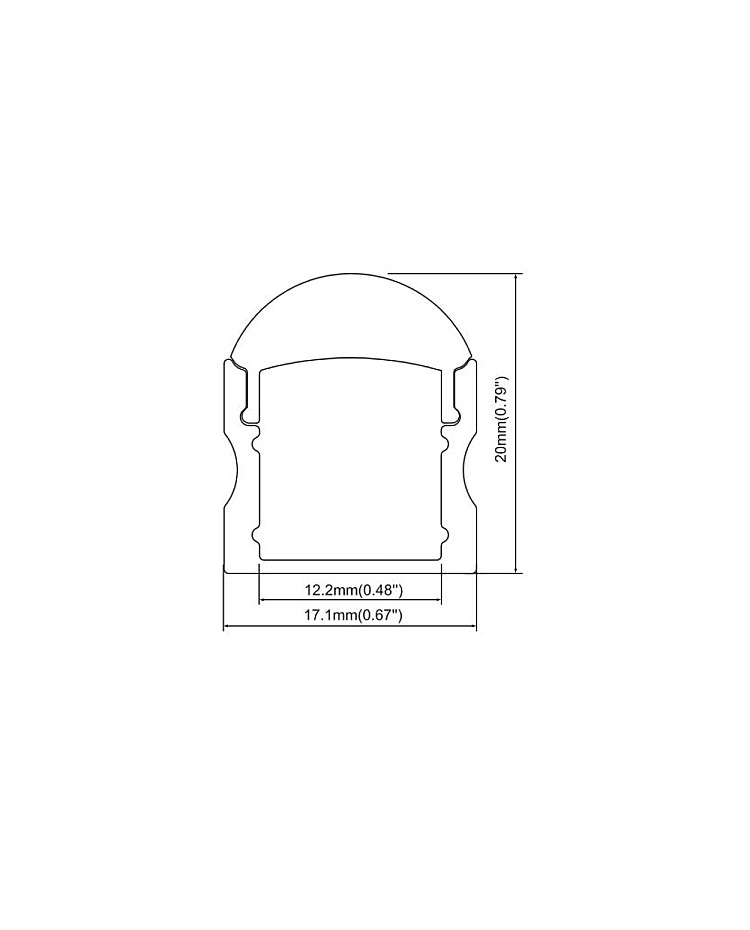

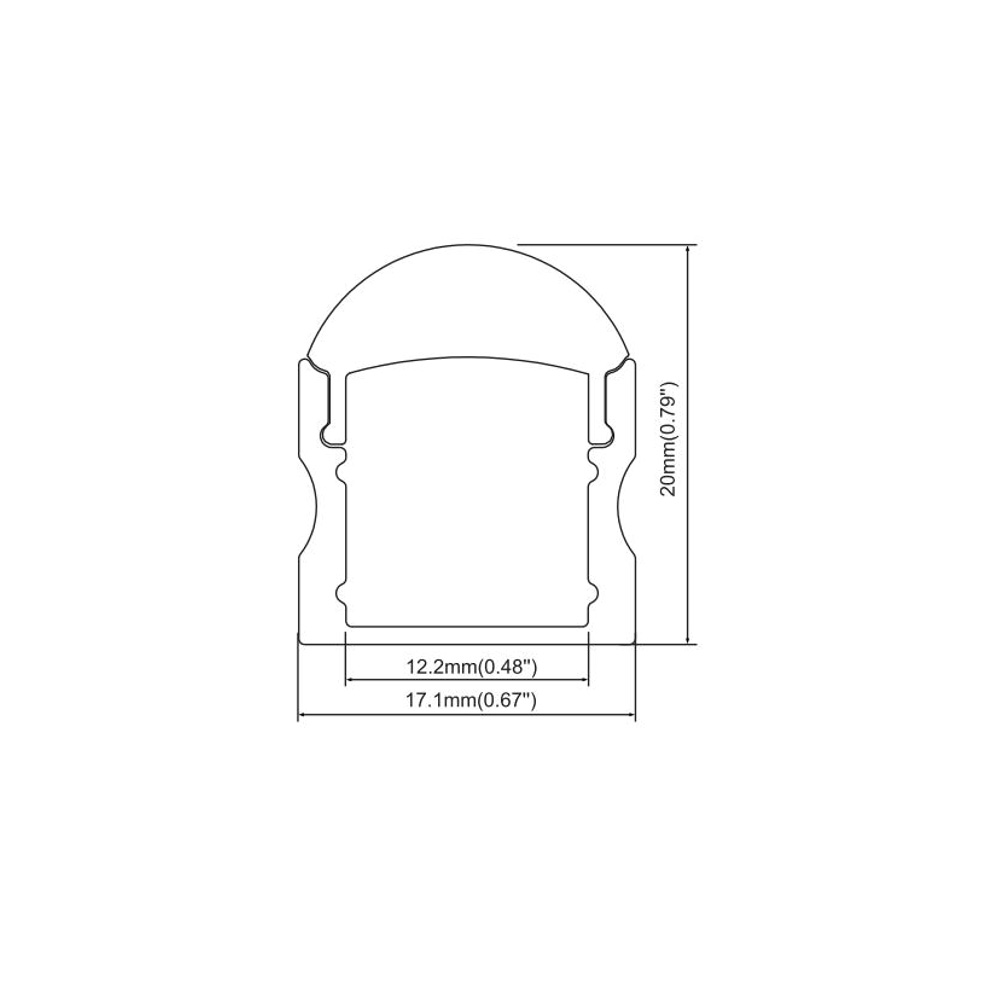

• Size(W*H): 17.1mm *20mm / 0.67" * 0.79"
• Inner Width: 12.2mm / 0.48"
• Allows the maximum width of strip lights to be 12mm / 0.47"
• Compatible with 3528 and 5050 flexible LED strips
• Max Power: <15W/Meter

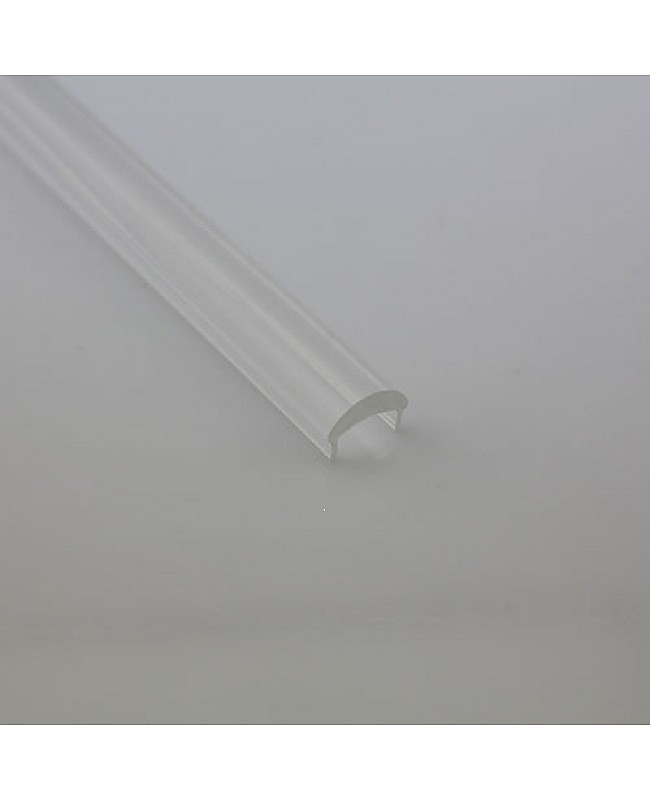

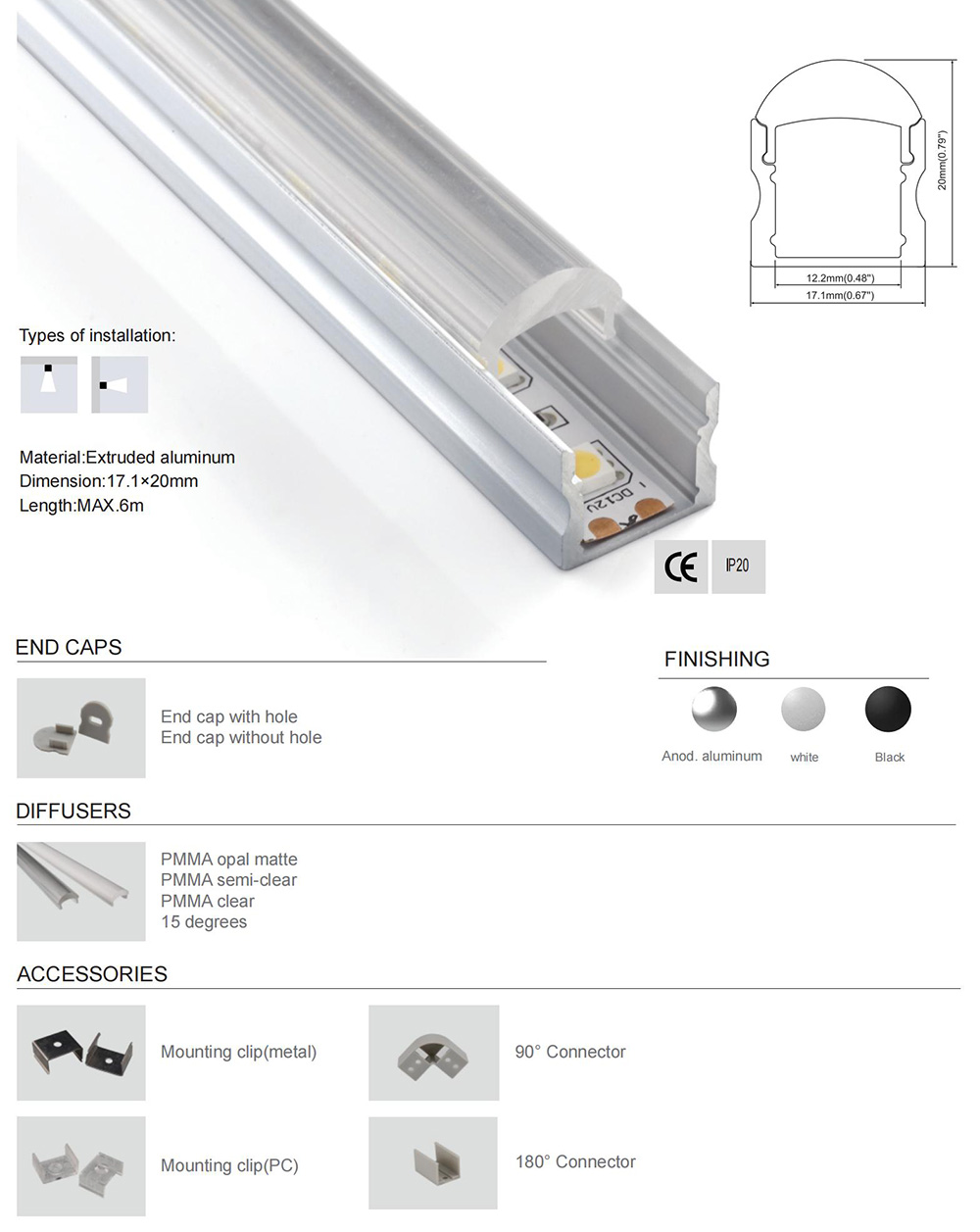

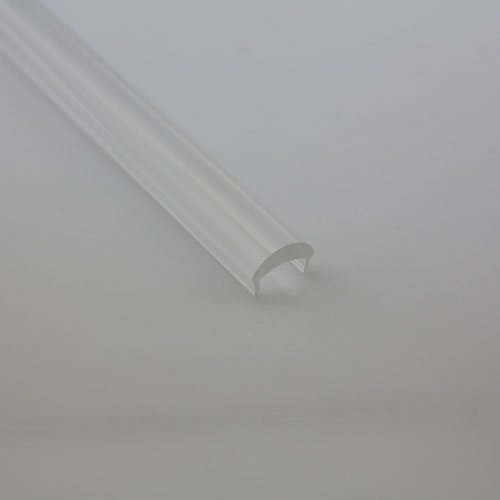

• Covers Available: PMMA Clear/ cemi-clear / opal matte covers, PC clear / semi-clear / opal matte covers
• Standard Length: 1m, 2m, 3m
• Custom Length Available: YES

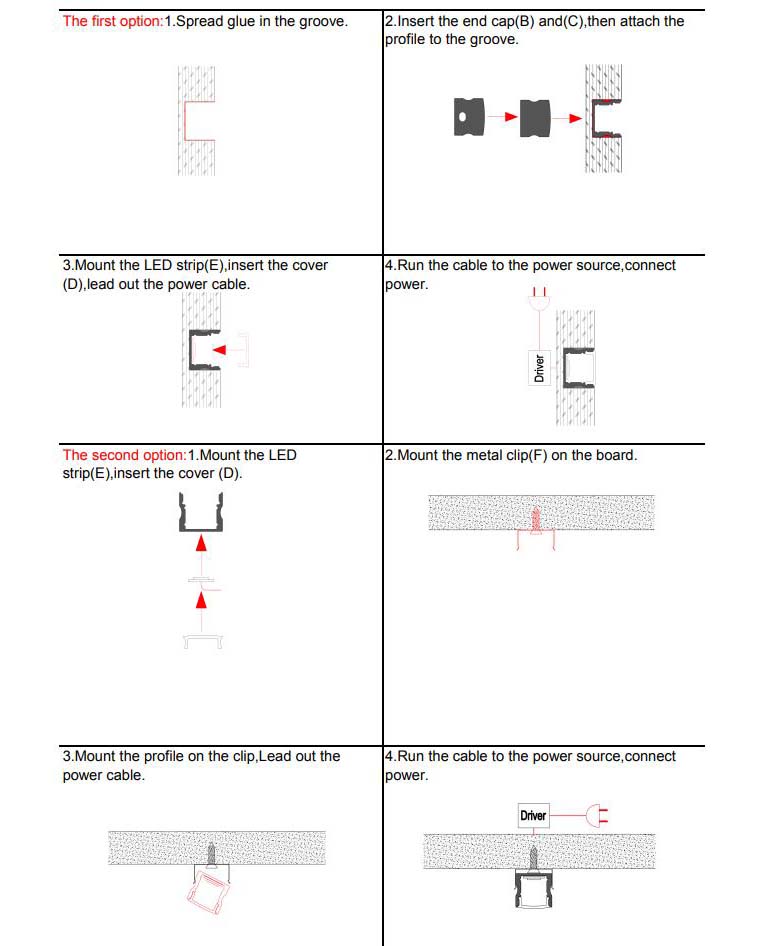

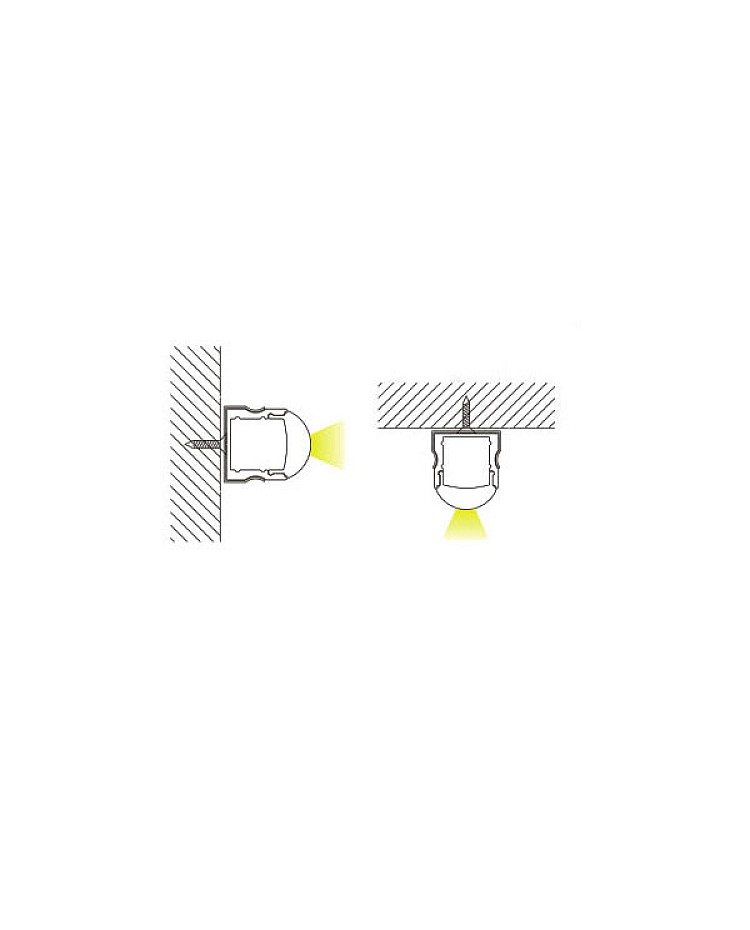

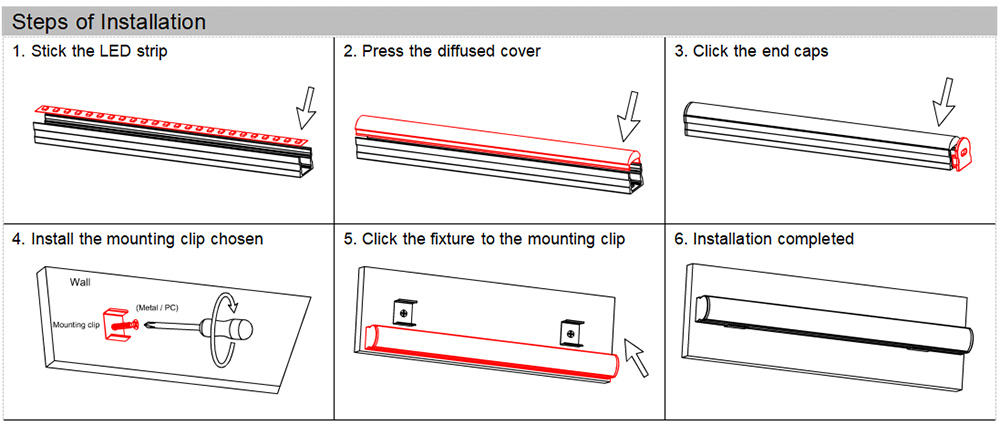

• Installation: Surface mounted
• End caps with/without wire holes included
• 90° and 180° connectors sold separately
• Certifications: CE, ROHS
• 3 Years Warranty

​

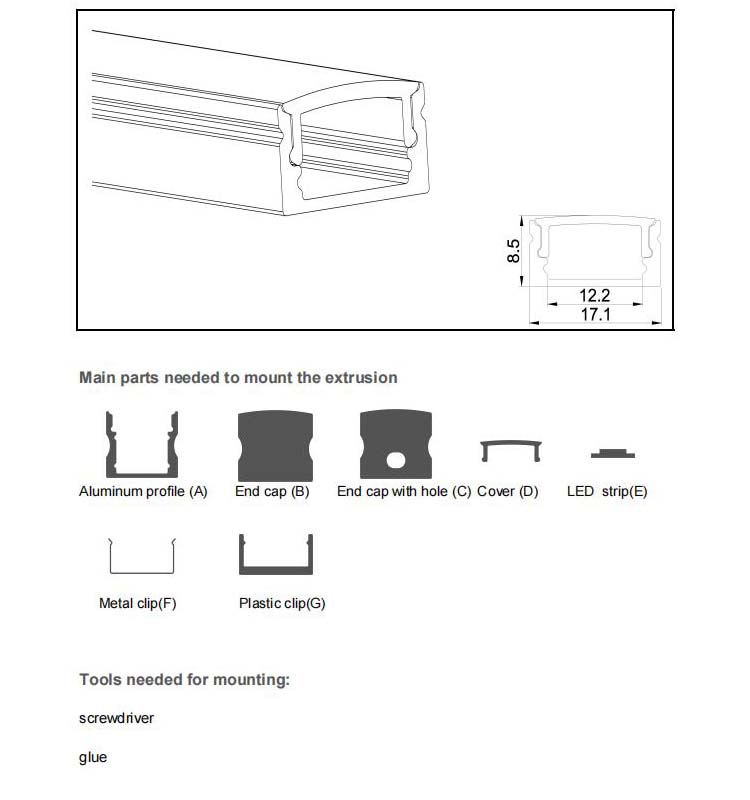

Package:

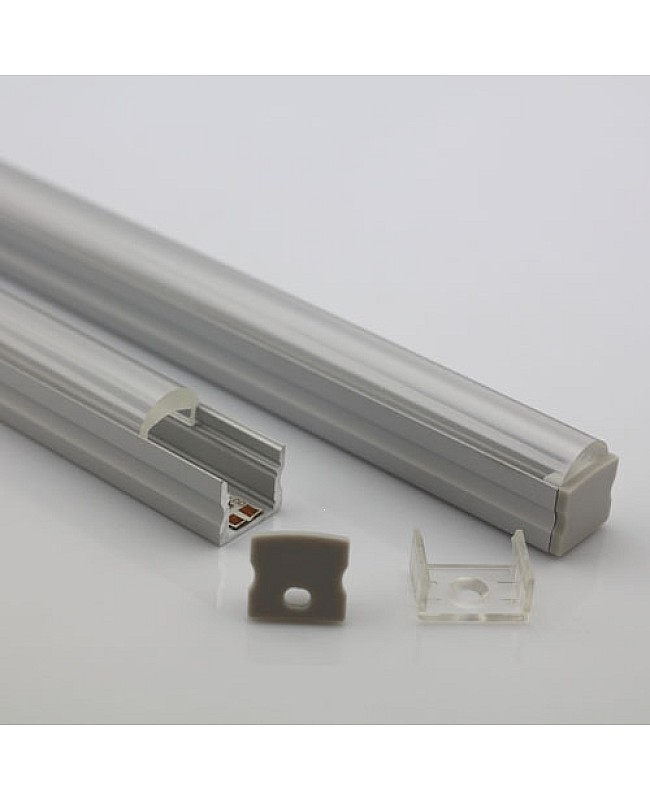

1 * LED Strip Light Profile With Lens

End Caps (With / Without Wire Holes)

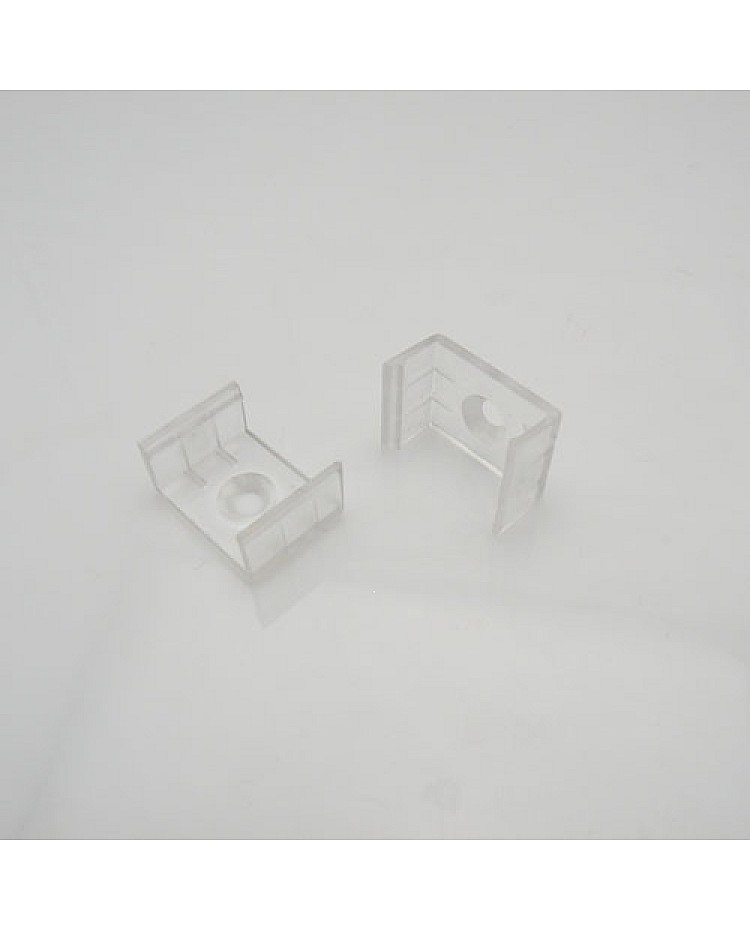

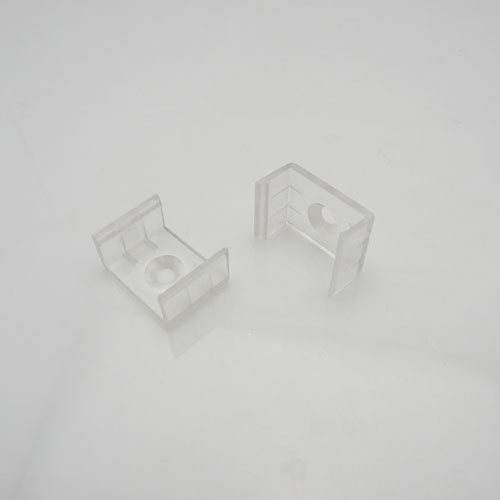

Mounting Clips

Applications:

• For furniture LED project

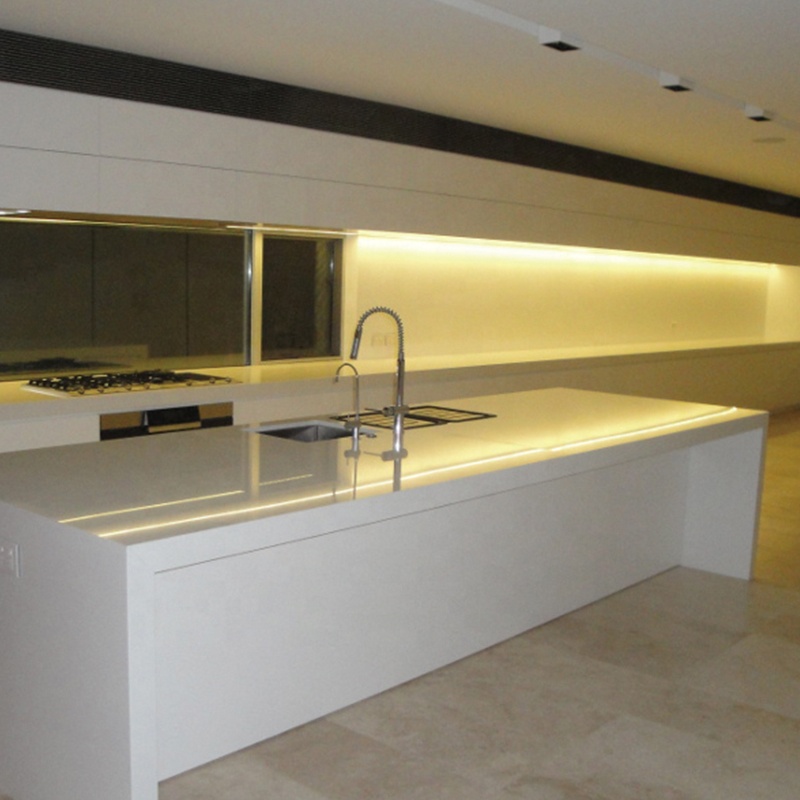

• Wardrobe, under-cabinet, kitchen, house wall, ceiling, display case, signage, etc
