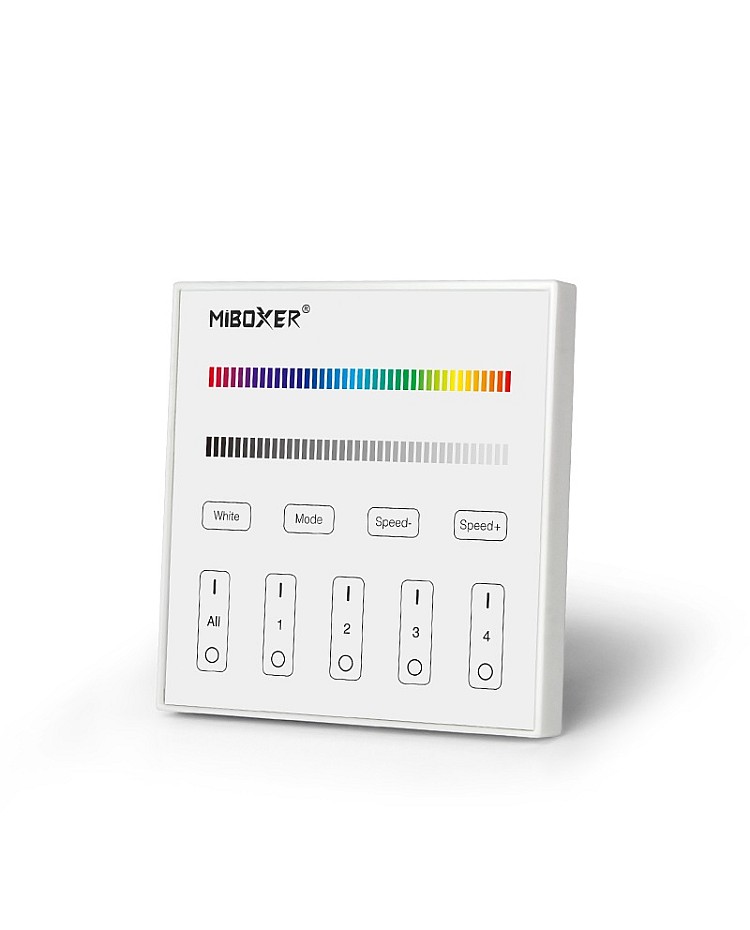

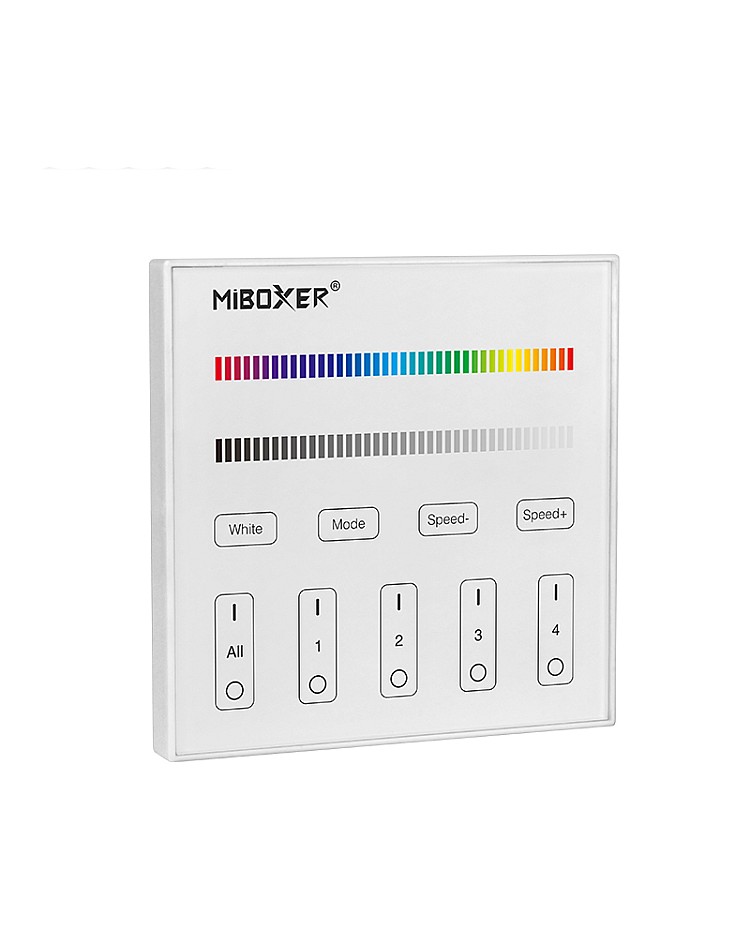

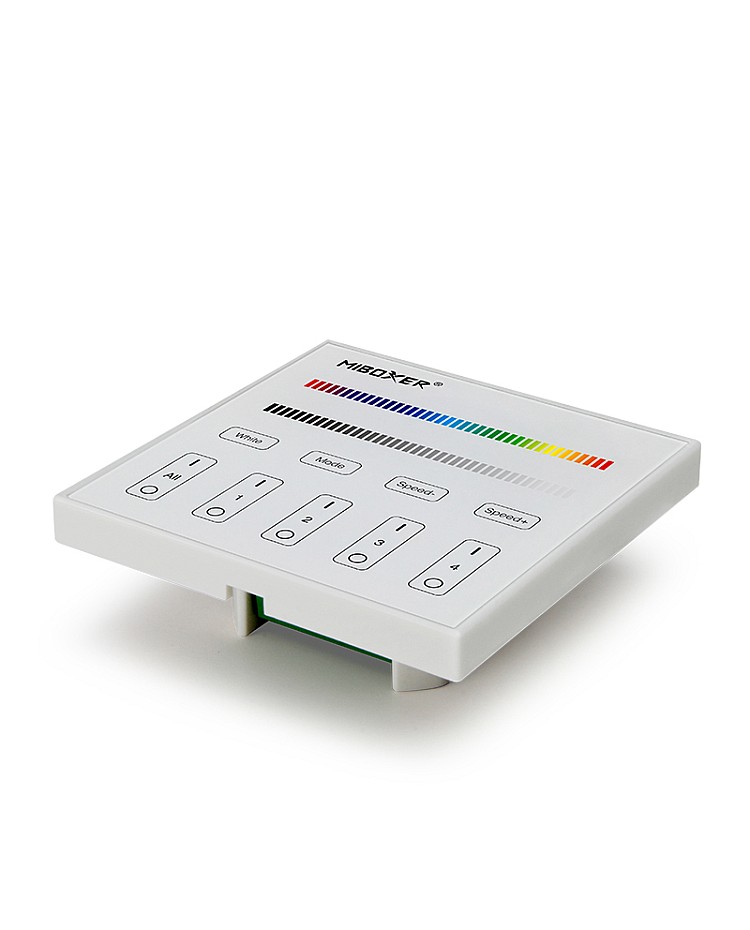

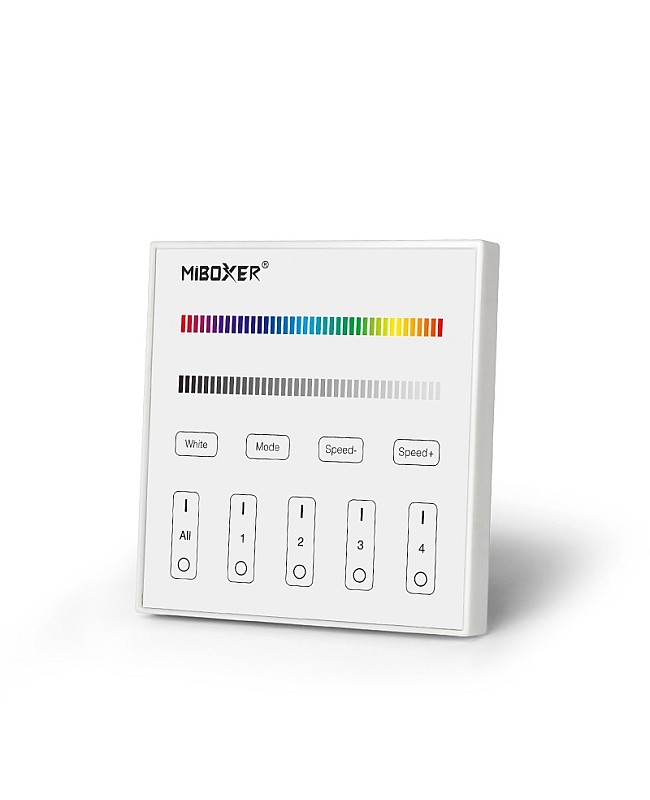

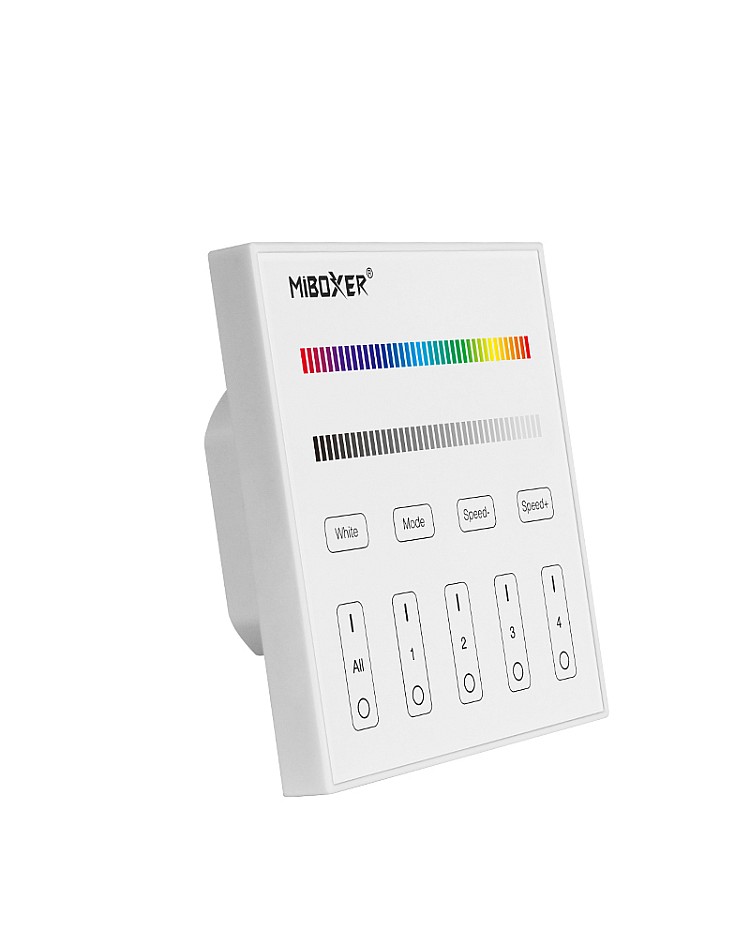

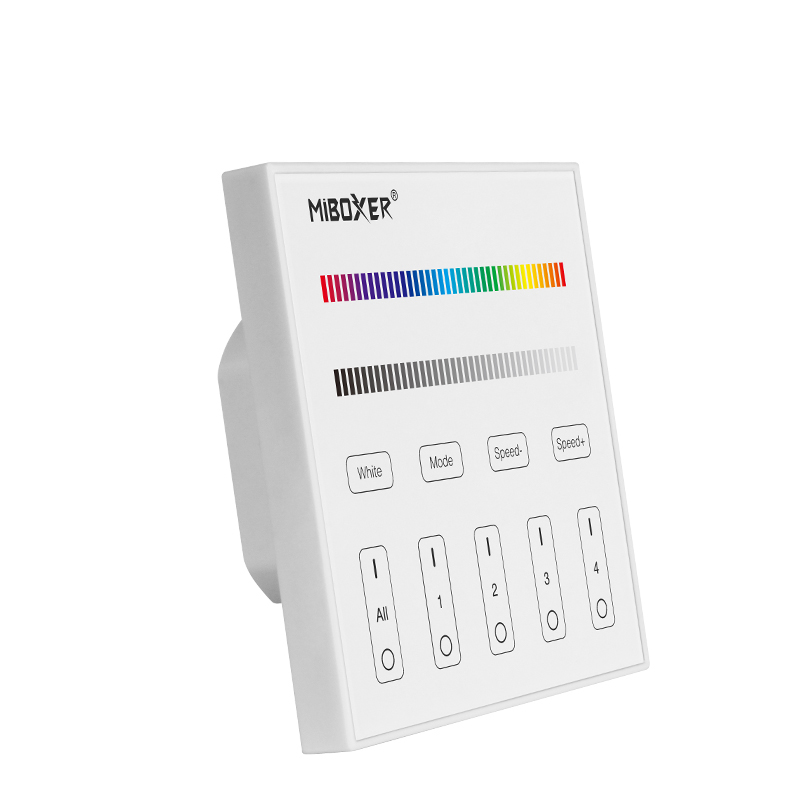

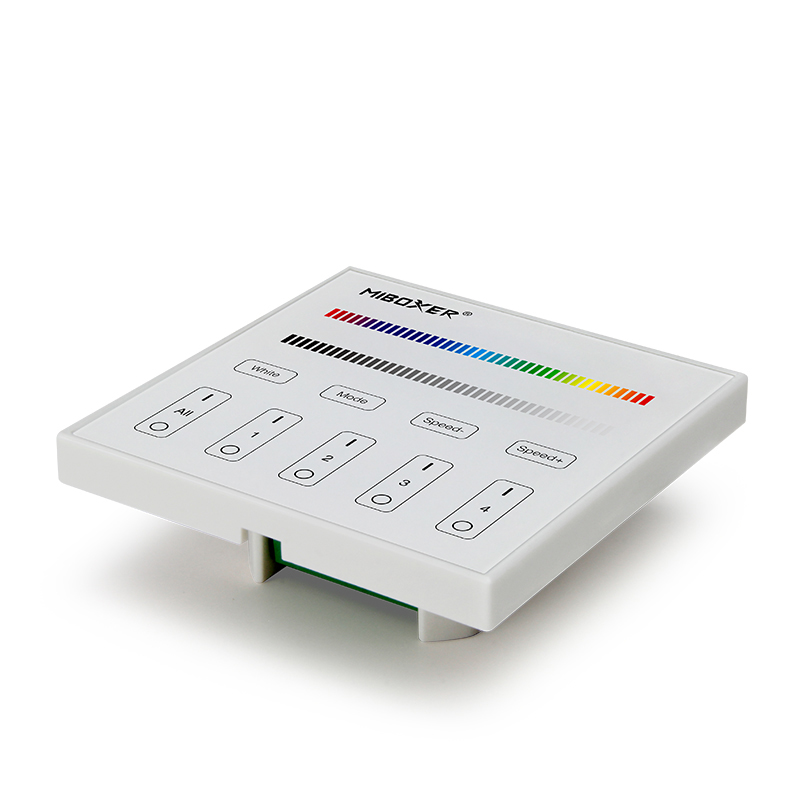

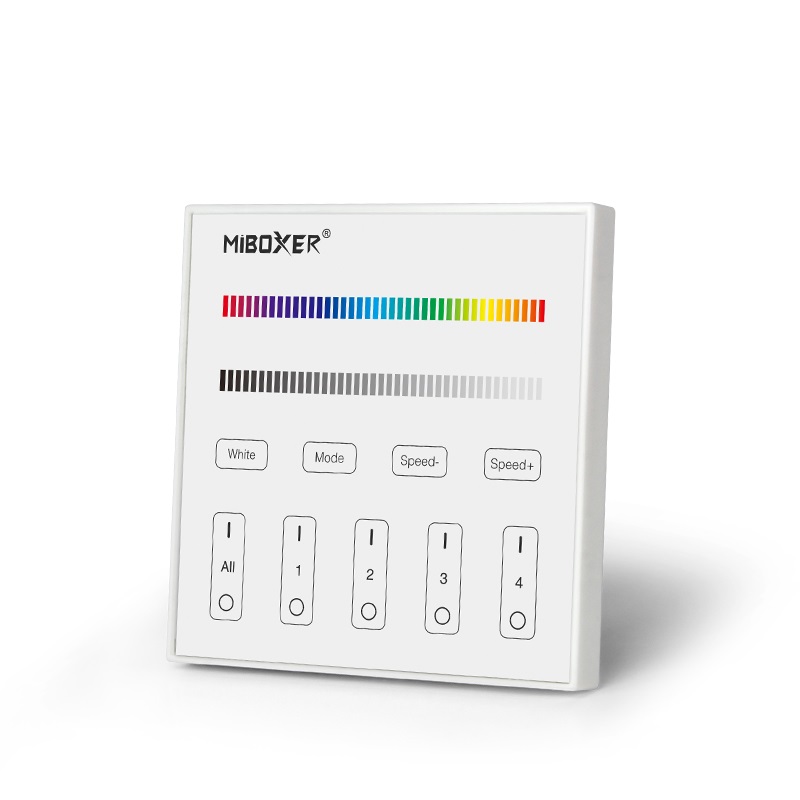

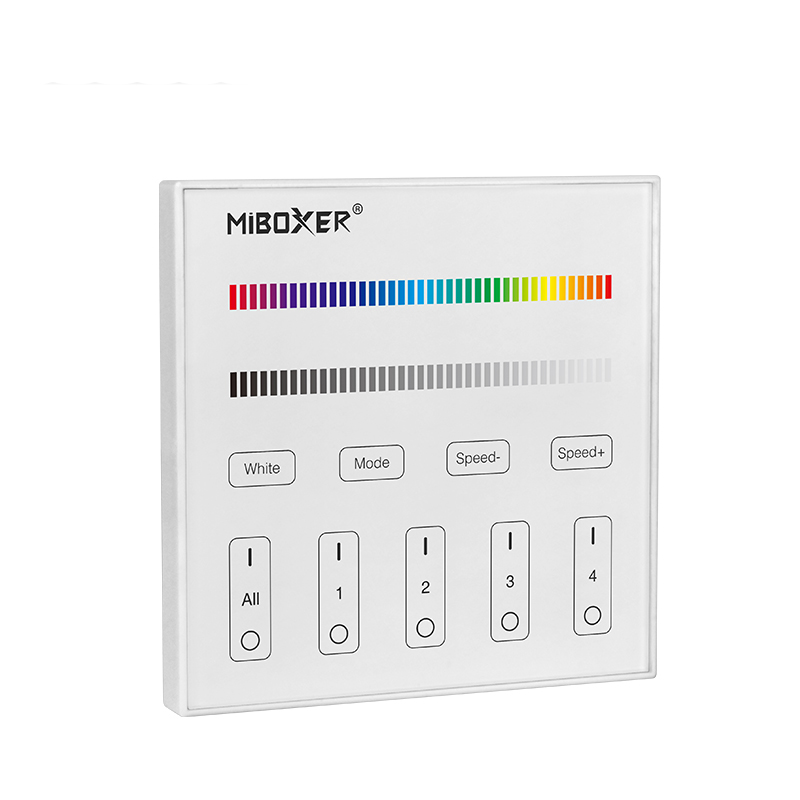

The MiBoxer X3 RGB DMX Wall Controller, with a standard European 86-type structure, is easy to mount on the wall. With a sensitive touching panel design, easy to touch the sliders or buttons to set the LED Lights. The indicator LED lights will flash with different sounds when touching the buttons. The MiBoxer DMX512 Wall Controller complies with standard DMX512 protocols, with DMX512 signal output and 2.4G signal output, which you can use to control the DMX512 LED Lights and 2.4G series Lights. The RGB DMX512 Controller can be controlled by 2.4G Remote Controls and smartphone APP, you can set the static color or dynamic mode, and adjust the brightness or speed. There are 9 dynamic modes available, and you can choose your favorite mode for different scenes.

Quick Links:

MiBoxer X3 RGB Wall Mount DMX Controller Instruction


Features:

  • Model: X3
  • Size: 86*86*26mm(L*W*H)
  • Working Voltage: AC100-240V, 50/60Hz

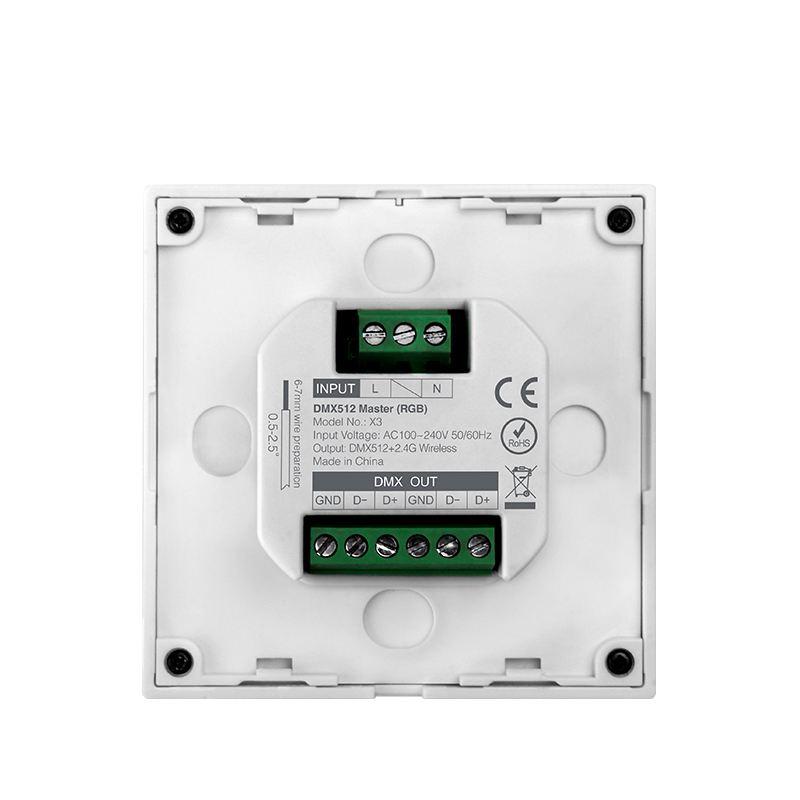

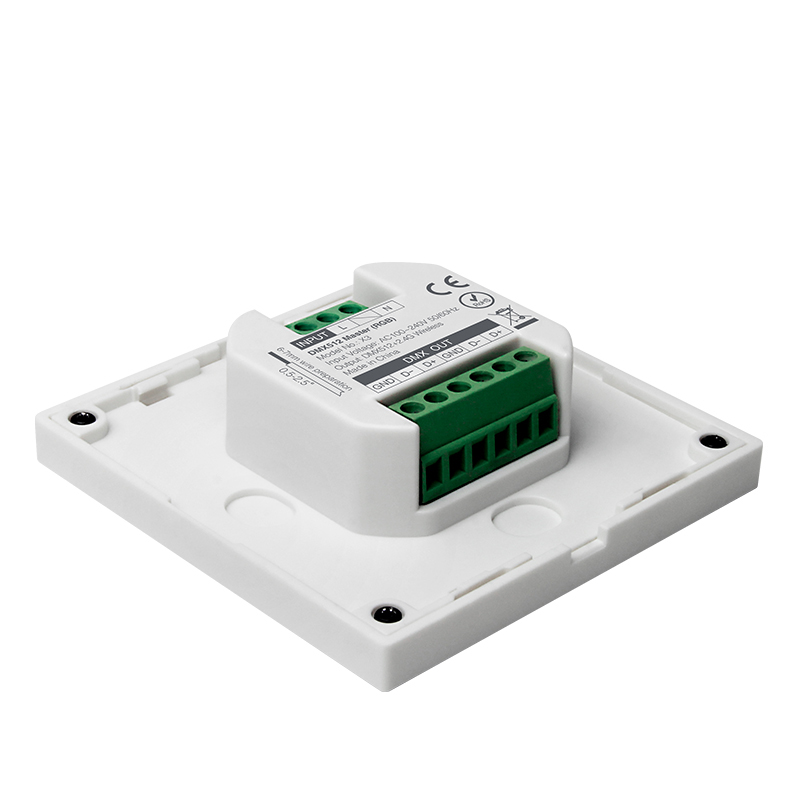

  • Output Signal: DMX512 + 2.4G Wireless
  • Comply With DMX512, DMX512.1990, DMX512A, RDM V1.0 Standard Protocol
  • 4 Zones Individually Control
  • Static Color And 9 Dynamic Modes Available
  • Brightness And Speed Adjustable
  • Support 2.4G Remote Control: FUT089, FUT092, FUT096
  • Support Smartphone APP Control(WL-BOX1 Gateway Needed)
  • RF Transmitting Power: 6dBm
  • RF Control Distance: ≤30m
  • Working Temperature: -20-45℃
  • 2 Years Warranty


Includes:

1*MiBoxer RGB DMX Wall Controller

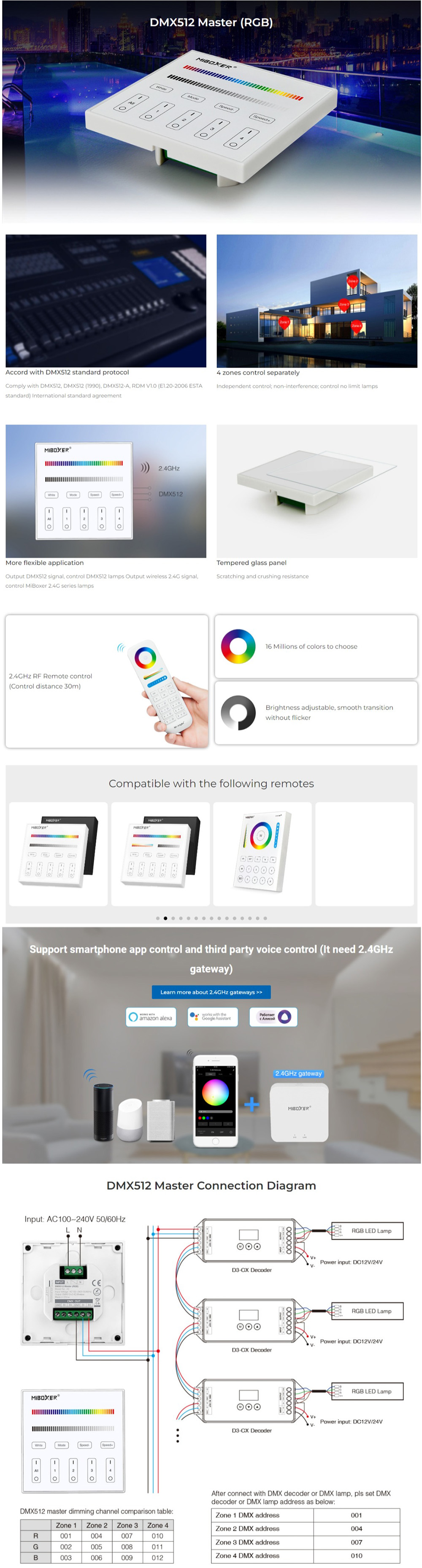

MiBoxer In Wall DMX Controller
