In Stock
$5.04
Reward Points: 5
-
+
  • Brand: Ledbe
  • Product Code: Waterproof LED Connectors

The IP67 waterproof LED connectors are designed for secure and reliable power or signal connections in demanding outdoor or wet environments. They are made of PVC and pure copper material, and have an IP rating of up to IP67. Available in DC, 2-pin, 3-pin, 4-pin, and 5-pin configurations, they support a wide range of LED lighting applications, including single-color, tunable white, RGB, RGBW, RGBCCT, and waterproof WS2812B LED strips options, suitable for use in wet, damp, or water-logged locations. The wire length is 20cm. Each connector features a robust waterproof seal with an IP67 rating and threaded screw locking design to prevent moisture, dust, and vibration from compromising the connection. Ideal for low-voltage 12V/24V/48V lights. They can also be used in hybrid, motor, car, and ship applications. Black and white colors are available.


Specifications:

  • Material: PVC + pure copper
  • Rated Voltage: 500V
  • Rated Current: 3A

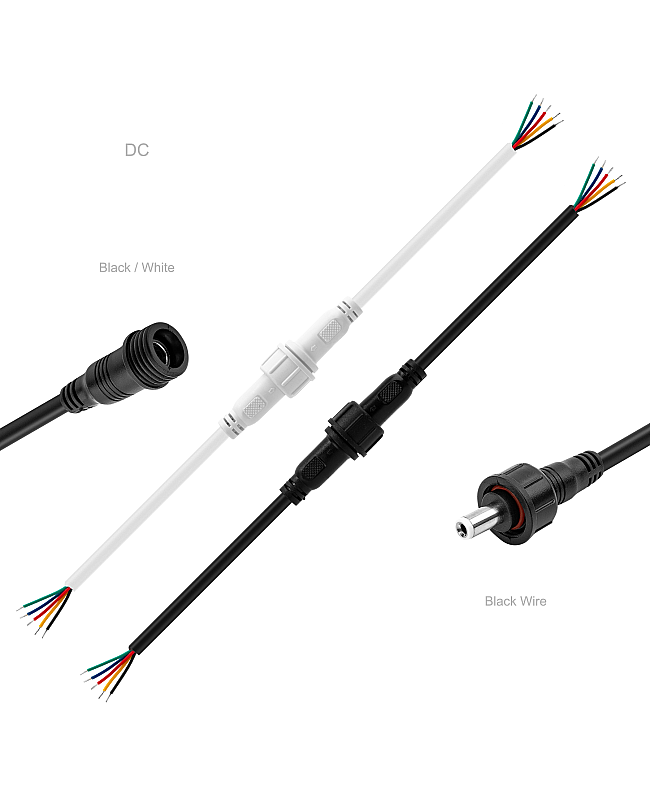

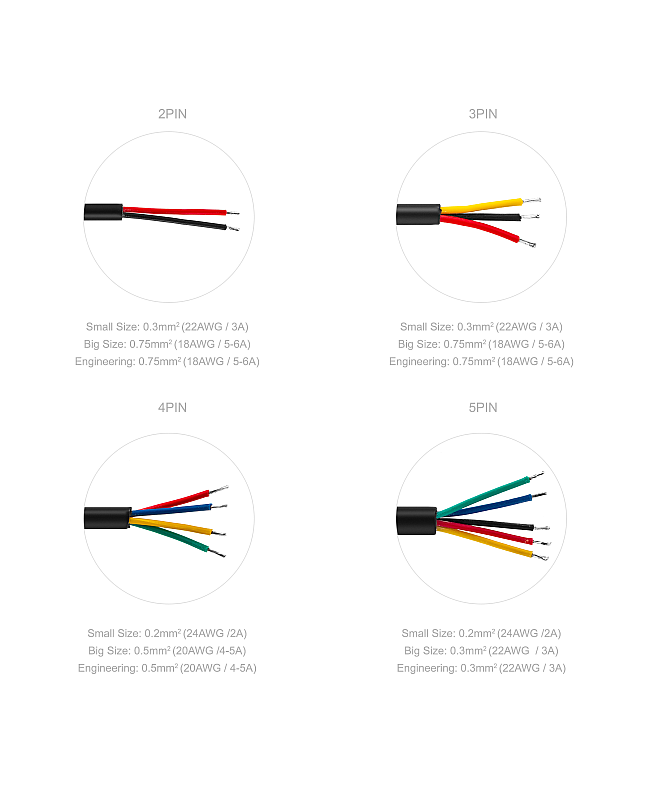

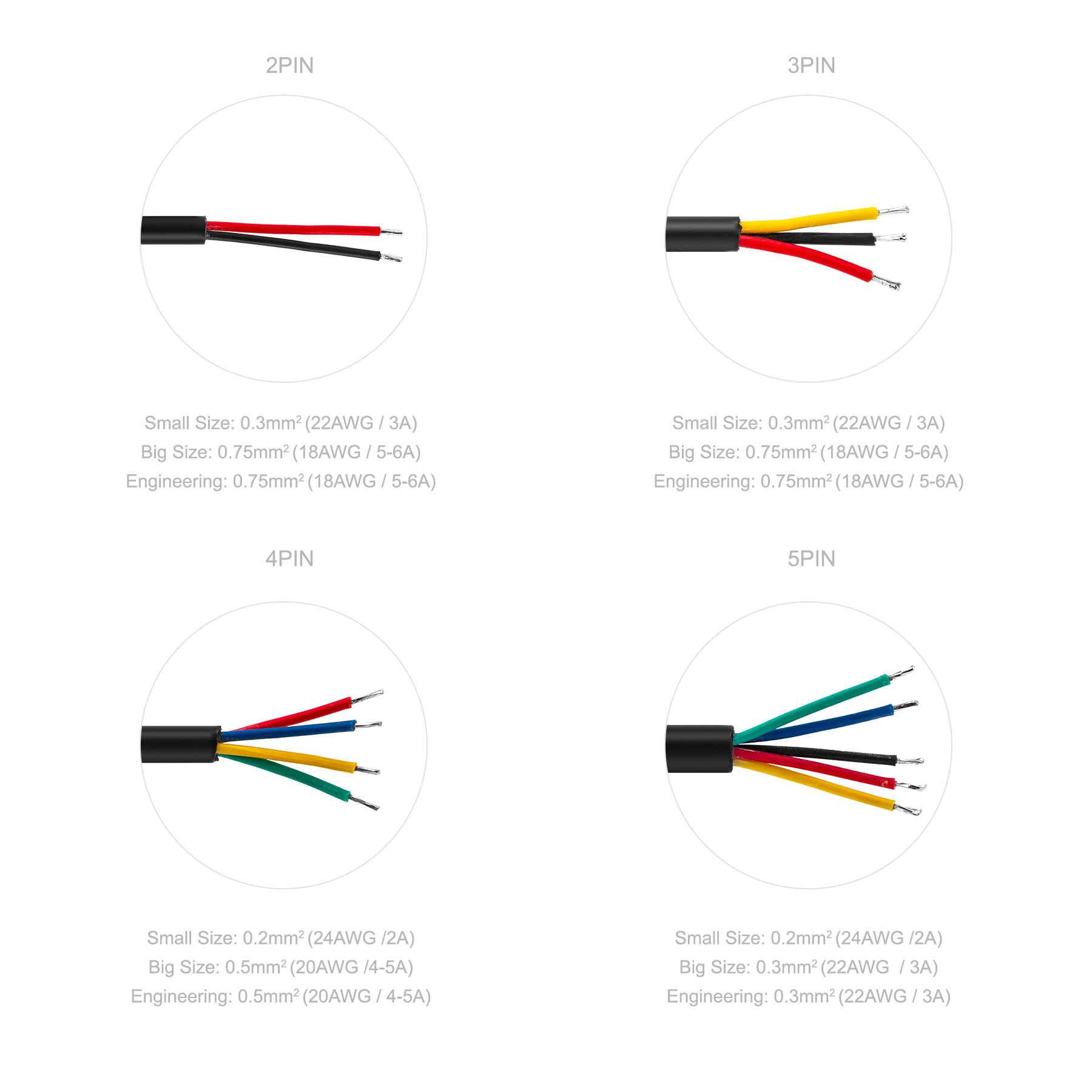

  • DC 2Pin: 0.3 mm²/22AWG; allow max current: 2-3A
  • 2Pin Small Size: 0.3mm²/22AWG; allow max current: 2-3A

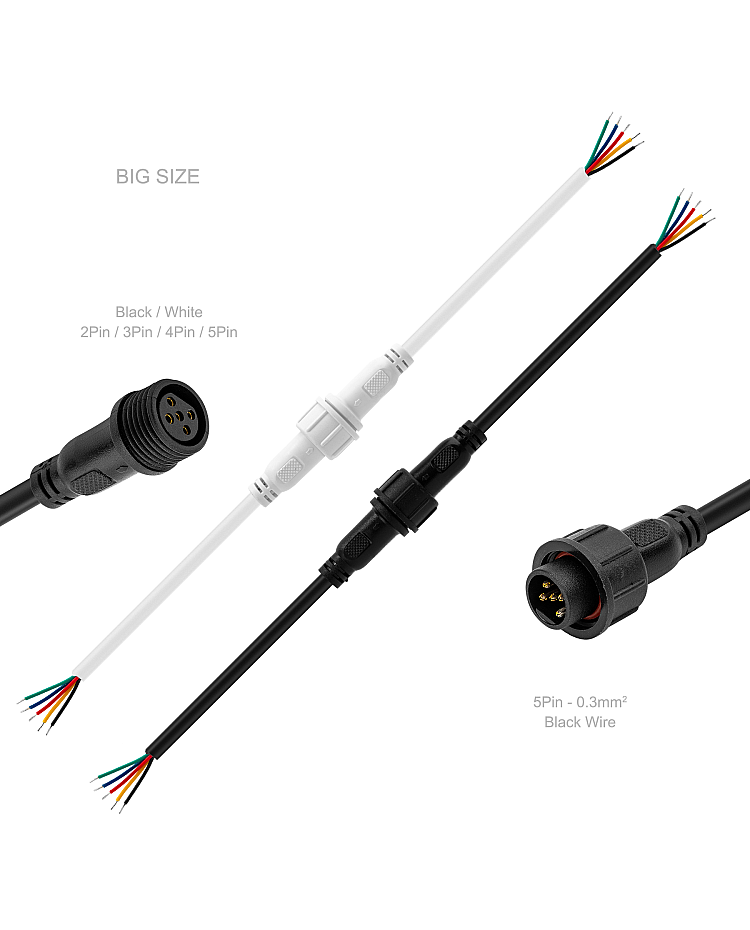

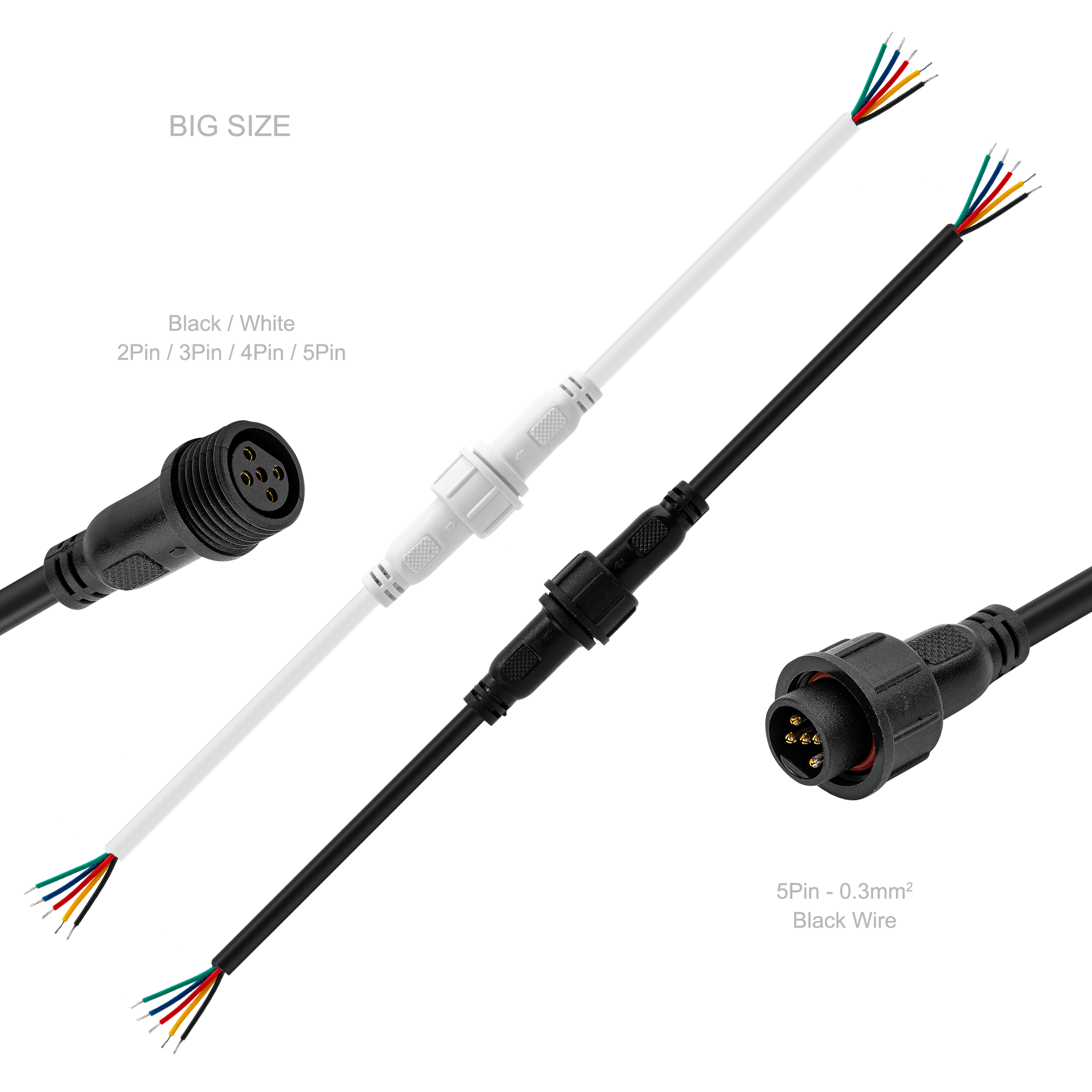

  • 2Pin Big Size=0.75mm²=18AWG; allow max current: 5-6A
  • 3Pin Small Size=0.3mm²=22AWG; allow max current: 3A
  • 3Pin Big Size=0.75mm²=18AWG; allow max current: 5-6A
  • 4Pin Small Size=0.2mm²=24AWG; allow max current: 2A
  • 4Pin Big Size=0.5mm²=20AWG; allow max current: 4-5A
  • 5Pin Small Size=0.2mm²=24AWG; allow max current: 2A
  • 5Pin Big Size=0.3mm²=22AWG; allow max current: 3A
  • Pins: 2, 3, 4, 5
  • Wire Length: 20cm

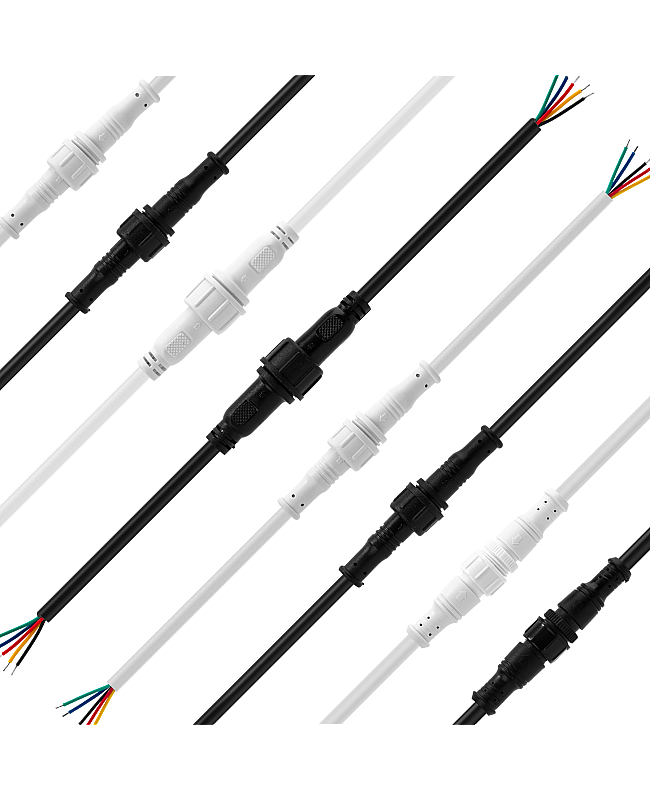

  • Colors: Black/white
  • Fireproof Grade: UL94V-0

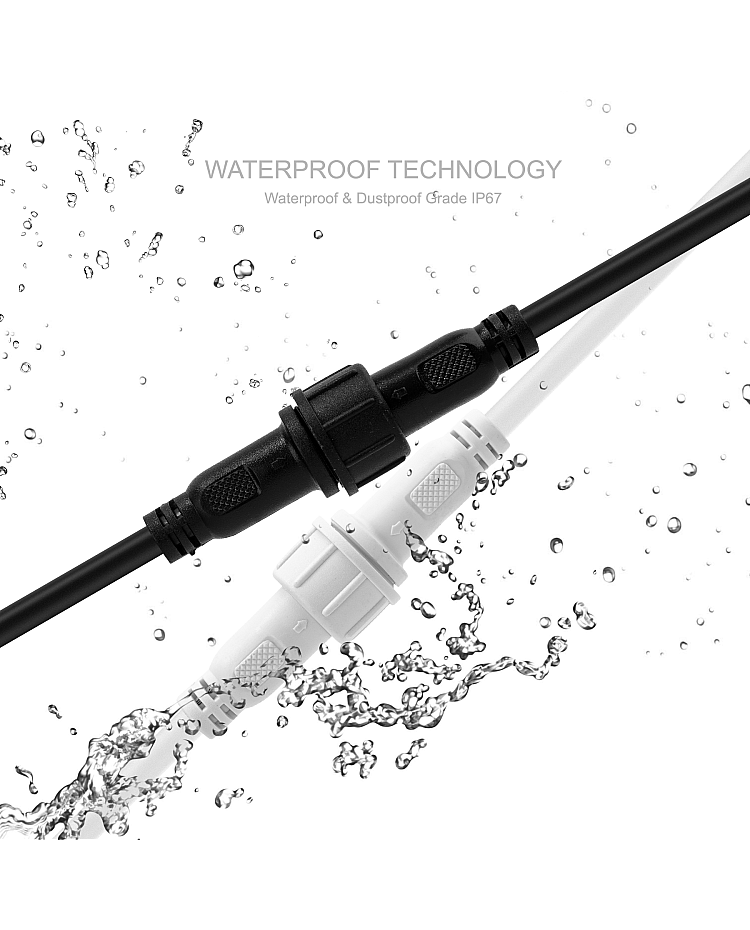

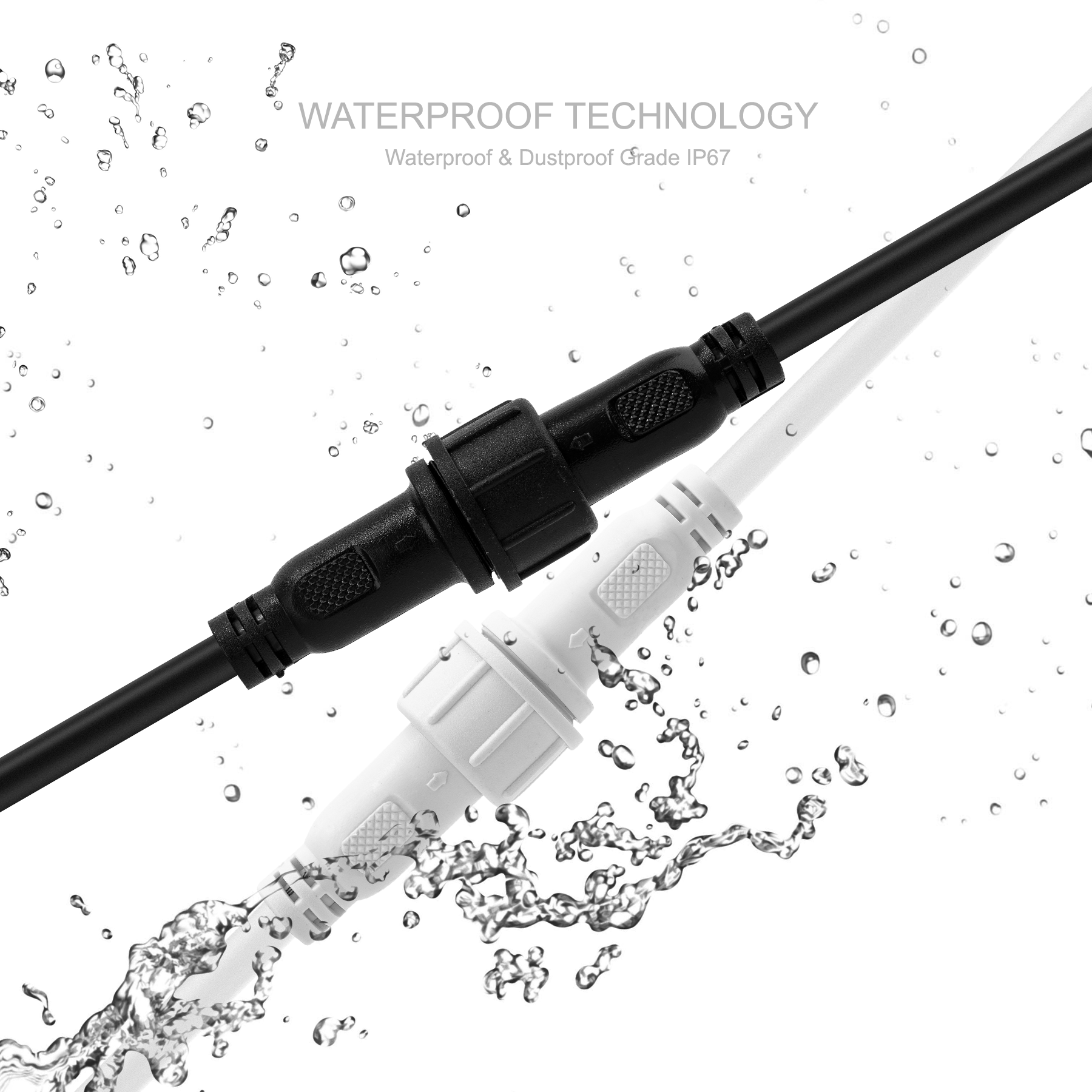

  • IP67 Waterproof Rating: Ideal for outdoor  and wet location installations
  • Secure Locking Mechanism: Anti-loosening threaded coupling nut
  • Operating Temperature: -20℃-+85℃


Applications:

  • Outdoor LED strip light installations
  • Garden and landscape lighting
  • RGB/RGBW LED controllers and drivers
  • Waterproof LED signage or displays
  • Marine and vehicle lighting systems
  • IP-rated power or signal transmission


Includes:

5 * Male waterproof LED connectors

5* Female waterproof light connectors

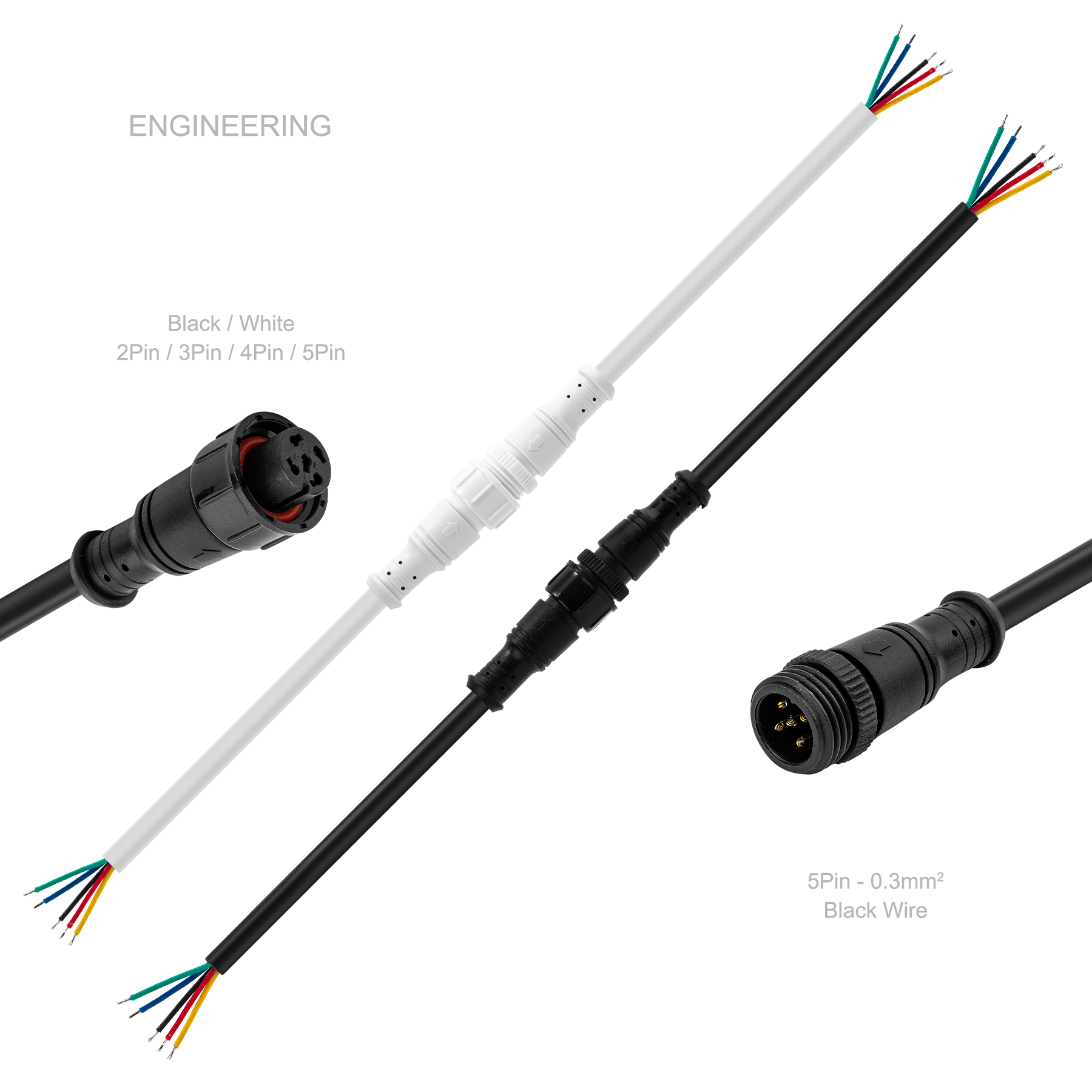

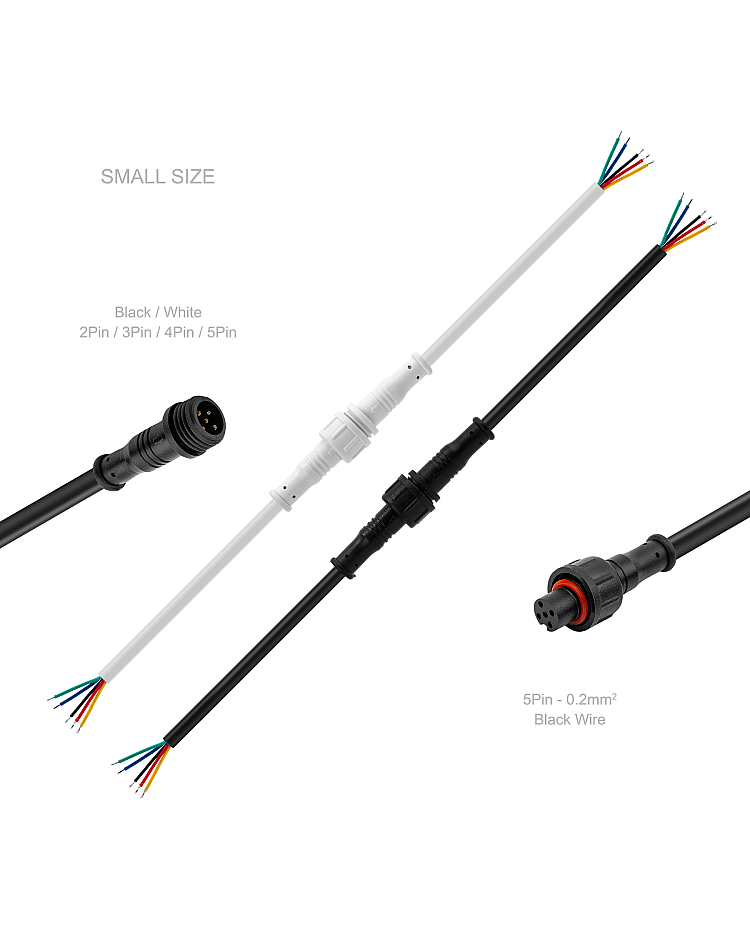

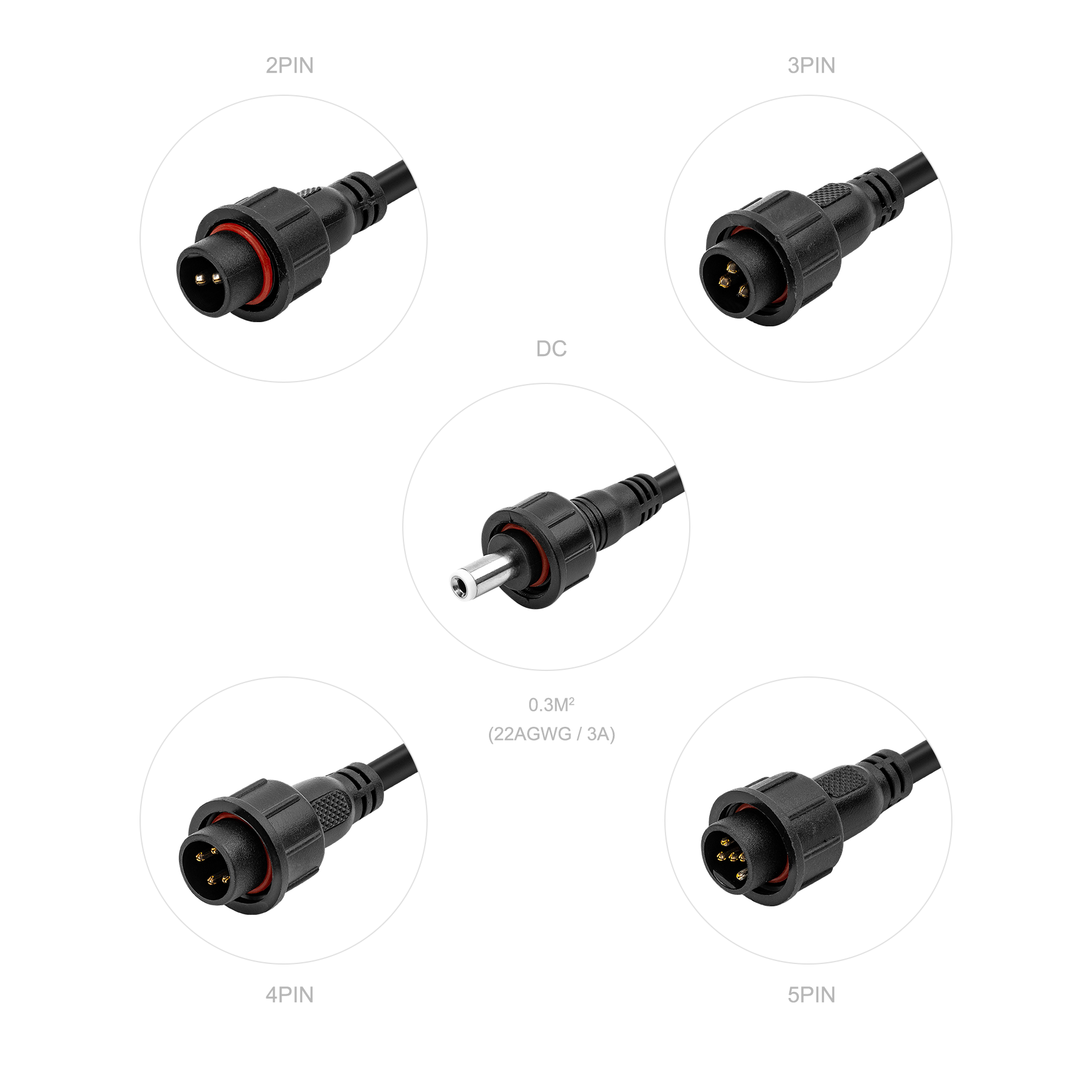

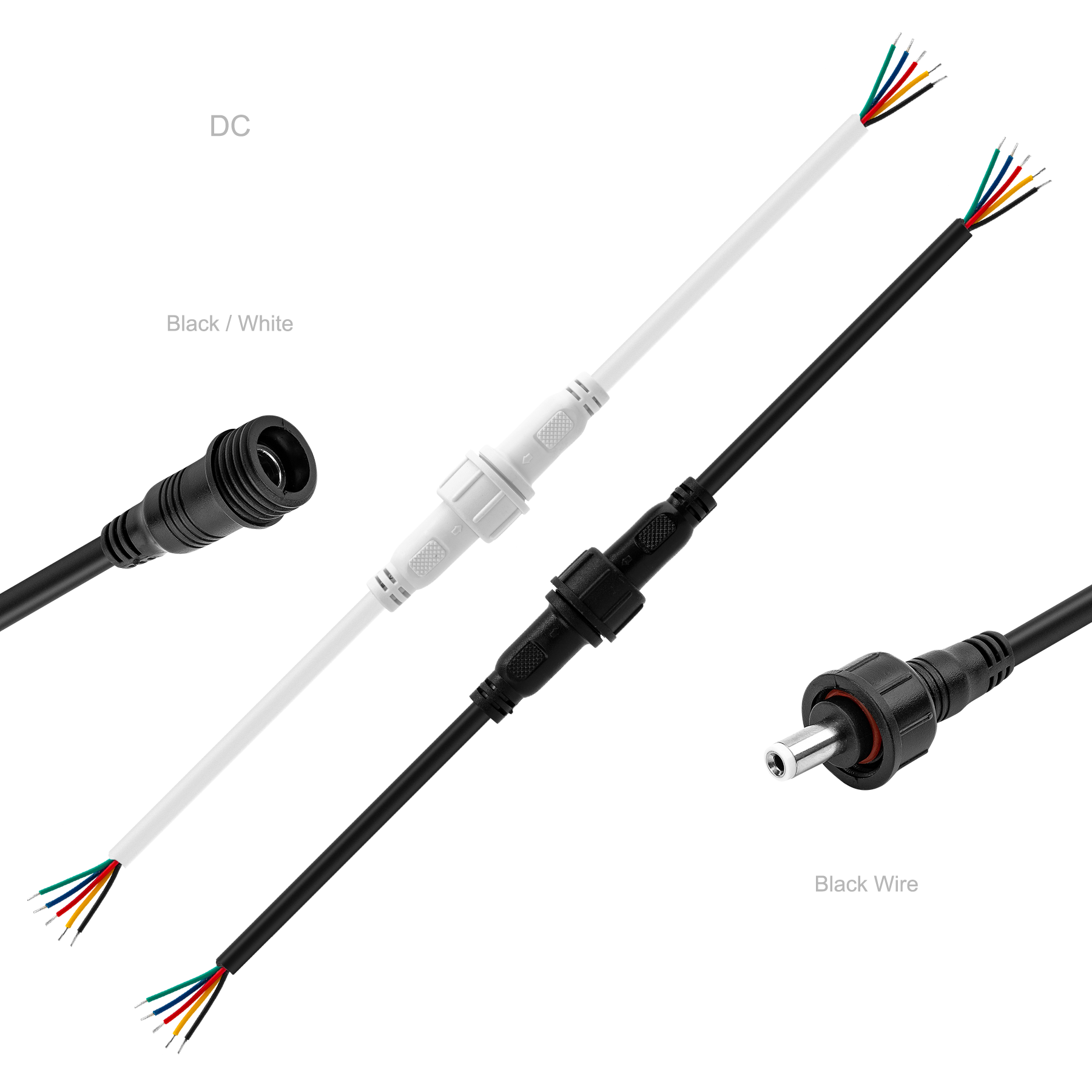

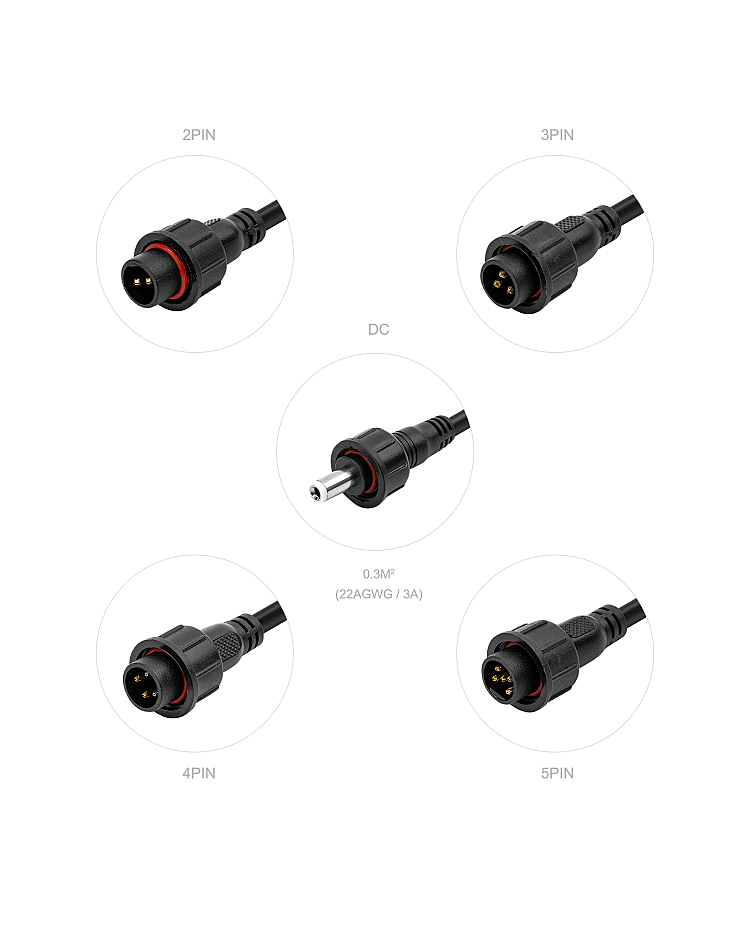

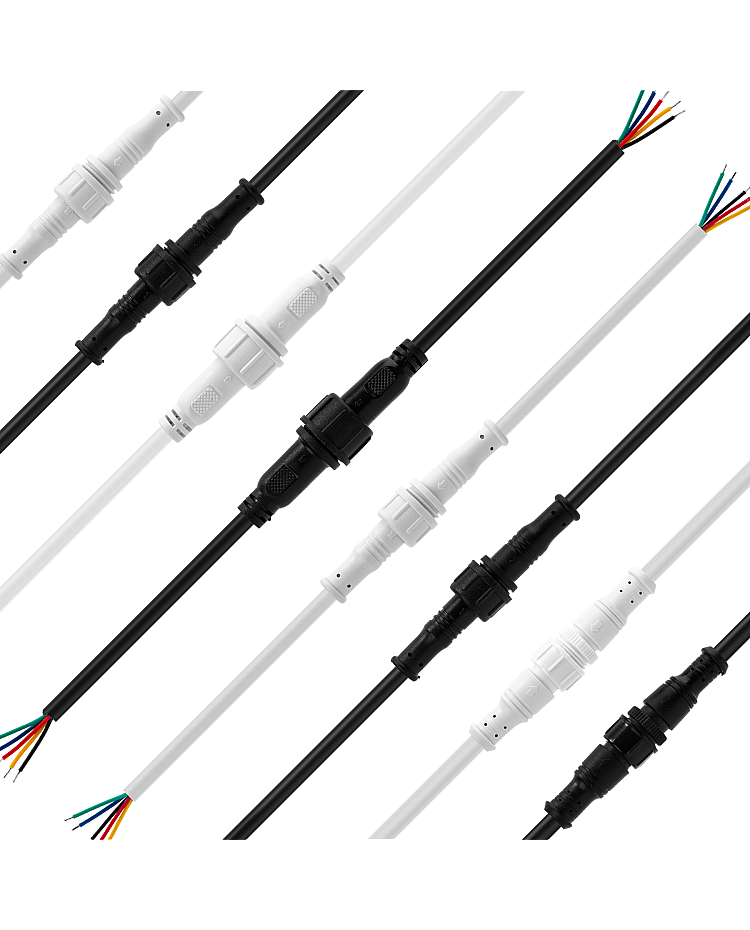

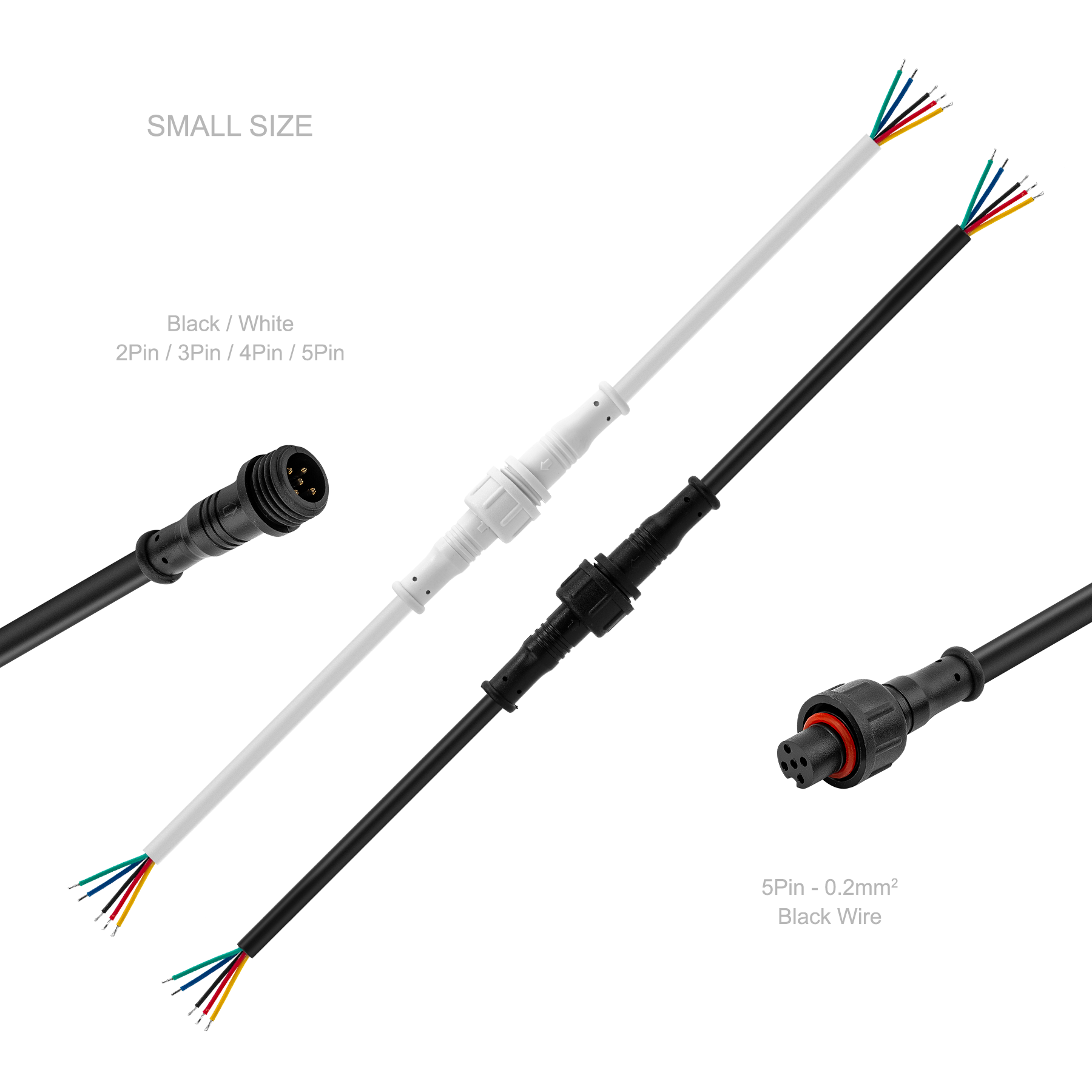

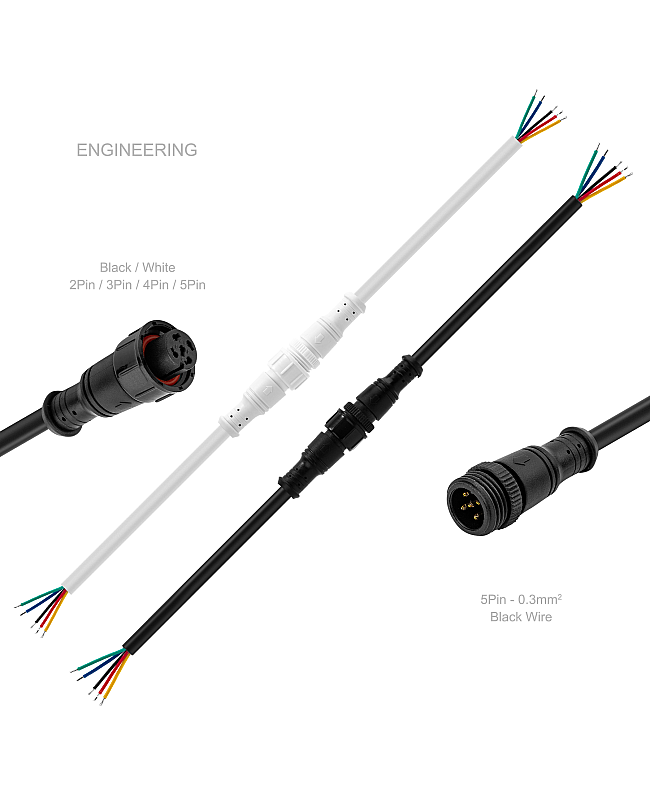

Types of waterproof LED light connectors Small size waterproof LED connector Engineering 5pin waterproof LED connector 4Pin RGB waterproof LED connector IP67 ip67 2 Pin waterproof LED connectors
