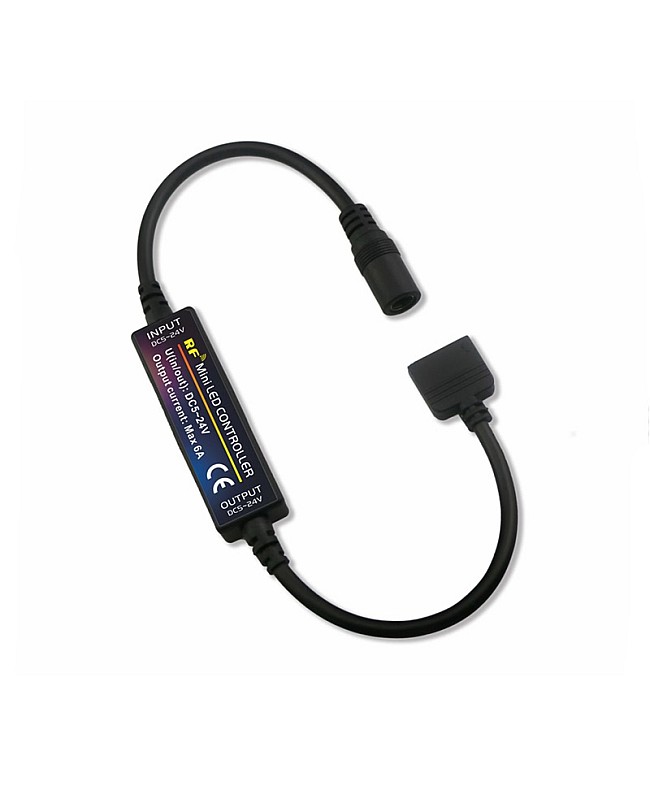

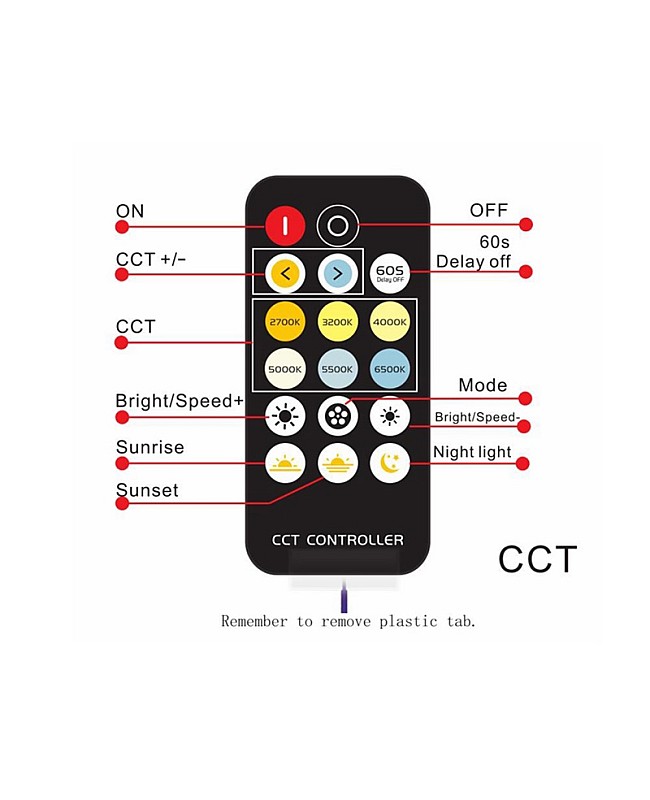

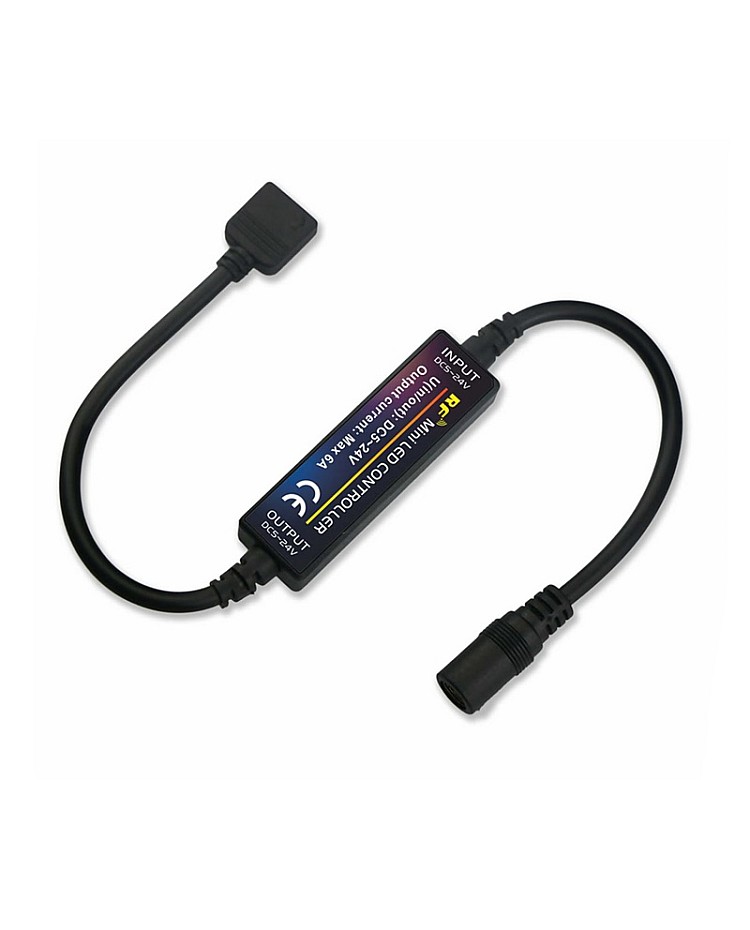

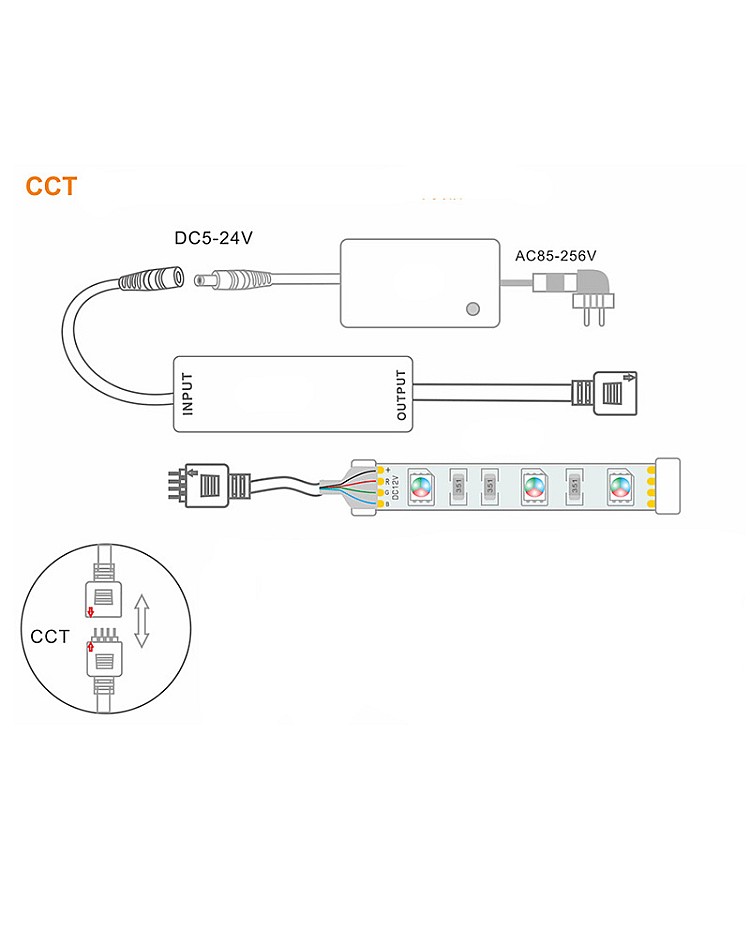

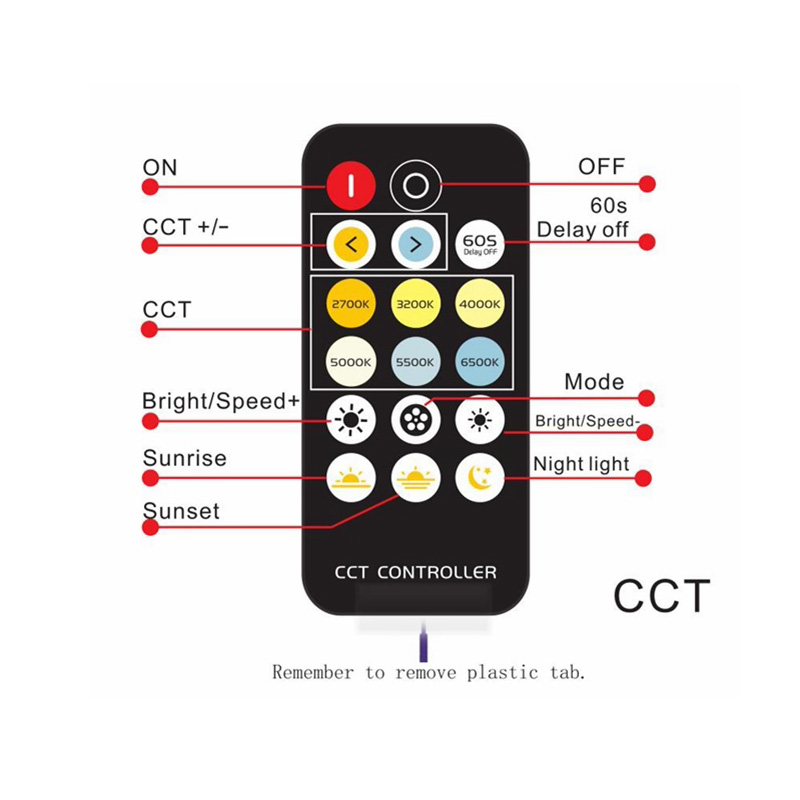

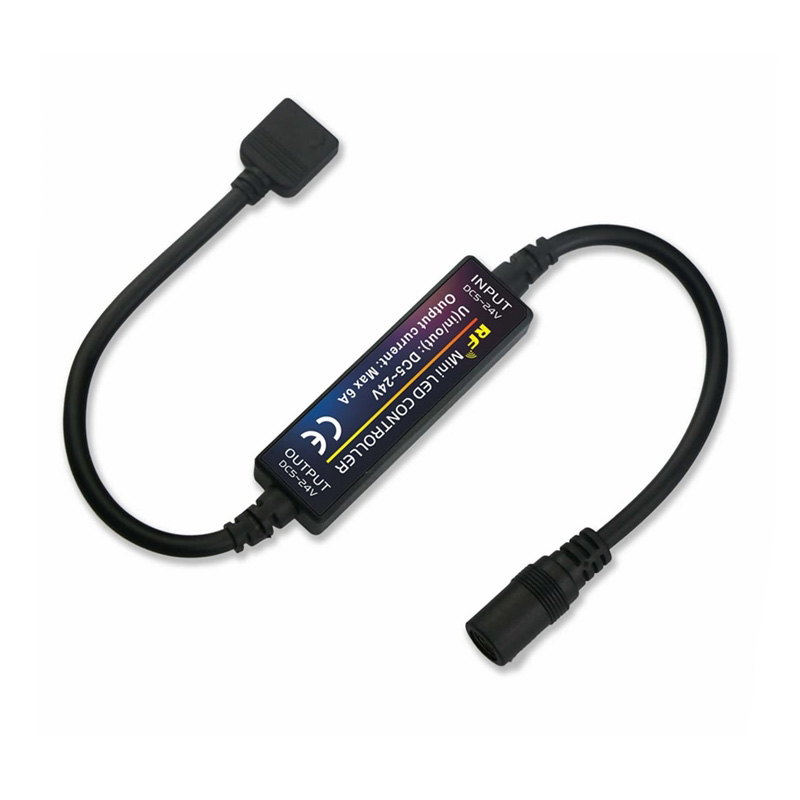

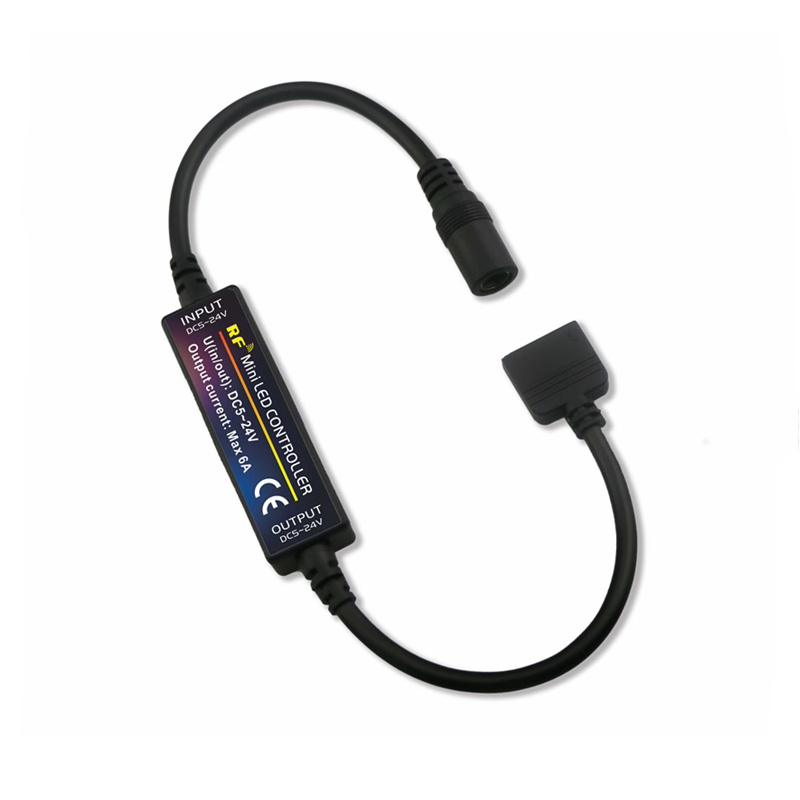

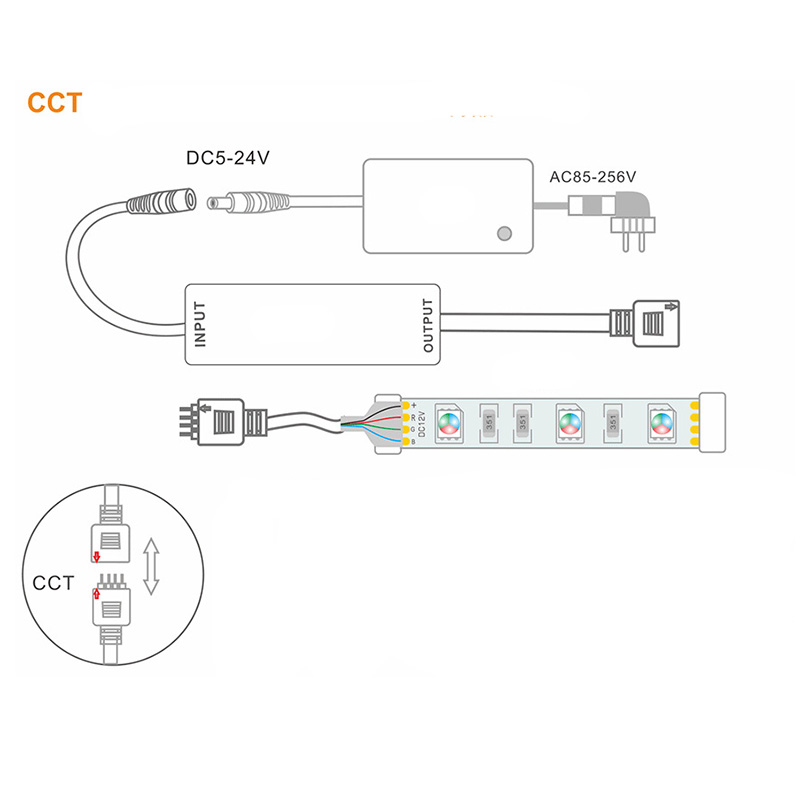

The Mini Inline CCT tunable white LED strip controller has a female DC connector and a 4-pin connector, making it easy to connect to the LED transformer and CCT LED strips. The CCT LED controller is small, allowing installation in a narrow or small location. With two output channels designed and a max output current of up to 3A for each channel, the 17-key RF remote control is included. You can use it to control the CCT LED light remotely, turn it on/off, and adjust the color temperature, static color brightness, and speed of dynamic modes. There are six static colors and six dynamic modes available. With the delay-off function, you can set the LED Light to turn off automatically after 60 seconds.
Specifications:

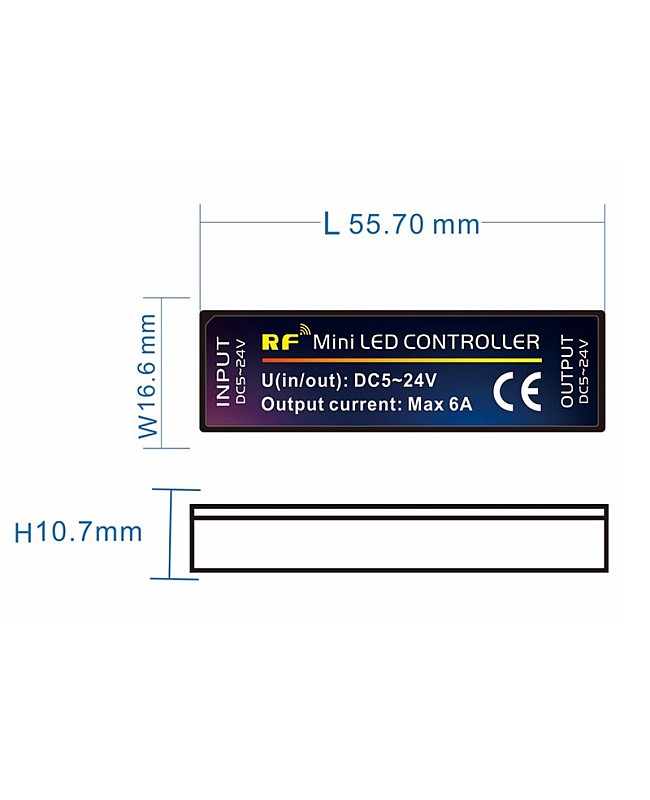

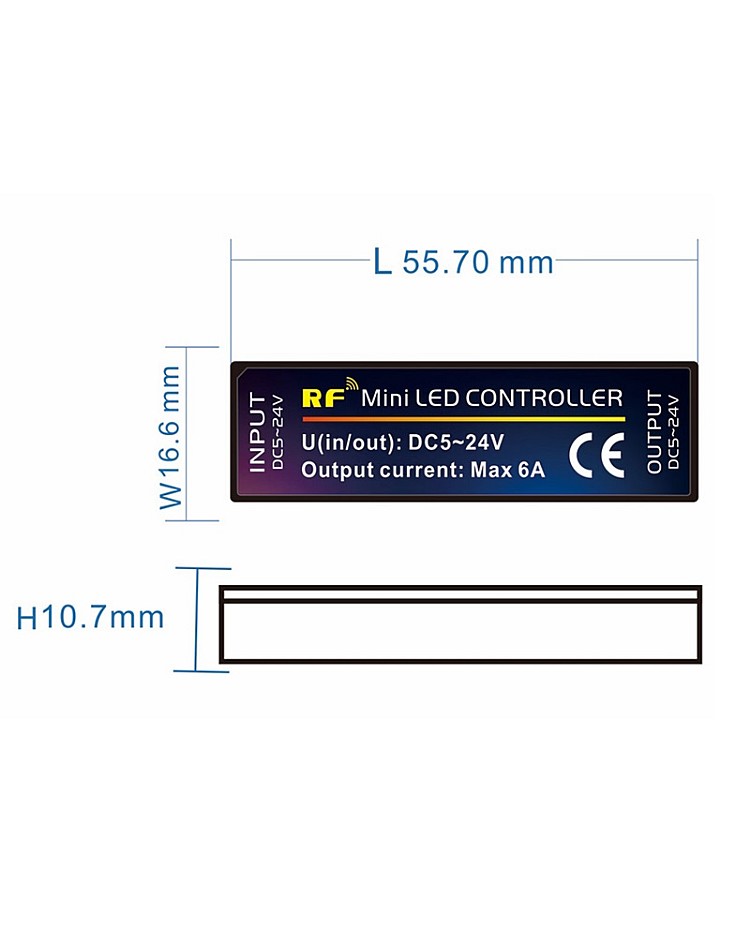

- Size: 55*22*13mm(L*W*H)
- Working Voltage: DC5-24V
- Connecting Method: Common Anode
- Static Power Consumption: <0.5W
- Output Current: 2*3A
- Output Power: DC5V: <30W; DC12V: <72W; DC24V: <144W
- 0-100% Dimmable
- DC Female Connector And 4 Pin Female Connector Included

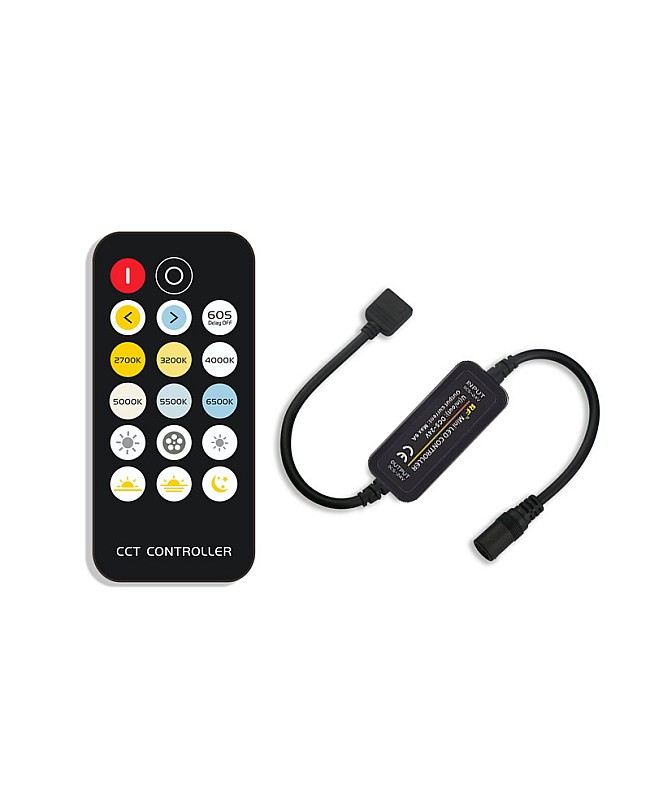

- 17 Keys RF Remote Control Included
- Remote Control Distance: ≤20M
- Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
- 6 Static Colors And 6 Dynamic Modes Available
- 2 Years Warranty
Includes:
1 * Tunable White LED Strip Controller

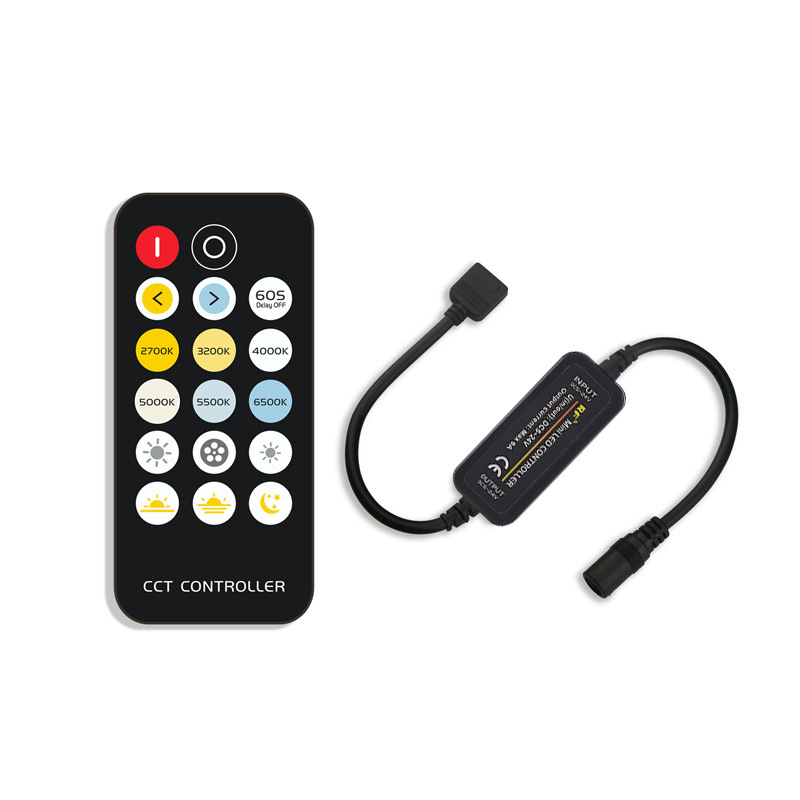

1 * 17 Keys RF Remote Control
