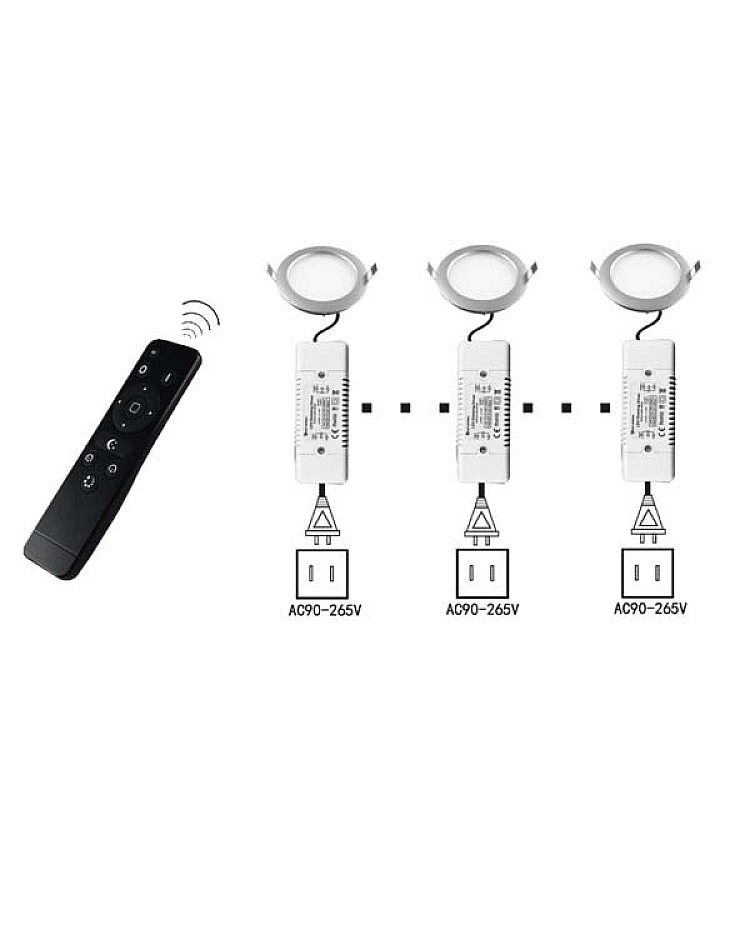

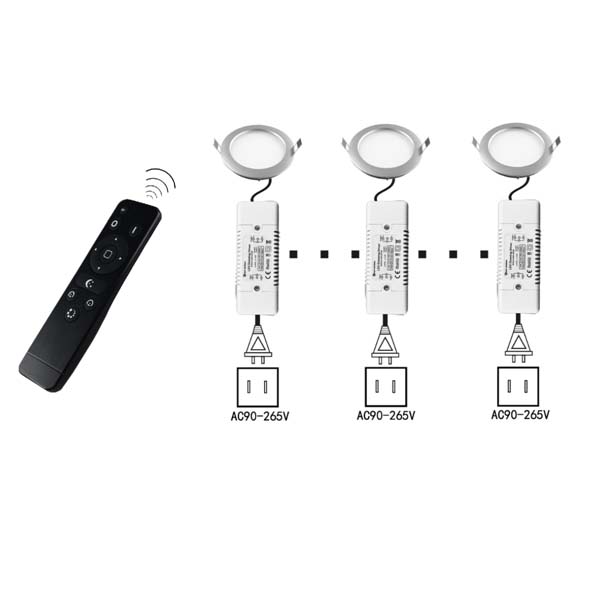

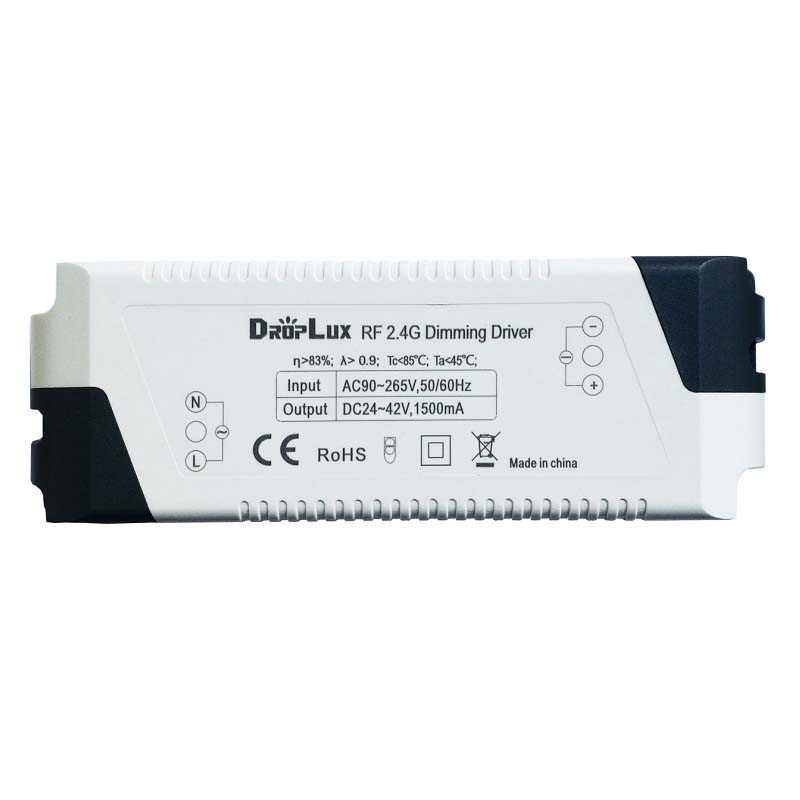

The dimmable LED drivers are designed for single color constant-current LED lighting. Adopts the PWM technology, used for controlling constant voltage LED lamps, panel lights, ceiling lamps, down lights, with multiple protections to ensure they work safely and reliably. There are various rated current products: 1500 mA, 1400 mA, 1300 mA, 1200 mA, 1100 mA, or 1000 mA. The replacement dimmable LED driver with an isolated power supply design has an input voltage range of AC90V to AC264V, so that you can connect it to the public power system without extra adapters. They integrate a 2.4G RF wireless communication module to allow work with the RF LED remote to adjust the brightness or make dynamic changes smoothly. It is compatible with various remote control models simultaneously and can be tailored to the project situation. The LED dimming driver with air self-inspection sync control technology adds a wireless sync function and reduces the remote control distance limitation to 1, theoretically enabling wireless sync control across numerous drivers.
Specifications:

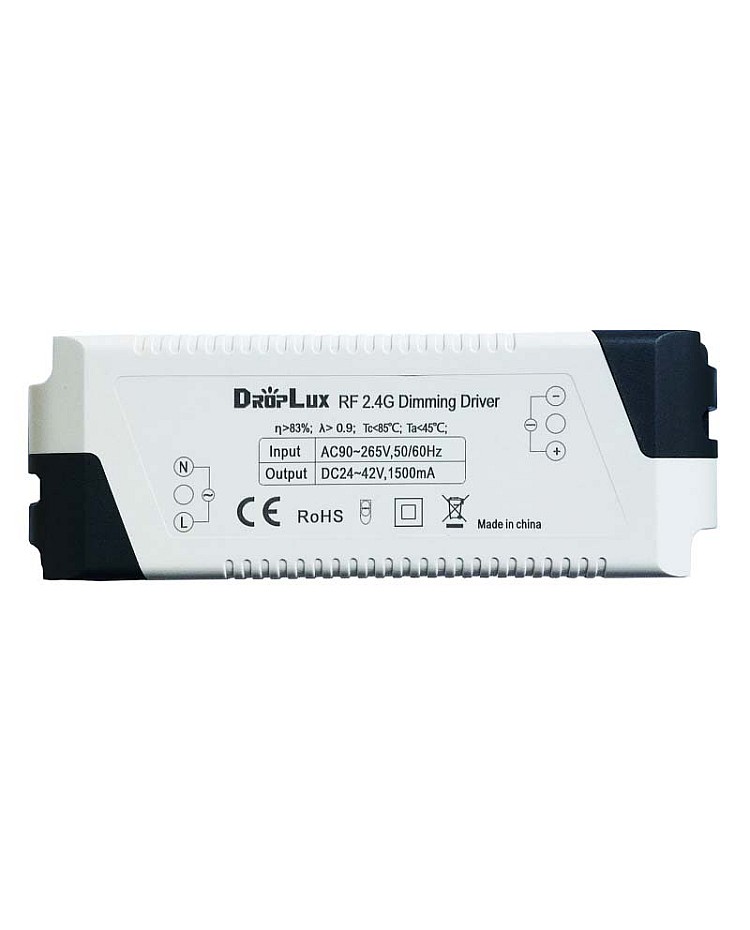

- Model: DLC003
- Size ( L x W x H ) : 157 x 54 x 36mm / 6.18"x 2.13" x 1.42"
- Working voltage: AC90V-AC264V
- Frequency range: 47- 63Hz
- Rated current: 0.31A (Full Load)
- Surge current: <50A
- Standby power: ≤1.1W
- Overall efficiency: 87% (Full Load)
- Power factor: 0.95 (Full Load)

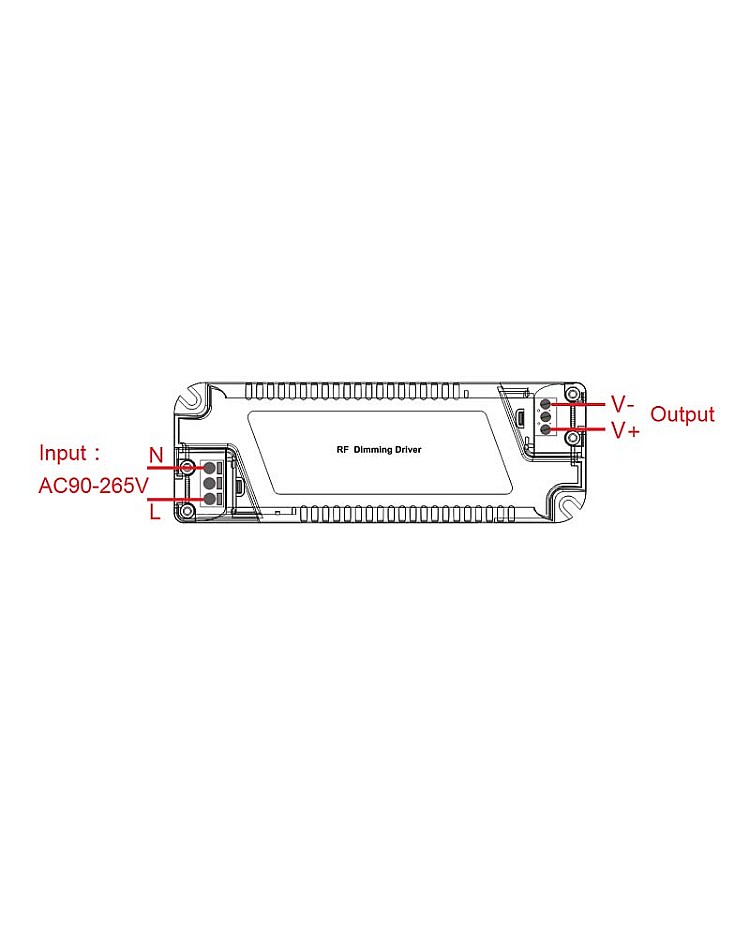

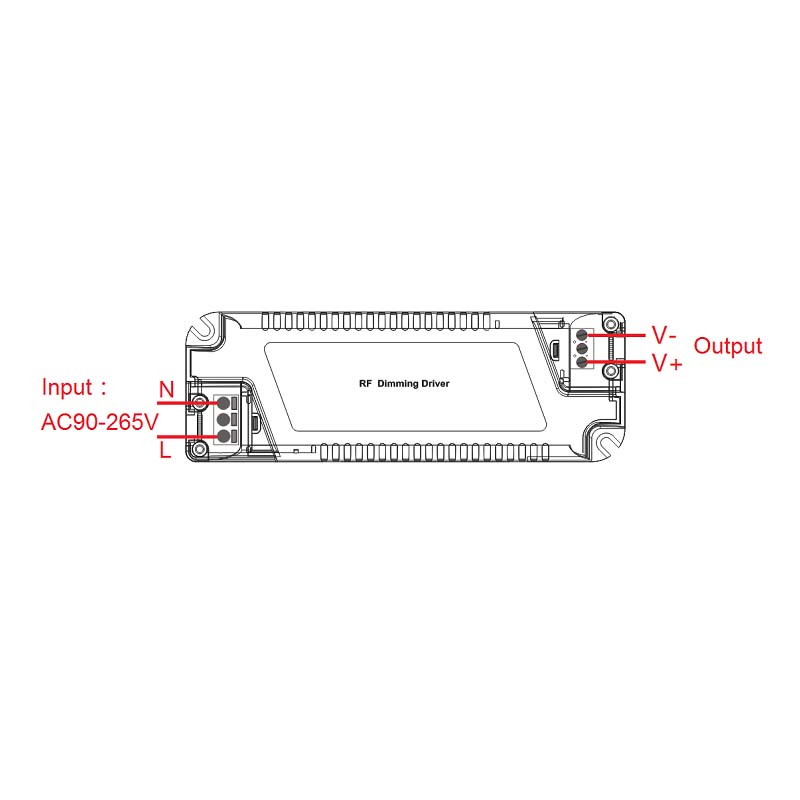

- Port: Two-wire input (L/N)
- Uploaded voltage: 53V
- Voltage range: DC24-42V
- String number: 9-12 Strings
- Rated current: 1500mA(60W), 1400mA(56W), 1300mA(52W), 1200mA(48W), 1100mA(44W), 1000mA(40W)
- Max power: 60W
- Current accuracy: ±5%
- PWM signal output Frequency: 11.7 KHz
- Dimming grade: 1024
- Dimming rage: 3-100%
- Video effect: Free-Flicker
- Power supply: Isolated Power Supply
- Wireless control: 2.4GHz
- Remote control distance: ≤30m
- Remote not included and sold separately

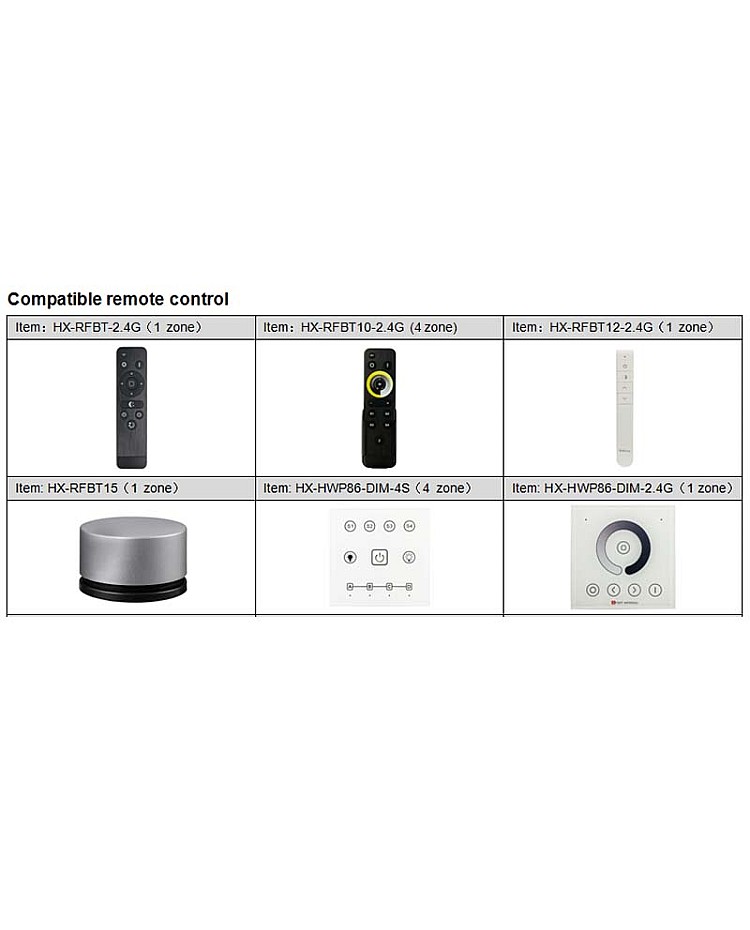

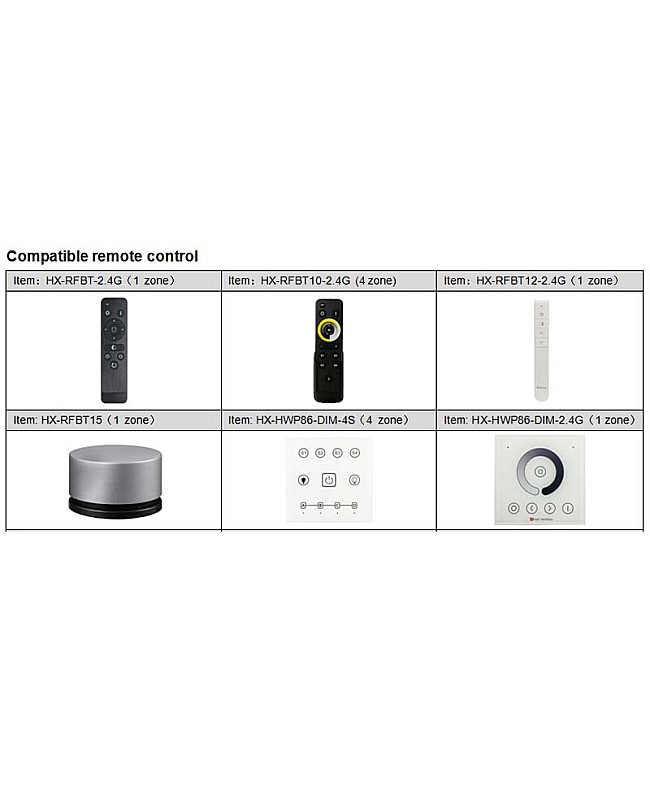

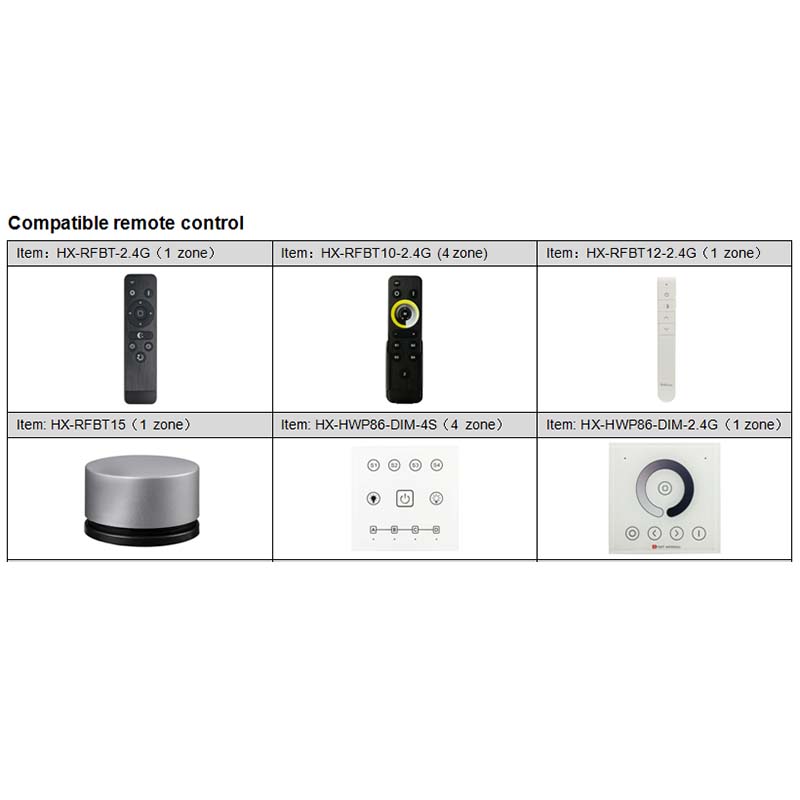

- Compatible with LED remotes: HX-RFBT-2.4G(1 Zone), HX-RFBT10-2.4G(4 Zones), HX-RFBT12-2.4G(1 Zone), HX-RFBT15( 1 Zone), etc
- Working temperature: -20-45℃
- IP rate: IP40
- Lifespan: 36,000 Hours
- Over-voltage protection: YES
- Short circuit protection: YES
- Memory function: YES
- Weight: 270g
- 3-year warranty
Includes:
1 * Dimmable constant current LED driver
