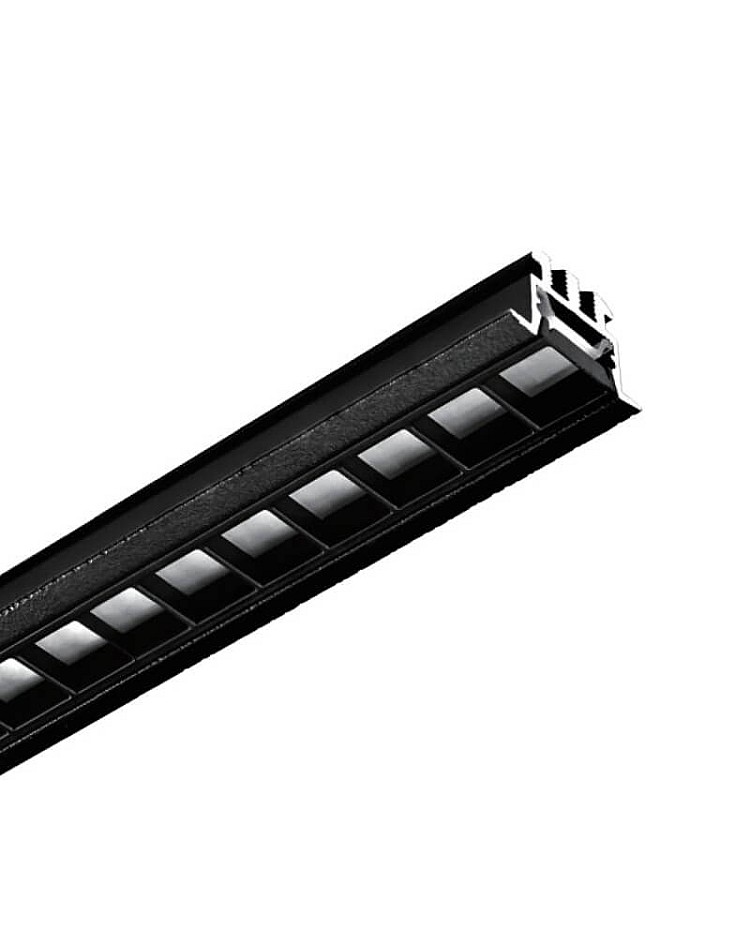

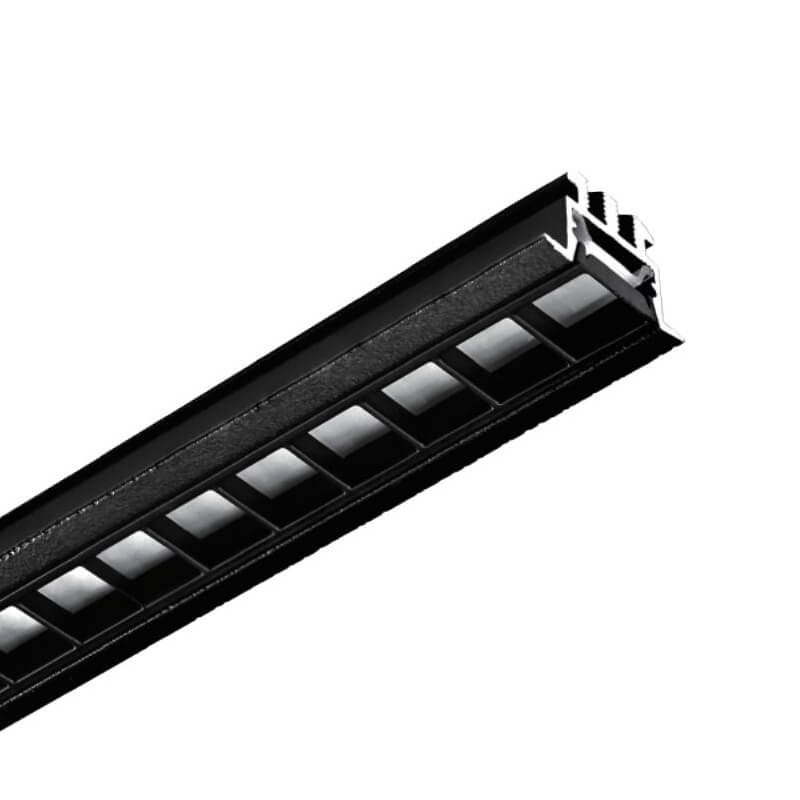

The mini anti-glare LED aluminum channel is designed for sleek, professional lighting. The ultra-compact structure is precision-engineered from durable extruded aluminum, with lengths available up to 5 meters, making it perfect for seamless, trimless integration into ceilings and walls.
This profile lets you build the exact optical performance you need. Not only can the PC diffused cover provide smooth, even light, but it can also be fitted with a plastic grille or honeycomb louvers to dramatically cut glare and deliver clean, directional illumination. Ideal for offices, retail spaces, hallways, and modern residential interiors.

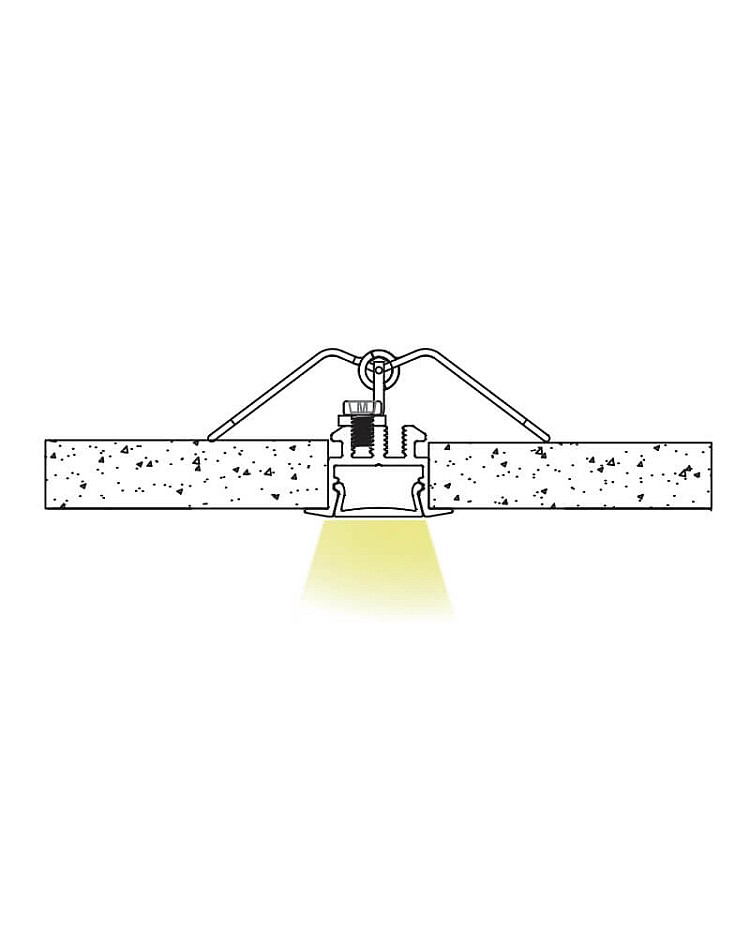

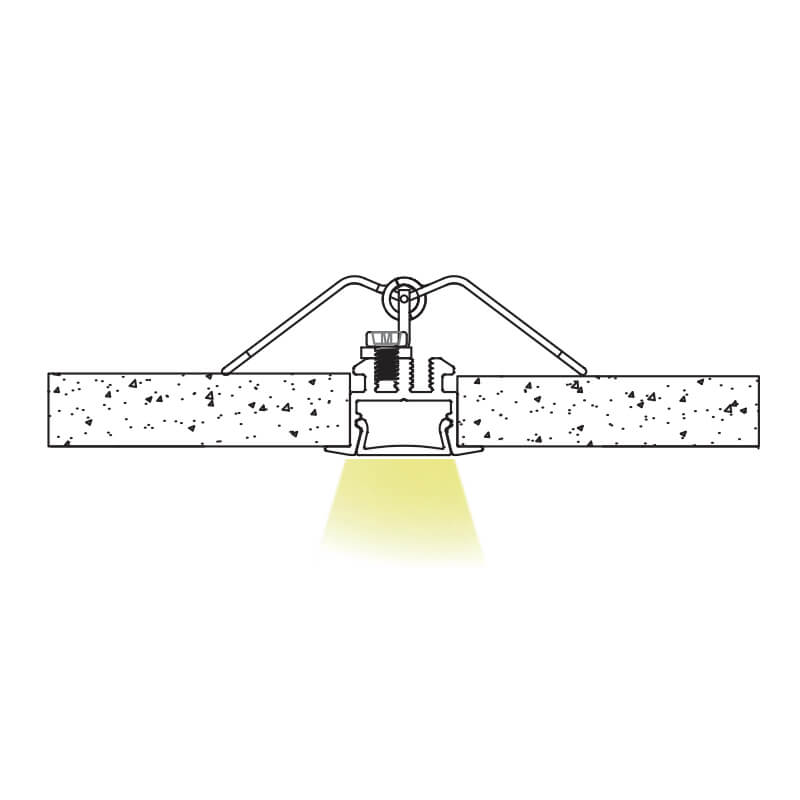

The installation is fast and hassle-free thanks to the included meta spring clips, which securely lock the channel into place for a flush, recessed finish with no visible mounting hardware. Paired with tidy end caps, the result is a clean, high-end look.
The inner width is 13.2mm, allowing the strip width to be up to 13mm. You can add static color or color-changing SMD or COB strip lights as the light source. The aluminum light profile can act as a heat sink to improve thermal management, maintain stable performance, and extend the LED light's lifespan.

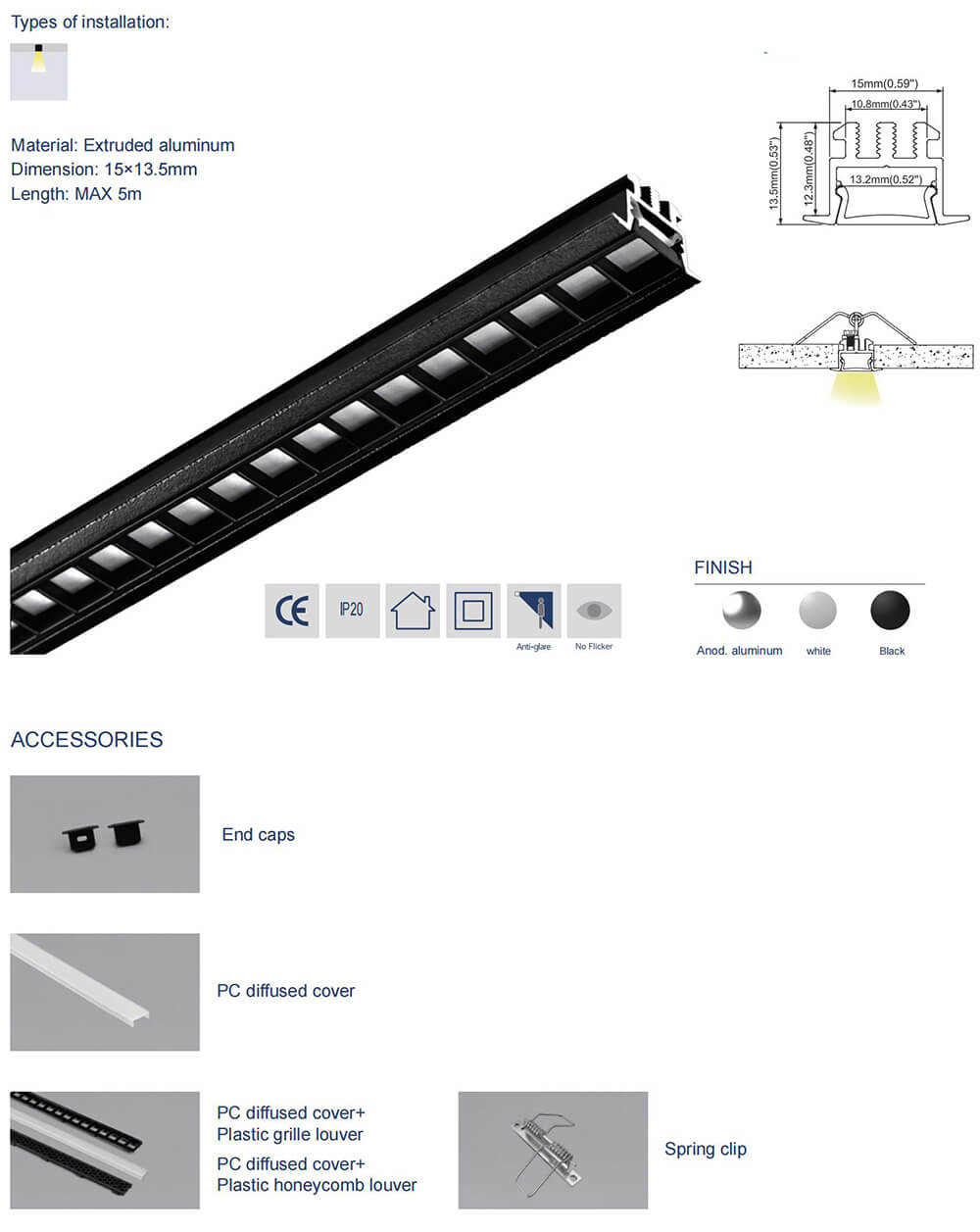

Specifications:
- Material: Extruded aluminum
- Surface treatment: Powder-coated
- Color: Black

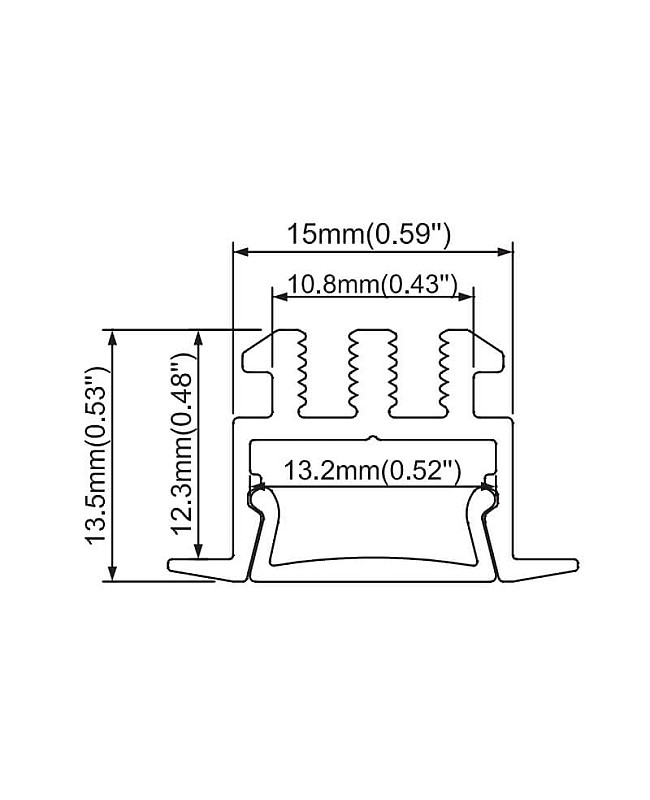

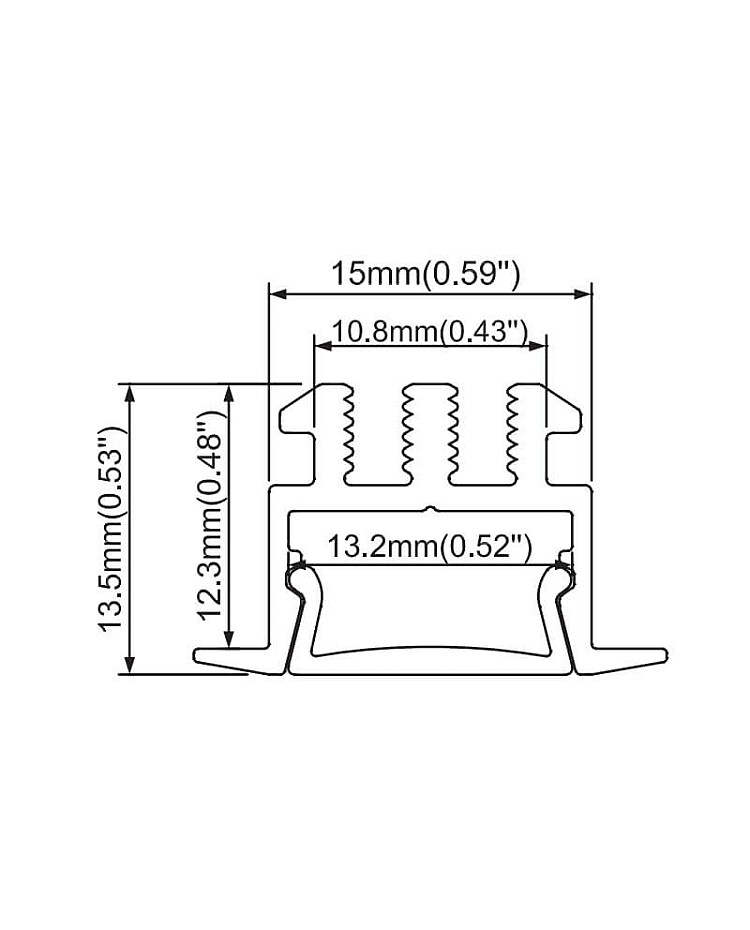

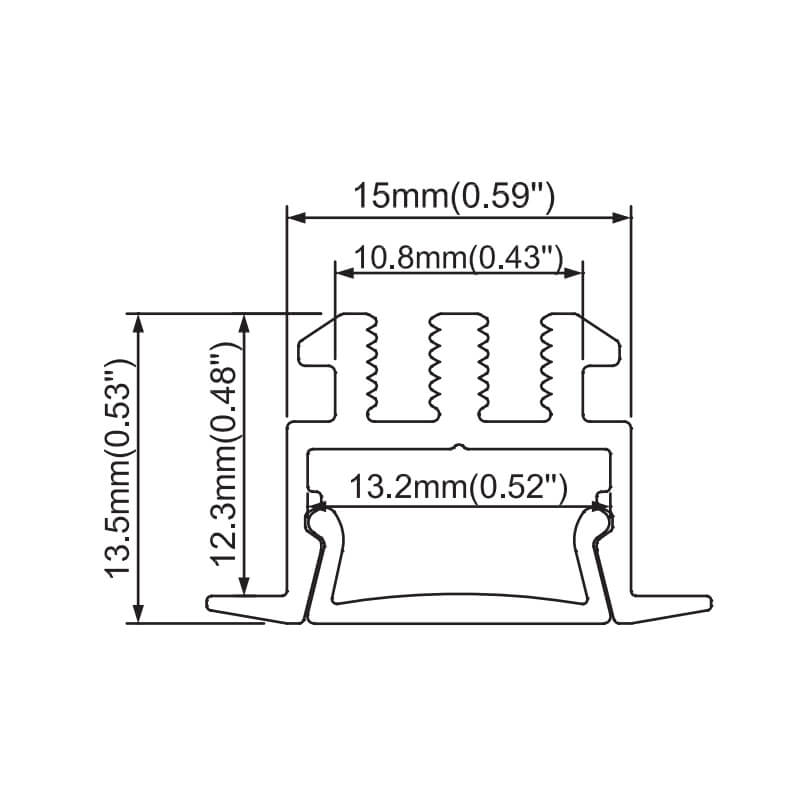

- Size ( Width x Height ): 15mm x 13.5mm ( 0.59" x 0.53" )
- Lengths available: 1m ( 39.37" ), 2m ( 78.74" )
- Custom length available: YES
- Inner width: 13.2mm ( 0.52" )
- Maximum width of strip lights: 13mm ( 0.51" )
- Max power: 15W/m
- Diffusers available: PC diffused cover only, PC diffused cover + plastic grille louver, PC diffused cover + plastic honeycomb louver
- Installation: Recessed
- End caps ( with and without wire hole ) and metal spring clips are included
- Warranty: 5 years
Includes:
1 x Slim anti-glare LED channel
1 X PC diffused cover
End caps ( With and without wire hole)
Metal spring clips
Plastic grille louver ( optional )
Plastic honeycomb louver ( optional )
