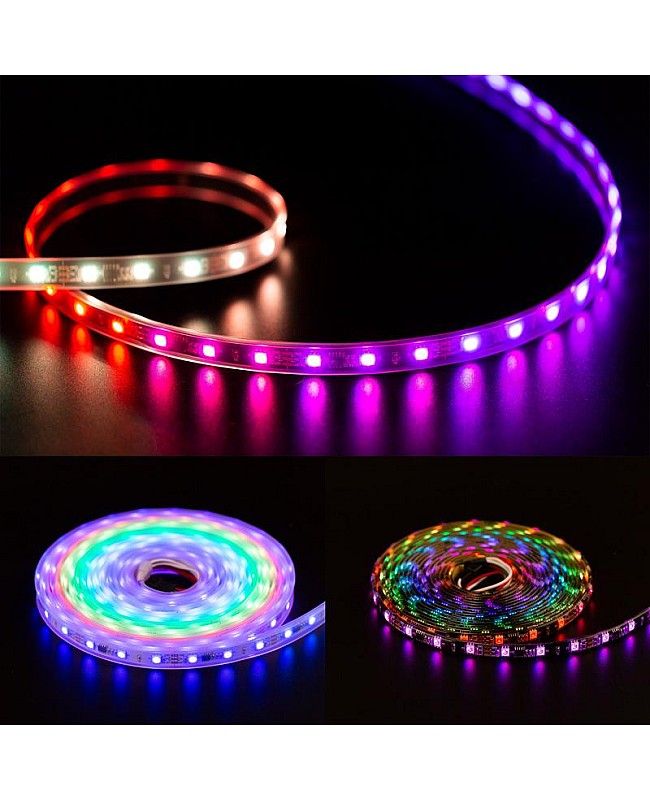

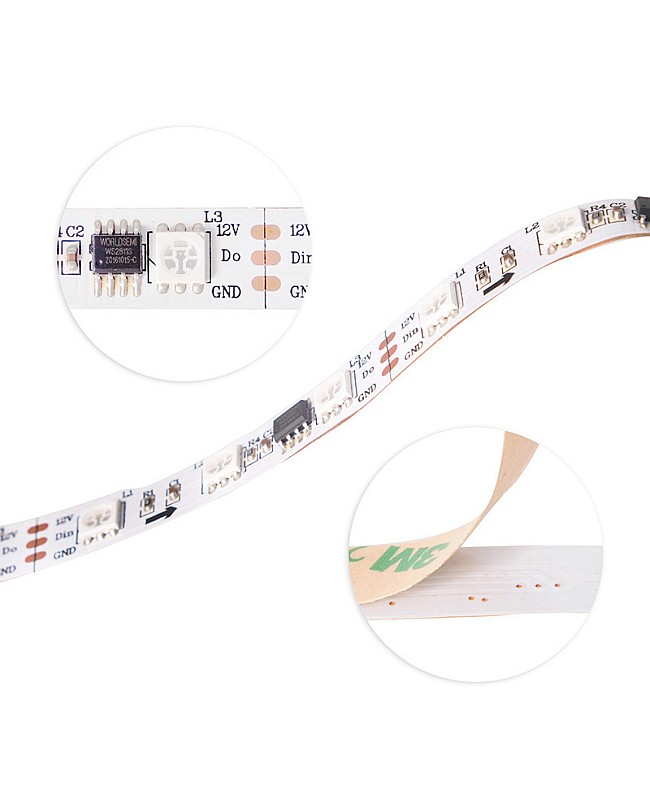

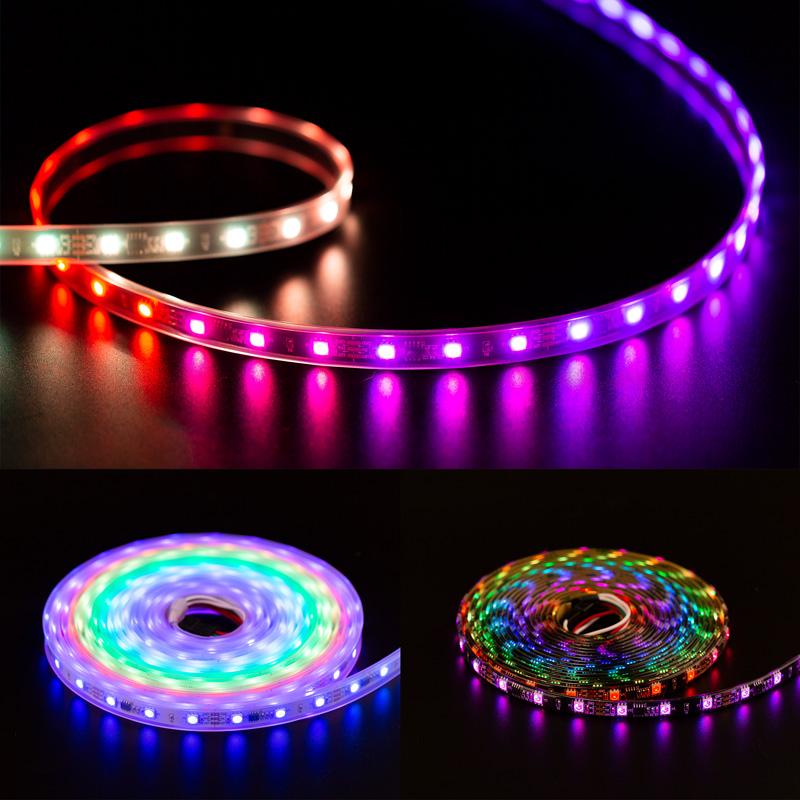

The Magic Color Digital LED Light Strips, which operate on DC 12V. You can choose the various LED quantities per meter and different waterproof levels for your project. The Digital LED Strips utilize super-bright 5050 RGB SMD LEDs as their light source. Each 3PCS LED controlled by a single WS2811 smart IC can be used with the Magic Color LED Controllers to achieve thousands of amazing lighting effects, including single colors, full-color dreams, curtain-up/flow water/raindrop, jump, flash, and more. You can design or edit the animation effect using CorelDRAW, Flash, or LED Edit software. The Programmable LED Strips are 5 meters per reel. Three waterproof level products are available: IP20 non-waterproof, IP65 silicone-coated waterproof, and IP67 silicone-tube waterproof. You can use the IP20 and IP65 Strip Lights for indoor projects and the IP67 for outdoor applications. The backside of the IP20 and IP65 products is easily installed and used with double-sided adhesive tape. The IP67 Magic Color LED Strips come with LED Clips, allowing you to easily secure them in wet, damp, or water locations. The WS2811 Light Strips are cuttable, with a minimum cuttable length equivalent to 3 LEDs' length. You can cut to any size for your project from the cuttable point and reconnect them. There are 3 Pin JST-SM Connectors on both sides of the Lighting LED Strips, which are easy to connect to the LED Controller.
Notes:

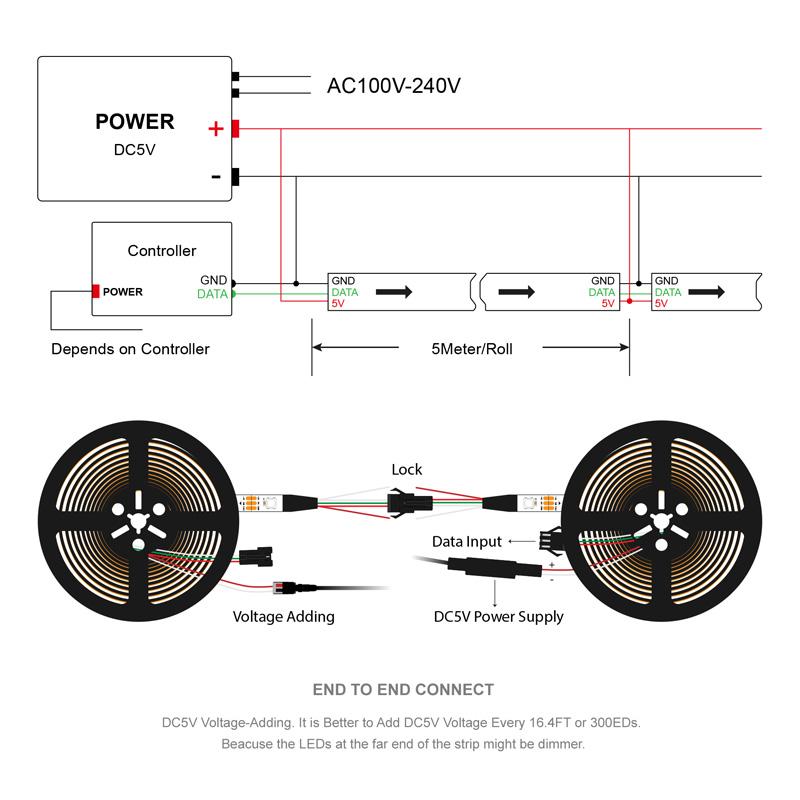

The LEDs at the far end of the LED light stips may be dimmer because of the added resistance and voltage drop that occurs during the current flow to that end of the Strip Light, and the solution is to add a DC12V Voltage every 5 meters (16.4 ft).
Specifications:

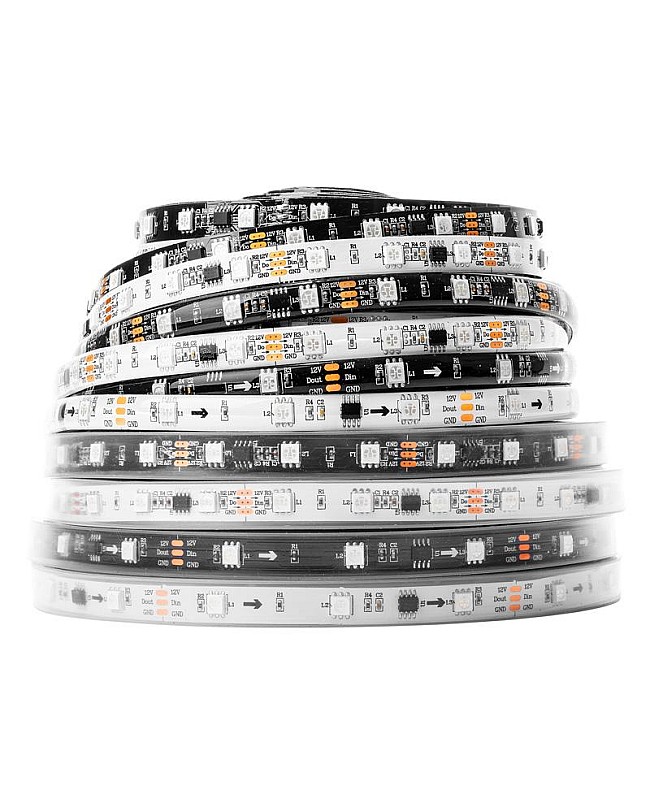

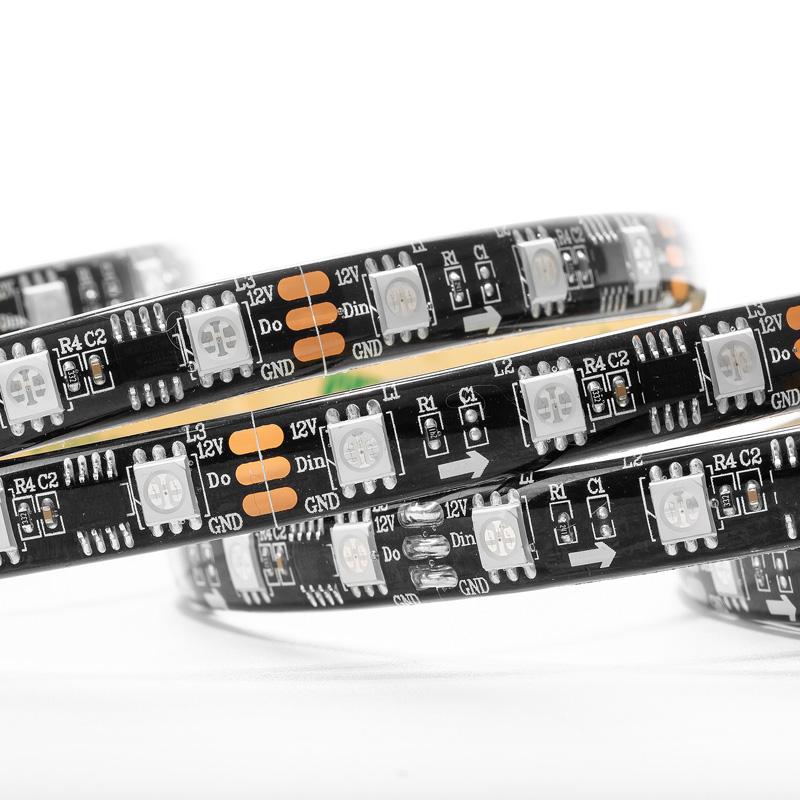

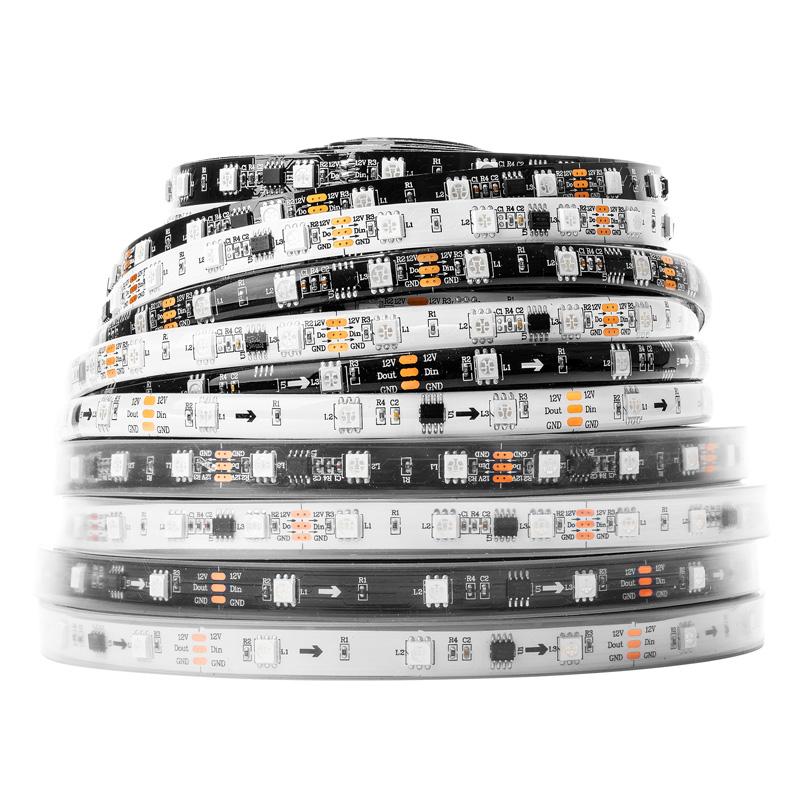

- Color Of PCB Board: White/Black
- LED Type: Super Bright 5050 RGB SMD LEDs

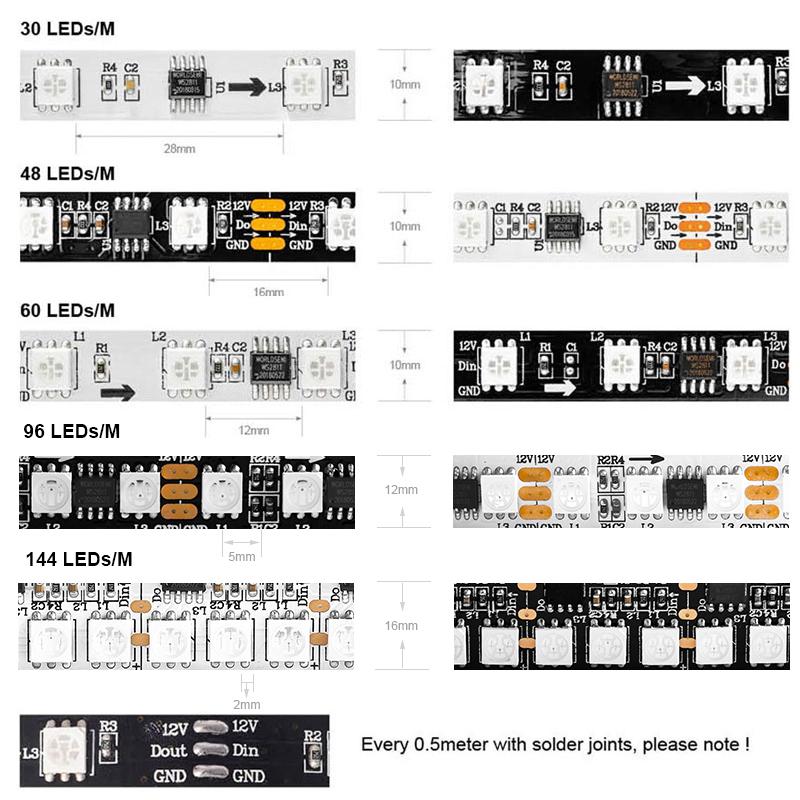

- LED Quantity Per Meter: 30PCS/48PCS/60PCS/96PCS/144PCS
- IC Type: WS2811
- IC Quantity Per Meter: 10PCS(30LEDs/M), 16PCS(48LEDs/M), 20PCS(60LEDs/M), 32PCS(96LEDs/M), 48PCS(144LEDs/M)
- Each IC Control 3PCS SMD LEDs
- Grayscale Levels: 256
- View Angle: 120°
- Working Voltage: DC12V
- Power: 0.3W/LED
- Emitting Colors: Full-Color 24-Bit
- Wave Length: Red: 650nm; Green: 520nm; Blue: 460nm;

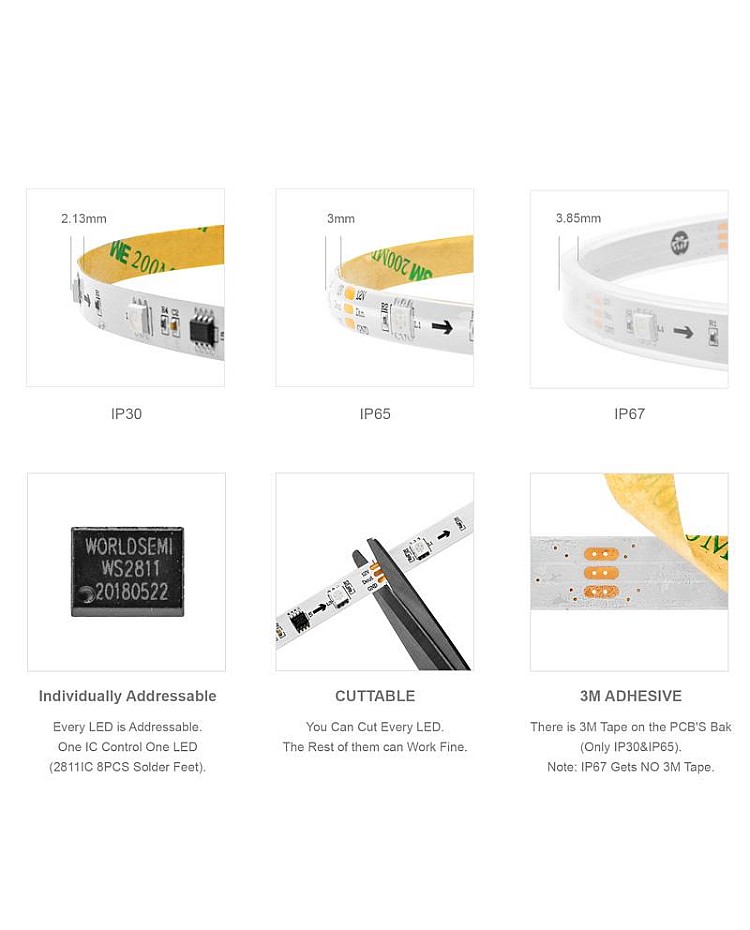

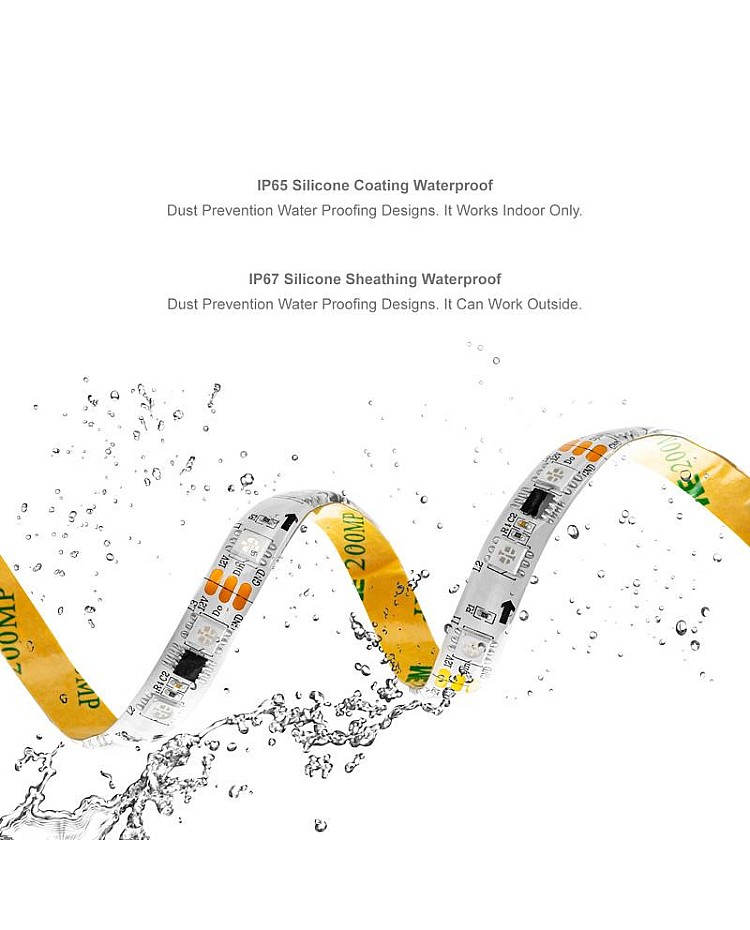

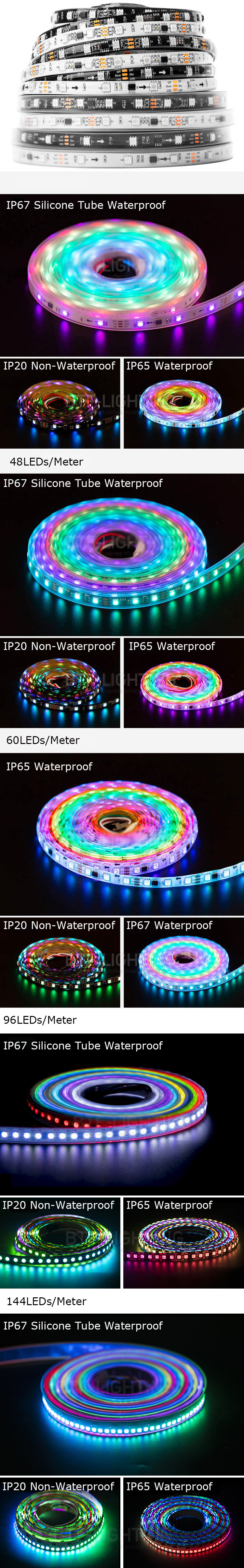

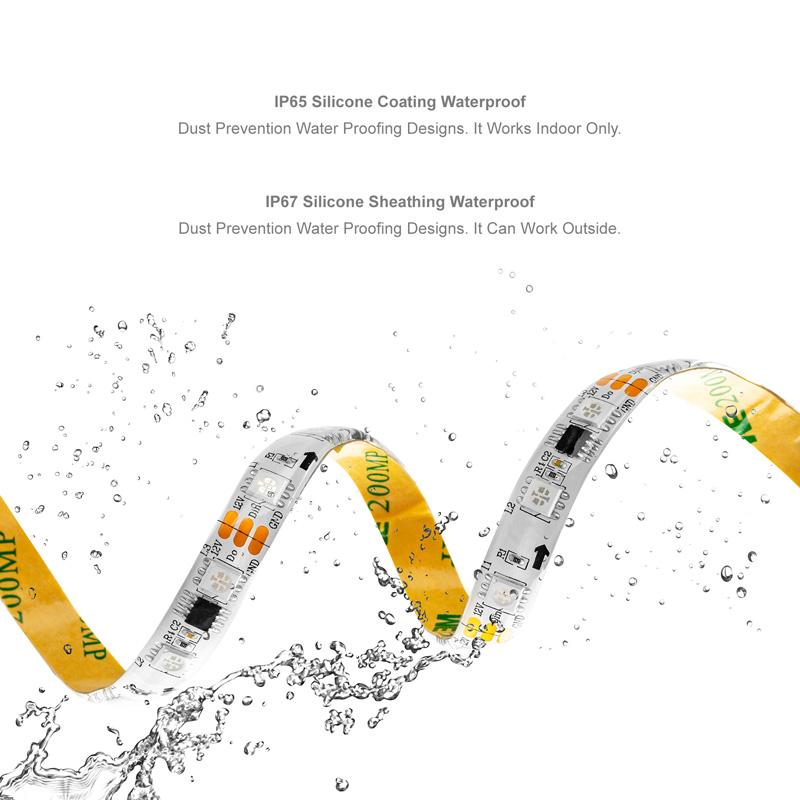

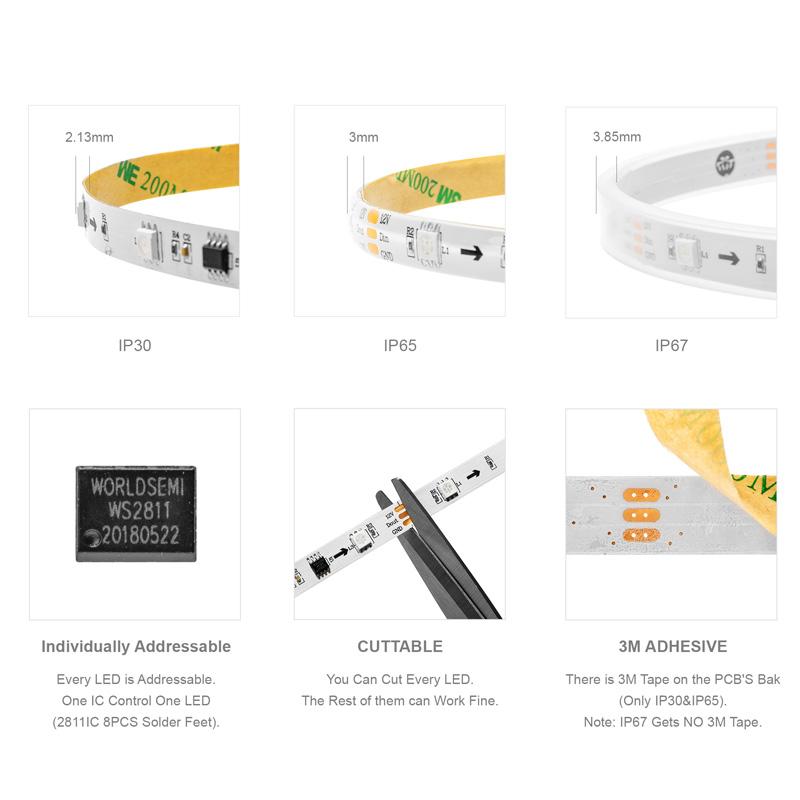

- IP Rating: IP20 Non-waterproof, IP65 Silicone Coating Waterproof, IP67 Silicone Tube Waterproof

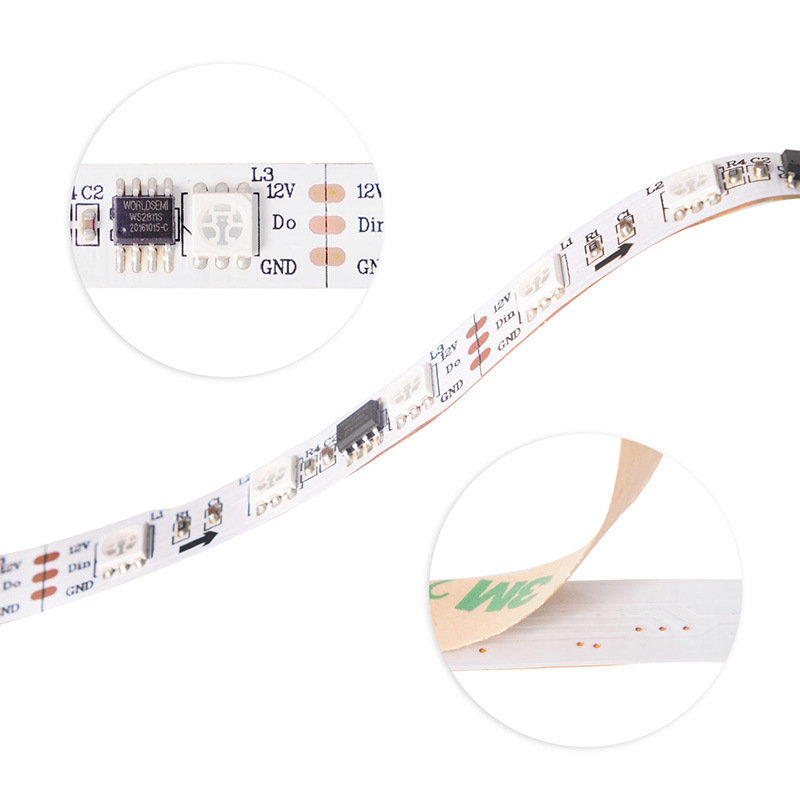

- Back With Double-Sided Adhesive Tape(IP67 LED Strips Use LED Clips To Fix)
- Working Temperature: -20℃-+40℃
- Length: 5Meters Per Reel

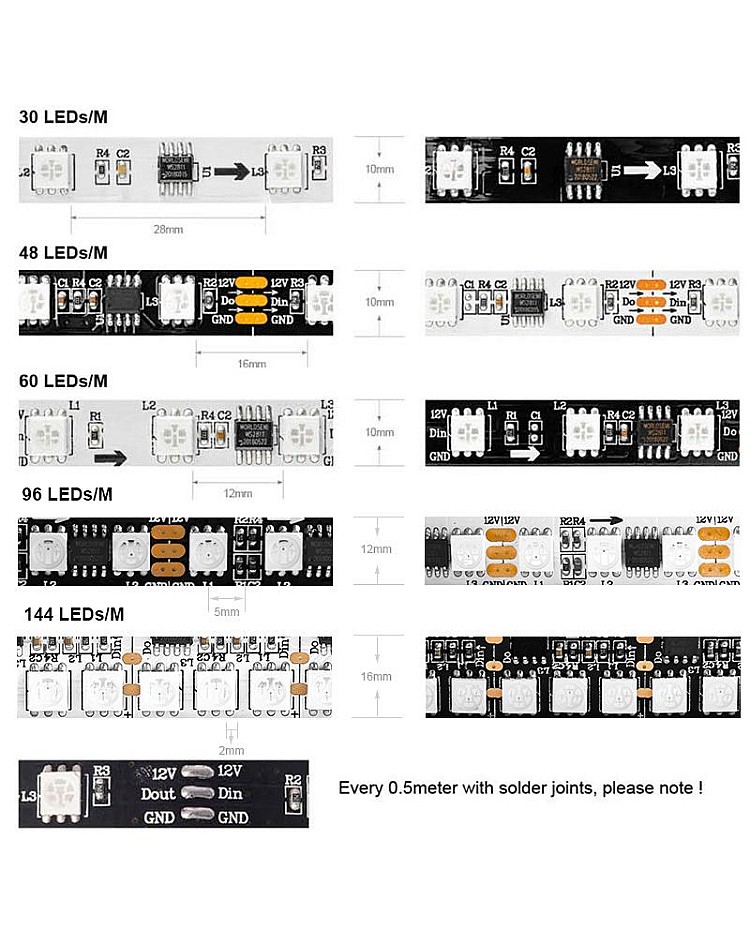

- Width: 10mm(30LEDs/48LEDs/60LEDs), 12mm(96LEDs), 16mm(144LEDs)
- Everything 3PCS LEDs' Length Can Be Cut Off
- Can Work With Arduino, K-1000C, SP105E, Colorful X2, K4000C, K8000C, T300K, T500K LED Controllers
- Lifespan: 50,000 Hours
- 2 Years Warranty
Includes:

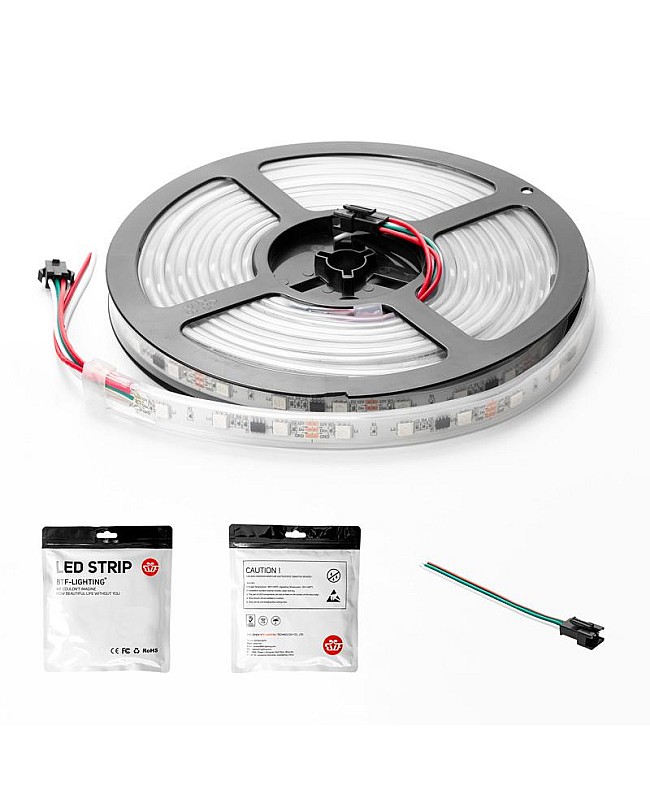

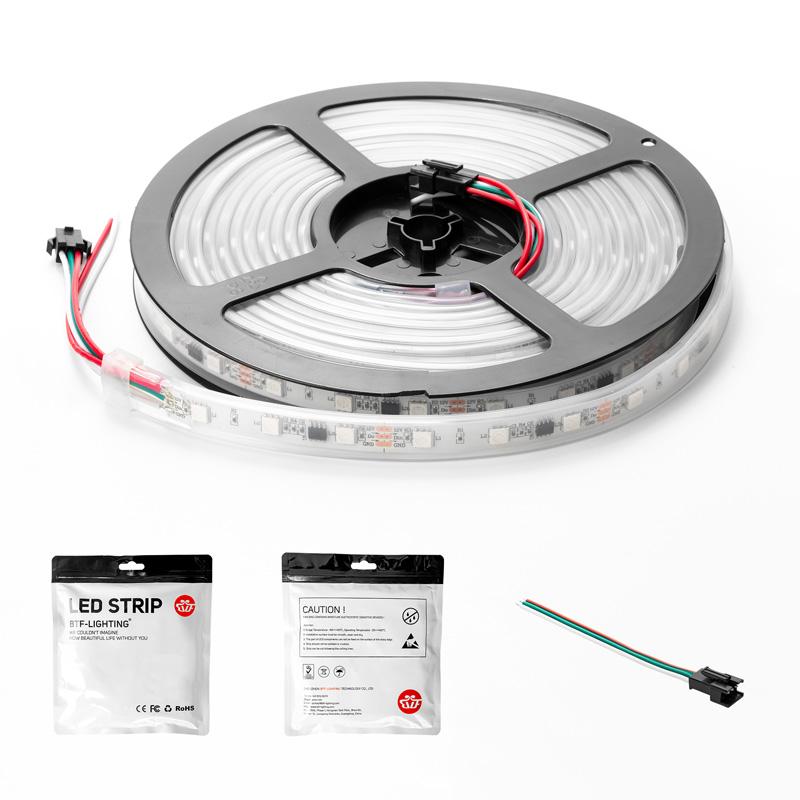

1 * WS2811 Digital LED Light Strips With 3 Pin Male Connector(5M/Reel)
