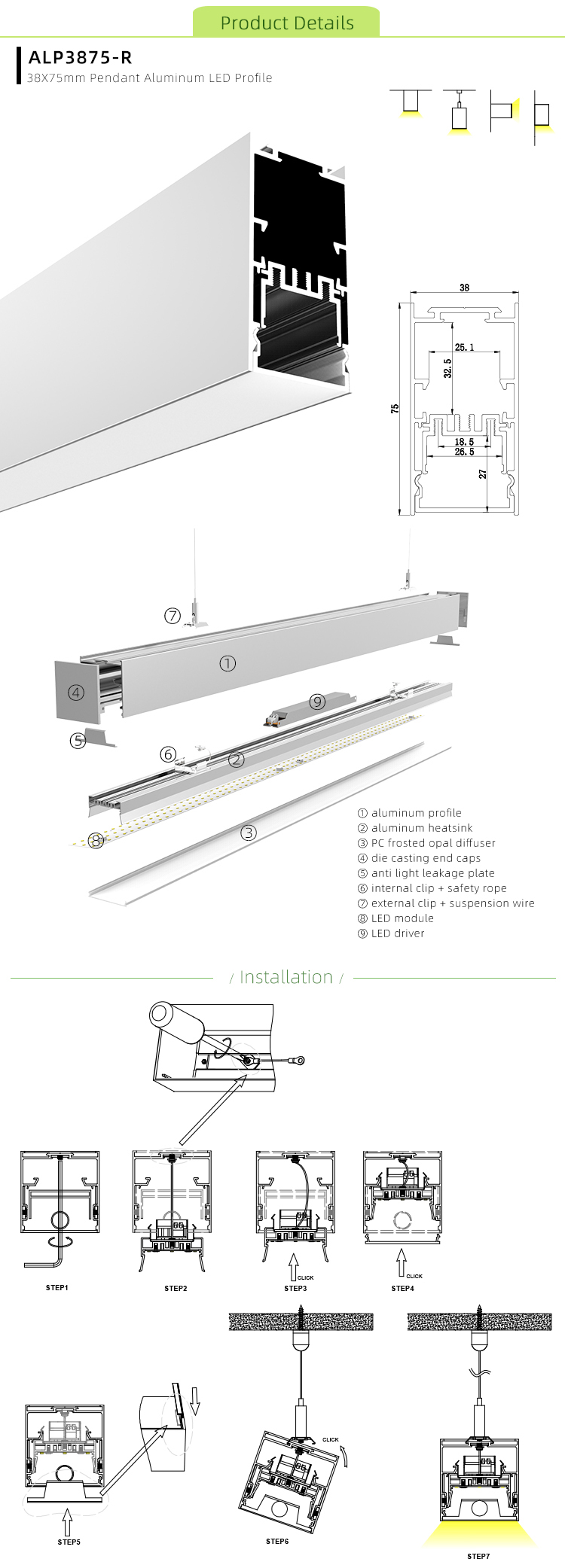

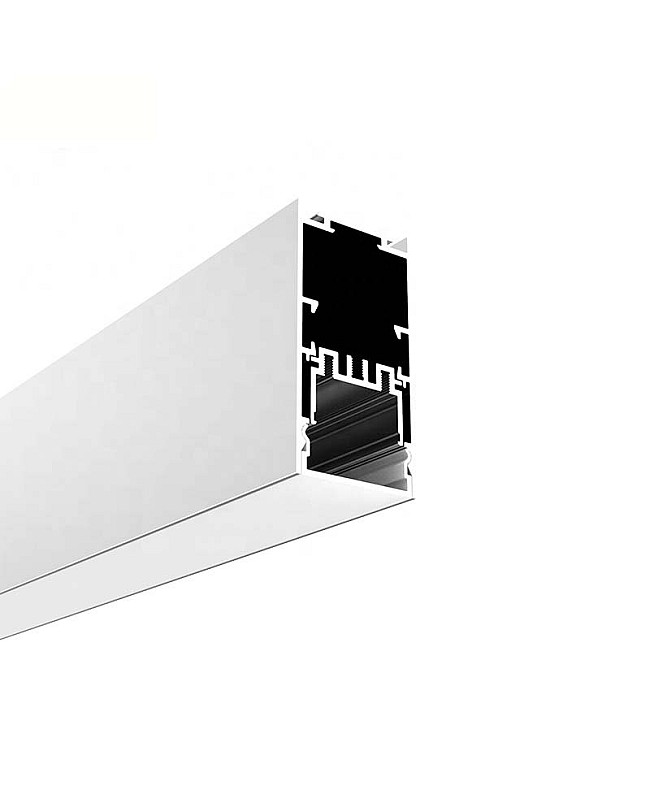

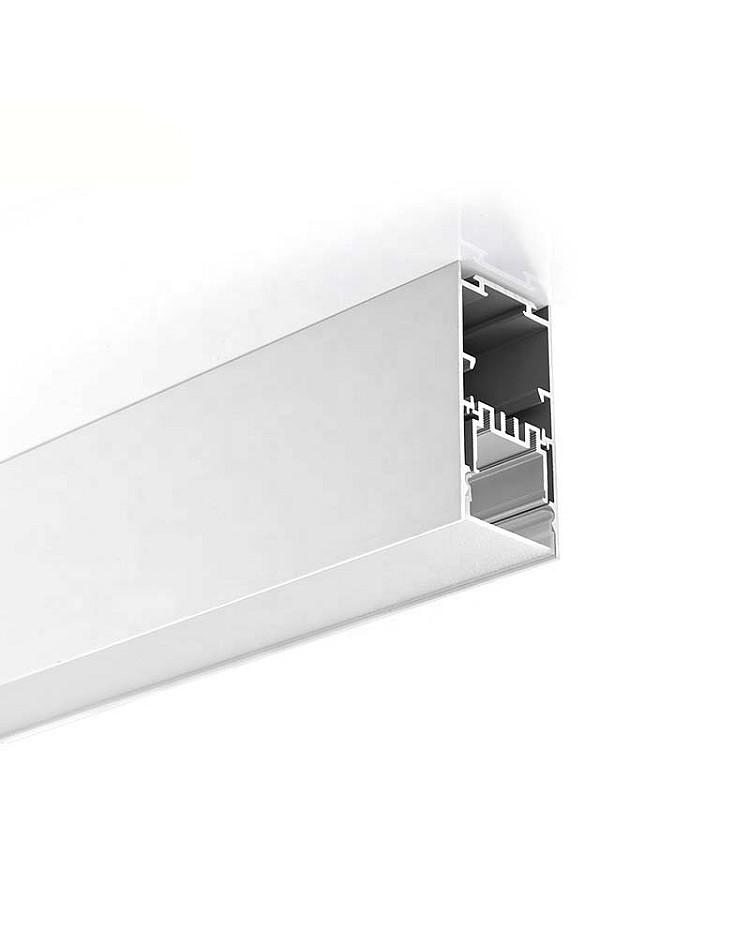

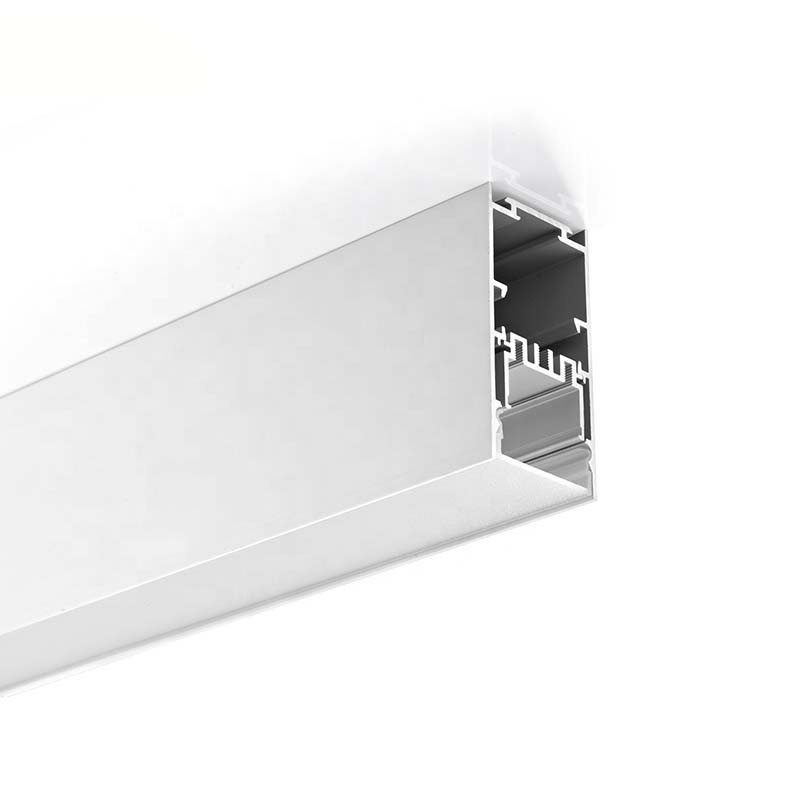

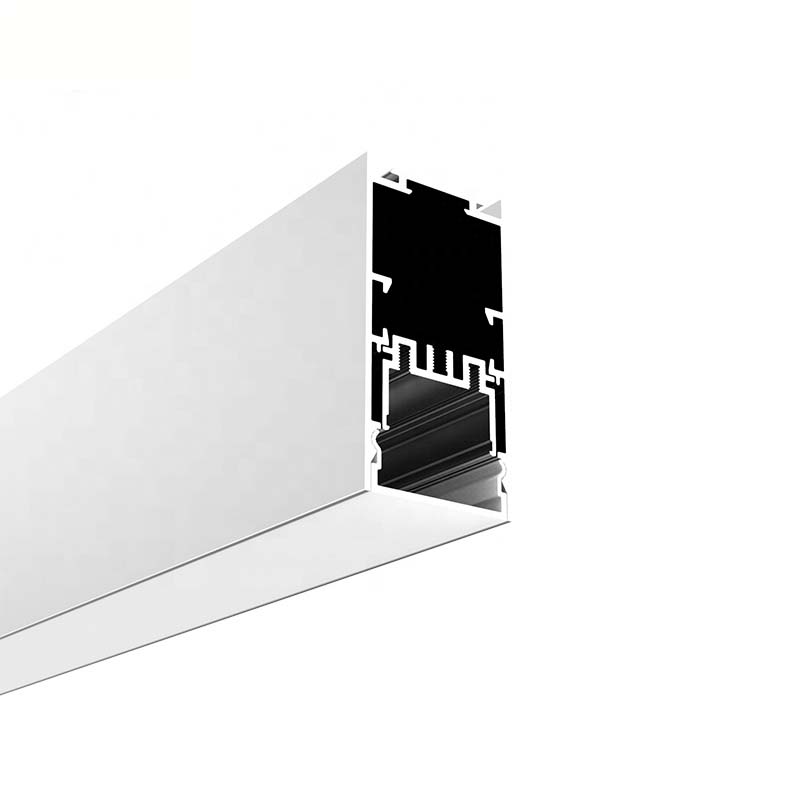

The pendant linear LED ceiling channel is designed to be used with hanging lights. The standard length is 1M, and the max length is 2.5 m. It is cuttable and can be cut to any length that fits your projects. It's constructed of aluminum for durability and features a 1.5" width, with anodized surface treatment, anti-oxidation resistance, and a longer lifespan. The inner width is 18.5mm, allowing the maximum width of LED lights to be 18mm. We recommend adding high-density COB LED tapes as the light source to create a seamless line of light. The aluminum base can be a heat sink for better heat dissipation, extending the LED lights' lifespan. There is only one type of diffuser available: the PC frosted opal cover, which is made of brand material from Germany, anti-yellowing, and has smooth light output. End caps, metal mounting clips, and suspension wires are included, no screws are visible, allows pendant and surface-mounted installation. It's suitable for various commercial and residential applications and can provide bright and efficient lighting for any space.
Specifications:
- Model: ALP3875-R
- Material: 6063-T5 Aluminum Alloy
- Surface Treatment: Anodized
- Color: Silver

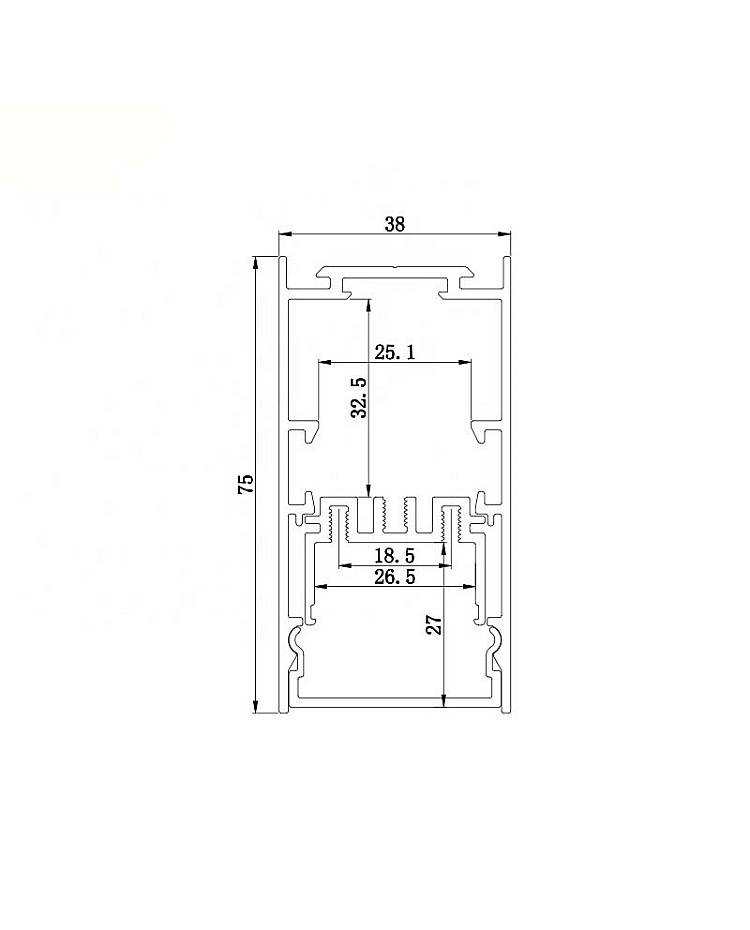

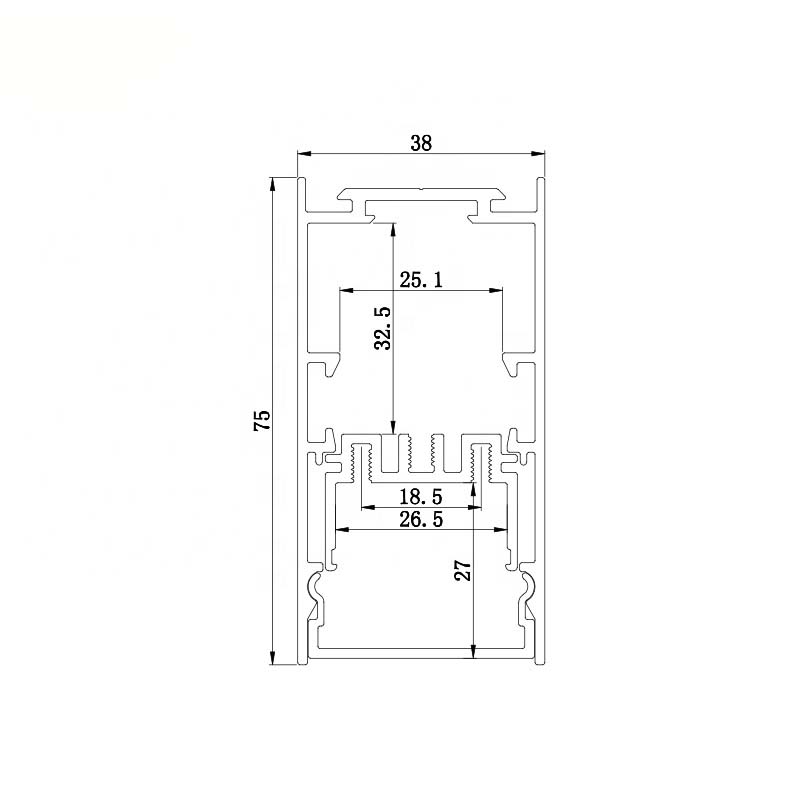

- Size(H*W):75mm(2.95")*38mm(1.5")
- Inner With: 18.5mm/0.73"
- Compatible With 140mm/280mm/560mm Rigid Constant Current LED Modules
- Max Power: <30W/Meter
- Standard Length: 1M (39"), 2M (78")
- Custom Length Available: YES
- Diffusers: PC Frosted Opal Cover

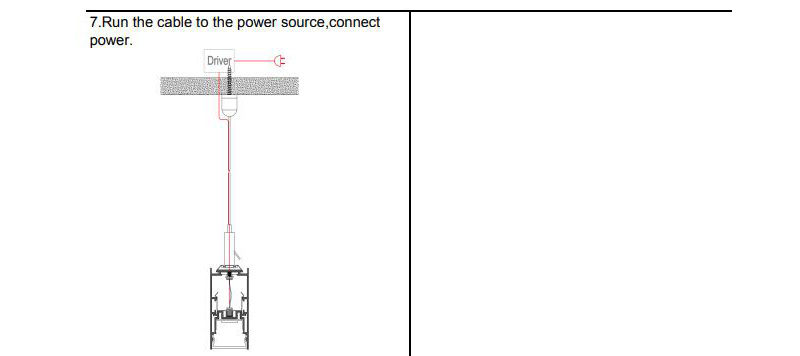

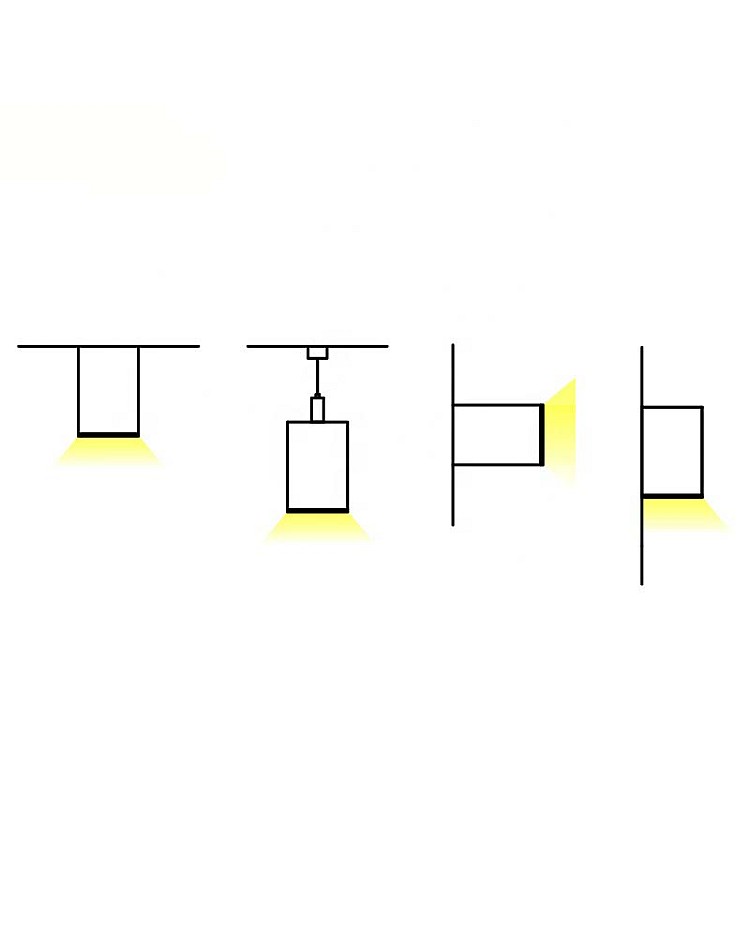

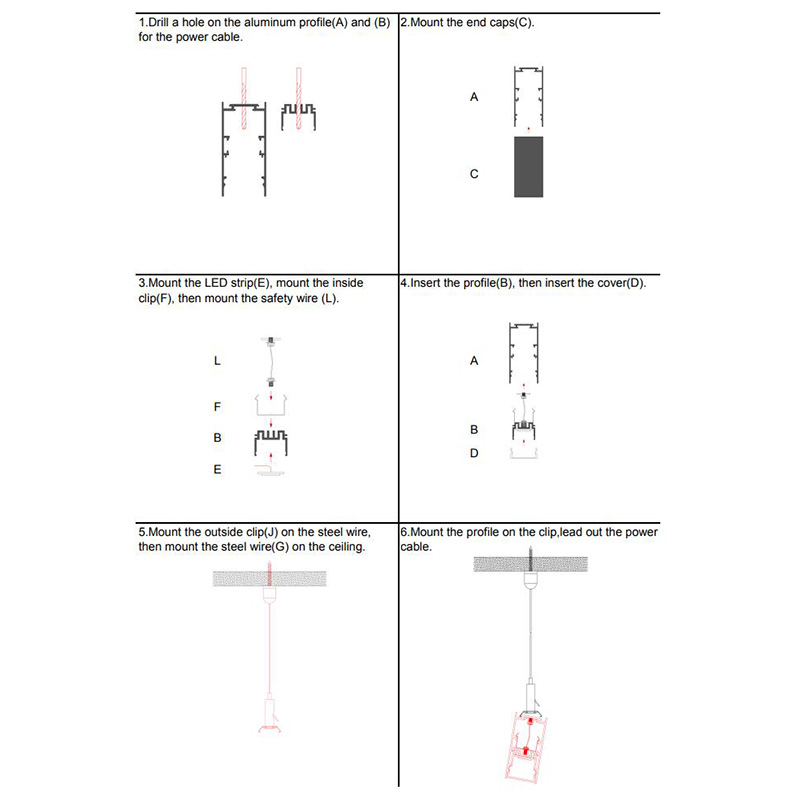

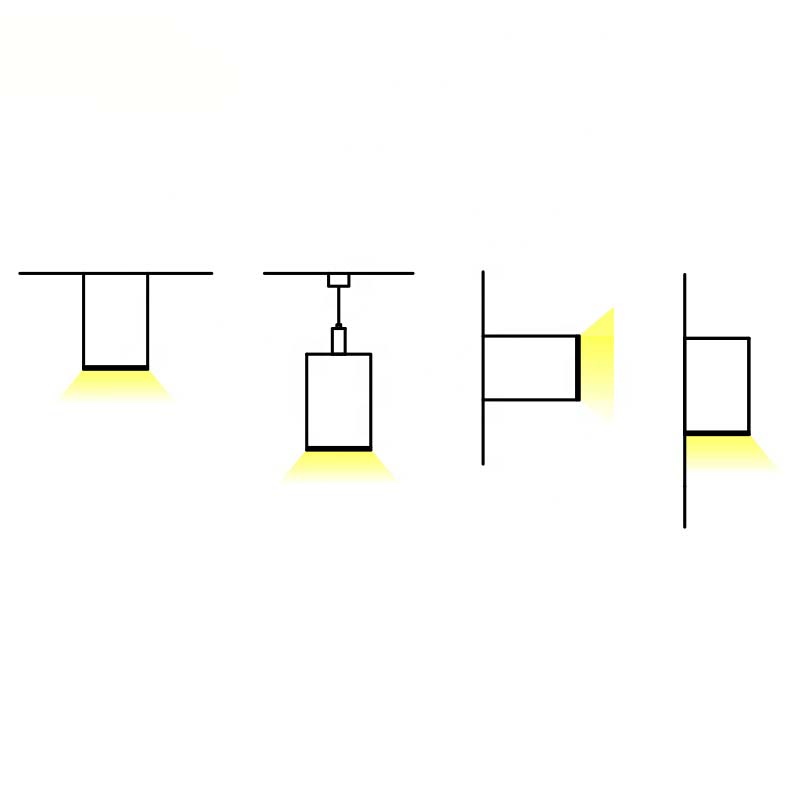

- Installation: Pendant/Surface Mounted
- Applications: Office Lighting, Shop Lighting, Retail Lighting, Hotel Light

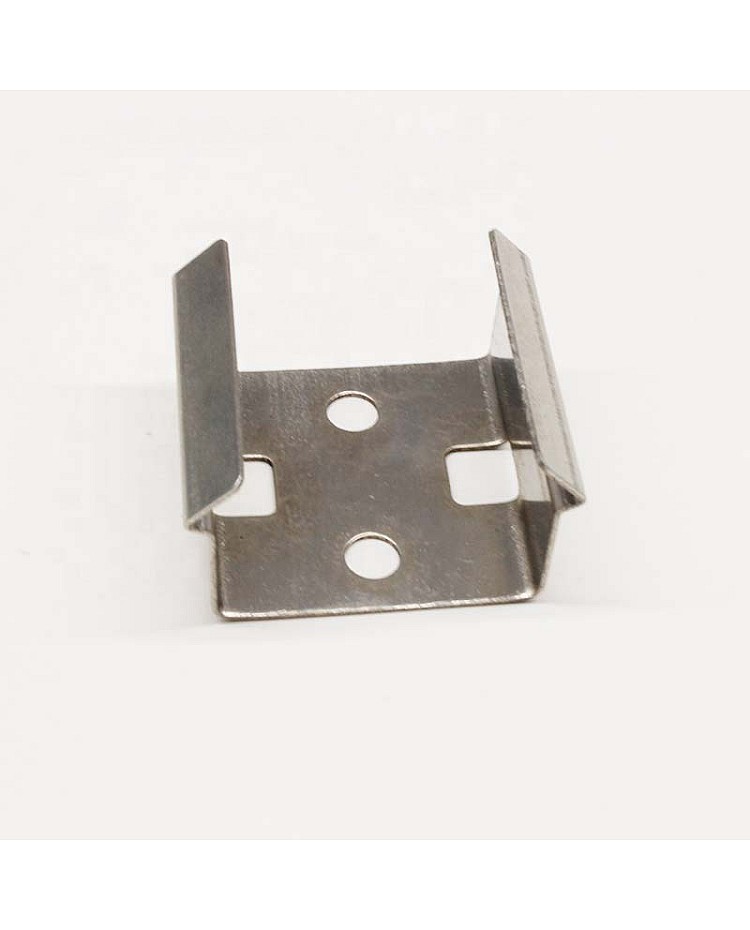

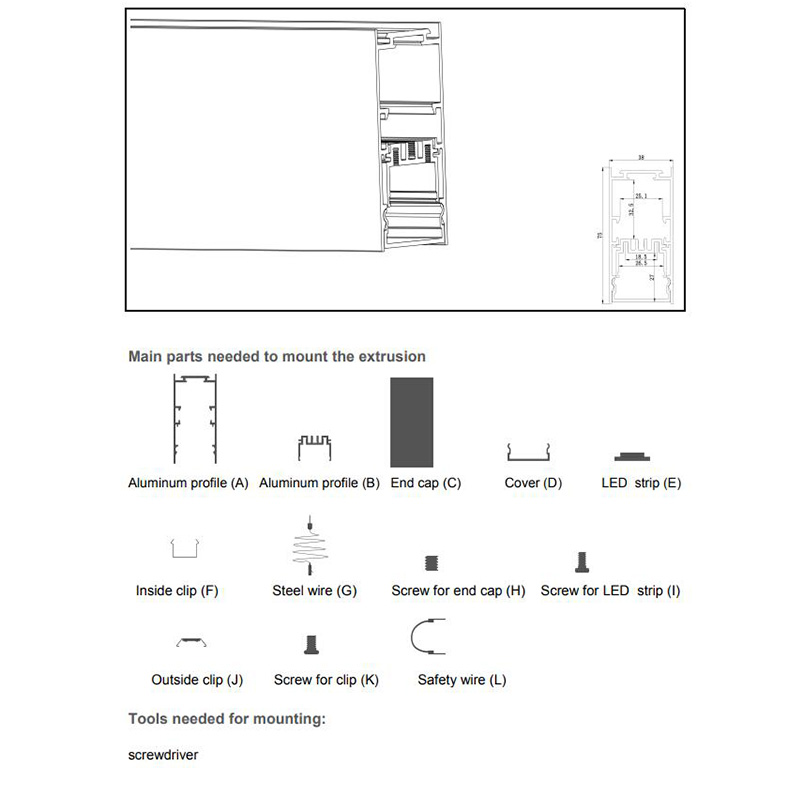

- End Caps, Metal Mounting Clips, and Suspension Wires Included
- 180°, 90°, And 90° Vertical Couplers Sold Separately
- "L", "T", And Cross Connectors Sold Separately
- Certifications: CE, ROHS
- Warranty: 5 Years
Includes:
1 * LED Ceiling Channel

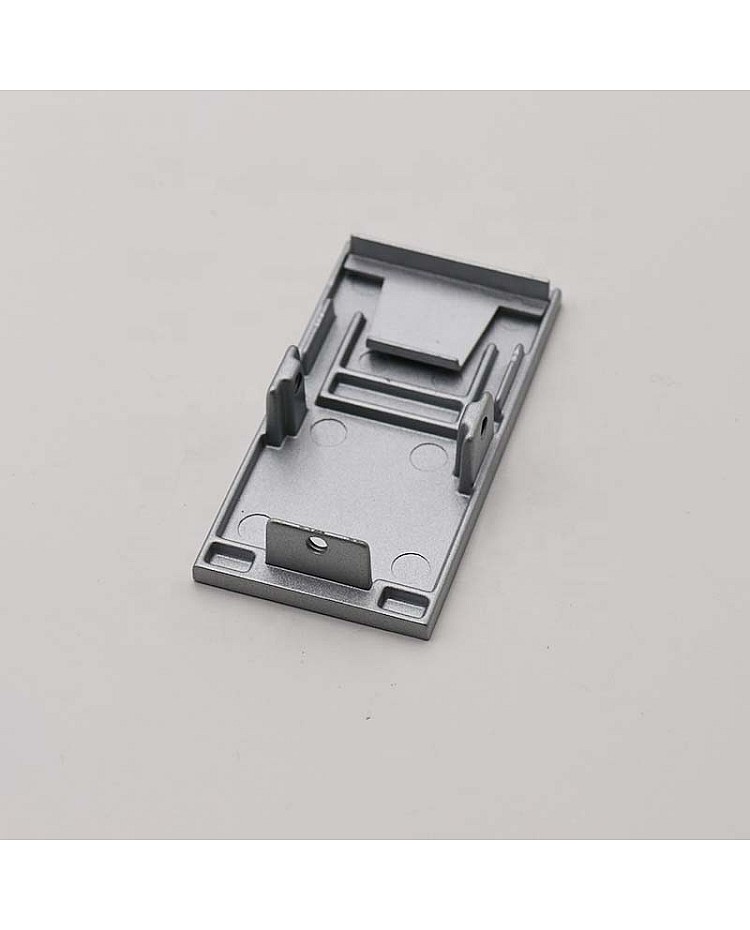

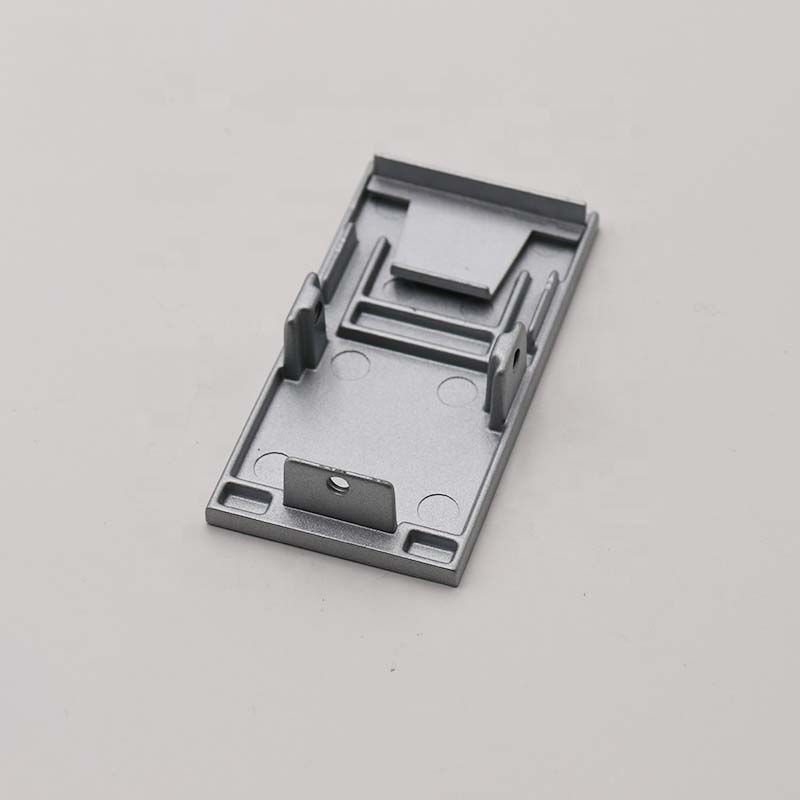

End Caps

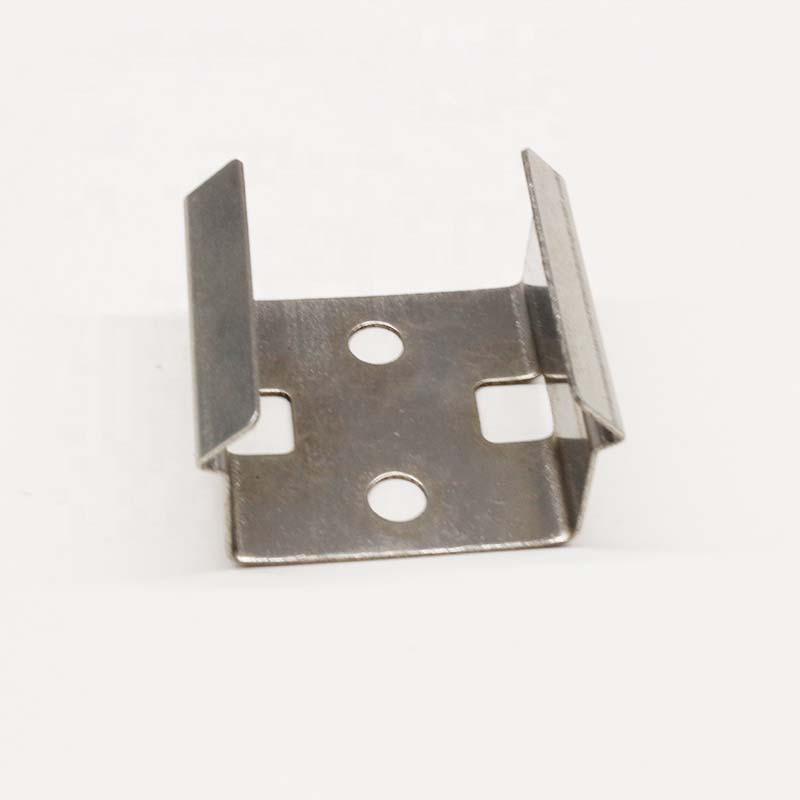

Metal Mounting Clips
Suspension Wires
