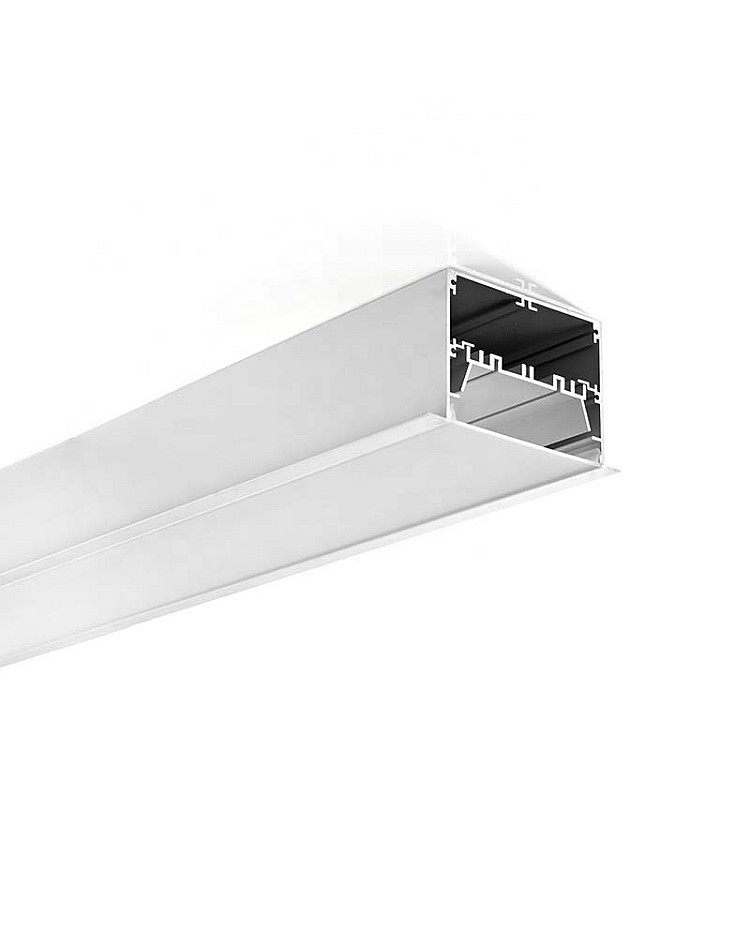

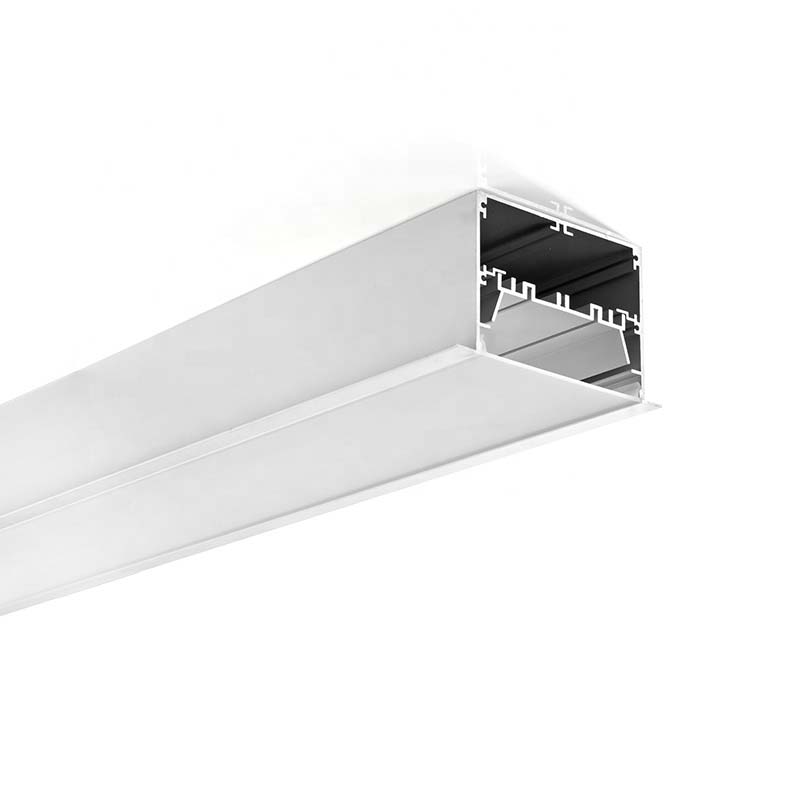

The 4-inch wide recessed LED lighting channels are a high-capacity linear lighting profile designed for premium architectural, commercial, and residential applications. They come with necessary accessories and allow for easy recessing into the ceiling. The inner width is 69.5 mm, allowing a maximum width of 68.5 mm for strip lights. The wide LED housing allows for multiple high-power SMD strip lights or LED modules, producing bright, uniform light suitable for large areas. The aluminum channels can work as heat sinks for excellent heat dissipation, ensuring the long lifespan of LEDs. The PC frosted opal diffusers deliver smooth, dot-free illumination while reducing glare, making it ideal for spaces that require both functionality and aesthetics. There are L, T, X, and IL connectors that are sold separately, which enable seamless continuous runs or the creation of different lighting layouts and patterns. Its robust design makes it a perfect choice for offices, hotels, retail stores, lobbies, etc.
Specifications:

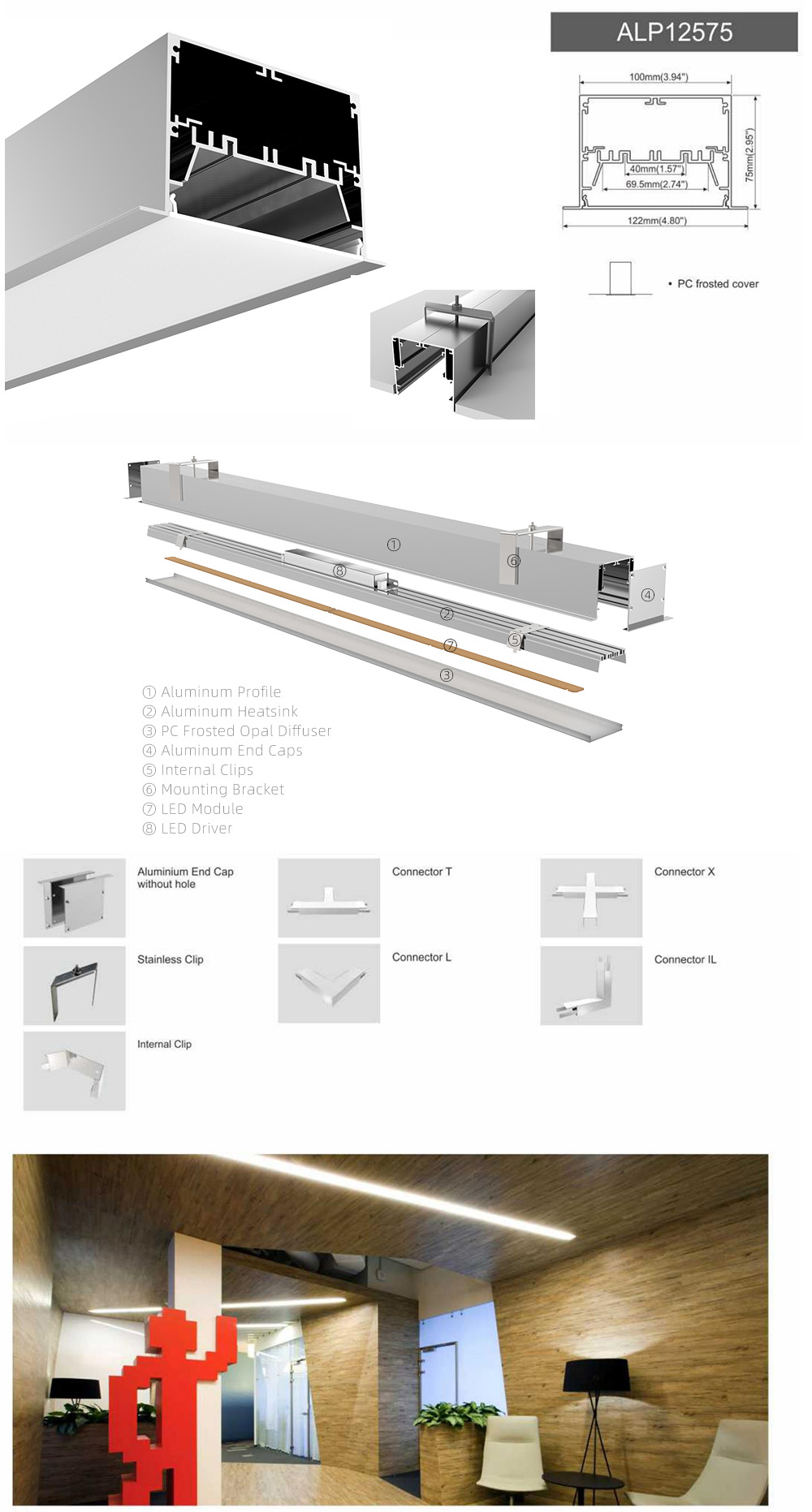

- Model: ALP12575-R
- Material: 6063-T5 extruded aluminum
- Surface treatment: Anodized
- Colors: Silver

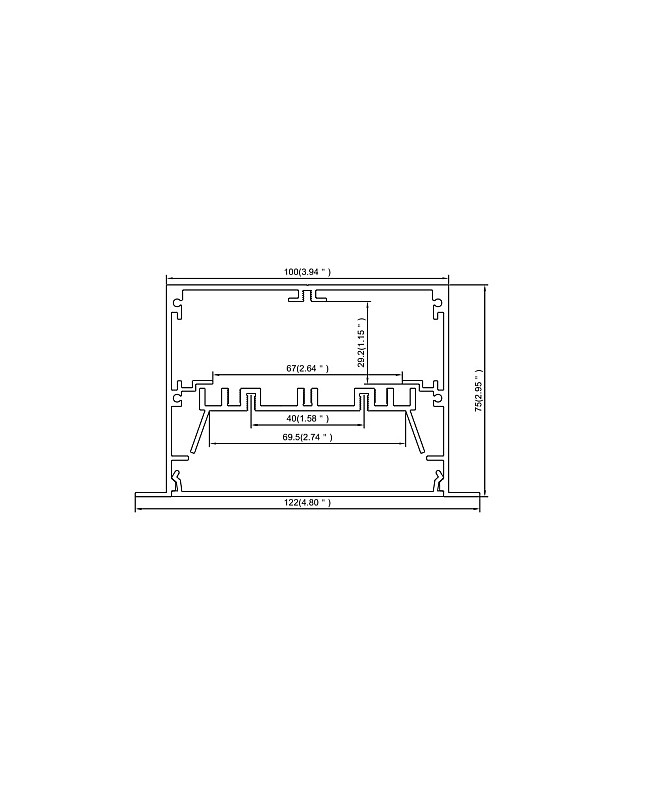

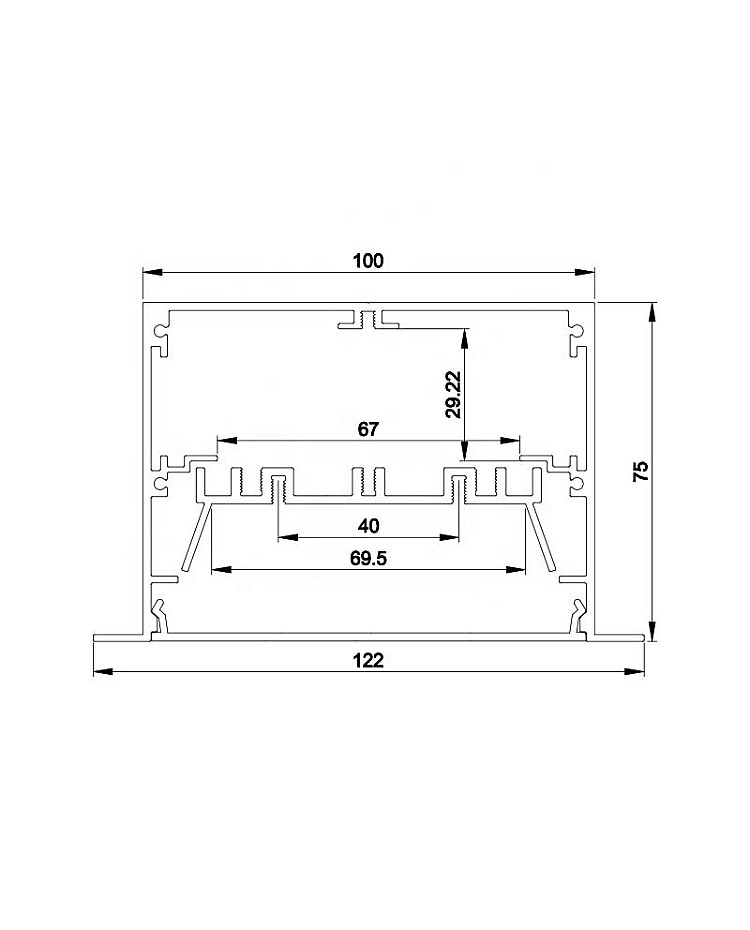

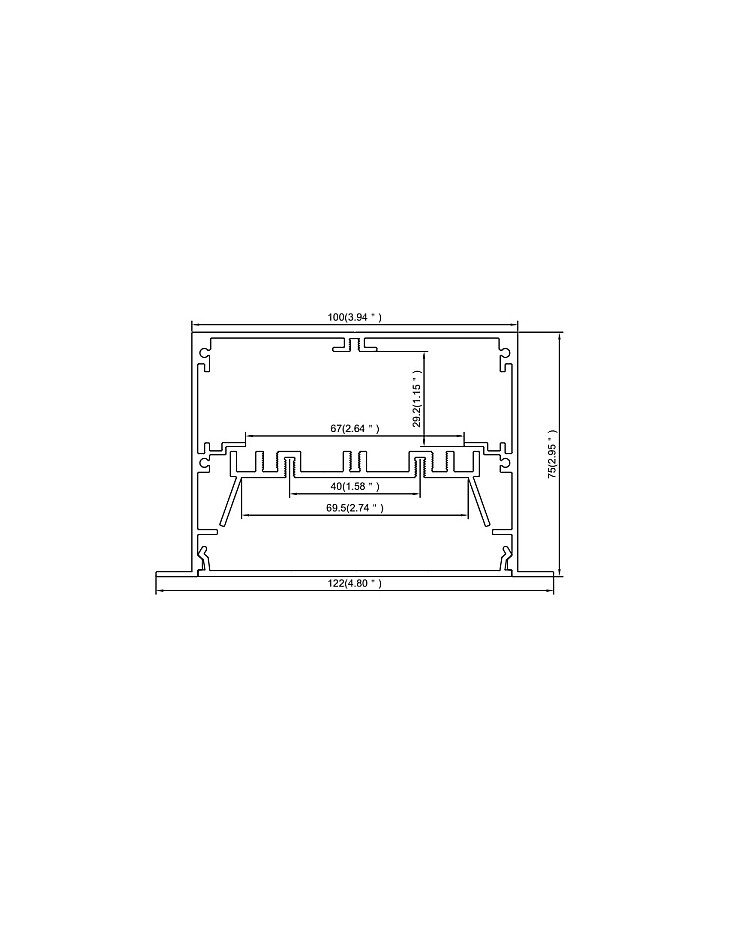

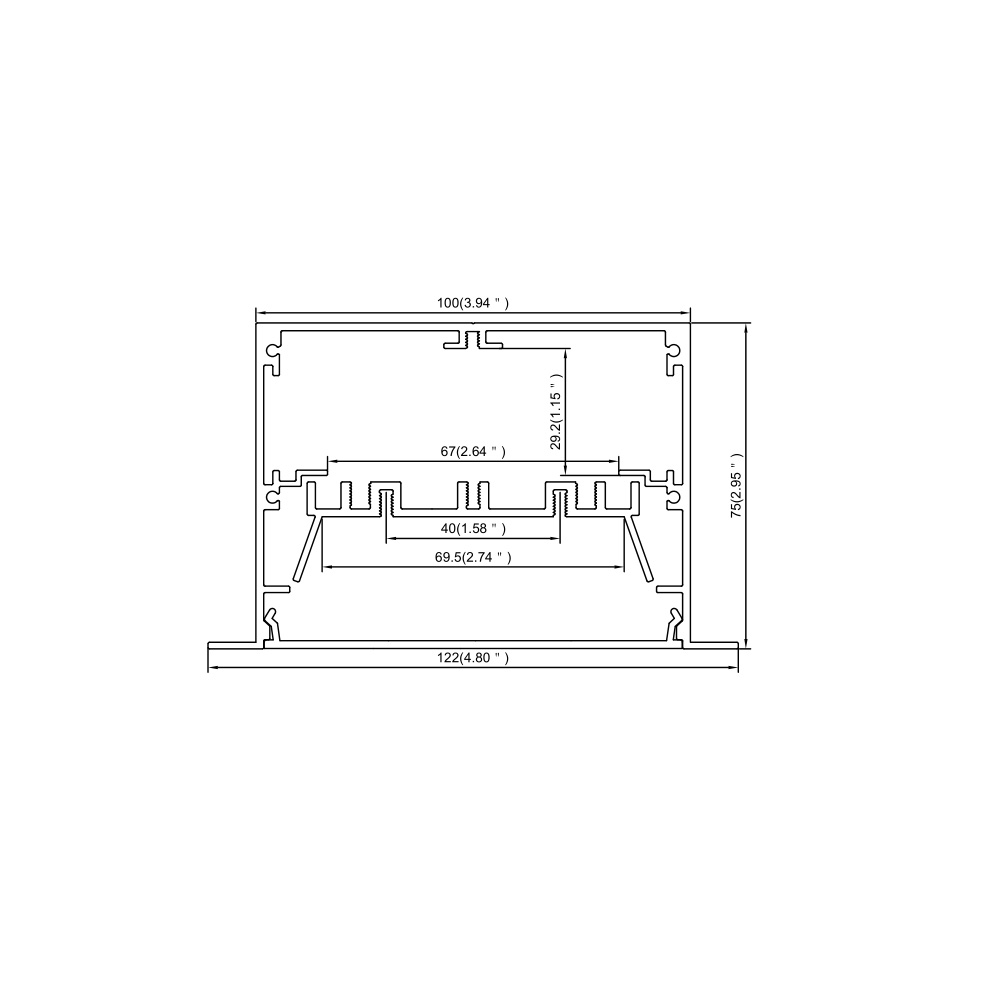

- Size ( W x H ): 122 mm x 75 mm ( 4.8" x 2.95" )
- Standard length: 2.5 m ( 98" )
- Custom length: YES
- Inner width: 69.5 mm ( 2.74" )
- Max LED strip width: 68.5 mm ( 2.69" )
- Max power: 50W/m
- Diffuser: PC frosted opal diffuser
- Beam angle: 100°
- End caps, diffusers, internal clips, and mounting brackets are included
- T, X, L, and IL connectors are sold separately

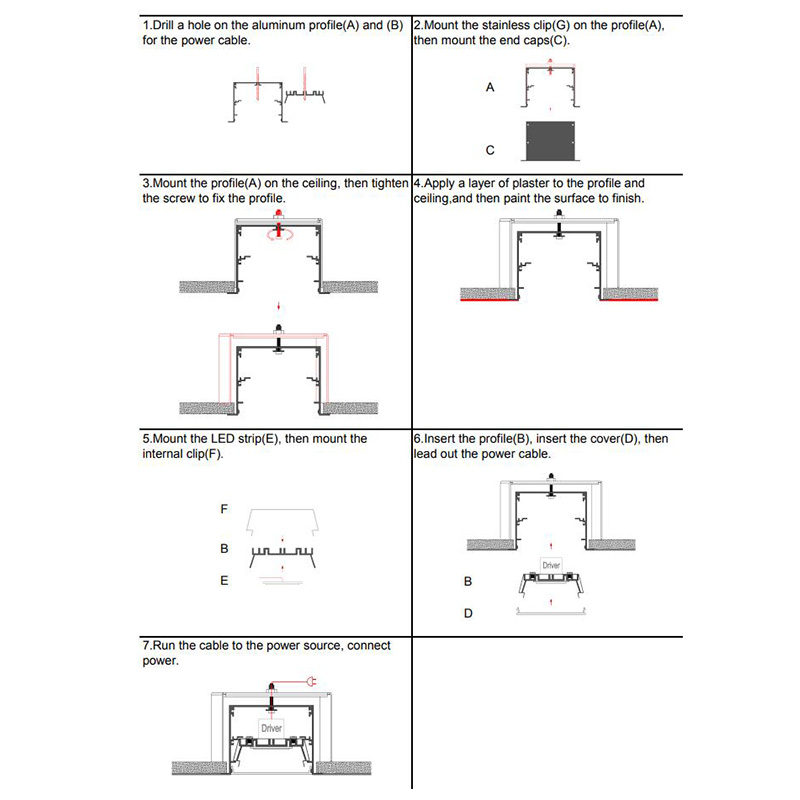

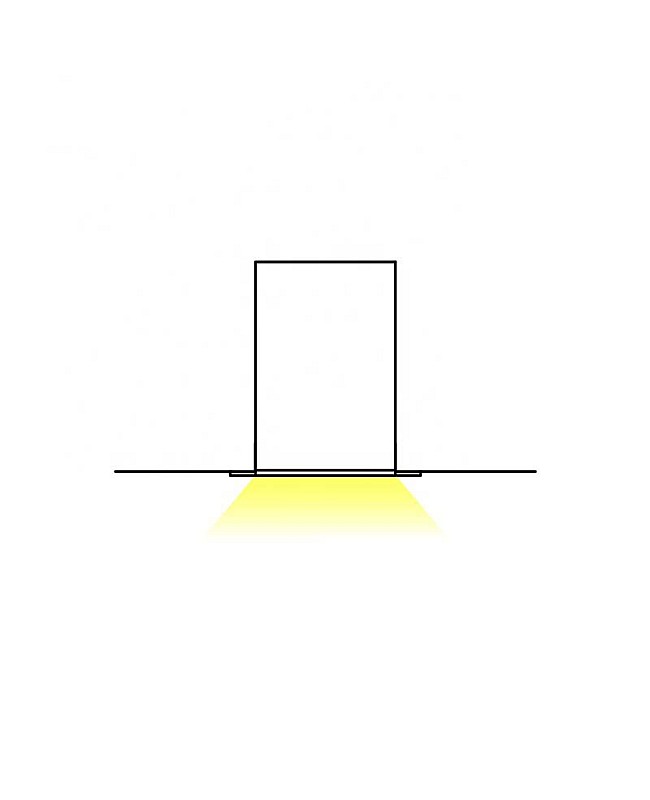

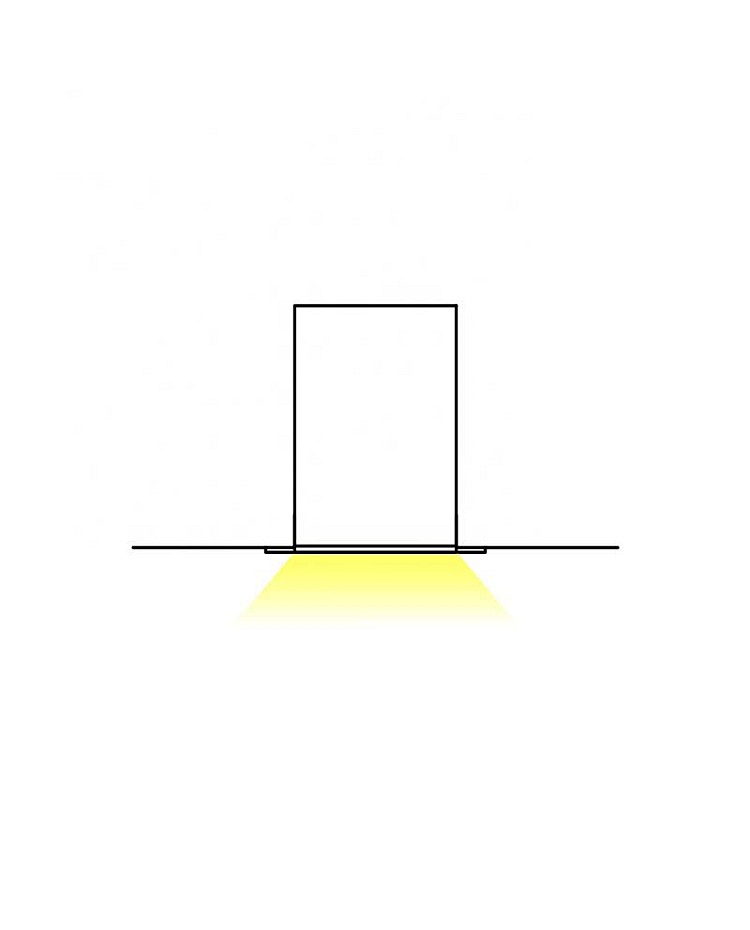

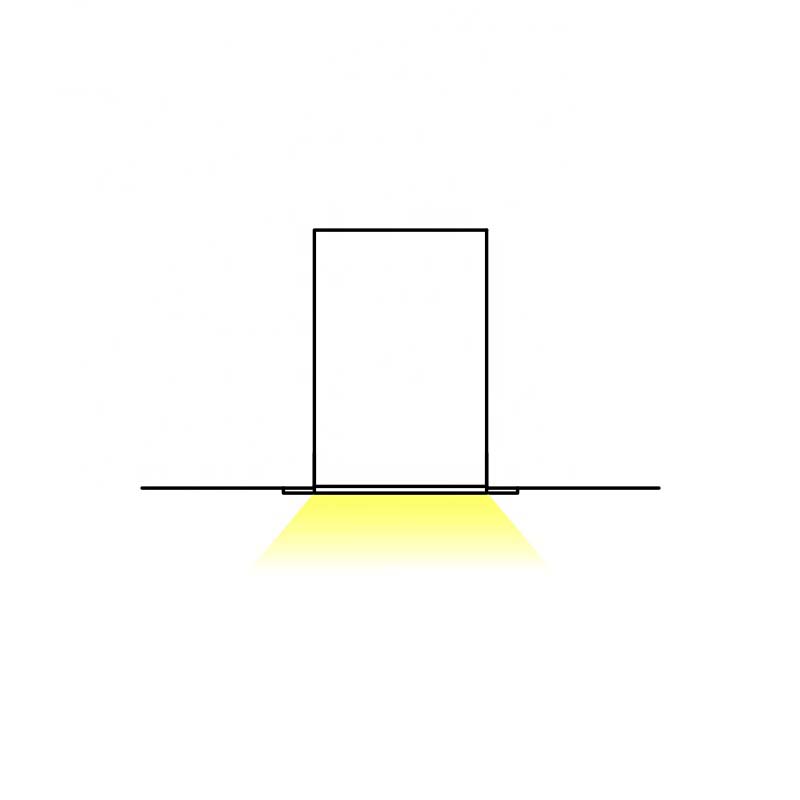

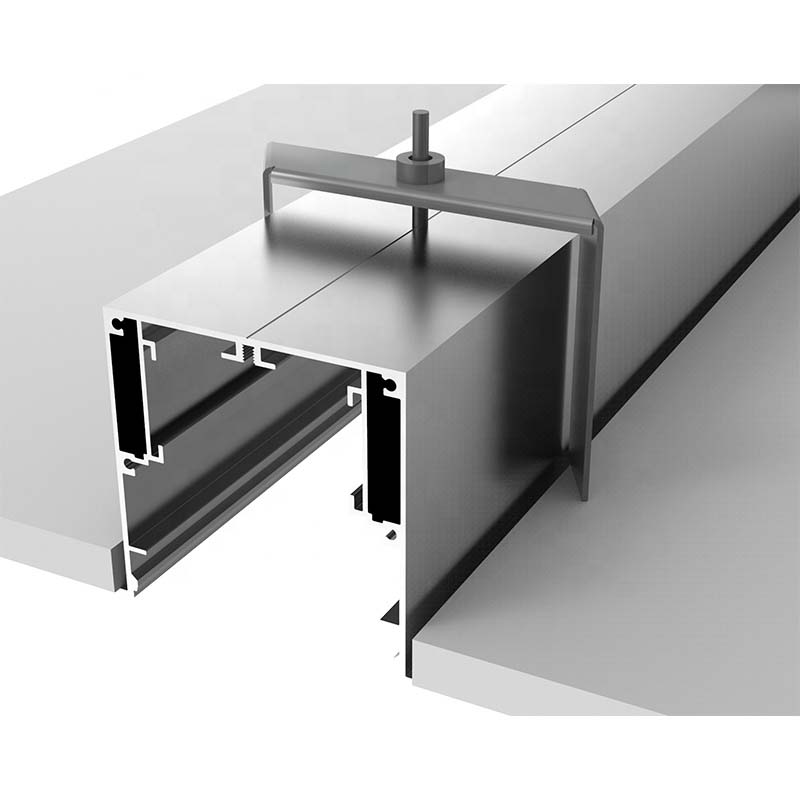

- Installation: Recessed
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:

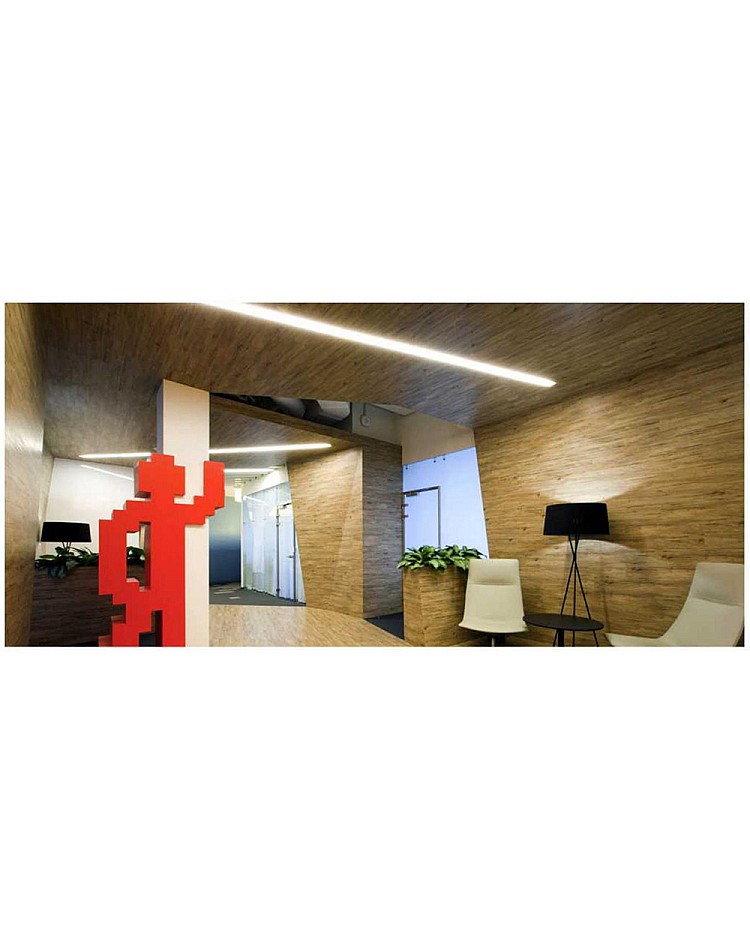

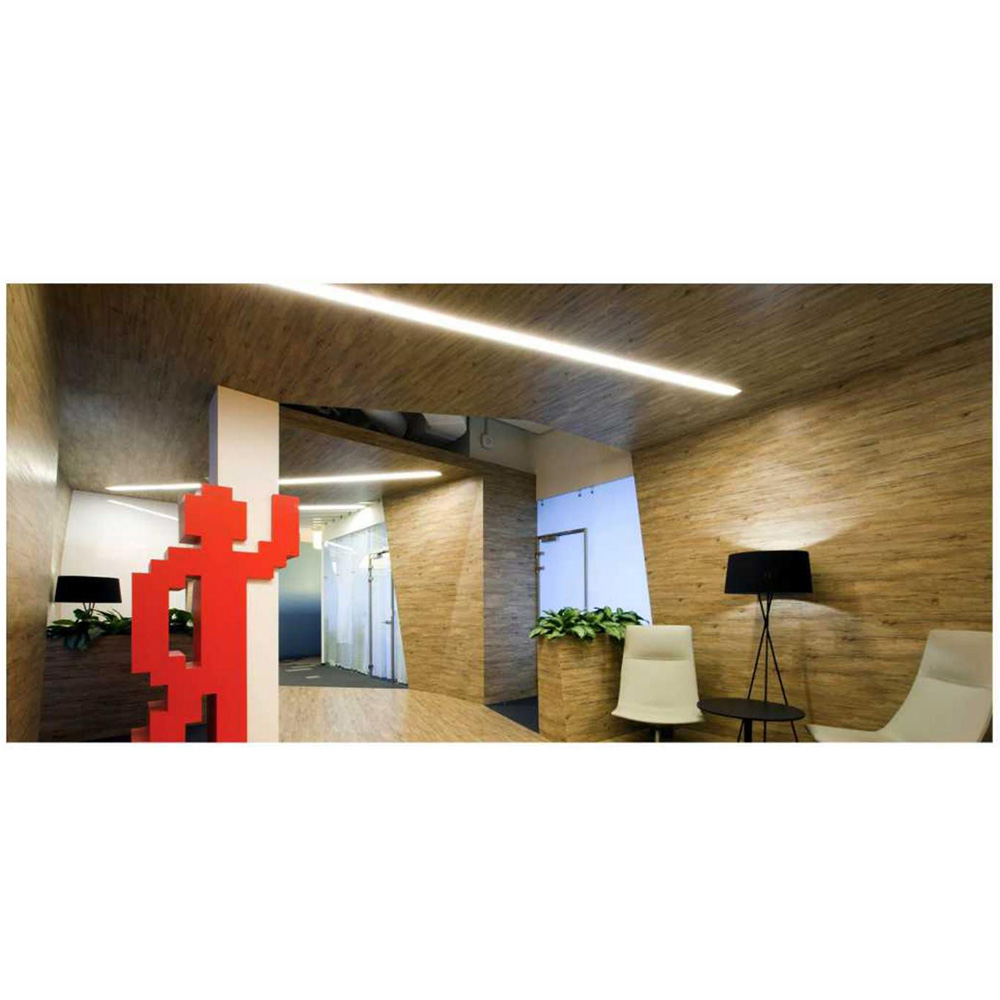

- Architectural lighting: Continuous, sleek linear light lines in ceilings and walls.
- Commercial spaces: office lighting, conference rooms, showrooms, and retail stores.
- Residential lighting: Living rooms, kitchens, hallways, and home.
- Hospitality and public areas: Enhances ambiance with soft diffused light in hotels, restaurants, lounges, lobbies, and galleries.
- Custom linear fixtures: Can be used as recessed ceiling lights
- Large-area lighting: Suitable for wide LED light modules with high brightness.

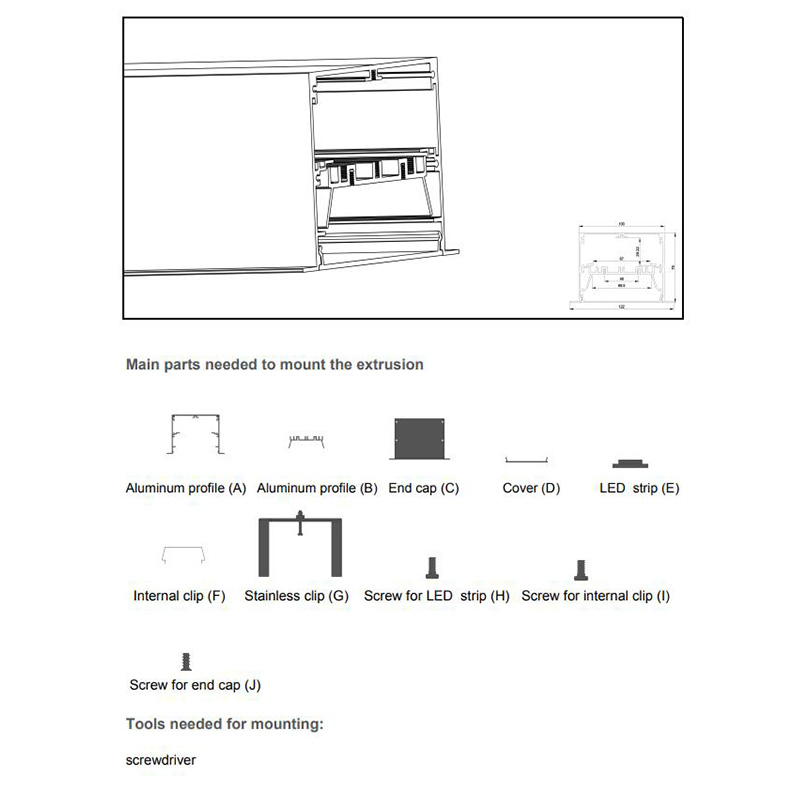

Includes:
1 * Wide ceiling light LED channel with diffuser

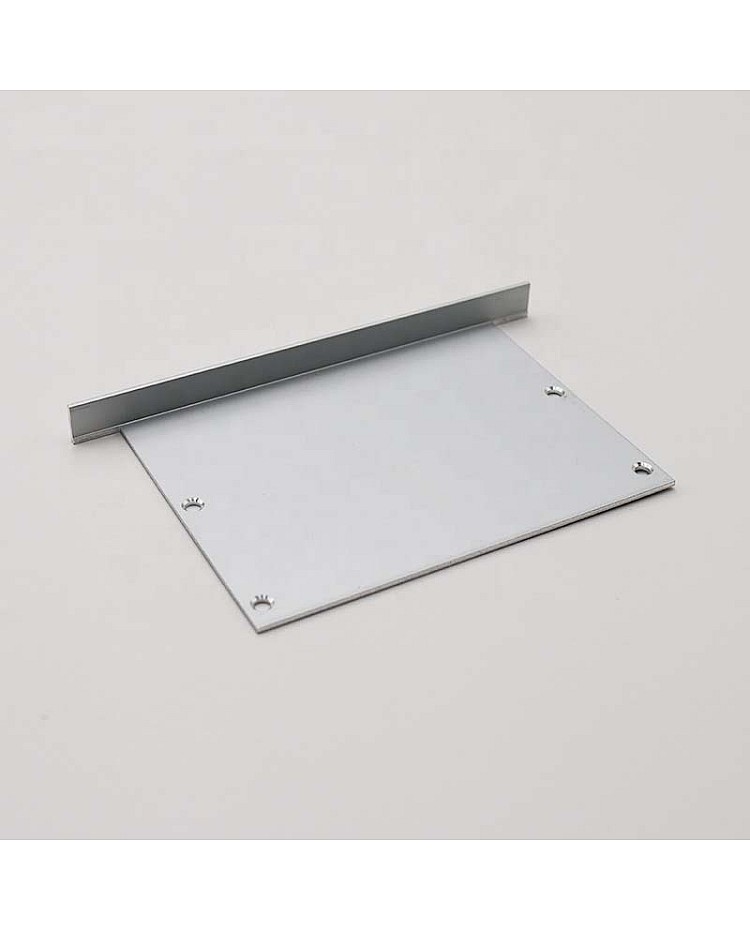

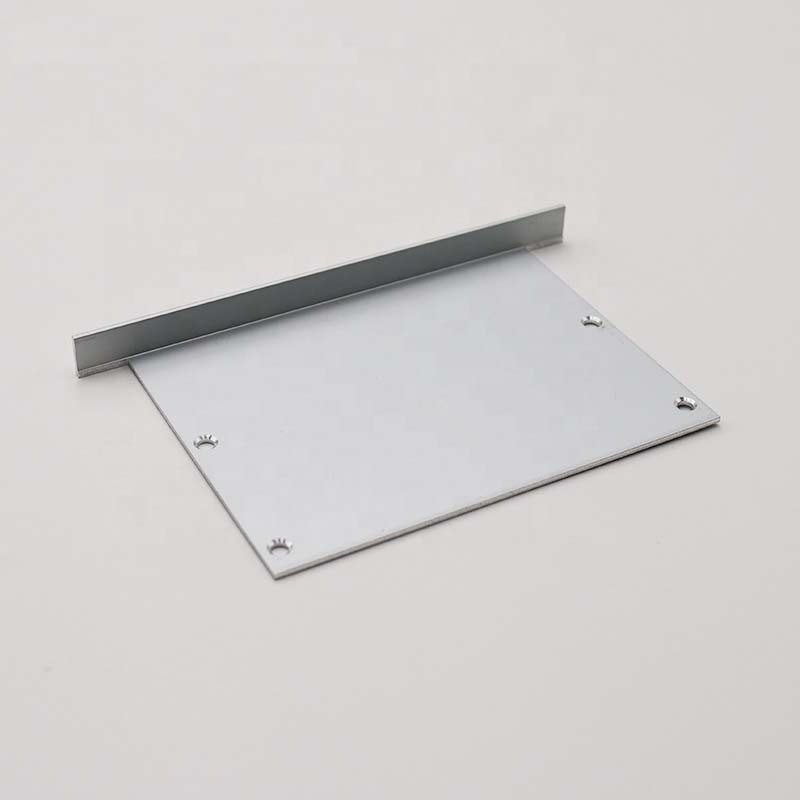

End caps
Internal clips

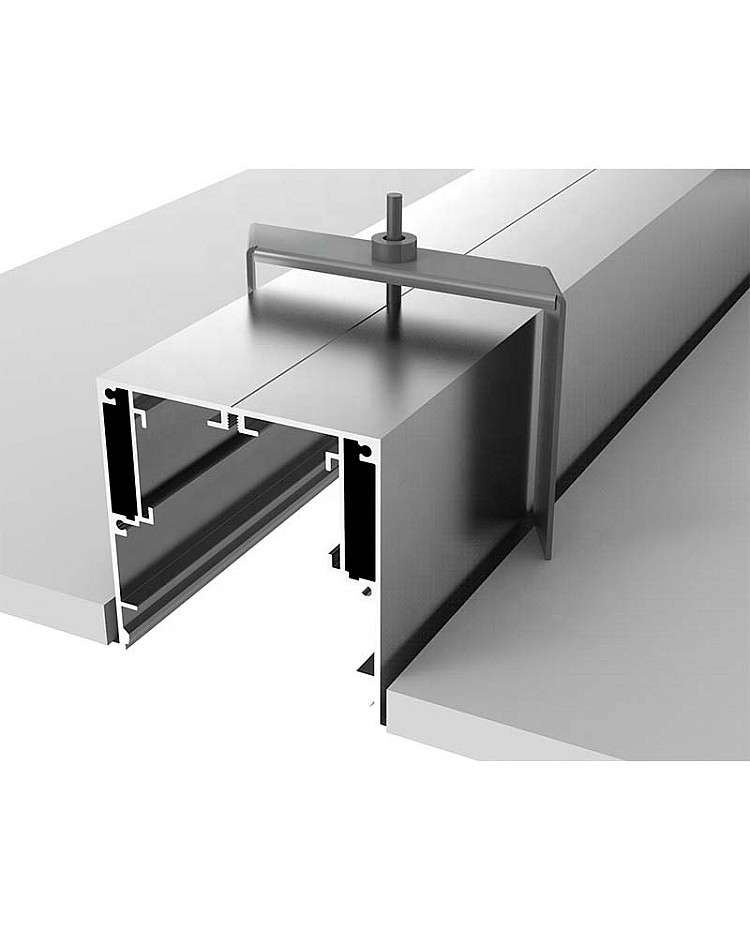

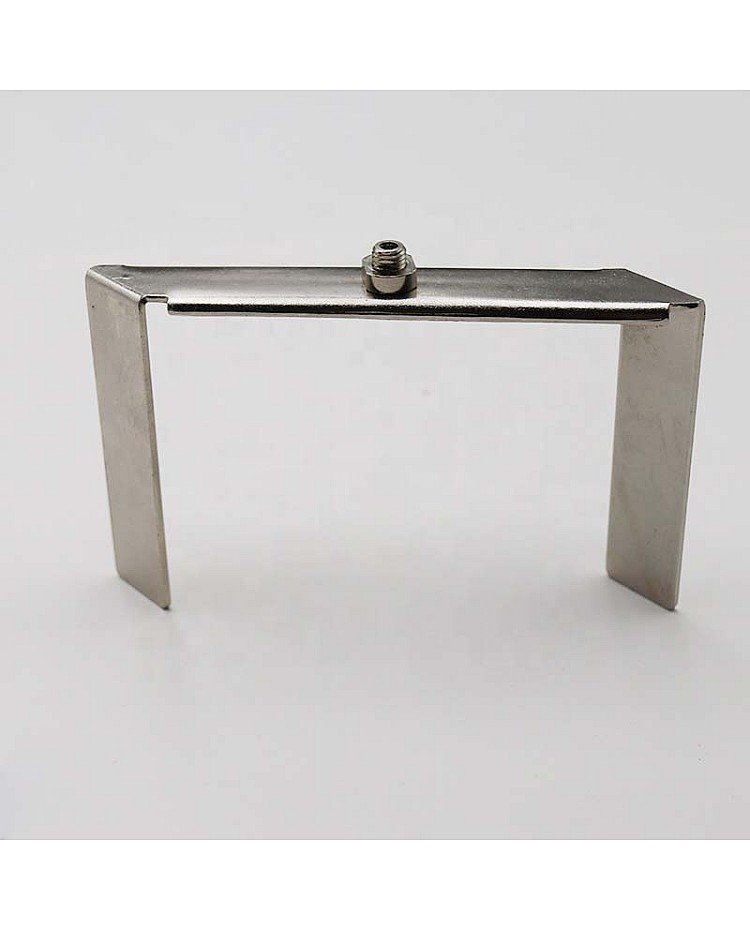

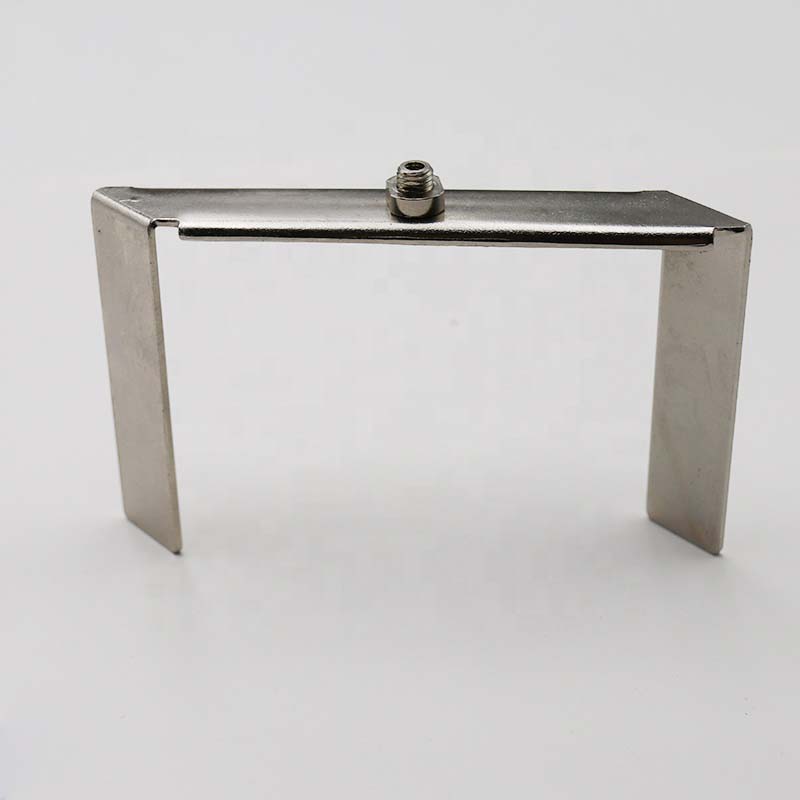

Mounting brackets
